Hitachi ZW65 75 95 Wheel Loader Workshop + Technical + Electrical-Hydraulic Circuit Manual – PDF Download

Description

Hitachi ZW65 75 95 Wheel Loader Workshop + Technical + Electrical-Hydraulic Circuit Manual

FILE DETAILS:

Hitachi ZW65 75 95 Wheel Loader Workshop + Technical + Electrical-Hydraulic Circuit Manual

This Listing includes all of the manuals mentioned below:

1. Hitachi ZW65 75 95 Wheel Loader Workshop Manual
2. Hitachi ZW65 75 95 Wheel Loader Technical Manual
3. Hitachi ZW65 75 95 Wheel Loader Electrical-Hydraulic Circuit Diagram

HITACHI ZW65 75 95 WHEEL LOADER WORKSHOP + TECHNICAL + ELECTRICAL-HYDRAULIC CIRCUIT MANUAL – PDF DOWNLOAD:

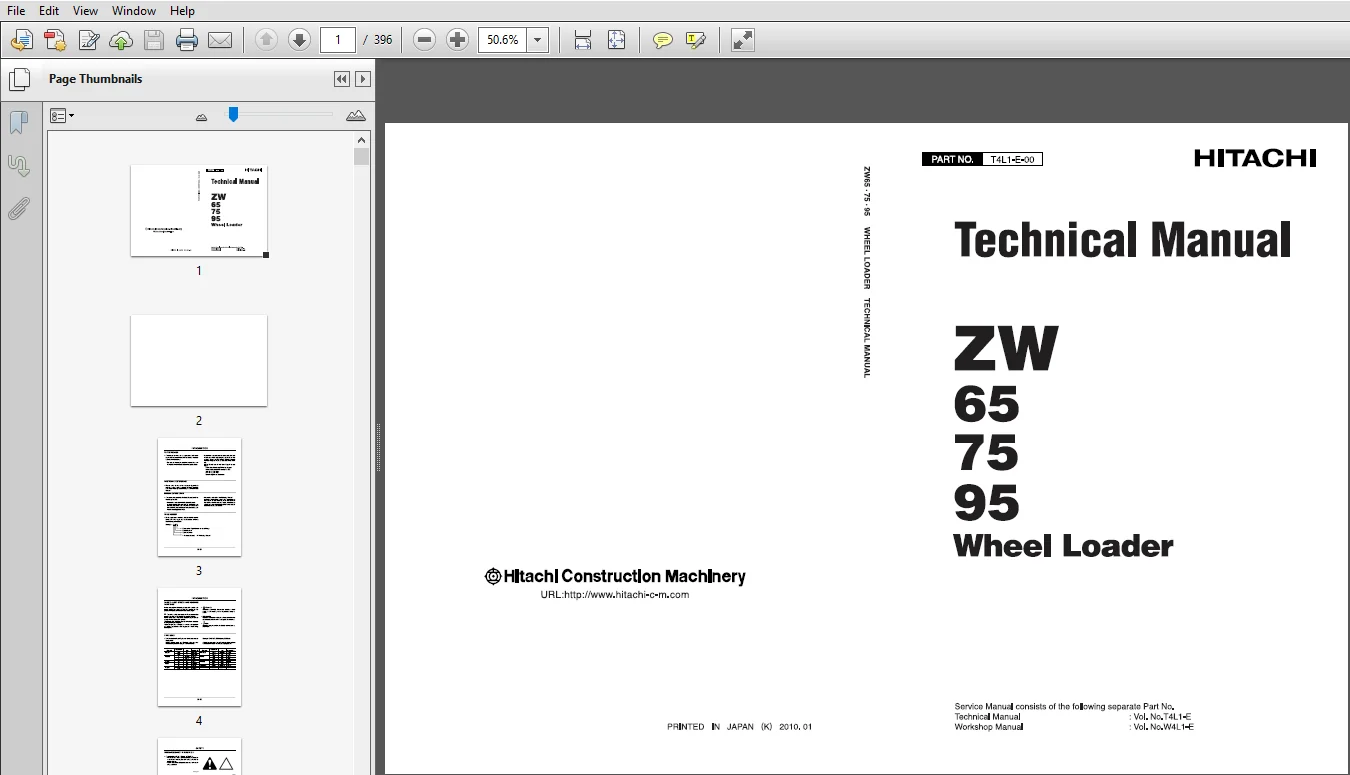

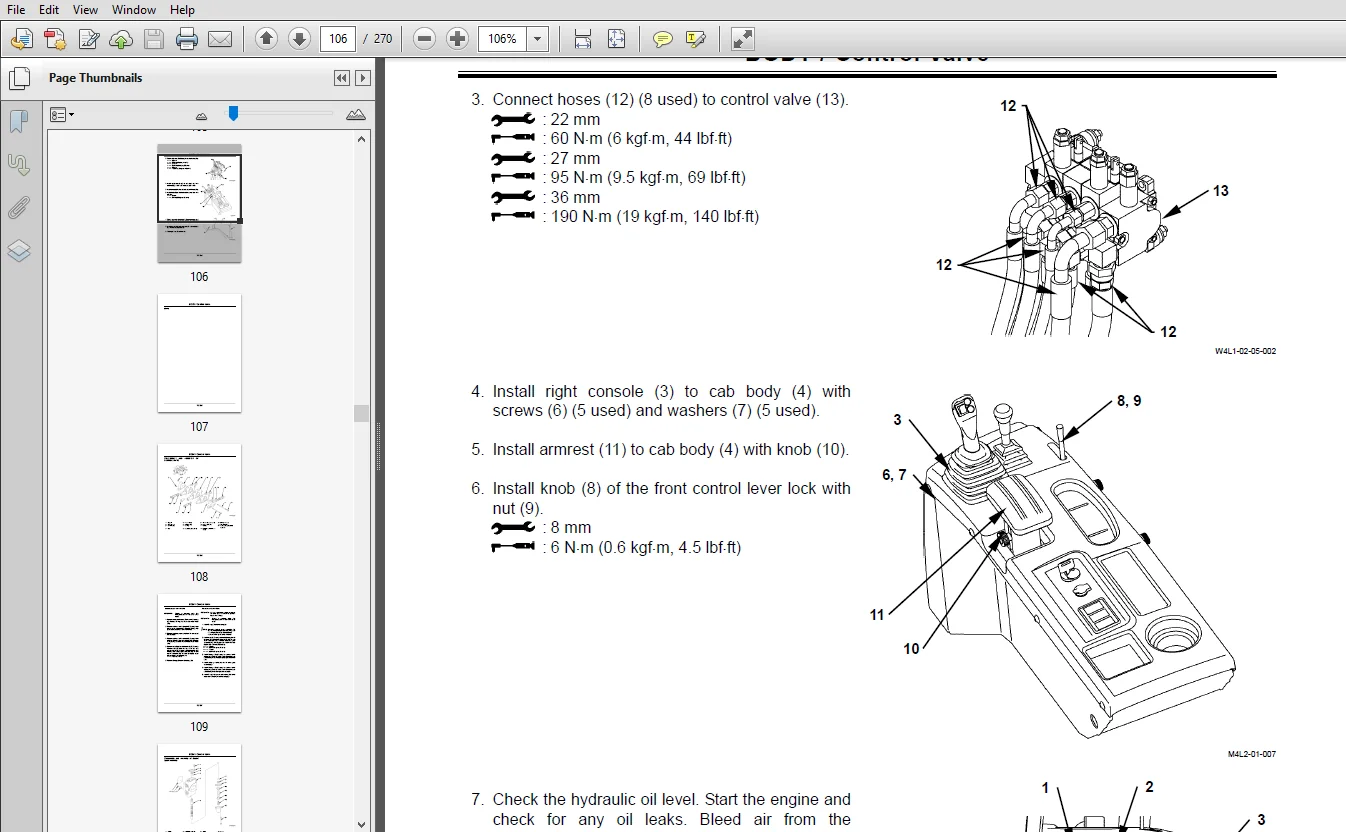

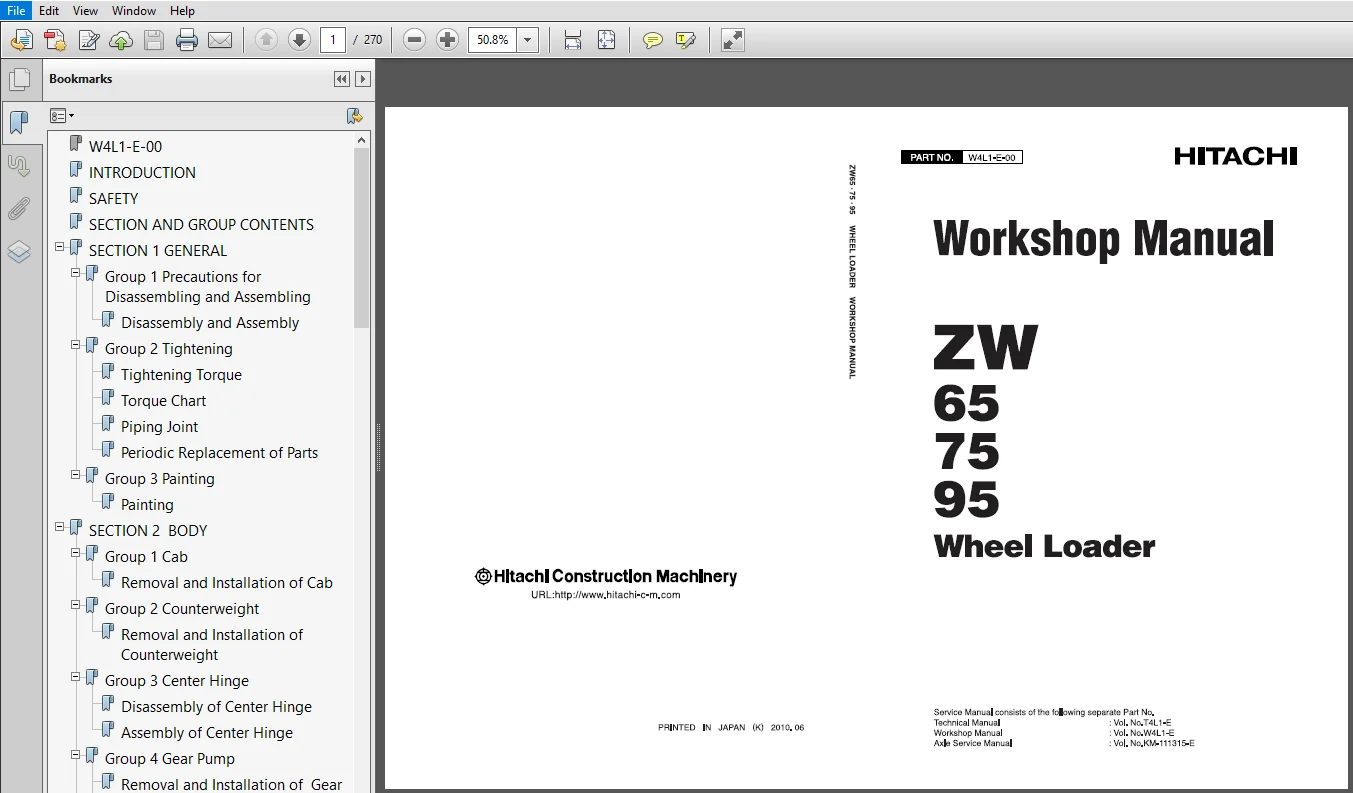

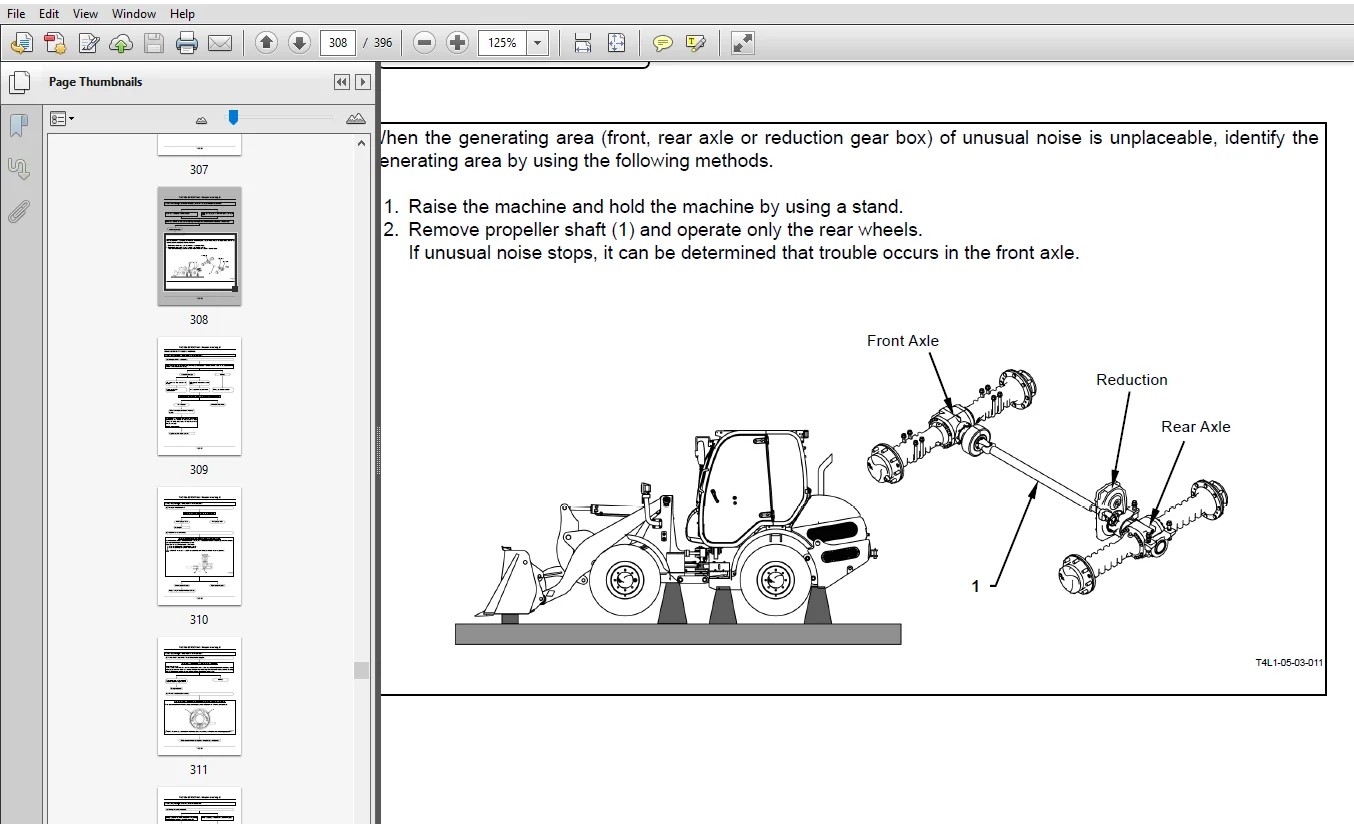

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

Hitachi ZW65 75 95 Wheel Loader Workshop + Technical + Electrical-Hydraulic Circuit Manual

• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.
• This manual consists the Technical Manual and the Workshop Manual.
• Information included in the Technical Manual: technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi ZW65 75 95 Wheel Loader Workshop Manual

SECTION 1 GENERAL
Group 1 Precautions for disassembling
and Assembling
Group 2 Tightening
Group 3 Painting
SECTION 2 BODY
Group 1 Cab
Group 2 Counterweight
Group 3 Center Hinge
Group 4 Gear Pump
Group 5 Control Valve
Group 6 Engine Hood
SECTION 3 TRAVEL SYSTEM
Group 1 Tire
Group 2 HST Pump
Group 3 HST Motor
Group 4 Axle
Group 5 Propeller Shaft
Group 6 Brake Master Cylinder
Group 7 Steering Valve
Group 8 Steering Cylinder
Group 9 Priority Valve
SECTION 4 ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder

Hitachi ZW65 75 95 Wheel Loader Technical Manual

SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Control System
Group 2 Hydraulic System
Group 3 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Priority Valve
Group 2 Control Valve
Group 3 Steering Valve
Group 4 HST Pump
Group 5 HST Motor
Group 6 Reduction
Group 7 Axle
Group 8 Brake Master Cylinder
Group 9 Others
SECTION 4 OPERATIONAL PERFORMANCE
TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Wheel Loader Test
Group 5 Component Test
Group 6 Adjustment
SECTION 5 TROUBLESHOOTING
Group 1 Diagnosing Procedure
Group 2 Troubleshooting B
Group 3 Troubleshooting C
Group 4 Electrical System Inspection

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
