Hitachi ZX 225US-5A 225USLC-5A Electrical – Hydraulic Circuit Diagram Manual – PDF DOWNLOAD
Original price was: $87.95.$9.95Current price is: $9.95.
Hitachi ZX 225US-5A 225USLC-5A Electrical – Hydraulic Circuit Diagram Manual
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hitachi ZX 225US-5A 225USLC-5A Electrical – Hydraulic Circuit Diagram Manual
FILE DETAILS:
Hitachi ZX 225US-5A 225USLC-5A Electrical – Hydraulic Circuit Diagram Manual
Language : English
Pages : 14
Downloadable : YES
Format : PDF
Size : 10.7 MB
TABLE OF CONTENTS:
Hitachi ZX 225US-5A 225USLC-5A Electrical – Hydraulic Circuit Diagram Manual
- ELECTRICAL CIRCUIT DIAGRAM
- CONNECTORS
- CAB HARNESS
- ENGINE HARNESS
- PUMP HARNESS
- MONITOR HARNESS
- GSM (MOBILE COMMUNICATION TERMINAL) HARNESS
- SATELLITE COMMUNICATION HARNESS
- KEY SWITCH HARNESS
- PILOT SHUT-OFF SOLENOID VALVE HARNESS
- REARVIEW CAMERA HARNESS
- HYDRAULIC CIRCUIT DIAGRAM (STANDARD)
- HYDRAULIC CIRCUIT DIAGRAM (OPTIONAL)
- HYDRAULIC CIRCUIT DIAGRAM (HRV)
HITACHI ZX 225US-5A 225USLC-5A ELECTRICAL – HYDRAULIC CIRCUIT DIAGRAM MANUAL – PDF DOWNLOAD:

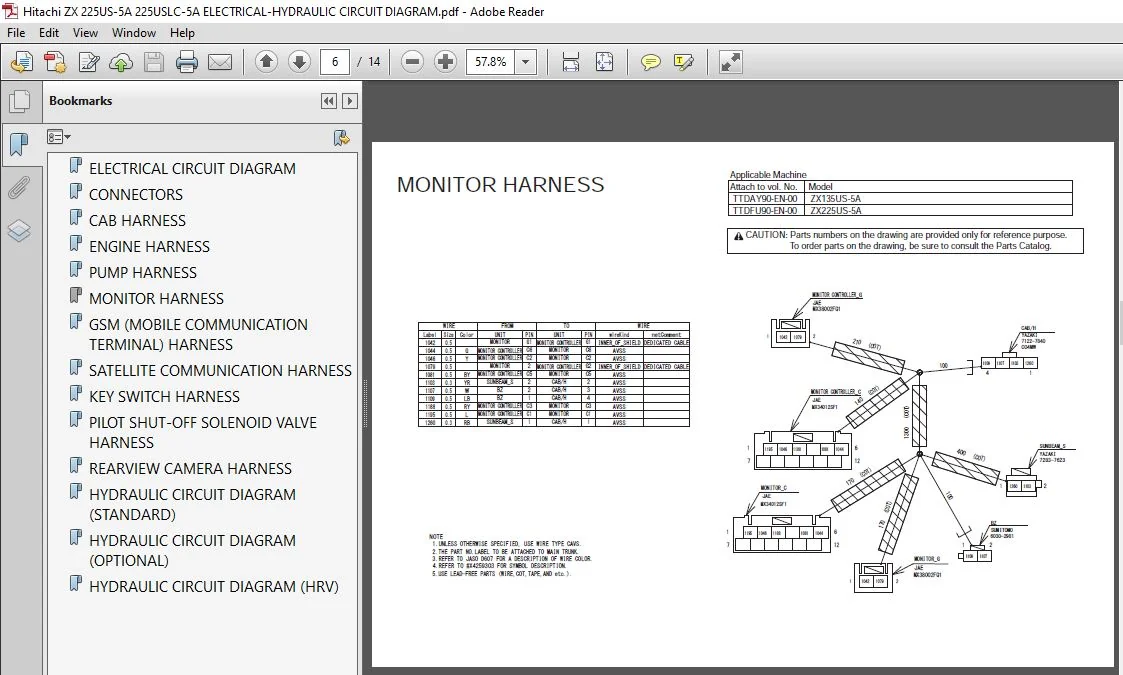

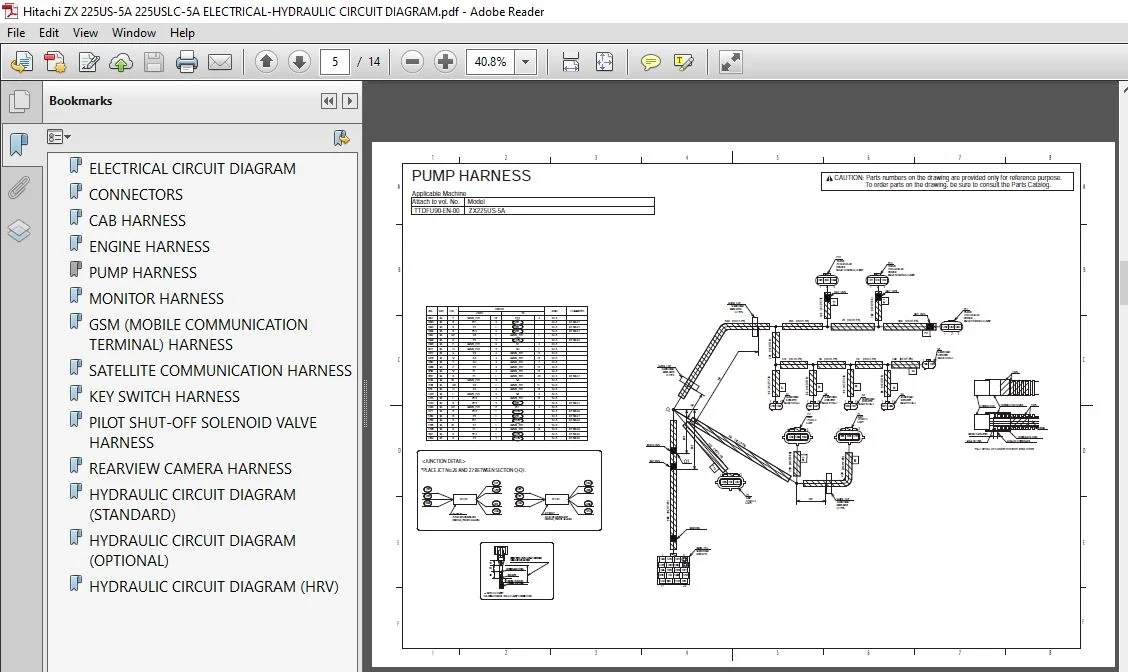

IMAGES PREVIEW OF THE MANUAL:
