Hitachi ZX135US-5B Hydraulic Excavator Electrical-Hydraulic Circuit Diagram – PDF Download

Description

Hitachi ZX135US-5B Hydraulic Excavator Electrical-Hydraulic Circuit Diagram

File Details:

Hitachi ZX135US-5B Hydraulic Excavator Electrical-Hydraulic Circuit Diagram

• Manual Language:English
• Downloadable :Yes
• Pages: 15
• Size: 4.62 MB
• Format:PDF

HITACHI ZX135US-5B HYDRAULIC EXCAVATOR ELECTRICAL-HYDRAULIC CIRCUIT DIAGRAM – PDF DOWNLOAD:

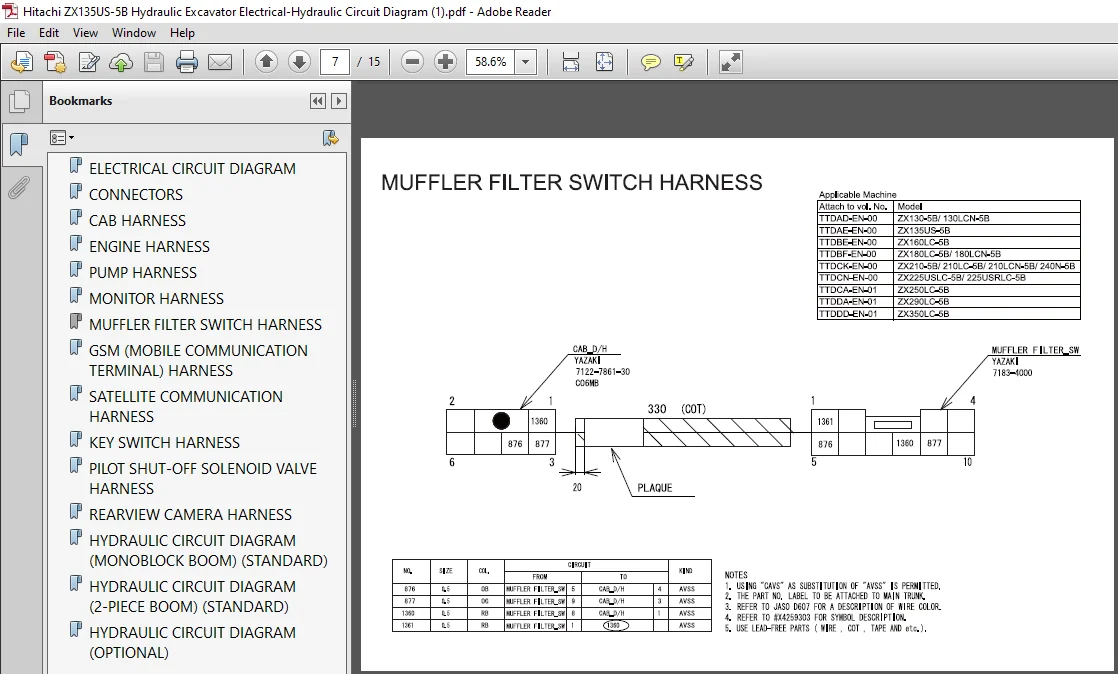

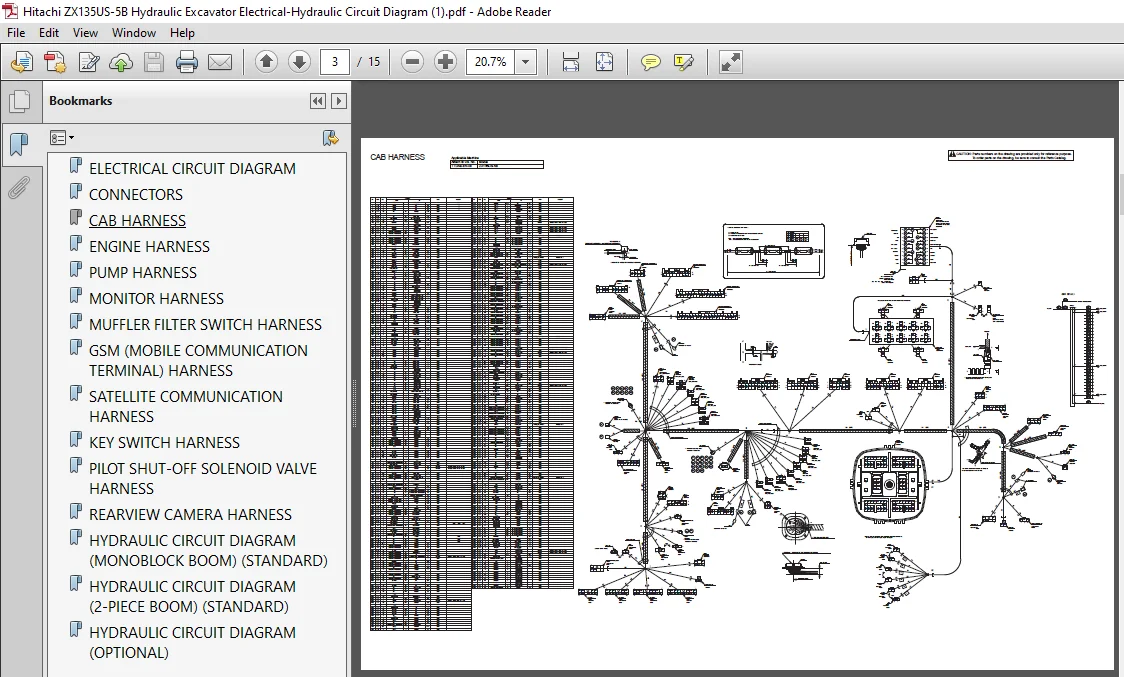

Image Preview:

Table Of Contents:

Hitachi ZX135US-5B Hydraulic Excavator Electrical-Hydraulic Circuit Diagram

ELECTRICAL CIRCUIT DIAGRAM............................... 1
CONNECTORS............................................... 2
CAB HARNESS.............................................. 3
ENGINE HARNESS........................................... 4
PUMP HARNESS............................................. 5
MONITOR HARNESS.......................................... 6
MUFFLER FILTER SWITCH HARNESS............................ 7
GSM (MOBILE COMMUNICATION TERMINAL) HARNESS.............. 8
SATELLITE COMMUNICATION HARNESS.......................... 9
KEY SWITCH HARNESS.......................................10
PILOT SHUT-OFF SOLENOID VALVE HARNESS....................11
REARVIEW CAMERA HARNESS..................................12
HYDRAULIC CIRCUIT DIAGRAM (MONOBLOCK BOOM) (STANDARD)....13
HYDRAULIC CIRCUIT DIAGRAM (2-PIECE BOOM) (STANDARD)......14
HYDRAULIC CIRCUIT DIAGRAM (OPTIONAL).....................15
