Hitachi ZX160LC-5G Hydraulic Excavator Technical Troubleshooting Manual – PDF DOWNLOAD

Description

Hitachi ZX160LC-5G Hydraulic Excavator Technical Troubleshooting Manual

FILE DETAILS:

Hitachi ZX160LC-5G Hydraulic Excavator Technical Troubleshooting Manual

Language : English
Pages : 440
Downloadable : YES
Format : PDF
Size : 6.41 MB
Part No : TTDBG-EN-00

DESCRIPTION:

Hitachi ZX160LC-5G Hydraulic Excavator Technical Troubleshooting Manual

INTRODUCTION:

TO THE READER:
• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.

ADDITIONAL REFERENCES:

• Please refer to the materials listed below in addition to this manual.
• The Operator’s Manual
• The Parts Catalog
• The Engine Manual
• Parts Catalog of the Engine
• Hitachi Training Material

MANUAL COMPOSITION:
• This manual consists of three portions: the Technical Manual (Operational Principle), the Technical Manual (Troubleshooting) and the Workshop Manual.
• Information included in the Technical Manual (Operational Principle): technical information needed for redelivery and delivery, operation and activation of all devices and systems.
• Information included in the Technical Manual (Troubleshooting): technical information needed for operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi ZX160LC-5G Hydraulic Excavator Technical Troubleshooting Manual

SECTION 4 OPERATIONAL
PERFORMANCE TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Excavator Test
Group 5 Component Test
Group 6 Adjustment
SECTION 5 TROUBLESHOOTING
Group 1 Diagnosing Procedure
Group 2 Monitor
Group 3 e-Service
Group 4 Component Layout
Group 5 Troubleshooting A
Group 6 Troubleshooting B
Group 7 Air Conditioner

HITACHI ZX160LC-5G HYDRAULIC EXCAVATOR TECHNICAL TROUBLESHOOTING MANUAL – PDF DOWNLOAD:

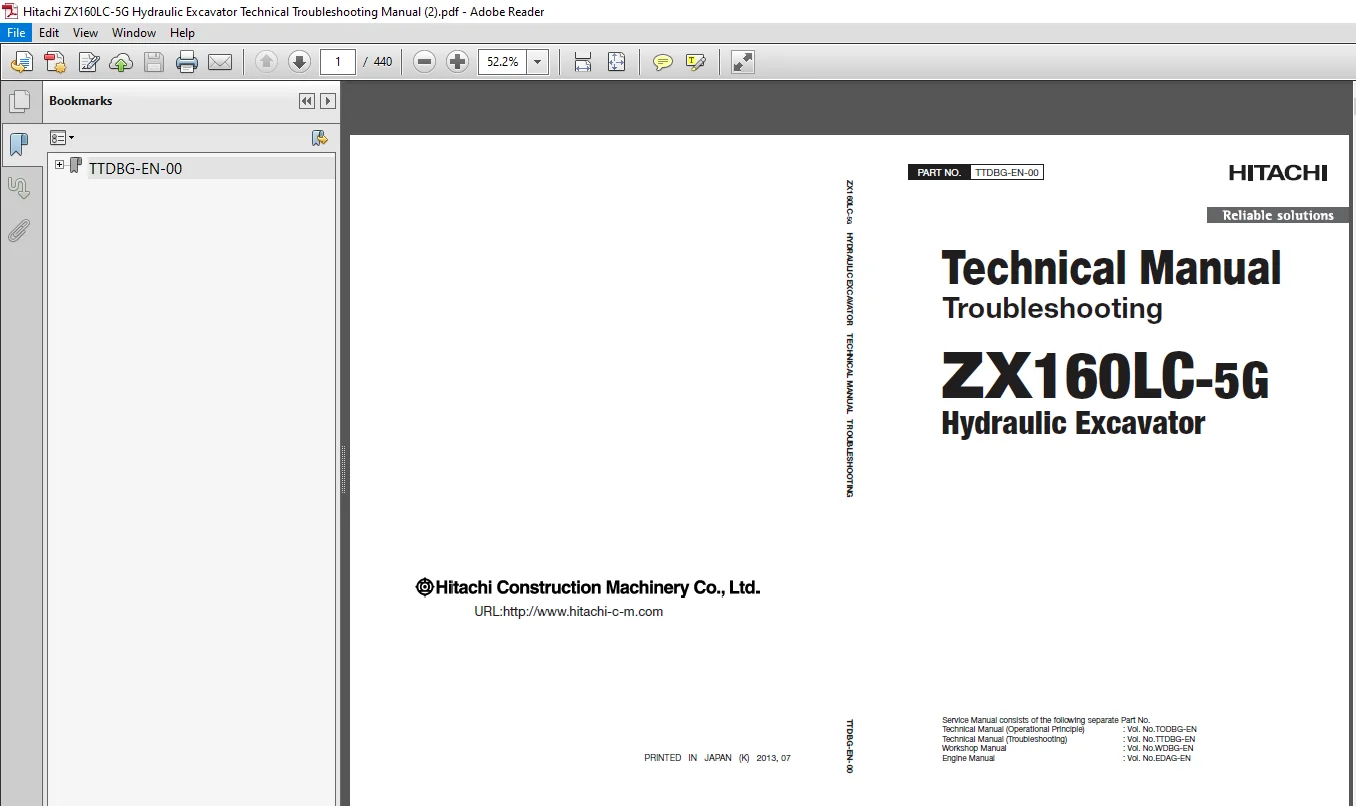

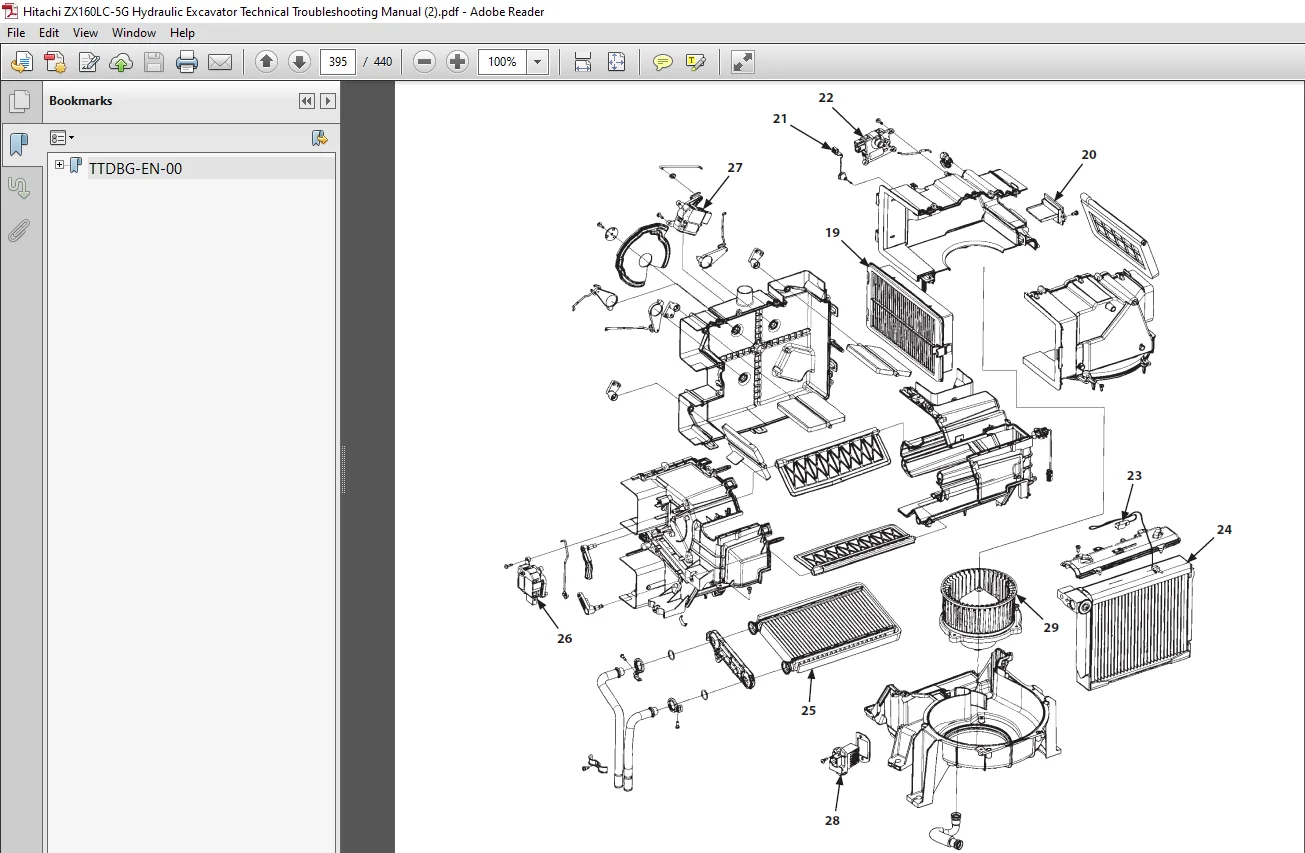

IMAGES PREVIEW OF THE MANUAL:
