Hitachi ZX330-5G ZX350-5G Series Hydraulic Excavator Operational Principle Technical Manual

Description

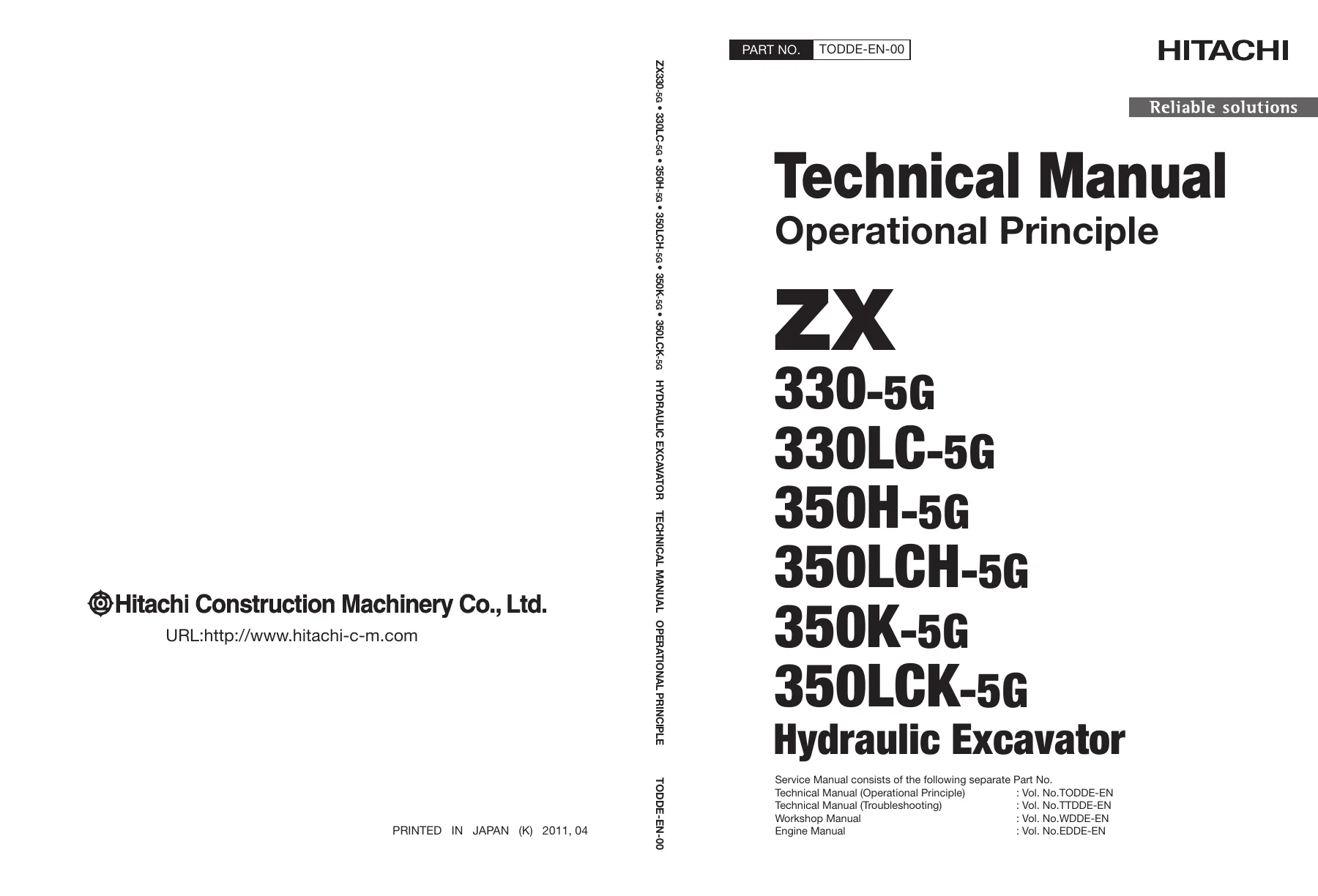

Hitachi ZX330-5G ZX350-5G Series Hydraulic Excavator Operational Principle Technical Manual

This Hitachi ZX330-5G ZX350-5G Series Hydraulic Excavator Operational Principle Technical Manual (document TODDE-EN) delivers the complete system-level operational theory behind the ZX330-5G, ZX330LC-5G, ZX350H-5G, ZX350LCH-5G, ZX350K-5G, and ZX350LCK-5G hydraulic excavators. Where a workshop manual tells you which bolts to remove, this Operational Principle manual explains how and why every major system works — the control logic, hydraulic flow paths, electrical circuits, and component interactions that drive these machines. It is written for experienced technicians who need to understand machine behaviour before diagnosing faults, adjusting systems, or performing repairs.

File Details

• Manual type: Technical Manual (Operational Principle)
• Document number: TODDE-EN
• Brand: Hitachi Construction Machinery
• Models covered: ZX330-5G, ZX330LC-5G, ZX350H-5G, ZX350LCH-5G, ZX350K-5G, ZX350LCK-5G
• Engine covered: ISUZU AA-6HK1X
• Language: English
• File format: PDF
• Page count: 354 pages

Chapters Covered

• Section 1 — General

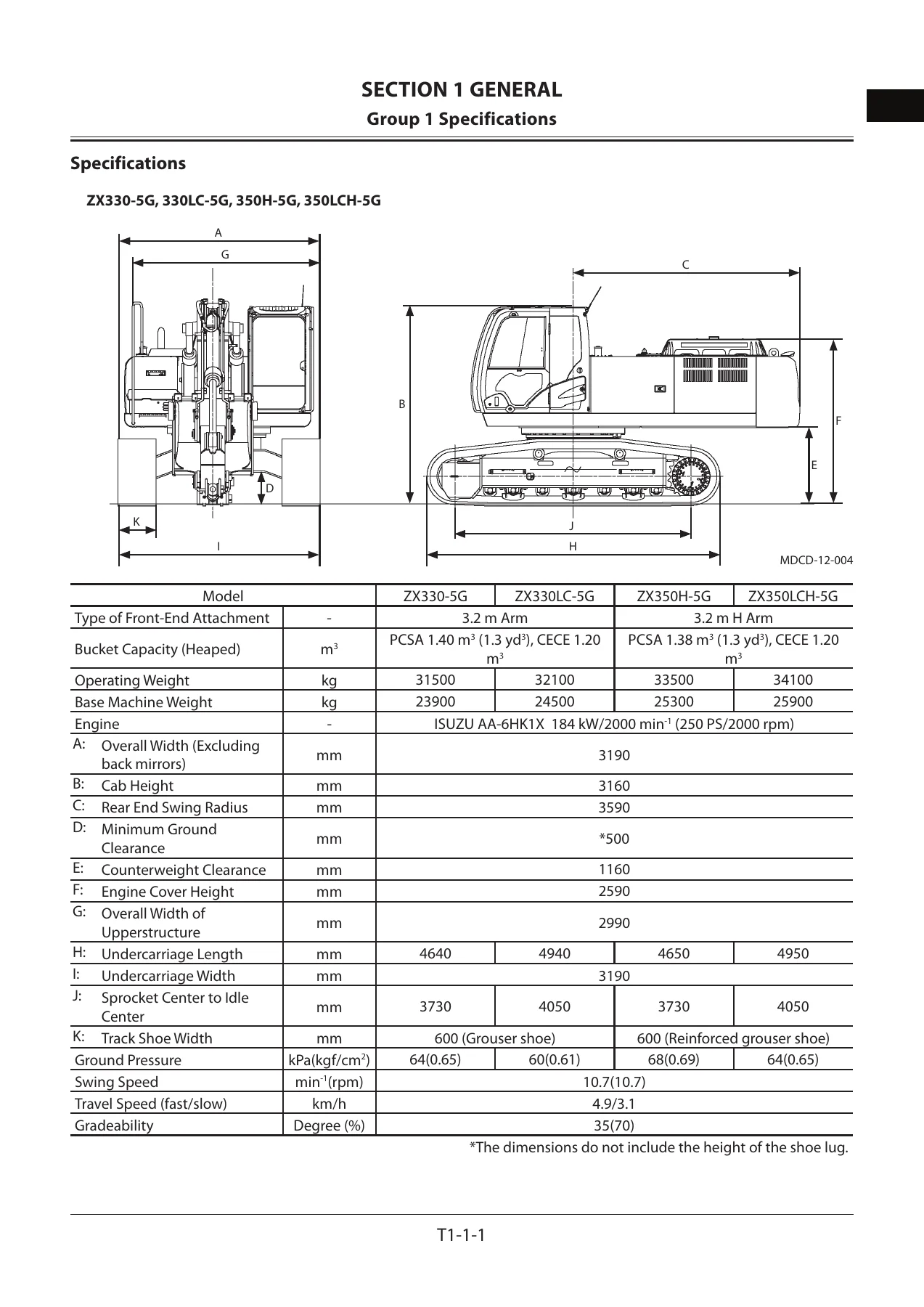

  • Group 1: Specifications (ZX330-5G, ZX330LC-5G, ZX350H-5G, ZX350LCH-5G, ZX350K-5G, ZX350LCK-5G dimensions, operating weights, bucket capacities, ground pressure, swing and travel speeds, gradeability)
  • Group 2: Component Layout (electrical system overview, in-cab, rear tray, switch panel, around air cleaner, relays, engine, pump device, control valve, signal control valve, swing device, travel device, 3-spool solenoid valve unit, attachment spec parts)
  • Group 3: Component Specifications (engine, engine accessories, hydraulic components, electrical components)
• Section 2 — System
  • Group 1: Controller (MC, ECF, monitor controller, wiper/light controller, air conditioner controller, radio controller, communication controller)
  • Group 2: Control System (engine control dial, ECO control, power mode control, ECO mode control, travel HP mode control, auto-idle control, hydraulic oil temperature auto-warming up, idle speed-up, engine starting idle speed-up, attachment operation speed limit; pump control including speed sensing, hydraulic oil temperature pump torque decrease, travel torque-up, attachment pump torque decrease, pump flow rate limit; valve control including power digging, auto-power lift, travel motor displacement angle, arm regenerative, digging regenerative, breaker and pulverizer/crusher controls; work mode, breaker alarm, swing alarm, travel alarm)
  • Group 3: Hydraulic System (pilot circuit, operation control, pump control, valve control, travel motor displacement angle control, swing parking brake release; main circuit)
  • Group 4: Electrical System (electric power circuit key switch OFF/ACC/ON/START, CAN circuit, monitor circuit, security circuit, radio circuit, air conditioner circuit, work light, wiper/washer, cab light circuits)
• Section 3 — Component Operation

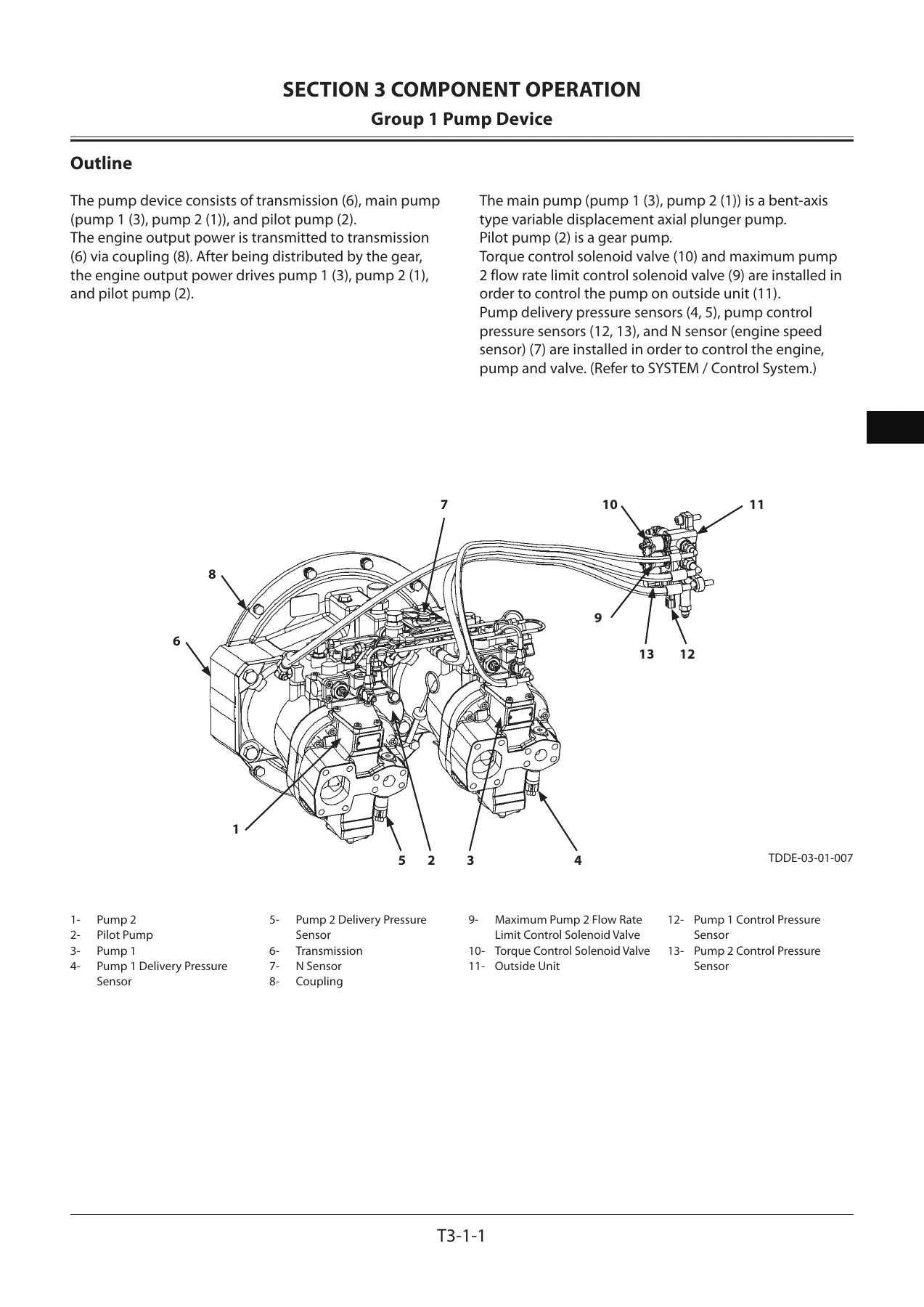

  • Group 1: Pump Device (main pump, regulator, solenoid valve, pilot pump, pump delivery and control pressure sensors, N sensor)
  • Group 2: Swing Device (swing reduction gear, swing motor, swing parking brake, valve unit)
  • Group 3: Control Valve (hydraulic circuit, flow combiner valve, main relief valve, overload relief valve with make-up function, regenerative valve, anti-drift valve, flow rate control valve, digging regenerative valve, boom lower meter-in cut valve, auxiliary flow combiner valve and bypass shut-out valve)
  • Group 4: Pilot Valve (front attachment/swing pilot valve, travel pilot valve, auxiliary pilot valve, shockless function for travel pilot valve)
  • Group 5: Travel Device (travel reduction gear, travel motor, parking brake, travel brake valve, overload relief valve, travel mode control)
  • Group 6: Signal Control Valve (pilot ports, shuttle valve, shockless valve, pump 1 and 2 flow rate control valves, bucket flow rate control valve control spool, flow combiner valve control spool, swing parking brake release spool, arm 1 flow rate control valve control spool)
  • Group 7: Others (Upperstructure) (pilot shut-off solenoid valve, solenoid valve, pilot relief valve, EC motor, hose rupture valve)
  • Group 8: Others (Undercarriage) (swing bearing, center joint, track adjuster front idler integrated type)

Taken as a whole, this Hitachi ZX330-5G ZX350-5G Series Operational Principle Technical Manual gives a technician a complete conceptual map of the machine. Every control decision made by the Main Controller (MC) and Engine Controller (ECF) is explained — from engine control dial signals and CAN communication to the torque control solenoid valve, pump regulators, and the hydraulic spools they move. Rather than simply listing what each component is, the manual walks through the operating sequence: what happens when a control lever is moved, how pilot pressure shifts a spool, how return oil is routed, and how regenerative or flow-combining circuits change machine behaviour under load. This is the layer of understanding that separates a parts-swapper from a diagnostician.

Systems and Components Covered in Depth

The Hitachi ZX330-5G ZX350-5G Series Hydraulic Excavator Operational Principle Technical Manual opens with a full specification and component layout section covering all six model variants and the ISUZU AA-6HK1X engine, then moves into the control architecture. The control system chapters are unusually detailed, covering engine control dial management, ECO and power mode selection, auto-idle, auto-warming up, idle speed-up, and the attachment operation speed limit function. Pump control is covered in full: speed sensing control, hydraulic oil temperature pump torque decrease, travel torque-up, attachment pump torque decrease, and pump flow rate limit control for both pump 1 and pump 2.

The valve control chapters explain power digging control, auto-power lift, travel motor displacement angle control, arm regenerative control, digging regenerative control, and the various attachment control modes for breakers, pulverizers, crushers, and other optional equipment. The hydraulic system section covers the pilot circuit in full — operation control, pump control, valve control, travel motor displacement angle control, and swing parking brake release circuits — followed by the main circuit and its distribution through the control valve.

The electrical system is equally well documented, covering the electric power circuit at each key switch position, the CAN 0 and CAN 1 networks with their 120 ohm termination resistors, the monitor circuit, security circuit, radio circuit, air conditioner circuit, work light, wiper/washer, and cab light circuits. The component operation section then dissects each major assembly: the main pump with its bent-axis variable displacement axial plunger design, the regulator with its spring, sleeve, spool, piston, load piston, inner and outer springs and servo piston arrangement, the swing motor and swing parking brake, the control valve with its main relief, overload relief, flow combiner, anti-drift, regenerative, digging regenerative and flow rate control valves, the pilot valves for front attachment, swing, travel and auxiliary, the travel device with its three-stage planetary reduction gear and travel brake valve, and the signal control valve with its shuttle, shockless, pump flow rate control and brake release spools.

What This Manual Enables You to Do

With the Hitachi ZX330-5G ZX350-5G Series Hydraulic Excavator Operational Principle Technical Manual on hand, a technician can trace hydraulic flow through the main circuit and pilot circuit, understand exactly when and why the MC commands a solenoid valve, interpret pump regulator behaviour under varying load and temperature, diagnose engine speed control faults by following the CAN signal chain, verify travel mode selection logic, understand arm and digging regenerative operation, and confirm how relief pressures are set and increased. This is the knowledge base required before adjusting pump regulators, troubleshooting control valve restrictions, diagnosing swing or travel brake release problems, or interpreting monitor alarms.

Get Instant Access to the Operational Principle Technical Manual

IMAGES PREVIEW

This Hitachi ZX330-5G ZX350-5G Series Hydraulic Excavator Operational Principle Technical Manual is delivered as an instant PDF download — no shipping, no waiting, no physical media. Open it on any laptop, tablet, or smartphone in the workshop, print the sections you need for reference at the machine, and keep the complete 354-page document on file for the life of the excavator. Correct procedures and a proper understanding of system operation are what prevent misdiagnosis, unnecessary parts replacement, and costly downtime. Whether you maintain a single ZX330-5G or a fleet of ZX350LCK-5G machines, this manual gives you the technical depth to work confidently on the engine, pump, control valve, swing, travel, and electrical systems of these Hitachi excavators.
