Introduction

• This service manual describes the service procedures for \ r’·• the MAGNA VF750C/CD. This Model Specific Manual includes every service procedure that is of a specific nature to this particular model. Basic service procedures that are common to other Honda Motorcycle/Motor Scooter/ATVs are covered in the Common Service Manual. This Model Specific Service Manual should be used together with the Common Service Manual in order to provide complete service information on all aspects of this motorcycle.
• Follow the Maintenance Schedule (Section 3) recommendations to ensure that the vehicle is in peak operating condition and the emission levels are within the standards set by the U.S. Environmental Protection Agency and the California Air Resources Board. Performing the first scheduled maintenance is very important. It compensates for the initial wear that occurs during the break-in period. Sections 1 and 3 apply to the whole motorcycle. Section 2 illustrates procedures for removal/installation of components that may be required to perform service described in the following sections.
• Sections 4 through 19 describe parts of the motorcycle, grouped according to location. Find the section you want on this page, then turn to the table of contents on the first page of the section. Most sections describe the service procedure through system illustration. Refer to the next page for details on how to use this manual. If you are not familiar with this motorcycle, read Technical Feature in section 20. If you don’t know the source of the trouble, go to section 21 Troubleshooting.
• All information, illustrations, directions and specifications included in this publication are based on the latest product information available at the time of approval for printing. Honda Motor Co., LTD. reserves the right to make changes at any time without notice and without incurring any obligation whatever. No part of this publication may be reproduced without written for permission. This manual is written for persons who have acquired basic knowledge of maintenance on Honda motorcycles, motor scooters or ATVs.

How To Use This Manual

• Finding The Information You Need •
• This manual is ~ into sections which cover each of the major the-motorcycle.
• To quickly find the you are interested in, the first page of each ‘ is marked with a black tab that lines up with one of the thumb index tabs before this page. The first page of each section lists the table of contents within the section. Read the service information and related to the section before you begin working
• An index of the entire book is provided in the last chapter to directly locate the information you need.

Note On the Explanation Method Of This Manual

• The removal and installation of parts are for the most part illustrated by large and clear illustrations that should provide the reader with visual aid in understanding the major point for servicing.

• The system illustrations are augmented by call outs whose numbers or letters indicate the order in which the parts should be removed or installed.

• The sequence of steps represented numerically are differentiated from the ones represented alphabetically to notify the reader that they must perform these steps .

• The illustrations may contain symbols to indicate necessary service procedures and precautions that need to be taken. Refer to the next page for the meaning of each symbol.

• Also in the illustration is a chart that lists information such as the order in which the parts is removal/installed, the name of the part, and some extra notes that may needed.

• Step by step instructions are provided to supplement the illustrations when explanation of the procedure is necessary or illustrations alone would not suffice

• Service procedures required before or after the procedure described on that particular page, or inspection/adjustment procedures required following the installation of parts, are described under the title Requisite Service.

• Standard workshop procedures and knowledge covered in the Common Service Manual are abbreviated in this manual
TABLE OF CONTENTS:

Honda 750c Magna service Manual – PDF DOWNLOAD

General Information
Frame/Body Panels/Exhaust System
Maintenance
Lubrication System
Fuel System
Cooling System -~ Engine Removal/Installation – Cylinder HeadNalves ■:]
Clutch System -•]
Gearshift Linkage
Crankshaft/Piston/Transmission
Front Wheel/Suspension/Steering
Rear Wheel/Suspension
Brake System
Charging System/ Alternator
Ignition System
Electric Starter/Starter Clutch
Lights/Meters/Switches
Wiring Diagram
Technical Feature
Troubleshooting
Index
Need help? Contact: [email protected]

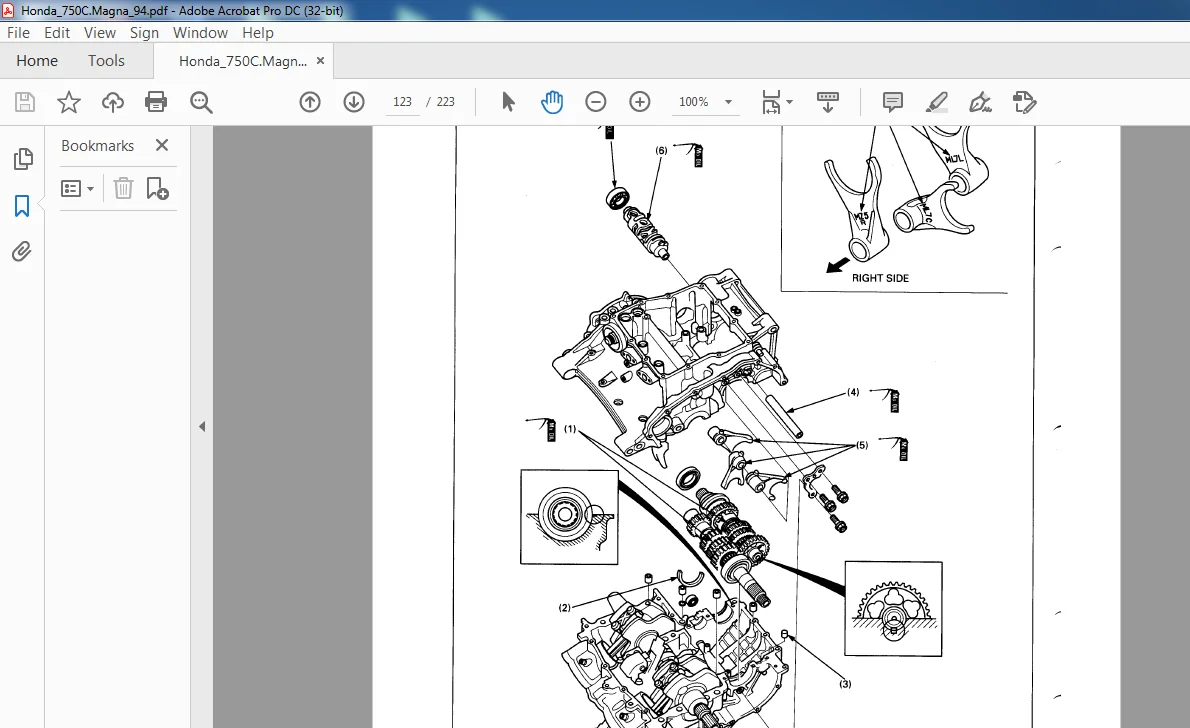

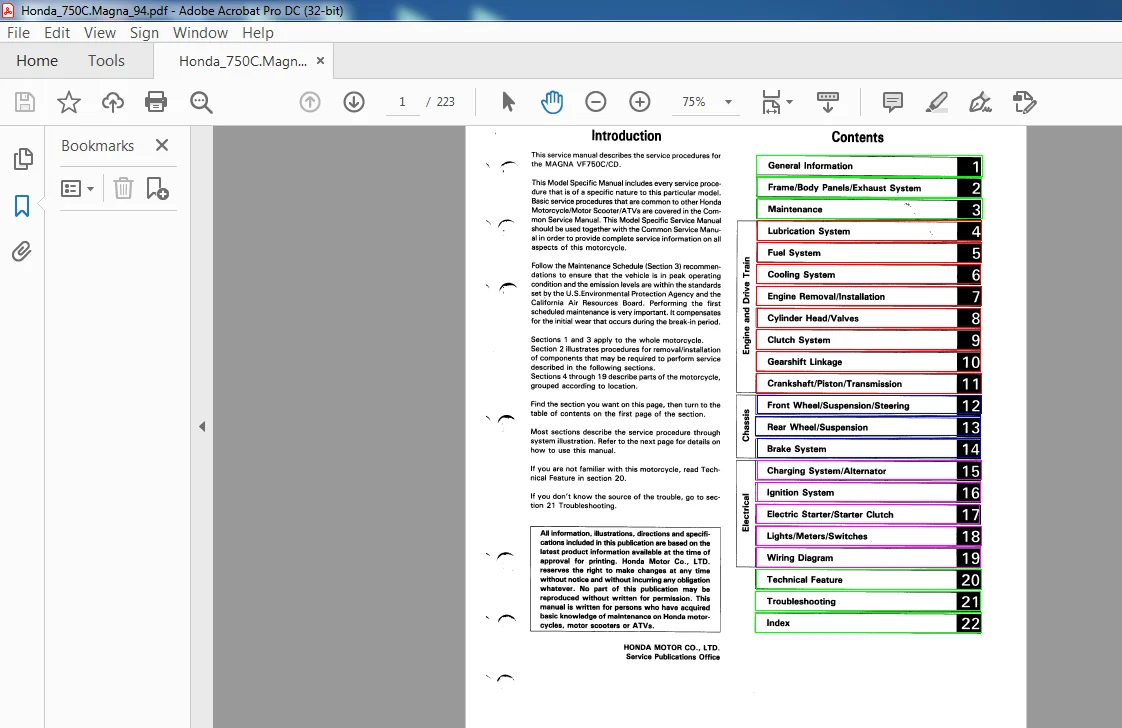

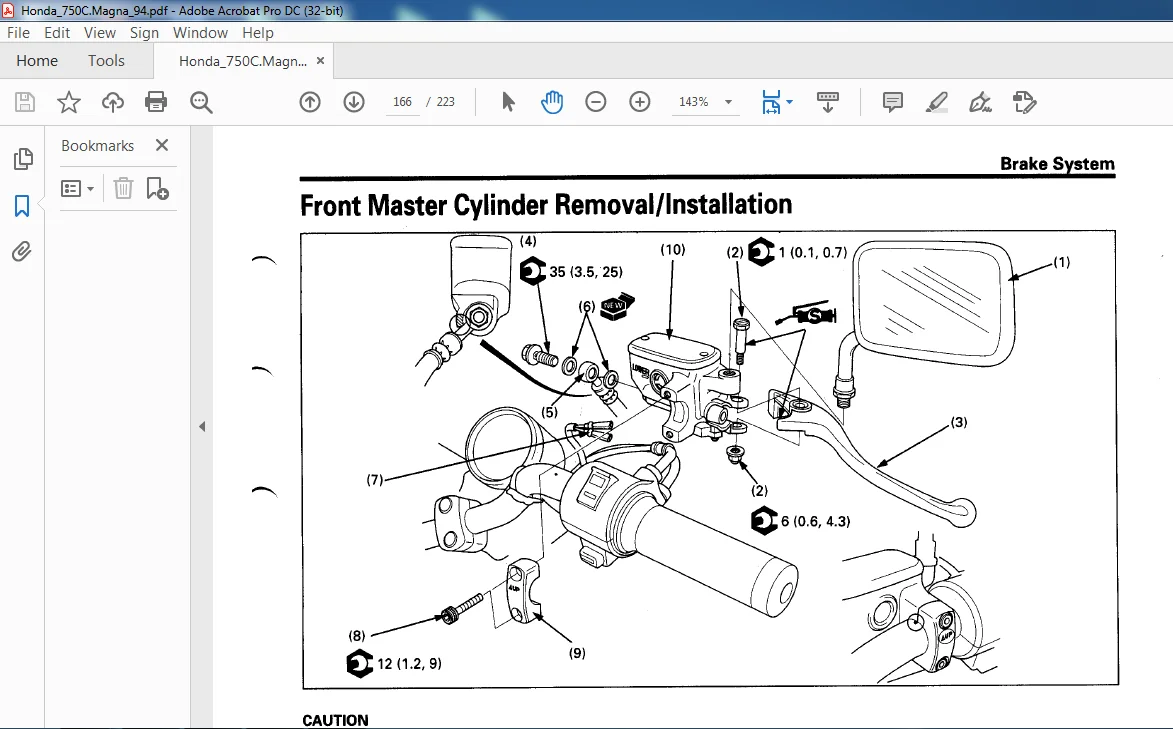

IMAGES PREVIEW OF THE MANUAL:
