Honda CB1300F CB1300 Shop Manual – Complete Workshop Repair Manual PDF

Description

Honda CB1300F / CB1300 Shop Manual – Complete Workshop Repair Reference

This Honda CB1300F CB1300 Shop Manual is the complete workshop reference for the 1,284 cc liquid-cooled inline-four Honda CB1300. It walks through every major system on the motorcycle – from the PGM-FI fuel injection and the four-cylinder engine through to the hydraulic clutch, the five-speed transmission, the linked brake hardware and the full electrical harness. Whether you are adjusting valve clearances, syncing the starter valves, rebuilding the front forks or chasing a malfunction indicator lamp, this CB1300 shop manual gives you the procedure, the torque figure and the service limit in one place.

The CB1300 is a big, torquey machine and it rewards correct servicing. This manual assumes you are working on the real bike – it includes the torque tables, the seal and lubricant points, and the cable and harness routing diagrams that let you put everything back exactly the way Honda intended. The CB1300 workshop manual format means every procedure is written as a sequence a technician can follow at the bench, with the tools, the clearances and the inspection steps that decide whether a component stays in service or gets replaced.

File Details

• Manual type: Shop Manual / Workshop Manual
• Brand: Honda
• Model: CB1300F / CB1300
• Language: English
• Page count: 518 pages
• File format: PDF
• Section codes used: E (European Direct Sales), ED (Europe), U.K. (Ireland), F (France), U (Australia)

Chapters Covered

• 1. General Information – service rules, model identification, general specifications, torque values, lubrication and seal points, cable and harness routing, emission control systems
• 2. Technical Feature

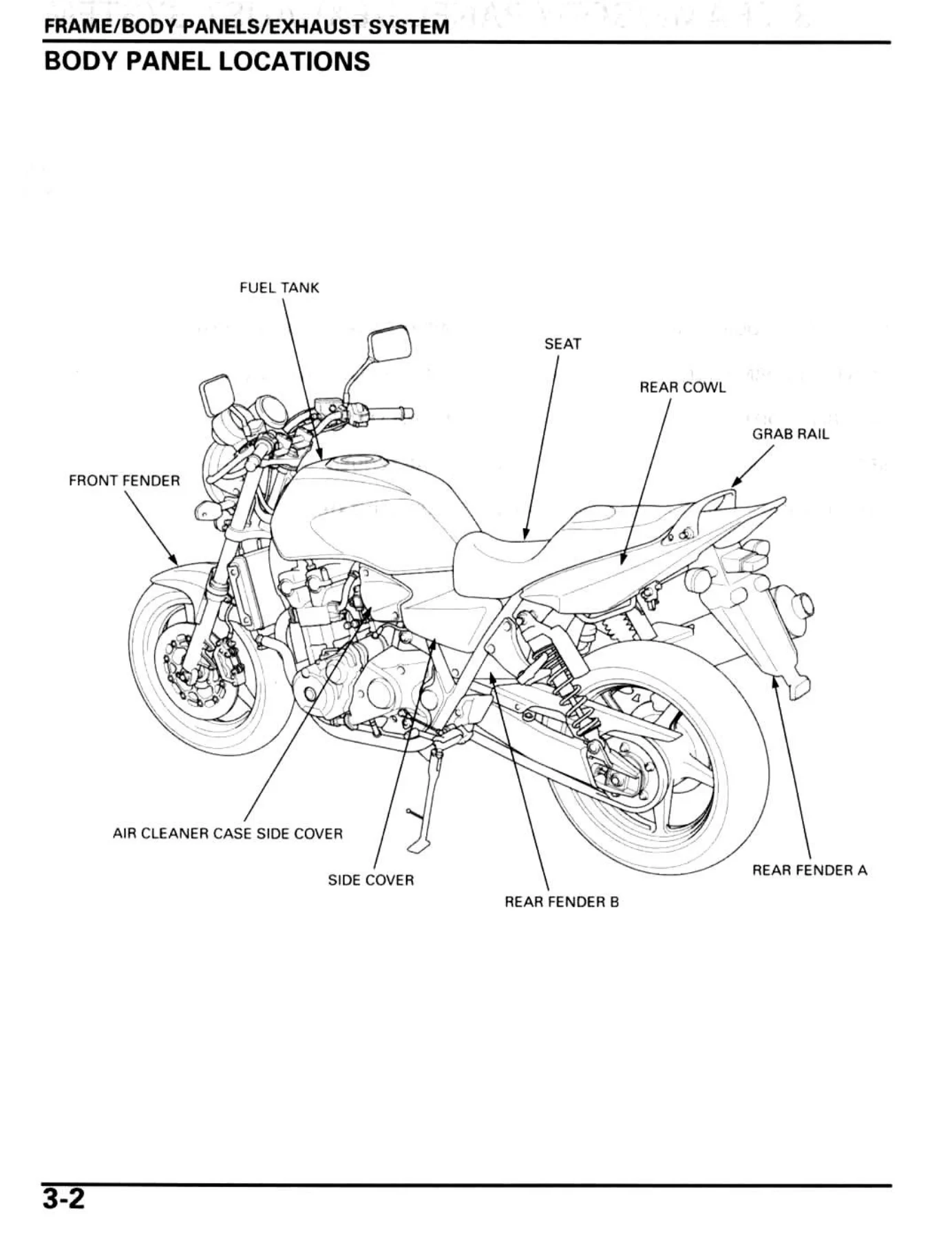

• 3. Frame / Body Panels / Exhaust System – seat, side cover, air cleaner case side cover, grab rail, rear cowl, front fender, rear fender A and B, muffler and exhaust pipe
• 4. Maintenance – maintenance schedule, fuel line, throttle operation, choke operation, air cleaner, crankcase breather, spark plug, valve clearance, engine oil and filter, idle speed, radiator coolant, cooling system, secondary air supply, drive chain, drive chain slider, brake fluid, brake pads, brake system, brake light switch, headlight aim, clutch system, clutch fluid, side stand, suspension, nuts/bolts/fasteners, wheels and tires, steering head bearings

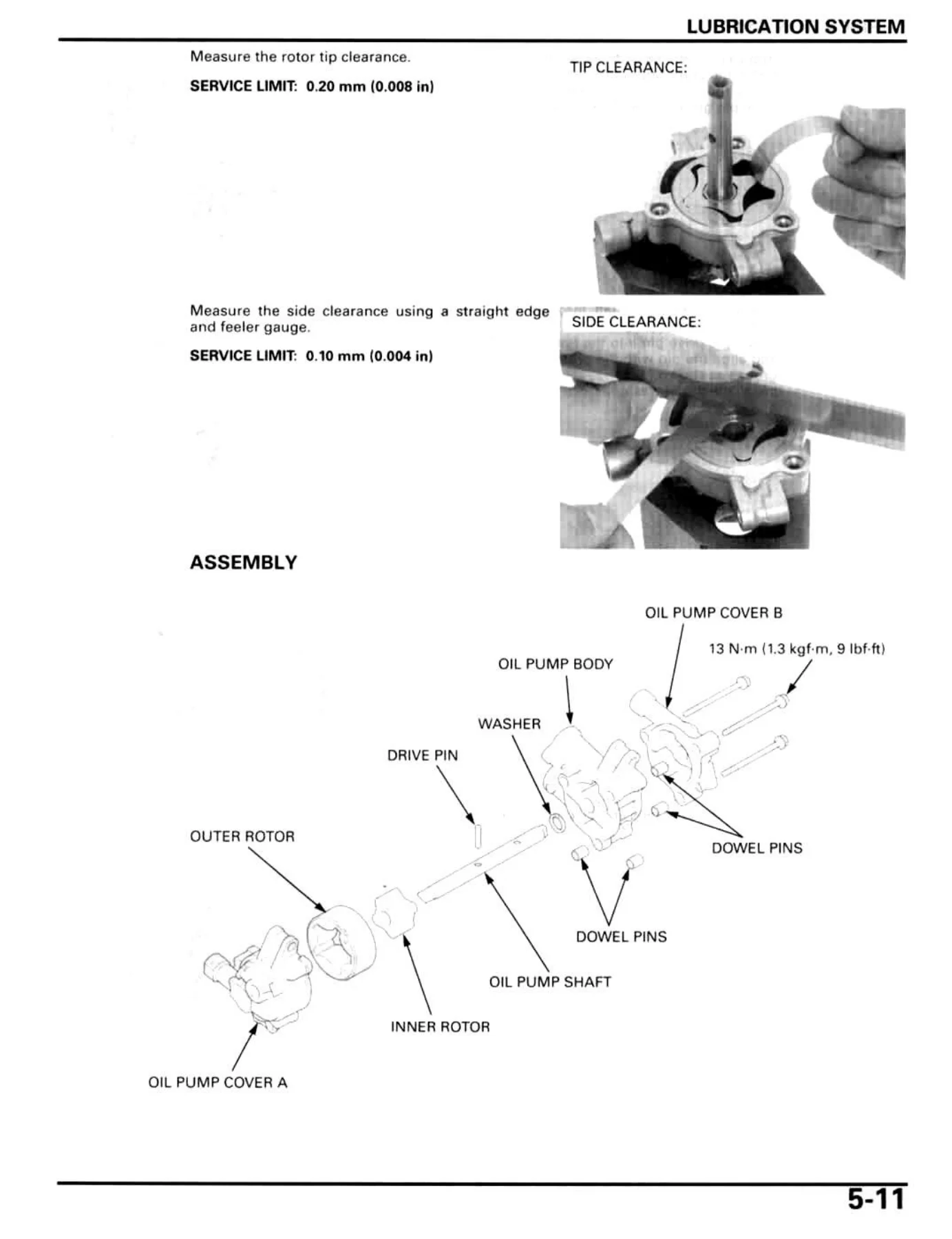

• 5. Lubrication System – lubrication diagram, oil pressure inspection, oil strainer and pressure relief valve, oil pump, oil cooler
• 6. Fuel System (Programmed Fuel Injection) – system diagram, PGM-FI self-diagnosis, MIL code index, MIL troubleshooting, DTC code index, DTC troubleshooting, fuel line inspection, fuel pump, fuel cut-off relay, fuel tank, air cleaner housing, throttle body, injector, starter valve and synchronization, MAP sensor, IAT sensor, ECT sensor, cam pulse generator, TP sensor, bank angle sensor, engine stop relay, ECM, variable air intake control valve, PAIR solenoid valve
• 7. Cooling System – radiator cap and system pressure, coolant replacement, thermostat, water pump, radiator, cooling fan
• 8. Engine Removal / Installation
• 9. Cylinder Head / Cylinder / Piston – camshaft, valve clearance, valve guides, cylinder head, cylinder, piston
• 10. Clutch / Gearshift Linkage – hydraulic clutch, clutch master cylinder, clutch slave cylinder, clutch, gearshift linkage
• 11. Alternator / Starter Clutch
• 12. Crankshaft / Transmission / Balancer
• 13. Front Wheel / Suspension / Steering – front wheel, front fork, steering head bearings, handlebar
• 14. Rear Wheel / Suspension – rear wheel, rear shock absorber, swingarm, drive chain
• 15. Hydraulic Brake – front brake pads, rear brake pads, brake fluid, brake bleeding, front brake caliper, rear brake caliper, master cylinders, brake discs
• 16. Battery / Charging System
• 17. Ignition System
• 18. Electric Starter
• 19. Lights / Meters / Switches – vehicle speed sensor, oil pressure switch, fan motor switch, coolant temperature sensor, fuel level sensor, side stand switch, engine stop switch
• 20. Immobilizer System (HISS)
• 21. Wiring Diagrams
• 22. Troubleshooting
• 23. Index

Across all 23 sections, this CB1300 shop manual gives you the full service picture – not just the headline components but the small items that make a repair reliable. That means the standard torque values for 5 mm through 12 mm fasteners, the engine and frame torque values broken out by component group, the lubrication and seal points, the emissions control layout and the harness routing for every major connector. The general information chapter alone gives you the model identification points, engine serial number location, throttle body identification, and colour code label reference for ordering correct parts.

Engines and Systems Covered

The manual is written for the 1,284 cc liquid-cooled DOHC inline-four that powers the CB1300. The engine specifications chapter lists the 78.0 x 67.2 mm bore and stroke, 9.6:1 compression ratio, chain-driven DOHC valve train with the intake valve opening at 0 degrees BTDC and closing at 35 degrees ABDC, and the exhaust valve opening at 40 degrees BBDC and closing at 5 degrees BTDC. The firing order is 1-2-4-3. Fuel delivery is handled by the PGM-FI system with a 36 mm throttle bore, and the manual identifies the throttle body as GQ36A with the starter valve vacuum difference listed at 20 mmHg. Drive is through a hydraulically operated multi-plate wet clutch into a constant mesh five-speed transmission with a left-foot operated return shift pattern of 1-N-2-3-4-5.

The chassis side is just as detailed. The frame is a double cradle, front suspension is a telescopic fork with 109.0 mm of axle travel, and the rear is a swingarm with 116.0 mm of travel. The service data includes the front brake as a hydraulic double disc and the rear as a hydraulic single disc, with a 25-degree caster angle and 99 mm of trail. Tire sizes are listed as 120/70 ZR 17 M/C (58W) front and 180/55 ZR 17 M/C (73W) rear, with Dunlop D220FSTK / D220STK and Michelin MACADAM 100XC listed as original fitments.

What This CB1300 Workshop Manual Lets You Do

The breadth of this manual means it covers the jobs that actually come up on a CB1300 – not just scheduled maintenance. In the engine, you can pull the cylinder head, check valve clearances against the 0.16 mm intake and 0.22 mm exhaust specifications, measure the cam lobe height, examine the valve lifter oil clearance against the 0.030-0.072 mm service standard, and check the cylinder for out-of-round, taper and warpage. The piston and ring specifications are all here – ring end gaps, ring-to-groove clearance, piston-to-bore clearance – so a top-end refresh is a measured job rather than a guess.

The fuel system chapter goes deep into the PGM-FI side. You get the full self-diagnosis procedure, the MIL code index for every blink pattern, the DTC code index with the detection item and causes, and the step-by-step troubleshooting flow for the MAP sensor, ECT sensor, TP sensor, IAT sensor, vehicle speed sensor, injectors, cam pulse generator, ignition pulse generator and E2-PROM. If the malfunction indicator lamp comes on, this CB1300 repair manual tells you which pin to probe with which meter setting to isolate the fault. There is also a fuel pressure inspection procedure with the 343 kPa (3.5 kgf/cm2, 50 psi) idle standard and a fuel flow check against the 188 cm3 minimum in 10 seconds at 12 V.

For the chassis, the hydraulic brake chapter covers pad inspection, brake bleeding, caliper servicing, master cylinder work and disc inspection with service limits for both front and rear. The suspension and steering chapter covers fork oil capacity, fluid level, spring free length, rebound adjuster standard positions, steering head bearing preload, and the swingarm bearing inspection. The drive chain section gives you the 25-35 mm slack standard, the adjustment procedure using the axle nut and adjuster bolts, the wear indicator label check, and the chain replacement procedure with the exact staked master link pin projections for both DID and RK chain types.

Why Correct Specifications Matter on the CB1300

The CB1300 is a heavy, powerful machine, and the difference between a correct and an incorrect torque or clearance shows up quickly. The rear axle nut calls for 113 N-m. The front axle bolt calls for 59 N-m. The steering stem nut is 103 N-m with an adjusting nut preload procedure that has to be followed in sequence. The oil cooler bolt is 74 N-m. The drive sprocket bolt is 54 N-m with a locking agent, and the final driven sprocket nuts are 108 N-m. These are not figures to approximate. This Honda CB1300F CB1300 shop manual puts the correct figure in front of you, along with the note that tells you whether to apply sealant, a locking agent, oil or molybdenum disulfide to the threads.

The manual also flags the places where the CB1300 has specific servicing requirements – the hydraulic clutch fluid is DOT 4, the front brake and rear brake both use DOT 4, and the manual is explicit about not mixing fluid types. The cooling system uses a 50/50 mixture of ethylene glycol antifreeze and distilled or low-mineral water. The valve clearance must be checked with the engine cold, below 35 degrees C. The starter valve synchronization requires the engine at normal operating temperature with a tachometer accurate to 50 rpm. These are the details that decide whether a service goes right.

Electrical and Diagnostic Content

For the electrical side, this CB1300 workshop manual includes the battery and charging system specifications, the ignition system specifications including spark plug options NGK DPR8EA-9 / DPR9EA-9 and DENSO X24EPR-U9 / X27EPR-U9 with the 0.80-0.90 mm gap, the electric starter brush length service limit of 6.5 mm, and the lights, meters and switches section with the vehicle speed sensor, oil pressure switch and side stand switch checks. The immobilizer system (HISS) has its own section, and the wiring diagrams chapter gives you the harness layout for tracing faults across the whole motorcycle.

This is also a complete troubleshooting manual. Section 22 covers general troubleshooting, and the DTC chapter within the fuel system section works through every diagnostic trouble code the PGM-FI system can set. Between the two, you have a structured diagnostic path for almost any complaint the CB1300 can produce.

IMAGES PREVIEW

Instant PDF Delivery

The Honda CB1300F CB1300 shop manual is delivered as an instant PDF download. There is no shipping, no waiting for a physical book, and no risk of a torn or missing page. You can open it on a laptop in the garage, on a tablet next to the bike, or print the pages you need for a specific job. The file is structured so you can search within it, jump between the contents page and the section you need, and keep the whole manual on hand for the life of the motorcycle. Whether you are a professional technician or a CB1300 owner doing your own maintenance, this manual gives you the same reference material a workshop would use to service the bike correctly.
