Honda TRX420 FourTrax Rancher Service Manual 2007-2010 – PDF Repair Guide

Description

Honda TRX420 FourTrax Rancher Service Manual 2007-2010

The Honda TRX420 FourTrax Rancher Service Manual 2007-2010 is a comprehensive workshop guide covering all six model variants produced during this generation. Whether you own the base TM, the electric-shift TE, the 4WD FM/FE, or the top-tier FPM/FPE with Electric Power Steering, this manual provides the complete procedures and specifications needed to maintain, diagnose, and repair your ATV correctly.

This Honda TRX420 FourTrax Rancher service manual was written for professional technicians but remains accessible to mechanically inclined owners who want to perform their own maintenance and repairs. Every major system is documented with step-by-step procedures, torque values, service limits, and detailed illustrations.

File Details

• Manual Type: Service Manual
• Brand: Honda
• Model: TRX420 FourTrax Rancher
• Model Variants: TM, TE, FM, FE, FPM, FPE
• Coverage Years: 2007, 2008, 2009, 2010
• Language: English
• Page Count: Approximately 589 pages
• File Format: PDF

Chapters Covered

The Honda TRX420 FourTrax Rancher repair guide is organized into 27 sections, each addressing a specific system or service area:

• General Information – service rules, model identification, specifications, torque values, cable and harness routing, emission control systems
• Technical Features – PCM/ECM operation, PGM-FI system, ESP (Electric Shift Program), self-diagnostic function, serial communication line, selectable 4WD system
• Frame/Body Panels/Exhaust System – seat, side covers, fuel tank cover, mudguard, front grille, front and rear fender/carrier, engine guard, tool box lid, mudguard bracket, exhaust pipe and muffler
• Maintenance – maintenance schedule, fuel line, throttle operation, air cleaner, spark plug, valve clearance, engine oil and filter, radiator coolant, cooling system, drive shaft boots, rear final gear case oil, 2WD/4WD select system, brake fluid, brake shoes and pads, brake light switch, brake system, reverse lock system, skid plate, engine guard, clutch system, suspension, spark arrester, wheels and tires, tie-rod and joint boots, steering shaft holder bearing, steering system
• Lubrication System – oil pump, relief valve
• Fuel System (PGM-FI) – system components, symptom troubleshooting, component location, system diagram, connector location, troubleshooting information, DTC index, DTC troubleshooting, MIL circuit inspection, fuel line inspection, sub fuel tank/fuel pump, relay module, fuel tank, air cleaner housing, throttle body, IACV, fuel injector, TP sensor/MAP sensor, ECT sensor, VS sensor, bank angle sensor, PCM/ECM, engine idle speed
• Cooling System – radiator cap/system pressure inspection, coolant replacement, thermostat, radiator removal/installation, cooling fan, radiator reserve tank, mechanical seal inspection and replacement
• Engine Removal/Installation
• Cylinder Head/Valve
• Cylinder/Piston
• Clutch/Gearshift Linkage
• Alternator/Starter Clutch
• Crankcase/Transmission/Crankshaft/Balancer
• Front Wheel/Suspension/Steering
• Rear Wheel/Suspension
• Brake System
• Front Driving Mechanism (FM/FE/FPM/FPE models)
• Rear Driving Mechanism
• Battery/Charging System
• Ignition System
• Electric Starter
• Lights/Meters/Switches
• Electric Shift Program (ESP: TE/FE/FPE models)
• Electric Power Steering (EPS: FPM/FPE models)
• Wiring Diagrams
• Troubleshooting
• Index

What This Manual Provides

This Honda TRX420 FourTrax Rancher service manual gives you the complete factory-approved procedures for servicing every major system on your ATV. The engine section covers cylinder head and valve service, cylinder and piston inspection, clutch and gearshift linkage, crankcase and transmission disassembly, crankshaft and balancer service, and alternator/starter clutch procedures. The fuel system chapter provides full PGM-FI diagnostic troubleshooting, including a DTC index, MIL circuit inspection, and step-by-step testing for the MAP sensor, TP sensor, ECT sensor, IAT sensor, fuel injector, and IACV.

For 4WD models, the front driving mechanism section details the front final gear case, differential, and 4WD select system. The ESP models benefit from dedicated Electric Shift Program coverage, while FPM/FPE models include complete Electric Power Steering diagnostics and service. The cooling system chapter walks through thermostat testing, coolant replacement, radiator removal, and mechanical seal replacement. The chassis sections cover front and rear suspension, steering, brakes, wheels, and tires with all specified torque values and service limits.

Specifications and Torque Values

Every procedure in this Honda TRX420 FourTrax Rancher repair guide references the applicable specifications. You will find engine oil capacity (2.7 liters after draining, 2.8 liters after filter change), coolant capacity (1.5 liters radiator and engine), valve clearance (IN: 0.15 ± 0.02 mm, EX: 0.23 ± 0.02 mm), spark plug gap (1.0 – 1.1 mm), idle speed (1,400 ± 100 rpm), fuel pressure at idle (336 – 350 kPa), and tire pressures for all model variants. Standard torque values are listed for every fastener, along with engine and frame torque values for critical components.

Diagnostic and Troubleshooting Support

The Honda TRX420 FourTrax Rancher service manual includes a complete troubleshooting section that guides you through systematic diagnosis of engine, fuel, electrical, and chassis problems. The PGM-FI DTC index and MIL blink pattern retrieval procedures let you diagnose fuel injection faults without specialized dealer equipment. The wiring diagram section provides full-color schematics for the entire vehicle, covering the charging system, ignition system, electric starter, lights, meters, switches, and the ESP and EPS systems on equipped models.

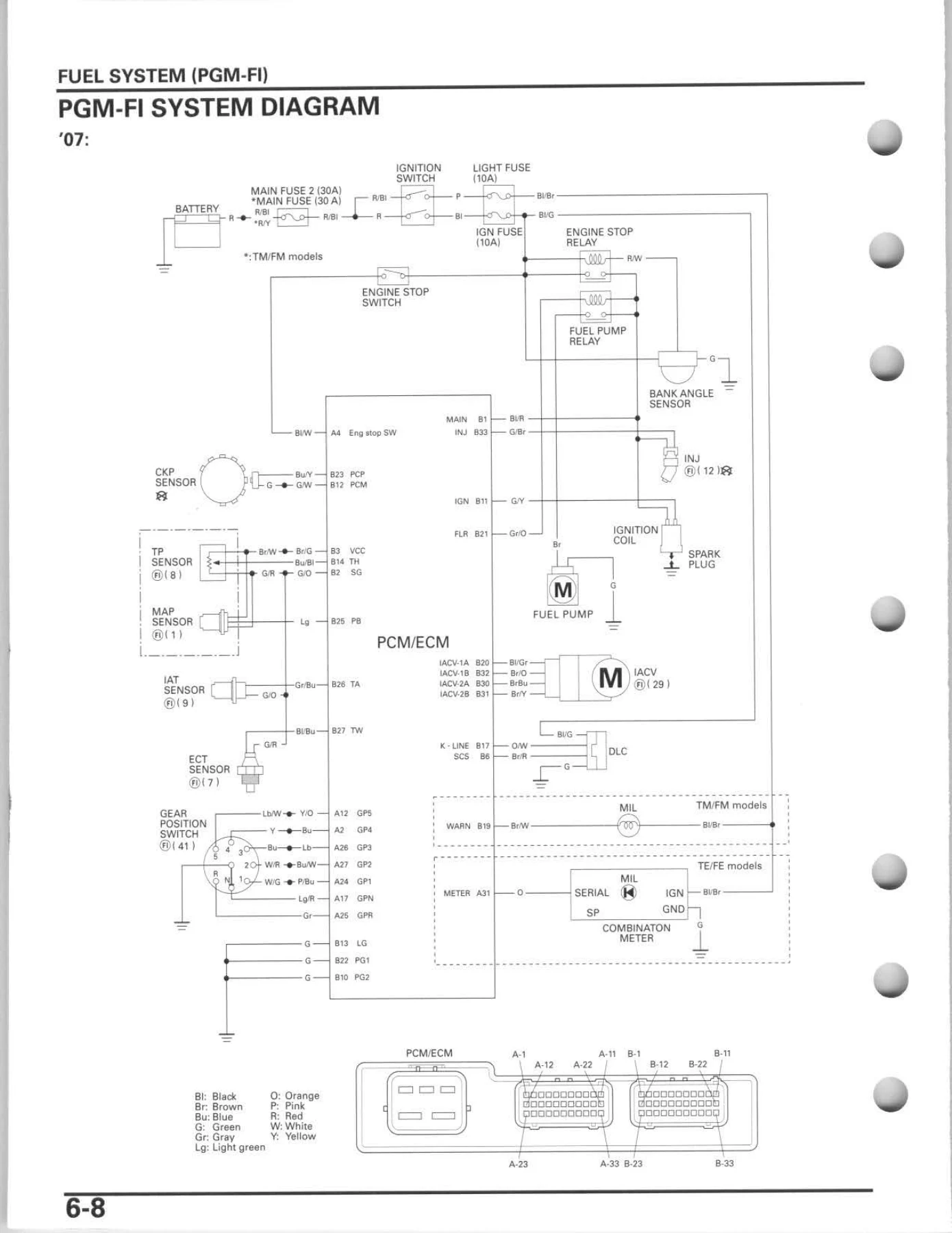

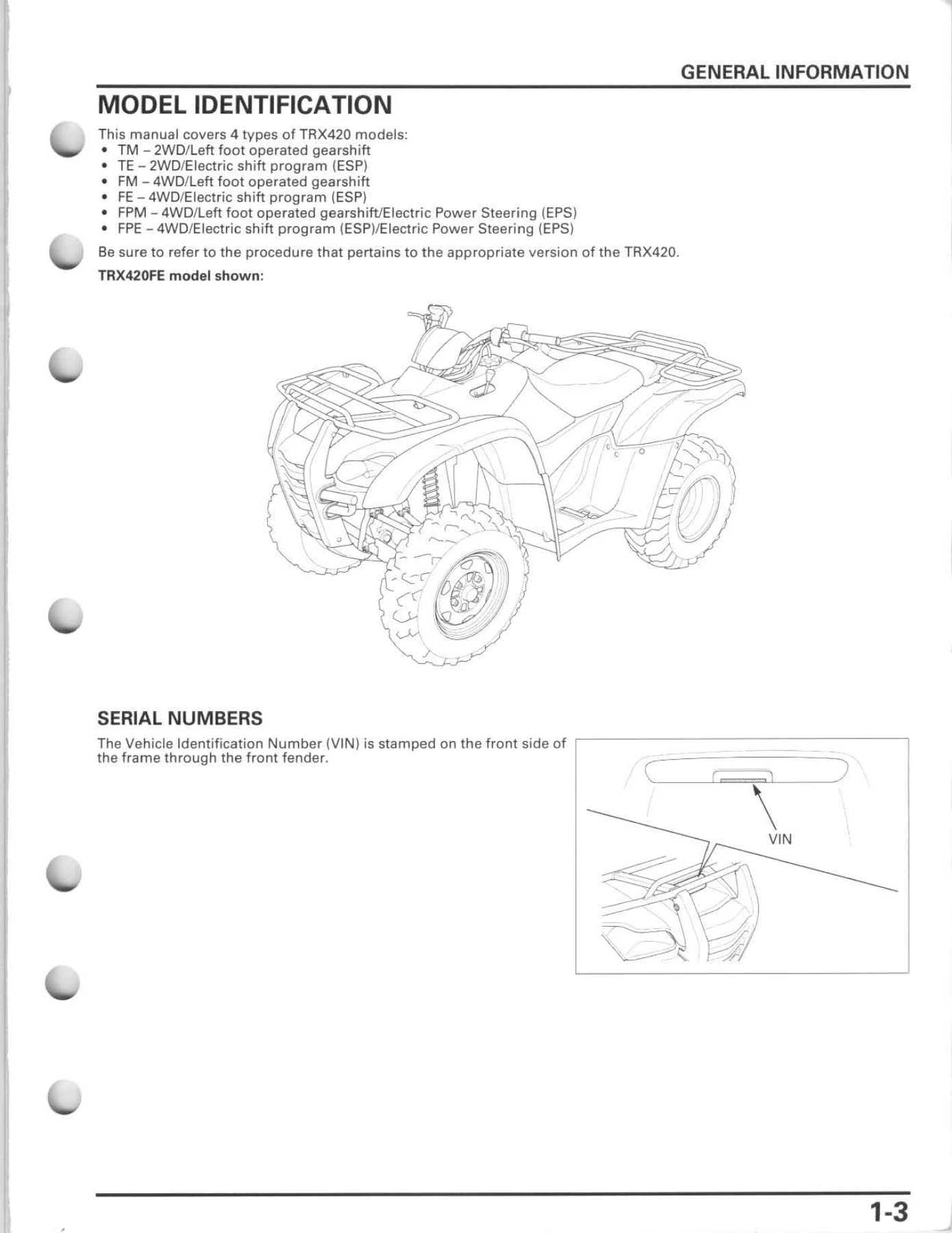

IMAGES PREVIEW

Who This Manual Is For

This Honda TRX420 FourTrax Rancher service manual suits professional ATV technicians, dealership service departments, and owners who perform their own maintenance and repairs. If you need to adjust valve clearance, replace a clutch, troubleshoot a PGM-FI fault code, rebuild a front final drive, or trace an electrical problem, this manual provides the complete procedure with all necessary specifications. The step-by-step format and detailed illustrations make even complex repairs manageable.

Models Covered

• TRX420TM – 2WD, left foot operated gearshift
• TRX420TE – 2WD, Electric Shift Program (ESP)
• TRX420FM – 4WD, left foot operated gearshift
• TRX420FE – 4WD, Electric Shift Program (ESP)
• TRX420FPM – 4WD, left foot operated gearshift, Electric Power Steering (EPS)
• TRX420FPE – 4WD, Electric Shift Program (ESP), Electric Power Steering (EPS)

Get Your Honda TRX420 FourTrax Rancher Service Manual Today

This Honda TRX420 FourTrax Rancher service manual 2007-2010 gives you the knowledge and specifications to maintain, diagnose, and repair your ATV correctly. From routine maintenance like oil changes and valve adjustments to complex repairs like transmission rebuilds and PGM-FI troubleshooting, every procedure is documented with factory-approved methods and torque values. Having the correct specifications and procedures prevents costly mistakes, ensures your ATV remains reliable, and keeps you safe on the trail.

The manual is delivered as an instant PDF download after purchase. No shipping, no waiting. You can view it on any device, print the pages you need for the workshop, and keep the complete manual on hand for every service job. Whether you are performing a simple tune-up or a full engine overhaul, this Honda TRX420 FourTrax Rancher repair guide is the essential reference for your workshop.
