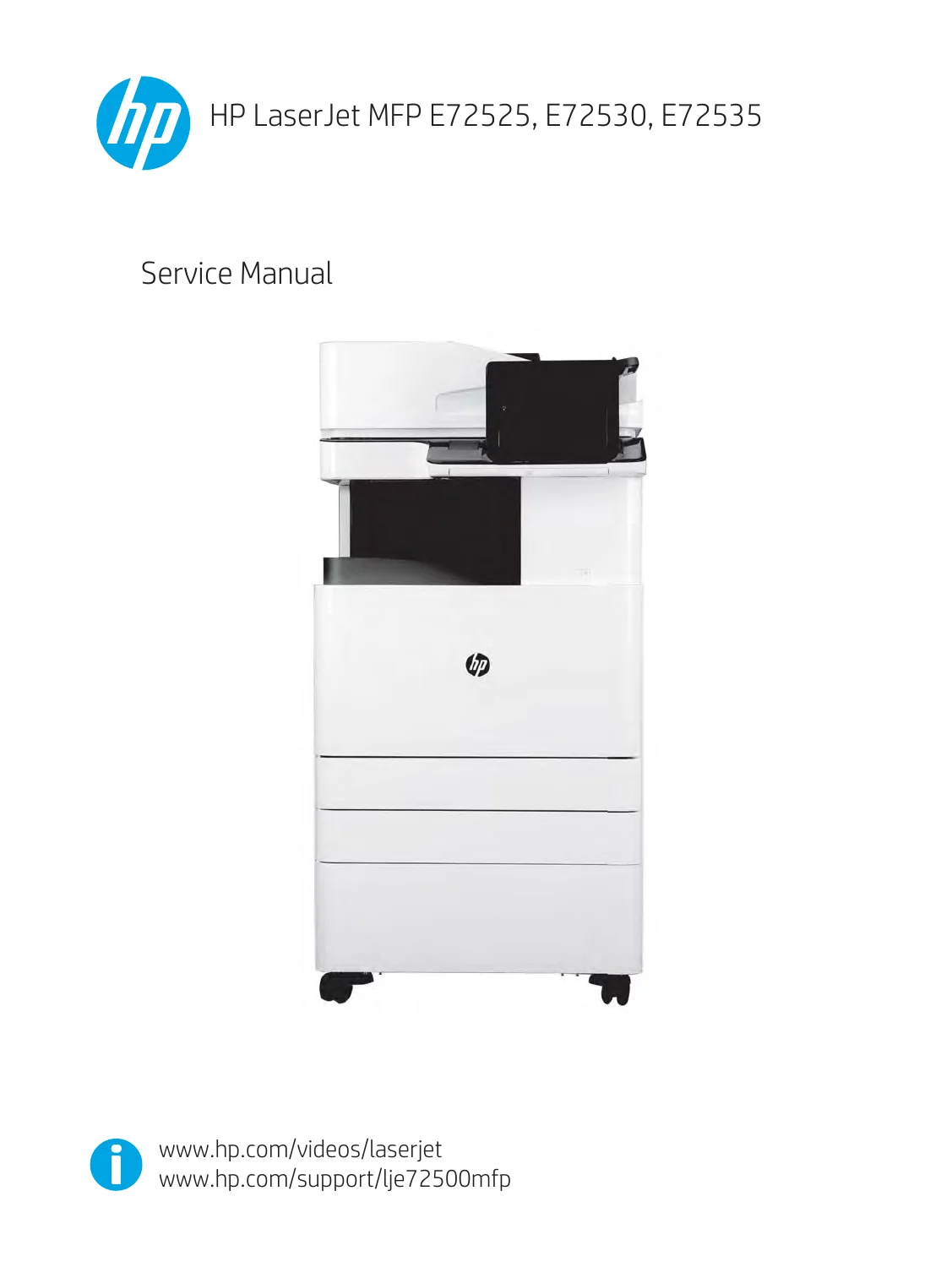

HP LaserJet MFP E72525 E72530 E72535 Service Manual

Description

Comprehensive Workshop Service and Repair Manual for HP LaserJet MFP E72500 Series

The HP LaserJet MFP E72525 E72530 E72535 Service Manual is the definitive technical resource engineered for qualified field technicians, system engineers, and commercial printer repair specialists servicing the enterprise-class HP LaserJet Managed MFP E72525, E72530, and E72535 series. Spanning 1,508 pages of authorized technical documentation, this comprehensive workshop manual provides step-by-step procedures for the complete disassembly, component testing, mechanical adjustment, board-level electrical troubleshooting, and routine preventive maintenance of both standard duplex network (dn / LX) and high-performance Flow (z / GX) production configurations.

File Details

• Document Title: HP LaserJet MFP E72525, E72530, E72535 Service Manual
• Manual Type: Factory Service Manual
• Document Edition: Edition 9, 4/2019
• Applicable Machine Series: HP LaserJet Managed MFP E72525dn, E72525z, E72530dn, E72530z, E72535dn, E72535z
• HP Product Codes: X3A60A (E72525dn), X3A59A (E72525z), X3A63A (E72530dn), X3A62A (E72530z), X3A66A (E72535dn), X3A65A (E72535z)
• Language: English
• Page Count: 1522 pages
• File Format: Portable Document Format (PDF)

Chapters Covered

• 1 Product specifications and description
  • Printer views (front, back, interface ports, 8-inch color touchscreen display, keyboard integration)
  • Technical, physical, environmental, acoustic, electrical, and power consumption specifications
  • Print, scan, copy, and paper handling engineering parameters
  • Supplies, service replacement parts, and modular hardware options
  • Paper feeding system architecture (pickup, feed, separation, and registration assemblies)
  • Image creation system (OPC drum, dual-component developer, laser exposure, transfer, and eraser)
  • Fuser unit mechanisms (heat roller, pressure roller, dual halogen lamps, and temperature control)

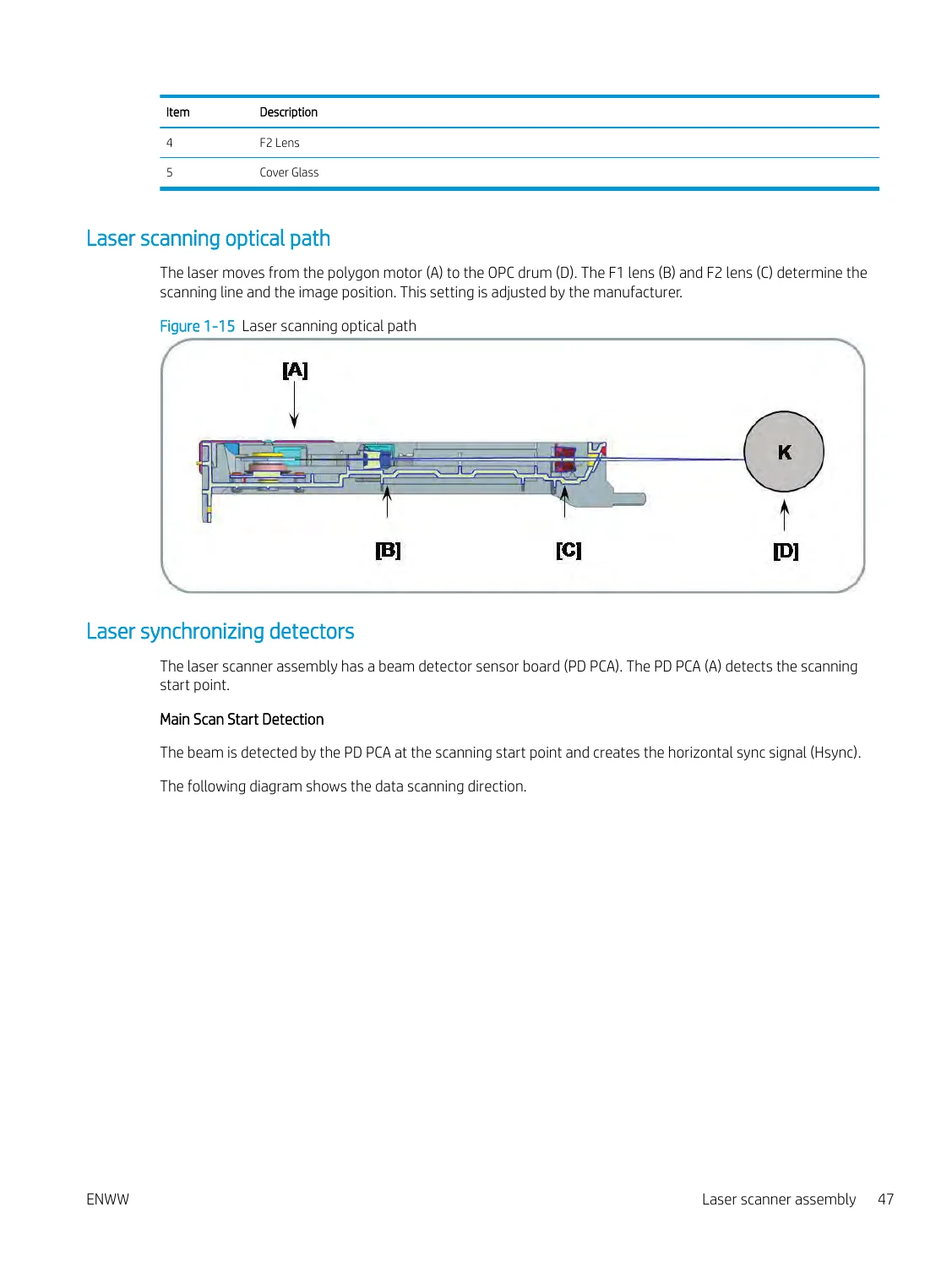

  • Laser scanner assembly (optical path, polygon motor, F-Theta lenses, and beam detection)
  • Drive system architecture (BLDC and stepping motor gear trains, electric clutches, and drive couplings)
  • Flatbed scanner system (full-rate and half-rate carriages, imaging lens, CCD sensor, and wire drive)
  • Flow Automatic Document Feeder (ADF) z bundles (GX) (250-sheet stacker, 8 motors, USM multi-feed detection, MSO)
  • Automatic Document Feeder (ADF) dn bundles (LX) (100-sheet capacity, single-pass duplex, reverse-roller feed)
  • Hardware configuration and circuit boards (Main Controller, MSOK PCA, Formatter, LVPS Type 4/5, HVPS, FDB)
  • Dual Cassette Feeder (DCF) unit and Inner Finisher operational specifications
• 2 Parts, diagrams, removal and replacement
  • Channel partner resources, WISE portal search, and part ordering guidelines
  • Service safety approach, ESD grounding precautions, and 19-screw type tracking protocols

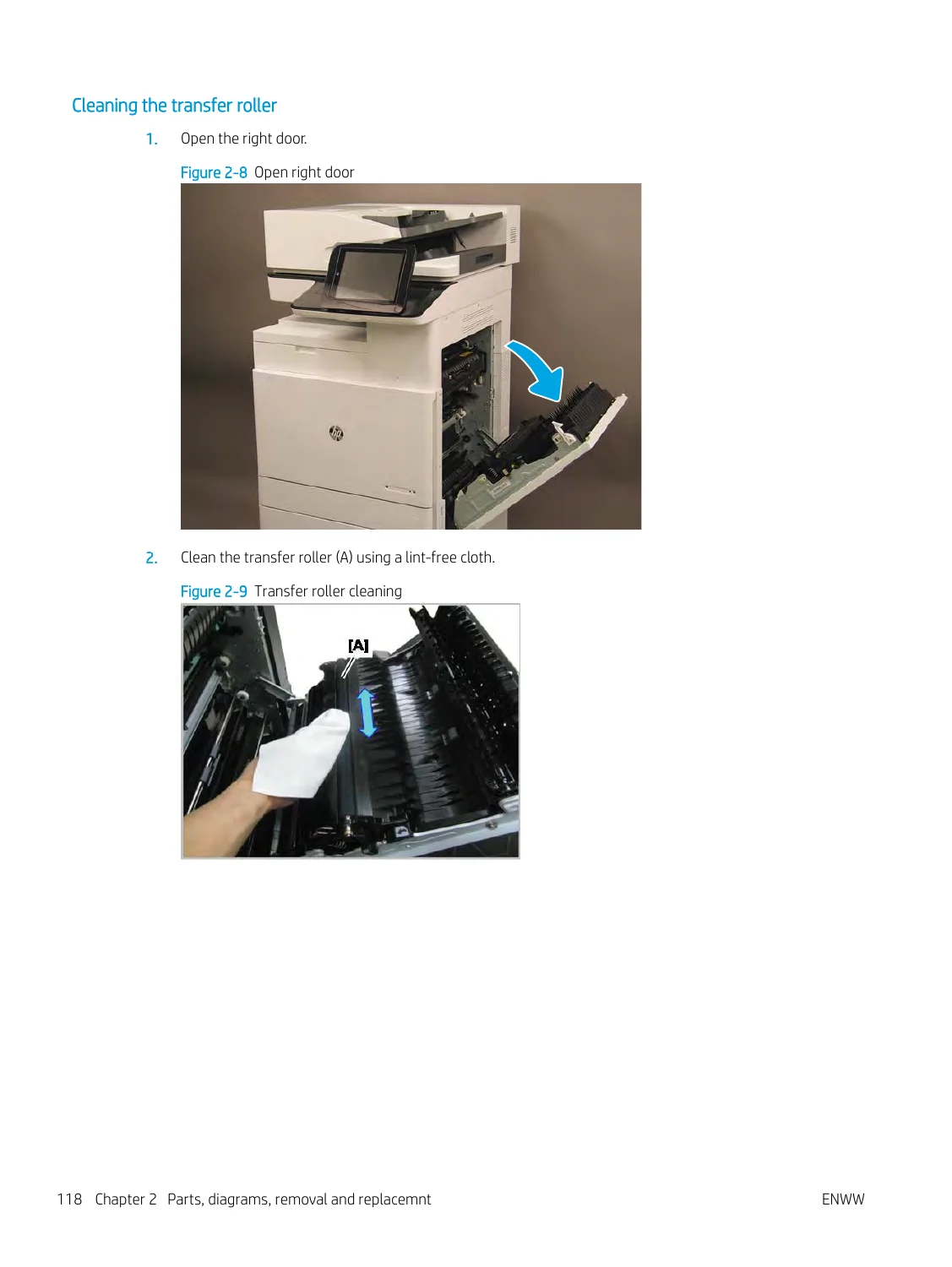

  • Preventive maintenance, optical glass care, and roller cleaning procedures
  • Main machine disassembly and component replacement (covers, doors, frames, sub-assemblies)
  • Optical units, laser scanner assembly, and flatbed scanner module removal
  • Paper pickup, separation, feed rollers, solenoids, and paper path sensors
  • Imaging drum unit, developer unit replenishment, and Toner Collection Unit (TCU) servicing
  • Fuser drive board, high-voltage power supply, low-voltage power supply, and cooling fans
  • Main controller PCA, MSOK transfer guidelines, formatter cage, 320 GB SATA HDD, and accelerator board
  • High-Capacity Input (HCI) feeder and Dual Cassette Feeder (DCF) disassembly
• 3 Problem solving
  • Error codes and Control Panel Message Document (CPMD) systematic diagnostics
  • Pre-boot menu execution, firmware updating, disk initialization, and Cold Reset sequences
  • Comprehensive paper jam isolation routines (13.A1, 13.A2, 13.A3, fuser, exit, and duplex paths)
  • Service Mode (Tech Mode) navigation (Information, Maintenance Counts, Diagnostics, and Service Functions)
  • Sensor state monitoring, motor exerciser routines, and electrical clutch diagnostics
  • Print quality troubleshooting matrix, defect measurement charts, and repetitive defect rulers
  • Flow ADF and LX document feeder skew adjustment and shading calibration
• 4 3,250-sheet Stapling Finisher and 2,250-sheet Booklet Finisher
  • Floor-standing finisher system architecture and operational workflows
  • Part diagrams, exploded views, removal and installation for tamper units, ejectors, and fold stoppers
  • Motor mechanisms M1 through M20 disassembly, timing belt routing, and drive gear adjustment
  • Control panel message troubleshooting and finisher paper jam clearance
• 5 Inner finisher
  • Inner finisher specifications, jogger motors, traverse motor, stacker sensors, and punch modules
  • Exploded parts diagrams and step-by-step field replacement sequences
  • Switch, sensor, and circuit board diagnostic testing procedures
• 6 Diagrams
  • Complete electrical distribution, block diagrams, and connector point-to-point pinouts
  • Fuser exit, pickup drive, laser scanner assembly, HVPS, toner drive, LVPS, UI, and DCF schematics
• Appendixes & Index
  • Appendix A: Glossary of technical terminology
  • Appendix B: Document revision history
  • Appendix C: Certificate of volatility
  • Alphabetical index

This technical service manual delivers an all-inclusive engineering reference that equips technicians with factory-level knowledge of every sub-system across the HP LaserJet MFP E72525 E72530 E72535 family. By detailing exact disassembly orders, signal interconnects, and embedded firmware diagnostic tools, it enables maintenance professionals to rapidly isolate component-level failures and execute repairs with factory precision.

Print Engine & Electrophotographic Process

The core imaging system of the HP LaserJet MFP E72525 E72530 E72535 series utilizes a high-durability mono electrophotographic architecture paired with an Organic Photo Conductor (OPC) drum measuring 30 mm in diameter with a circumference of 94.2 mm. Charging is executed via a conductive roller applying uniform negative potential to the drum surface. The laser scanner assembly focuses a single-beam laser diode through collimator, cylindrical, and dual F-Theta correction lenses (F1 and F2) onto the drum, establishing the latent image. A beam detector sensor board (PD PCA) generates horizontal synchronization signals (Hsync) to ensure exact line placement across 600 x 600 dpi optical and up to 1200 x 1200 dpi enhanced output resolutions.

Development relies on a dual-component magnetic roller system (18.2 mm diameter) utilizing 345 grams of carrier. Two counter-rotating mixing augers circulate developer and toner forward and backward during process control self-checking, toner supply operations, and active development cycles. Toner concentration is measured continuously by an internal TC sensor, prompting automated toner replenishment from the main cartridge via the DC supply motor and stepping duct motor. The manual outlines the full field refill procedure using the dedicated paper funnel sheet, seal tape installation, and the mandatory Toner Concentration Initialization (TC Init) routine within Service Mode to calibrate drum voltage parameters.

The fusing subsystem features a low thermal inertia two-roller mechanism designed for rapid recovery from energy-saving sleep states (less than 23 to 31.5 seconds). The aluminum heat roller is coated with anti-adhesion PFA and contains two independent halogen lamps: a 700 W lamp dedicated to center heating and a 600 W lamp dedicated to axial edge heating. Precise surface temperature control is maintained via dual non-contact (NC) thermistors and contact thermistors monitored by the main engine CPU. Hardware-level overheat protection is enforced by two thermal thermostats wired in series with the common ground line, which automatically cut all lamp AC power if temperatures exceed 195°C, supplemented by a firmware cutoff that triggers if any NC sensor detects temperatures above 240°C for more than 20 seconds.

Paper Handling, Document Feeders & Drive Systems

Paper conveyance through the HP LaserJet MFP E72525 E72530 E72535 engine is managed by a series of high-precision rollers and brushless DC (BLDC) motors. Standard input incorporates Tray 1 (a 100-sheet multipurpose tray supporting 60 to 176 g/m² stock via a Feed and Separation Roller mechanism) and dual 520-sheet lower cassettes (Trays 2 and 3, accommodating up to 216 g/m² media). Tray 2 and Tray 3 utilize drawer-style cassette lift mechanisms driven by PM-step motors that raise the knock-up plate until contact is registered by the optical up-limit sensors. The main drive unit integrates separate BLDC motors for the OPC/developer train and the registration/feed train, utilizing three independent electric clutches to synchronize media arrival at the transfer nip.

The service manual details the distinct architectures of the two scanning heads available for the series:

• dn Bundles (LX ADF): Incorporates a 100-sheet capacity document feeder operating at speeds up to 80 ipm simplex and 120 ipm duplex. It utilizes a semi-retard roller pickup assembly, single-pass duplex scanning via an upper CCD and lower Contact Image Sensor (D-CIS), a single registration roller driven by an electric clutch, and two internal motors.
• z Bundles (Flow GX ADF): Features an advanced 250-sheet motorized stacker lift feeder capable of scanning speeds up to 120 ipm simplex and 240 ipm duplex. Driven by an eight-motor system, it incorporates dual-stage registration (pre-registration and main registration rollers), mixed size original (MSO) sensor arrays, and a 300 kHz Ultrasonic Multi-Feed (USM) detection board utilizing paired transmitter (Tx) and receiver (Rx) sensors to instantly catch overlapping pages.

Main Controller Architecture, Formatter & Power Distribution

The electronic control backbone of the HP LaserJet MFP E72525 E72530 E72535 is centered on the Main Controller Board (part number JC92-02746A), running under an XOA Linux environment. Processing power is delivered by a Chorus4N system-on-chip featuring dual ARM Cortex-A9 cores operating at 1.0 GHz alongside an ARM946 250 MHz real-time sub-processor dedicated to real-time engine, scanner, and fax control. The board hosts 2 GB of onboard DDR3 memory, 128 MB NAND flash, a Gigabit Ethernet PHY (RTL8211E), and high-speed USB 2.0 controllers. Critical machine configuration, page counts, and calibration history are stored on the Master System Operation Key (MSOK PCA, featuring 4 MB serial flash, 256 Kb EEPROM, and X-CRUM). The service manual highlights strict handling instructions for the MSOK, requiring it to be transferred to the replacement main board during field replacement to prevent loss of machine identity.

The separate HP Formatter assembly interfaces directly with the Main Controller via high-speed HDMI (PCIe x1 Gen 2) and Engine LAN links. It houses the 320 GB SATA Secure High-Performance Hard Disk (with hardware-based AES-256 encryption), 16 GB eMMC storage on dn models (dual 320 GB HDDs on Flow z models), the optional hardware accelerator card (X3A62-60001), Hardware Integration Pocket (HIP2), and walk-up USB ports. Power regulation is divided across high-efficiency modules: a Type 5H Low Voltage Power Supply (LVPS) delivering up to 1,500 W with regulated +5 V, +5 VS, and +24 V DC rails, accompanied by auxiliary Type 4 LVPS units (205 W) on GX ADF configurations, a dedicated Fuser Drive Board (FDB), and the High Voltage Power Supply (HVPS board JC44-00237A) which generates five precisely controlled channels including -1,200 V MHV, -497 V DC / 1,000 Vpp AC developer bias, +39.6 uA / -1,300 V transfer bias, and -990 V saw bias.

IMAGES PREVIEW

Service Mode Diagnostics, Jam Troubleshooting & CPMD Error Codes

When resolving complex operational faults, the HP LaserJet MFP E72525 E72530 E72535 Service Manual directs technicians through the full hierarchy of the embedded Service Mode (Tech Mode), accessed securely via the control panel Service Access Code. Within this environment, service personnel can perform comprehensive functional testing:

• Information Tab: Review full configuration logs, event histories, supply status percentages, and hardware revision tables.
• Maintenance Counts: Accurately reset life counters for field replacement units (FRUs), including the imaging drum (200,000 pages), developer unit (400,000 pages), fuser assemblies (320,000 pages), transfer roller (150,000 pages), and pickup/feed/separation roller kits (200,000 pages).
• Diagnostics Tab: Perform live digital reads of all optical photo-interrupters, switches, and thermistors; command individual drive motors to rotate at specified frequencies; cycle electric clutches; and execute LSU beam-detector verification.
• Service Functions Tab: Run automated Toner Concentration Initialization (TC Init), calibrate laser scanner positioning, and execute Flow ADF sensor and skew calibration routines.
• Jam Isolation: Step-by-step diagnostic paths for common jam codes, including Tray 1 misfeeds (13.A1), cassette pickup failures (13.A2, 13.A3), bottom HCI transport jams, fuser wrap/curl detections, and duplex reversing faults.
• Pre-Boot Menu Options: Administrator-level instructions for executing disk sanitization, performing firmware rollbacks or upgrades via pre-boot USB, clearing NVRAM, and conducting cold hardware resets.

Professional Capability, Mechanical Reliability & Instant Delivery

Equipped with this complete workshop manual for the HP LaserJet MFP E72525 E72530 E72535, technicians possess the exact factory schematics, torque specifications, removal sequences, and diagnostic logic required to complete major overhauls, resolve stubborn print defects, and replace critical assemblies without damaging delicate internal connectors or static-sensitive PCAs. Utilizing authentic engineering data prevents costly troubleshooting guesswork, reduces service call durations, and maintains equipment uptime in high-demand office workgroups.

This service manual is supplied as an instant PDF download immediately upon checkout. Compatible with Windows, macOS, Linux, iOS, and Android devices, the digital file allows service professionals to access high-resolution wiring diagrams, mechanical views, and diagnostic tables directly on a laptop, tablet, or smartphone in the field, or print physical pages for workshop reference without shipping delays or physical storage concerns.
