Hyster C1.3 80v-C1.5SWB-C1.5MWBC1.5LWB [V35ZMU] (B464) Parts Manual – PDF DOWNLOAD
TABLE OF CONTENTS:
Hyster C1.3 80v-C1.5SWB-C1.5MWBC1.5LWB [V35ZMU] (B464) Parts Manual – PDF DOWNLOAD
Frame................................................................................... 13 FRAME............................................................................... 16 BATTERY AND REAR COVERS............................................................. 18 BATTERY COMPARTMENT C1.3 80v - FRAME 2 (โ 8/2007) ................................ 20 BATTERY COMPARTMENT C1.3 80V - FRAME 2 (9/2007 โ 2/2010) ......................... 22 BATTERY COMPARTMENT C1.3 80V - FRAME 2 (3/2010 โ) ................................ 26 BATTERY COMPARTMENT C1.5SWB-V35ZMU Mast TRI-FORM - FRAME 3 (โ 8/2007) ............ 30 BATTERY COMPARTMENT C1.5SWB-V35ZMU Mast TRI-FORM - FRAME 3 (9/2007 โ 2/2010) ..... 32 BATTERY COMPARTMENT C1.5SWB-V35ZMU Mast TRI-FORM - FRAME 3 (3/2010 โ) ............ 34 BATTERY COMPARTMENT C1.5MWB-V35ZMU Mast QUAD-FORM - FRAME 4 (โ 8/2007) ........... 38 BATTERY COMPARTMENT C1.5MWB-V35ZMU Mast QUAD-FORM - FRAME 4 (9/2007 โ 2/2010) .... 40 BATTERY COMPARTMENT C1.5MWB-V35ZMU Mast QUAD-FORM - FRAME 4 (3/2010 โ) ........... 42 BATTERY COMPARTMENT C1.5LWB-V35ZMU Mast QUAD-FORM - FRAME 5 (โ 8/2007) ........... 44 BATTERY COMPARTMENT C1.5LWB-V35ZMU Mast QUAD-FORM - FRAME 5 (9/2007 โ 2/2010) .... 46 BATTERY COMPARTMENT C1.5LWB-V35ZMU Mast QUAD-FORM - FRAME 5 (3/2010 โ) ........... 48 SIDE ROLLERS GUIDE OPTION........................................................... 50 FRONT ROLLERS GUIDE OPTION.......................................................... 52 LOAD WHEELS......................................................................... 54 WHEELS PROTECTION OPTION............................................................ 56 DRIVE UNIT.......................................................................... 58 REDUCTION UNIT GK30................................................................. 60 REDUCTION UNIT GK40................................................................. 62 DRIVE MOTOR......................................................................... 66 ELECTROMAGNETIC BRAKE............................................................... 68 STEERING MOTOR FOR MODELS WITH GK30................................................. 70 STEERING MOTOR FOR MODELS WITH GK40................................................. 72 HYDRAULIC GROUP..................................................................... 74 LIFT MOTOR AND PUMP................................................................. 78 MAIN MANIFOLD....................................................................... 80 HIGH PERFORMANCE LOWERING VALVE OPTION.............................................. 82 MANIFOLD STABILIZERS OPTIONS........................................................ 84 ELECTRICAL PANEL.................................................................... 86 ELECTRICAL PANEL.................................................................... 90 ELECTRICAL ARRANGEMENT POWER CABLES................................................. 94 ELECTRICAL ARRANGEMENT.............................................................. 96 LABELS FRAME - SHEET 1 OF 2 ........................................................100 LABELS FRAME - SHEET 2 OF 2 ........................................................102 MAST-TWO STAGE TRI-FORM.................................................................105 MAST................................................................................108 MAST BEARING MARKING................................................................112 HYDRAULIC GROUP.....................................................................114 ELECTRICAL ARRANGEMENT..............................................................118 ALTIMETER...........................................................................122 LABELS MAST.........................................................................126 MAST-THREE STAGE TRI-FORM...............................................................129 MAST................................................................................132 MAST BEARING MARKING................................................................136 HYDRAULIC GROUP.....................................................................138 ELECTRICAL ARRANGEMENT..............................................................142 ALTIMETER...........................................................................144 LABELS MAST.........................................................................148 MAST-TWO STAGE QUAD-FORM................................................................151 MAST................................................................................154 MAST BEARING MARKING................................................................158 HYDRAULIC GROUP.....................................................................160 ELECTRICAL ARRANGEMENT..............................................................164 ALTIMETER...........................................................................166 LABELS MAST.........................................................................170 MAST-THREE STAGE QUAD-FORM..............................................................173 MAST................................................................................176 MAST BEARING MARKING................................................................180 HYDRAULIC GROUP.....................................................................182 ELECTRICAL ARRANGEMENT..............................................................186 ALTIMETER...........................................................................188 LABELS MAST.........................................................................192 Operator Compartment....................................................................195 OPERATOR COMPARTMENT................................................................198 CAB BEARING MARKING.................................................................202 OPERATOR COMPARTMENT OPTIONS (โ S/N B464T01531E) ..................................204 OPERATOR COMPARTMENT OPTIONS (S/N B464T01532E โ) ..................................208 EMERGENCY LOWERING DEVICE V35ZMU (โ S/N B464T01516D) ..............................212 EMERGENCY LOWERING DEVICE V35ZMU (S/N B464T01517D โ) ..............................213 EMERGENCY LOWERING DEVICE C1.3 80v-C1.5SWB-C1.5MWB-C1.5LWB..........................214 SIDE GATES V35ZMU (โ 11/2007) .....................................................216 SIDE GATES V35ZMU (12/2007 โ) .....................................................218 SIDE GATES C1.3 80v-C1.5SWB-C1.5MWB-C1.5LWB (โ 11/2007) ...........................220 SIDE GATES C1.3 80v-C1.5SWB-C1.5MWB-C1.5LWB (12/2007 โ) ...........................224 STEERING CONSOLE FORWARD CONSOLE - SHEET 1 OF 3 ....................................228 STEERING CONSOLE FORWARD CONSOLE - SHEET 2 OF 3 ....................................230 STEERING CONSOLE FORWARD CONSOLE - SHEET 3 OF 3 ....................................234 SEAT FORWARD CONSOLE................................................................238 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 1 OF 5 ..................................242 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 2 OF 5 (โ S/N B464T01639F) ............244 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 2 OF 5 (S/N B464T01640F โ) ............248 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 3 OF 5 (โ 11/2009) ....................252 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 3 OF 5 (12/2009 โ) ....................256 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 4 OF 5 ..................................260 STEERING CONSOLE SIDE SEAT CONSOLE - SHEET 5 OF 5 ..................................264 HYDRAULIC GROUP.....................................................................266 ELECTRIC PANEL DOUBLE PEDAL.........................................................270 ELECTRIC PANEL SINGLE PEDAL.........................................................274 ELECTRICAL ARRANGEMENT..............................................................278 ELECTRICAL ARRANGEMENT..............................................................284 ELECTRICAL ARRANGEMENT..............................................................290 ELECTRICAL ARRANGEMENT..............................................................294 LABELS OPERATOR COMPARTMENT.........................................................298 LABELS STEERING CONSOLE.............................................................300 TRILATERAL ATTACHMENT...................................................................303 ATTACHMENTS PAGE 1 OF 6 (โ S/N B464T01688H) .......................................306 ATTACHMENTS PAGE 2 OF 6 (S/N B464T01689H โ) .......................................308 ATTACHMENTS PAGE 3 OF 6.............................................................310 ATTACHMENTS PAGE 4 OF 6.............................................................312 ATTACHMENTS PAGE 5 OF 6.............................................................314 ATTACHMENTS PAGE 6 OF 6.............................................................316 FLEX HOSES..........................................................................318 MANIFOLD AUXILIARY LIFT AND TRAVERSE................................................322 MANIFOLD PANTOGRAPH AND ROTATE......................................................324 MANIFOLD TILTING AND FORKS POSITION OPTION..........................................326 FORKS...............................................................................328 ELECTRICAL ARRANGEMENT..............................................................330 COVERS..............................................................................332 LABELS ATTACHMENT...................................................................334 ACCESSORIES.............................................................................335 WIRE DRIVER V35ZMU - OPTION ........................................................338 WIRE DRIVER C1.3 80V-C1.5SWB-C1.5MWB-C1.5LWB - OPTION ..............................340 LAP TOP OPTIONS.....................................................................342 CONSOLE ADAPTER OPTION..............................................................344 BATTERY TRAY C1.3 80V-C1.5SWB-V35ZMU Mast TRI-FORM - OPTION ........................346 BATTERY TRAY C1.5MWB-C1.5LWB-V35ZMU Mast QUAD-FORM..................................348 NUMERICAL INDEX.........................................................................351
DESCRIPTION:
Hyster C1.3 80v-C1.5SWB-C1.5MWBC1.5LWB [V35ZMU] (B464) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 7-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 7-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (FFigure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
HYSTER C1.3 80V-C1.5SWB-C1.5MWBC1.5LWB [V35ZMU] (B464) PARTS MANUAL – PDF DOWNLOAD:

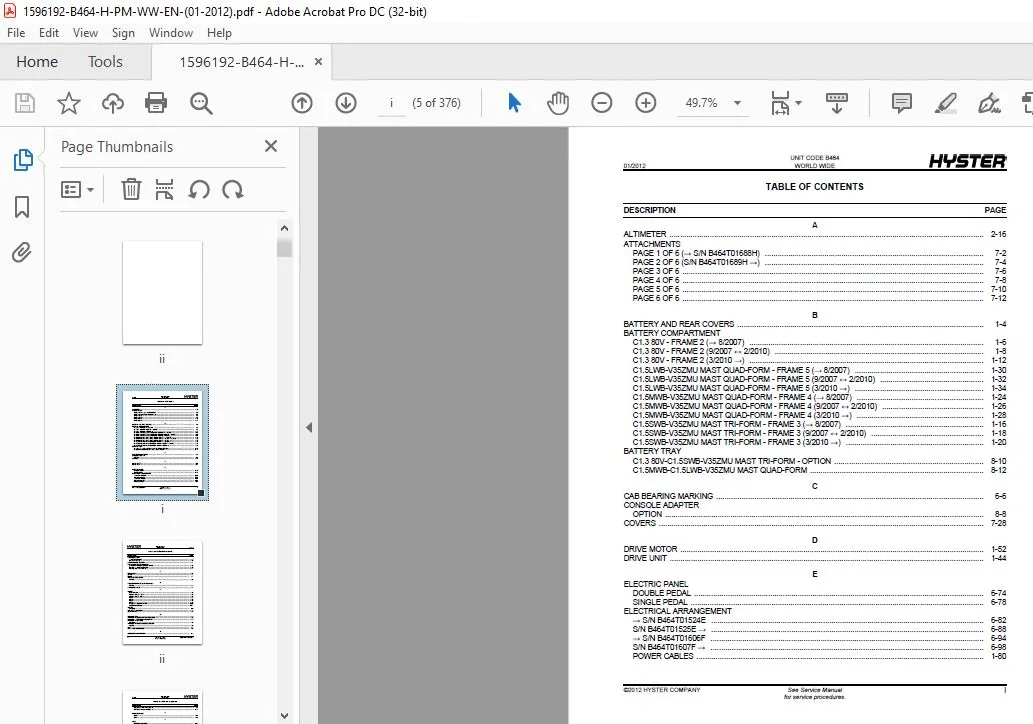

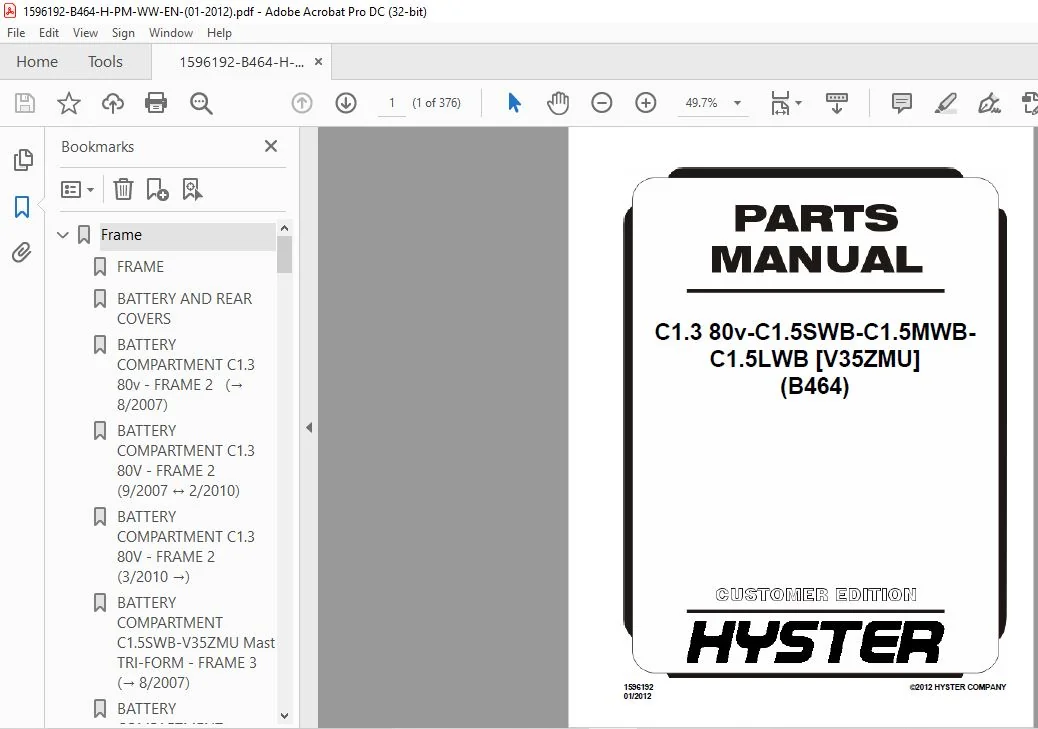

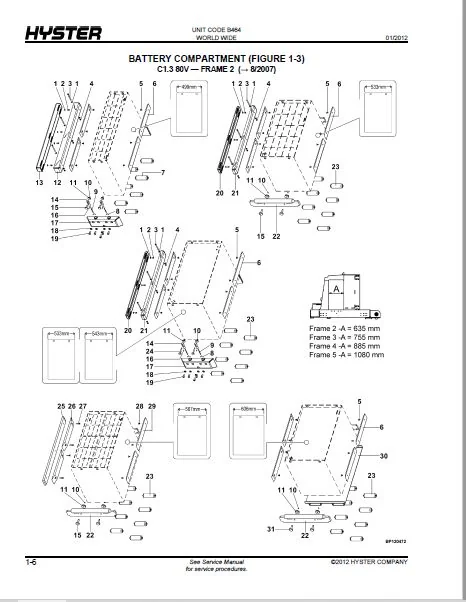

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have :ย heydownloadss @gmail.com
