Hyster C60ZAC (B478) C80ZAC (B479) Parts Manual – PDF DOWNLOAD
TABLE OF CONTENTS:
Hyster C60ZAC (B478) C80ZAC (B479) Parts Manual – PDF DOWNLOAD
FRAME/DRIVE UNIT............................................ 13 BATTERY RETENTION....................................... 16 BATTERY RETENTION GALVANIZED............................ 18 CASTER ASSEMBLY......................................... 20 COVERS AND FLOORMAT..................................... 22 LABELS AND MANUAL....................................... 24 MASTER DRIVE UNIT B478.................................. 26 MASTER DRIVE UNIT B479 (→ 6/2008) ..................... 30 MASTER DRIVE UNIT B479 (6/2008 →) ..................... 34 MASTER DRIVE UNIT ASSEMBLY B478......................... 38 MASTER DRIVE UNIT ASSEMBLY B479......................... 40 TRACTION MOTOR B478..................................... 42 TRACTION MOTOR B479..................................... 44 ELECTRICAL SYSTEM........................................... 47 BATTERY CONNECTOR....................................... 50 CONTROLLER ENCLOSURE FOOD PROCESSING / ARCTIC........... 52 EE CONTACTOR ENCLOSURE ASSEMBLY......................... 54 ELECTRICAL ASSEMBLY..................................... 56 WIRE HARNESS THERMOSTAT................................. 60 HIGH SPEED PEDAL........................................ 62 WIRE HARNESS FOOT SWITCH................................ 64 WIRE HARNESS TILLER HANDLE.............................. 66 JUMPER HARNESS VISUAL ALARM............................. 68 STEER HANDLE/BRAKE SYSTEM................................... 69 ELECTRIC BRAKE B478..................................... 72 ELECTRIC BRAKE B479..................................... 73 DIRECTION SWITCH ASSEMBLY............................... 74 HAND BRAKE ASSEMBLY..................................... 76 STEER HANDLE ARM ASSEMBLY............................... 78 STEER HANDLE ASSEMBLY................................... 80 STEER HANDLE ASSEMBLY QUICK-PICK OPTION................. 82 STEER HANDLE HEAD ASSEMBLY.............................. 84 LIFT LINKAGE AND FORKS...................................... 87 FORKS AND BATTERY FRAMES................................ 90 FORKS AND BATTERY FRAMES FOOD PROCESSING................ 91 LIFT CYLINDER ATTACHING PARTS........................... 92 LIFT LINKAGE............................................ 94 PULL ROD ASSEMBLY....................................... 96 PULL ROD ASSEMBLY FOOD PROCESSING....................... 97 SINGLE LOAD WHEEL TWO BEARINGS.......................... 98 SINGLE LOAD WHEEL FOUR BEARINGS......................... 99 DUAL LOAD WHEELS........................................100 HYDRAULIC SYSTEM............................................101 HYDRAULIC ARRANGEMENT B478..............................104 HYDRAULIC ARRANGEMENT B479..............................106 HYDRAULIC POWER UNIT B478...............................108 HYDRAULIC POWER UNIT B479...............................110 HYDRAULIC POWER UNIT B479 - ALTERNATE PART .............112 LIFT CYLINDER ASSEMBLY..................................114 OPTIONS.....................................................115 AUDIBLE ALARM...........................................118 BATTERY ROLLERS.........................................120 CONVENIENCE TRAY WITHOUT LOAD BACKREST EXTENSION........122 HEAVY DUTY CASTER.......................................124 LOAD BACKREST EXTENSION.................................126 OPERATOR TRAY...........................................128 PREMIUM BACK PAD........................................130 RF TERMINAL.............................................132 STEER HEAD HEATER COLD STORAGE ONLY.....................134 VISUAL ALARM POLE MOUNTED...............................136 VISUAL ALARM POLE MOUNTED - ALTERNATE CONFIGURATION ....138 FIELD CONVERSION KITS.......................................141 BACK-UP ALARM KIT.......................................144 STROBE LIGHT KIT........................................144 RF TERMINAL KIT.........................................144 PALLET ENTRY AND EXIT KIT...............................144 CONVENIENCE TRAY KIT....................................144 TELEMETRY KITS..........................................144 NUMERICAL INDEX.............................................145
DESCRIPTION:
Hyster C60ZAC (B478) C80ZAC (B479) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 8-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 8-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (FFigure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
HYSTER C60ZAC (B478) C80ZAC (B479) PARTS MANUAL – PDF DOWNLOAD:

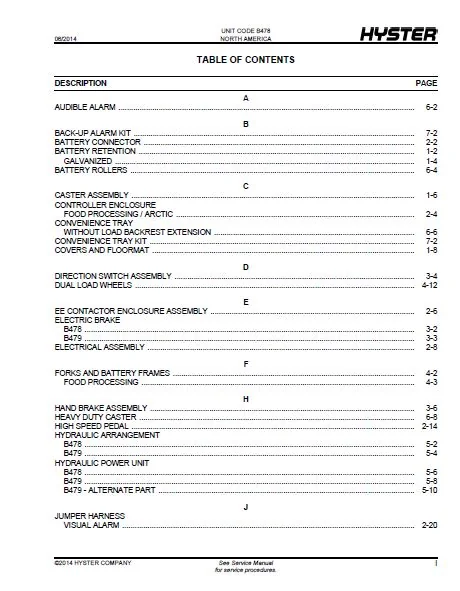

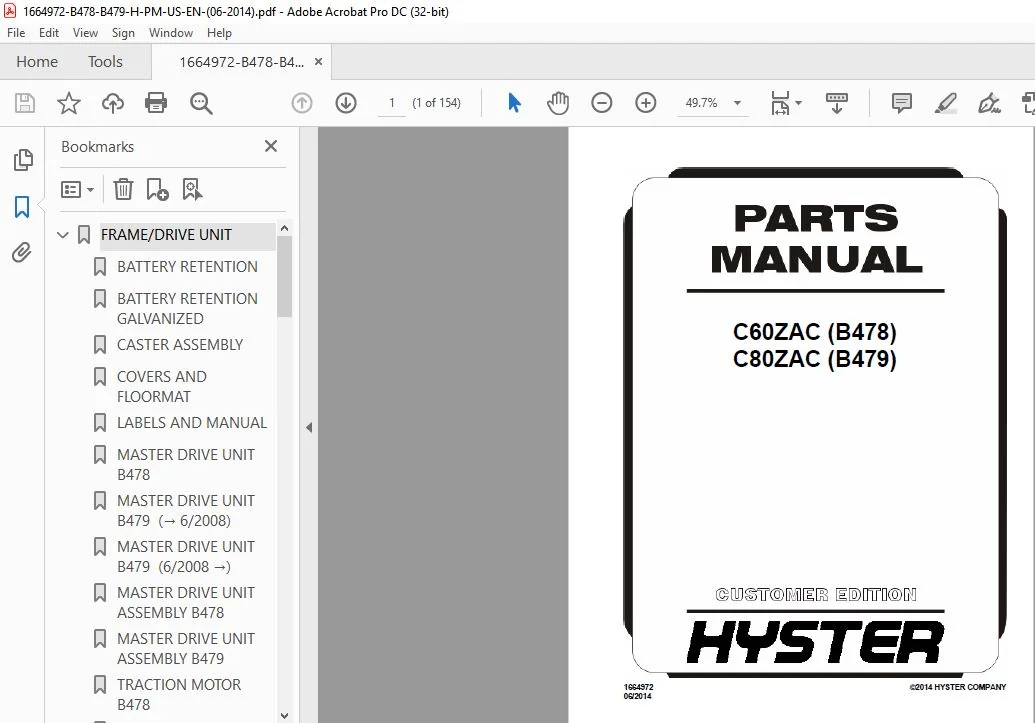

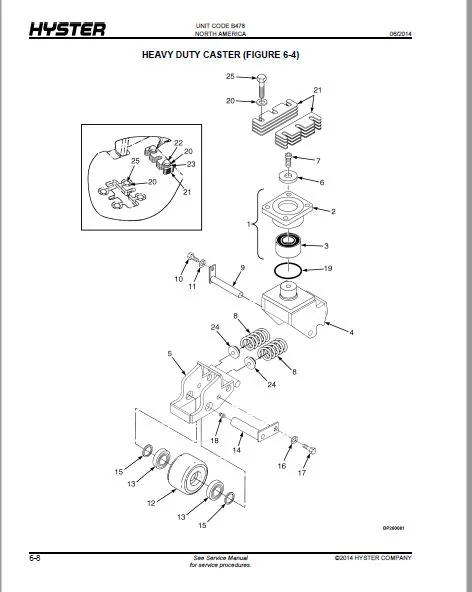

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
