Hyster ELECTRIC E45XM2 E50XM2 E55XM2 E60XM2 E65XM2 (F108) Parts Manual – PDF DOWNLOAD
Original price was: $89.95.$29.95Current price is: $29.95.
Hyster ELECTRIC E45XM2 E50XM2 E55XM2 E60XM2 E65XM2 (F108) Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hyster ELECTRIC E45XM2 E50XM2 E55XM2 E60XM2 E65XM2 (F108) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster ELECTRIC E45XM2 E50XM2 E55XM2 E60XM2 E65XM2 (F108) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 12-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 12-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster ELECTRIC E45XM2 E50XM2 E55XM2 E60XM2 E65XM2 (F108) Parts Manual – PDF DOWNLOAD
toc.......................................................... 1 1 FRAME.................................................. 19 FRAME (Figure 1-1)................................... 22 COVERS (Figure 1-2).................................. 26 HOOD (Figure 1-3).................................... 30 OVERHEAD GUARD (Figure 1-4).......................... 34 COUNTERWEIGHT (Figure 1-5)........................... 36 NON-SUSPENSION SEAT (Figure 1-6)..................... 38 SUSPENSION SEAT (Figure 1-7)......................... 40 FULL SUSPENSION SEAT (Figure 1-8).................... 44 FULL SUSPENSION SEAT (Figure 1-9).................... 46 LABELS (Figure 1-10)................................. 48 LOAD BACKREST EXTENSION (Figure 1-11)................ 52 2 ELECTRICAL SYSTEM...................................... 55 ELECTRICAL SYSTEM (Figure 2-1)....................... 58 ELECTRICAL SYSTEM (Figure 2-2)....................... 62 CONTROL PANEL (Figure 2-3)........................... 66 CONTROL PANEL (Figure 2-4)........................... 68 CONTACTOR PANEL (Figure 2-5)......................... 70 CONTACTOR PANEL (Figure 2-6)......................... 72 CONTACTOR STEERING (Figure 2-7)...................... 74 CONTACTOR (Figure 2-8)............................... 76 CONTACTOR (Figure 2-9)............................... 78 WIRE HARNESS (Figure 2-10)........................... 80 BATTERY CONNECTOR (Figure 2-11)...................... 82 WIRE HARNESS (Figure 2-12)........................... 83 WIRE HARNESS (Figure 2-13)........................... 84 WIRE HARNESS (Figure 2-14)........................... 86 WIRE HARNESS (Figure 2-15)........................... 88 3 DRIVE UNIT............................................. 89 DRIVE AXLE (Figure 3-1).............................. 92 TRANSMISSION AND DIFFERENTIAL (Figure 3-2)........... 96 DRIVE UNIT INSTALLATION (Figure 3-3).................100 TRACTION MOTOR (Figure 3-4)..........................102 TRACTION MOTOR (Figure 3-5)..........................104 TRACTION MOTOR (Figure 3-6)..........................106 TRACTION MOTOR (Figure 3-7)..........................108 4 STEERING SYSTEM........................................111 STEERING POD (Figure 4-1)............................114 SHIFT LEVER (Figure 4-2).............................118 STEERING CONTROL UNIT (Figure 4-3)...................120 STEERING HYDRAULIC (Figure 4-4)......................122 STEERING CYLINDER (Figure 4-5).......................124 GEAR PUMP (Figure 4-6)...............................125 GEAR PUMP (Figure 4-7)...............................126 STEERING MOTOR (Figure 4-8)..........................128 STEERING MOTOR (Figure 4-9)..........................130 STEERING MOTOR (Figure 4-10).........................132 STEERING MOTOR (Figure 4-11).........................134 STEERING AXLE (Figure 4-12)..........................136 STEERING AXLE (Figure 4-13)..........................140 5 BRAKE/ACCELERATOR SYSTEM...............................143 BRAKE PEDAL LINKAGE (Figure 5-1).....................146 MASTER CYLINDER (Figure 5-2).........................148 BRAKE (Figure 5-3)...................................150 PARK BRAKE (Figure 5-4)..............................152 PARK BRAKE LINKAGE (Figure 5-5)......................156 PARK BRAKE LINKAGE (Figure 5-6)......................160 PARK BRAKE (Figure 5-7)..............................162 PARK BRAKE (Figure 5-8)..............................164 ACCELERATOR (Figure 5-9).............................166 ACCELERATOR PEDAL (Figure 5-10)......................168 6 HYDRAULIC SYSTEM.......................................171 HYDRAULIC (Figure 6-1)...............................174 HYDRAULIC MOTOR MOUNT (Figure 6-2)...................178 HYDRAULIC PUMP (Figure 6-3)..........................180 HYDRAULIC PUMP (Figure 6-4)..........................182 HYDRAULIC PUMP (Figure 6-5)..........................184 HYDRAULIC PUMP (Figure 6-6)..........................186 HYDRAULIC PUMP (Figure 6-7)..........................188 HYDRAULIC PUMP (Figure 6-8)..........................190 HYDRAULIC PUMP (Figure 6-9)..........................192 HYDRAULIC MOTOR (Figure 6-10)........................194 HYDRAULIC MOTOR (Figure 6-11)........................196 HYDRAULIC MOTOR (Figure 6-12)........................198 HYDRAULIC MOTOR (Figure 6-13)........................200 HYDRAULIC MOTOR (Figure 6-14)........................202 HYDRAULIC MOTOR (Figure 6-15)........................204 HYDRAULIC MOTOR (Figure 6-16)........................206 TILT CYLINDER (Figure 6-17)..........................208 CONTROL VALVE ATTACHING PARTS (Figure 6-18)..........210 HAND LEVER (Figure 6-19).............................214 CONTROL VALVE (Figure 6-20)..........................216 CONTROL VALVE (Figure 6-21)..........................220 HYDRAULIC TANK (Figure 6-22).........................224 7 MAST-TWO STAGE LIMITED FREE-LIFT.......................227 OUTER MAST (Figure 7-1)..............................230 INNER MAST (Figure 7-2)..............................232 LIFT (Figure 7-3)....................................234 CYLINDER (Figure 7-4)................................237 MAIN LIFT CYLINDER (Figure 7-5)......................239 MAIN LIFT CYLINDER (Figure 7-6)......................241 CARRIAGE (Figure 7-7)................................244 MAST INSTALLATION (Figure 7-8).......................246 HEADER HOSE (Figure 7-9).............................248 FORK (Figure 7-10)...................................252 FORK (Figure 7-11)...................................254 8 MAST-THREE STAGE FULL FREE-LIFT........................257 OUTER MAST (Figure 8-1)..............................260 INTERMEDIATE MAST (Figure 8-2).......................262 INNER MAST (Figure 8-3)..............................264 MAIN LIFT (Figure 8-4)...............................266 FREE-LIFT (Figure 8-5)...............................270 FREE-LIFT (Figure 8-6)...............................274 MAIN CYLINDER (Figure 8-7)...........................277 FREE-LIFT CYLINDER (Figure 8-8)......................280 CARRIAGE (Figure 8-9)................................284 MAST INSTALLATION (Figure 8-10)......................286 HEADER HOSE (Figure 8-11)............................288 FORK (Figure 8-12)...................................292 FORK (Figure 8-13)...................................294 9 MAST-TWO STAGE FULL FREE-LIFT..........................297 OUTER MAST (Figure 9-1)..............................300 INNER MAST (Figure 9-2)..............................302 MAIN LIFT (Figure 9-3)...............................304 FREE-LIFT (Figure 9-4)...............................306 FREE-LIFT (Figure 9-5)...............................308 MAIN LIFT CYLINDER (Figure 9-6)......................310 MAIN LIFT CYLINDER (Figure 9-7)......................312 MAIN LIFT CYLINDER (Figure 9-8)......................314 MAIN LIFT CYLINDER (Figure 9-9)......................317 FREE-LIFT CYLINDER (Figure 9-10).....................319 CARRIAGE (Figure 9-11)...............................322 MAST INSTALLATION (Figure 9-12)......................324 HEADER HOSE (Figure 9-13)............................326 FORK (Figure 9-14)...................................330 FORK (Figure 9-15)...................................332 10 MAST-FOUR STAGE FULL FREE-LIFT .......................335 OUTER MAST (Figure 10-1).............................338 INTERMEDIATE MAST (Figure 10-2)......................340 INTERMEDIATE MAST (Figure 10-3)......................342 INNER MAST (Figure 10-4).............................344 MAIN LIFT (Figure 10-5)..............................346 FREE-LIFT (Figure 10-6)..............................348 MAIN CYLINDER (Figure 10-7)..........................350 MAIN CYLINDER (Figure 10-8)..........................351 FREE-LIFT CYLINDER (Figure 10-9).....................352 CARRIAGE (Figure 10-10)..............................354 MAST INSTALLATION (Figure 10-11).....................356 HEADER HOSE (Figure 10-12)...........................358 HEADER HOSE (Figure 10-13)...........................360 FORK (Figure 10-14)..................................364 11 OPTIONS...............................................367 TIRE AND WHEEL (Figure 11-1).........................370 TIRE AND WHEEL (Figure 11-2).........................371 SIDE-SHIFT CARRIAGE (Figure 11-3)....................374 SIDE-SHIFT CYLINDER (Figure 11-4)....................378 INTEGRAL SIDE-SHIFT (Figure 11-5)....................380 INTEGRAL SIDE-SHIFT (Figure 11-6)....................382 INTEGRAL SIDE-SHIFT (Figure 11-7)....................384 INTEGRAL SIDE-SHIFT CYLINDER (Figure 11-8)...........388 INTEGRAL SIDE-SHIFT (Figure 11-9)....................390 INTEGRAL SIDE-SHIFT (Figure 11-10)...................391 INTEGRAL SIDE-SHIFT (Figure 11-11)...................392 AUXILIARY TUBES (Figure 11-12).......................394 AUXILIARY TUBES (Figure 11-13).......................396 BATTERY SLIDE AND ROLLER TRAY (Figure 11-14).........398 BATTERY SLIDE AND ROLLER TRAY (Figure 11-15).........400 BATTERY SLIDE AND ROLLER TRAY (Figure 11-16).........404 BRAKE AND BACKUP LIGHT (Figure 11-17)................408 DRIVE AND REAR LIGHTS (Figure 11-18).................410 STROBE LIGHT (Figure 11-19)..........................412 SPOTLIGHT (Figure 11-20).............................414 DC CONVERTOR (Figure 11-21)..........................415 BACKUP ALARM (Figure 11-22)..........................416 WIRE HARNESS (Figure 11-23)..........................417 WIRE HARNESS (Figure 11-24)..........................418 WIRE HARNESS (Figure 11-25)..........................419 EMERGENCY POWER/SEAT SWITCH BYPASS (Figure 11-26)....420

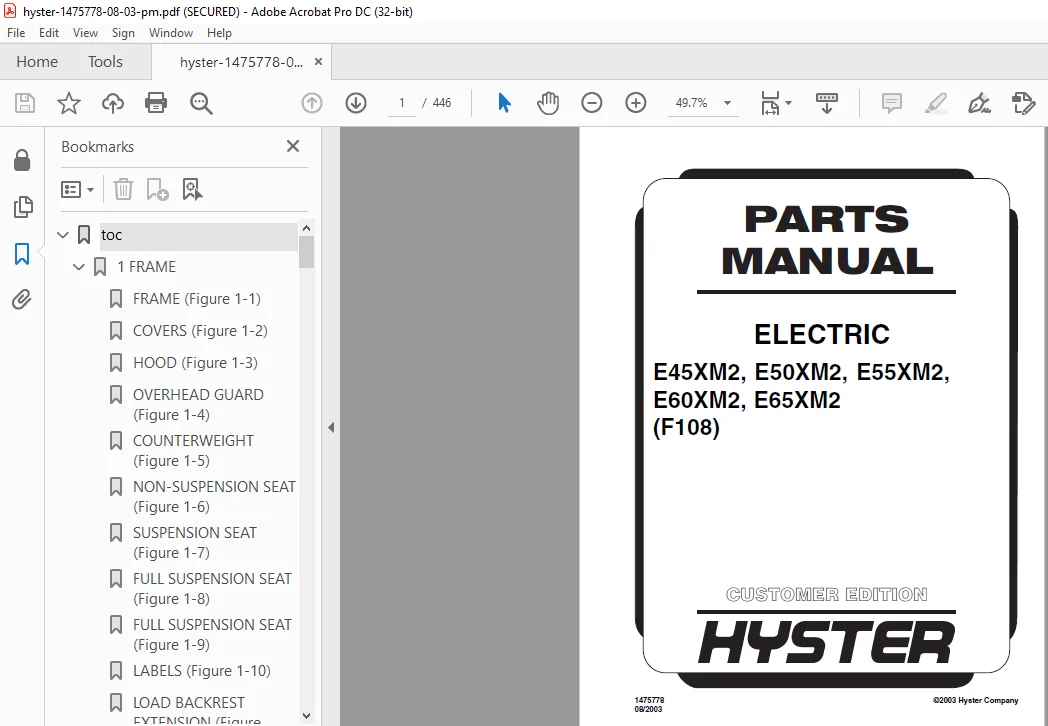

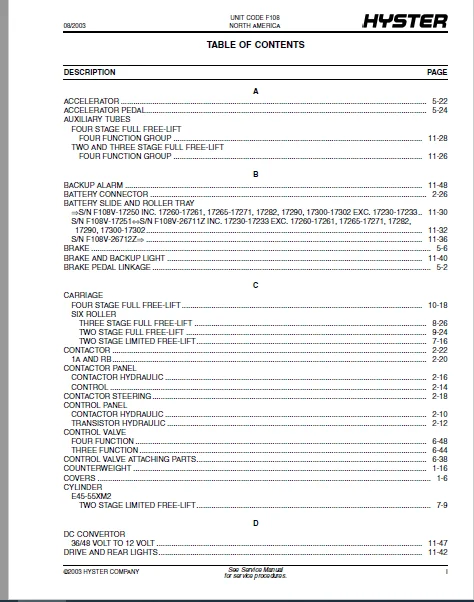

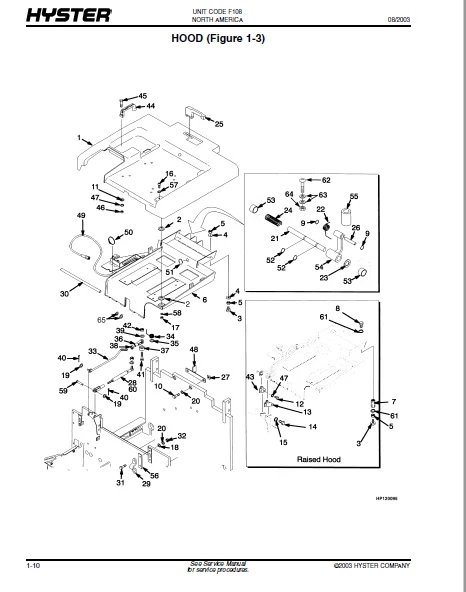

IMAGES PREVIEW OF THE MANUAL:
