Hyster FORTIS® H40FT H50FT H60FT H70FT (L177) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster FORTIS® H40FT H50FT H60FT H70FT (L177) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 18-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 18-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster FORTIS® H40FT H50FT H60FT H70FT (L177) Parts Manual – PDF DOWNLOAD
Frame....................................................................................................................................................................................................................................................................................................................................... 33 HOOD ASSEMBLY........................................................................................................................................................................................................................................................................................................................... 38 HOOD ASSEMBLY........................................................................................................................................................................................................................................................................................................................... 40 HOOD ASSEMBLY........................................................................................................................................................................................................................................................................................................................... 42 FLOORPLATES AND COVERS.................................................................................................................................................................................................................................................................................................................. 46 FLOORPLATES AND COVERS.................................................................................................................................................................................................................................................................................................................. 50 DASH PANEL AND STEERING COLUMN COVER.................................................................................................................................................................................................................................................................................................... 54 FENDER EXTENSIONS....................................................................................................................................................................................................................................................................................................................... 56 COWL MOUNT.............................................................................................................................................................................................................................................................................................................................. 58 COUNTERWEIGHT........................................................................................................................................................................................................................................................................................................................... 60 COUNTERWEIGHT........................................................................................................................................................................................................................................................................................................................... 62 OVERHEAD GUARD.......................................................................................................................................................................................................................................................................................................................... 64 CAB..................................................................................................................................................................................................................................................................................................................................... 66 CAB..................................................................................................................................................................................................................................................................................................................................... 68 CAB WITH A/C............................................................................................................................................................................................................................................................................................................................ 70 CAB ATTACHING PARTS WITH A/C............................................................................................................................................................................................................................................................................................................ 72 CAB LH DOOR (→ S/N L177B11272D) ....................................................................................................................................................................................................................................................................................................... 74 CAB LH DOOR (S/N L177B11273D →) ....................................................................................................................................................................................................................................................................................................... 76 CAB RH DOOR AND HEATER ASSEMBLY (→ S/N L177B11272D) ................................................................................................................................................................................................................................................................................... 80 CAB RH DOOR AND HEATER ASSEMBLY (S/N L177B11273D →) ................................................................................................................................................................................................................................................................................... 82 CAB WITH STEEL DOORS HEATER - WITHOUT AIR CONDITIONING ................................................................................................................................................................................................................................................................................. 85 CAB AIR CONDITIONER..................................................................................................................................................................................................................................................................................................................... 86 CAB HEATER.............................................................................................................................................................................................................................................................................................................................. 88 CAB DOORS PVC........................................................................................................................................................................................................................................................................................................................... 90 CAB WINDOWS AND WINDOW WIPER SYSTEM (→ S/N L177B11272D) ............................................................................................................................................................................................................................................................................... 92 CAB WINDOWS AND WINDOW WIPER SYSTEM (S/N L177B11273D →) ............................................................................................................................................................................................................................................................................... 94 CAB SLIDING REAR WINDOW................................................................................................................................................................................................................................................................................................................. 98 CAB INTERIOR PANELS (→ S/N L177B11272D) ............................................................................................................................................................................................................................................................................................... 100 CAB INTERIOR PANELS (S/N L177B11273D →) ............................................................................................................................................................................................................................................................................................... 102 CAB CONDENSER ASSEMBLY - CAB (WITH A/C) ................................................................................................................................................................................................................................................................................................ 104 CAB FRAME AND ATTACHING PARTS (→ S/N L177B11272D) ..................................................................................................................................................................................................................................................................................... 106 CAB FRAME AND ATTACHING PARTS (S/N L177B11273D →) ..................................................................................................................................................................................................................................................................................... 108 CAB FRAME AND ATTACHING PARTS - CAB WITH A/C ........................................................................................................................................................................................................................................................................................... 110 NON-SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N L177B01401 ↔ S/N L177B01501) ..................................................................................................................................................................................................................................................... 112 NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N L177B01501 ↔ S/N L177V04457H EXC. 04450) ......................................................................................................................................................................................................................................... 114 NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N L177V04458H → INC. 04450) ........................................................................................................................................................................................................................................................ 116 NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS - OPTIONAL ............................................................................................................................................................................................................................................................................. 118 SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01401 ↔ S/N L177B01501) ........................................................................................................................................................................................................................................... 120 SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01501 ↔ 7/2006) ................................................................................................................................................................................................................................................... 122 SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2006 ↔ S/N L177V04457H) .................................................................................................................................................................................................................................................. 124 SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177V04458H → INC. 04450) .............................................................................................................................................................................................................................................. 128 FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01401 ↔ S/N L177B01501) ........................................................................................................................................................................................................................................... 130 FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01501 ↔ S/N L177B008481D) ......................................................................................................................................................................................................................................... 132 FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS - WITH LIMITED BACK TILT (S/N L177B08482D ↔ S/N L177V04457H) ............................................................................................................................................................................................................... 134 FULL SUSPENSION SWIVEL SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (→ 7/2006) ........................................................................................................................................................................................................................................................... 136 FULL SUSPENSION SWIVEL SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2006 ↔ S/N L177V04457H) ........................................................................................................................................................................................................................................... 138 FULL SUSPENSION SEAT MANUAL AND ELECTRO-HYDRAULIC — SWIVEL AND NON SWIVEL - SHEET 1 OF 4 (S/N L177V04458H → INC. 04450) .............................................................................................................................................................................................................. 140 FULL SUSPENSION SEAT SERVICE KITS FOR NON SWIVEL AND SWIVEL - SHEET 2 OF 4 (S/N L177V04458H → INC. 04450) ............................................................................................................................................................................................................................ 142 FULL SUSPENSION SEAT RECLINER AND DAMPER KITS - SHEET 3 OF 4 (S/N L177V04458H → INC. 04450) .......................................................................................................................................................................................................................................... 144 SEAT ATTACHING PARTS NOT INCLUDED WITH SEAT - SHEET 4 OF 4 (S/N L177V04458H → INC. 04450) ............................................................................................................................................................................................................................................ 146 ARMREST ASSEMBLY MINI-LEVER MODULES - SEMI-SUSPENSION SEAT WITH HIP RESTRAINTS (S/N L177V04458H → INC. 04450) ........................................................................................................................................................................................................................ 148 ARMREST ASSEMBLY MINI-LEVER MODULES - FULL SUSPENSION SEAT (S/N L177V04458H → INC. 04450) ............................................................................................................................................................................................................................................ 150 MINI LEVER MODULE LABELS HYDRAULIC CONTROL FUNCTIONS.................................................................................................................................................................................................................................................................................... 152 LABELS EXTERIOR......................................................................................................................................................................................................................................................................................................................... 154 LABELS INTERIOR......................................................................................................................................................................................................................................................................................................................... 156 ELECTRONIC LEVER LABELS AUXILIARY SINGLE FUNCTION....................................................................................................................................................................................................................................................................................... 158 ELECTRONIC LEVER LABELS AUXILIARY DUAL FUNCTION......................................................................................................................................................................................................................................................................................... 160 FORKS................................................................................................................................................................................................................................................................................................................................... 162 FORKS OPTIONAL.......................................................................................................................................................................................................................................................................................................................... 164 FORKS OPTIONAL.......................................................................................................................................................................................................................................................................................................................... 166 LOAD BACKREST EXTENSION................................................................................................................................................................................................................................................................................................................. 168 HEATER HOSES MAZDA, GASOLINE............................................................................................................................................................................................................................................................................................................ 170 HEATER HOSES MAZDA, LPG................................................................................................................................................................................................................................................................................................................. 171 HEATER HOSES GM, GASOLINE............................................................................................................................................................................................................................................................................................................... 172 HEATER HOSES GM, LPG.................................................................................................................................................................................................................................................................................................................... 173 HEATER HOSES YANMAR DIESEL.............................................................................................................................................................................................................................................................................................................. 174 LABELS HYDRAULIC CONTROL LABELS - CONTROL LEVER ........................................................................................................................................................................................................................................................................................ 176 RAIN TOP................................................................................................................................................................................................................................................................................................................................ 178 ENGINE ASSEMBLY - GM........................................................................................................................................................................................................................................................................................................................ 179 COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - WITH INTERNAL OIL COOLER (→ S/N L177B14568E) ........................................................................................................................................................................................................................ 182 COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - WITH INTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →) ................................................................................................................................................................................................... 184 COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - WITH EXTERNAL OIL COOLER (→ S/N L177B14568E) ........................................................................................................................................................................................................................ 188 COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - WITH EXTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →) ................................................................................................................................................................................................... 190 EXHAUST SYSTEM GM 2.4L GASOLINE AND LPG................................................................................................................................................................................................................................................................................................. 192 EXHAUST SYSTEM GM 2.4L GASOLINE AND LPG - 2010 SERIES .................................................................................................................................................................................................................................................................................. 196 ENGINE MOUNTING GM 2.4L ENGINE.......................................................................................................................................................................................................................................................................................................... 199 ASSEMBLED ENGINE GM 2.4L, GASOLINE AND LPG - SHEET 1 OF 4 .............................................................................................................................................................................................................................................................................. 200 ASSEMBLED ENGINE GASOLINE AND LPG - GM 2.4L (SHEET 2 OF 4) ............................................................................................................................................................................................................................................................................. 204 ASSEMBLED ENGINE GM 2.4L, GASOLINE AND LPG - SHEET 3 OF 4 .............................................................................................................................................................................................................................................................................. 206 ASSEMBLED ENGINE GM 2.4L, GASOLINE AND LPG - SHEET 4 OF 4 .............................................................................................................................................................................................................................................................................. 208 FAN ASSEMBLY GM 2.4L ENGINE............................................................................................................................................................................................................................................................................................................. 210 COOLING MANIFOLD AND ATTACHING PARTS GM 2.4L - GASOLINE AND LPG ........................................................................................................................................................................................................................................................................ 212 ALTERNATOR AND MOUNTING GM 2.4L - GASOLINE AND LPG ..................................................................................................................................................................................................................................................................................... 213 FLYWHEEL AND HOUSING GM 2.4L - GASOLINE AND LPG (→ S/N L177V02181F) .................................................................................................................................................................................................................................................................. 214 FLYWHEEL AND HOUSING GM 2.4L GASOLINE AND LPG (S/N L177V02182F →) ..................................................................................................................................................................................................................................................................... 216 CAMSHAFT, CYLINDER HEAD AND MANIFOLDS GM 2.4L (→ S/N L177B05989D (LPG)) (→ S/N L177B06541D GAS) ...................................................................................................................................................................................................................................... 218 CAMSHAFT, CYLINDER HEAD AND MANIFOLDS GM 2.4L ENGINE (S/N L177B05990D → (LPG)) (S/N L177B06542D → GAS) ............................................................................................................................................................................................................................... 222 CRANKSHAFT, PISTONS AND OIL PAN GM 2.4L - GASOLINE AND LPG ............................................................................................................................................................................................................................................................................. 226 CAM POSITION SENSOR GM 2.4L GASOLINE AND LPG - 2010 SERIES ............................................................................................................................................................................................................................................................................. 229 ENGINE ASSEMBLY - MAZDA..................................................................................................................................................................................................................................................................................................................... 231 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SERPENTINE RADIATOR - BASIC POWERSHIFT TRANSMISSION (→ S/N L177B14568E) ........................................................................................................................................................................................................ 236 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SERPENTINE RADIATOR - BASIC POWERSHIFT TRANSMISSION (S/N L177B14569E →) (S/N L177V01501F →) ................................................................................................................................................................................... 238 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - ELECTRONIC CONTROL TRANSMISSION, WITH INTERNAL OIL COOLER (→ S/N L177B14568E) ........................................................................................................................................................................... 240 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - BASIC POWERSHIFT TRANSMISSION (→ S/N L177B14568E) ....................................................................................................................................................................................................... 242 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - BASIC POWERSHIFT TRANSMISSION (S/N L177B14569E →) (S/N L177V01501F →) .................................................................................................................................................................................. 244 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - ELECTRONIC TRANSMISSION, WITH EXTERNAL OIL COOLER (→ S/N L177B14568E) ................................................................................................................................................................................... 246 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR - ELECTRONIC TRANSMISSION, EXTERNAL OIL COOLER, OR WET BRAKE (S/N L177B14569E →) (S/N L177V01501F →) ..................................................................................................................................................... 248 EXHAUST SYSTEM WITH CATALYTIC CONVERTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E) .................................................................................................................................................................................................. 252 EXHAUST SYSTEM WITH CATALYTIC CONVERTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177V01501F →) ....................................................................................................................................................................... 254 FAN ASSEMBLY MAZDA 2.0L................................................................................................................................................................................................................................................................................................................. 257 ENGINE MOUNTING......................................................................................................................................................................................................................................................................................................................... 258 FLYWHEEL AND HOUSING MAZDA 2.0L AND 2.2L - GASOLINE AND LPG (→ S/N L177B11107D) ...................................................................................................................................................................................................................................................... 260 FLYWHEEL AND HOUSING MAZDA 2.0 L AND 2.2 L - GASOLINE AND LPG (S/N L177B11118D →) (S/N L177V01501F →) ............................................................................................................................................................................................................................... 262 CYLINDER HEAD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L GAS) (→ S/N L177B16206E 2.2L LPG) (S/N L177B15512E → 2.0L GAS AND LPG) ................................................................................................................................................. 264 CYLINDER BLOCK MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L Gas) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG) .............................................................................................................................................. 266 CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG) ....................................................................................................................................... 268 CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG) .................................................................................................................................... 270 ENGINE COOLING MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG) .......................................................................................................................................... 274 EXHAUST MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B15511E (2.0 Gas and LPG)) (→ S/N L177B16206E (2.2L LPG)) ......................................................................................................................................... 277 ENGINE FUEL SYSTEM AND INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L Gas) (→ S/N L177B15511E 2.0L Gas) ...................................................................................................................................................................... 278 INTAKE MANIFOLD MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0L LPG) (→ S/N L177B16205E (2.2L LPG)) ............................................................................................................................................................................................... 280 EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0L LPG) (→ S/N L177B16206E (2.2L LPG)) ....................................................................................................................................................................................... 282 TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG) ............................................................................................................................. 284 OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0 GAS AND LPG) ........................................................................................................................................ 286 EMISSIONS LINES MAZDA 2.0L AND 2.2L, GASOLINE - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B15511E 2.0 Gas) .......................................................................................................................................................................................... 288 CARBURETOR MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0 LPG) (→ S/N L177B16206E (2.2L LPG)) ..................................................................................................................................................................................................... 290 DELAY VALVE MAZDA 2.0L AND 2.2L LPG (→ S/N L177B11511E (2.0L LPG)) (S/N L177B11108D ↔ S/N L177B16206E 2.2L LPG) ...................................................................................................................................................................................................................... 292 ASSEMBLED ENGINE MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → 2.0L GAS AND LPG) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ................................................................................................................ 294 CYLINDER HEAD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (→ S/N L177B15327E 2.2L GAS) (S/N L177B15512E → 2.0L GAS AND LPG) (S/N L177B16207E → 2.2L LPG) (S/N L177V01501F →) ....................................................................................................................... 296 CYLINDER BLOCK MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ................................................................................................................ 298 CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → 2.2L GAS) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ............................................................................................................. 300 EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E → (2.0L Gas)) (S/N L177B15327E → (2.2L Gas)) (S/N L177V01501F →) .................................................................................................................................................... 302 MAP SENSOR MAZDA 2.0L AND 2.2L, LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E → 2.0L LPG) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ........................................................................................................................................................................ 304 ENGINE FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ............................................................................................................ 306 CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ........................................................................................................ 308 EXHAUST MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0 Gas and LPG)) (S/N L177B16207E → 2.2L LPG) (S/N L177V01501F →) ................................................................................................................. 310 INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → 2.2L Gas) (S/N L177B15512E → 2.0L Gas) (S/N L177V01501F →) ................................................................................................................................................................ 312 INTAKE MANIFOLD MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E → 2.0L LPG) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) .................................................................................................................................................................... 314 TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0 Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →) ............................................................................................... 316 OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → 2.0 GAS AND LPG) (S/N L177B16207E → (2.2L Lpg)) (S/N L177V01501F →) .............................................................................................................. 318 ENGINE COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, (2007-2010 SERIES) (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → 2.2L LPG) (S/N L177V01501F →) ............................................................................................................................. 320 ENGINE ASSEMBLY - YANMAR.................................................................................................................................................................................................................................................................................................................... 323 COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR - WITH INTERNAL OIL COOLER (→ S/N L177B14568E) ..................................................................................................................................................................................................................... 326 COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR - WITH INTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →) ................................................................................................................................................................................................ 328 COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR - WITH EXTERNAL OIL COOLER (→ S/N L177B14568E) ..................................................................................................................................................................................................................... 330 COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR - WITH EXTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →) ................................................................................................................................................................................................ 332 EXHAUST SYSTEM YANMAR 2.6L AND 3.3L - DIESEL ........................................................................................................................................................................................................................................................................................... 336 ENGINE MOUNTING YANMAR 2.6 AND 3.3L..................................................................................................................................................................................................................................................................................................... 338 FAN ASSEMBLY YANMAR 2.6 AND 3.3L........................................................................................................................................................................................................................................................................................................ 339 INTAKE AND EXHAUST MANIFOLD YANMAR 2.6L AND 3.3L - DIESEL .............................................................................................................................................................................................................................................................................. 340 FLYWHEEL AND HOUSING YANMAR 2.6L AND 3.3L - DIESEL ..................................................................................................................................................................................................................................................................................... 342 GEAR HOUSING YANMAR 2.6L AND 3.3L - DIESEL ............................................................................................................................................................................................................................................................................................. 344 OIL PAN YANMAR 2.6L AND 3.3L - DIESEL .................................................................................................................................................................................................................................................................................................. 346 CYLINDER HEAD YANMAR 2.6L AND 3.3L - DIESEL ............................................................................................................................................................................................................................................................................................ 348 CAMSHAFT AND DRIVE GEAR YANMAR 2.6L AND 3.3L - DIESEL .................................................................................................................................................................................................................................................................................. 352 CRANKSHAFT AND PISTONS YANMAR 2.6L AND 3.3L - DIESEL ................................................................................................................................................................................................................................................................................... 354 CYLINDER BLOCK YANMAR 2.6 AND 3.3L - DIESEL ............................................................................................................................................................................................................................................................................................ 356 ENGINE COOLING YANMAR 2.6L AND 3.3L - DIESEL ........................................................................................................................................................................................................................................................................................... 358 LUBRICATION SYSTEM YANMAR 2.6L AND 3.3L - DIESEL ....................................................................................................................................................................................................................................................................................... 360 FUEL SYSTEM - DIESEL........................................................................................................................................................................................................................................................................................................................ 363 AIR INTAKE SYSTEM DIESEL - YANMAR 2.6L AND 3.3L (→ S/N L177B14427E) .................................................................................................................................................................................................................................................................. 366 AIR INTAKE SYSTEM DIESEL - YANMAR 2.6L AND 3.3L (S/N L177B14428E →) .................................................................................................................................................................................................................................................................. 368 AIR FILTER ASSEMBLY YANMAR 2.6L AND 3.3L DIESEL......................................................................................................................................................................................................................................................................................... 370 FUEL SYSTEM YANMAR 2.6L AND 3.3L - DIESEL .............................................................................................................................................................................................................................................................................................. 372 FUEL INJECTION SYSTEM YANMAR 2.6L AND 3.3L - DIESEL .................................................................................................................................................................................................................................................................................... 374 FUEL FILTER AND WATER SEPARATOR YANMAR 2.6L AND 3.3L - DIESEL .......................................................................................................................................................................................................................................................................... 376 THROTTLE CABLE ASSEMBLY YANMAR 2.6L AND 3.3L - DIESEL .................................................................................................................................................................................................................................................................................. 378 THROTTLE POSITION SENSOR AND ATTACHING PARTS YANMAR 2.6L AND 3.3L DIESEL (→ S/N L177V05112H) .......................................................................................................................................................................................................................................... 380 THROTTLE POSITION SENSOR AND ATTACHING PARTS YANMAR 2.6L AND 3.3L DIESEL (S/N L177V05113H →) .......................................................................................................................................................................................................................................... 382 MONOTROL PEDAL ASSEMBLY YANMAR 2.6L AND 3.3L DIESEL (→ S/N L177V11233K) ............................................................................................................................................................................................................................................................... 384 THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS STANDARD PEDAL.............................................................................................................................................................................................................................................................................. 386 THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS MONOTROL (S/N L177V11234K →) .............................................................................................................................................................................................................................................................. 388 FUEL SYSTEM - GAS/LPG....................................................................................................................................................................................................................................................................................................................... 391 AIR INTAKE SYSTEM GASOLINE AND LPG - GM 2.4L (→ S/N L177B15327E) ..................................................................................................................................................................................................................................................................... 396 AIR INTAKE SYSTEM GASOLINE AND LPG - GM 2.4L (S/N L177B19203E →) ..................................................................................................................................................................................................................................................................... 398 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E) ................................................................................................................................................................................................................................ 400 AIR INTAKE SYSTEM PRE-CLEANER AND DUCT - MAZDA 2.0L AND 2.2L ........................................................................................................................................................................................................................................................................... 402 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15512E) ...................................................................................................................................................................................................................................... 404 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B16207E →) .......................................................................................................................................................................................................................... 406 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15326E →) ................................................................................................................................................................................................................................ 408 AIR FILTER ASSEMBLY GASOLINE AND LPG.................................................................................................................................................................................................................................................................................................... 410 FUEL SYSTEM GM 2.4L - GASOLINE ......................................................................................................................................................................................................................................................................................................... 412 FUEL SYSTEM GM 2.4L - LPG (→ S/N L177V02219F) ........................................................................................................................................................................................................................................................................................ 414 FUEL SYSTEM GM 2.4L - LPG (S/N L177V02202F ↔ S/N L177V04793H EXC. 04777, 04792) ...................................................................................................................................................................................................................................................... 416 FUEL SYSTEM GM 2.4L - LPG (S/N L177V04794H → EXC. 04804, 04821) ...................................................................................................................................................................................................................................................................... 418 THROTTLE BODY AND ATTACHING PARTS GM 2.4L - GASOLINE ................................................................................................................................................................................................................................................................................... 422 THROTTLE BODY AND ATTACHING PARTS GM 2.4L - LPG ........................................................................................................................................................................................................................................................................................ 424 THROTTLE BODY AND ATTACHING PARTS GM 2.4L GASOLINE AND LPG - 2010 SERIES ............................................................................................................................................................................................................................................................... 426 FUEL REGULATOR LPG - GM 2.4L ........................................................................................................................................................................................................................................................................................................... 428 ENGINE FUEL SYSTEM AND INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L Gas) (→ S/N L177B15511E 2.0L Gas) ...................................................................................................................................................................... 430 EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0L LPG) (→ S/N L177B16206E (2.2L LPG)) ....................................................................................................................................................................................... 432 EMISSIONS LINES MAZDA 2.0L AND 2.2L, GASOLINE - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B15511E 2.0 Gas) .......................................................................................................................................................................................... 434 CARBURETOR MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0 LPG) (→ S/N L177B16206E (2.2L LPG)) ..................................................................................................................................................................................................... 436 DELAY VALVE MAZDA 2.0L AND 2.2L LPG (→ S/N L177B11511E (2.0L LPG)) (S/N L177B11108D ↔ S/N L177B16206E 2.2L LPG) ...................................................................................................................................................................................................................... 438 FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B16206E) ...................................................................................................................................................................................................................................... 440 FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B16207E) ............................................................................................................................................................................................................................................ 442 FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15511E →) ................................................................................................................................................................................................................................ 445 FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E →) ...................................................................................................................................................................................................................................... 446 FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007 EMISSION COMPLIANT ENGINES (S/N L177B15326E ↔ S/N L177B15511E (2.0L Engine)) (S/N L177B15326E ↔ S/N L177B16206E (2.2L Engine)) .............................................................................................................................................. 448 FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007 EMISSION COMPLIANT ENGINES (S/N L177B15512E ↔ S/N L177V04793H (2.0L Engine)) (S/N L177B16207E ↔ S/N L177V04794H (2.2L Engine)) .................................................................................................................................................... 450 FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177V04794H → EXC. 04821, 04804) ............................................................................................................................................................................................................. 452 FUEL SYSTEM HOSES AND ATTACHING PARTS MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES .................................................................................................................................................................................................................................. 454 FUEL PUMP AND ATTACHING PARTS MAZDA 2.0L AND 2.2L/GM 2.4L - GASOLINE ................................................................................................................................................................................................................................................................... 456 FUEL PUMP AND SENDER MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B16207E →) ....................................................................................................................................................................................................................... 458 THROTTLE BODY AND ATTACHING PARTS MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES ................................................................................................................................................................................................................................ 460 MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E ↔ 2/2008) ................................................................................................................................................................................................................ 462 MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (2/2008 →) .......................................................................................................................................................................................................................... 464 ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E ↔ 2/2008 (Engine Assy Mazda 2.2L EGI w/ECES)) ...................................................................................................................................................................... 466 ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (2/2008 ↔ 2/2012) ............................................................................................................................................................................................................. 468 ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG (2/2012 →) ............................................................................................................................................................................................................................................................. 470 ELECTRONIC PRESSURE REGULATOR KIT MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B16207E → (Engine Assy Mazda 2.2L LPG w/ECES)) ............................................................................................................................................................................ 472 LPG BRACKET ASSEMBLY SWING OUT BRACKET.................................................................................................................................................................................................................................................................................................. 474 LPG BRACKET ASSEMBLY SWING OUT BRACKET - (ALTERNATE ASSEMBLY) .......................................................................................................................................................................................................................................................................... 476 LPG TANK BRACKET SWING OUT LONG - (ALTERNATE ASSEMBLY) ................................................................................................................................................................................................................................................................................. 480 LPG BRACKET ASSEMBLY EZXCHANGE (→ 4/2007) ............................................................................................................................................................................................................................................................................................. 482 LPG BRACKET ASSEMBLY EZXCHANGE (4/2007 →) ............................................................................................................................................................................................................................................................................................. 486 THROTTLE CABLE ASSEMBLY MAZDA 2.0L AND 2.2L - GASOLINE ................................................................................................................................................................................................................................................................................. 490 THROTTLE CABLE ASSEMBLY MAZDA 2.0L AND 2.2L - LPG ...................................................................................................................................................................................................................................................................................... 492 MONOTROL PEDAL ASSEMBLY................................................................................................................................................................................................................................................................................................................. 494 THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS STANDARD PEDAL.............................................................................................................................................................................................................................................................................. 496 THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS MONOTROL.................................................................................................................................................................................................................................................................................... 498 ELECTRICAL SYSTEM........................................................................................................................................................................................................................................................................................................................... 501 ELECTRICAL SYSTEM CHASSIS............................................................................................................................................................................................................................................................................................................... 506 COWL ELECTRICAL ELECTRO-HYDRAULIC....................................................................................................................................................................................................................................................................................................... 510 COWL ELECTRICAL MANUAL HYDRAULIC - WITH OPERATOR PRESENCE SYSTEM ....................................................................................................................................................................................................................................................................... 512 IMPACT SENSOR........................................................................................................................................................................................................................................................................................................................... 514 POWER DISTRIBUTION MODULE............................................................................................................................................................................................................................................................................................................... 516 POWER DISTRIBUTION MODULE............................................................................................................................................................................................................................................................................................................... 518 ENGINE ELECTRICAL COMPONENTS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2006 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) ................................................................................................................................................................... 520 DISTRIBUTOR MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2006 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) .................................................................................................................................................................................... 523 ENGINE ELECTRICAL COMPONENTS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) ............................................................................................................................................................. 524 ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - SHEET 1 OF 2 .................................................................................................................................................................................................................................................................. 526 ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L LPG - SHEET 1 OF 2 ........................................................................................................................................................................................................................................................................ 530 ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SHEET 2 OF 2 - 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) ......................................................................................................................................................... 534 ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L17715512E →) ............................................................................................................................................................................. 537 ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) .................................................................................................................................................................................. 538 FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) .............................................................................................................................................................................. 539 FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) .................................................................................................................................................................................... 540 ALTERNATOR AND MOUNTING YANMAR 2.6L AND 3.3L - DIESEL .................................................................................................................................................................................................................................................................................. 541 SEALED ALTERNATOR AND MOUNTING YANMAR 2.6 AND 3.3L...................................................................................................................................................................................................................................................................................... 542 BATTERY CABLES GM 2.4L - GASOLINE AND LPG .............................................................................................................................................................................................................................................................................................. 544 ENGINE ELECTRICAL SYSTEM YANMAR DIESEL.................................................................................................................................................................................................................................................................................................. 546 ENGINE SAFETY ELECTRICAL SYSTEM WITH SEALED ALTERNATOR WIRE HARNESS - MAZDA - GASOLINE AND LPG ......................................................................................................................................................................................................................................... 550 ENGINE SAFETY ELECTRICAL SYSTEM GM 2.4L - GASOLINE AND LPG ............................................................................................................................................................................................................................................................................. 554 INSTRUMENT CLUSTER...................................................................................................................................................................................................................................................................................................................... 557 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES - DATE CODE 0724 .......................................................................................................................................................................................................................................................................... 560 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES (THREE FUNCTION) - DATE CODE 0725 THRU 0743 ............................................................................................................................................................................................................................................... 562 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULE (FOUR FUNCTION) - DATE CODE 0725 THRU 0743 ................................................................................................................................................................................................................................................. 564 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES (THREE FUNCTION) - DATE CODE 0744 ......................................................................................................................................................................................................................................................... 566 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULE (FOUR FUNCTION) - DATE CODE 0744 ........................................................................................................................................................................................................................................................... 570 MINI-LEVER CONTROLS WITH ARMREST - THREE FUNCTION (S/N L177V04458H → INC. 04450) ..................................................................................................................................................................................................................................................... 572 MINI-LEVER CONTROLS WITH ARMREST - FOUR FUNCTION (S/N L177V04458H → INC. 04450) ...................................................................................................................................................................................................................................................... 574 LIGHTS STOP, TAIL, TURN, BACKUP, AND STROBE - WITH CAB ................................................................................................................................................................................................................................................................................. 576 LIGHTS STOP, TAIL, TURN, BACKUP, AND STROBE - WITH OVERHEAD GUARD ...................................................................................................................................................................................................................................................................... 578 TRANSMISSION ELECTRICAL SYSTEM.......................................................................................................................................................................................................................................................................................................... 580 MAST ELECTRICAL......................................................................................................................................................................................................................................................................................................................... 582 LOAD WEIGH ELECTRICAL................................................................................................................................................................................................................................................................................................................... 584 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L, GASOLINE AND LPG (→ 1/2006) ........................................................................................................................................................................................................................................................... 586 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L (→ S/N L177B11117D) .................................................................................................................................................................................................................................................................... 590 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L (S/N L177B11118D ↔ S/N L177B15327E 2.2L Gasoline Engine) (→ S/N L177B15512E 2.0L LPG Engine) (→ S/N L177B16207E 2.2L LPG Engine) ..................................................................................................................................................... 596 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L (S/N L177B15327E ↔ 10/2008 (2.2L Gasoline Engine)) (S/N L177B16207E ↔ 10/2008 (2.2L LPG Engine)) (S/N L177B15512E ↔ 10/2008 (2.0L LPG Engine)) ....................................................................................................................................... 602 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L (10/2008 ↔ S/N L177V05175H) ............................................................................................................................................................................................................................................................ 608 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L (S/N L177V05176H →) .................................................................................................................................................................................................................................................................... 614 WIRE HARNESS RH CHASSIS - MAZDA 2.0L AND 2.2L (1/2013 →) ............................................................................................................................................................................................................................................................................. 620 WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE - MAZDA 2.0L AND 2.2L ........................................................................................................................................................................................................................................................... 626 WIRE HARNESS RH CHASSIS - GM 2.4L, GASOLINE AND LPG (→ 12/2005) ...................................................................................................................................................................................................................................................................... 632 WIRE HARNESS RH CHASSIS - GM 2.4L (→ S/N L177B11117D) ................................................................................................................................................................................................................................................................................ 636 WIRE HARNESS RH CHASSIS - GM 2.4L (S/N L177B11118D ↔ 1/2007) ......................................................................................................................................................................................................................................................................... 642 WIRE HARNESS RH CHASSIS - GM 2,4L (1/2007 ↔ 10/2008) ................................................................................................................................................................................................................................................................................. 648 WIRE HARNESS RH CHASSIS - GM 2.4L (10/2008 ↔ S/N L177V05175H) ........................................................................................................................................................................................................................................................................ 654 WIRE HARNESS RH CHASSIS - GM 2.4L (S/N L177V05176H →) ................................................................................................................................................................................................................................................................................ 660 WIRE HARNESS RH CHASSIS - GM 2.4L (1/2013 →) ......................................................................................................................................................................................................................................................................................... 666 WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE - GM 2.4L ....................................................................................................................................................................................................................................................................... 672 WIRE HARNESS RH CHASSIS - YANMAR 2.6L AND 3.3L, DIESEL (→ 2/2006) .................................................................................................................................................................................................................................................................... 678 WIRE HARNESS RH CHASSIS - YANMAR 2.6L AND 3.3L, DIESEL (→ 8/2006) .................................................................................................................................................................................................................................................................... 682 WIRE HARNESS RH CHASSIS - YANMAR 2.6L AND 3.3L, DIESEL (8/2006 ↔ S/N L177B31165H) .................................................................................................................................................................................................................................................... 688 WIRE HARNESS RH CHASSIS - YANMAR 2.6L AND 3.3L, DIESEL (S/N L177B31166H →) ........................................................................................................................................................................................................................................................... 694 WIRE HARNESS RH CHASSIS - YANMAR 2.6L AND 3.3L, DIESEL (1/2013 →) .................................................................................................................................................................................................................................................................... 700 WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE - YANMAR 2.6L AND 3.3L, DIESEL .................................................................................................................................................................................................................................................. 706 WIRE HARNESS SEAT JUMPER (→ S/N L177V04457H EXC. 04450) ............................................................................................................................................................................................................................................................................... 712 WIRE HARNESS GASOLINE ENGINE - MAZDA 2.0L AND 2.2L (→ S/N L177B11117D) ............................................................................................................................................................................................................................................................... 714 WIRE HARNESS GASOLINE ENGINE - MAZDA 2.0L AND 2.2L (S/N L177B11118D ↔ S/N L177B15326E) ............................................................................................................................................................................................................................................... 716 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2009 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) ....................................................................................................................................................................................................................... 720 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE - 2010 SERIES ...................................................................................................................................................................................................................................................................... 726 WIRE HARNESS LPG ENGINE - MAZDA 2.0L AND 2.2L (→ S/N L177B11117D) .................................................................................................................................................................................................................................................................... 730 WIRE HARNESS LPG ENGINE - MAZDA 2.0L AND 2.2L (S/N L177B11118D ↔ S/N L177B16207E 2.2L) (S/N L177B11118D ↔ S/N L177B15512E 2.0L) ..................................................................................................................................................................................................... 732 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG - 2007-2009 EMISSION COMPLIANT ENGINES (S/N L177B16207E → 2.2L LPG) (S/N L177B15512E → 2.0L LPG) ...................................................................................................................................................................................... 734 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG - 2010 SERIES ............................................................................................................................................................................................................................................................................ 740 WIRE HARNESS ENGINE - GM 2.4L, GASOLINE (→ S/N L177B14822E) .......................................................................................................................................................................................................................................................................... 746 WIRE HARNESS ENGINE - GM 2.4L, GASOLINE (S/N L177B14823E ↔ S/N L177V04179H) .......................................................................................................................................................................................................................................................... 750 WIRE HARNESS (ENGINE) GM 2.4L GASOLINE (S/N L177V04180H →) ............................................................................................................................................................................................................................................................................ 754 WIRE HARNESS ENGINE - GM 2.4L, LPG (→ S/N L177B14822E) ............................................................................................................................................................................................................................................................................... 758 WIRE HARNESS ENGINE - GM 2.4L, LPG (S/N L177B14823E ↔ S/N L177B23560F) ............................................................................................................................................................................................................................................................... 762 WIRE HARNESS GM 2.4L ENGINE, LPG - WITH LOW FUEL SENSOR (S/N L177B23561F ↔ S/N L177V04385H) .......................................................................................................................................................................................................................................... 766 WIRE HARNESS (ENGINE) GM 2.4L, LPG (S/N L177V04386H →) ................................................................................................................................................................................................................................................................................ 770 WIRE HARNESS ENGINE - YANMAR 2.6L AND 3.3L, DIESEL (S/N L177B11118D →) ............................................................................................................................................................................................................................................................... 774 WIRE HARNESS ENGINE - YANMAR 2.6L AND 3.3L, DIESEL (→ S/N L177B11117D) ............................................................................................................................................................................................................................................................... 778 WIRE HARNESS SEALED ALTERNATOR - GM 2.4L, GASOLINE AND LPG ............................................................................................................................................................................................................................................................................. 781 WIRE HARNESS SEALED ALTERNATOR - YANMAR 2.6L AND 3.3L, DIESEL .......................................................................................................................................................................................................................................................................... 784 WIRE HARNESS (SEALED ALTERNATOR) MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →) ............................................................................................................................................................... 786 WIRE HARNESS FUSED STARTER - GM 2.4L 2010 SERIES ....................................................................................................................................................................................................................................................................................... 787 WIRE HARNESS ELECTRONIC CONTROL VALVE - THREE FUNCTION ................................................................................................................................................................................................................................................................................. 788 WIRE HARNESS ELECTRONIC CONTROL VALVE - FOUR FUNCTION .................................................................................................................................................................................................................................................................................. 790 WIRE HARNESS LIGHTS - WITH OVERHEAD GUARD (→ S/N L177B11224D) ........................................................................................................................................................................................................................................................................ 792 WIRE HARNESS LIGHTS - WITH OVERHEAD GUARD (S/N L177B11225D →) ........................................................................................................................................................................................................................................................................ 794 WIRE HARNESS LIGHTS (6/2007 →) ........................................................................................................................................................................................................................................................................................................ 796 WIRE HARNESS TRANSMISSION - SINGLE SPEED (→ S/N L177B11117D) ......................................................................................................................................................................................................................................................................... 798 WIRE HARNESS TRANSMISSION - SINGLE SPEED (S/N L177B11118D ↔ S/N L177B29535G) ......................................................................................................................................................................................................................................................... 800 WIRE HARNESS TRANSMISSION - SINGLE SPEED (S/N L177B29535G →) ......................................................................................................................................................................................................................................................................... 802 WIRE HARNESS TRANSMISSION - DUAL SPEED (→ S/N L177B11117D) ........................................................................................................................................................................................................................................................................... 804 WIRE HARNESS TRANSMISSION - DUAL SPEED (S/N L177B11118D →) ........................................................................................................................................................................................................................................................................... 808 WIRE HARNESS HYDRAULIC COOLER........................................................................................................................................................................................................................................................................................................... 810 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH RETURN TO SET TILT (→ S/N L177V04756H) .................................................................................................................................................................................................................................................. 812 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH RETURN TO SET TILT (S/N L177V04757H →) .................................................................................................................................................................................................................................................. 816 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITHOUT RETURN TO SET TILT (S/N L177V04757H →) ........................................................................................................................................................................................................................................ 820 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITHOUT RETURN TO SET TILT (→ S/N L177V04756H) ........................................................................................................................................................................................................................................ 824 WIRE HARNESS COWL WITH FORWARD/REVERSE - WITH HYDRAULIC PUMP SOLENOID (S/N L117B28589G →) (→ S/N L177V04756H) ....................................................................................................................................................................................................................... 828 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH HYDRAULIC PUMP SOLENOID (S/N L117B28589G →) (→ S/N L177V04756H) ........................................................................................................................................................................................................................ 832 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITH HYDRAULIC PUMP SOLENOID (S/N L177V04757H →) ...................................................................................................................................................................................................................................... 836 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH HYDRAULIC PUMP SOLENOID (S/N L177V04757H →) ............................................................................................................................................................................................................................................. 840 WIRE HARNESS ADAPTER LOW FUEL PRESSURE.................................................................................................................................................................................................................................................................................................. 843 WIRE HARNESS ALTERNATOR - DIESEL ....................................................................................................................................................................................................................................................................................................... 844 TRANSMISSION................................................................................................................................................................................................................................................................................................................................ 845 TRANSMISSION MOUNT SINGLE SPEED - THREE PIECE HOUSING .................................................................................................................................................................................................................................................................................. 850 TRANSMISSION MOUNT SINGLE SPEED - TWO PIECE HOUSING (S/N T133M001501 →) (S/N T134M001501 →) ......................................................................................................................................................................................................................................... 852 TRANSMISSION MOUNT SINGLE SPEED (S/N T141M001501 →) ................................................................................................................................................................................................................................................................................... 854 TRANSMISSION MOUNT SINGLE SPEED - ALUMINUM CHAIN DRIVE (2/2011 →) .................................................................................................................................................................................................................................................................... 856 TORQUE CONVERTER........................................................................................................................................................................................................................................................................................................................ 857 TRANSMISSION COOLING MAZDA 2.0L AND 2.2L/GM 2.4L, GASOLINE AND LPG - SQUARE WAVE WITH EXTERNAL OIL COOLER (→ S/N L177V02742F) ........................................................................................................................................................................................................ 858 TRANSMISSION COOLING MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - SERPENTINE AND SQUARE WAVE WITH INTERNAL OIL COOLER (→ S/N L177V02742F) ................................................................................................................................................................................................. 860 TRANSMISSION COOLING MAZDA 2.0L AND 2.2L, LPG - SERPENTINE AND SQUARE WAVE (S/N L177V02743F →) ....................................................................................................................................................................................................................................... 862 TRANSMISSION COOLING MAZDA 2.0L AND 2.2L, LPG - WITH AIR COOLER (S/N L177V02743F →) .................................................................................................................................................................................................................................................. 864 TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L GASOLINE AND LPG - SQUARE WAVE WITH INTERNAL OIL COOLER (→ S/N L177V02742F) ............................................................................................................................................................................................. 866 TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L LPG - SQUARE WAVE WITH INTERNAL OIL COOLER (S/N L177B29084G →) ......................................................................................................................................................................................................... 868 TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L LPG - SQUARE WAVE WITHOUT AIR COOLER (S/N L177V02743F ↔ S/N L177B31603H) ............................................................................................................................................................................................... 870 TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L LPG - SQUARE WAVE WITHOUT AIR COOLER (S/N L177B31604H →) ............................................................................................................................................................................................................... 874 TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, WET AND DRY BRAKE - SHEET 1 0F 2 (→ S/N L177B10029D (DRY BRAKE)) (→ S/N L177B15745E (WET BRAKE)) .................................................................................................................................................................................... 876 TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, WET AND DRY BRAKE - SHEET 2 OF 2 (→ S/N L177B10029D (Dry Brake)) (→ L177B15745E Wet Brake) .......................................................................................................................................................................................... 880 TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, DRY BRAKE - SHEET 1 OF 2 (S/N L177B10030D ↔ S/N L177B15791E) ......................................................................................................................................................................................................................... 882 TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, DRY BRAKE - SHEET 2 OF 2 (S/N L177B10030D ↔ S/N L177B15791E) ......................................................................................................................................................................................................................... 886 TRANSMISSION SINGLE SPEED, WET AND DRY BRAKE - SHEET 1 OF 2 (S/N L177B15792E → (T133M0001501, Dry Brake)) (S/N L177B15746E → (T134M0001501, Wet Brake)) ............................................................................................................................................................................. 888 TRANSMISSION SINGLE SPEED, WET AND DRY BRAKE - SHEET 2 OF 2 (S/N L177B15792E → (Dry Brake)) (S/N L177B15746E → (Wet Brake)) ......................................................................................................................................................................................................... 890 TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED (S/N T141M001501 →) .................................................................................................................................................................................................................................................................... 894 TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED (S/N T141M001501 →) ......................................................................................................................................................................................................................................................... 898 TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED - ALUMINUM CHAIN DRIVE (2/2011 →) ..................................................................................................................................................................................................................................................... 900 TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED - ALUMINUM CHAIN DRIVE (2/2011 →) .......................................................................................................................................................................................................................................... 904 STATOR SUPPORT HOUSING.................................................................................................................................................................................................................................................................................................................. 906 INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION (→ S/N L177B134120E) ................................................................................................................................................................................................................................................................... 908 INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION (S/N L177B13421E →) .................................................................................................................................................................................................................................................................... 910 INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION (S/N T141M001501 →) (S/N T148M001501 →) ............................................................................................................................................................................................................................................... 912 COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION (→ S/N L177B13245E) .................................................................................................................................................................................................................................................................. 914 COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION (S/N L177B13246E →) .................................................................................................................................................................................................................................................................. 916 COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION (S/N T141M001501 →) (S/N T148M001501 →) ............................................................................................................................................................................................................................................. 918 CONTROL VALVE TRANSMISSION (→ S/N L177B19874E (High Pressure Idle)) (→ S/N L177B19274E (Low Pressure Idle)) .......................................................................................................................................................................................................................... 920 CONTROL VALVE ASSEMBLY.................................................................................................................................................................................................................................................................................................................. 922 Drive Axle.................................................................................................................................................................................................................................................................................................................................. 923 DRIVE AXLE AND ATTACHING PARTS WET BRAKE (→ 4/2014) ................................................................................................................................................................................................................................................................................... 926 AXLE HOUSING WET BRAKE (→ 4/2014) ..................................................................................................................................................................................................................................................................................................... 928 BEVEL GEAR WET BRAKE (→ 4/2014) ....................................................................................................................................................................................................................................................................................................... 930 DIFFERENTIAL WET BRAKE (→ 4/2014) ..................................................................................................................................................................................................................................................................................................... 932 PARKING BRAKE WET BRAKE (→ 4/2014) .................................................................................................................................................................................................................................................................................................... 934 WET BRAKES.............................................................................................................................................................................................................................................................................................................................. 936 WHEEL HUB WET BRAKE (→ 4/2014) ........................................................................................................................................................................................................................................................................................................ 938 DRIVE AXLE AND ATTACHING PARTS WET BRAKE (4/2014 →) ................................................................................................................................................................................................................................................................................... 940 AXLE HOUSING WET BRAKE (4/2014 →) ..................................................................................................................................................................................................................................................................................................... 942 BEVEL GEAR WET BRAKE (4/2014 →) ....................................................................................................................................................................................................................................................................................................... 944 DIFFERENTIAL WET BRAKE (4/2014 →) ..................................................................................................................................................................................................................................................................................................... 946 PARKING BRAKE WET BRAKE (4/2014 →) .................................................................................................................................................................................................................................................................................................... 948 WET BRAKES.............................................................................................................................................................................................................................................................................................................................. 949 WHEEL HUB WET BRAKE (4/2014 →) ........................................................................................................................................................................................................................................................................................................ 950 DRIVE AXLE AND ATTACHING PARTS DRY BRAKE................................................................................................................................................................................................................................................................................................ 952 DRIVE AXLE DRY BRAKE - SHEET 1 OF 3 (→ 10/2013) ...................................................................................................................................................................................................................................................................................... 954 DRIVE AXLE DRY BRAKE - SHEET 2 OF 3 (→ 10/2013) ...................................................................................................................................................................................................................................................................................... 956 DRIVE AXLE DRY BRAKE - SHEET 3 OF 3 (→ 10/2013) ...................................................................................................................................................................................................................................................................................... 958 DRIVE AXLE DRY BRAKE - SHEET 1 OF 3 (10/2013 →) ...................................................................................................................................................................................................................................................................................... 960 DRIVE AXLE DRY BRAKE - SHEET 2 OF 3 (10/2013 →) ...................................................................................................................................................................................................................................................................................... 962 DRIVE AXLE DRY BRAKE - SHEET 3 OF 3 (10/2013 →) ...................................................................................................................................................................................................................................................................................... 964 DIFFERENTIAL DRY BRAKES................................................................................................................................................................................................................................................................................................................. 966 DRIVE TIRE AND WHEEL SINGLE............................................................................................................................................................................................................................................................................................................. 968 DRIVE TIRE AND WHEEL WIDE TREAD......................................................................................................................................................................................................................................................................................................... 969 DRIVE TIRE AND WHEEL PNEUMATIC RADIAL................................................................................................................................................................................................................................................................................................... 970 DUAL DRIVE WHEELS AND TIRES............................................................................................................................................................................................................................................................................................................. 972 STEERING SYSTEM............................................................................................................................................................................................................................................................................................................................. 975 STEERING COLUMN AND ATTACHING PARTS GASOLINE AND LPG.................................................................................................................................................................................................................................................................................... 978 STEERING COLUMN AND ATTACHING PARTS DIESEL.............................................................................................................................................................................................................................................................................................. 979 STEERING COLUMN ASSEMBLY GASOLINE AND LPG............................................................................................................................................................................................................................................................................................... 980 STEERING COLUMN ASSEMBLY ISOLATED, DIESEL............................................................................................................................................................................................................................................................................................... 982 STEERING CONTROL UNIT................................................................................................................................................................................................................................................................................................................... 984 STEERING LINES.......................................................................................................................................................................................................................................................................................................................... 986 STEER AXLE.............................................................................................................................................................................................................................................................................................................................. 988 STEER CYLINDER.......................................................................................................................................................................................................................................................................................................................... 990 STEER TIRES AND WHEELS H40-50FT......................................................................................................................................................................................................................................................................................................... 992 STEER TIRES AND WHEELS H40-70FT......................................................................................................................................................................................................................................................................................................... 994 BRAKE SYSTEM................................................................................................................................................................................................................................................................................................................................ 997 BRAKE LINKAGE SINGLE PEDAL - DRY BRAKE (→ S/N L177V04756H) ...........................................................................................................................................................................................................................................................................1000 BRAKE LINKAGE SINGLE PEDAL - DRY BRAKE (S/N L177V04757H →) ...........................................................................................................................................................................................................................................................................1002 BRAKE LINKAGE DUAL PEDAL - DRY BRAKE (→ S/N L177V04756H) .............................................................................................................................................................................................................................................................................1004 BRAKE LINKAGE DUAL PEDAL - DRY BRAKE (S/N L177V04757H →) .............................................................................................................................................................................................................................................................................1006 BRAKE ASSEMBLY DRY BRAKE................................................................................................................................................................................................................................................................................................................1008 BRAKE MASTER CYLINDER ASSEMBLY DRY BRAKE................................................................................................................................................................................................................................................................................................1011 BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL - WET BRAKE (→ S/N L177B15745E) ...........................................................................................................................................................................................................................................................1012 BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL - WET BRAKE (S/N L177B15746E ↔ S/N L177V03122G) ...........................................................................................................................................................................................................................................1014 BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL WET BRAKE - WITH ALUMINUM TRANSMISSION (S/N L177V03123G →) ................................................................................................................................................................................................................................1016 BRAKE LINKAGE SINGLE PEDAL - WET BRAKE (→ S/N L177V03122G) ...........................................................................................................................................................................................................................................................................1018 BRAKE LINKAGE SINGLE PEDAL - WET BRAKE (S/N L177V03123G →) ...........................................................................................................................................................................................................................................................................1022 BRAKE LINKAGE DUAL PEDAL - WET BRAKE (→ S/N L177V03122G) .............................................................................................................................................................................................................................................................................1024 BRAKE LINKAGE DUAL PEDAL - WET BRAKE (S/N L177V03123G →) .............................................................................................................................................................................................................................................................................1028 BRAKE MASTER CYLINDER ASSEMBLY WET BRAKE (→ S/N L177V03122G) ..........................................................................................................................................................................................................................................................................1030 BRAKE MASTER CYLINDER ASSEMBLY WET BRAKE (S/N L177V04757H →) ..........................................................................................................................................................................................................................................................................1032 PARK BRAKE ASSEMBLY.....................................................................................................................................................................................................................................................................................................................1034 PARK BRAKE ASSEMBLY.....................................................................................................................................................................................................................................................................................................................1036 HYDRAULIC SYSTEM............................................................................................................................................................................................................................................................................................................................1039 HYDRAULIC SUPPLY AND RETURN WITH IRON TRANSMISSION......................................................................................................................................................................................................................................................................................1044 HYDRAULIC SUPPLY AND RETURN WITH ALUMINUM TRANSMISSION - WITH GEAR DRIVE ...............................................................................................................................................................................................................................................................1046 HYDRAULIC SUPPLY AND RETURN WITH ALUMINUM TRANSMISSION - WITH CHAIN DRIVE ..............................................................................................................................................................................................................................................................1048 GEAR PUMP ASSEMBLY LOW PRESSURE - GEAR DRIVE OPTION ....................................................................................................................................................................................................................................................................................1050 GEAR PUMP ASSEMBLY LOW PRESSURE - CHAIN DRIVE OPTION ...................................................................................................................................................................................................................................................................................1052 GEAR PUMP ASSEMBLY HIGH PRESSURE........................................................................................................................................................................................................................................................................................................1054 HYDRAULIC FILTER........................................................................................................................................................................................................................................................................................................................1056 HYDRAULIC FILTER........................................................................................................................................................................................................................................................................................................................1058 HYDRAULIC HOSES LIFT, TILT, AND AUXILIARY...............................................................................................................................................................................................................................................................................................1060 AUXILLIARY HOSES THREE STAGE FULL FREE LIFT - TWO STAGE LIMITED FREE-LIFT .............................................................................................................................................................................................................................................................1063 HAND LEVERS THREE FUNCTION - WITH DETENTED LEVERS ......................................................................................................................................................................................................................................................................................1066 HAND LEVERS THREE FUNCTION - WITHOUT DETENTED LEVERS ...................................................................................................................................................................................................................................................................................1068 HAND LEVERS FOUR FUNCTION - WITH DETENTED LEVERS .......................................................................................................................................................................................................................................................................................1070 HAND LEVERS FOUR FUNCTION - WITHOUT DETENTED LEVERS ....................................................................................................................................................................................................................................................................................1074 CONTROL VALVE ASSEMBLY MANUAL CONTROL - THREE AND FOUR FUNCTION ........................................................................................................................................................................................................................................................................1076 CONTROL VALVE LOCKOUT GROUP MANUAL CONTROL VALVE (S/N L177V03025G →) ..................................................................................................................................................................................................................................................................1080 VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (→ S/N L177B18729E (3 Function High Relief)) (→ S/N L177B17862E (3 Function Low Relief)) (→ S/N L177B18169E (4 Function Low Relief)) (→ S/N L177B18808E (4 Function High Relief)) ....................................................................1082 VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (S/N L177B17862E ↔ S/N L177V03752G (3 function Low Relief)) (S/N L177B18730E ↔ S/N L177V03752G (3 Function High Relief)) (S/N L177B18170E ↔ S/N L177V03752G (4 Function Low Relief)) (S/N L177B18809E ↔ S/N L177V03752G (4 Function High Relief)) ....1084 VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (S/N L177V03752G →) .....................................................................................................................................................................................................................................1086 AUXILIARY ONE AND TWO MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (→ S/N L177B17861E (3 Function Low Relief)) (→ S/N L177B18169E (4 Function Low Relief)) (→ S/N L177B18729E (3 Function High Relief)) (→ S/N L177B18808E (4 Function High Relief)) ............................................................................1088 AUXILIARY ONE AND TWO MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (S/N L177B17862E → (3 Function Low Relief)) (S/N L177B18170E → (4 Function Low Relief)) (S/N L177B18730E → (3 Function High Relief)) (S/N L177B18809E → (4 Function High Relief)) ............................................................................1090 OUTLET SECTION MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION ..........................................................................................................................................................................................................................................................................1092 HYDRAULIC CONTROL VALVE ELECTRONIC CONTROL - THREE AND FOUR FUNCTION (→ S/N L177B18806E) .............................................................................................................................................................................................................................................1094 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE ASSEMBLY - THREE AND FOUR FUNCTION (S/N L177B18807E ↔ 7/2009) ...............................................................................................................................................................................................................................1096 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE ASSEMBLY - THREE AND FOUR FUNCTION (7/2009 →) ...............................................................................................................................................................................................................................................1098 VALVE ASSEMBLY, LIFT AND LOWER ELECTRONIC CONTROL VALVE - THREE AND FOUR FUNCTION (→ S/N L177B18806E EXC. 08807, 09603, 08238, 08262) ................................................................................................................................................................................................1100 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE INLET SECTION - THREE AND FOUR FUNCTION (S/N L177B18807E → INC. 08807, 09603, 08238, 08262) .................................................................................................................................................................................................1102 HYDRAULIC CONTROL VALVE (ELECTRO-HYDRAULIC) THREE, FOUR AND FIVE FUNCTION - POPPET VALVES ..............................................................................................................................................................................................................................................1104 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE TILT SECTION - THREE AND FOUR FUNCTION ........................................................................................................................................................................................................................................................1106 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE AUXILIARY ONE SECTION - THREE AND FOUR FUNCTION ...............................................................................................................................................................................................................................................1108 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE AUXILIARY TWO SECTION - FOUR FUNCTION .........................................................................................................................................................................................................................................................1110 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE OUTLET SECTION - THREE AND FOUR FUNCTION (→ 7/2009) .........................................................................................................................................................................................................................................1112 OUTLET SECTION ELECTRONIC CONTROL VALVE - THREE AND FOUR FUNCTION (7/2009 →) .........................................................................................................................................................................................................................................................1114 TILT CYLINDER AND MAST INSTALLATION.....................................................................................................................................................................................................................................................................................................1116 TILT CYLINDERS H40-50FT.................................................................................................................................................................................................................................................................................................................1118 TILT CYLINDERS H60-70FT.................................................................................................................................................................................................................................................................................................................1120 Mast-Two Stage Limited Free-Lift............................................................................................................................................................................................................................................................................................................1123 OUTER MAST TWO STAGE LIMITED FREE-LIFT - D507/D562 .....................................................................................................................................................................................................................................................................................1126 INNER MAST TWO STAGE LIMITED FREE-LIFT - D507/D562 .....................................................................................................................................................................................................................................................................................1128 MAIN LIFT TWO STAGE LIMITED FREE-LIFT - D507/D562 ......................................................................................................................................................................................................................................................................................1130 MAIN LIFT CYLINDERS TWO STAGE LIMITED FREE-LIFT - D507/D562 ............................................................................................................................................................................................................................................................................1134 HEADER HOSES TWO STAGE LIMITED FREE-LIFT - D507/D562 ...................................................................................................................................................................................................................................................................................1138 CARRIAGE TWO STAGE LIMITED FREE-LIFT - D507/D562 .......................................................................................................................................................................................................................................................................................1142 OUTER MAST TWO STAGE LIMITED FREE-LIFT - F507-F562 .....................................................................................................................................................................................................................................................................................1144 INNER MAST TWO STAGE LIMITED FREE LIFT - F507-F562 .....................................................................................................................................................................................................................................................................................1146 MAIN LIFT TWO STAGE LIMITED FREE LIFT - F507-F562 ......................................................................................................................................................................................................................................................................................1148 MAIN LIFT CYLINDER TWO STAGE LIMITED FREE LIFT - F507-F562 .............................................................................................................................................................................................................................................................................1150 HEADER HOSE AND ATTACHING PARTS TWO STAGE LIMITED FREE-LIFT - F507-F562 ................................................................................................................................................................................................................................................................1154 CARRIAGE TWO STAGE LIMITED FREE-LIFT - F507-F562 .......................................................................................................................................................................................................................................................................................1158 Mast-Two Stage Full Free-Lift...............................................................................................................................................................................................................................................................................................................1161 OUTER MAST TWO STAGE FULL FREE-LIFT - D509-D564 ........................................................................................................................................................................................................................................................................................1164 INNER MAST TWO STAGE FULL FREE-LIFT - D509-D564 ........................................................................................................................................................................................................................................................................................1166 MAIN LIFT TWO STAGE FULL FREE-LIFT - D509-D564 .........................................................................................................................................................................................................................................................................................1168 MAIN LIFT CYLINDER RIGHT HAND - TWO STAGE FULL FREE-LIFT (D509-D564) ...................................................................................................................................................................................................................................................................1170 MAIN LIFT CYLINDER LEFT HAND - TWO STAGE FULL FREE-LIFT (D509-D564) ....................................................................................................................................................................................................................................................................1172 FREE-LIFT TWO STAGE FULL FREE-LIFT - D509-D564 .........................................................................................................................................................................................................................................................................................1176 FREE-LIFT CYLINDER TWO STAGE FULL FREE-LIFT - D509-D564 ................................................................................................................................................................................................................................................................................1179 HEADER HOSES TWO STAGE FULL FREE-LIFT - D509-D564 ......................................................................................................................................................................................................................................................................................1182 OUTER MAST TWO STAGE FULL FREE LIFT - E509-E564 ........................................................................................................................................................................................................................................................................................1186 INNER MAST TWO STAGE FULL FREE- LIFT - E509-E564 .......................................................................................................................................................................................................................................................................................1188 MAIN LIFT TWO STAGE FULL FREE- LIFT - E509-E564 ........................................................................................................................................................................................................................................................................................1190 MAIN LIFT CYLINDER - RH TWO STAGE FULL FREE- LIFT - E509-E564 ..........................................................................................................................................................................................................................................................................1192 MAIN LIFT CYLINDER - LH TWO STAGE FULL FREE- LIFT - E509-E564 ..........................................................................................................................................................................................................................................................................1196 FREE-LIFT TWO STAGE FULL FREE- LIFT - E509-E564 ........................................................................................................................................................................................................................................................................................1200 FREE-LIFT CYLINDER TWO STAGE FULL FREE- LIFT - E509-E564 ...............................................................................................................................................................................................................................................................................1204 HEADER HOSES TWO STAGE FULL FREE-LIFT - E509-E564 ......................................................................................................................................................................................................................................................................................1208 CARRIAGE TWO STAGE FULL FREE-LIFT.......................................................................................................................................................................................................................................................................................................1212 Mast-Three Stage Full Free-Lift.............................................................................................................................................................................................................................................................................................................1215 OUTER MAST THREE STAGE FULL FREE-LIFT - D508/D563 ......................................................................................................................................................................................................................................................................................1218 INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT - D508/D563 ...............................................................................................................................................................................................................................................................................1220 INNER MAST THREE STAGE FULL FREE-LIFT - D508/D563 ......................................................................................................................................................................................................................................................................................1224 MAIN LIFT THREE STAGE FULL FREE-LIFT - D508/D563 .......................................................................................................................................................................................................................................................................................1226 MAIN LIFT CYLINDERS THREE STAGE FULL FREE-LIFT - D508/D563 .............................................................................................................................................................................................................................................................................1230 FREE-LIFT THREE STAGE FULL FREE-LIFT - D508/D563 .......................................................................................................................................................................................................................................................................................1234 FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT - D508/D563 ..............................................................................................................................................................................................................................................................................1238 HEADER HOSES THREE STAGE FULL FREE-LIFT - D508/D563 (→ S/N D508V27872H) (→ S/N D563V11658H) .........................................................................................................................................................................................................................................1240 HEADER HOSES THREE STAGE FULL FREE-LIFT - D508/D563 (S/N D508V27873H →) (S/N D563V11659H →) .........................................................................................................................................................................................................................................1244 CARRIAGE THREE STAGE FULL FREE-LIFT - D508/D563 ........................................................................................................................................................................................................................................................................................1248 OUTER MAST THREE STAGE FULL FREE LIFT - F508-F563 ......................................................................................................................................................................................................................................................................................1250 INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT - F508-F563 ..............................................................................................................................................................................................................................................................................1254 INNER MAST THREE STAGE FULL FREE-LIFT - F508-F563 .....................................................................................................................................................................................................................................................................................1256 FREE-LIFT CYLINDER AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT - F508-F563 .........................................................................................................................................................................................................................................................1258 MAIN LIFT CYLINDER AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT - F508-F563 .........................................................................................................................................................................................................................................................1262 MAIN LIFT CYLINDER THREE STAGE FULL FREE-LIFT - F508-F563 .............................................................................................................................................................................................................................................................................1266 FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT - F508-F563 .............................................................................................................................................................................................................................................................................1270 HEADER HOSES AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT - F508/F563 ...............................................................................................................................................................................................................................................................1274 CARRIAGE THREE STAGE FULL FREE-LIFT - F508/F563 ........................................................................................................................................................................................................................................................................................1278 ACCUMULATOR THREE STAGE FULL FREE LIFT..................................................................................................................................................................................................................................................................................................1280 OPTIONS.....................................................................................................................................................................................................................................................................................................................................1281 STROBE LIGHT............................................................................................................................................................................................................................................................................................................................1286 STROBE LIGHT LED (S/N L177B18989E →) ..................................................................................................................................................................................................................................................................................................1288 BACK-UP ALARM...........................................................................................................................................................................................................................................................................................................................1290 MIRRORS WITH CAB........................................................................................................................................................................................................................................................................................................................1292 MIRRORS WITH OVERHEAD GUARD.............................................................................................................................................................................................................................................................................................................1293 FIRE EXTINGUISHER.......................................................................................................................................................................................................................................................................................................................1294 ACCUMULATOR AND ATTACHING PARTS.........................................................................................................................................................................................................................................................................................................1296 INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE LIMITED FREE-LIFT - D507/D562 ...................................................................................................................................................................................................................................................................1298 INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE LIMITED FREE-LIFT - F507/F562 ...................................................................................................................................................................................................................................................................1302 INTEGRAL SIDE-SHIFT ASSEMBLY THREE STAGE FULL FREE-LIFT - D508/D563 ....................................................................................................................................................................................................................................................................1306 INTEGRAL SIDE-SHIFT ASSEMBLY THREE STAGE FULL FREE-LIFT - F508/F563 ....................................................................................................................................................................................................................................................................1310 INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE FULL FREE-LIFT - D509/E509 and D564/E564 ........................................................................................................................................................................................................................................................1314 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO AND THREE STAGE FULL FREE-LIFT - D508/D563 and D509/D564 .......................................................................................................................................................................................................................................1316 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE FULL FREE- LIFT - E509-E564 ..............................................................................................................................................................................................................................................................1317 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES THREE STAGE FULL FREE LIFT - F508/F563 .............................................................................................................................................................................................................................................................1318 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE LIMITED FREE-LIFT - D507/D562 ............................................................................................................................................................................................................................................................1319 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE LIMITED FREE-LIFT - F507/F562 ............................................................................................................................................................................................................................................................1320 INTEGRAL SIDE-SHIFT FORK POSITIONER - THREE STAGE FULL FREE-LIFT (D508/D563) ...........................................................................................................................................................................................................................................................1322 INTEGRAL SIDE-SHIFT FORK POSITIONER (F507-F562) - TWO STAGE LIMITED FREE-LIFT ..........................................................................................................................................................................................................................................................1324 INTEGRAL SIDE-SHIFT FORK POSITIONER (F508-F563) - THREE STAGE FULL FREE-LIFT ...........................................................................................................................................................................................................................................................1326 FORK POSITIONER ASSEMBLY................................................................................................................................................................................................................................................................................................................1328 INTEGRAL SIDE-SHIFT CYLINDER............................................................................................................................................................................................................................................................................................................1330 GM LPG REGULATOR DRAIN KIT..............................................................................................................................................................................................................................................................................................................1332 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT (→ S/N D507V02972H) (→ S/N D562V02053H) ........................................................................................................................................................................................................................................1334 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITHOUT QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ...................................................................................................................................................................................................1336 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - MANUAL HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ....................................................................................................................................................................................1338 AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT - E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D508V27243H →) (S/N D509V02104H →) (S/N D563V11351H →) (S/N D564V02122H →) ........................................................................................................................................1340 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) .........................................................................................................................................................................................1344 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITH ISS CARRIAGE AND WITHOUT QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) .............................................................................................................................................................................1346 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITH ISS CARRIAGE AND MANUAL HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ..............................................................................................................................................................1348 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITH ISS CARRIAGE AND E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ...................................................................................................................................................................1350 AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT (→ S/N D508V27242H) (→ S/N D509V02103H) (→ S/N D563V11350H) (→ S/N D564V02121H) .......................................................................................................................................................................................1352 AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT (S/N D508V27243H →) (S/N D509V02104H →) (S/N D563V11351H →) (S/N D564V02122H →) .......................................................................................................................................................................................1356 AUXILIARY TUBES TWO STAGE LIMITED FREE LIFT (F507/F562 Series Mast - WITH MANUAL AND E-HYDRAULICS VALVE WITHOUT QUICK DISCONNECT .......................................................................................................................................................................................................1358 AUXILIARY TUBES TWO STAGE LIMITED FREE LIFT (F507/F562 Series Mast - MANUAL AND E-HYDRAULIC VALVE WITH QUICK DISCONNECT ................................................................................................................................................................................................................1360 AUXILIARY TUBES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) - MANUAL AND E-HYDRAULICS VALVE WITH QUICK DISCONNECT ...............................................................................................................................................................................................................1362 AUXILIARY TUBES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) - MANUAL AND E-HYDRAULICS VALVE WITHOUT QUICK DISCONNECT ............................................................................................................................................................................................................1364 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES TWO STAGE LIMITED FREE-LIFT (SINGLE AUXILIARY WITH E-HYDRAULICS) - F507/F562 (THREE FUNCTION) ............................................................................................................................................................................................1366 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES TWO STAGE LIMITED FREE-LIFT (SINGLE AUXILIARY WITH INTEGRAL SIDE-SHIFT AND E-HYDRAULICS) - F507/F562 (FOUR FUNCTION) .....................................................................................................................................................................1368 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES TWO STAGE LIMITED FREE-LIFT (DUAL AUXILIARY WITH E-HYDRAULICS) - F507/F562 (THREE AND FOUR FUNCTION) .....................................................................................................................................................................................1370 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (SINGLE AUXILIARY WITH E-HYDRAULICS - F508/F563 (THREE FUNCTION) ..............................................................................................................................................................................................1372 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (SINGLE AUXILIARY WITH INTEGRAL SIDE-SHIFT AND E-HYDRAULICS) - F508/F563 (FOUR FUNCTION) ......................................................................................................................................................................1374 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (DUAL AUXILIARY WITH E-HYDRAULICS - F508/F563 (THREE AND FOUR FUNCTION) .......................................................................................................................................................................................1376 FIELD CONVERSION KITS.......................................................................................................................................................................................................................................................................................................................1379 SEAT CONVERSION KITS....................................................................................................................................................................................................................................................................................................................1382 WEATHER PROTECTION KITS.................................................................................................................................................................................................................................................................................................................1382 COOLING REPAIR KITS.....................................................................................................................................................................................................................................................................................................................1382 BRAKE PEDAL CONVERSION KITS.............................................................................................................................................................................................................................................................................................................1382 DIRECTIONAL CONTROL CONVERSION..........................................................................................................................................................................................................................................................................................................1383 RETURN TO SET TILT KITS.................................................................................................................................................................................................................................................................................................................1383 E-HYDRAULIC CONTROL CONVERSION KITS.....................................................................................................................................................................................................................................................................................................1383 E-HYDRAULIC CONTROL CONVERSION KITS.....................................................................................................................................................................................................................................................................................................1383 HYDRAULIC CONTROL CONVERSIONS...........................................................................................................................................................................................................................................................................................................1384 HEADER HOSE CONVERSION KITS TWO STAGE LIMITED FREE-LIFT - D507/D562 SERIES MAST ........................................................................................................................................................................................................................................................1385 HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE-LIFT - D509/D564 SERIES MAST ...........................................................................................................................................................................................................................................................1386 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - H40-50FT (→ S/N D508V27872H) ................................................................................................................................................................................................................................................1387 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE LIFT - H40-50FT (S/N D508V27873H →) ................................................................................................................................................................................................................................................1388 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - H60-70FT (→ S/N D563V11658H) ................................................................................................................................................................................................................................................1389 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - H60-70FT (S/N D563V11659H →) ...............................................................................................................................................................................................................................................1390 HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE- LIFT - F507/F562 SERIES MAST ..........................................................................................................................................................................................................................................................1391 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - F508 SERIES MAST .............................................................................................................................................................................................................................................................1392 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE LIFT - F563 SERIES MAST ..............................................................................................................................................................................................................................................................1393 HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE- LIFT - E509/E564 SERIES MAST ..........................................................................................................................................................................................................................................................1394 MAST CONVERSION KITS D SERIES MAST TO F SERIES - TRUCKS BUILT BEFORE JANUARY 6 2014 ....................................................................................................................................................................................................................................................1394 MAST CONVERSION KITS D SERIES MASTS TO F SERIES MAST - TRUCKS BUILT AFTER JANUARY 5 2014 ...............................................................................................................................................................................................................................................1396 MAST CONVERSION KITS F SERIES MAST TO D SERIES MAST.....................................................................................................................................................................................................................................................................................1397 MAST CONVERSION KITS TWO STAGE FULL FREE- LIFT..........................................................................................................................................................................................................................................................................................1398 AUXILIARY TUBE EXTENSION KITS...........................................................................................................................................................................................................................................................................................................1398 LIGHT KITS..............................................................................................................................................................................................................................................................................................................................1399 TREAD CONVERSION KITS...................................................................................................................................................................................................................................................................................................................1399 ADD ON OPTION KITS......................................................................................................................................................................................................................................................................................................................1399 ADD ON OPTIONS FORK POSITIONER..........................................................................................................................................................................................................................................................................................................1400 HYDRAULIC OIL COOLER KITS...............................................................................................................................................................................................................................................................................................................1400 FORK ASSEMBLY KITS......................................................................................................................................................................................................................................................................................................................1401 MISCELLANEOUS CONVERSION KITS...........................................................................................................................................................................................................................................................................................................1401 ADD ON TELEMETRY KITS...................................................................................................................................................................................................................................................................................................................1401 NUMERICAL INDEX.............................................................................................................................................................................................................................................................................................................................1403

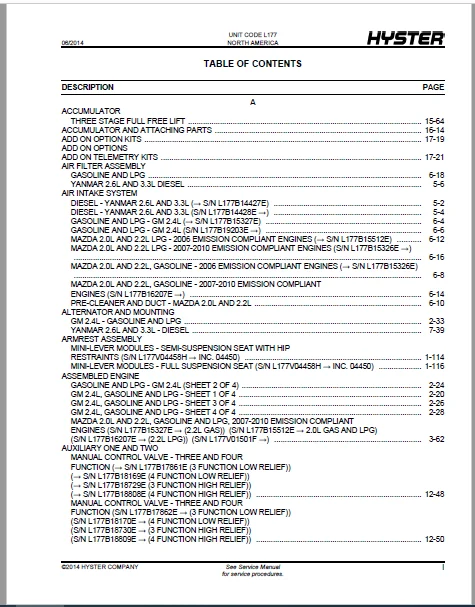

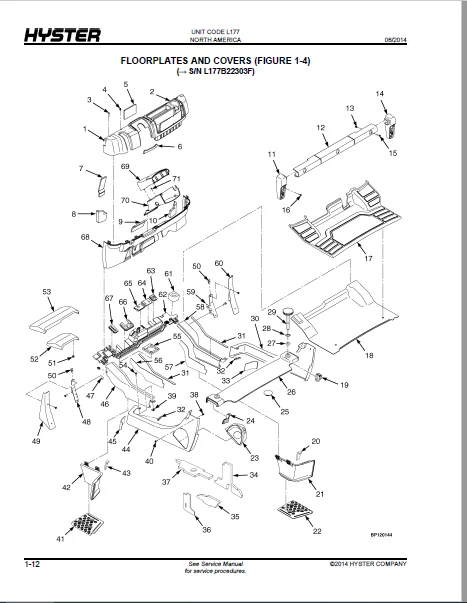

IMAGES PREVIEW OF THE MANUAL:
