Hyster H400-500HD-EC (B214) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster H400-500HD-EC (B214) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 13-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 13-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (FFigure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster H400-500HD-EC (B214) Parts Manual – PDF DOWNLOAD
Frame.................................................................................................................................. 21 CAB SHEET 1 OF 2................................................................................................................... 26 CAB SHEET 2 OF 2................................................................................................................... 28 FLOORPLATES AND COVERS............................................................................................................. 30 HOODS AND COVERS................................................................................................................... 32 COUNTERWEIGHT...................................................................................................................... 35 OVERHEAD GUARD WIRE MESH........................................................................................................... 36 CAB ATTACHING PARTS................................................................................................................ 38 CAB PANELS......................................................................................................................... 40 DASH AND AIR DUCT ASSEMBLY......................................................................................................... 42 WINDOW WIPER SYSTEM WASHER BOTTLE KIT.............................................................................................. 44 WINDOW WIPER SYSTEM REAR AND ROOF WIPER KITS - AND FRONT WIPER OPTIONS ............................................................ 46 CAB WINDOWS INSTALLATION........................................................................................................... 48 CAB SOUND REDUCTION................................................................................................................ 50 CAB SUNSHADE - TOP ................................................................................................................ 51 CAB SUNSHADE - REAR ............................................................................................................... 52 CAB FLOOR MATS..................................................................................................................... 54 CAB TILT AND LATCH ASSEMBLY........................................................................................................ 56 CAB TILT PUMP ASSEMBLY............................................................................................................. 59 CAB TILT ELECTRIC PUMP............................................................................................................. 60 CAB TILT HAND PUMP................................................................................................................. 62 CAB TILT CYLINDER.................................................................................................................. 64 CAB DOOR LEFT HAND................................................................................................................. 66 CAB DOOR RIGHT HAND................................................................................................................ 68 CAB MAIN DOOR WINDOW - RIGHT AND LEFT HAND ........................................................................................ 70 CAB DOOR ATTACHING PARTS........................................................................................................... 72 HEATER AND AIR CONDITIONER HOSES................................................................................................... 74 HEATER AND AIR CONDITIONER HOSES................................................................................................... 76 HEATER AND AIR CONDITIONER HOSES................................................................................................... 78 COMPRESSOR ASSEMBLY TWO-FAN SYSTEM - MCC .......................................................................................... 80 AIR CONDITIONER SYSTEM WITH TWO-FAN CONDENSER SYSTEM - MCC ........................................................................ 81 AIR CONDITIONER WITH TWO-FAN CONDENSER SYSTEM - MCC ............................................................................... 82 CONDENSER ASSEMBLY WITH TWO-FAN CONDENSER SYSTEM - MCC ............................................................................ 84 AIR DUCT ASSEMBLY AIR CONDITIONING - WITH TWO-FAN CONDENSER SYSTEM, MCC ........................................................... 86 AIR CONDITIONER ASSEMBLY WITH TWO-FAN CONDENSER SYSTEM - MCC ...................................................................... 88 CONTROL PANEL ASSEMBLY WITH TWO-FAN CONDENSER SYSTEM - MCC ........................................................................ 90 HEATER AND AIR DUCT WITH TWO-FAN CONDENSER SYSTEM - MCC ........................................................................... 91 HEATER SYSTEM WITH TWO-FAN CONDENSER SYSTEM - MCC ................................................................................. 92 HEATER ASSEMBLY WITH TWO-FAN CONDENSER SYSTEM - MCC ............................................................................... 94 AIR DUCT ASSEMBLY HEATER - WITH TWO-FAN CONDENSER SYSTEM, MCC ..................................................................... 96 HEATER AND AIR CONDITIONER ASSEMBLY WITH THREE-FAN CONDENSER SYSTEM - AURORA ...................................................... 98 HEATER AND AIR CONDITIONER MOUNTING WITH THREE-FAN CONDENSER SYSTEM - AURORA ......................................................100 HEATER ASSEMBLY WITH THREE-FAN CONDENSER SYSTEM - AURORA ..........................................................................102 CONDENSER ASSEMBLY THREE-FAN SYSTEM - AURORA ......................................................................................104 LABELS EXTERIOR....................................................................................................................106 LABELS INTERIOR....................................................................................................................108 LABELS HYDRAULIC CONTROLS..........................................................................................................110 DELUXE SUSPENSION SEAT.............................................................................................................112 SUSPENSION KIT ASSEMBLY............................................................................................................114 SUSPENSION SEAT WITH FABRIC COVER (→ 3/2010) .....................................................................................116 SUSPENSION SEAT WITH FABRIC COVER (3/2010 →) .....................................................................................120 SUSPENSION SEAT WITH VINYL COVER...................................................................................................124 SUSPENSION ASSEMBLY AIR............................................................................................................128 SUSPENSION ASSEMBLY MECHANICAL.....................................................................................................132 ARMREST ASSEMBLY HYDRAULIC LEVERS..................................................................................................136 ARMREST ASSEMBLY JOYSTICK..........................................................................................................138 PIVOT ARM ASSEMBLY.................................................................................................................140 AIR HORN...........................................................................................................................142 AIR HORN...........................................................................................................................144 AIR HORN...........................................................................................................................146 INSULATION MATS AND AIR DUCT CLIMATE CONTROL CAB...................................................................................148 AIR DUCT LOUVER, CLIMATE CONTROL CAB...............................................................................................150 SEAT ASSEMBLY CLIMATE CONTROL CAB..................................................................................................152 CLIMATE CONTROL SYSTEM MCC.........................................................................................................154 AIR CONDITIONER SYSTEM CLIMATE CONTROL CAB - MCC ..................................................................................156 AIR CONDITIONER CLIMATE CONTROL CAB - MCC .........................................................................................158 CAB ASSEMBLY CLIMATE CONTROL CAB...................................................................................................160 TRAINING SEAT......................................................................................................................162 RADIO CONSOLE AND ATTACHING PARTS..................................................................................................164 HEATER AND CONTROL PANEL ASSEMBLIES................................................................................................166 ENGINE ASSEMBLY........................................................................................................................167 AIR CONDITIONING COMPRESSOR........................................................................................................171 AIR HEATER.........................................................................................................................172 AIR INTAKE CONNECTION..............................................................................................................174 AIR INTAKE HOSE....................................................................................................................175 AIR INTAKE MANIFOLD................................................................................................................176 AIR TRANSFER CONNECTION............................................................................................................177 BELT TENSIONER.....................................................................................................................178 CAB HEATER PLUMBING................................................................................................................179 CAMSHAFT...........................................................................................................................180 CONNECTING RODS AND PISTONS........................................................................................................182 CONNECTING RODS AND PISTONS........................................................................................................184 COOLANT HEATER STARTING AID........................................................................................................186 COOLING SYSTEM.....................................................................................................................188 COOLING SYSTEM ALTERNATE CONFIGURATION.............................................................................................190 CRANKCASE BREATHER.................................................................................................................192 CRANKSHAFT AND BEARINGS............................................................................................................194 CRANKSHAFT AND BEARINGS............................................................................................................198 CYLINDER BLOCK.....................................................................................................................200 CYLINDER BLOCK.....................................................................................................................202 CYLINDER HEAD......................................................................................................................204 CYLINDER HEAD......................................................................................................................206 ENGINE ASSEMBLY....................................................................................................................208 ENGINE BLOCK HEATER................................................................................................................210 ENGINE COOLANT VENT................................................................................................................212 ENGINE OIL COOLER..................................................................................................................214 ENGINE MOUNTS......................................................................................................................216 EXHAUST MANIFOLD...................................................................................................................217 EXHAUST SYSTEM.....................................................................................................................218 EXHAUST SYSTEM.....................................................................................................................220 FAN DRIVE AND MOUNTING.............................................................................................................222 FAN SPACER.........................................................................................................................224 FLYWHEEL AND MOUNTING..............................................................................................................225 FLYWHEEL HOUSING...................................................................................................................226 FLYWHEEL HOUSING...................................................................................................................228 FRONT GEAR COVER...................................................................................................................230 LIFTING BRACKETS AND MOUNTING......................................................................................................231 LUBRICATING OIL PUMP...............................................................................................................232 OIL FILLER.........................................................................................................................233 OIL LEVEL GAUGE....................................................................................................................234 OIL PAN............................................................................................................................236 RADIATOR AND COOLER ASSEMBLY.......................................................................................................238 REAR GEAR HOUSING..................................................................................................................240 REAR GEAR TRAIN ACCESSORY MOUNTING COVER...........................................................................................241 REMOTE OIL FILTER..................................................................................................................242 ROCKER LEVERS......................................................................................................................244 STARTER MOTOR AND MOUNTING.........................................................................................................246 THERMOSTAT.........................................................................................................................247 TORQUE CONVERTER COOLER PLUGS......................................................................................................248 TURBOCHARGER.......................................................................................................................250 TURBOCHARGER.......................................................................................................................253 TURBOCHARGER PLUMBING..............................................................................................................254 TURBOCHARGER PLUMBING..............................................................................................................256 VALVE COVER........................................................................................................................258 VALVE COVER........................................................................................................................260 VALVE TAPPETS......................................................................................................................261 VIBRATION DAMPER...................................................................................................................262 WATER PUMP.........................................................................................................................263 WATER PUMP DRIVE...................................................................................................................264 WATER OUTLET CONNECTION............................................................................................................265 FUEL SYSTEM............................................................................................................................267 FUEL SUPPLY SYSTEM.................................................................................................................270 AIR INTAKE SYSTEM..................................................................................................................272 AIR INTAKE SYSTEM..................................................................................................................274 THROTTLE PEDAL AND LINKAGE.........................................................................................................276 MONOTROL PEDAL LINKAGE.............................................................................................................278 MONOTROL PEDAL.....................................................................................................................280 FUEL FILTER........................................................................................................................282 FUEL FILTER PLUMBING...............................................................................................................284 FUEL INJECTION PUMP................................................................................................................286 FUEL INJECTOR PLUMBING.............................................................................................................288 FUEL INJECTORS.....................................................................................................................290 FUEL INJECTORS.....................................................................................................................291 FUEL INLET FITTING.................................................................................................................292 FUEL PLUMBING......................................................................................................................294 FUEL PLUMBING......................................................................................................................296 FUEL SYSTEM ACCESSORIES............................................................................................................298 ELECTRICAL SYSTEM......................................................................................................................299 ELECTRICAL SYSTEM..................................................................................................................304 LOCKOUT LEVER......................................................................................................................307 CONSOLE INDICATOR DISPLAY AND CONTROLS.............................................................................................308 CONTROL PANEL HEATER...............................................................................................................310 CONTROL PANEL AIR CONDITIONER......................................................................................................312 TRANSMISSION CONTROLLER AND SHIFT LEVER............................................................................................314 DC-DC CONVERTER AND ATTACHING PARTS................................................................................................316 LIGHT BAR AND MOUNT TWISTLOCK MODULE...............................................................................................318 LIGHT ASSEMBLY HALOGEN.............................................................................................................320 LIGHT ASSEMBLY HIGH INTENSITY DISCHARGE............................................................................................321 LIGHTS WORK - HALOGEN .............................................................................................................322 LIGHTS WORK - HID .................................................................................................................323 FRONT LIGHTS.......................................................................................................................324 REAR LIGHTS AND BACK-UP ALARM......................................................................................................326 RELAYS AND FUSES OPERATOR COMPARTMENT (→ 3/2008) .................................................................................328 RELAYS AND FUSES OPERATOR COMPARTMENT (3/2008 ↔ S/N B214E01776H) .................................................................332 RELAYS AND FUSES OPERATOR COMPARTMENT (S/N B214E01777H →) ........................................................................336 WIRE HARNESS ARM REST..............................................................................................................340 WIRE HARNESS CAB LIGHTS............................................................................................................344 WIRE HARNESS CAB SIDE CONSOLE - SHEET 1 OF 2 (→ 3/2008) .........................................................................346 WIRE HARNESS CAB SIDE CONSOLE - SHEET 2 OF 2 (→ 3/2008) .........................................................................352 WIRE HARNESS CAB SIDE CONSOLE - SHEET 1 OF 2 (3/2008 ↔ S/N B214E01776H) .........................................................356 WIRE HARNESS CAB SIDE CONSOLE - SHEET 2 OF 2 (3/2008 ↔ S/N B214E01776H) .........................................................360 WIRE HARNESS CAB SIDE CONSOLE - SHEET 1 OF 2 (S/N B214E01777H →) ................................................................364 WIRE HARNESS CAB SIDE CONSOLE - SHEET 2 OF 2 (S/N B214E01777H →) ................................................................370 WIRE HARNESS CAB TILT (→ PENDING PER ECN 68646-02) ...............................................................................373 WIRE HARNESS CAB TILT (PENDING PER ECN 68646-02 →) ...............................................................................374 WIRE HARNESS CAB UNDERFLOOR........................................................................................................376 WIRE HARNESS (CHASSIS) SHEET 1 OF 2 (→ S/N B214E01677F (4000 WB)) (→ S/N B214E01674F (4500 WB)) .................................378 WIRE HARNESS (CHASSIS) SHEET 2 OF 2 (→ S/N B214E01677F (4000 WB)) (→ S/N B214E01674F (4500 WB)) .................................382 WIRE HARNESS CHASSIS - SHEET 1 OF 2 (S/N B214E01678F ↔ 3/2009 (4000 WB)) (S/N B214E01675F ↔ 3/2009 (4500 WB)) ..................386 WIRE HARNESS CHASSIS - SHEET 2 OF 2 (S/N B214E01678F ↔ 3/2009 (4000 WB)) (S/N B214E01675F ↔ 3/2009 (4500 WB)) ..................390 WIRE HARNESS (CHASSIS) SHEET 1 OF 2 (3/2008 ↔ S/N B214E01776H) ...................................................................394 WIRE HARNESS (CHASSIS) SHEET 2 OF 2 (3/2008 ↔ S/N B214E01776H) ...................................................................398 WIRE HARNESS (CHASSIS) SHEET 1 OF 2 (S/N B214E01777H →) ..........................................................................402 WIRE HARNESS (CHASSIS) SHEET 2 OF 2 (S/N B214E01777H →) ..........................................................................406 WIRE HARNESS CLOSED CAB............................................................................................................410 WIRE HARNESS FRONT LIGHTS (→ S/N B214E01629F) ....................................................................................413 WIRE HARNESS FRONT LIGHTS (S/N B214E01630F →) ....................................................................................414 WIRE HARNESS HYDRAULIC RELAYS......................................................................................................415 WIRE HARNESS LIFT INTERRUPT BYPASS.................................................................................................416 WIRE HARNESS OIL COOLER (→ 9/2008) ...............................................................................................418 WIRE HARNESS OIL COOLER (S/N B214E01688F →) ......................................................................................420 WIRE HARNESS REAR WIPER EXTENSION..................................................................................................422 WIRE HARNESS SEALED FUSE BOX.......................................................................................................423 WIRE HARNESS STEERING COLUMN.......................................................................................................424 WIRE HARNESS SIDE INDICATOR........................................................................................................425 WIRE HARNESS SIDE AND INDICATOR LIGHTS - ALTERNATE PART ...........................................................................426 WIRE HARNESS AIR CONDITIONER EXTENSION (S/N B214E01669F ↔ 12/2009 (H500HD-EC)) (S/N B214E01669F ↔ 9/2010 (H400HD-H450HD-EC)) ....427 ALTERNATOR AND MOUNTING............................................................................................................428 ALTERNATOR SUPPORT AND WATER INLET.................................................................................................430 ALTERNATOR SUPPORT AND WATER INLET.................................................................................................431 ENGINE CONTROL MODULE..............................................................................................................432 ENGINE CONTROL MODULE..............................................................................................................434 ETR MODULE WIRING..................................................................................................................436 ETR MODULE WIRING..................................................................................................................437 PROXIMITY SWITCH ASSEMBLY..........................................................................................................438 CONDITIONAL SPEED LIMITER LIFT AND TILT (S/N B214E01777H →) ......................................................................440 WIRE HARNESS SPEED LIMITER.........................................................................................................442 SECOND 12V SOCKET OPTION CLIMATE CONTROL CAB.......................................................................................444 ELECTRIC HORN......................................................................................................................445 WIRE HARNESS WINDOW WASH PUMPS.....................................................................................................446 TRANSMISSION...........................................................................................................................447 TRANSMISSION ASSEMBLY TE-13 AND TE-17..............................................................................................450 TRANSMISSION ASSEMBLY CONVERTER HOUSING - TE-13 AND TE-17 .........................................................................452 TRANSMISSION ASSEMBLY DRIVE PLATES - TE-13 AND TE-17 ..............................................................................454 TRANSMISSION ASSEMBLY TORQUE CONVERTER - TE-13 AND TE-17 ..........................................................................455 TRANSMISSION ASSEMBLY GEARS - TE-13 AND TE-17 .....................................................................................456 TRANSMISSION ASSEMBLY INPUT SHAFT AND FIRST CLUTCH - TE-13 ........................................................................458 TRANSMISSION ASSEMBLY INPUT SHAFT AND FIRST CLUTCH - TE-17 ........................................................................460 TRANSMISSION ASSEMBLY REVERSE AND SECOND CLUTCH - TE-13 ...........................................................................462 TRANSMISSION ASSEMBLY REVERSE AND SECOND CLUTCH - TE-17 ...........................................................................464 TRANSMISSION ASSEMBLY FORWARD AND THIRD SHAFT - TE-13 .............................................................................466 TRANSMISSION ASSEMBLY FORWARD AND THIRD SHAFT - TE-17 .............................................................................468 TRANSMISSION ASSEMBLY PUMP DRIVE - TE-13 AND TE-17 ................................................................................470 TRANSMISSION ASSEMBLY CHARGING PUMP - TE-13 AND TE-17 .............................................................................472 TRANSMISSION ASSEMBLY OUTPUT SHAFT - TE-13 AND TE-17 ..............................................................................474 TRANSMISSION ASSEMBLY CONTROL VALVE ATTACHING PARTS - TE-13 AND TE-17 .............................................................476 TRANSMISSION ASSEMBLY CONTROL VALVE ASSEMBLY - TE-13 AND TE-17 ....................................................................478 TRANSMISSION ASSEMBLY REGULATOR VALVE ASSEMBLY - TE-13 AND TE-17 ..................................................................480 TRANSMISSION ASSEMBLY MODULATOR VALVE ASSEMBLY - TE-13 AND TE-17 ..................................................................482 TRANSMISSION ASSEMBLY CASE AND REAR COVER - TE-13 AND TE-17 .......................................................................484 TRANSMISSION ASSEMBLY FLUID INDICATOR AND ATTACHING PARTS - TE-13 AND TE-17 .......................................................487 TRANSMISSION ASSEMBLY UNIVERSAL SHAFT - TE-13 AND TE-17 ...........................................................................489 TRANSMISSION ASSEMBLY TRANSMISSION HOSES AND ATTACHING PARTS - TE-13 AND TE-17 ....................................................492 TRANSMISSION MOUNTING TE-13 AND TE-17..............................................................................................494 Drive Axle.............................................................................................................................497 DRIVE AXLE ASSEMBLY................................................................................................................500 DRIVE AXLE ASSEMBLY................................................................................................................502 DIFFERENTIAL CARRIER...............................................................................................................506 DIFFERENTIAL CARRIER...............................................................................................................510 WHEEL HUB ASSEMBLY HYSTER TIRE SAVER DRIVE AXLE....................................................................................514 DRIVE TIRE AND WHEEL BRIDGESTONE...................................................................................................516 DRIVE TIRE AND WHEEL MICHELIN......................................................................................................517 DRIVE TIRE AND WHEEL TRELLEBORG - SOLID TIRE ......................................................................................519 DRIVE TIRE AND WHEEL MONARCH.......................................................................................................520 DRIVE TIRE AND WHEEL SIMEX.........................................................................................................521 DRIVE TIRE AND WHEEL GOODYEAR......................................................................................................522 DRIVE TIRE AND WHEEL TRELLEBORG....................................................................................................523 DRIVE TIRE AND WHEEL TRELLEBORG TR900..............................................................................................525 STEERING SYSTEM........................................................................................................................527 STEER COLUMN AND ATTACHING PARTS...................................................................................................530 STEER COLUMN ASSEMBLY..............................................................................................................532 STEER COLUMN.......................................................................................................................534 STEER PUMP ASSEMBLY................................................................................................................536 STEER AXLE ASSEMBLY................................................................................................................538 STEER CYLINDER.....................................................................................................................542 STEER CYLINDER OPTIONAL............................................................................................................544 STEER TIRE AND WHEEL BRIDGESTONE...................................................................................................546 STEER TIRE AND WHEEL MICHELIN......................................................................................................547 STEER TIRE AND WHEEL SOLID TIRE WITH TREAD - TRELLEBORG ...........................................................................548 STEER TIRE AND WHEEL SOLID SMOOTH - MONARCH .......................................................................................549 STEER TIRE AND WHEEL SIMEX.........................................................................................................550 STEER TIRE AND WHEEL GOODYEAR......................................................................................................551 STEER TIRE AND WHEEL TRELLEBORG TR900..............................................................................................552 STEERING CONTROL UNIT ASSEMBLY.....................................................................................................554 BRAKE SYSTEM...........................................................................................................................557 BRAKE AND INCHING PEDAL LINKAGE....................................................................................................560 BRAKE VALVE WET BRAKE..............................................................................................................562 WET BRAKE ASSEMBLY.................................................................................................................564 PARK BRAKE ASSEMBLY................................................................................................................566 HYDRAULIC SYSTEM.......................................................................................................................569 HYDRAULIC SUPPLY AND RETURN........................................................................................................572 MAIN VALVE HOSES...................................................................................................................574 CAB HOSES AND ATTACHING PARTS......................................................................................................576 BRAKE HOSES AND ATTACHING PARTS SHEET 1 OF 2.......................................................................................578 BRAKE HOSES AND ATTACHING PARTS SHEET 2 OF 2.......................................................................................582 MAST SUPPLY AND RETURN.............................................................................................................584 STEERING HOSES AND ATTACHING PARTS.................................................................................................586 LIFT ACCUMULATOR SYSTEM............................................................................................................588 CONTROL VALVE ASSEMBLY.............................................................................................................589 CONTROL VALVE OUTLET SECTION.......................................................................................................590 CONTROL VALVE LIFT SPOOL SECTION - 1A, 1B .........................................................................................592 CONTROL VALVE MID-INLET SECTION....................................................................................................594 CONTROL VALVE TILT SPOOL SECTION...................................................................................................596 CONTROL VALVE AUXILIARY SPOOL SECTION..............................................................................................598 CONTROL VALVE LIFT SPOOL SECTION - 4A, 4B .........................................................................................600 COMBINATION VALVE..................................................................................................................602 COMBINATION VALVE..................................................................................................................604 HYDRAULIC VALVE AND ATTACHING PARTS................................................................................................606 GEAR PUMP..........................................................................................................................610 ACCUMULATOR........................................................................................................................612 HYDRAULIC TANK.....................................................................................................................614 HYDRAULIC OIL COOLER...............................................................................................................616 HYDRAULIC LEVERS...................................................................................................................618 HYDRAULIC HOSE ASSEMBLY JOYSTICK...................................................................................................620 HYDRAULIC HOSE ASSEMBLY LEVERS.....................................................................................................621 HYDRAULIC LEVER MODULATOR VALVE....................................................................................................622 JOYSTICK CONTROL...................................................................................................................624 JOYSTICK ASSEMBLY..................................................................................................................626 JOYSTICK CONTROL MODULATOR VALVE...................................................................................................628 MAST WITH EMPTY CONTAINER HANDLER......................................................................................................631 MAST ASSEMBLY OUTER MAST...........................................................................................................634 MAST ASSEMBLY INNER MAST...........................................................................................................636 MAST ASSEMBLY MAIN LIFT............................................................................................................638 MAST ASSEMBLY MAIN LIFT CYLINDERS..................................................................................................642 MAST ASSEMBLY HEADER HOSES (→ S/N B214E01635F) ...................................................................................644 MAST ASSEMBLY HEADER HOSES (S/N B214E01636F →) ...................................................................................648 MAST ASSEMBLY TILT CYLINDER HYDRAULICS (→ S/N B214E01707F) .......................................................................652 MAST ASSEMBLY TILT CYLINDER HYDRAULICS (S/N B214E01708F →) .......................................................................654 MAST ASSEMBLY TILT CYLINDERS.......................................................................................................656 MAST ASSEMBLY MAST INSTALLATION....................................................................................................658 OPTIONS................................................................................................................................661 OPTIONAL MOUNTING EQUIPMENT (HANDLE)...............................................................................................664 DIRECTIONAL AND MARKER LIGHTS......................................................................................................665 STROBE LIGHT.......................................................................................................................666 MAP READING LIGHT..................................................................................................................667 LOCKABLE DISCONNECT SWITCH LEVER...................................................................................................668 REAR VIEW MIRRORS..................................................................................................................669 MUDFLAPS...........................................................................................................................670 START AID..........................................................................................................................671 EMPTY CONTAINER HANDLER BEARING BLOCKS AND SHIMS - CARRIAGE .......................................................................672 HEATED TOP WINDOW CLIMATE CONTROL CAB..............................................................................................673 EMPTY SEAT ENGINE SHUTDOWN.........................................................................................................674 CAB RECIRCULATING FAN CLOSED CONSTRUCTION..........................................................................................675 FIELD CONVERSION KITS..................................................................................................................677 OIL COOLER KIT TEMPERATURE SWITCH..................................................................................................680 MAST HOSE SHEAVE KIT...............................................................................................................680 ENGINE FUEL PRESSURE SENDER........................................................................................................680 BRAKE TEMPERATURE SWITCH KIT.......................................................................................................680 LOUVER - HEAVY DUTY AIRCO..........................................................................................................680 TELEMETRY KITS.....................................................................................................................680 PARK BRAKE KIT.....................................................................................................................680 NUMERICAL INDEX........................................................................................................................681
HYSTER H400-500HD-EC (B214) PARTS MANUAL – PDF DOWNLOAD:

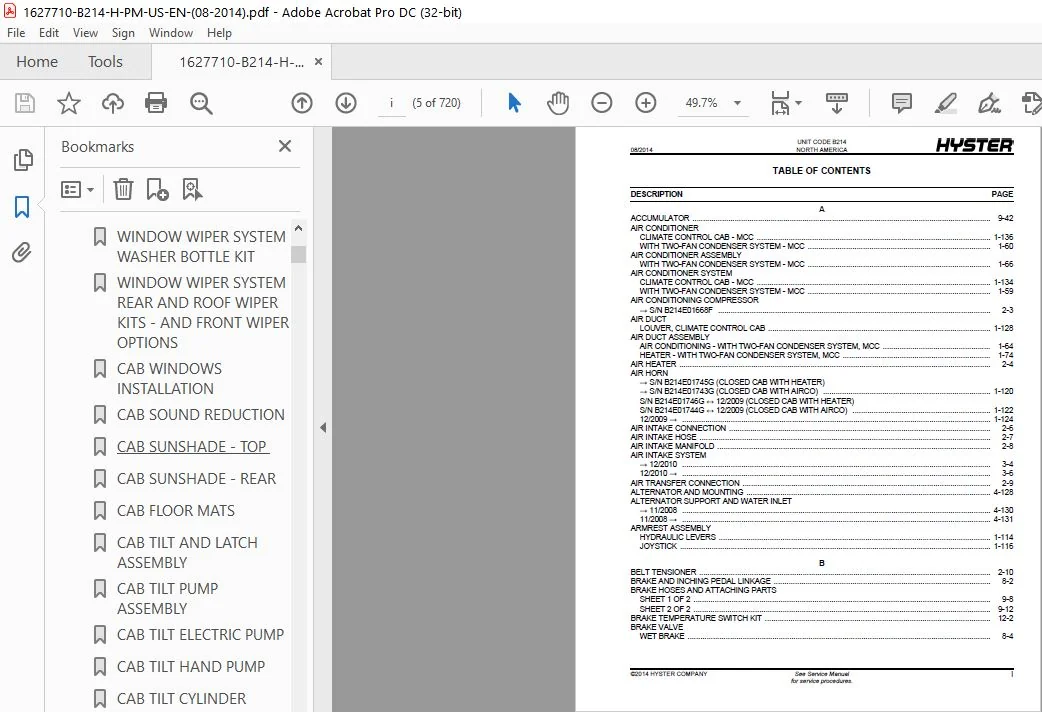

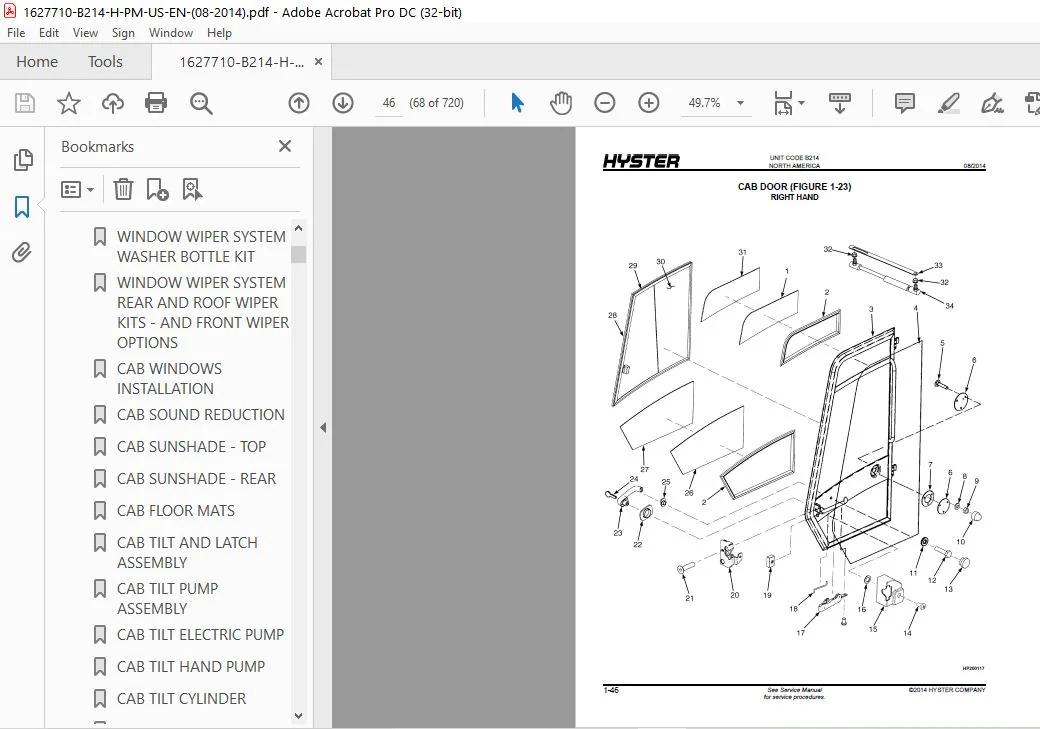

IMAGES PREVIEW OF THE MANUAL:
