Hyster W20XTC W25XTC W30XTC W40XTC (A454) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster W20XTC W25XTC W30XTC W40XTC (A454) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 10-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 10-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (FFigure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster W20XTC W25XTC W30XTC W40XTC (A454) Parts Manual – PDF DOWNLOAD
toc......................................................... 1 1....................................................... 15 LABELS AND PAINT (Figure 1-1)....................... 18 COVERS (Figure 1-2)................................. 20 BATTERY RETAINER (Figure 1-3)....................... 22 DRIVE UNIT (Figure 1-4)............................. 24 BRAKE LINKAGE (Figure 1-5).......................... 28 2....................................................... 31 ELECTRICAL (Figure 2-1)............................. 34 CONTACTOR PANEL (Figure 2-2)........................ 36 CONTACTOR PANEL (Figure 2-3)........................ 38 CONTACTOR (Figure 2-4).............................. 40 CONTACTOR (Figure 2-5).............................. 42 CONTACTOR (Figure 2-6).............................. 44 TRACTION MOTOR (Figure 2-7)......................... 46 TRACTION MOTOR (Figure 2-8)......................... 48 TRACTION MOTOR (Figure 2-9)......................... 52 3....................................................... 55 STEER HANDLE HEAD (Figure 3-1)...................... 58 STEER HANDLE MOUNTING (Figure 3-2).................. 62 4....................................................... 65 HYDRAULIC CONTROL (Figure 4-1)...................... 68 HYDRAULIC PUMP AND MOTOR (Figure 4-2)............... 70 HYDRAULIC PUMP (Figure 4-3)......................... 72 HYDRAULIC PUMP (Figure 4-4)......................... 74 HYDRAULIC MOTOR (Figure 4-5)........................ 76 CONTROL VALVE (Figure 4-6).......................... 78 CONTROL VALVE (Figure 4-7).......................... 80 ROD ENDS AND PINS (Figure 4-8)...................... 82 TILT CYLINDER (Figure 4-9).......................... 84 HYDRAULIC (Figure 4-10)............................. 86 5....................................................... 89 INNER AND OUTER MAST (Figure 5-1)................... 92 HEADER HOSE (Figure 5-2)............................ 94 LIFT (Figure 5-3)................................... 96 CHAINS, PINS, AND ANCHORS (Figure 5-4).............. 98 LIFT CYLINDER (Figure 5-5)..........................100 6.......................................................103 INNER AND OUTER MAST (Figure 6-1)...................106 HEADER HOSE (Figure 6-2)............................108 MAIN FREE-LIFT (Figure 6-3).........................110 LIFT CYLINDER (Figure 6-4)..........................114 FREE-LIFT CYLINDER (Figure 6-5).....................116 CHAINS, PINS, AND ANCHORS (Figure 6-6)..............118 7.......................................................121 INNER, INTERMEDIATE, AND OUTER MAST (Figure 7-1)....124 HEADER HOSE (Figure 7-2)............................126 MAIN FREE-LIFT (Figure 7-3).........................130 LIFT CYLINDER (Figure 7-4)..........................134 FREE-LIFT CYLINDER (Figure 7-5).....................136 CHAINS, PINS, AND ANCHORS (Figure 7-6)..............138 8.......................................................141 CARRIAGE (Figure 8-1)...............................144 CARRIAGE (Figure 8-2)...............................145 CARRIAGE (Figure 8-3)...............................147 CARRIAGE (Figure 8-4)...............................148 CARRIAGE (Figure 8-5)...............................149 CARRIAGE (Figure 8-6)...............................150 9.......................................................153 SIDE-SHIFT ASSEMBLY (Figure 9-1)....................156 SIDE-SHIFT CYLINDER (Figure 9-2)....................158 HOURMETER/BATTERY GAUGE (Figure 9-3)................160 POWER PACK (Figure 9-4).............................162 BATTERY ROLLER (Figure 9-5).........................164 LOAD WHEEL (Figure 9-6).............................166 LOAD BACKREST EXTENSION (Figure 9-7)................168 FORK (Figure 9-8)...................................169 FORKS (Figure 9-9)..................................170
HYSTER W20XTC W25XTC W30XTC W40XTC (A454) PARTS MANUAL – PDF DOWNLOAD:

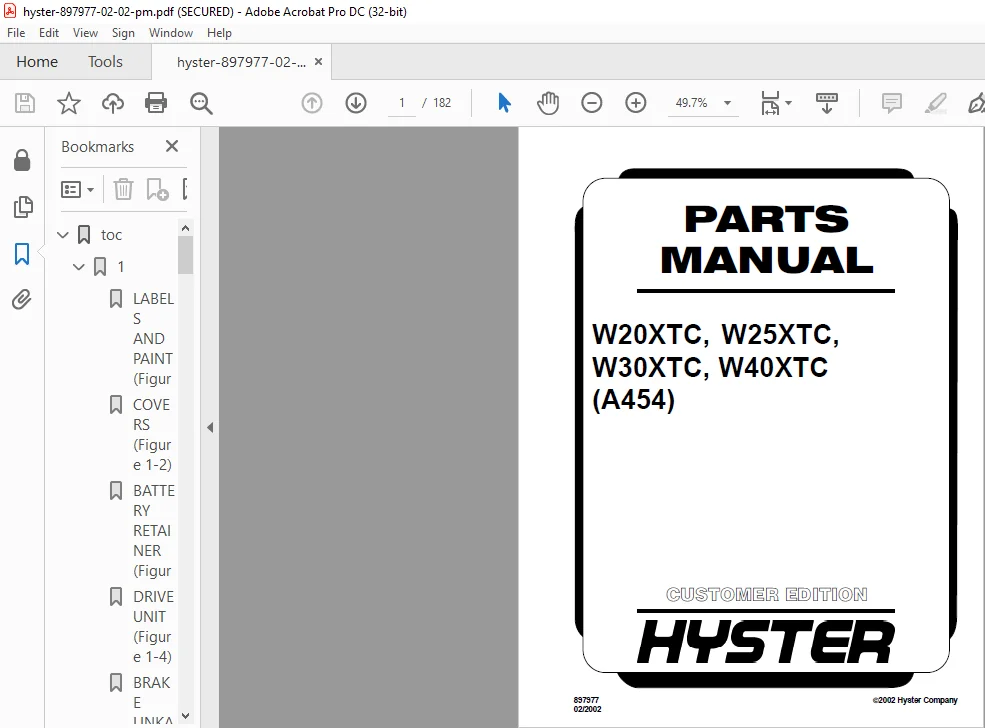

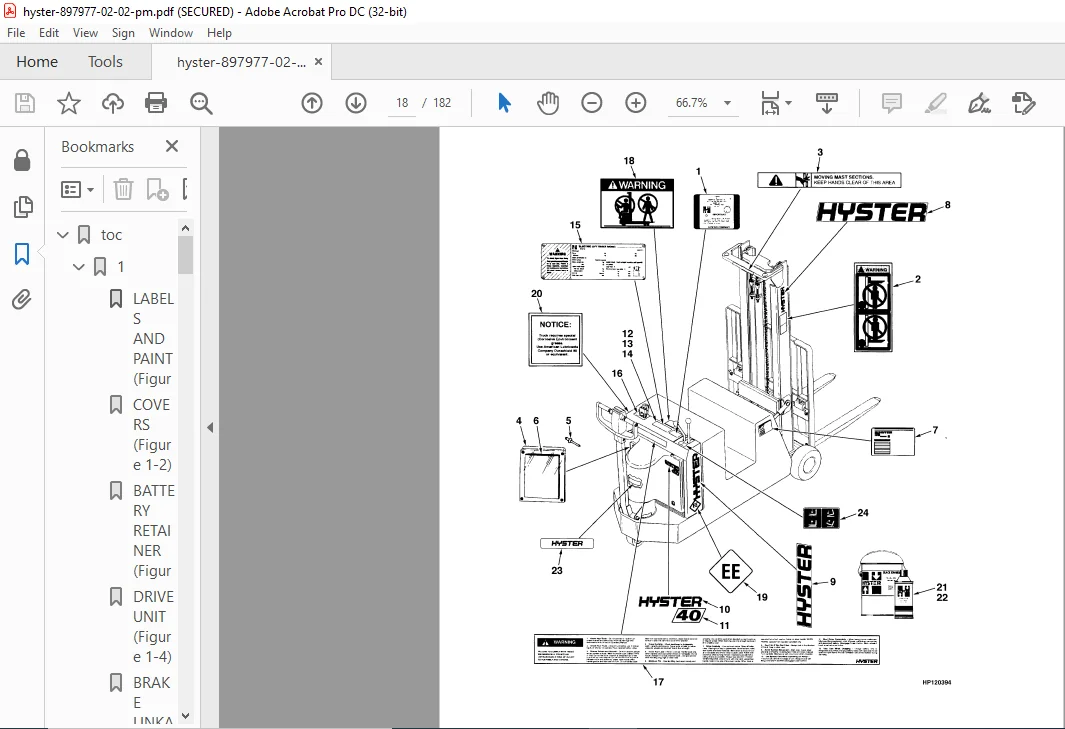

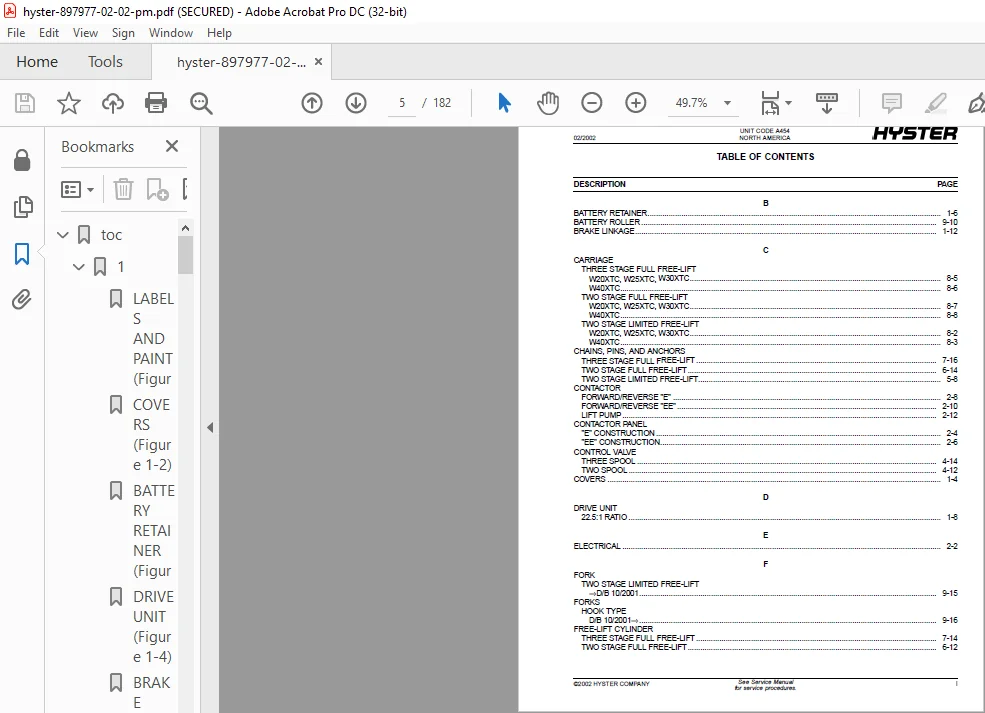

IMAGES PREVIEW OF THE MANUAL:
