Hyster W45ZHD (A419) Spare Parts Manual PDF Download
Original price was: $89.95.$29.95Current price is: $29.95.
Hyster W45ZHD (A419) Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hyster W45ZHD (A419) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster W45ZHD (A419) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 7-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 7-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster W45ZHD (A419) Parts Manual – PDF DOWNLOAD

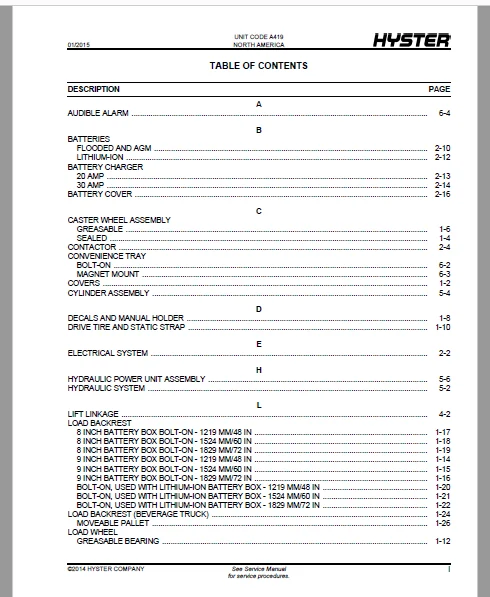

FRAME/DRIVE UNIT.................................................................13 COVERS.......................................................................16 MASTER DRIVE UNIT ASSEMBLY...................................................17 CASTER WHEEL ASSEMBLY SEALED.................................................18 CASTER WHEEL ASSEMBLY GREASABLE..............................................20 DECALS AND MANUAL HOLDER.....................................................22 DRIVE TIRE AND STATIC STRAP..................................................24 LOAD WHEEL SEALED BEARING....................................................25 LOAD WHEEL GREASABLE BEARING.................................................26 STABILIZERS..................................................................27 LOAD BACKREST 9 INCH BATTERY BOX BOLT-ON - 1219 MM/48 IN ....................28 LOAD BACKREST 9 INCH BATTERY BOX BOLT-ON - 1524 MM/60 IN ....................29 LOAD BACKREST 9 INCH BATTERY BOX BOLT-ON - 1829 MM/72 IN ....................30 LOAD BACKREST 8 INCH BATTERY BOX BOLT-ON - 1219 MM/48 IN ....................31 LOAD BACKREST 8 INCH BATTERY BOX BOLT-ON - 1524 MM/60 IN ....................32 LOAD BACKREST 8 INCH BATTERY BOX BOLT-ON - 1829 MM/72 IN ....................33 LOAD BACKREST BOLT-ON, USED WITH LITHIUM-ION BATTERY BOX - 1219 MM/48 IN ....34 LOAD BACKREST BOLT-ON, USED WITH LITHIUM-ION BATTERY BOX - 1524 MM/60 IN ....35 LOAD BACKREST BOLT-ON, USED WITH LITHIUM-ION BATTERY BOX - 1829 MM/72 IN ....36 LOAD BACKREST (BEVERAGE TRUCK)...............................................38 LOAD BACKREST (BEVERAGE TRUCK) MOVEABLE PALLET...............................40 ELECTRICAL SYSTEM................................................................43 ELECTRICAL SYSTEM............................................................46 CONTACTOR....................................................................48 WIRE HARNESS OPTION HARNESS..................................................49 WIRE HARNESS MAIN............................................................50 BATTERIES FLOODED AND AGM....................................................54 BATTERIES LITHIUM-ION........................................................56 BATTERY CHARGER 20 AMP.......................................................57 BATTERY CHARGER 30 AMP.......................................................58 PALLET PRO BATTERY RETENTION.................................................59 BATTERY COVER................................................................60 STEER HANDLE/BRAKE SYSTEM........................................................61 TILLER HANDLE AND MOUNTING WELDMENT..........................................64 TILLER HEAD ASSEMBLY.........................................................66 LIFT LINKAGE AND FORKS...........................................................69 LIFT LINKAGE.................................................................72 HYDRAULIC SYSTEM.................................................................75 HYDRAULIC SYSTEM.............................................................78 CYLINDER ASSEMBLY............................................................80 HYDRAULIC POWER UNIT ASSEMBLY................................................82 OPTIONS..........................................................................85 CONVENIENCE TRAY BOLT-ON.....................................................88 CONVENIENCE TRAY MAGNET MOUNT................................................89 AUDIBLE ALARM................................................................90 SPEED REDUCTION..............................................................91 TOW SWITCH...................................................................92 NUMERICAL INDEX..................................................................93
HYSTER W45ZHD (A419) PARTS MANUAL – PDF DOWNLOAD:

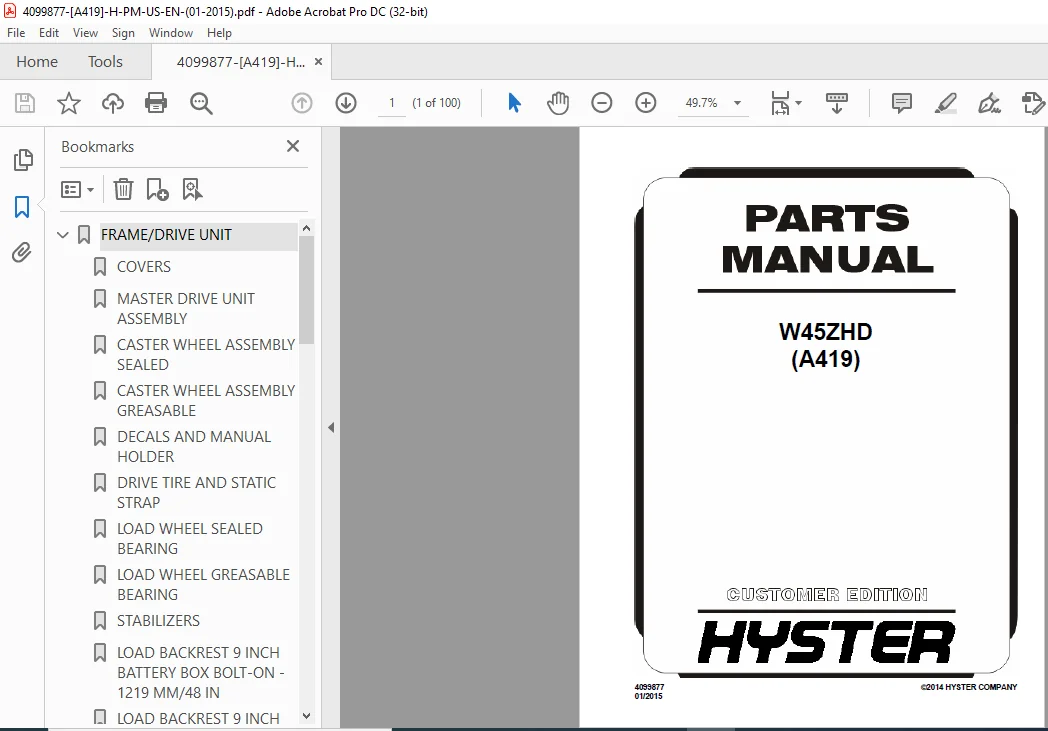

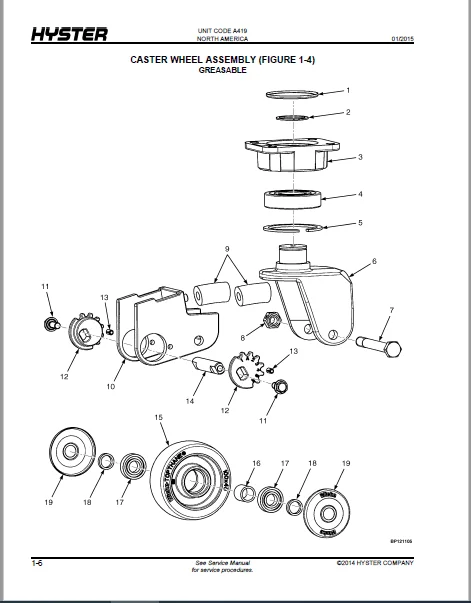

IMAGES PREVIEW OF THE MANUAL:
