Hyundai Crawler Mini Excavator Robex R16-7 Operating Manual – PDF DOWNLOAD

Description

Hyundai Crawler Mini Excavator Robex R16-7 Operating Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:87
DOWNLOADABLE:YES
FILE TYPE:PDF

HYUNDAI CRAWLER MINI EXCAVATOR ROBEX R16-7 OPERATING MANUAL – PDF DOWNLOAD:

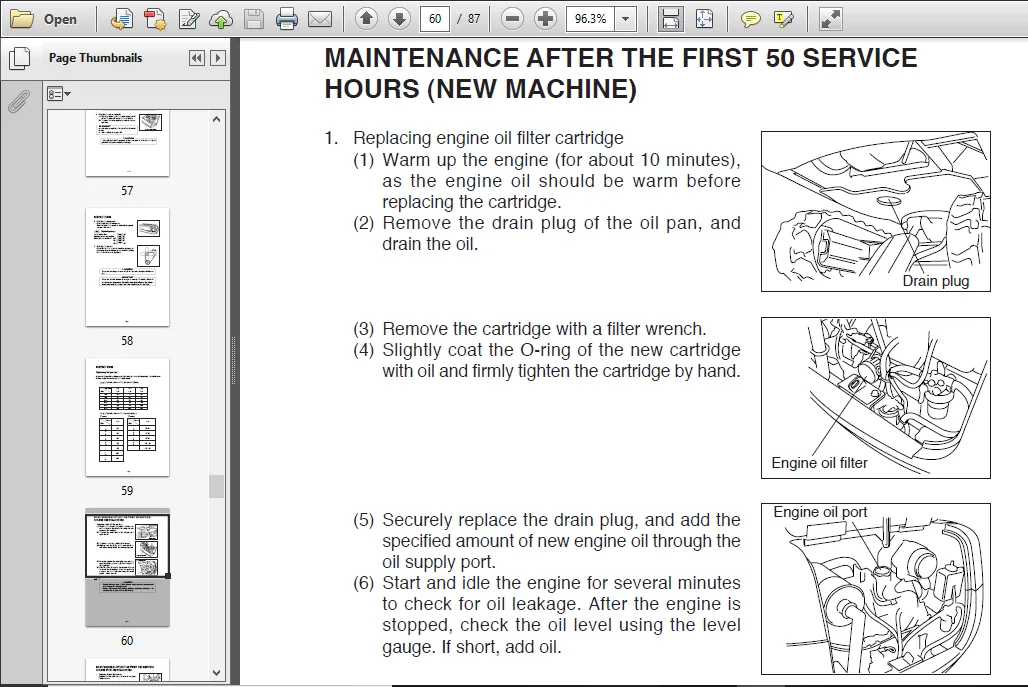

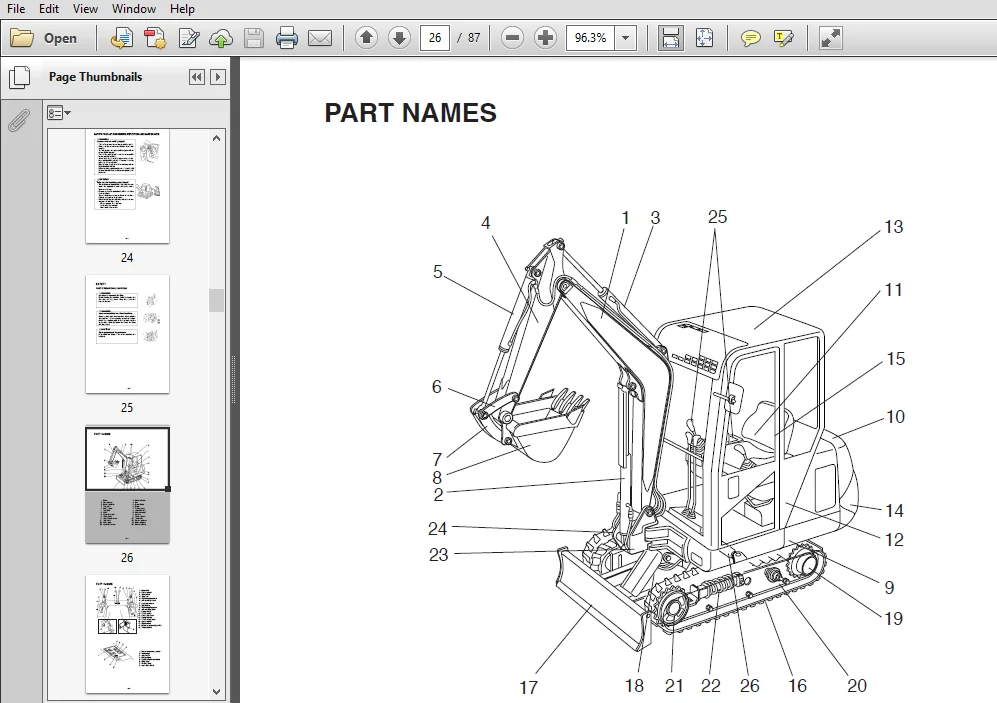

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hyundai Crawler Mini Excavator Robex R16-7 Operating Manual

INTRODUCTION
Read this manual carefully before operating the machine to ensure safe and optimum running conditions. If you do not understand any of the points in the manual, or the machine breaks down, contact your dealer. In particular, attention needs to be paid to the following points.
• Read this operation manual if you have any questions or doubts on any point to ensure proper and safety excavator operation.
• Keep this operation manual in the excavator at any time to ensure readily access to it in case a need for it arises.
• Be sure to hand over this operation manual to the new owner if the ownership of the excavator is to be transferred.
• Make every possible effort to ensure proper and safety operation of the excavator.
• Note that a portion of the contents of this instruction manual may differ from the excavator you have purchased, which is mainly due to the improvements adopted for it.
• Consult our marketing staff if you have any questions or comments on this operation manual.

HOW TO USE THE OPERATION MANUAL
Read this manual carefully before operating the machine. This chapter describes the marks in the operation manual.
DANGER
This symbol shows an immediate hazard that will cause death or severe injury if the instruction is not observed.
WARNING
This symbol shows a hazard that can cause death or severe injury if the instruction is not observed.
CAUTION
This symbol shows a hazard that can cause injury of machine damage if the instruction is not observed.
IMPORTANT
This symbol shows a hazard that can cause damages to the excavator or reduce its service life if the instruction is not observed.
This symbol shows the tightening torque for a given bolt that needs to be strictly observed during the assembly.
This symbol shows related matters or the referring page.
This symbol shows the amount of grease or oil that needs to be filled.
• If you notice any ambiguous points in this manual, consult your dealer.
• The descriptions and figures in this operation manual may not coincide with the machine due to changes in the specifications.

TABLE OF CONTENTS:

Hyundai Crawler Mini Excavator Robex R16-7 Operating Manual

CONTENTS
OPERATION
Safety Decals 1
Basic Precautoins on Safety 3
Safety Precautionary Notes before Start 4
Safety Precautions during Operation 6
Safety Precautions during Inspection and Maintenance 15
Safety Post Operational Caution 18
Part Names 19
Explanation of Each Device 21
Operation 28
Operational Precautions 32
Transporting by Truck 38
Machine Traction 40
How to Hoist a Machine 41
Cold Weather or During-Winter Operations 43
Long-Period Storage 45
INSPECTION AND MAINTENANCE
Ordering Parts and Servicing Guidelines 46
Inspections 47
Maintenance after the First 50 Service Hours (New Machine) 52
Maintenance after the First 100 Service Hours (New Machine) 53
Maintenance Every 50 Service Hours 54
Maintenance Every 100 Service Hours 56
Maintenance Every 250 Service Hours 57
Maintenance Every 500 Service Hours 58
Maintenance Every 1000 Service Hours 60
To Pressurize 61
Inspection and Maintenance Procedures for Engine Parts 63
Inspection and Maintenance Procedures 64
Periodical Inspections and Maintenance List 68
Lubricants 70
OTHERS
Dimensions and Specifications 74
Hydraulic Circuit 76
Electric Circuit 77
