Hyundai HL740-7A Wheel Loader Parts Catalog – HCE e-Catalogue PDF

Description

Hyundai HL740-7A Wheel Loader Parts Catalog – HCE e-Catalogue PDF

This Hyundai HL740-7A Wheel Loader Parts Catalog – HCE e-Catalogue PDF is the illustrated parts listing used to identify assemblies, hardware, hoses, filters, and service kits on the HL740-7A wheel loader. Each group pairs an exploded drawing with an item table that records Part_No, description, quantity, Serial_No applicability, ITC change codes, and remarks. The extract printed by the HCE e-Catalogue system on 2021.01.09 runs 521 pages and also lists many HL740XTD-7A counterparts where the high-lift machine uses a different boom, cylinder, cover, plate, or decal.

File Details

• Manual type: Parts catalog (HCE e-Catalogue)
• Brand / models: Hyundai / HCE HL740-7A; HL740XTD-7A parts called out in multiple groups
• Language: English
• Page count: 521
• File format: PDF
• Print line: Print Date : 2021.01.09 11:01 Printed by HCE e-Catalogue system
• Group revision stamps shown on drawings: 2007.10.31 REV.7K through 2010.6.30 REV.10F

How the Catalogue Is Organized

Groups are numbered in the familiar Hyundai construction-equipment pattern. Engine installation and cooling sit in the 1000 block. Cab electrics and lighting occupy the 2000 block. Pilot and implement piping, grease lines, and emergency-steer kits sit in the 3000 block. Pumps, valves, and cylinders occupy the 4000 block. Frames, cab, seat, steering column, cowl, and counterweight occupy the 5000 block. Drivelines, transmission groups, axles, and planetary gears occupy the 6000 block. Buckets, forks, and related attachment iron occupy the 7000 block. Decals and bound manuals occupy the 8000 block. Engine-internal arrangements referenced from the ENGINE ASSY (9010~9600) callout occupy the 9000 block.

Tables repeat the same column set on every list page: Item, Part_No, IS, Ord, T, Description, Qty, Serial_No, ITC, Remark. Serial columns use the catalogue’s hash format (#0003, #0257-, #0386 -) so a parts person can pick the correct supersession. ITC letters such as A, B, D, and E mark interchange changes. Remarks flag AGRICULTURAL, DUAL F/WARMER, HIGHWAY, STD ONLY, LOW NOISE, MICHELIN, VOLVO / XTD quick-coupler iron, NOT, and NOT SHOWN items. Seal kits are boxed on the drawing with included-item ranges (for example fan-motor kit 5060053 and kit 5060026).

Chapters Covered

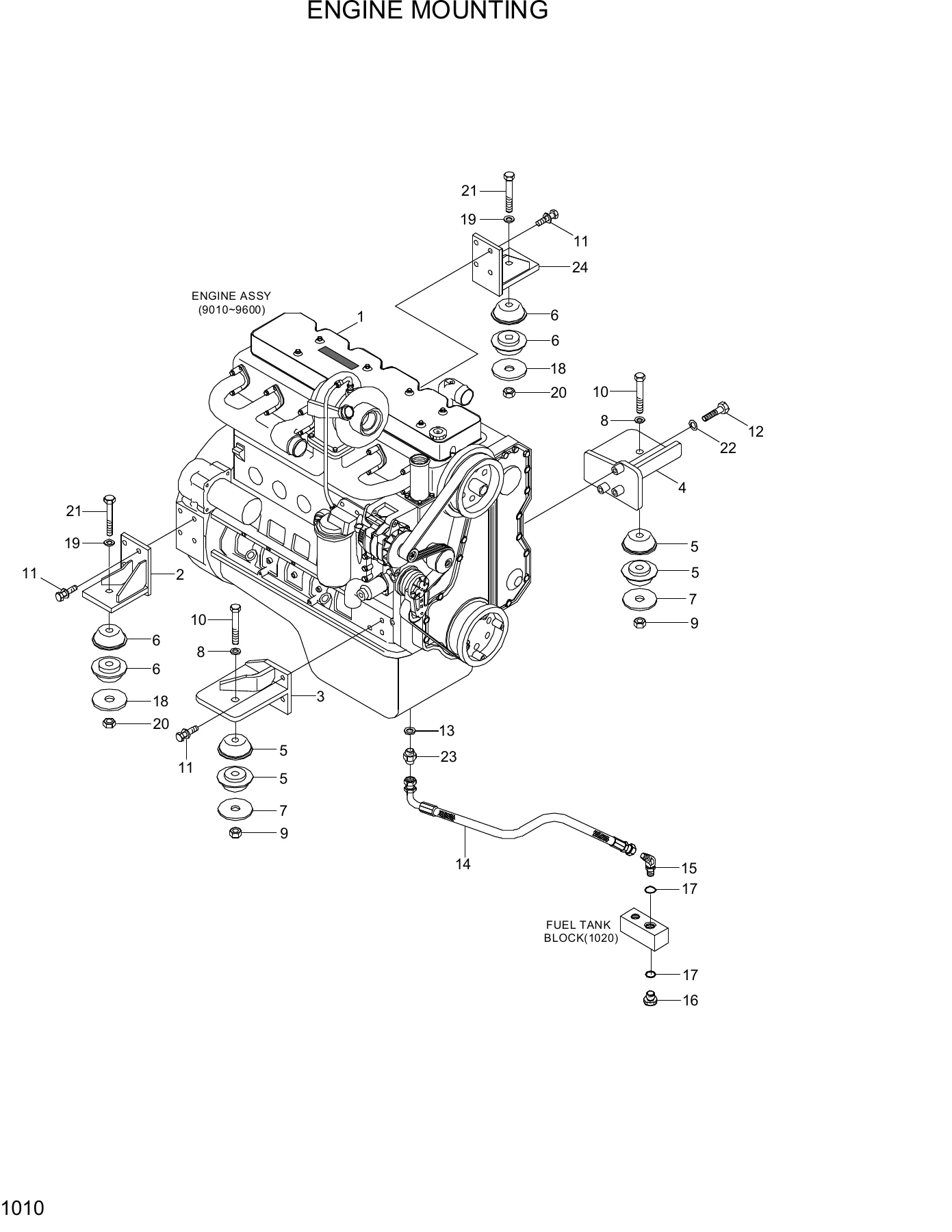

• 1010 Engine Mounting — brackets WA, rubber mounts, rebound washers, fuel-tank block hose
• 1020 Fuel Tank — tank WA, cap, strainer, drain block, cut valve, STD and dual fuel-filter / warmer builds
• 1030 Cooling System (Fan, Forward Only) and 1030A Cooling System (Fan, Forward & Reverse)

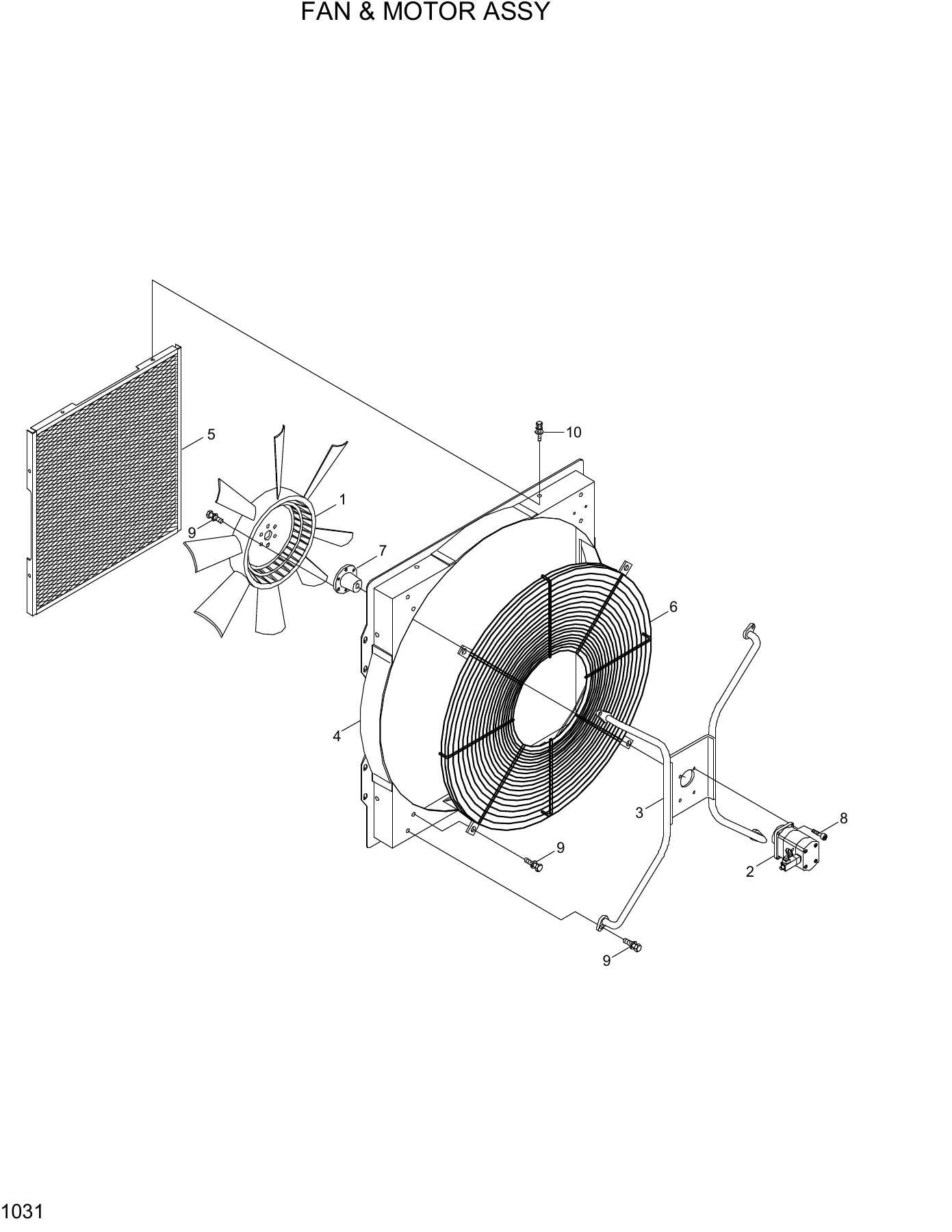

• 1031 Fan & Motor Assy — cooling fan, shroud, front/rear guards, adapter
• 1032 Fan Motor (Forward Only) and 1033 Fan Motor (Forward & Reverse) with relief and solenoid cartridges
• 1040 Radiator Total Assy — radiator complete, T/M oil cooler, hyd oil cooler, CAC, shroud and supports
• 1050 Air Intake System — air cleaner housing, outer/inner elements, precleaner, charged-air hoses
• 1060 Exhaust System — muffler, bellows pipe, tail pipe, clamps, screens, mounts
• 1070 Aircon & Heater Mounting and 1071 Aircon & Heater Mounting (Agricultural)
• 2040 Front Electric — lamps, plates, ride-control harness, high-lift angle iron for XTD
• 2060 Engine Electric — ECM, frame-harness and battery-earth routing
• 2080 Beacon / interior lamp groups (including interior #0156-)

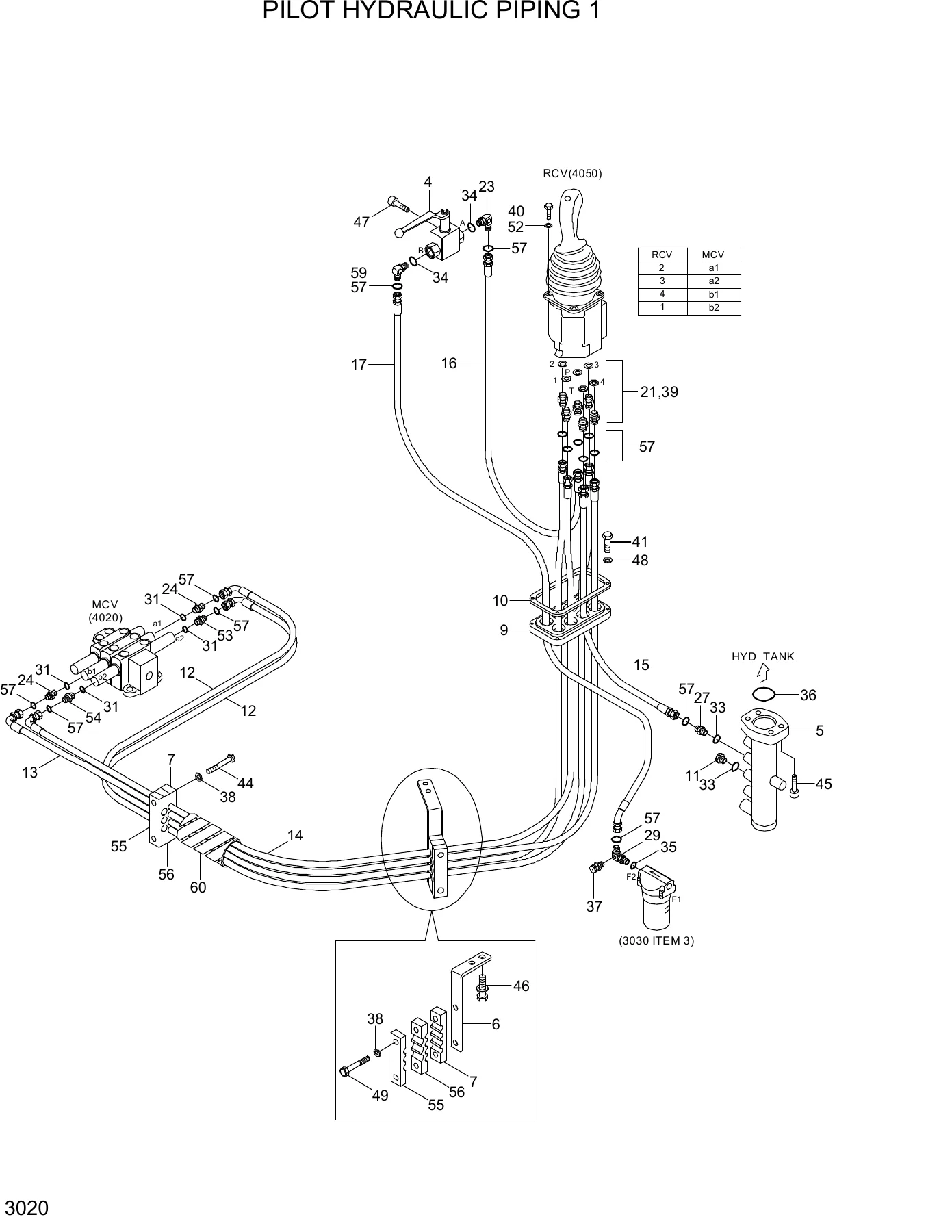

• 3020 Pilot Hydraulic Piping 1 — RCV, MCV, tank suction and return lines
• 3100 Grease Piping (Rear)
• 4010 Main Pump
• Main control and remote control valve groups (MCV 4020, RCV 4050)
• 4090 / 4090A Priority Valve (serial split -#0392 / #0393-)
• Steering cylinders LH/RH and 4160 Quick Coupler Cylinder (Volvo Type)
• 5010 Front Frame and 5020 Rear Frame
• 5050 Counterweight (separate HL740-7A and HL740XTD-7A masses)
• Cab assembly, seat mounting, seat base, door latch, sun screen and low-noise foams
• 5170 Steering Shaft
• 5180 Mud Guard and 5200 Cowl 1
• 6030 Drive Lines, 6040 Transmission Mounting, 6050 Transmission Cooling Piping
• 6070 Engine Connection Group through 6270 Filter / T/M & T/C groups 6070–6272
• 6080 Input Group, 6090–6100 Gearbox Housing, 6110–6160 Coupling Groups K1, K2, K3, K4, KV, KR
• 6170 Output Group, 6180 Power Take Off, 6210 Gearshift System, 6220 Pressure Regulator, 6230 Pressure Oil Pump
• 6240 Emergency Steering Pump Group and 6250 Indicator Transmitter Group
• Rear planetary / brake disc groups with axle serial splits (~#M726394 / #M726395~)
• 7040 Bucket (2.0 m³, tooth) and cutting-edge kits; 7100 Pallet Fork
• Boom assemblies including extra-piping and Q/coupler (Volvo, XTD) options
• Wheel rim and tire options including 17.5-25 12PR L3, 17.5 R25 XHA* Michelin, 20.5-25 16PR L2
• 8025 Decals (including Korean #0195-) and 8030 Manuals (Hyundai binders and disc)
• 9010 Air Heater Starting Aid through 9600 engine arrangements: rear gear housing, fuel-filter plumbing, oil pan, turbocharger arrangement, water outlet, rocker lever housing
• Tool kit assy 94L1-20002 and emergency steer kit 90LF-92000

Taken together, the Hyundai HL740-7A Wheel Loader Parts Catalog – HCE e-Catalogue PDF is a parts-identification book, not a repair procedure manual. A technician uses the drawing balloon to reach the row, then reads quantity, serial window, and remark before ordering. That is how the same catalogue separates a standard fuel-filter head from the dual warmer stack (11NA-71000 / 11NA-71001 / 11NA-73000), a one-direction fan motor (11LG-30010 / 11LG-30011) from the reversible motor (11LG-30700), and an early radiator complete (11LF-30510 through 11LF-30512) from later cooler and support numbers.

Serial Breaks, Options, and Twin Model Lines

Machine serial windows appear throughout the lists rather than on a single cover plate. Examples printed in the groups include -#0003 / #0004-, -#0036 / #0037-, -#0087, #0134-, -#0146 / #0147-#0293 / #0294-, #0156-, -#0193 / #0194-, -#0256 / #0257-, #0265-, #0266-, -#0294 / #0295-, -#0313 / #0314-, -#0345 / #0346-, -#0360 / #0361-, -#0380 / #0381-, -#0383 / #0384-, -#0385 / #0386-, and -#0391 / #0392 / #0393-. Transmission lists add T/M serial notes such as ZGAQ-01424 / ZGAQ-03132 and shaft splits -#1673484 / #1673485-. Axle lists use marks such as ~#M726394 / #M726395~.

HL740XTD-7A is not a separate catalogue in this file; it is carried as alternate rows on the same drawings. Distinct XTD numbers appear for high-lift angle and clamp iron, lamp plates, hydraulic covers, bucket cylinders (31LF-20031 vs 31LF-20390), counterweights (51LF-10100 vs 51LF-11100), boom weldments (61LF-10011 vs 61LF-12010 and extra-pip / Q/coupler variants), and decal kit B (92LF-011xx vs 92LF-012xx). Agricultural screen plates, agricultural condenser 11LF-91040, highway beacon notes, dual-pedal steering piping, heavy-duty axle option, ride-control harness, quick-coupler extra harness, and low-noise cab sponges are likewise option rows, not separate books.

Typical Assemblies a Parts Counter Will Look Up

Engine mounting group 1010 starts with ENGINE ASSY 11LF-01000 and the four rubber-mount stacks (11N6-10450 and 11N6-08255) plus LH/RH brackets 11LC-00090 / 11LC-00081. Fuel tank assembly 11LF-20170 includes cap 11LB-20050, strainer 31E1-10300, and the fuel-filter family that changes at #0385/#0386. Cooling groups document both forward-only and reversible fan circuits, weather strip S772-008000 / S771-008000 at #0294/#0295, and agricultural screen plates 11LF-30780 / 11LF-30781 and 11LF-30790 / 11LF-30791.

IMAGES PREVIEW

Hydraulic lookup is equally specific. Main-pump exploded 4010, MCV inlet/spool/outlet sections with YUCE numbers, steering cylinder seal stacks (rod seal Y220-040011, buffer Y240-040011, piston seal Y410-065000), and Volvo-type quick-coupler cylinder seal kit 31Y2-05920 sit next to hose assemblies written in the P910 / P920 / P930 ORFS pattern. Transmission groups use ZGAQ numbers for converter, input shaft, couplings K1–K4 / KV / KR, output shaft ZGAQ-01439 / ZGAQ-02842, and auto T/M oil filter ZGAQ-02400. Axle pages list brake discs ZTAM-00090 / ZTAM-00968 and matching O-rings.

Attachment and cab pages cover the 2.0 m³ toothed bucket with tooth kit 61LF-00950BG, cutting-edge kit 61LD-00910BG, pallet fork group 7100, cab foams 71LF-01700 through 71LF-01780, adhesive sun screen 91LF-21000 / 91LF-21010, and the Hyundai-branded binder set in group 8030. Engine-internal pages at the back of the book continue the same balloon-and-table method for air-heater starting aid 9010, fuel-filter plumbing 9140, oil pan 9360, turbocharger arrangement 9500, water outlet 9550, and rocker-lever housing 4899257 with push rods 3941253.

Using the Lists Without Guessing Interchange

Because so many rows split by serial or by STD versus XTD versus agricultural versus dual-warmer, ordering from memory is risky. The Hyundai HL740-7A Wheel Loader Parts Catalog – HCE e-Catalogue PDF keeps the superseded and superseding numbers on the same item line so the counter can match the machine plate to the printed window. Remarks such as INCL 1-73, SEE ILLUST, ONLY(12+13ASSY), and SEE 3150 send the reader to the sibling group instead of inventing a kit. Items marked NOT or @ are flagged as not serviced or not illustrated at that indent.

Hardware is spelled out rather than assumed: hex bolts S017- and S035- series, washer-hardened S441-, nuts S205- / S203-, O-rings S631- / S611- / S621-, hose clamps S520- and wire-type S572-, and copper washers P392-. That level of fastener detail is what lets a shop rebuild a mount stack or a cooler flange from the list instead of cannibalizing another machine.

Get the Parts Book and Order the Right Number

With this Hyundai HL740-7A Wheel Loader Parts Catalog – HCE e-Catalogue PDF a technician or parts buyer can identify engine mounts, fuel-tank and filter hardware, both fan-drive layouts, radiator and cooler stacks, air-intake and exhaust pieces, air-conditioning and heater circuits, cab electrics, pilot and implement hoses, pumps and valves, steering and bucket cylinders, frames and counterweights, transmission groups, axle and brake discs, boom and bucket iron, wheels, decals, tools, and the 9010–9600 engine arrangements. Correct part numbers, quantities, and serial windows matter because a #0385 fuel-filter element is not the #0386 dual-warmer stack, and an HL740-7A boom weldment is not the HL740XTD-7A high-lift boom. After payment the file is delivered as an instant PDF download — no shipping wait — so it can be opened on a shop computer, tablet, or phone and printed at the counter when a pick list is needed.
