Hyundai HX300AL Crawler Excavator Operators Manual

Service Manual Covers:

Hyundai HX300AL Crawler Excavator Operators Manual

• Foreword
  • Before servicing the machine
  • EC regulation approved
  • Table to enter S/No and distribution
  • Machine data plate
  • Guide (direction, S/No, symbol)
  • Regulation
• Safety hints
  • Safety rules
    • Safety message
    • General safety information
    • Fire and exploision
    • Health and safety
    • Noise and vibration
    • Safety information on the machines and operation
    • Cautions during maintenance
    • Parking and storage

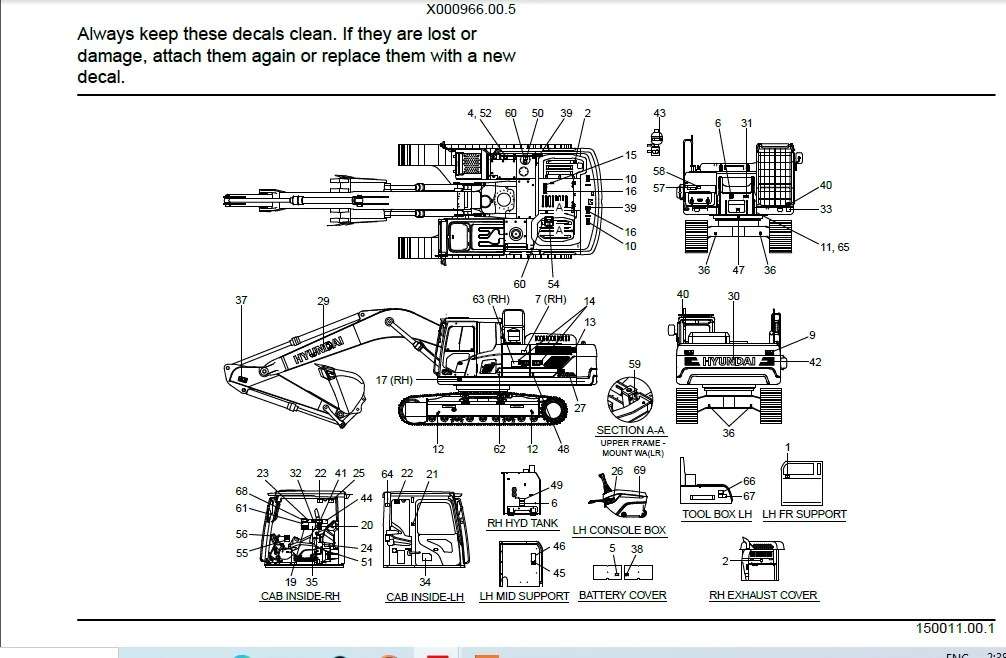

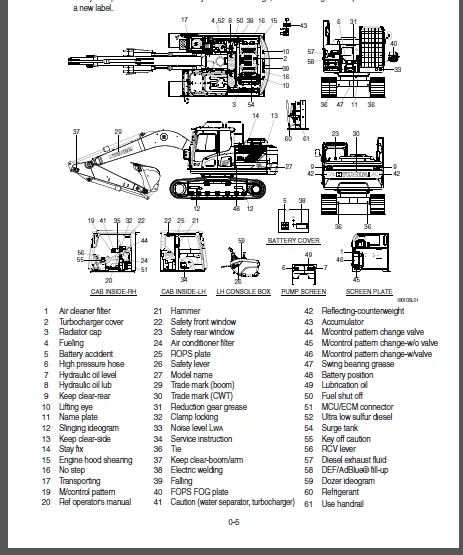

  • Safety decals
    • Location
    • Description
      • item 1-39
      • item 41~68
  • Visibility
• Operation
  • Before starting the machine
  • Starting and stop the enigine
  • Mode selection system
  • Operation of the working device
  • Traveling of the machine
  • Efficient working method
  • Operation in the special work sites
  • Normal operation of excavator
  • Attachment lowering (when engine is stopped)
  • Storage
  • RCV lever operating pattern
  • Exhaust system cleaning
• Control devices
  • Cab devices
  • Cluster
    • Structure
    • Gauge
    • Warning Lamps
    • Pilot Lamps
    • Switches
    • Main Menu
    • Air Conditioner And Heater
  • Switches
  • Levers and pedals
  • Others
    • Summary
    • Jog dial module
    • Electric Devices
      • Audio
    • Seat
• Maintenance
  • Instruction
  • Tightening Torque
  • Fuel, coolant and lubricants
  • Maintenance check list
  • Maintenance chart
  • Service instruction
    • Checking oil and coolant
    • Checking radiator and oil cooler
    • Cleaning of air cleaner
    • Fuel tank
    • Prefilter
    • Change air piping
    • Checking fuel filter
    • DEF/AdBlue® Tank and Filter
    • Cleaning
    • Vibration damper
    • Overhead set adjustment
    • Fuel filler Pump filter
    • Hydraulic oil checking
    • Checking pilot line filter
    • Checking swing gear and pinion
    • Lubricate RCV lever
    • Adjustment of track tension
    • Checking Bucket
    • Lubricate pin and bushing
  • Electrical system
  • Air conditioner and heater
• Transportation
  • Preparation for transportation
  • Dimension and weight
    • HX300A L
    • HX300A NL
    • HX300A LR
  • Loading the machine
  • Fixing the machine
  • Loading and unloading by crane
• Troubleshooting guide

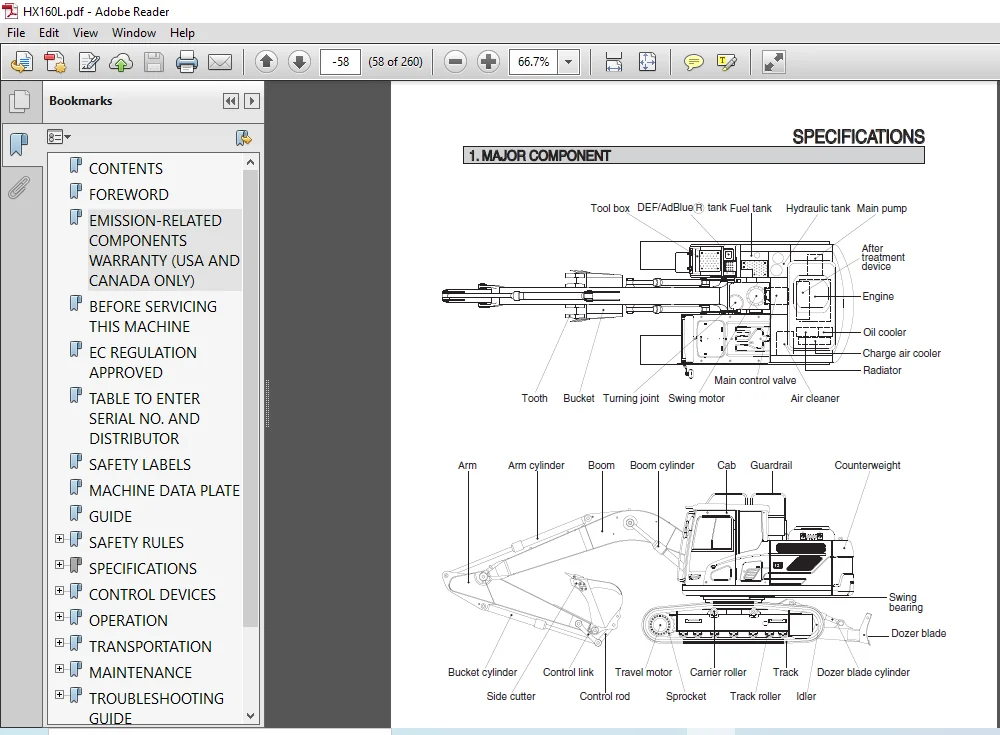

• Specifications
  • Major Component
  • Specifications
  • Working Range
  • Weight
  • Lifting Capacities
  • Bucket Selection Guide
  • Under Carriage
  • Specifications For Major Components
  • Recommended Oils
• Hydraulic Breaker and Quick Clamp

HYUNDAI HX300AL CRAWLER EXCAVATOR OPERATORS MANUAL – PDF DOWNLOAD:

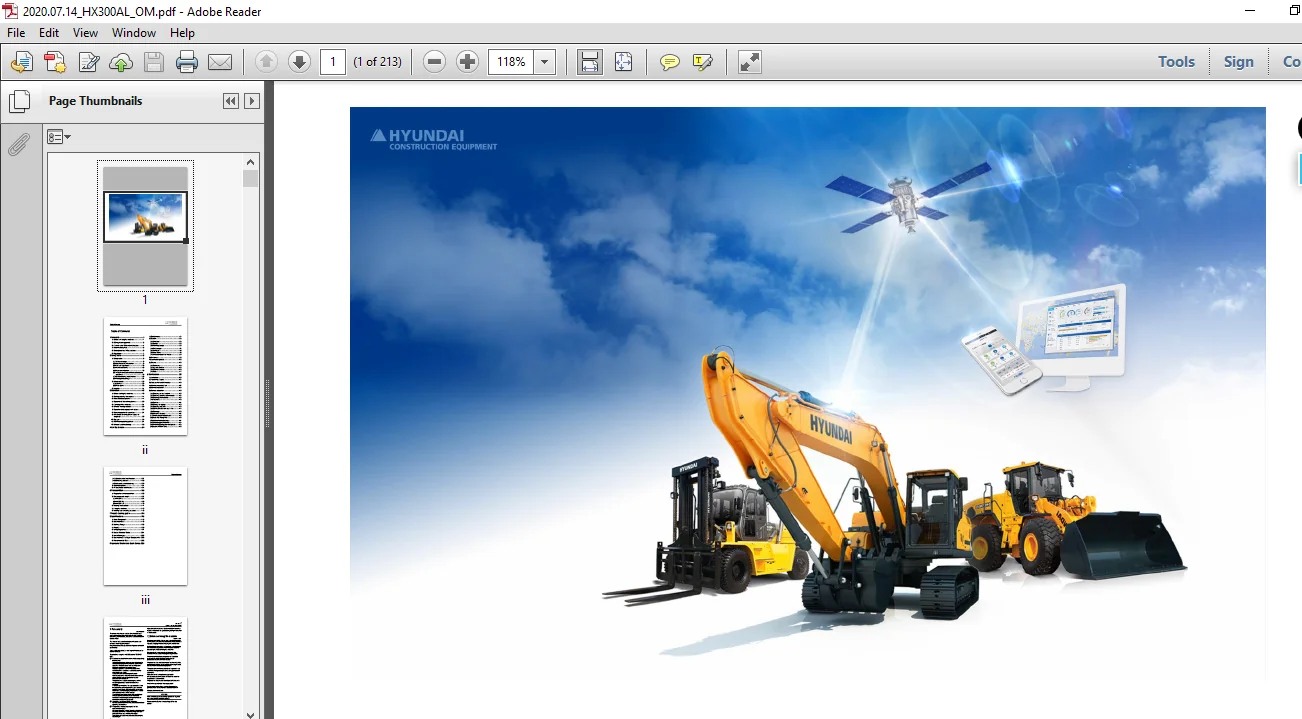

Image Preview:

Manual covers:

Hyundai HX300AL Crawler Excavator Operators Manual

This manual contains a number of instructions and safety recommendations regarding driving, handling, lubrication, maintenance, inspection and adjustment of the excavator. The manual is to promote safety maintenance and enhance machine performance. Keep this manual handy and have all personnel read it periodically. If you sell the machine, be sure to give this manual to the new owners. This machine complies with EC directive “2006/42/ EC”. ① Read and understand this manual before operating the machine. This operator’s manual may contain attachments and optional equipment that are not available in your area. Please consult your local Hyundai distributor for those items you require.
