HYUNDAI MITSUBISHI 4G63-32HL, 4G64-33HL ENGINE SERVICE MANUAL FORK LIFT LPG – PDF DOWNLOAD

Description

HYUNDAI MITSUBISHI 4G63-32HL, 4G64-33HL ENGINE SERVICE MANUAL FORK LIFT LPG

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:91
DOWNLOADABLE:YES
FILE TYPE:PDF

DESCRIPTION:

HYUNDAI MITSUBISHI 4G63-32HL, 4G64-33HL ENGINE SERVICE MANUAL FORK LIFT LPG

FROM-lN-PLACE GASKET(FIPG)

The engine has several areas where the from-in-place gasketlFIPG) is in use. To ensure that gasket fully serves its purpose, it is necessary to observe some precautions when applying the gasket. Bead size. continuity and location are of paramount importance. Too thin a head could cause leaks. Too thick a bead. on the other hand. could be squeezed out of location, causing blocking or narrowing of the fluid feed line. To eliminate the possibility of leaks from a joint. therefore..it is absolutely necessary to apply the gasket evenly without a break. while observing the correct head size. Since the FIPG used in the engine hardens as it reacts with the moisture in the atmospheric air. it is normally used in the metallic flange areas.

Disassembly

The parts assembled with the FlPG can be easily (fisassembled without use of a special method. In some cases. however. the sealant between the joined surfaces may have broken by lightly striking with a mallet or similar tool. A flat and thin gasket scraper may be lightly hammered in between the joined surfaces. in this case, however, care must be taken to prevent damage to the joined surfaces. For removal of the oil pan. the special tool “Oil Pan Remover” (M0998727) is available. Be sure to use the special tool to remove the oil pan.

Surface preparation

Thoroughly remove all substances deposited on the gasket application surfaces. using a gasket scraper or wire brush. Check to ensure that the surfaces to which the FPS is to be applied is flat. Make sure that there are no oils. greases and foreign substances deposited on the application surfaces. Do not forget to remove the old FIPG remaining in the bolt holes.

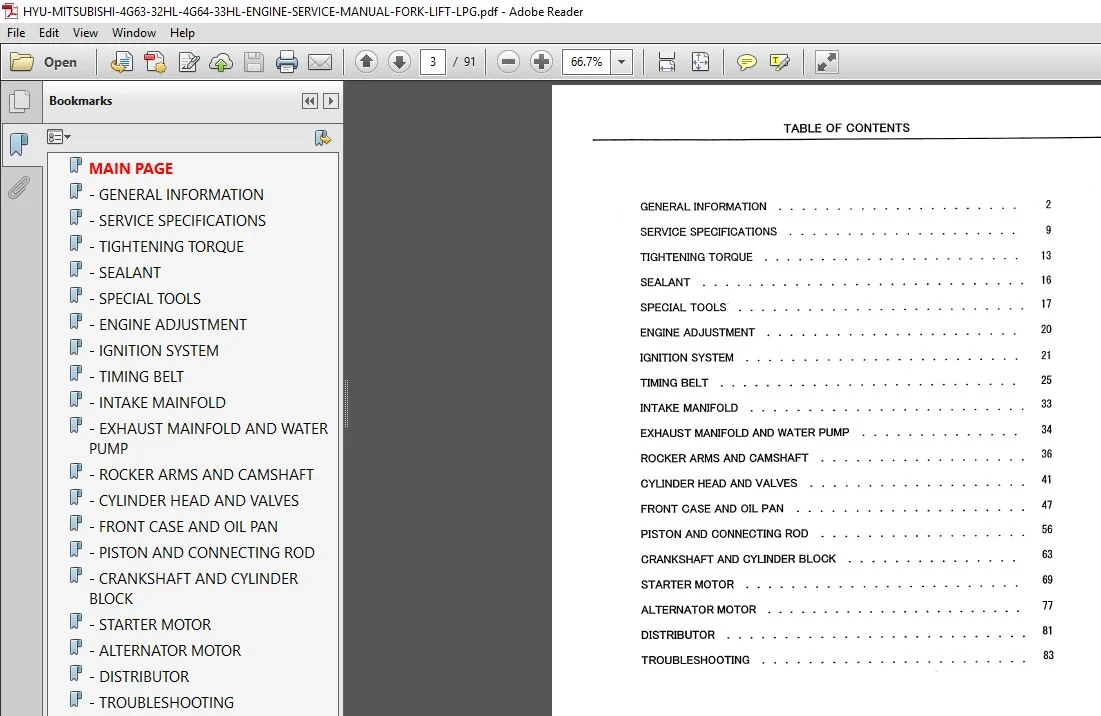

TABLE OF CONTENTS:

HYUNDAI MITSUBISHI 4G63-32HL, 4G64-33HL ENGINE SERVICE MANUAL FORK LIFT LPG

MAIN PAGE............................ 1
- GENERAL INFORMATION................ 4
- SERVICE SPECIFICATIONS.............10
- TIGHTENING TORQUE..................14
- SEALANT............................17
- SPECIAL TOOLS......................18
- ENGINE ADJUSTMENT..................21
- IGNITION SYSTEM....................22

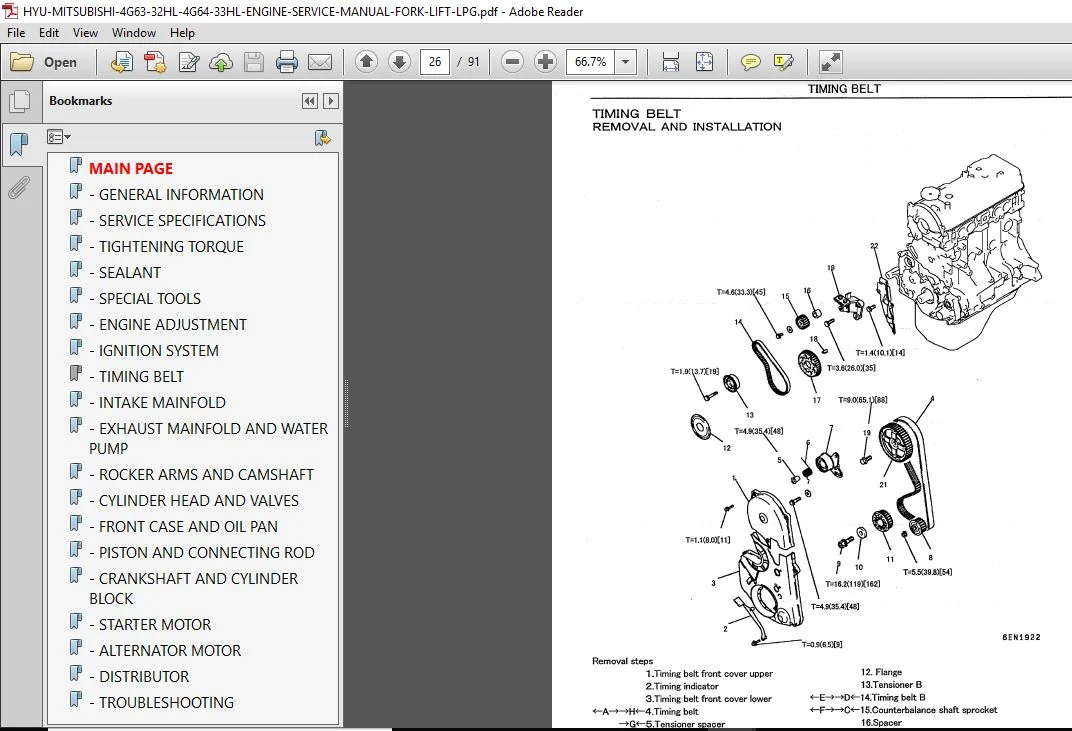

- TIMING BELT........................26
- INTAKE MAINFOLD....................34
- EXHAUST MAINFOLD AND WATER PUMP....35
- ROCKER ARMS AND CAMSHAFT...........37
- CYLINDER HEAD AND VALVES...........42
- FRONT CASE AND OIL PAN.............48
- PISTON AND CONNECTING ROD..........57
- CRANKSHAFT AND CYLINDER BLOCK......64
- STARTER MOTOR......................70
- ALTERNATOR MOTOR...................78
- DISTRIBUTOR........................82
- TROUBLESHOOTING....................84

 HYUNDAI MITSUBISHI 4G63-32HL, 4G64-33HL ENGINE SERVICE MANUAL FORK LIFT LPG – PDF DOWNLOAD:

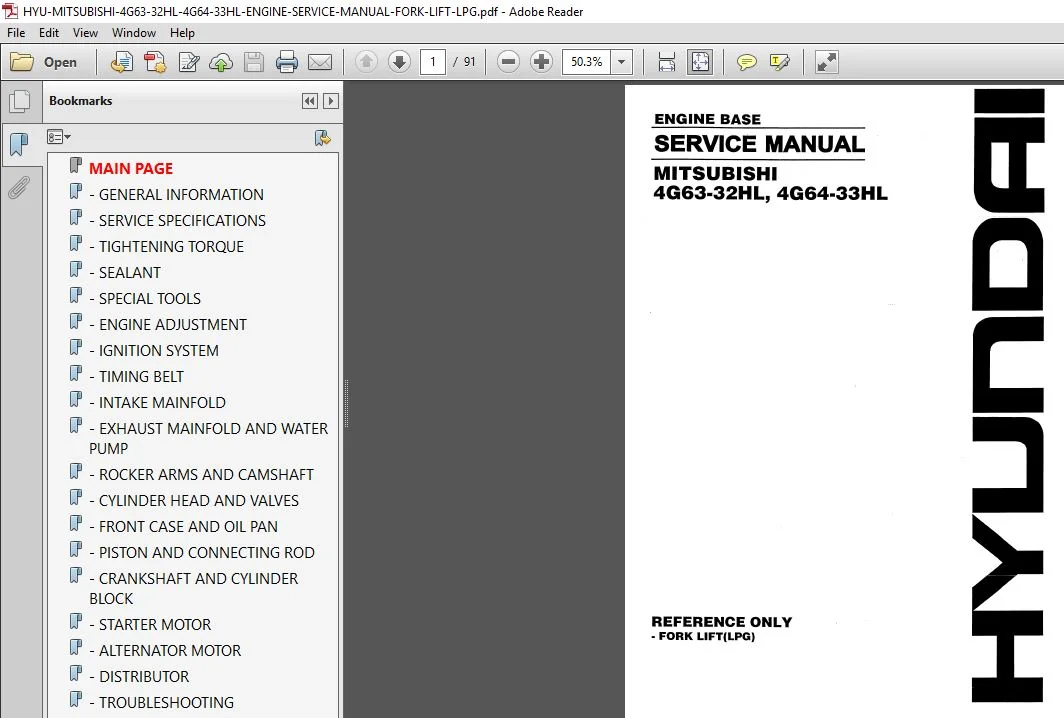

IMAGES PREVIEW OF THE MANUAL:
