The Hyundai R220LC-9S Illustrated Parts Catalog PDF is a detailed parts reference for the R220LC-9S. Across 592 pages, the catalog combines exploded assembly illustrations with corresponding item lists showing part numbers, descriptions, quantities, serial-number breakpoints, and applicable option or configuration remarks. Its coverage extends from engine installation and machine electrical systems through hydraulic piping, pumps, control valves, travel and swing components, undercarriage, cab assemblies, working equipment, buckets, attachments, and detailed engine components.

This catalog is particularly useful when a component must be identified within an assembly rather than by appearance alone. Illustrated pages show the relationship between parts and assign item numbers to individual components, while the accompanying lists provide the matching part references and quantities. Numerous entries also distinguish changes by serial number or configuration, helping users check the exact catalog reference associated with the machine or assembly being worked on.

File Details

• Manual type: Parts Catalog
• Brand: Hyundai
• Model: R220LC-9S
• Language: English
• Page count: 592 pages
• File format: PDF
• Catalog item-list print date: 2018.07.26 / 2018.07.27

Illustrated Parts Identification

The Hyundai R220LC-9S Illustrated Parts Catalog PDF is built around illustrated assembly breakdowns rather than general maintenance instructions. Drawings identify the position and relationship of components such as brackets, hoses, pipes, seals, O-rings, bearings, valves, cylinders, harnesses, covers, gears, pins, bushings, filters, motors, pumps, electrical units, structural components, and attachment parts. Matching item lists then provide the corresponding part number, description, quantity and, where applicable, serial-number or configuration information.

Many assemblies are presented at more than one level. A major component may first appear as a complete assembly and then be broken down into its internal parts, service kits, seal kits, subassemblies, hardware, and associated connections. Examples in the catalog include the main hydraulic pump, main control valve, swing motor and reduction gear, travel motor and reduction gear, hydraulic cylinders, quick clamp assemblies, air-conditioning units, cab assemblies, undercarriage parts, and multiple bucket configurations.

Chapters Covered

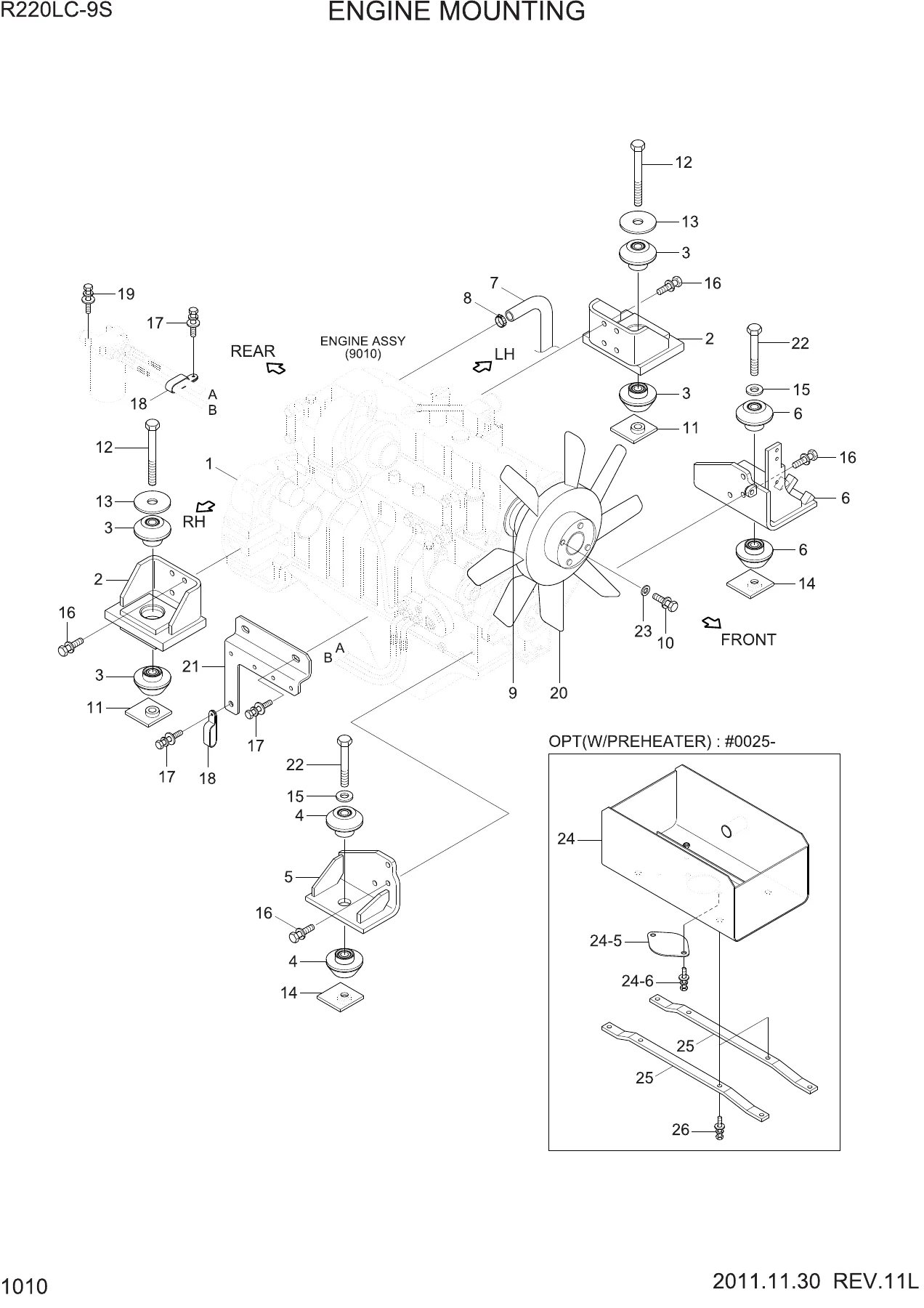

• ENGINE MOUNTING
• ENGINE CONTROL SYSTEM
• AIR INTAKE SYSTEM
• EXHAUST SYSTEM
• COOLING SYSTEM
• RADIATOR ASSY
• FUEL SYSTEM
• FUEL TANK
• AIRCON & HEATER GROUP
• AIR CONDITIONER BOTTOM SUB
• AIRCON & HEATER UNIT
• AIR CONDITIONER UNIT (SEMI AUTO)
• HEATER UNIT (SEMI AUTO)
• PRE HEATING GROUP
• RH ELECTRIC and RH ELECTRIC with preheater
• LH ELECTRIC and LH ELECTRIC with preheater
• BOOM ELECTRIC
• ENGINE ELECTRIC
• ELECTRIC BOX
• CAB ELECTRIC 1 and CAB ELECTRIC 2
• CABIN ROOM ELECTRIC
• CLUSTER (TYPE 1) and CLUSTER (TYPE 2)
• BOTTOM ELECTRIC
• FUEL FILLER PUMP
• FUSE BOX
• AIR COMPRESSOR ASSY
• PUMP MOUNTING
• HYDRAULIC TANK
• UPPER HYD PIPING (BASE)

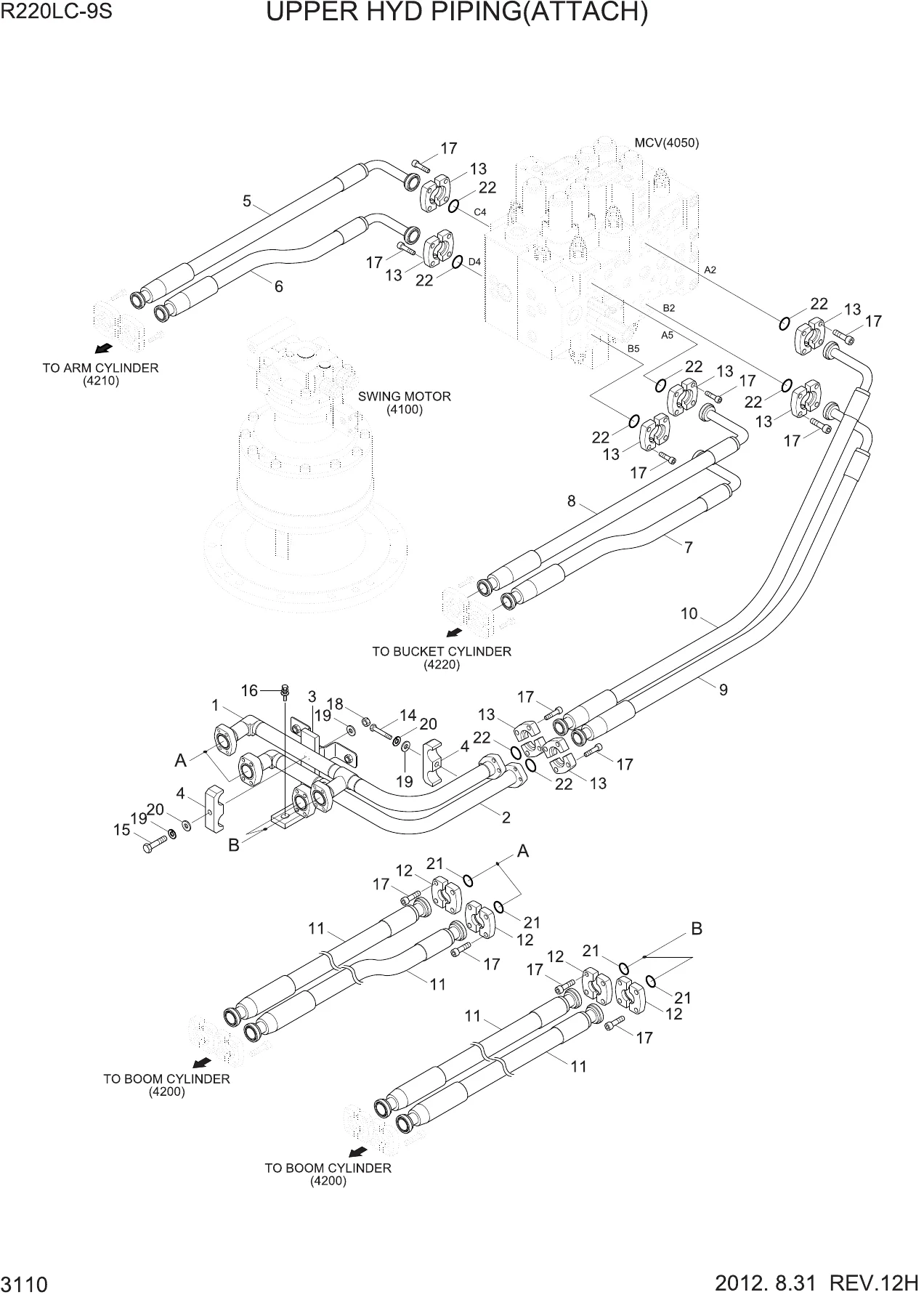

• UPPER HYD PIPING (ATTACH)
• UPPER HYD PIPING (TRAVEL)
• PILOT HYD PIPING control and base arrangements
• TRAVEL HYD PIPING for travel-motor configurations
• BOOM HYD PIPING for 5.68M standard, long-reach and 4.7M arrangements
• BOOM GREASE LUB SYSTEM for standard and optional boom arrangements
• BOOM SAFETY LOCK SYSTEM
• QUICK CLAMP PIPING

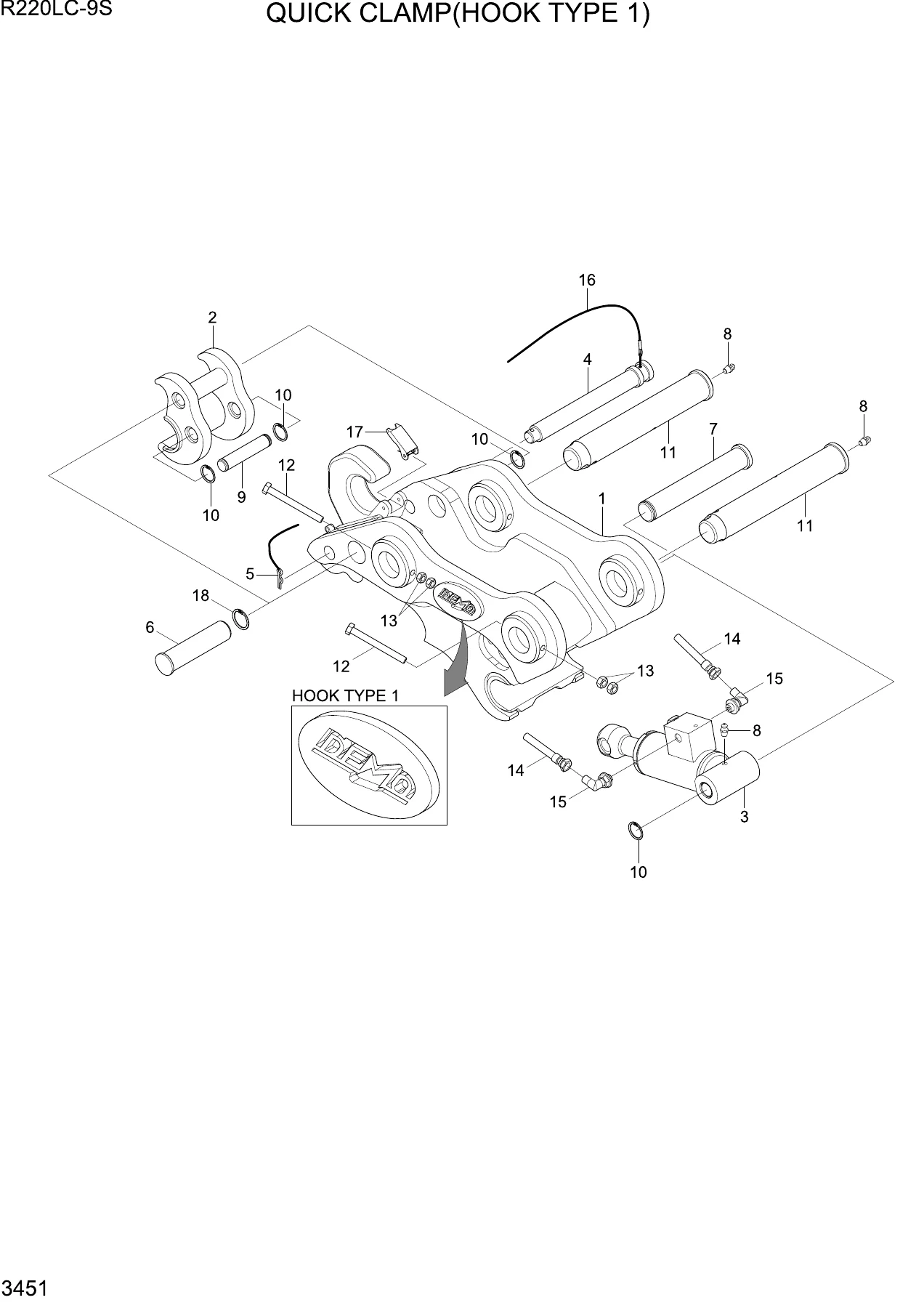

• QUICK CLAMP ASSY hook and close configurations
• ARM PIPING KIT-BREAKER and BOOM PIPING KIT-BREAKER
• D/ACT MAIN PIPING KIT and S/ACT MAIN PIPING KIT
• MAIN PUMP, regulator, gear pump and EPPR valve
• MAIN CONTROL VALVE
• SWING MOTOR and SWING REDUCTION GEAR
• RCV lever, RCV pedal and turning-joint components
• TRAVEL MOTOR and TRAVEL REDUCTION GEAR
• BOOM CYLINDER, ARM CYLINDER and BUCKET CYLINDER assemblies
• SOLENOID VALVE and valve assemblies
• HYD BREAKER ASSY
• Undercarriage components including track chains, rollers and idler assemblies
• CAB ASSY, doors, glazing and related cab components
• Seat base and SEAT ASSY components
• SIDE COWL ASSY and machine covers
• BOOM ASSY and ARM ASSY configurations
• BUCKET ASSY configurations
• TOOL KIT ASSY and HCE-DT KIT
• Decal kits and manual references
• Detailed engine components including cylinder block, crankshaft, rocker components, fuel-system parts, flywheel, connecting rods, injectors, turbocharger and water pump

Taken together, these sections provide a broad component-identification reference for the R220LC-9S. The catalog follows systems from complete assemblies down to many individual serviceable components, fittings, seals and fasteners. This makes it useful for checking how an assembly is constructed, finding the item number associated with a drawing, comparing alternative components, and obtaining the printed part number before sourcing or ordering a replacement.

Serial Changes, Options and Machine Configurations

A notable feature of this R220LC-9S parts catalog is the amount of applicability information carried alongside the item lists. Numerous parts are separated by serial-number change points, with different numbers shown before or after a specified serial. The catalog also marks equipment or arrangement differences such as preheater configurations, cluster types, full-auto and semi-auto air conditioning, heater-only arrangements, long-reach equipment, different boom and arm lengths, quick-clamp alternatives, breaker piping, optional work equipment, and other configuration-specific parts.

For example, hydraulic hose and piping entries frequently identify different arrangements according to boom or arm configuration, while electrical pages distinguish cluster types and serial changes. Air-conditioning sections separate full-auto, semi-auto and heater configurations. Travel piping pages contain model or configuration remarks for individual hose applications, and working-equipment sections contain multiple boom, arm and bucket assemblies. These notes are important because a visually similar component can carry a different catalog number depending on the machine configuration or production change.

IMAGES PREVIEW

Hydraulic and Powertrain Component Breakdown

The hydraulic portion is especially extensive. It covers the hydraulic tank and filtration components, suction and return piping, upper hydraulic piping, pilot control circuits, travel circuits, boom and attachment piping, breaker arrangements, safety-lock systems, quick-clamp hydraulics, the main pump and its internal components, regulators, gear pump, EPPR valve, main control valve internals, swing motor, swing reduction gear, travel motors, travel reduction gearing, turning joint, and hydraulic cylinders.

Detailed pump and valve pages go beyond a simple complete-unit part number. Internal components such as shafts, bearings, cylinder blocks, pistons, shoes, plates, springs, O-rings, oil seals, regulator components, relief valves, spools, poppets, check valves and seal kits are individually referenced where supplied in the catalog. Similar exploded treatment is used for the swing and travel drive assemblies, allowing the reader to trace a component from the complete assembly into its internal parts.

Electrical, Cab and Equipment Coverage

The electrical sections identify frame, engine, boom and cab harness components together with batteries, relays, circuit breakers, work lamps, sensors, switches, horns, control units, rear-view camera components, wiper parts, cluster components, fuse-box parts, optional beacon equipment and related hardware. The climate-control portion includes compressor, condenser, hoses, controls, evaporator, heater radiator, blower and actuator components for the cataloged air-conditioning and heating arrangements.

Structural and operator-area coverage continues through the cab, doors, glass, covers, seat assemblies, side cowls and machine panels. Further sections break down the boom, arms and numerous bucket assemblies. The undercarriage coverage includes track-related components, rollers and idler assemblies, while attachment pages include quick-clamp and hydraulic-breaker parts. The final portion of the catalog also contains detailed engine-component parts references extending into internal engine, fuel, air and cooling components.

Use the Correct R220LC-9S Parts Reference

The Hyundai R220LC-9S Illustrated Parts Catalog PDF gives owners, parts departments and repair personnel a practical way to identify components before dismantling, replacement or parts ordering. Exploded drawings help establish where a part belongs and how it relates to neighboring components, while the item lists provide the exact catalog references, quantities and applicable serial or option notes printed for those assemblies. Checking those details is especially valuable where the catalog documents production changes, optional equipment or multiple versions of the same system.

Use this R220LC-9S parts manual to locate assemblies, identify individual components, cross-reference illustration callouts with part numbers, check quantities, and review serial-number or configuration distinctions before sourcing parts. The manual is supplied as an instant PDF download after purchase, so there is no physical book and no shipping delay. It can be opened on compatible computers, tablets and phones and pages can be printed whenever a workshop or parts-counter copy is useful.
