Hyundai R290LC-7A Crawler Excavator Parts Catalog – Illustrated Parts Manual PDF Download

Description

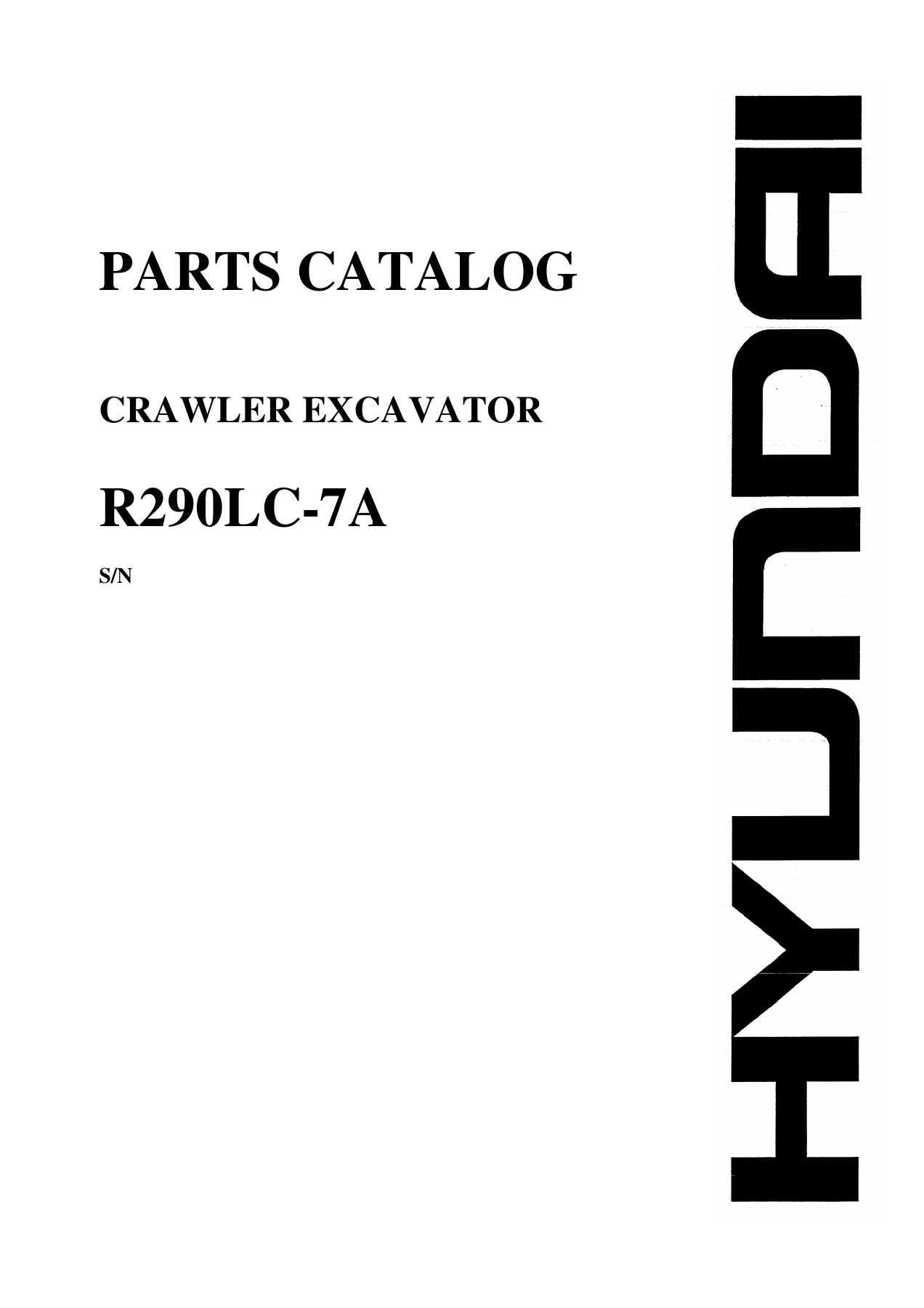

Hyundai R290LC-7A Crawler Excavator Parts Catalog – Illustrated Parts Manual PDF

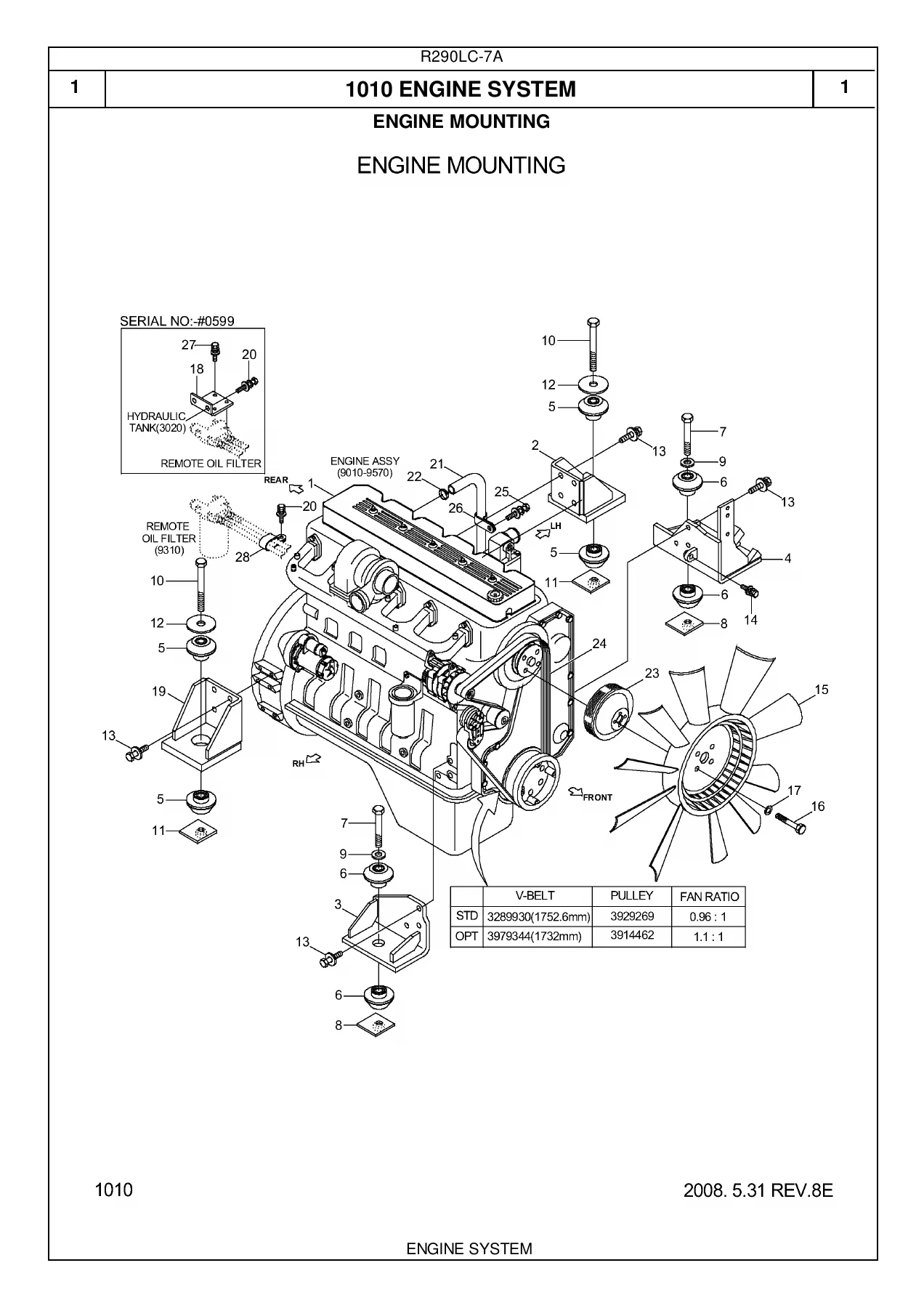

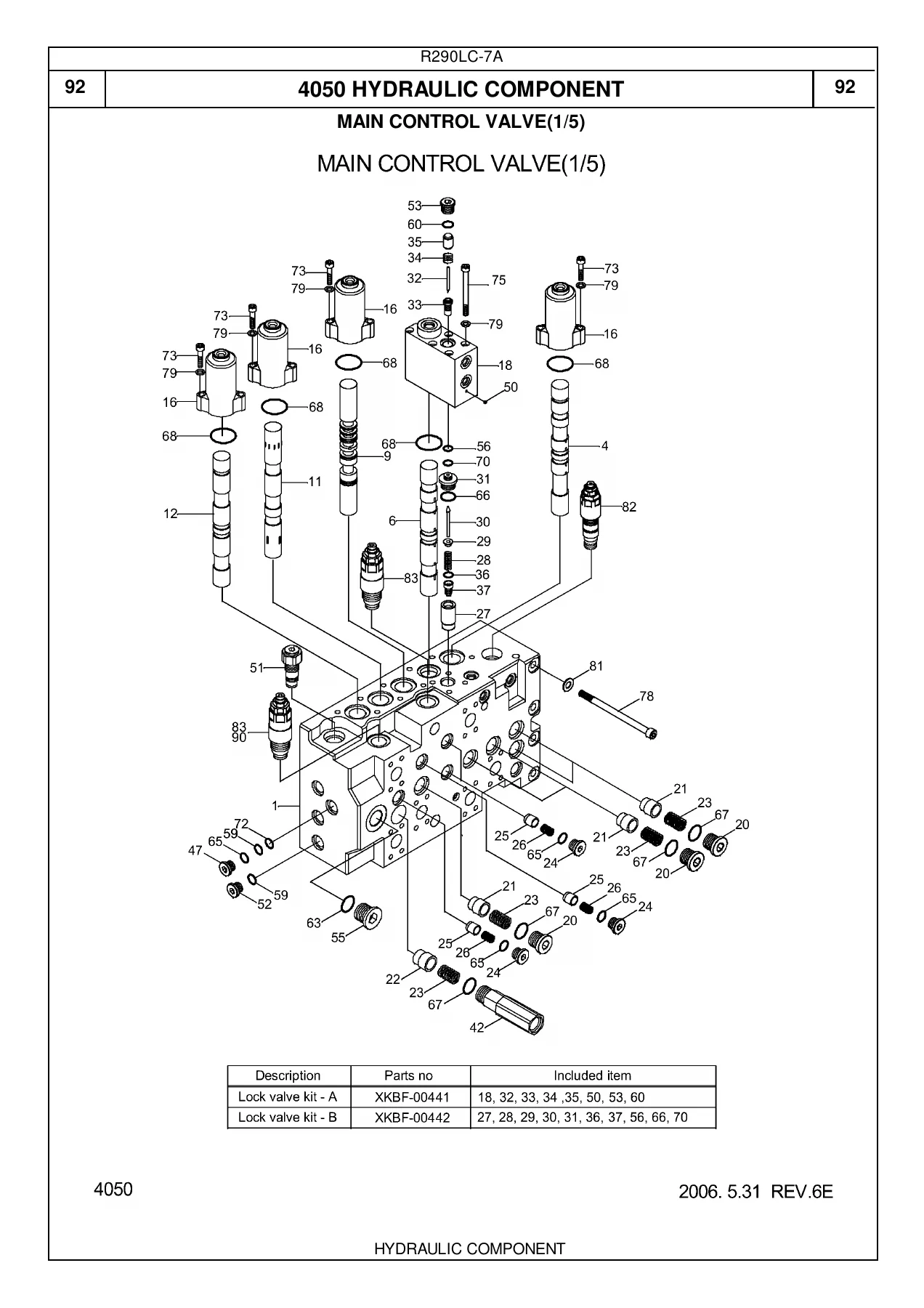

This Hyundai R290LC-7A Crawler Excavator Parts Catalog is a comprehensive illustrated parts manual covering the full machine from the engine and electric systems through hydraulics, undercarriage, cab structure, attachments, and the engine base. Every group is presented as an exploded illustration accompanied by a detailed parts table listing item numbers, genuine part numbers, part names, quantities, and applicable serial-number ranges. Whether you are ordering a replacement seal, tracking down a hydraulic hose, or identifying a bucket tooth adapter, this Hyundai R290LC-7A parts catalog gives you the exact reference data needed to get the right component the first time.

File Details

• Manual type: Illustrated Parts Catalog
• Brand: Hyundai
• Model: R290LC-7A Crawler Excavator
• Language: English
• File format: PDF
• Page count: 594 pages
• Document date shown: 2009.10.30 (REV.9K on select pages)
• Coverage: Engine System, Electric System, Hydraulic System, Hydraulic Components, Undercarriage, Structure, Attachment, Others, Engine Base
• Also covers: R290NLC-7A decal variant and Log Loader configurations (serial #0061-)

Chapters Covered in the Hyundai R290LC-7A Parts Catalog

The Hyundai R290LC-7A Crawler Excavator Parts Catalog follows the factory group numbering system. Each numbered group contains its own exploded-view illustration and parts list. The catalog is organised into the following sections:

• 000 Engine System – Engine Mounting, Air Intake System, Exhaust System, Cooling System, Radiator Assy, Fuel System (Without Prefilter / With Prefilter), Fuel System (Log Loader), Fuel Tank, Fuel Tank (Log Loader), Aircon & Heater Mounting, Aircon & Heater Unit, Air Conditioner Mounting, Air Conditioner Unit, Heater Mounting, Heater Unit, Aircon & Heater Mounting (Auto), Aircon & Heater Unit (FATC), Pre Heating Group
• 000 Electric System – RH Electric, LH Electric, Boom Electric, Engine Electric, Electric Box, Cab Electric 1, Cab Electric 2, Cab Electric 3, Fuel Filler Pump, Fuse Box, Cluster (both serial breakpoints)
• 000 Hydraulic System – Pump Mounting, Hydraulic Tank, Upper Hydraulic Piping (Base / Travel / Attach / Loader), Pilot Hyd Piping (Control 1 / 2 / 3), Pilot Hydraulic Piping (Base 1 / 2 / 3), Travel Hydraulic Piping, Travel Hydraulic Piping (High Walker), Boom Hydraulic Piping (6.25M STD / 8.5M / Long Reach / Log Loader), Boom Grease Lub System, Boom Safety Lock System, Quick Coupling Piping, Quick Clamp (Close Type / Hook Type), Arm Hydraulic Piping (2.1M / 2.5M / 2.7M / 3.05M / 3.75M / 4.6M / 5.6M / Log Loader), Arm Safety Lock System, Double Acting Hyd Piping Kits 1 & 2, Double Acting Main Piping Kit, Attach Pip Kit (S & D/Acting), Single Pedal, Single Acting Hyd Piping Kits 1 & 2, Single Acting Main Piping Kit
• 000 Hydraulic Component – Main Pump, Regulator, Gear Pump, EPPR Valve, Main Control Valve (1/5 through 5/5), Swing Motor, Swing Reduction Gear, Travel Motor, Travel Reduction Gear, Remote Control Lever, Remote Control Valve, Remote Control Pedal, Turning Joint, Boom Cylinder, Arm Cylinder (all serial splits), Bucket Cylinder, Bucket Cylinder (Long Reach), Solenoid Valve, Stick Cylinder (Log Loader)
• 000 Undercarriage – Undercarriage Mounting, Undercarriage Mounting (High Walker), Lower Roller, Upper Roller, Idler, Track Chain, Adjust Component
• 000 Structure – Cab Mounting, Cab Assy (1/6 through 6/6, STD, FOG, Roof, Door, Sash, Door Latch), Cab Interior 1 & 2, Console Box 1 & 2 (LH & RH), Seat Base Assy, Seat (Suspension / Heated / 2″ Air Ride), Storage Box Cover Assy, Bottom Plate Mounting, Cowling 1 & 2, Side Cowl Assy (LH & RH), Side Cover Assy, Engine Hood Assy, Under Cover, Tool Box Mounting, Tool Box, Grommet Group, Upper Frame & Counterweight, Lower Frame & Cover, Swing Ring Grease Lub System, Cab Protector Assy
• 000 Attachment – Boom Mounting (6.25M STD / Log Loader / 8.5M / Long Reach), Boom (6.25M STD / Heavy Duty / 8.5M / 10.2M Long Reach / Log Loader), Arm (2.10M / 2.50M / 2.70M / 3.05M STD / 3.05M Heavy Duty / 3.75M / 4.6M / 7.85M Long Reach / Log Loader), Bucket Control Group, Bucket variants from 0.52M3 through 1.85M3 (SAE heaped, Rock, Heavy Duty, Long Reach, Cast, Side Finishing)
• 000 Others – Tools, HRDT 2.0 Tool Kit, Decals (R290LC-7A / R290NLC-7A / Log Loader), Manuals
• 000 Engine Base – Air Heater Starting Aid, Dataplate, Cylinder Block 1 & 2, Crankshaft & Main Bearings, Gear Housing, Crankcase Breather, Coolant Heater Starting Aid, Vibration Damper, Rear Gear Train Accessory, Thermostat, Alternator Mounting, Fan Drive, Fuel Filter Plumbing, Fuel Filter, Flywheel Housing, Fuel Inlet Fitting, Fuel Pump, Fuel System Accessories, Fuel Plumbing, Flywheel Mounting, Front Gear Cover, Heater Plumbing, Air Intake Hose, Air Intake Connection & Mounting, Air Intake Manifold, Air Transfer Connection, Lifting Bracket, Engine Oil Cooler, Lubricating Oil Filter, Oil Level Gauge, Lubricating Oil Pump, Cylinder Block Cover, Oil Fan, Engine Control Module, Camshaft, Connecting Rod and Piston, Fuel Injector, Cylinder Head, Turbocharger, Fuel Injector Plumbing, Rocker Lever, Engine Coolant Vent, Oil Level Sensor, Heat Shield, Starting Motor, Fan Pilot Spacer, Exhaust Manifold, Torque Converter Oil Cooler, Turbocharger Plumbing, Valve Cover, Water Inlet Connection, Water Outlet Connection, Water Pump, Belt Tensioner, Wiring Accessories, Exhaust Connection

This Hyundai R290LC-7A parts catalog is structured exactly the way the factory service literature is, so each group can be located quickly. The exploded illustrations are cross-referenced to the parts tables by item number, and each table row gives the part number, description, quantity required, and — where the machine changed during production — the serial number range that determines which variant applies. That serial-number detail is what separates this parts manual from a generic parts list: the R290LC-7A went through multiple running changes across fuel system plumbing, cluster, cab trim, boom piping, swing motor, travel motor, and bucket tooth adapters, and this catalog tells you which part number belongs to which serial range.

Serial Number Coverage and Running Changes

The Hyundai R290LC-7A parts catalog is organised around the machine’s serial-number progression. Throughout the parts tables you will find remarks such as S/N-#0100, S/N-#0101-, S/N-#0562, S/N-#0563-, S/N-#0600-, S/N-#0785, S/N-#0786-, S/N-#1281-, S/N-#1313-, S/N-#1337- and many others. These breakpoints appear in every major system: fuel system plumbing and prefilter fitment, air intake precleaner and hose clamps, cab interior and console design, cluster assembly, boom and arm hydraulic piping, quick coupler/clamp type, swing motor and swing reduction gear internals, travel motor and travel reduction gear internals, boom safety lock valves, bucket tooth adapters, and numerous small hardware items.

Because the catalog preserves these serial splits, you can identify the correct component for your specific R290LC-7A rather than ordering a part that only fits an earlier or later build. This is particularly valuable for machines that have been through field updates or that sit near a serial breakpoint in a critical system such as the hydraulic main control valve or the travel motor.

What This Hyundai R290LC-7A Parts Catalog Enables You to Do

With this illustrated parts manual on hand you can:

• Identify the exact part number for any component on the R290LC-7A crawler excavator, from engine mounting rubber through to bucket tooth pins.
• Verify the correct variant for your machine’s serial number before ordering, avoiding returns and downtime.
• See how assemblies go together using the exploded views, which is invaluable when reassembling a hydraulic valve, swing motor, travel motor, or cylinder after repair.
• Confirm quantities required — O-rings, shims, bolts, washers, bushings — so you order the full set in one go.
• Cross-reference the log loader and R290NLC-7A variants if your machine is configured differently from the standard R290LC-7A.
• Locate consumables and service items such as filters, elements, seals, weather strips, hoses, and grease nipples by group.
• Access the engine base section for engine-level components including cylinder head, crankshaft, pistons, turbocharger, water pump, fuel injectors, and the engine control module.

Why a Genuine Illustrated Parts Catalog Matters

Heavy equipment repair is expensive when the wrong part is ordered, and it is dangerous when a component is installed that was not designed for that serial range. The Hyundai R290LC-7A crawler excavator is a 29-tonne class machine, and its hydraulic, electrical, and structural systems are interdependent. A hydraulic hose with the wrong pressure rating or flange type, a swing motor with the wrong relief valve, or a boom safety lock valve from the wrong serial range can all lead to poor performance, premature failure, or unsafe operation. Using the factory parts catalog removes that guesswork. Every part number, quantity, and serial qualifier in this Hyundai R290LC-7A parts manual comes directly from the manufacturer’s own published data, so what you order matches what the machine was built with.

IMAGES PREVIEW

Instant PDF Delivery – No Shipping, No Waiting

This Hyundai R290LC-7A Crawler Excavator Parts Catalog is delivered as an instant PDF download after payment. There is no physical book to ship, no waiting for the post, and no risk of a lost parcel. The PDF can be opened on any device — laptop, desktop, tablet, or smartphone — and any page can be printed for use in the workshop. Keep it on a shop computer for quick reference, print the specific group you are working on, or store it on a USB drive for field service. If you maintain, repair, or rebuild a Hyundai R290LC-7A, this illustrated parts manual is the reference you will reach for every time you need to identify a component.
