HYVA HB152-HB159 Articulated Boom Spare Parts Catalogue 7845696.0 PDF

Description

HYVA HB152-HB159 Articulated Boom Spare Parts Catalogue

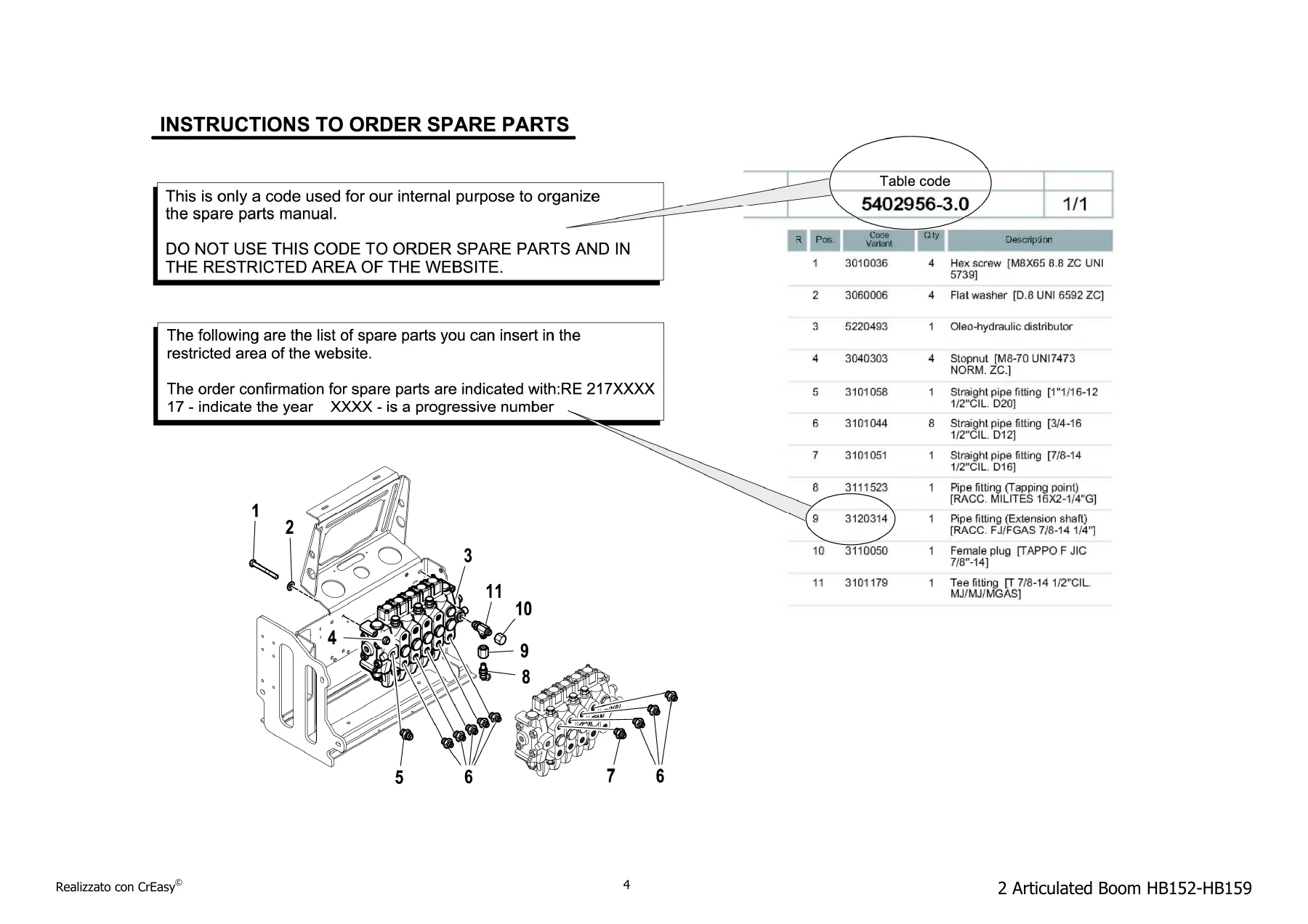

This is the complete spare parts catalogue for the HYVA Model 2 articulated boom covering the HB152 and HB159 crane versions, issued under logbook code 7845696.0, edition 01/2023. Every illustrated plate in this 138-page document pairs an exploded component drawing with a matching parts table, so a fitter or parts counter can trace a single bushing, seal kit, valve, hose or boom section straight back to its correct variant code and order number.

File Details

• Manual type: Spare parts catalogue
• Brand: HYVA
• Model: HB152-HB159 Articulated Boom (Model 2)
• Logbook code: 7845696.0
• Edition: 01/2023
• Language: English
• Page count: 138
• File format: PDF

Chapters Covered

• Plate kit (Generic Gru) – standard instruction and warning stickers
• Base and column assembly – bushings, thrust bearing ring, balancer, turnsbasket rollers, pins, bubble level
• Greasing manifold, flexible hoses, grease nipples and guards
• Controls for stabilizers (manual) – 4-section control valve, levers, knobs, fork clips, dual control rods
• Stabilizer connecting rods and extra-extensible stabilizer connecting rods

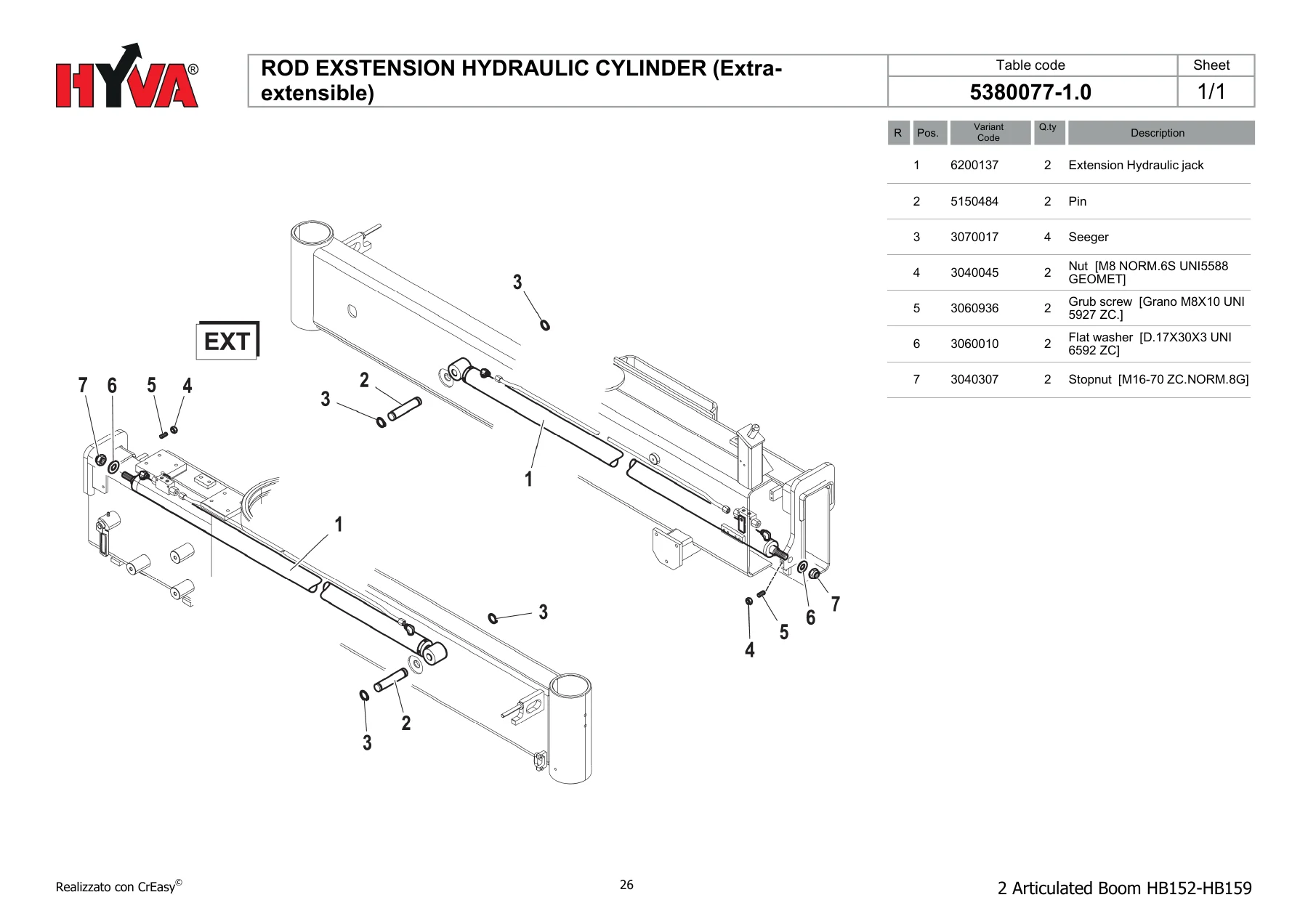

• Rod extension hydraulic cylinder – extra-extensible and super extra-extensible
• Stabilizer hydraulic jack (retaining ring and long version)
• Stabilizer rods – rotating and revolving variants
• Oleo-hydraulic distributor and hydraulic system gauge
• Control valves (4 section and multi-element)
• Oil tank, oil filter, thermometer, pressure gauge and clogging indicator
• Heat exchange unit with electric fan, thermostat and flexible hoses
• Moment limiting device and load indication system (LD / LI)
• Controls for hydraulic extensible cross-bar
• Lifting hydraulic cylinder
• Articulation hydraulic jack
• 1st boom and 2nd boom
• 1st, 2nd, 3rd, 4th and 5th extension sections
• Extension hydraulic cylinders and their hydraulic systems
• Manual extensions (1st, 2nd, 3rd)
• 1st and 2nd activation for 1S (draft) and additional actuations
• Hook kit, shackles and swivel hook
• AVPS high pressure filter
• Scanreco HC 400 G2B wireless control – transmitter, receiver, batteries, charger, aerial
• JIB arm and JIB extension
• Recommended spare parts list – seal kits, filters, bushings, slide shoes, buttons

As a whole, the document functions as a full illustrated parts breakdown of the HB152-HB159 articulated boom. Each table is keyed to a numbered position on the drawing beside it and lists the variant code, quantity and description for that item – from the smallest lock nut, split lock washer and Seeger ring up to complete hydraulic jacks, holding valves and boom sections. The sections are organised component by component and follow the machine from the column base through the booms, extensions, stabilizers, hydraulic circuit, electrical accessories and tooling. Several assemblies, including the hydraulic cylinders, are exploded into their individual internals – cylinder, rod, piston, close nipple, seals, O-rings, anti-extrusion rings, W-rings and seal kits – which makes this catalogue usable for a full reseal rather than just for ordering a replacement unit. Wear items such as slide shoes, buttons, bushings, flat buttons and clamps are called out separately, and the recommended spare parts page at the end gathers the most commonly ordered seal kits, filters and cartridges in one place.

Why This Parts Catalogue Matters

Ordering the wrong part for an articulated boom is expensive and slow. A variant code that looks similar can belong to a different extension stage, a different stabilizer type or a different hydraulic layout. This catalogue removes the guesswork by showing exactly which position on which drawing a given code belongs to, alongside its quantity and full description. Whether the job is a routine reseal of a lifting cylinder, replacement of a boom slide shoe, renewal of a stabilizer hydraulic jack, a new control valve element, a fresh wireless transmitter battery, or simply replacing a broken grease nipple guard, the correct reference is on the page in front of you.
