Indian Railways BG Coaches of ICF Design Maintenance Manual (2002)

This is the complete 429-page Maintenance Manual for Broad Gauge (BG) Coaches of ICF design, issued by CAMTECH/RDSO under the Ministry of Railways, Government of India, and dated 3rd July 2002. If you’re a coaching depot supervisor, workshop engineer, mechanical maintenance staff, or a rail heritage researcher, the Indian Railways BG Coaches of ICF Design Maintenance Manual (2002) gives you the full assembly-by-assembly reference used across ICF, RCF Kapurthala, BEML Bangalore, and Jessop Kolkata-built coaching stock.

File Details

• Manual type: Maintenance Manual
• Equipment: BG Coaches of ICF design (Indian Railways)
• Document number: CAMTECH/2002/M/C/CMM
• Issued: 3rd July 2002 (updates previous December 1995 edition)
• Language: English
• Page count: 429 pages
• File format: PDF

Chapters Covered

• Chapter 1 – Coach: codal life, POH periodicity, lifting/lowering the coach body, examination of trains, maintenance schedules A/B/C
• Chapter 2 – Shell: body repairs, roof, door handles and pivots, partition wall, draw & buffing gear support structure, body bolster, centre pivot, water tank support, floor channel

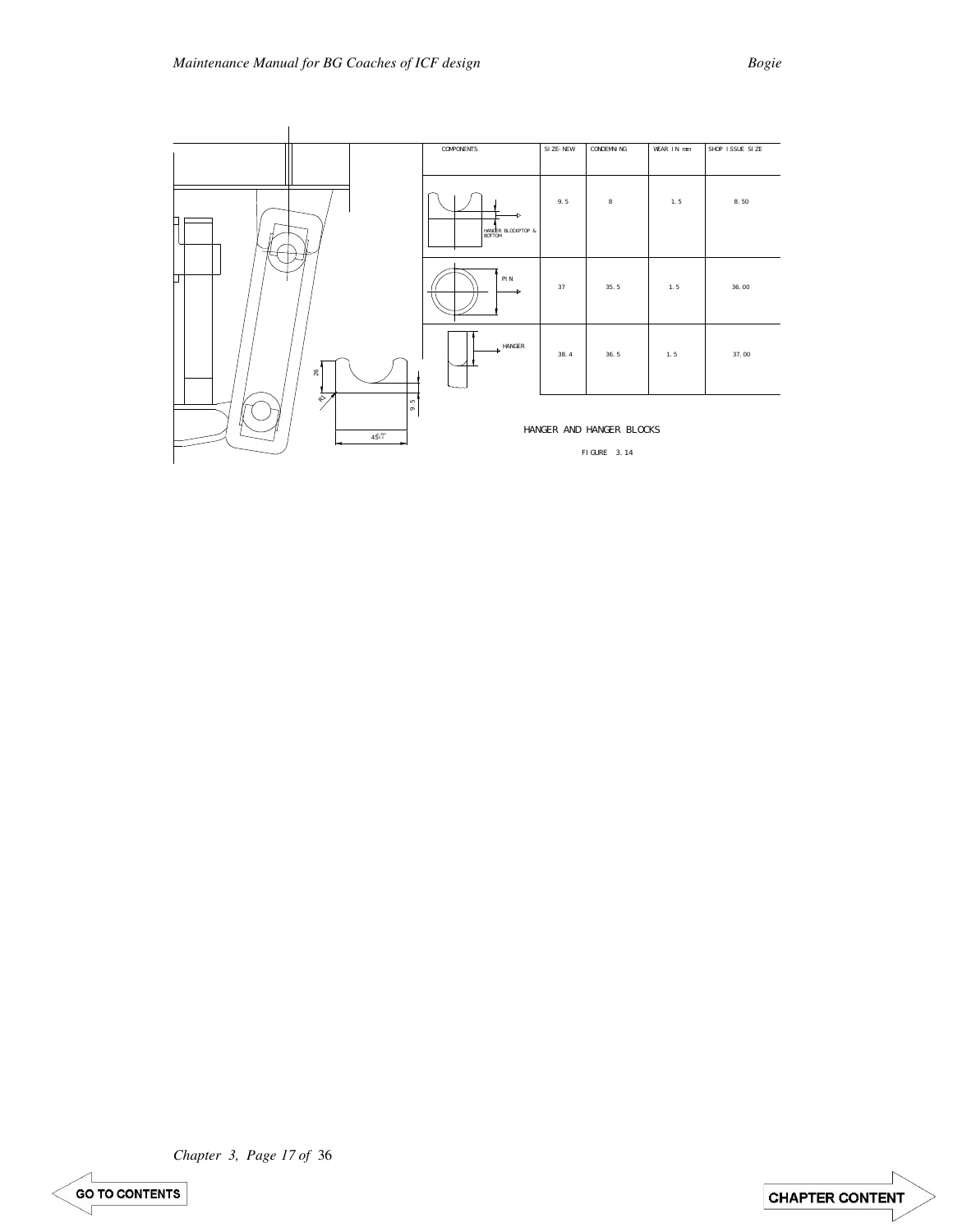

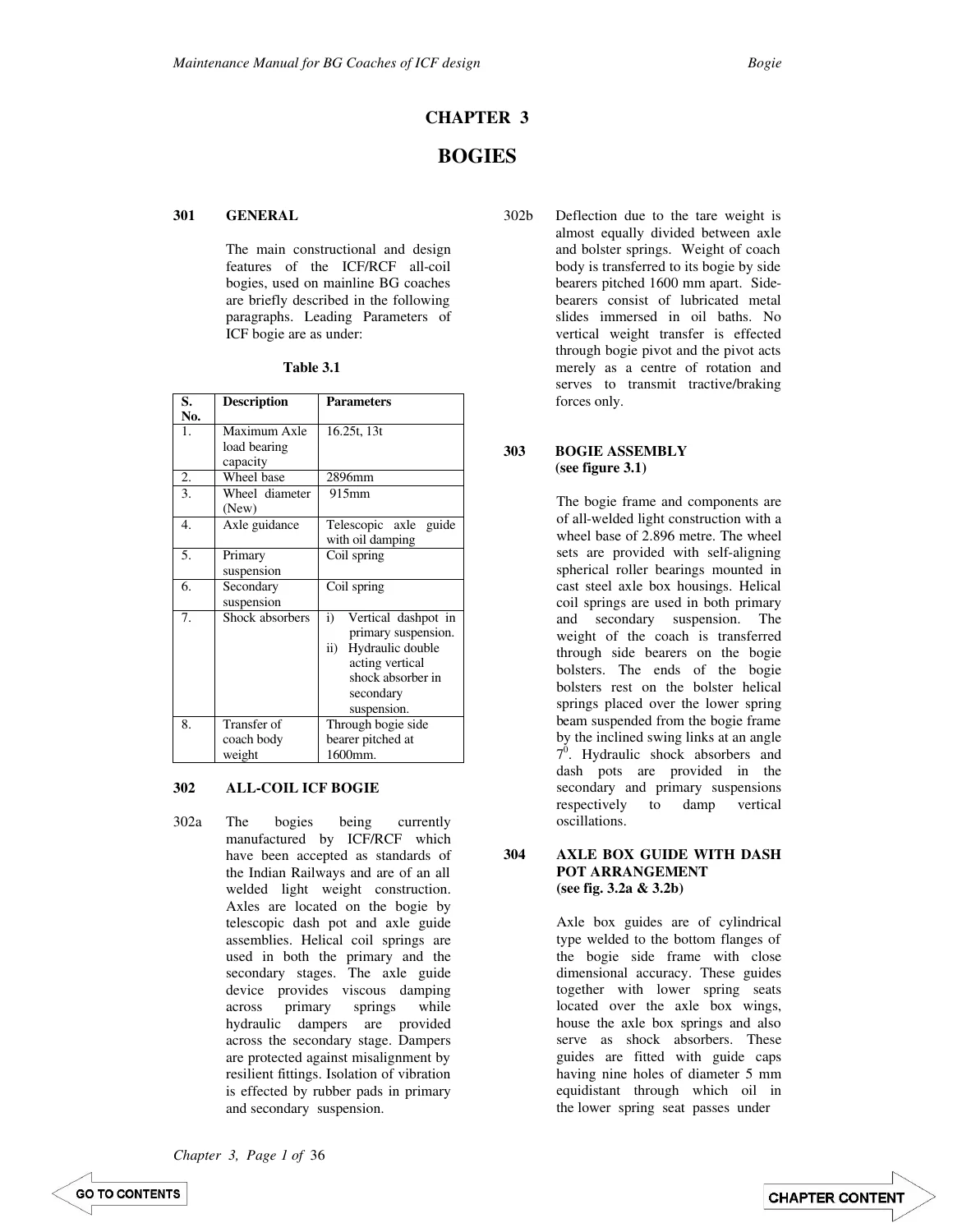

• Chapter 3 – Bogie: all-coil ICF bogie, axle box guide with dash pot, bogie bolster suspension, springs, centre pivot arrangement, side bearers, anchor links, silent block, brake rigging, coil springs, bogie brake gear, bogie shop workshop maintenance
• Chapter 4 – Air Brake System: twin pipe graduated release air brake, common pipe bracket, air brake hoses, cut off angle cock, brake cylinder, dirt collector, auxiliary reservoir, guard’s emergency brake valve, slack adjuster, C3W and KE distributor valves, passenger emergency alarm system
• Chapter 5 – Vacuum Brake System: lifting shop procedures, overhaul of components, D.A. valve, slack adjuster, brake assembly and adjustment, trouble shooting
• Chapter 6 – Bogie Mounted Air Brake System: composite brake blocks, working principle, maintenance instructions, bogie mounted brake cylinders
• Chapter 7 – Train Lighting (Non-AC Coaches)
• Chapter 8 – Air Conditioned Coaches
• Chapter 9 – Draw & Buffing Gear
• Chapter 10 – Rolling Gear
• Chapter 11 – Interior Fittings
• Chapter 12 – Painting
• Appendices A-G: transportation codes, must-change POH items, modifications in BG coaching stock, RDSO technical pamphlets, integrated modular pit line, maintenance schedules, IOH format

Taken together, this Maintenance Manual for BG Coaches of ICF design walks a technician through the complete Periodic Overhaul (POH) cycle and depot-level examination pattern for ICF-type coaching stock – from lifting the coach body on overhead cranes, through bogie, brake, and electrical assembly overhaul, to final repainting – with the numbered paragraph/table/figure referencing system (chapter-based 3/4 digit codes) used throughout Indian Railways coaching documentation.

IMAGES PREVIEW

Key Technical Data Inside

• ICF/RCF all-coil bogie leading parameters: maximum axle load bearing capacity 16.25t and 13t, wheel base 2896mm, new wheel diameter 915mm, telescopic axle guide with oil damping, coil primary suspension
• POH periodicity table (Table 1.1) for PCVs/OCVs on Mail & Express rakes, other rakes, and Rajdhani/Shatabdi Express coaching stock, including IOH intervals
• Codal life of coaches: 25 years for steel-bodied coaches, 30 years for IRS coaches, 40 years for light utilisation categories
• Coach lifting procedure using overhead electric cranes (25 tonnes each) or powered lifting jacks (15 tonnes each)
• Guide alignment gauge dimensions for BSS brackets and axle guides, tare weight tables by coach type and builder, and percentage braking figures

Whether you need the ICF Design Maintenance Manual for BG coach POH planning, bogie and brake overhaul reference, or depot-level maintenance schedule compliance, this Indian Railways BG Coaches of ICF Design Maintenance Manual (2002) gives you the source document engineers and CAMTECH/RDSO staff themselves work from. Get instant access to the full BG Coaches of ICF Design Maintenance Manual as a downloadable PDF – no shipping, no waiting. Read it on your phone, tablet, laptop, or workshop PC, and print out any chapter you need at the bench.
