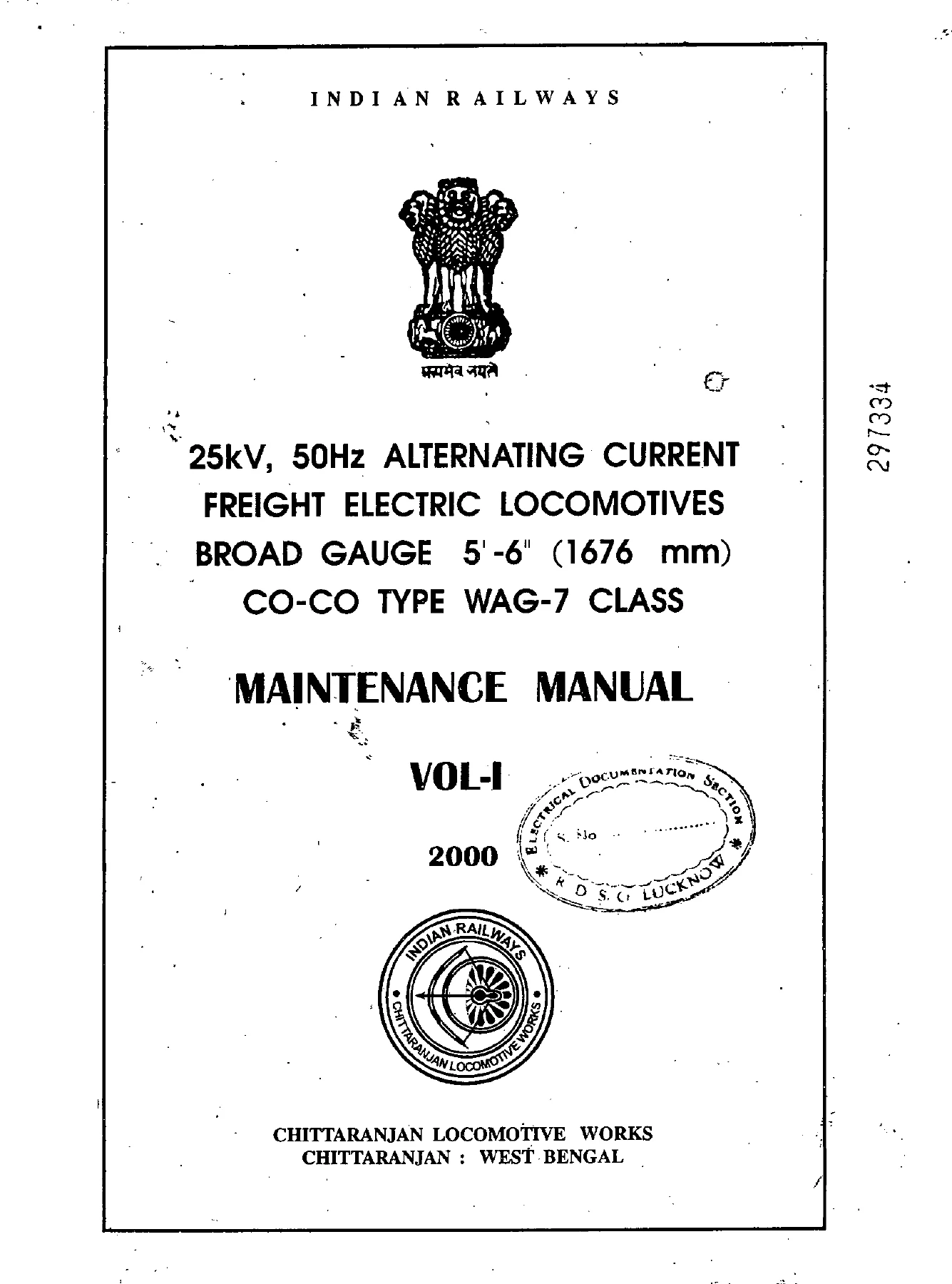

Indian Railways WAG-7 Electric Locomotive Maintenance Manual Volume I (2000)

This is the Chittaranjan Locomotive Works (CLW) Maintenance Manual, Volume I, for the Indian Railways WAG-7 class 25kV, 50Hz AC Co-Co freight electric locomotive, broad gauge 5′-6″ (1676 mm), dated 2000. If you work on, study, or maintain the WAG-7 electric locomotive, this WAG-7 Electric Locomotive Maintenance Manual is the electrical-side reference behind the loco’s day-to-day upkeep, fault diagnosis, and circuit understanding.

• Manual type: Maintenance Manual, Volume I – General Description of the Locomotive (Electrical)
• Brand / Builder: Indian Railways, built at Chittaranjan Locomotive Works (CLW)
• Locomotive class: WAG-7 (Co-Co, 25kV, 50Hz single-phase AC, broad gauge)
• Language: English
• Page count: 110 pages
• File format: PDF, instant download
• Edition / Date: Volume I, 2000

Chapters Covered

This WAG-7 Maintenance Manual Volume I is organised into twelve sections, taking you from foundational performance data through to fault tracing and circuit diagrams:

• Section I – Performance Data and Electrical Equipment (general description, gauge, weight, tractive effort, pantograph, main transformer, tap changer, silicon rectifiers, smoothing reactor, traction motors, reverser, contactors, Arno converter and auxiliary machines)
• Section II – List of Abbreviations
• Section III – Circuit Description
• Section IV – Running of Locomotive with Faulty Equipment
• Section V – Tracing and Clearance of Faults (Running with one Locomotive)
• Section VI – Tracing of Faults with Multiple Unit
• Section VII – Special Instructions
• Section VIII – Maker’s List
• Section IX – Lubrication Chart
• Section X – Characteristic Curves and Diagrams for Locomotive

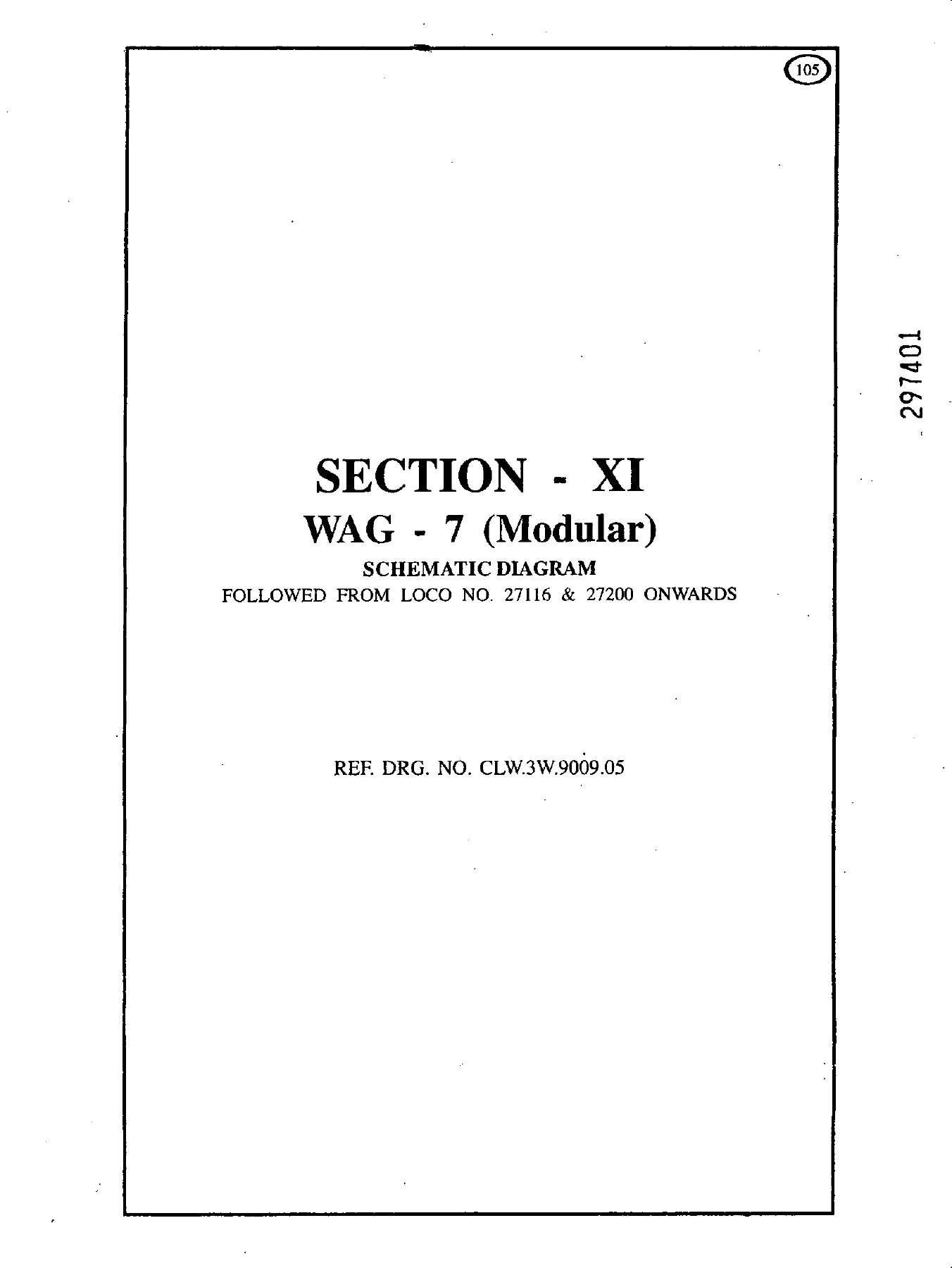

• Section XI – Circuit Diagram (Power, Auxiliary, Traction Control, Lighting, Speedometer and Alarm Chain Pulling circuits)
• Section XII – Major Modifications Incorporated

Taken together, these sections give a technician a working picture of how the WAG-7’s electrical system is built and how to reason through it when something goes wrong – from the pantograph and main transformer right down to individual contactors and control relays.

What You’ll Find Inside This WAG-7 Manual

The opening sections lay out the locomotive’s performance envelope in hard numbers: a continuous power rating of 5000 hp (3675 kW) at rail, continuous tractive effort of 27 tonnes, a maximum starting effort of 42 tonnes, and a maximum service speed of 100 km/hr on half-worn wheels. Locomotive weight is specified at 123 ±1% tonnes with a maximum axle load of 20.5 tonnes, and the manual sets out train and locomotive running-resistance formulae used for load-haulage calculations on BOX and BOXV wagons.

From there, the WAG-7 Electric Locomotive Maintenance Manual walks through the major electrical equipment item by item, with rated values for each: the AM 12/IR-01 pantograph, the vacuum and air-blast circuit breakers, the single-phase OFAF-cooled main transformer (5670 kVA primary input, 32 taps), the electro-pneumatically driven tap changer, the twin silicon rectifier cubicles, the SL-30 smoothing reactors, and the HS 15250A Hitachi traction motors (630 kW continuous, Class C insulation, 6 per locomotive). Auxiliary equipment coverage includes the Arno converter and its downstream blowers and motors.

The later sections turn to real-world use: running the locomotive with defective equipment without stranding a train, a structured procedure for tracing and clearing faults when running a single unit or multiple units in tandem, special maintenance instructions, a full lubrication chart specifying greases, replenishment quantities and intervals for every rotary component, and a circuit-diagram index spanning power, auxiliary, traction control, lighting/signalling, heater/fan, speedometer, and alarm-chain-pulling circuits. A closing section documents major design modifications incorporated into the class between 1996 and 2000.

IMAGES PREVIEW

Why Electric Loco Sheds and POH Shops Rely on This Manual

This WAG-7 Maintenance Manual supports the everyday work of an electric loco shed or POH (Periodic Overhaul) shop technician: identifying which piece of equipment a fault code or relay trip points to, confirming rated values before replacing or testing a component, and following the manual’s own fault-tracing logic instead of guessing. Because the specifications, tap settings, and rated currents/voltages are reproduced exactly as issued by CLW, you’re working from the same reference used to keep WAG-7 locomotives – which haul a substantial share of Indian Railways’ freight traffic – in reliable service.

The file is delivered as an instant PDF download – there’s no shipping and no waiting. Once your payment is confirmed you can save the WAG-7 Electric Locomotive Maintenance Manual to a laptop, tablet or phone, or print out only the sections you need at the bench.
