Ingersoll Rand ZX75, ZX125 Load Excavator Shop Manual – PDF DOWNLOAD

Description

Ingersoll Rand ZX75, ZX125 Load Excavator Shop Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:89
DOWNLOADABLE:YES
FILE TYPE:PDF

INGERSOLL RAND ZX75, ZX125 LOAD EXCAVATOR SHOP MANUAL – PDF DOWNLOAD:

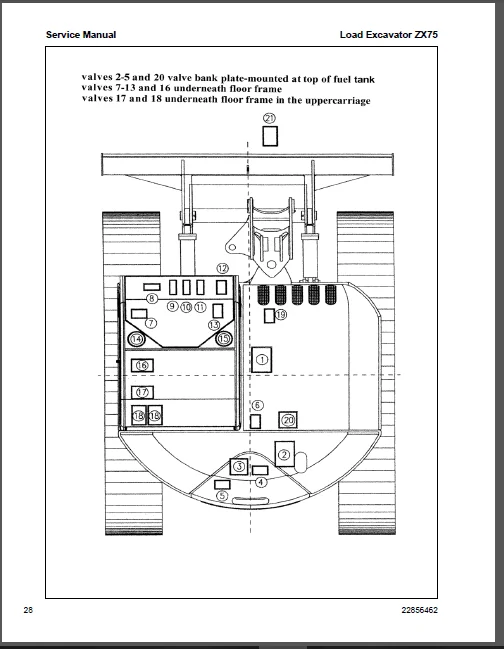

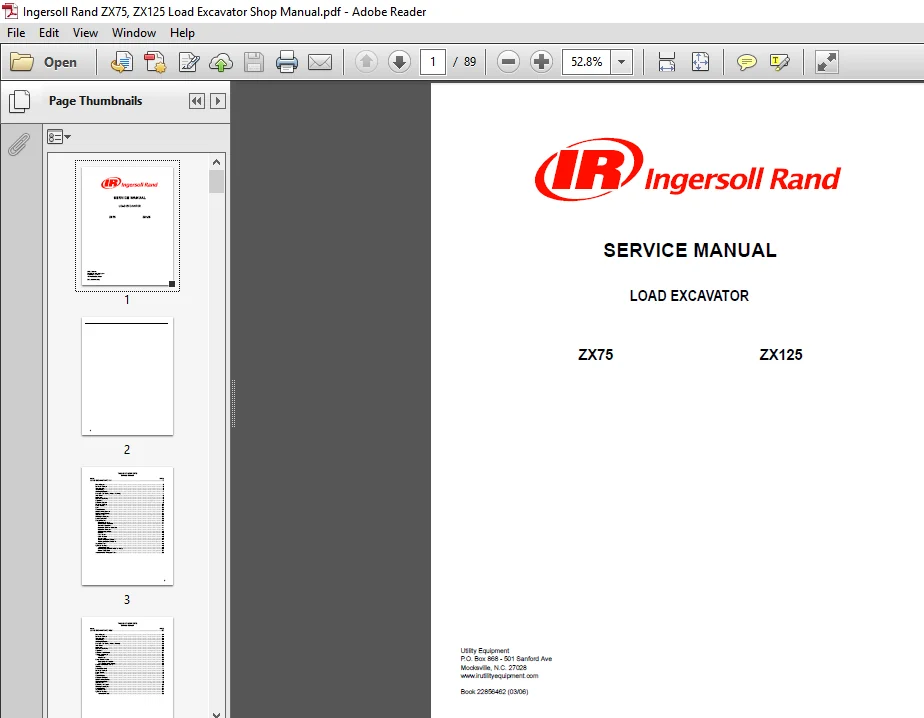

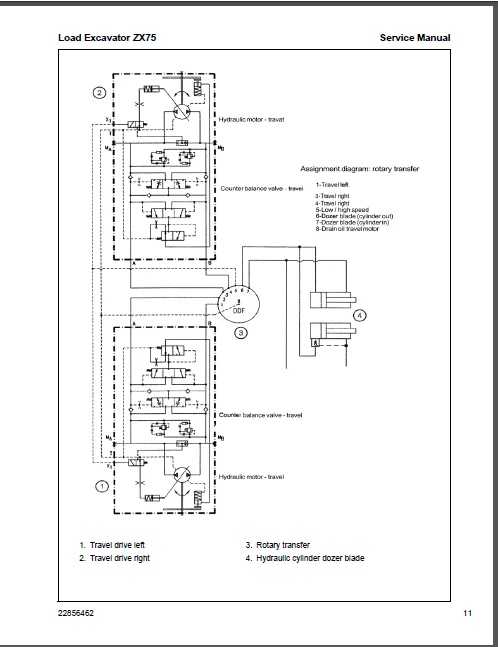

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Ingersoll Rand ZX75, ZX125 Load Excavator Shop Manual

Load Excavator ZX75

Diesel Engine:

Manufacturer: KHD
Type: BF4M 1012 E
Output acc. to D/N 70020: kW/PS 53 / 72 at 2.000 min-1
Cooling: water
Injection: direct injection, turbo charged
Capacity: cm³ 3.200
High idle: min-1 2.150
Low idle: min-1 800
Spec. fuel consumption (full load): g/kWh 208
Tappet clearance – inlet cold: mm 0.3±0.1
Tappet clearance – outlet cold: mm 0.5±0.1
Torque of cylinder head studs: Nm 30 / 80 Tightening angle 90°
Further data: see engine operator’s manual

Electrical System

Voltage: V 12
Battery: V/Ah/A 12 / 105 / 450
Generator: V/A 14 / 55
Starter: kW/PS 3.1 / 4
Starting aid: 4 glow plug
Lighting: acc. to German motor vehicle construction and use regulation and Euronorm.

Transmission

Travel pump: make Lohmann Stolterfoht GFT 9
2-stage variable displacement motor (integrated in the travel gear): type A 10 VE45 HZ

TABLE OF CONTENTS:

Ingersoll Rand ZX75, ZX125 Load Excavator Shop Manual

LOAD EXCAVATOR ZX75 5
Diesel Engine 6
Electrical System 6
Transmission 6
Travel Range 6
Working Hydraulics 7
Pressure and Setting Values (Working) 7
Slew Drive 8
Lubricants 8
Maintenance Parts 8
Capacities 8
Hydraulic System 9
Electrical System 30
Power Supply 31
Horn 32
Check Module 33
Load Warning Sensor 34
Load Warning Device 35
Joystick, Right 36
Working Floodlights 37
Reach Limitation 38
Control Module 39
Charge Indicators 41
Oil Pressure Indicators 41
Air Filter Indicators 41
Hydraulic Oil Filter Indicators 41
Hydraulic Oil Level 41
Working Hydraulics 42
Breaker 42
Fast Travel 42
Float Position 43
Swing Brake 43
Additional Control Circuit I 44
Additional Control Circuit II 44
Inspection Plan 45
Operator Controls 48
Instrument Panel 49
Working Equipment Parallel to Tracks 50
Cabin Suspension 51
Instructions for Tilting the Cabin 52
4
TABLE OF CONTENTS
Service Manual
TITLE PAGE
LOAD EXCAVATOR ZX125 53
Diesel Engine 54
Electrical System 54
Transmission 54
Travel Range 54
Working Hydraulics 55
Pressure and Setting Values (Travel) 55
Slew Drive 56
Lubricants 56
Maintenance Parts 56
Capacities 56
Hydraulic Installations 57
Setting Instructions 61
Function 62
Adjustment 62
Power Control Valve 63
Description of Function 65
Test and Pressure Setting 66
Rexroth Valve Bank SX 18 68
Start-Up 71
Brakes (Downhill) 71
Electrical System 72
Power Supply 73
Horn 74
Check Module 75
Hydraulic Oil Level 76
Load Warning Device 77
Working Hydraulics 78
Joystick, Left 79
Restriction of Reach 80
Working Floodlights 81
Check Module 82
Inspection Plan 84
Operator Controls 87
Instrument Panel 88
