Iseki SG173H Lawn & Garden Tractor Parts Manual (1631-097-100-10) PDF

Description

Iseki SG173H Lawn & Garden Tractor Parts Manual (1631-097-100-10) – PDF DOWNLOAD

FILE DETAILS:

Iseki SG173H Lawn & Garden Tractor Parts Manual (1631-097-100-10) – PDF DOWNLOAD

Language : English
Pages : 222
Downloadable : Yes
File Type : PDF

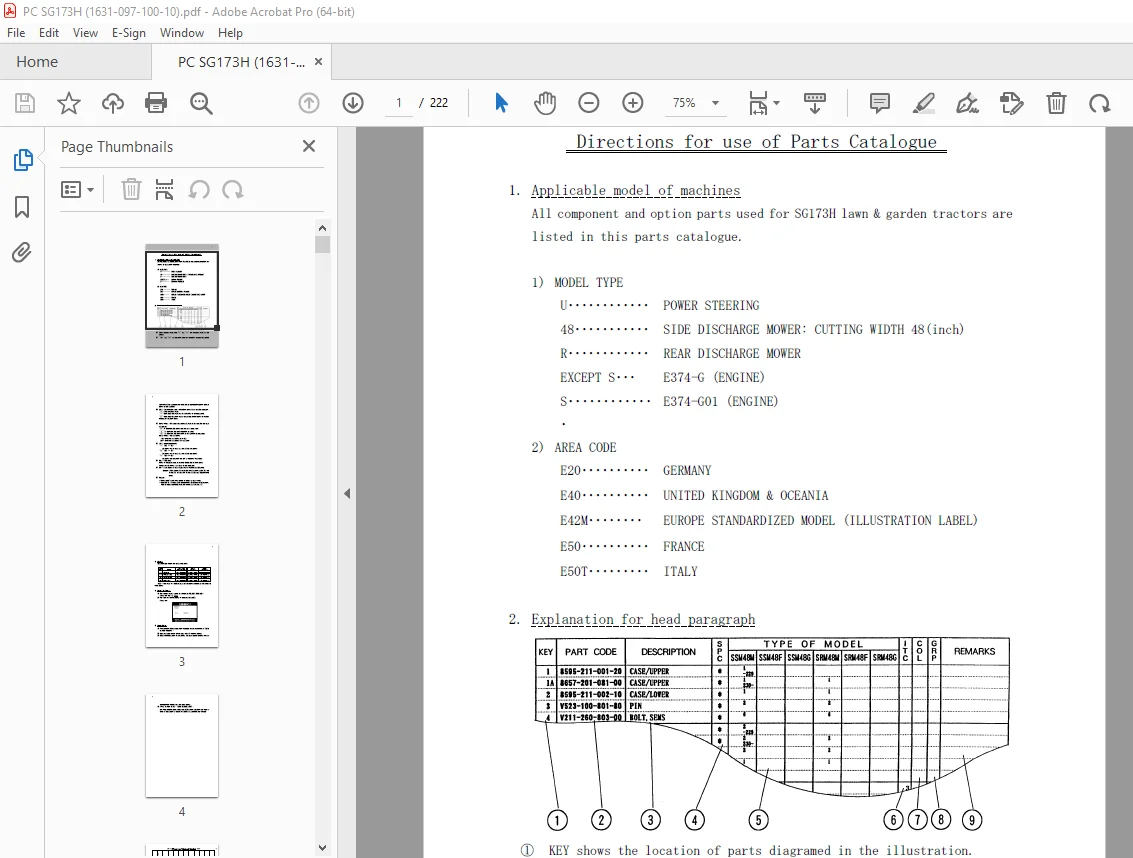

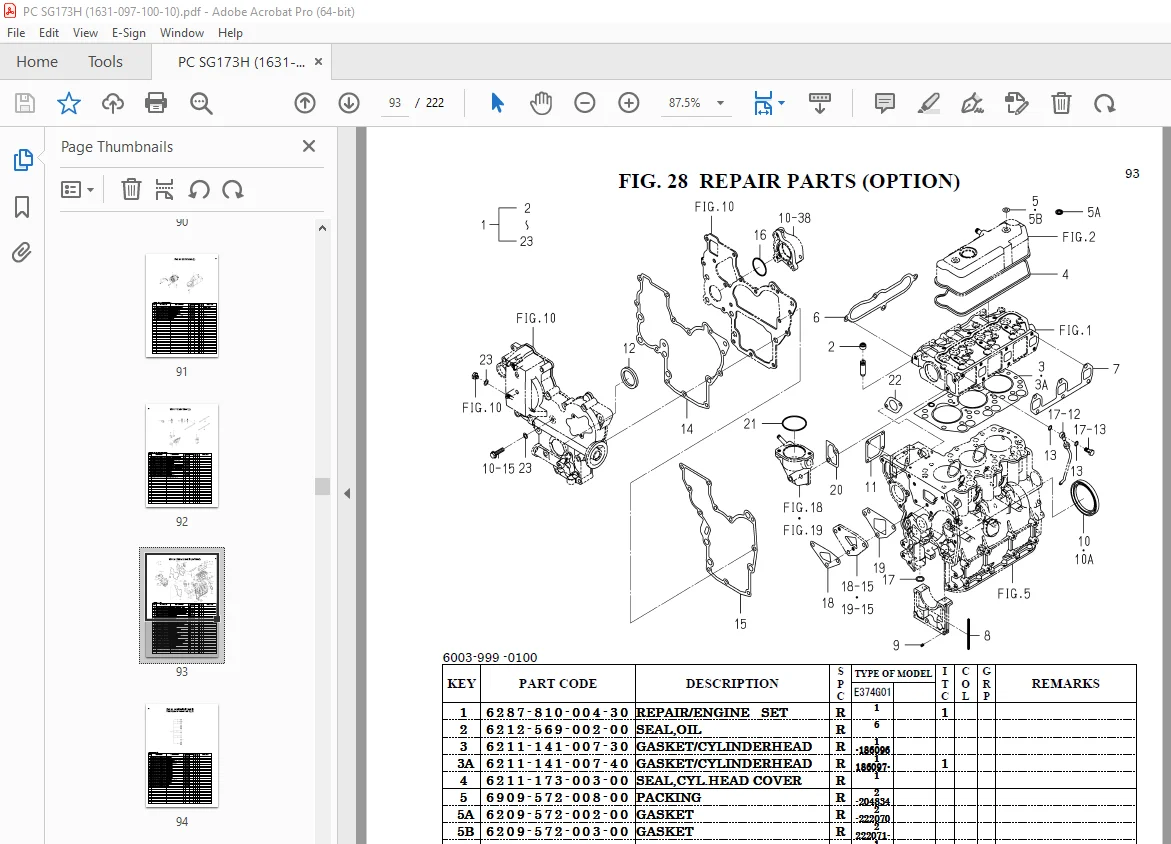

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki SG173H Lawn & Garden Tractor Parts Manual (1631-097-100-10) – PDF DOWNLOAD

SG173 (EXCEPT S-TYPE)
ENGINE(E374G)
CYLINDER HEAD Fig 1
CYLINDER HEAD COVER Fig 2
INLET MANIFOLD Fig 3
EXHAUST MANIFOLD Fig 4
CYLINDER BLOCK Fig 5
BEARING/UNDER SIZE (OPTION) Fig 6
OIL PAN Fig 7
REAR PLATE Fig 8
REAR PLATE Fig 9
TIMING GEAR CASE Fig 10
HANGER Fig 11
VALVE Fig 12
CAM SHAFT Fig 13
PISTON Fig 14
PISTON/OVER SIZE (OPTION) Fig 15
CRANK SHAFT Fig 16
OIL PUMP Fig 17
WATER PUMP Fig 18
WATER PUMP Fig 19
COOLING FAN Fig 20
INJECTION NOZZLE Fig 21
INJECTION PUMP Fig 22
FUEL PIPE Fig 23
ADAPTER Fig 24
8
ELECTRIC (1) Fig 25
ELECTRIC (1) Fig 26
ELECTRIC (2) Fig 27
REPAIR PARTS (OPTION) Fig 28
COMPONENT PARTS
FOR 6215-300-005-00 ON Fig 21 Fig 29
COMPONENT PARTS
FOR 6215-300-030-00 ON Fig 21 Fig 30
COMPONENT PARTS
FOR 6215-300-037-00 ON Fig 21 Fig 31
COMPONENT PARTS
FOR 6215-600-088-10 ON Fig 22 Fig 32
COMPONENT PARTS
FOR 6281-100-003-10 ON Fig 25 Fig 33
COMPONENT PARTS
FOR 6251-100-014-00 ON Fig 26 Fig 34
COMPONENT PARTS
FOR 6281-200-007-00 ON Fig 25,26 Fig 35
9
C o n t e n t s
SG173 (S-TYPE)
ENGINE(E374G01)
CYLINDER HEAD Fig 1
CYLINDER HEAD COVER Fig 2
INLET MANIFOLD Fig 3
EXHAUST MANIFOLD Fig 4
CYLINDER BLOCK Fig 5
BEARING/UNDER SIZE (OPTION) Fig 6
OIL PAN Fig 7
REAR PLATE Fig 8
REAR PLATE Fig 9
TIMING GEAR CASE Fig 10
HANGER Fig 11
VALVE Fig 12
CAM SHAFT Fig 13
PISTON Fig 14
PISTON/OVER SIZE (OPTION) Fig 15
CRANK SHAFT Fig 16
OIL PUMP Fig 17
WATER PUMP Fig 18
WATER PUMP Fig 19
COOLING FAN Fig 20
INJECTION NOZZLE Fig 21
INJECTION PUMP Fig 22
FUEL PIPE Fig 23
ADAPTER Fig 24
10
ELECTRIC (1) Fig 25
ELECTRIC (1) Fig 26
ELECTRIC (2) Fig 27
REPAIR PARTS (OPTION) Fig 28
COMPONENT PARTS
FOR 6215-300-005-00 ON Fig 21 Fig 29
COMPONENT PARTS
FOR 6215-300-030-00 ON Fig 21 Fig 30
COMPONENT PARTS
FOR 6215-300-037-00 ON Fig 21 Fig 31
COMPONENT PARTS
FOR 6215-600-088-10 ON Fig 22 Fig 32
COMPONENT PARTS
FOR 6281-100-003-10 ON Fig 25 Fig 33
COMPONENT PARTS
FOR 6251-100-014-00 ON Fig 26 Fig 34
COMPONENT PARTS
FOR 6281-200-007-00 ON Fig 25,26 Fig 35
COMPONENT PARTS
FOR 6281-200-016-00 ON Fig 25 Fig 36
11
C o n t e n t s
CHASSIS
ENGINE BRACKET SYSTEM Fig 1
RADIATOR SYSTEM Fig 2
MUFFLER AND AIR CLEANER
(EXCEPT U TYPE) SYSTEM Fig 3
AIR CLEANER SYSTEM (U TYPE) Fig 4
FUEL FILTER AND FUEL HOSE SYSTEM Fig 5
BATTERY SYSTEM (EXCEPT M TYPE) Fig 6
BATTERY SYSTEM (M TYPE) Fig 7
ACCELERATOR SYSTEM Fig 8
DRIVE SHAFT SYSTEM Fig 9
TRANSMISSION CASE SYSTEM
(EXCEPT U TYPE Fig 10
TRANSMISSION CASE SYSTEM (U TYPE) Fig 11
TRANSMISSION GEAR SYSTEM Fig 12
HST (1) SYSTEM Fig 13
HST (2) SYSTEM (EXCEPT U TYPE) Fig 14
HST (2) SYSTEM (U TYPE) Fig 15
HST (3) SYSTEM(1/3)-(3/3) Fig 16
HST (UNLOAD) SYSTEM Fig 17
DIFFERENTIAL GEAR
AND WHEEL SHAFT SYSTEM Fig 18
BRAKE SYSTEM Fig 19
BRAKE PEDAL AND ARM SYSTEM Fig 20
REAR TIRE SYSTEM Fig 21
PTO CLUTCH SYSTEM Fig 22
PTO SHAFT SYSTEM Fig 23
CHASSIS AND FRONT AXLE SYSTEM Fig 24
12
KNUCKLE ARM SYSTEM Fig 25
STEERING WHEEL SYSTEM (U TYPE) Fig 26
STEERING WHEEL SYSTEM
(EXCEPT U TYPE) Fig 27
STEERING SYSTEM (U TYPE) Fig 28
STEERING SYSTEM (EXCEPT U TYPE) Fig 29
POWER STEERING SYSTEM (U TYPE) Fig 30
FRONT TIRE SYSTEM Fig 31
LIFT SYSTEM Fig 32
LINK SYSTEM Fig 33
LIFT CAM SYSTEM Fig 34
PTO COVER SYSTEM (EXCEPT M TYPE) Fig 35
HOOD SYSTEM (EXCEPT M TYPE) Fig 36
HOOD SYSTEM (M TYPE) Fig 37
FENDER SYSTEM (EXCEPT M TYPE) Fig 38
FENDER SYSTEM (M TYPE) Fig 39
SEAT SYSTEM Fig 40
FUEL TANK AND STEP SYSTEM Fig 41
PANEL SYSTEM Fig 42
HARNESS SYSTEM (EXCEPT S TYPE) Fig 43
HARNESS SYSTEM (S TYPE) Fig 44
MARK (EXCEPT M TYPE) Fig 45
MARK (M TYPE) Fig 46
LABEL (GERMAN) (E20 TYPE) Fig 47
LABEL (FRENCH) (E50 TYPE EXCEPT T) Fig 48
LABEL (ENGLISH) (E40 TYPE) Fig 49
LABEL (ENGLISH) (E42 TYPE) Fig 50
LABEL (ITALIAN) (E50T TYPE) Fig 51
TOOL Fig 52
OPTIONAL PARTS
REAR TIRE (FIELD) SYSTEM (OPTION) Fig 53
13
REAR PTO SYSTEM (OPTION) Fig 54
REAR HITCH SYSTEM (OPTION) Fig 55
HEAD LAMP AND HOUR METER SET
(OPTION) Fig 56
BUMPER WEIGHT SET (OPTION) Fig 57
COMPONENT PARTS
COMPONENT PARTS
FOR K211-012-000-00 ON Fig 14,15 Fig 58
WIRING DIAGRAM/SG173
WIRING DIAGRAM/SG173/S
REAL WIRING DIAGRAM/SG173
REAL WIRING DIAGRAM/SG173/S
14

DESCRIPTION:

Iseki SG173H Lawn & Garden Tractor Parts Manual (1631-097-100-10) – PDF DOWNLOAD

Parts Order:
1) Parts numbers listed in the parts catalogue are all registered in “ISEKI
on-line computer”.
2) When you order parts, please make sure of correct numbers.
3) When substitute parts is available, the part number ordered will be automatically turned to a new part number.
4) Please be sure to use “ISEKI GENUINE PARTS”.
Any other similar parts other than ISEKI parts when used may cause a
trouble that makes us unable to repair or guarantee the warrant.

S.V 14/03/2025
