Iseki TXG23 Tractor Service Repair Manual – PDF Download

Description

The ISEKI TXG23 is a precision-engineered, compact diesel tractor designed for professional landscapers, estate managers, and agricultural users who demand performance, durability, and operator comfort. At its heart is a powerful yet efficient 22.5 HP ISEKI E3112-B12, 3-cylinder, water-cooled diesel engine, renowned for its reliability and fuel economy. The TXG23 is not just a tractor; it’s a complete grounds maintenance system, particularly when paired with its purpose-built rotary mower decks.

Core Tractor Specifications & Performance

• Engine: 1123 cc, 3-cylinder diesel. Gross Horsepower: 22.5 HP @ 2600 rpm. Features indirect injection for easy starting, glow plugs for cold weather, and a centrifugal, all-speed governor for consistent power delivery under load.

• Transmission: Infinite 2-speed hydrostatic transmission (HST). This provides seamless, pedal-operated speed control (forward/reverse) without clutching, making it incredibly intuitive for loader work and mowing around obstacles. The 2-speed range gear (Hi/Lo) offers a maximum forward speed of 9.13 mph (Agri tires) and a creeper-like low range for heavy tilling or precise control.

• Drivetrain: Offered in both 2WD and rugged 4WD configurations. The 4WD model features a front lead rate of 3.12%, ensuring the front wheels pull slightly faster than the rears for straight-line stability and reduced steering effort.

• Hydraulics: A dual-pump system. One pump (7.5 L/min) powers the hydrostatic power steering. The main pump (23.1 L/min) operates the rear 3-point hitch (Category 1, 540 kg lift capacity @ ball ends) and auxiliary hydraulics, providing ample power for implements.

• PTO (Power Take-Off): Independent, engine-driven PTO with hydraulically engaged, multi-plate wet clutch. Features both a rear 540 rpm PTO (35mm, 6-spline) and a mid-mount PTO (25.4mm, 15-spline, 2000 rpm), perfect for the matching mid-mount mower decks or front-mount snow blowers/ brooms.

• Operator Station: Features a robust 4-post ROPS/FOPS canopy, ergonomically placed HST pedals, a high-back seat with a seat safety switch, and easy-to-reach controls for PTO, range shift, differential lock, and 4WD (where equipped). Instrumentation includes a tachometer, temperature gauge, oil pressure light, and glow plug indicator.

Mower Deck Options (SSM60, SSM54, SSM48, SMM54)

The TXG23 is perfectly matched with a series of rugged, fabricated (not stamped) rotary mower decks, ensuring a professional, high-quality cut.

• SSM60 (60″ / 1524 mm): Largest side-discharge deck for maximum productivity in open areas.

• SSM54 (54″ / 1372 mm): Optimal balance between width and maneuverability for diverse terrain.

• SSM48 (48″ / 1219 mm): Highly maneuverable side-discharge deck for tight spaces and smaller properties.

• SMM54 (54″ / 1372 mm): Rear-discharge “mulching” deck. Ideal for fine lawns, parks, and golf course roughs where a clean, clump-free finish and nutrient recycling are desired.

Key Mower Deck Features:

• Cutting Height: 7-stage adjustable from 1.2″ to 4.7″ (30-120 mm) via pin and a convenient height adjustment handle.

• Blades: Three high-lift blades with a tip speed ranging from 74-88 m/s, ensuring a clean cut even in tall or damp grass. Blade replacement is simplified, and shims allow for precise leveling.

• Construction: Durable gearbox with bevel gears and oil bath lubrication. Includes gauge wheels and rollers for a smooth, scalp-free cut over uneven ground.

• Maintenance: Features easily accessible grease fittings on blade spindles and tension pulleys. Belt replacement is straightforward after removing the protective belt covers.

Engineering & Serviceability Highlights from the Manual

• HST Unit (Model HVFD21F-R18-0): The service manual details a robust, serviceable HST with a variable displacement pump and fixed displacement motor. Key adjustments include neutral position, pedal height, and pedal stoppers to prevent internal damage.

• Easy Major Component Separation: The manual clearly outlines procedures for removing the ROPS, fender, floor, transmission case, and engine, indicating a design philosophy that prioritizes service access.

• Engine Serviceability: Standard valve clearance (0.25mm cold), injection timing adjustment via shims, and detailed overhaul instructions (cylinder head, gear case, crankshaft, pistons) confirm this is a rebuildable, long-life industrial engine.

• Precision Tolerances: The manual provides specific wear limits (e.g., cylinder bore wear limit 0.008″, piston ring gap limits), allowing for accurate diagnostics and repair rather than just part swapping.

• Electrical System: A complete wiring diagram and component-level testing for the starter, alternator, and glow plugs are provided, enabling efficient troubleshooting of the 12V electrical system.

The ISEKI TXG23 is more than a machine; it’s an investment in productivity, backed by a legacy of Japanese engineering and a service manual that proves its repairability and long-term value.

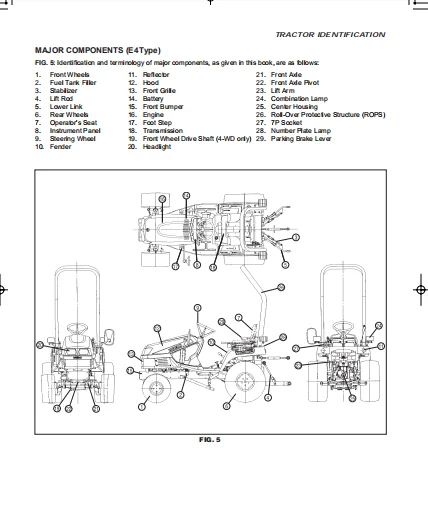

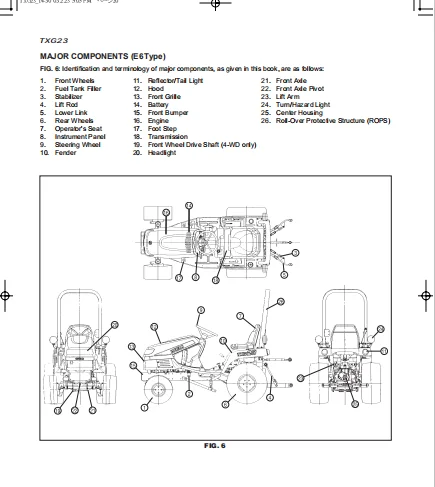

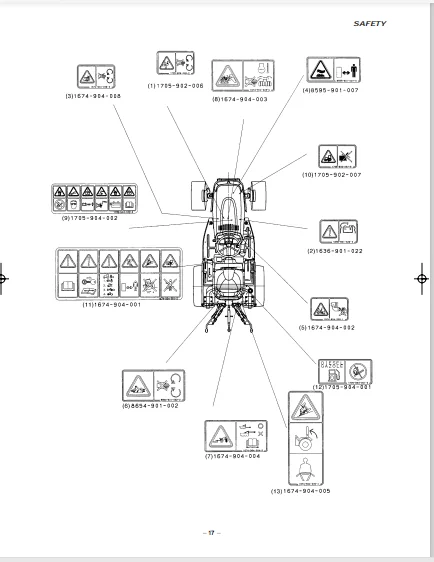

SCREENSHOT OF THE MANUAL:

The ISEKI TXG23 Service Manual is the complete, factory-authorized technical document covering every aspect of the TXG23 compact tractor and its compatible mower decks (SSM60, SSM54, SSM48, SMM54). This is not a generic owner’s manual – it is the same detailed guide used by ISEKI dealership technicians to diagnose, repair, and overhaul the entire machine.

What’s Inside (Full Chapter Breakdown)

Key Technical Data You Get

• Engine: 1123 cc, 22.5 HP, indirect injection, glow plugs, compression ratio 22.5:1

• HST: Model HVFD21F-R18-0 with variable pump / fixed motor

• Hydraulic pressures: Main relief 1892–1963 psi, PTO relief 185–228 psi

• Tolerances & limits: Valve clearance 0.25mm, cylinder bore wear limit 0.2mm, piston ring gap limits, crankshaft oil clearance, etc.

• Torque specs: Critical fasteners (cylinder head bolts 39.8–43.4 ft-lbs, HST socket bolts 36.1 ft-lbs, etc.)

• Electrical tests: Starter pull-in/holding tests, alternator diode checks, glow plug resistance (2.0 Ω)

Who This Manual Is For

• Tractor owners who want to do their own repairs and save on dealer labor.

• Independent workshops servicing ISEKI, John Deere (rebadged), or other compact tractors with ISEKI drivetrains.

• Equipment rental companies maintaining their TXG23 fleet.

• Agricultural mechanics needing OEM specifications, not aftermarket guesswork.

Why You Need This Service Manual

Stop guessing. Start fixing. The ISEKI TXG23 Service Manual pays for itself on the first repair.

You own (or service) an ISEKI TXG23. It’s a rugged, compact diesel tractor – but when something breaks, do you really want to:

• Hunt through random YouTube videos that skip the critical torque specs?

• Call a dealer and wait weeks, then pay $150+/hour for labor?

• Replace expensive parts (HST unit, hydraulic pump, injection pump) when a $5 seal or an adjustment is all you need?

That’s exactly why this service manual exists.

What you get that no free source provides:

✅ Factory disassembly sequences – not just exploded views, but the order and direction to remove shafts, bearings, and valve plates without damaging precision surfaces.

✅ Every wear limit & tolerance – measure a piston ring gap? It’s in there (0.25–0.40mm standard, 1.5mm limit). Crankshaft oil clearance? Page 3-24. HST piston clearance? 25 microns – you’ll know when to replace.

✅ Hydraulic and HST internal repair – the manual walks you through pressing bearings, installing oil seals with jigs, adjusting neutral position, and setting pedal stoppers to prevent internal HST destruction.

✅ Complete wiring diagrams – no more chasing electrical gremlins. Starter, alternator, glow plug tests are all spelled out with meter readings.

✅ Mower deck gearbox backlash adjustment – spec is 0.3–0.5mm. Without this, you’ll ruin bevel gears in 50 hours.

Here’s the math:

• One hour of dealer diagnostics: $120+

• One HST unit replacement (without trying repair): $2,500+

• One injection pump misdiagnosis: $800+

• This manual: A one-time cost less than a single shop hour.

Real-world example from the manual itself:

Page 5-23 shows you how to adjust the HST neutral spring (length 120–125mm) and the neutral position bolt. A tractor that creeps forward or reverse when your foot is off the pedal? Fixed in 10 minutes. A dealer would charge you a full hour.

Stop being held hostage by guesswork.

Whether you’re a DIY owner, a small engine shop, or a fleet manager – this PDF service manual is the key to keeping your TXG23 running for decades.

Download it now. Fix it right. Keep the tractor – not the trouble.
