Iseki TF317 & TF321 Tractor Parts Manual – PDF DOWNLOAD

Description

Iseki TF317 & TF321 Tractor Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Iseki TF317 & TF321 Tractor Parts Manual – PDF DOWNLOAD

Language : English
Pages : 358
Downloadable : Yes
File Type : PDF

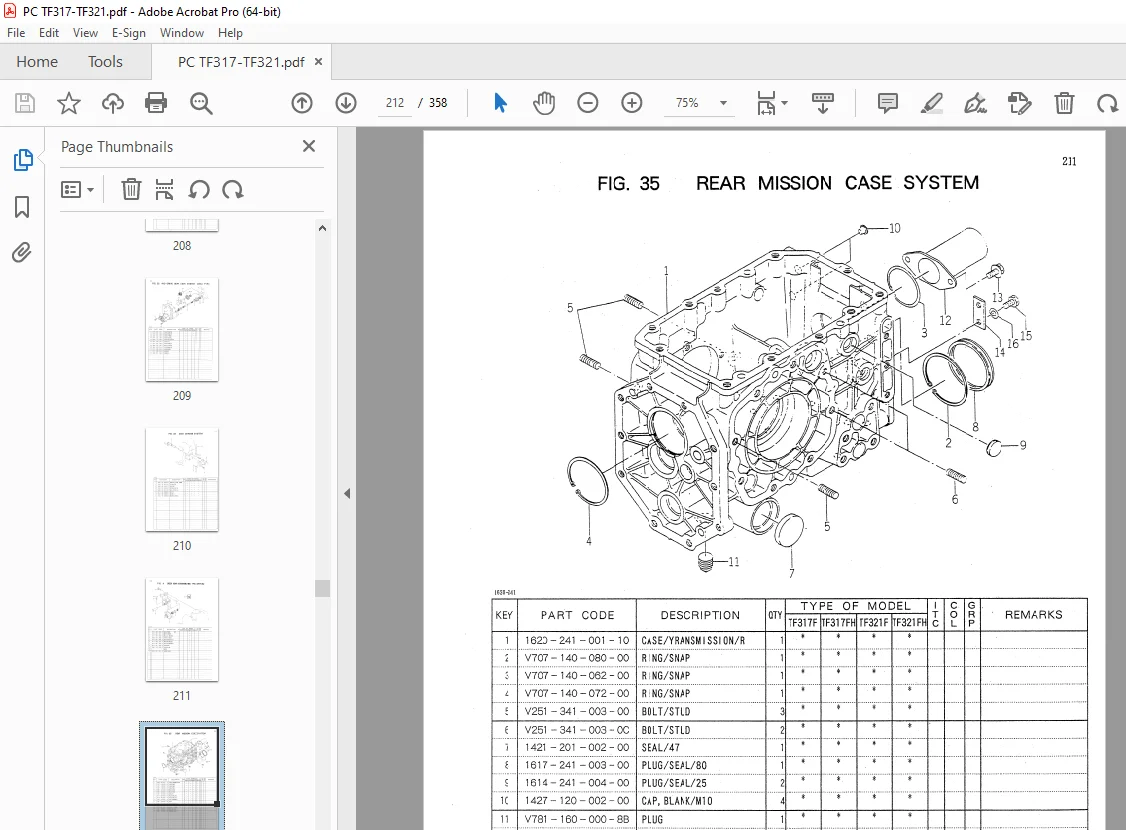

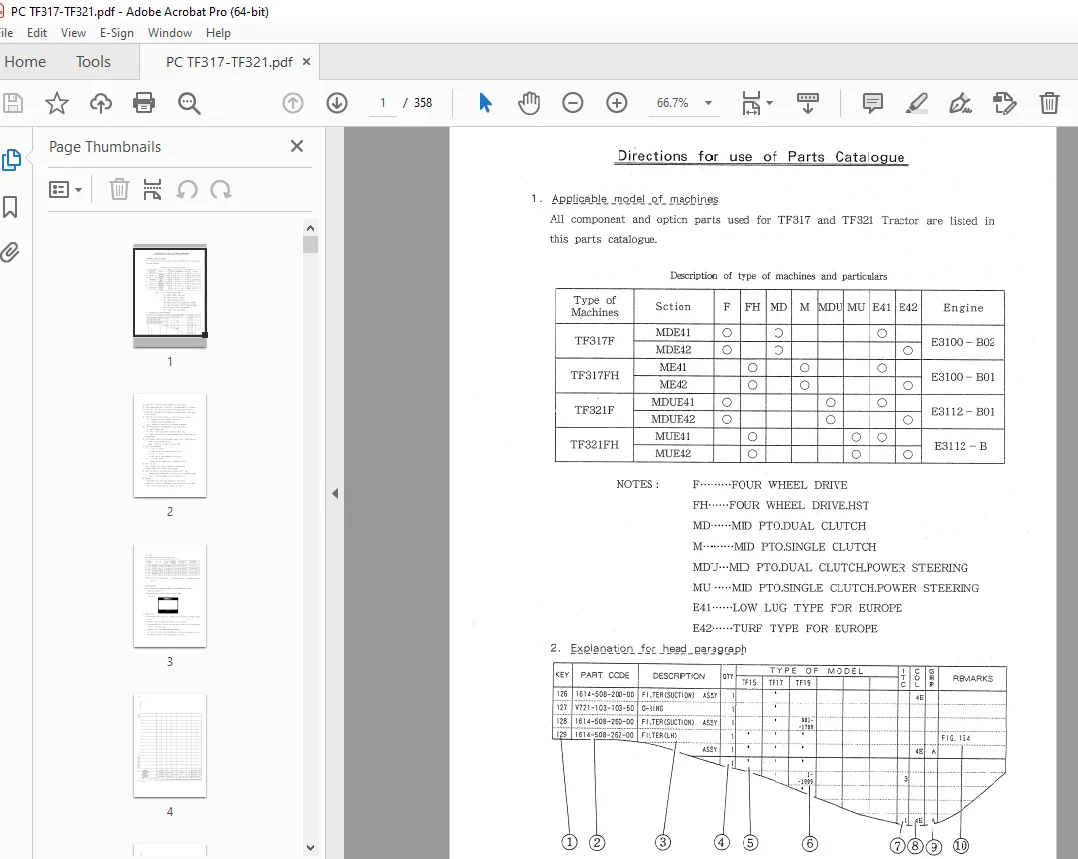

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki TF317 & TF321 Tractor Parts Manual – PDF DOWNLOAD

TF 317 F
ENGINE (E3100-B02)
CYLINDER HEAD
CYLINDER HEAD COVER
INLET MANIFOLD
EXHAUST MANIFOLD
CYLINDER BLOCK
BEARING/UNDER SIZE (OPTION)
OIL PAN…………………
REAR PLATE
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON/OVER SIZE (OPTION)
CRANK SHAFT
OIL PUMP
WATER PUMP
COOLING FAN
INJECTION NOZZLE
INJECTION PUMP
FUEL PIPE
ELECTRIC (1)
ELECTRIC (2)
6215-300-006-10
6215-300-009-10
6215-600-052-20
6281-100-002-10
6281-200-005-00
TF317FH
ENGINE (E3100-B01)
CYLINDER HEAD
CYLINDER HEAD COVER
INLET MANIFOLD
EXHAUST MANIFOLD
CYLINDER BLOCK
BEARING UNDER SIZE (OPTION)
OIL PAN..
REAR PLATE
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON OVER SIZE (OPTION)
CRANK SHAFT
OIL PUMP
WATER PUMP
COOLING FAN
INJECTION NOZZLE
INJECTION PUMP
FUEL PIPE
ELECTRIC (1)
ELECTRIC (2)
TF 321 F
ENGINE (E3112-B01)
CYLINDER HEAD
CYLINDER HEAD COVER
INLET MANIFOLD
EXHAUST MANIFOLD
CYLINDER BLOCK
BEARING/UNDER SIZE (OPTION)
OIL PAN
REAR PLATE
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON/OVER SIZE (OPTION)
CRANK SHAFT
OIL PUMP
WATER PUMP
COOLING FAN
INJECTION NOZZLE
INJECTION PUMP
FUEL PIPE
ELECTRIC (1)
ELECTRIC (2)
6215-300-025-00
6215-300-026-00
6215-600-103-00
6281-100-002-10
6281-200-005-00
TF 321 FH
ENGINE (E3112-B)
CYLINDER HEAD
CYLINDER HEAD COVER
INLET MANIFOLD
EXHAUST MANIFOLD
CYLINDER BLOCK
BEARING/UNDER SIZE (OPTION)
OIL PAN….
REAR PLATE
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON OVER SIZE (OPTION)
CRANK SHAFT
OIL PUMP
WATER PUMP
COOLING FAN
INJECTION NOZZLE
INJECTION PUMP
FUEL PIPE
ELECTRIC (1)
ELECTRIC (2)
6215-300-025-00
6215-300-026-00
6215-600-103-00
6281-100-002-10
6281-200-005-00
CHASSIS
RADIATOR (HST) SYSTEM (M,MU TYPE)
RADIATOR SYSTEM (MD,MDU TYPE)
MUFFLER SYSTEM
AIR CLEANER SYSTEM
FILTER SYSTEM
FUEL TANK SYSTEM
BATTERY SYSTEM
LEVER (ACCELL) /PEDAL (ACCELL) SYSTEM (MD,MDU TYPE)
LEVER (ACCELL) SYSTEM (M,MU TYPE)
MAIN CLUTCH SYSTEM (M,MU TYPE)
DUAL CLUTCH SYSTEM (MD,MDU TYPE)
INPUT GEAR SYSTEM
COUNTER GEAR SYSTEM (MD,MDU TYPE)
DRIVE GEAR (HST) /PTO DRIVE GEAR SYSTEM
SPACER SYSTEM (MD,MDU TYPE)
SPACER (HST) SYSTEM (M,MU TYPE)
CLUTCH SHAFT SYSTEM
PEDAL (CLUTCH/W) SYSTEM (MD,MDU TYPE)
PEDAL (CLUTCH/S) SYSTEM (M.MU TYPE)
FRONT MISSION CASE (HST) SYSTEM (M,MU TYPE) FRONT MISSION CASE SYSTEM (MD,MDU TYPE) HST, INPUT GEAR (HST) SYSTEM (M,MU TYPE)
INPUT GEAR (G) SYSTEM (MD,MDU TYPE)
MAIN CHANGE GEAR SYSTEM (MD,MDU TYPE)
MAIN COUNTER GEAR/SUB CHANGE GEAR SYSTEM (MD,MDU TYPE)
SUB COUNTER GEAR (HST) SYSTEM (M,MU TYPE)
BACK GEAR CREEP COVER SYSTEM (MD,MDU TYPE)
MAIN CHANGE SYSTEM (MD,MDU TYPE)
SUB CHANGE SYSTEM (MD,MDU TYPE)
SUB CHANGE (HST) SYSTEM (M,MU TYPE)
4WD DRIVE GEAR SYSTEM (MD,MDU TYPE)
4WD DRIVE GEAR (HST) SYSTEM (M.MU TYPE) 4WD CHANGE SYSTEM
CREEP GEAR SYSTEM (MD,MDU TYPE) (OPTION)
REAR MISSION CASE SYSTEM
PTO COUNTER GEAR/PTO SHAFT SYSTEM
PTO CHANGE SYSTEM
TRAILER HITCH SYSTEM (OPTION)
PTO (MID) SET
CHANGE LEVER MAIN, SUB SYSTEM
CHANGE LEVER (4WD/HST) SYSTEM (M,MU TYPE)
CHANGE LEVER (4WD) SYSTEM (MD,MDU TYPE)
CHANGE LEVER (PTO) SYSTEM
CHANGE LEVER (MID PTO) SYSTEM
LINK (HST) SYSTEM (M,MU TYPE)
PEDAL (HST) SYSTEM (M,MU TYPE) LEVER (HST) SYSTEM (M.MU TYPE)
PIPING (HST) SYSTEM (M,MU TYPE)
DRIVE PINION SYSTEM (MD,MDU TYPE)
DRIVE PINION (HST) SYSTEM (M,MU TYPE)
DIFF CASE SYSTEM
REAR AXLE HOUSING SYSTEM
WHEEL SHAFT SYSTEM
DIFF – LOCK/PEDAL (DIFF-LOCK) SYSTEM
BRAKE SYSTEM
PEDAL (BRAKE) SYSTEM
BRAKE (PARKING) SYSTEM
REAR WHEEL SYSTEM
(TF317/41 TYPE – STANDARD 42 TYPE – OPTION)
REAR WHEEL SYSTEM
(TF321/41 TYPE – STANDARD 42 TYPE – OPTION)
REAR WHEEL SYSTEM (41 TYPE-OPTION 42 TYPE – STANDARD)
STEERING WHEEL SYSTEM
STEERING SHAFT SYSTEM
STEERING (MANUAL) SYSTEM (TF317 TYPE)
POWER STEERING SYSTEM (TF321 TYPE)
POWER STEERING SYSTEM (TF317 TYPE) (OPTION)
BRACKET (AXLE)
BUMPER/SAFETY COVER SYSTEM
DRIVE SHAFT SYSTEM (MD,MDU TYPE)
DRIVE SHAFT (HST) SYSTEM (M,MU TYPE)
BEVEL CASE SYSTEM
AXLE HOUSING SYSTEM
FAINAL GEAR CASE SYSTEM
TIE ROD SYSTEM
FRONT WHEEL (4WD) SYSTEM
(TF317/41 TYPE – STANDARD TF317/42 TYPE-OPTION)
FRONT WHEEL (4WD) SYSTEM
(TF321/41 TYPE – STANDARD TF321/42 TYPE – OPTION)
FRONT WHEEL (TURF) SYSTEM
(41 TYPE OPTION 42 TYPE STANDARD)
CYLINDER CASE SYSTEM
BLANK PLUG, SHAFT (SLOW RETURN) SYSTEM
LIFT ARM SYSTEM
CYLINDER SYSTEM
LINK (POSITION) SYSTEM
LEVER (POSITION)
COVER (VALVE) SYSTEM
VALVE (STACK/RI) SET (OPTION)
VALVE (STACK/R2) SET (OPTION)
PIPING SYSTEM
3P LINK SYSTEM
HOOD SYSTEM
GRILLE SYSTEM
COVER (STEERING) SYSTEM
COVER (SIDE) SYSTEM
FENDER SYSTEM
GUIDE (LEVER/HST) SYSTEM (M.MU TYPE)
GUIDE (LEVER) SYSTEM (MD,MDU TYPE)
MOUNT (FRONT) SEAT SYSTEM
MOUNT (REAR/E40) SYSTEM (MD,MDU TYPE)
MOUNT (REAR/HST/E40) SYSTEM (M,MU TYPE)
FLOOR SYSTEM (MD,MDU TYPE)
FLOOR (HST) SYSTEM (M,MU TYPE)
MIRROR HEAD LAMP (E40) SYSTEM
LAMP (E40) SYSTEM
PANEL SYSTEM
SWITCH SYSTEM
HARNESS SYSTEM
FRAME (REAR/OECD) SYSTEM (OPTION)
ORNAMENT (TF317)
ORNAMENT (TF321)
LABEL (STD) (MD,MDU TYPE)
LABEL (HST) (M,MU TYPE)
LABEL (ENGLAND) (OPTION)
LABEL (FRANCE) (OPTION)
LABEL (GERMAN) (OPTION)
LABEL (PORTUGAL) (OPTION) TOOL
1 614-406-210-00
1 614-407-210-00
1620-121-250-00
1620-202-500-00
16 40-530-600-00
