Iseki TLE4490E4 Tractor Parts Manual 1833-097-100-00 – PDF DOWNLOAD

Description

Iseki TLE4490E4 Tractor Parts Manual 1833-097-100-00 – PDF DOWNLOAD

FILE DETAILS:

Iseki TLE4490E4 Tractor Parts Manual 1833-097-100-00 – PDF DOWNLOAD

Language : English
Pages : 216
Downloadable : Yes
File Type : PDF

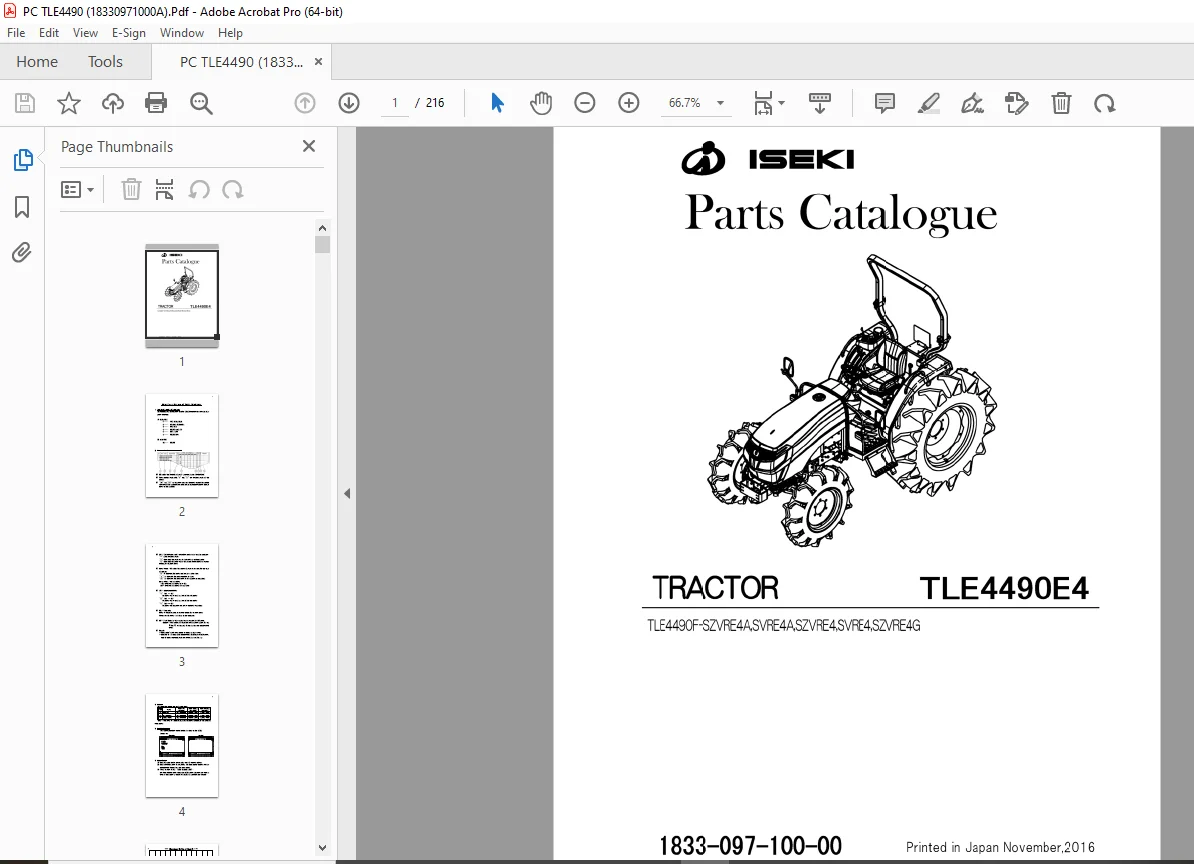

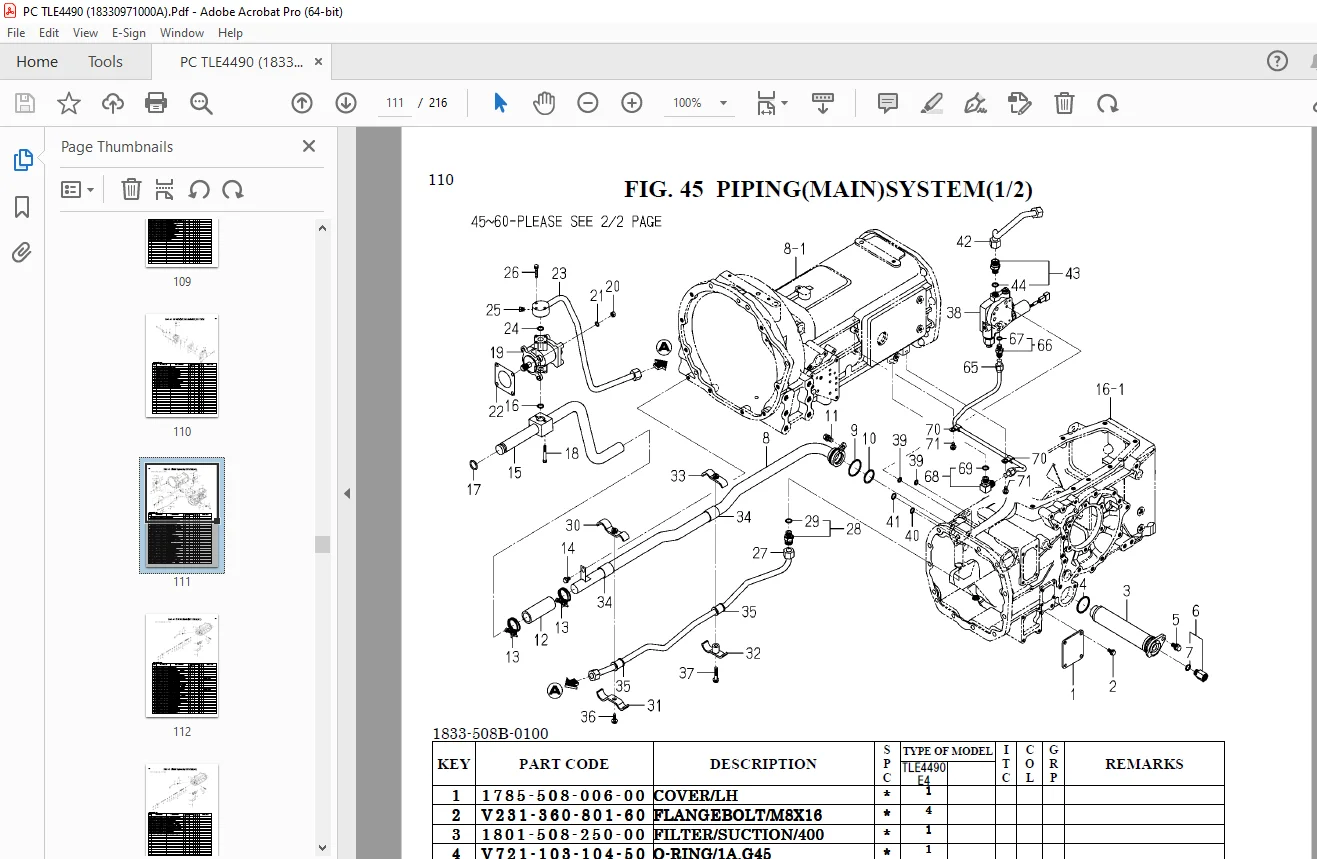

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki TLE4490E4 Tractor Parts Manual 1833-097-100-00 – PDF DOWNLOAD

TLE4490F-SZVRE4A,SVRE4A,SZVRE4,SVRE4,SZVRE4G

TLE4490E4
ENGINE(E4CG-WB34)
SHORT BLOCK ENGIASSY Fig 1
CYLINDER HEAD Fig 2
CYLINDER HEAD COVER Fig 3
INLET MANIFOLD Fig 4
EXHAUST MANIFOLD Fig 5
CYLINDER BLOCK Fig 6
BEARING/UNDER SIZE (OPTION) Fig 7
OIL PAN Fig 8
REAR PLATE Fig 9
TIMING GEAR CASE Fig 10
HANGER Fig 11
VALVE Fig 12
CAM SHAFT Fig 13
PISTON Fig 14
PISTON/OVER SIZE (OPTION) Fig 15
CRANK SHAFT Fig 16
OIL PUMP Fig 17
WATER PUMP Fig 18
COOLING FAN Fig 19
INJECTION NOZZLE Fig 20
INJECTION PUMP Fig 21
FUEL PIPE Fig 22
ADAPTER Fig 23
ELECTRIC (1) Fig 24
8
ELECTRIC (2) Fig 25
REPAIR PARTS(OPTION) Fig 26
COMPONENT PARTS
FOR 6215-300-045-10 ON Fig 020 Fig 27
COMPONENT PARTS
FOR 6215-600-119-20 ON Fig 021 Fig 28
COMPONENT PARTS
FOR 6281-100-010-50 ON Fig 024 Fig 29
COMPONENT PARTS
FOR 6281-200-004-00 ON Fig 024 Fig 30
9
C o n t e n t s
CHASSIS
RADIATOR SYSTEM Fig 1
MUFFLER SYSTEM Fig 2
CLEANER(AIR)SYSTEM Fig 3
TANK(FUEL)SYSTEM Fig 4
ACCELERATOR SYSTEM Fig 5
CLUTCH(MAIN)SYSTEM Fig 6
PEDAL(CLUTCH)SYSTEM Fig 7
CASE(TRANSMISSION/FRONT)SYSTEM Fig 8
GEAR(REVERSE)SYSTEM Fig 9
GEAR(PTO/INPUT)SYSTEM Fig 10
GEAR(MAIN)SYSTEM Fig 11
GEAR(SUB)SYSTEM Fig 12
GEAR(4WD)SYSTEM Fig 13
SHAFT(PTO/REAR)SYSTEM Fig 14
COVER(PTO/MID)SYSTEM Fig 15
CASE(TRANSMISSION/REAR)SYSTEM Fig 16
SHIFT(REVERSE)SYSTEM Fig 17
SHIFT(MAIN)SYSTEM Fig 18
SHIFT(SUB)SYSTEM Fig 19
SHIFT(4WD)SYSTEM Fig 20
SHIFT(PTO)SYSTEM Fig 21
LEVER(REVERSE)SYSTEM Fig 22
LEVER(MAIN)SYSTEM Fig 23
LEVER(SUB)SYSTEM Fig 24
LEVER(4WD)SYSTEM Fig 25
LEVER(PTO)SYSTEM Fig 26
PINION(DRIVE/REAR)SYSTEM Fig 27
10
CASE
(DIFFERENTIAL GEAR/REAR)SYSTEM Fig 28
HOUSING(AXLE/REAR)SYSTEM Fig 29
PEDAL
(CLUTCH/DIFFERENTIAL GEAR)SYSTEM Fig 30
BRAKE SYSTEM Fig 31
PEDAL(BRAKE)SYSTEM Fig 32
LEVER(BRAKE/PARKING)SYSTEM Fig 33
WHEEL(STEERING)SYSTEM Fig 34
CONTROLLER(STEERING)SYSTEM Fig 35
BRACKET(AXLE)SYSTEM Fig 36
SHAFT(DRIVE/FRONT)SYSTEM Fig 37
CASE
(DIFFERENTIAL GEAR/FRONT)SYSTEM Fig 38
HOUSING(AXLE/FRONT)SYSTEM Fig 39
CASE(GEAR/FRONT)SYSTEM(1/2)(2/2) Fig 40
ROD(TIE)SYSTEM Fig 41
CASE(CYLINDER)SYSTEM Fig 42
LEVER(POSITION)SYSTEM(1/3)-(3/3) Fig 43
COVER(METAL/RELIEF)SYSTEM Fig 44
PIPING(MAIN)SYSTEM(1/2)(2/2) Fig 45
PIPING(SUB)SYSTEM Fig 46
VALVE(REMOTE/1ST)SYSTEM Fig 47
LINK(3P)SYSTEM Fig 48
ROD(LIFT)SYSTEM Fig 49
BRACKET(LINK/TOP)SYSTEM Fig 50
BRACKET(DRAW BAR)SYSTEM Fig 51
HOOD SYSTEM Fig 52
GRILLE SYSTEM Fig 53
COVER(SIDE)SYSTEM Fig 54
FENDER SYSTEM Fig 55
GUIDE(LEVER)SYSTEM Fig 56
SEAT SYSTEM(Z TYPE) Fig 57
11
BRACKET(SEAT)SYSTEM
(EXCEPT Z TYPE) Fig 58
MOUNT(ROPS)SYSTEM(A TYPE) Fig 59
MOUNT(ROPS)SYSTEM
(EXCEPT A TYPE) Fig 60
FLOOR(FRONT)SYSTEM Fig 61
FLOOR(REAR)SYSTEM Fig 62
ELC (FRONT)SYSTEM(EXCEPT G TYPE) Fig 63
ELC (FRONT)SYSTEM(G TYPE) Fig 64
ELC (MAIN)SYSTEM(1/2)(2/2) Fig 65
ELC (REAR)SYSTEM(1/2)(2/2) Fig 66
ELC (PANEL/INSTRUMENT)SYSTEM Fig 67
FRAME(ROPS/CENTER)SYSTEM
(A TYPE) Fig 68
FRAME(ROPS/UPPER)SYSTEM
(EXCEPT A TYPE) Fig 69
FRAME(ROPS/LOWER)SYSTEM(A TYPE) Fig 70
FRAME(ROPS/LOWER)SYSTEM
(EXCEPT A TYPE) Fig 71
ORNAMENT Fig 72
LABEL(CONTROL) Fig 73
LABEL(CONTROL/ROPS)(A TYPE) Fig 74
LABEL(CAUTION) Fig 75
OPTIONAL PARTS
PTO(MID/E4)SET(OPTION)(1/2)(2/2) Fig 76
WHEEL(REAR/13 6-28/LH,RH)ASSY
(OPTION) Fig 77
WHEEL(REAR/13 6-24/LH,RH)ASSY
(OPTION) Fig 78
WHEEL(REAR/475/65D20)ASSY
(EXCEPT A TYPE)(OPTION) Fig 79
12
WHEEL(REAR/355/80D20)ASSY
(EXCEPT A TYPE)(OPTION) Fig 80
WHEEL(FRONT/9 5-16/LH,RH)ASSY
(OPTION) Fig 81
WHEEL(FRONT/8-16/LH,RH)ASSY
(OPTION) Fig 82
WHEEL(FRONT/29X12 00-15)ASSY
(EXCEPT A TYPE)(OPTION) Fig 83
WHEEL(FRONT/212/80D15)ASSY
(EXCEPT A TYPE)(OPTION) Fig 84
CONTROL(DRAFT)SET(OPTION)(1/2)(2/2) Fig 85
PLUG(M18)ASSY(OPTION) Fig 86
VALVE(REMOTE/2R/E4)SET(OPTION) Fig 87
COMPONENT PARTS
COMPONENT PARTS
FOR K200-288-000-00 ON Fig 45 Fig 88
COMPONENT PARTS
FOR K211-107-000-00 ON Fig 45 Fig 89
COMPONENT PARTS
FOR 1646-407-670-20 ON Fig 35 Fig 90
COMPONENT PARTS
FOR 1772-654-210-00 ON Fig 66 Fig 91
COMPONENT PARTS
FOR 1802-209-200-10 ON Fig 10 Fig 92
COMPONENT PARTS
FOR 1824-102-220-00 ON Fig 4 Fig 93
COMPONENT PARTS
FOR 1837-512-300-00 ON Fig 47,87 Fig 94
13
WIRING DIAGRAM
WIRING DIAGRAM(1/4)
WIRING DIAGRAM(2/4)
WIRING DIAGRAM(3/4)
WIRING DIAGRAM(4/4)
