Isuzu 4HK1 Engine Workshop Manual 2010-2012MY – Complete Repair Manual (N Series)

Description

Isuzu 4HK1 Engine Workshop Manual (2010-2012MY) – Publication No. LG4HK-WE-1001

This is the genuine Isuzu 4HK1 Engine Workshop Manual, publication number LG4HK-WE-1001, covering the 4HK1-TC turbocharged diesel engine as fitted to 2010-2012MY Isuzu N Series applications. It is the full, dedicated engine-section manual – not a truncated excerpt – running to 402 pages across every major system that touches this engine, from symptom-based diagnosis through complete bottom-end teardown and factory-torque reassembly.

File Details

• Manual type: OEM-format workshop/service manual
• Engine covered: Isuzu 4HK1 (4HK1-TC), full Engine section (1B through 1K)
• Model years: 2010-2012MY
• Document number: LG4HK-WE-1001
• Language: English
• Page count: 402 pages
• File format: PDF, instant digital download

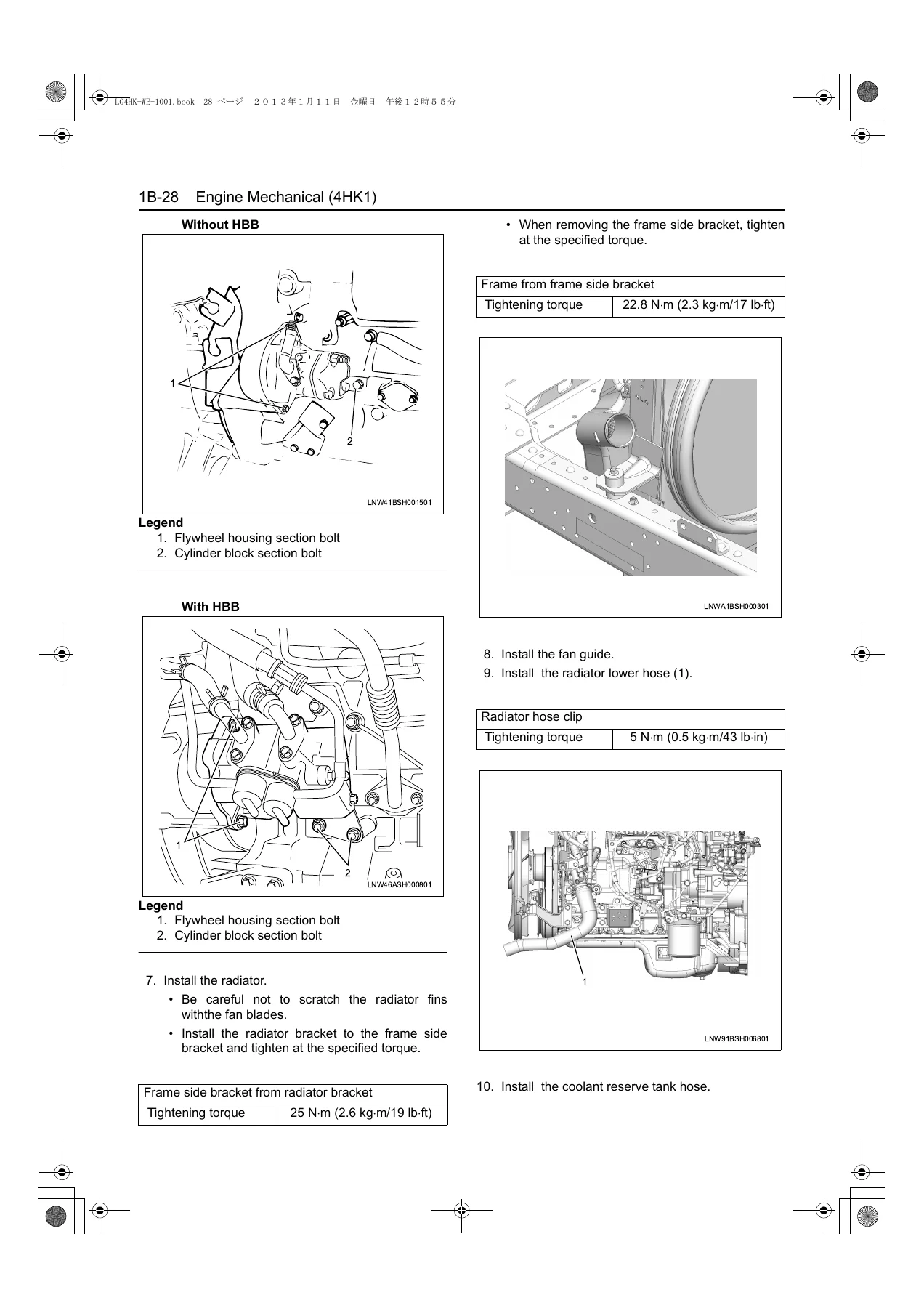

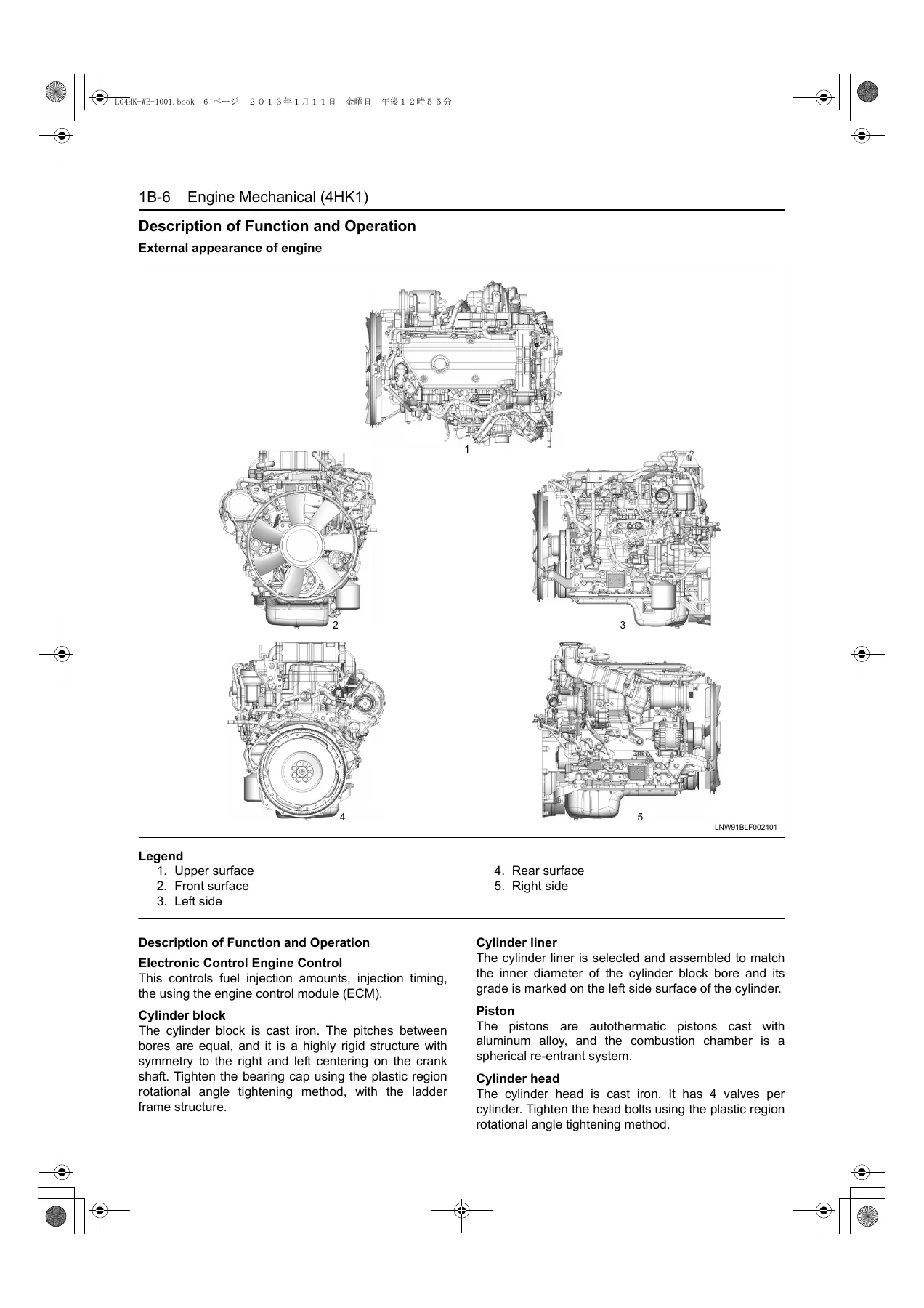

IMAGES PREVIEW

Chapters Covered

• Engine Mechanical (4HK1): maintenance precautions, service technology information, model/engine number identification, functional inspection, failure symptom diagnosis (engine won’t start, cranks but won’t start, black exhaust smoke, white exhaust smoke, knocking, rotation problems, charging failure), primary specifications, special tool listing, engine assembly removal and installation, engine mounts, cylinder head, valve train and rocker arm service, timing gear train, crankshaft rear oil seal, piston and connecting rod removal/disassembly/inspection/reassembly, crankshaft removal/disassembly/reassembly/inspection/installation, and lists of tightening torques throughout
• Engine Cooling (4HK1): cooling system functional and operational description, functional inspection, overheating and overcooling failure symptoms, primary specifications for the water pump, radiator, thermostat and coolant capacity, water pump components/removal/inspection/installation, thermostat service, radiator service, tightening torques
• Engine Fuel (4HK1): common-rail fuel system functional description, functional inspection, supply pump functional inspection, failure symptom list covering hard starting, rough idle/hunting, insufficient output, engine run-on and blue/black exhaust gas, a full fuel-system check procedure, primary specifications, fuel filter element and fuel filter assembly service, injector and supply pump coverage
• Engine Electrical (4HK1): starting system functional description, failure symptom list (starter inoperative, pinion won’t mesh, pinion meshes but motor won’t crank engine, starter won’t disengage after start), primary specifications, starter motor components, removal, disassembly and installation
• Emission Control (4HK1): EGR system functional description, EGR valve and EGR cooler components, removal, inspection, installation and tightening torques
• Engine Exhaust (4HK1): exhaust system functional description, functional inspection, failure symptoms covering vibration and rattling, exhaust clogging, exhaust leaks/noise, and black or white exhaust in large quantity, exhaust pipe and exhaust brake components, removal, inspection, installation and tightening torques
• Engine Lubrication (4HK1): lubrication system functional description and functional inspection, oil filter cartridge and oil filter assembly components/removal/installation, oil cooler service, tightening torques
• Engine Speed Control System (4HK1): accelerator pedal sensor removal and installation, idle-up sensor removal and installation
• Induction (4HK1): air cleaner element removal, inspection, cleaning and installation, turbocharger assembly maintenance precautions, failure symptom list covering power loss with the engine seemingly normal, power loss with the turbocharger seemingly normal, abnormal turbocharger vibration, oil leaking from the exhaust or intake with white smoke, and turbocharger noise, turbocharger component service
• Pre-Heating System (4HK1): glow-plug pre-heat system functional description, functional inspection, failure symptom list covering the glow indicator light not lighting, preheating not operating, and preheating time being too long or too short, primary specifications

Read as a whole, the manual walks a technician from a customer-described symptom straight through to a torque-verified reassembly on every system that touches the 4HK1 – fuel, cooling, electrical, exhaust, emissions, induction and lubrication – rather than leaving any one of them as a black box that sends the job back to the dealer.

Diagnostics Built Around Real Symptoms

Each engine sub-system opens with a failure-symptom list that maps an actual customer complaint to its likely causes and the specific correction: an engine that cranks but won’t start, heavy black exhaust smoke, heavy white exhaust smoke, a knocking noise, unstable or reduced rotation, a starter that engages but doesn’t turn the engine, hunting idle, insufficient output, engine run-on, a turbocharger that’s noisy or vibrating, a glow-plug indicator that won’t light, or a cooling system that’s running hot or cold. Instead of a single generic troubleshooting chart, this Isuzu 4HK1 workshop manual gives condition-cause-correction tables specific to each symptom, so diagnosis moves in a defined direction rather than trial and error.

Torque Specs and Isuzu Special Service Tools

Every major assembly in this 4HK1 engine manual is documented with a components diagram, a removal and installation procedure, and its own list of tightening torques – critical on an engine that uses plastic-region rotational-angle tightening on the cylinder head bolts, main bearing caps and connecting rod cap bolts rather than a simple torque-to-value spec. The manual also identifies the Isuzu special service tools called out for the job by part number, including the compression gauge and adaptor, crankshaft stopper, valve spring replacer, valve guide replacer and installer, valve stem seal installer, injector remover, nozzle sleeve remover and setting tool, connecting rod bushing replacer, piston setting tool, crankshaft gear puller and installer, oil seal installer kit, and fuel pressure/vacuum gauge set – so you know exactly what the job requires before you start pulling the engine apart.

Common-Rail Fuel System and Emissions Coverage

The 4HK1 uses an electronically controlled common-rail injection system – a supply pump that sets and delivers target fuel pressure, a common rail that stores it, and multi-hole injectors that meter and atomize it under ECM control – and this manual documents the supply pump functional inspection, injector service, and the fuel-system check procedure needed to isolate a hard-start, rough-idle or low-power complaint to the correct component rather than replacing parts on a guess. EGR system coverage carries the same depth: EGR valve and EGR cooler removal, inspection, installation and torque specs are included alongside the emission-control system’s functional description, so exhaust-gas recirculation faults can be chased down with the same factory procedure a dealer technician would follow.

Who This Manual Is For

This Isuzu 4HK1 workshop manual is written for the technician actually doing the work – independent diesel shops, fleet maintenance departments running Isuzu N Series trucks, and experienced owner-operators comfortable pulling an engine apart to factory spec. It assumes no dealer-only diagnostic access; every procedure, torque value and special tool referenced is documented directly in the manual itself.

Get Your Isuzu 4HK1 Engine Workshop Manual Instantly

This Isuzu 4HK1 Engine Workshop Manual (2010-2012MY, LG4HK-WE-1001) downloads as a PDF immediately after checkout – no shipping, no waiting on a printed dealer manual. Use it on a laptop, tablet or phone in the shop, or print out just the pages needed for the job at hand, on any device you own. Whether you’re diagnosing an exhaust smoke complaint, replacing a water pump, servicing the turbocharger, rebuilding the bottom end, or chasing a preheat fault, this 4HK1 engine workshop manual gives independent technicians and serious owners the same factory-level repair information the dealer network works from – correctly torqued, correctly sequenced, and specific to this engine.
