Jaguar S-Type Gasoline & Diesel Electrical Guide Manual S.No.VIN:N13089 – PDF DOWNLOAD
FILE DETAILS:
Jaguar S-Type Gasoline & Diesel Electrical Guide Manual S.No.VIN:N13089 – PDF DOWNLOAD
Language : English
Pages : 200
Downloadable : Yes
File Type : PDF

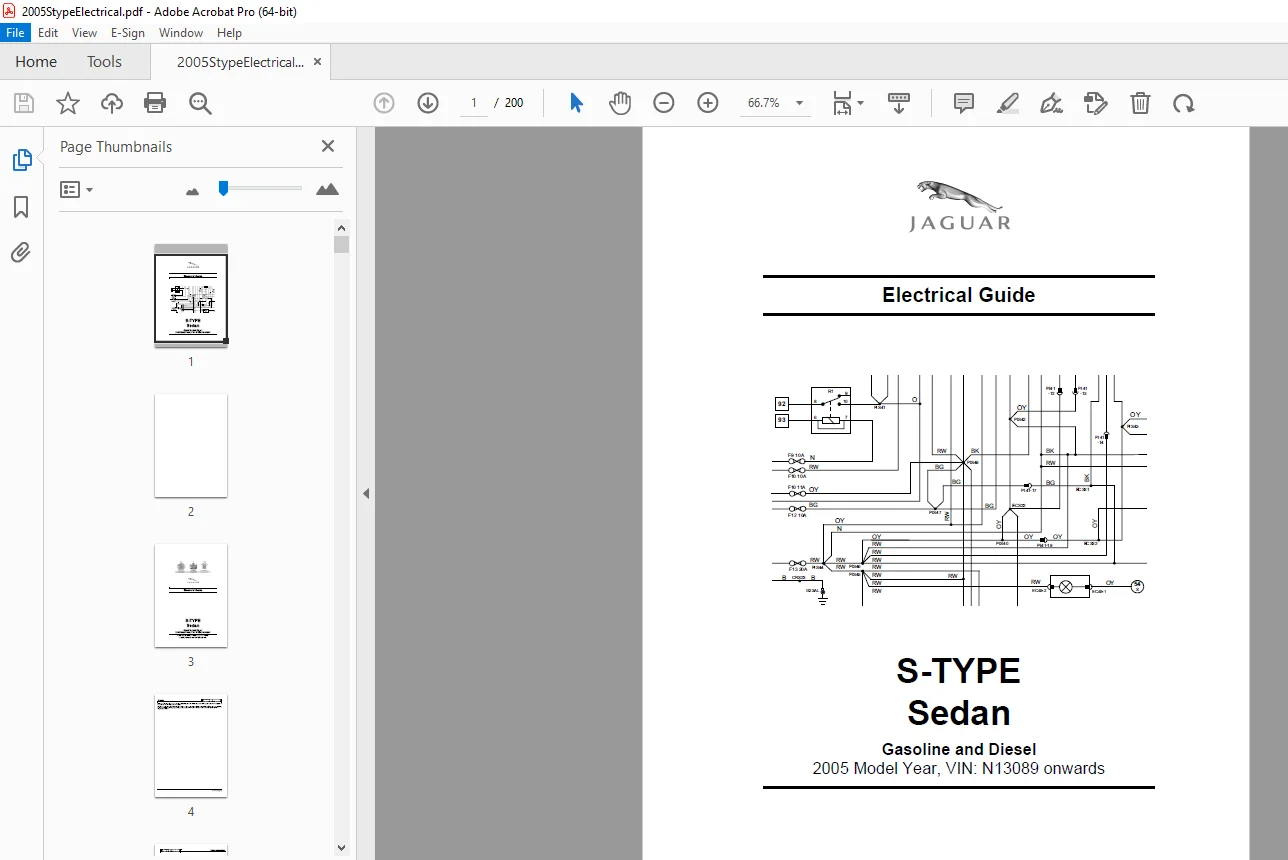

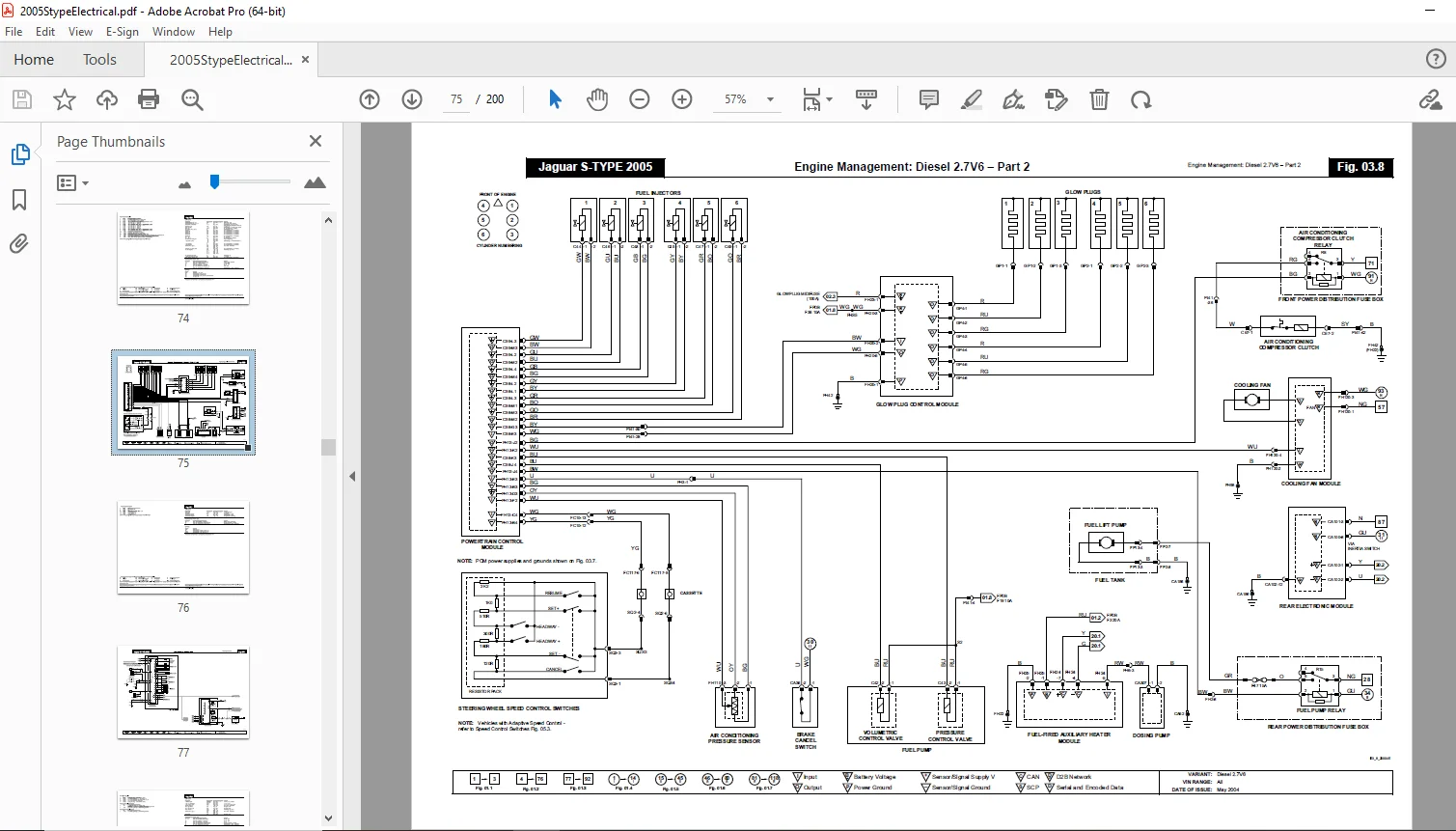

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Jaguar S-Type Gasoline & Diesel Electrical Guide Manual S.No.VIN:N13089 – PDF DOWNLOAD
Table of Contents: Figures 2
Abbreviations and Acronyms 5
Introduction 7
User Instructions 8
Symbols and Codes 10
Network Configuration 13
Fusebox Location14
Relay and Fuse Location 15
Harness In-Line Connectors16
Control Module Location 18
Ground Point Location 20
Control Module Pin Identification 21
Diesel Engine Sensors and Actuators 32
Electrical Guide Figures and Dataork Configuration. 13
Relay and Fuse Location 14
Fusebox Connectors16
Major Harnesses and Fusebox Location 17
Harness In-Line Connector Location19
Ground Point Location. 22
Control Module Location 23
Control Module Pin Identification 25
Electrical Guide Figures and Datafollows after page 32
DESCRIPTION:
Jaguar S-Type Gasoline & Diesel Electrical Guide Manual S.No.VIN:N13089 – PDF DOWNLOAD
Electrical Guide Format:
This Electrical Guide is made up of two major sections:
• the first section, at the front of the book, provides general information for and about the use of the book; model-specific information and illustrations to aid in the understanding of the electrical / electronic systems, as well as the location and identification of components.
• the second section includes the Figures, which are the basis of the book. Each Figure is identified by a Figure Number (e.g. Fig. 01.1) and Title. The page adjacent to the Figure contains data information specific to that Figure.
Electrical System Architecture:
Power Supplies The electrical system is a supply-side switched system. The ignition switch directly carries much of the ignition switched power supply load. Power supply is provided via three methods:
• Direct battery power supply;
• Ignition switched power supply;
• Switched system power supply. The ‘Switched System Power Supply’ circuit is controlled via the FEM (Front Electronic Module) and the REM (Rear Electronic Module). Refer to Fig. 01.6 for circuit activation details.
Fuse Boxes
The electrical harness incorporates two hard-wired power distribution fuse boxes:
• the Front Power Distribution Fuse Box, located in the engine compartment;
• the Rear Power Distribution Fuse Box, located in the trunk. A serviceable Primary Junction Fuse Box is located in the front right-hand foot well. All fuses and relays (except the trailer towing accessory kit) are located in the two fuse boxes.
Vehicle Networks:
Three different networks are employed:
• CAN (Controller Area Network) for high-speed power train communications;
• SCP (Standard Corporate Protocol) network for slower speed body systems communications;
• D2B (Optical) Network for very high-speed ‘real-time’ audio data transfer.
