JCB 1CX, 208S Backhoe Loader Service Manual
FILE DETAILS:
JCB 1CX, 208S Backhoe Loader Service Manual
Size: 7.07 MB
Fomat: PDF
Language: English
Brand: JCB
Type of machine: Backhoe Loader 1CX, 208s
Type of document: Service Manual
Model: 9803-8550
Page of number: 232
TABLE OF CONTENTS:
JCB 1CX, 208S Backhoe Loader Service Manual
General Information
Care & Safety
Routine Maintenance
Attachments
Body & Framework
Electrics
Controls
Hydraulics
Transmission
Brakes
Engine
DESCRIPTION:
JCB 1CX, 208S Backhoe Loader Service Manual
- This publication is designed for the benefit of JCB Distributor Service Engineers who are receiving, or have received, training by JCB Technical Training Department. These personnel should have a sound knowledge of workshop practice, safety procedures, and general techniques associated with the maintenance and repair of hydraulic earthmoving equipment. Renewal of oil seals, gaskets, etc., and any component showing obvious signs of wear or damage is expected as a matter of course.
- It is expected that components will be cleaned and lubricated where appropriate, and that any opened hose or pipe connections will be blanked to prevent excessive loss of hydraulic fluid and ingress of dirt. Finally, please remember above all else SAFETY MUST COME FIRST!
The manual is compiled in sections, the first three are numbered and contain information as follows:
1 = General Information – includes torque settings and service tools.
2 = Care & Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 = Routine Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A = Attachments
B = Body & Framework …etc.
The page numbering in each alphabetically coded section is not continuous. This allows for the insertion of new items in later issues of the manual. Section contents, technical data, circuit descriptions, operation descriptions etc are inserted at the beginning of each alphabetically coded section.

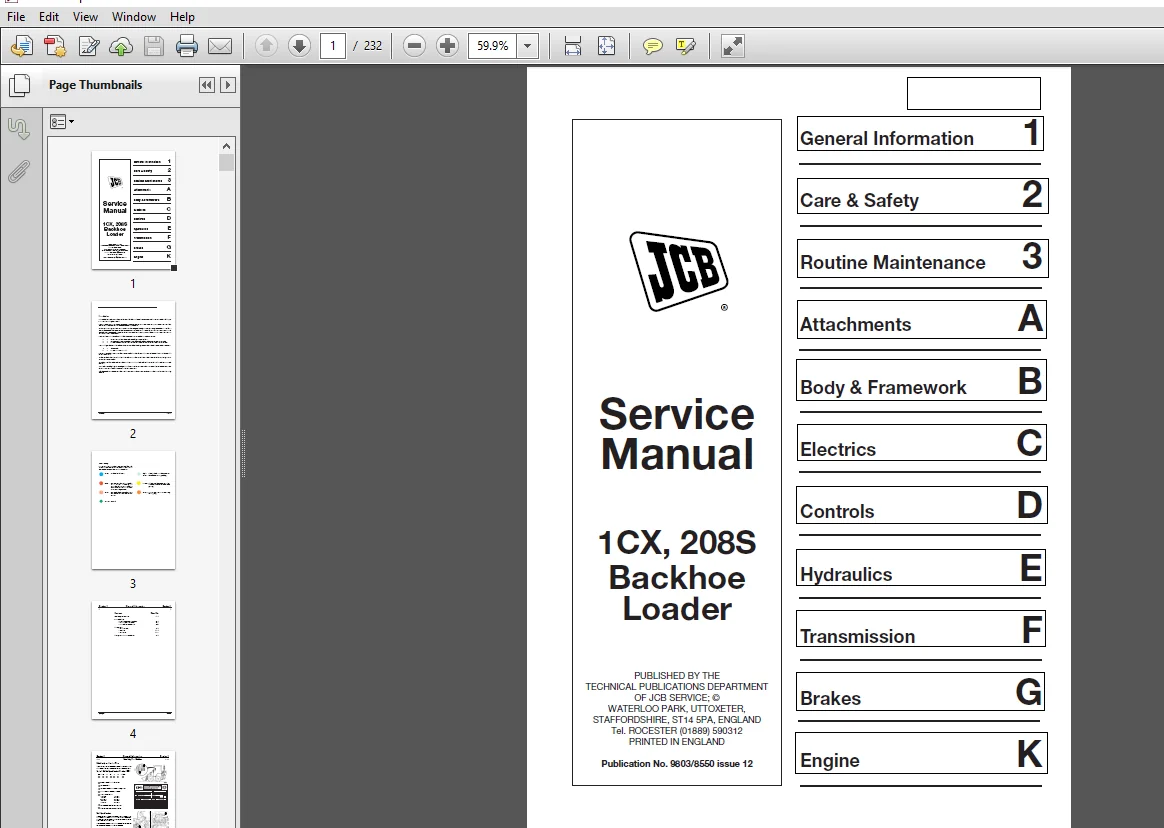

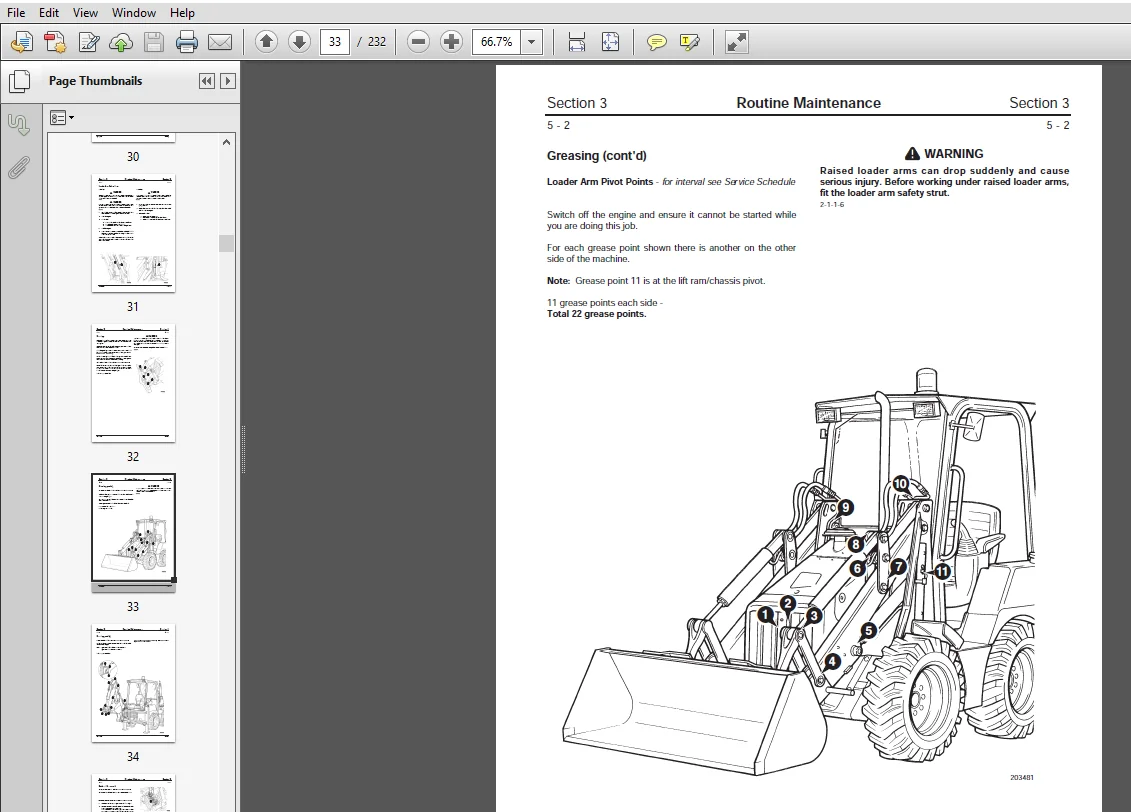

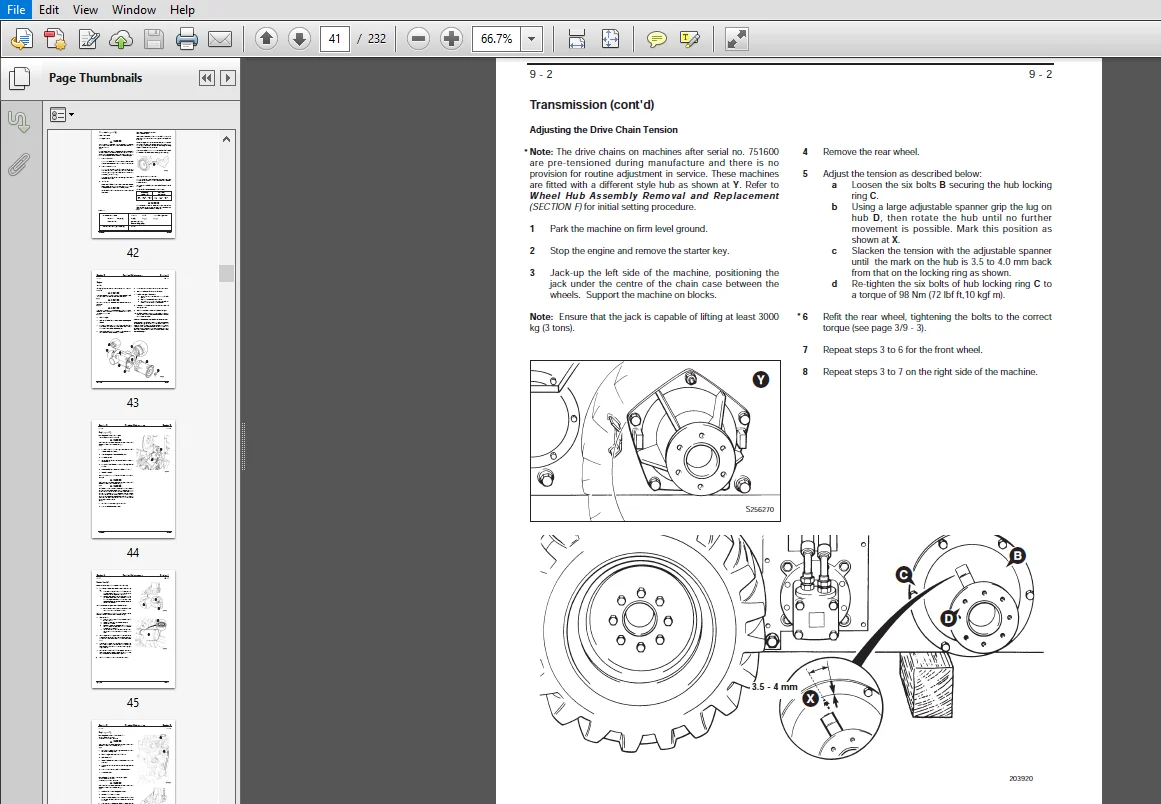

IMAGES PREVIEW OF THE MANUAL:
