JCB 3DX Commercial Engine Parts Catalogue PDF – W300 T/C Turbo Diesel Engine Parts Manual

Description

JCB 3DX Commercial Engine Parts Catalogue – Section V, Issue 6

This is the illustrated parts catalogue for the JCB 3DX commercial engine, published by JCB India Ltd. as Section V of the engine parts literature and issued at Issue 6 under document number 9800/2962P. It covers the W300 T/C turbocharged engine build, opening with the complete engine assembly (part 320/45001) and then breaking the unit down frame by frame into every serviceable component: gaskets, seals, O rings, fuel injectors, pipework, lift and injection pumps, water pump and thermostat, manifolds and turbocharger, the cylinder head and valve train, the oil system, flywheel and housing, timing gears, pistons, crankshaft and cylinder block. Every exploded illustration is ballooned with item numbers that link straight to a table giving the item number, part number, change number, description, usage code and quantity.

File Details

• Manual type: Illustrated parts catalogue
• Brand: JCB (JCB India Ltd.)
• Model: JCB 3DX commercial engine – W300 T/C turbocharged build
• Section: V – Engine Assembly
• Document number: 9800/2962P
• Issue: 6
• Language: English
• Page count: 102
• File format: PDF

Chapters Covered

The catalogue is organised into 36 indexed groups, listed here in the manual’s own wording:

• V01 Engine Assembly
• V02 Service Tools
• V03 Lubricants, Primers, Sealants
• V04 Gasket Sets
• V05 Overhaul Kits
• V06 Filter Elements
• V08 Front End Drive
• V09 Starter Motor
• V10 Alternator
• V11 Switches & Senders
• V12 Fuel Pipework
• V13 Fuel Injectors
• V14 Fuel Lift Pump
• V15 Fuel Injection Pump
• V16 Water Pump
• V17 Water Inlet
• V18 Thermostat & Housing
• V19 Rocker Cover
• V20 Valve Rocker Assembly
• V21 Valve Tappets & Push-Rods
• V22 Turbocharger
• V23 Turbo Pipework
• V25 Induction Manifold
• V26 Exhaust Manifold
• V27 Cylinder Head
• V28 Lifting Brackets
• V29 Oil Cooler
• V31 Oil Sump
• V32 Oil Pump & Oil Relief Valve
• V33 Flywheel Assembly
• V34 Flywheel Housing
• V35 Camshaft & Timing Gears
• V36 Timing Case & Covers
• V37 Piston & Con-Rod Assemblies
• V38 Crankshaft Assembly
• V39 Cylinder Block Assembly

Complete Engine, Gasket Sets and Overhaul Kits (V01, V04, V05)

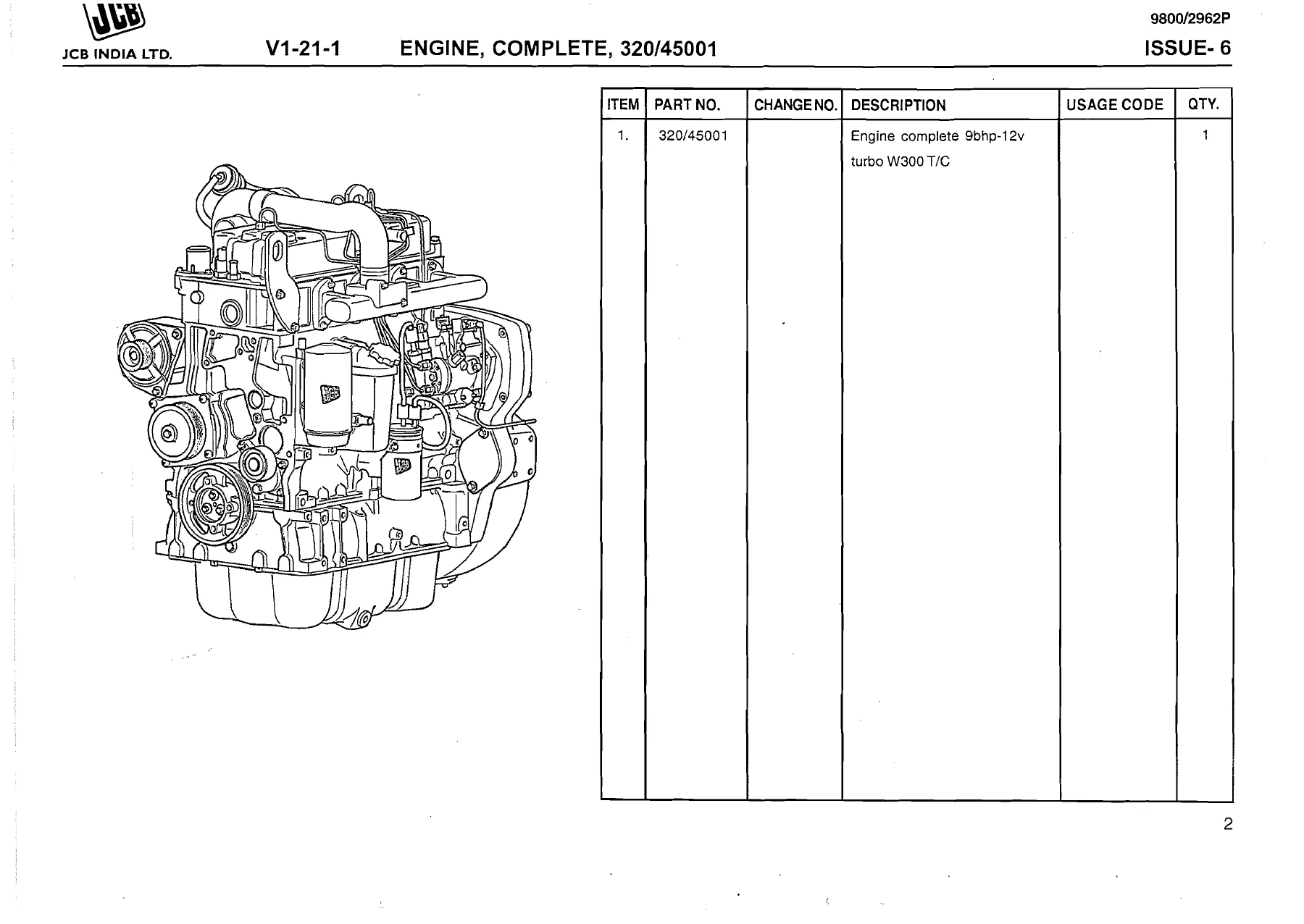

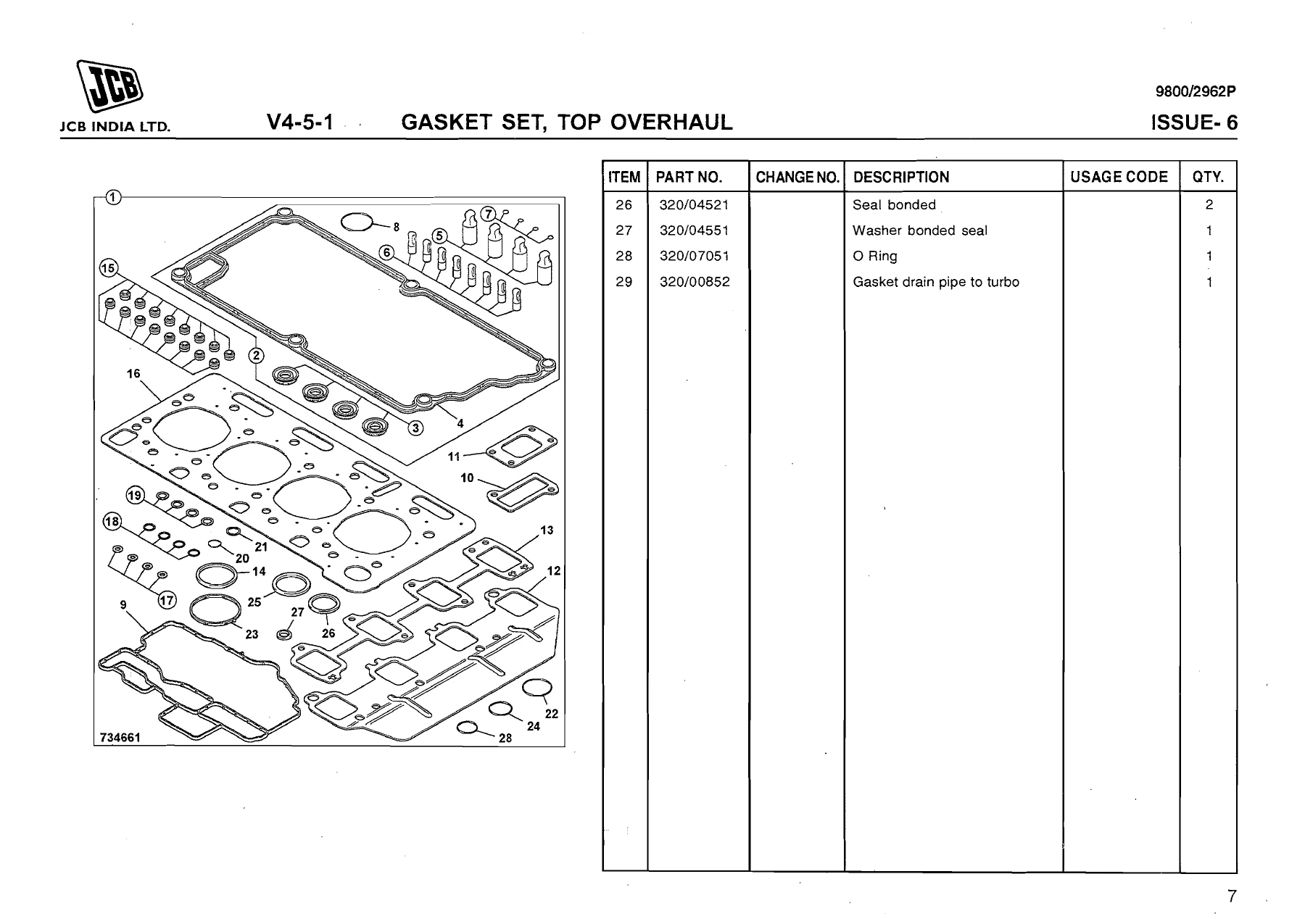

The opening frame identifies the engine complete, 320/45001, for the 12v turbo W300 T/C build. The kit frames that follow are the fastest route to a rebuild: top gasket kit for the turbo engine 320/09280, bottom gasket kit for the turbo engine 320/09281, rocker cover seal kit 320/09200 and oil pan kit 320/09219. Gasket sets cover the oil cooler cover, intake heater, single TC to manifold, heatshield, inlet manifold and cylinder head, alongside bonded seals, O rings and valve stem seals.

Service Tools, Lubricants, Primers and Sealants (V02, V03)

Service tool listings and the consumables used during assembly, including the sealants and threadlockers called out on the individual frames.

Filter Elements (V06)

Element listings, including the 5 micron fuel filter 320/07155 shown fitted with its retainer 320/04114, tension pin 2102/0407 and flange head bolt.

Front End Drive, Camshaft, Timing Gears and Timing Case (V08, V35, V36)

The front end frame covers the crankshaft pulley 320/03143 and its torx head flange bolt, plus the auto-tension adjuster 320/08584 with star drive screws. The camshaft and timing gear frame lists the camshaft assembly TC/TCA 320/03630, idler gear hub 320/05115, dowel ring 10 x 10 320/05118 and HDPTO camshaft idler gear assembly 320/05137. The timing case frame adds the casing 320/05179, blanking plugs for the idler gear and HDPTO access, O rings 320/08009 and 320/08007 and the LOCTITE 5182 sealant reference.

Starter Motor, Alternator, Switches and Senders (V09, V10, V11)

Starter motor 320/09032, 12v with earth stud, with the 12 volt solenoid switch 714/40302, sundry parts kit, brush holder assembly and brush kit. Alternator 320/08560, 12V-95AMP, with through bolt kit, alternator pulley, nut and spacer kit, regulator and brush box assembly and brush kit. The switch and sender frame maps the engine’s electrical wear items onto an engine illustration: oil pressure switch 320/04046, cold start advance switch 320/04554, coolant temperature senders, the ESOS cold start advance solenoid 716/30255 and the bonded seals that go with them.

Fuel System – Pipework, Injectors, Lift Pump and Injection Pump (V12, V13, V14, V15)

Fuel pipework is split into pipe fuel assembly No.1 & 2 (320/06551) and No.3 & 4 (320/06554) with 2-way clips, plus the lift pump to filter pipe, filter to injection pump pipe and the leak-off pipe assembly with its O rings, snap rings and pipe clips. The injector frame lists injector fuel assembly 320/06528 for 74.5Kw with injector seals, fuel injector washers, clamps and clamp bolts. The lift pump frame gives pump 320/07040, O ring 320/07051 and low pressure push rod 320/07056. The injection pump frames cover 320/06602 and the superseding 320/06738 for 68.6kW, the seal to timing case 320/06519, 65T pump gear 320/06578, M14 gear nut, mounting studs and flange nuts – followed by a detailed governor and advance cover breakdown with blanking plugs, throttle lever, return spring, leakback adapter and pipe.

Cooling – Water Pump, Water Inlet, Thermostat and Housing (V16, V17, V18)

Water pump 320/04542 with gasket 320/04510 and mounting screws, the water inlet connector assembly 320/04547 with gasket 320/04501, and the thermostat group covering housing 320/04540, thermostat assembly 320/04552 and seal C 320/04543.

Valve Train – Rocker Cover, Rocker Assembly, Tappets and Push-Rods (V19, V20, V21)

The rocker cover frame details cover assembly 320/07630, oil filler cap 128/16691 and its O ring, the CCV diaphragm valve and cover, spring and spring support plate, pan head screws, mesh filter and gauze filter cover, plus the rocker cover seal kit. Rocker assemblies appear in three variants – 320/03624, 320/03667 and 320/03649 – each listing the rocker shaft, exhaust and inlet rocker arms, spring washers, rocker pedestals, oil feed pedestals, adjusters and bridge pieces. Push rods 320/03515 and 320/03677 and valve tappets 320/03524 close the group.

Air and Exhaust – Turbocharger, Turbo Pipework, Induction and Exhaust Manifolds (V22, V23, V25, V26)

Turbocharger 320/06047 for 75kW with the wastegate hose kit 320/09050, single TC to manifold gasket 320/06053, studs and special lock nuts. Turbo pipework lists the crossover tube 320/05533 with 49.5mm x 55mm hoses and hose clamps. Induction manifold 320/05551 is shown with its gaskets and intake heater gasket; the exhaust manifold frame lists 320/06000 with heatshield gasket 320/06035 and mounting bolt. The turbo oil drain frame adds banjo bolt, sealing washers, P clip, pipe clip, oil drain adapter, drain pipe gasket and O ring.

Cylinder Head and Lifting Brackets (V27, V28)

The cylinder head frames are the deepest in the catalogue. They list head cylinder assembly 320/09246 alongside the earlier 320/09225 (superseded), valve seat inserts for inlet and exhaust, inlet and exhaust valves, valve springs, valve stem seals, spring retainers, valve cotters, injector sleeves and injector O rings, core plugs, the threadlocker and sealant references, cylinder head gasket 320/02608 with +0.25 and +0.50 oversize options, cylinder head bolts M12 x 140mm, the water outlet connector and its bonded washer, and the coolant temperature sender fitted to replacement cylinder heads. The lifting bracket frame covers bracket 320/09020, star drive screws and the front and rear lifting eye labels.

Lubrication – Oil Cooler, Oil Sump, Oil Pump and Relief Valve (V29, V31, V32)

Oil cooler assembly 320/04209 with the 6-plate element 320/04115, oil cooler cover gasket 320/04113, threaded insert, beta plugs, core plugs, O rings, drain plug and oil filler cap assembly. A second cooler frame covers the 320/04212 assembly. The sump frame lists oil sump assembly 320/04170 with oil drain plug 320/04013 and O ring 320/04050 and the oil pan kit. The lubrication group also lists the engine oil pump 320/04131 and its star drive retaining screws, together with the oil pressure switch and bonded seal used on the cooler housing.

Flywheel Assembly and Housing (V33, V34)

Flywheel assembly W300-T/convertor 320/03136 with flywheel ring gear 320/03102, T=122, and bolts M14 x 108mm. The flywheel housing frame covers housing 320/05187, dowels M10 x 25 and M12 x 25, the range of star drive and torx mounting bolts, rear oil seal 320/03029, flywheel access cover, and the F.I.P gear cover with its O ring 320/05140.

Pistons, Con-Rods, Crankshaft and Cylinder Block (V37, V38, V39)

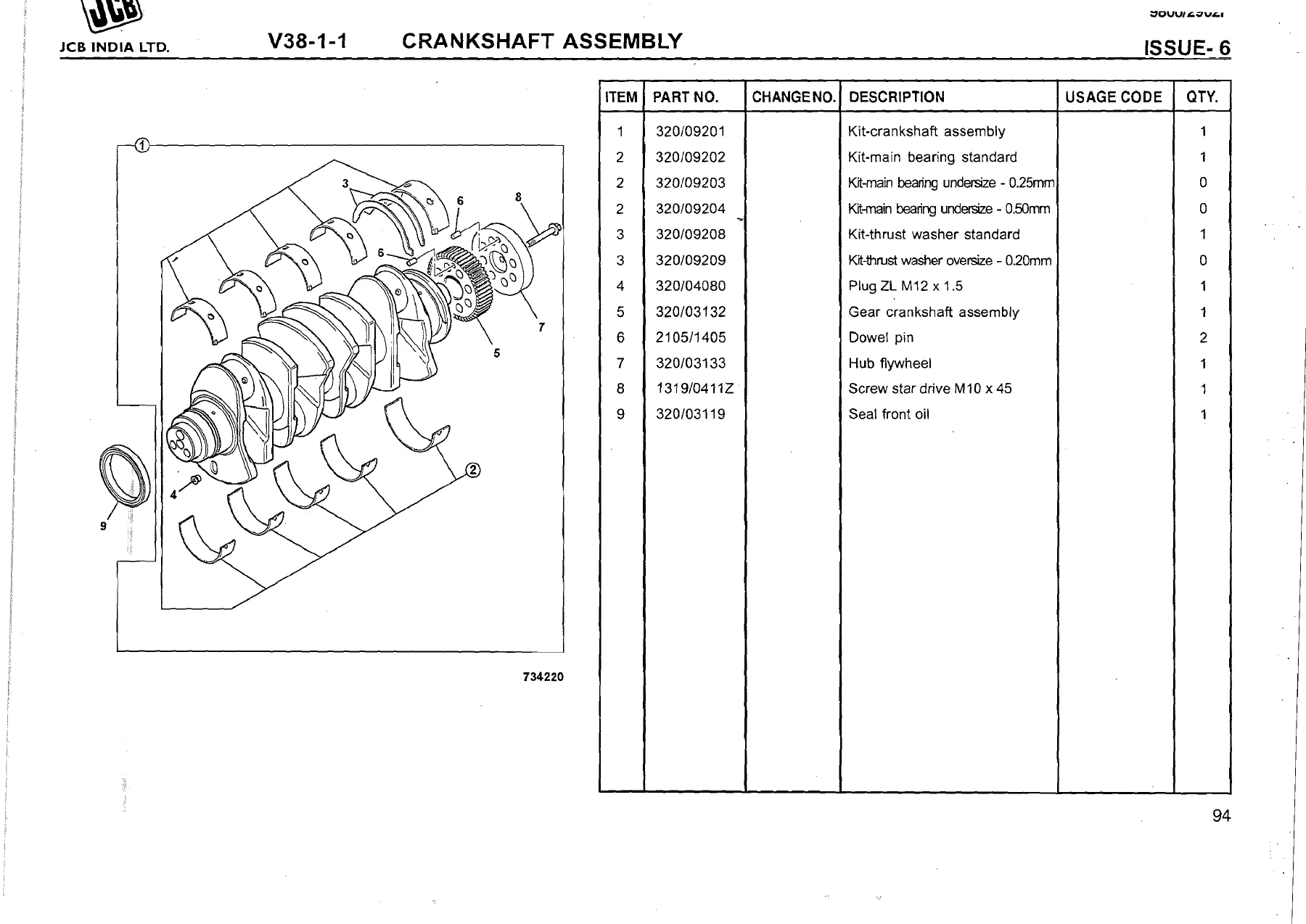

Piston kits are listed in standard turbo form (320/09211) plus oversize -0.50mm and -1.0mm variants, with circlips and matching piston ring kits. Connecting rods 320/03114 carry the small end bush, con-rod bolts M8 x 57 and big-end bearing kits in standard, -0.25mm and -0.50mm undersizes. Crankshaft kits 320/09201, 320/09244 and 320/09256 are shown with main bearing kits, thrust washers in standard and oversize, the crankshaft gear assembly, flywheel hub, dowel pins and front oil seal. The cylinder block group lists block and bedplate assemblies 320/01794 and 320/01802 for mT3 builds, with camshaft bushes, zero-leak and core plugs, dowels and dowel rings, main bearing bolts M14 x 164mm, piston cooling jets, blanking plug, cold start advance switch and O ring.

How the Frames Work

Each frame follows the same discipline. The exploded drawing carries ballooned item numbers; the table beside it repeats those numbers and gives part number, change number, description, usage code and quantity. Kit numbers and supersessions are flagged in the description column – the 320/09225 cylinder head is marked as superseded with a multi-supersession note, and unserviceable items are marked as none serviced part with a pointer to the replacement item. That structure is what makes this a working counter catalogue rather than a general overview: you trace the balloon, read the line, quote the number.

Why This JCB 3DX Engine Parts Catalogue Earns Its Place in the Workshop

Ordering the wrong gasket or a bolt of the wrong length wastes a day on a machine that should be back on site by lunchtime. This catalogue removes that risk. It supports the full range of engine work on the W300 T/C build – top and bottom end rebuilds, cylinder head replacement, injector and injection pump work, turbocharger and turbo pipework replacement, cooling system service, timing gear and front end drive assembly, oil cooler and sump work, and flywheel and housing repairs. Every part number in it comes straight from the JCB India engine parts literature, so what you read on screen is what the parts counter will recognise.

It is equally useful for a rebuild in progress and for a quick single-part order: check the drawing to see how the assembly goes together, confirm the quantity, and note the seals, clips and washers that should be replaced at the same time. The gasket and overhaul kit frames make it easy to price a complete job instead of chasing individual components. Whether you are running a JCB 3DX backhoe loader in a fleet, rebuilding a spare engine on the bench, or supplying parts over the counter, having the right frame in front of you settles the question in seconds.
