JCB 422ZX Wheel Loader Parts Catalog 9822-0520 Serial 02089665-02090665

Description

JCB 422ZX Wheel Loader Parts Catalog 9822-0520 Serial 02089665-02090665

This product catalog is the illustrated spare-parts book for the JCB 422ZX wheeled loader, issued under document number 9822/0520 and tied to machine identity band I 02089665-02090665. Each section pairs an exploded drawing with an item table that lists part number, description and quantity, so a workshop can identify a fastener, seal, hose, valve or complete assembly before ordering. The JCB 422ZX Wheel Loader Parts Catalog 9822-0520 Serial 02089665-02090665 is organised by product-structure codes (L engine, G brakes, F driveline, E hydraulics, C electrical, B bodywork and cab, A attachments) rather than by a narrative workshop procedure.

File Details

• Manual type: Product / parts catalog with exploded views
• Brand / model: JCB 422ZX wheeled loader
• Document number: 9822/0520
• Serial applicability shown: 02089665-02090665
• Language: English
• Page count: 827
• File format: PDF

Machine Identity Recorded in the Catalog

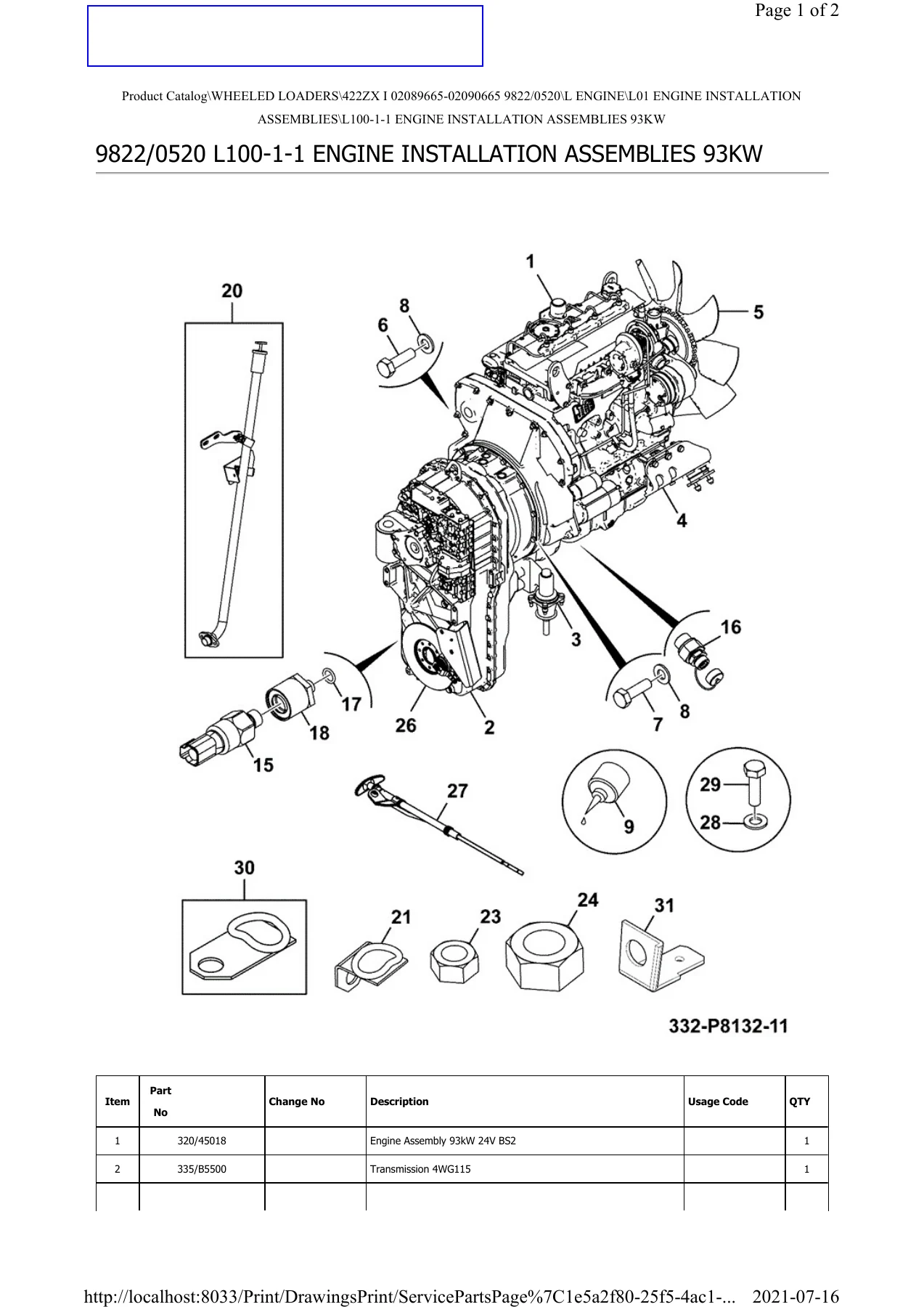

Header lines throughout the book read Product Catalog WHEELED LOADERS 422ZX I 02089665-02090665 9822/0520. The opening engine-installation plate names the power unit as Engine Assembly 93kW BS2 (part 320/49018) and the gearbox as Transmission 4WG115 (part 335/B0500). Drawing 332-P8132-11 shows that engine and transmission as a coupled installation with viscous fan, parking-brake assembly, short engine dipstick, transmission dipstick, pressure switch and oil-drain adapter. Those identities are the correct starting point when you use the JCB 422ZX Wheel Loader Parts Catalog 9822-0520 Serial 02089665-02090665 to look up a replacement.

Chapters Covered

• L100 Engine installation assemblies 93kW — engine, 4WG115 transmission, viscous fan, mounts, dipsticks, pressure switch
• L140 Engine dipstick short — dipstick tube and blade
• L190 Other engine-related parts — oil drain adaptor and M20 drain-valve plug; PTO cover plate, O-ring and flange bolts
• L200 / L220 Exhaust system installation and exhaust extension — silencer, bracket, bucket exhaust, turbo-outlet gasket, silencer stack and spreader plates
• L300 / L310 Induction system and filter details — air cleaner, precleaner, hoses, T-bolt clamps, vacuum switch 54 mBar, main and safety elements
• L600 / L610 / L620 Cooling installation — cooling pack, expansion tank, CAC pipes, water and cooler hoses, foam seals, resilient mounts
• L640 / L690 Coolant circuit hoses and cooling clamps
• L720 Front-end auxiliary drive assembly
• L820 Fuel filter sedimentor
• G100 / G190 Brake system installation and brake-charge manifold — modulation valve, brake pedal and related fittings
• F110–F190 Front axle (Brazil listing), axle arm and hub, hub assembly, differential, yoke, LSD, crown wheel and pinion
• F200–F290 Rear axle installation, rear drive, differential and cradle
• F350–F370 Propshaft installation, intermediate, front and rear shaft components
• F610–F690 Powershift transmission breakdown — torque converter, housing, output flange, gearshift switch, pressure regulator, speed transmitters, oil filter, dipstick and electrics
• F680 Park-brake caliper components
• E0 Hydraulic installation assemblies, 3 spool — pump assembly and 3-spool loader valve
• E210 Gear-pump components
• E300 Pressure-reducer valve installation
• E330 Steering valve
• E340 Servo / pilot control joystick (mechanical detent) and 3-spool servo valve components
• E410 Steer-ram details
• E415 Shovel / clam / side-tip ram details
• E510 Main hydraulic filter assembly and valve components
• D190 / D320 Joystick gaiter and steering-wheel assembly
• C100 Electrical installation — chassis front and rear electrics
• C140 / C150 / C160 Front, rear and working lamps and mountings, including RH and LH dip road-lamp components
• C180 Beacon details, flexi 12V
• C310 Instrument-panel assembly
• C330 Switches — air conditioning, front and rear worklights, auto/manual mode, headlamp, hazard warning
• C335 Interior cab lamp 24 volt
• C350 Fuses and relays — primary fusebox, secondary fusebox, 4-way fuselink box
• B130 Hydraulic-tank access cover
• B150 Fenders and tyres — front and rear fender assemblies
• B190 Other bodywork — recovery hitch, stop bump, centre-joint pivot pins and bushes
• B220–B290 Cab structure — mountings, roof, doors and mouldings, glass cassette, suspension seat, 5000 lbs seat belt, floor mats, number plate, armrest, coat hook, access plate
• B270 Cab mouldings and trim — rear, front, left-side and right-side mouldings and duct
• B500–B530 Refurbishment options, toolbox and tool kit
• B510 Machine-identification decals — English, Russian, Spanish, French and Portuguese kits plus 422ZX, ROPS/FOPS and hazard labels
• B520 Warning / information labels including external noise-level label
• B560 Fire-extinguisher assembly
• B570 Lubricants — engine oil, hydraulic oil (including JCB ISO 32 Plus), gear oil, high-pressure grease
• B590 Safety strut and first-aid kit
• A110 General-purpose shovels — 1.7 m³ without teeth, 1.9 m³ and 2.3 m³

Taken together, those groups turn the JCB 422ZX Wheel Loader Parts Catalog 9822-0520 Serial 02089665-02090665 into a map of every major hardware family on the machine. A technician looking at a leaking cooler hose, a worn hub, a 3-spool valve bank or a cracked fender can move from the drawing balloon to the part number without guessing a generic hardware size.

Engine, Cooling and Intake Hardware

Section L opens with the 93kW BS2 engine installation and then splits the supporting hardware so each kit can be ordered on its own. The short dipstick is broken into tube 320/04088 and blade 320/04249. The oil-drain assembly uses adaptor 332/L5175 and drain-valve plug 32/925428. A PTO blanking plate with O-ring and two M10 x 20 flange-reduced bolts covers the unused power-take-off face. Exhaust drawings list silencer, exhaust bracket 332/V5422, bucket exhaust 335/G1913, turbo-outlet gasket 320/06279 and, in the extension group, silencer stack 333/L5330 with M10 hardware and spreader plates.

Induction drawings 334-L5835-5 show air cleaner 332/L4608, hose 332/L3753, precleaner 332/L0109, vacuum switch 54 mBar 716/F2027 and the intake hose to the turbo. Filter detail 332-L4608-1 separates the serviceable elements: main element 580/12020 and safety element 580/12021. Cooling coverage includes the complete cooling pack 335/E5185, charge-air cooler 333/Y0643, transmission-oil cooler 335/F0961, radiator 335/F0962, hydraulic-oil cooler 335/F0963, fan cowling, fan guard, expansion tank 332/E9125 with cap 477/00223, top and side cooler foams, and the resilient mounting stack (mounts, rebound plates, M10 and M16 locknuts, M12 x 70 bolts).

Driveline, Brakes and Powershift Transmission

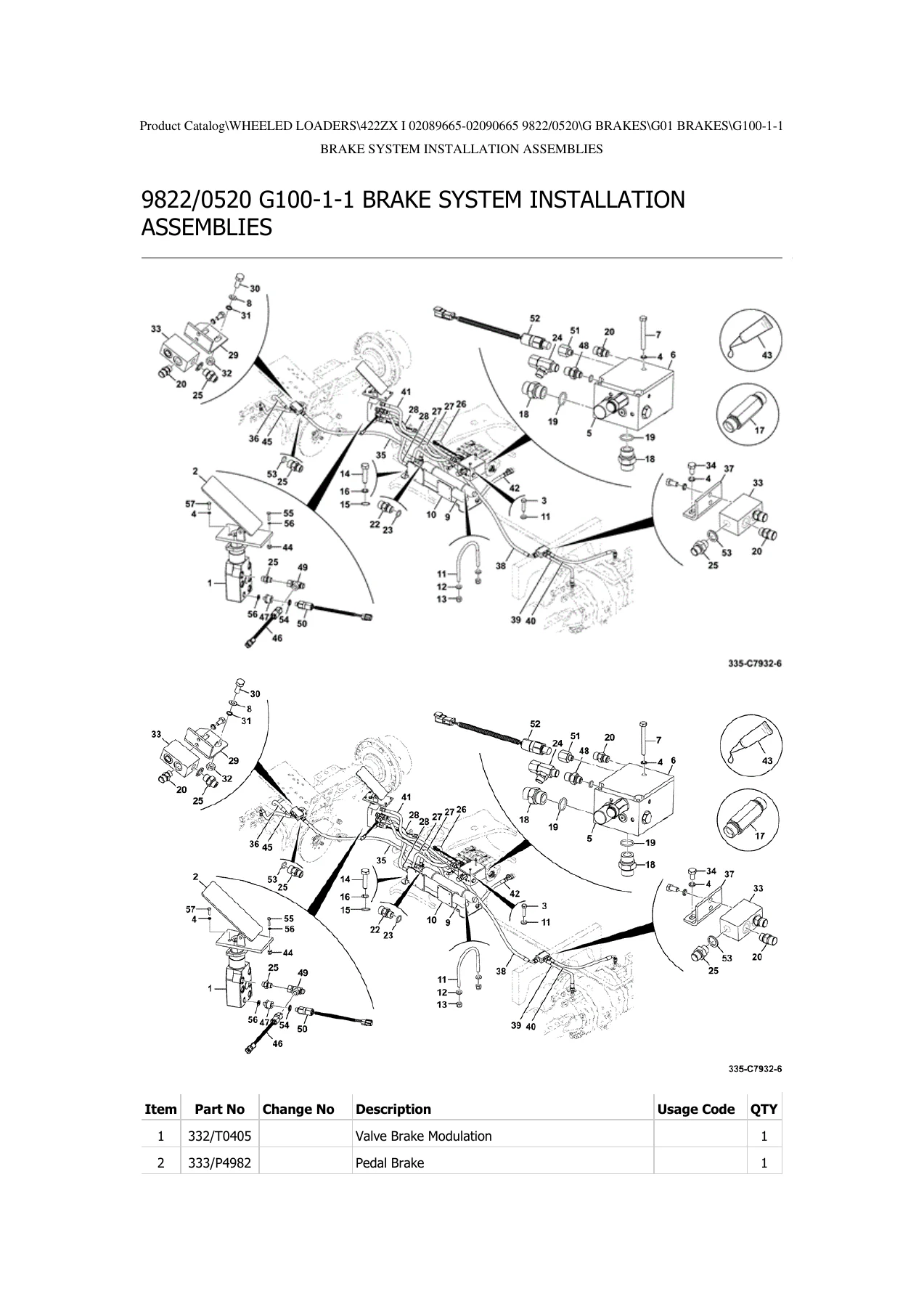

Brake installation G100-1-1 (drawing 335-C7932-6) is a dense exploded view of the service-brake circuit, beginning with brake-modulation valve 332/T0405 and brake pedal 333/P4982, plus the later brake-charge manifold group. Front-axle pages are titled for the Brazil axle listing and continue through arm and hub, hub assembly, input yoke, LSD differential and crown-wheel-and-pinion. Rear-axle pages cover the drive assembly, differential and cradle. Propshaft groups split front, rear and intermediate components, straps and support plates. Park-brake caliper parts sit in their own F680 plate.

The powershift section is one of the deepest breakdowns in the 422ZX parts catalog 9822-0520. F610 opens on the torque converter (converter item 04/600806 on drawing 205860) and then walks housing, output flange, gearshift switch, pressure regulator, speed transmitters, transmission oil filter and transmission dipstick. Those plates are what you use when a converter, regulator or speed sender has to be replaced by number rather than by a verbal description.

Hydraulics, Steering and Loader Rams

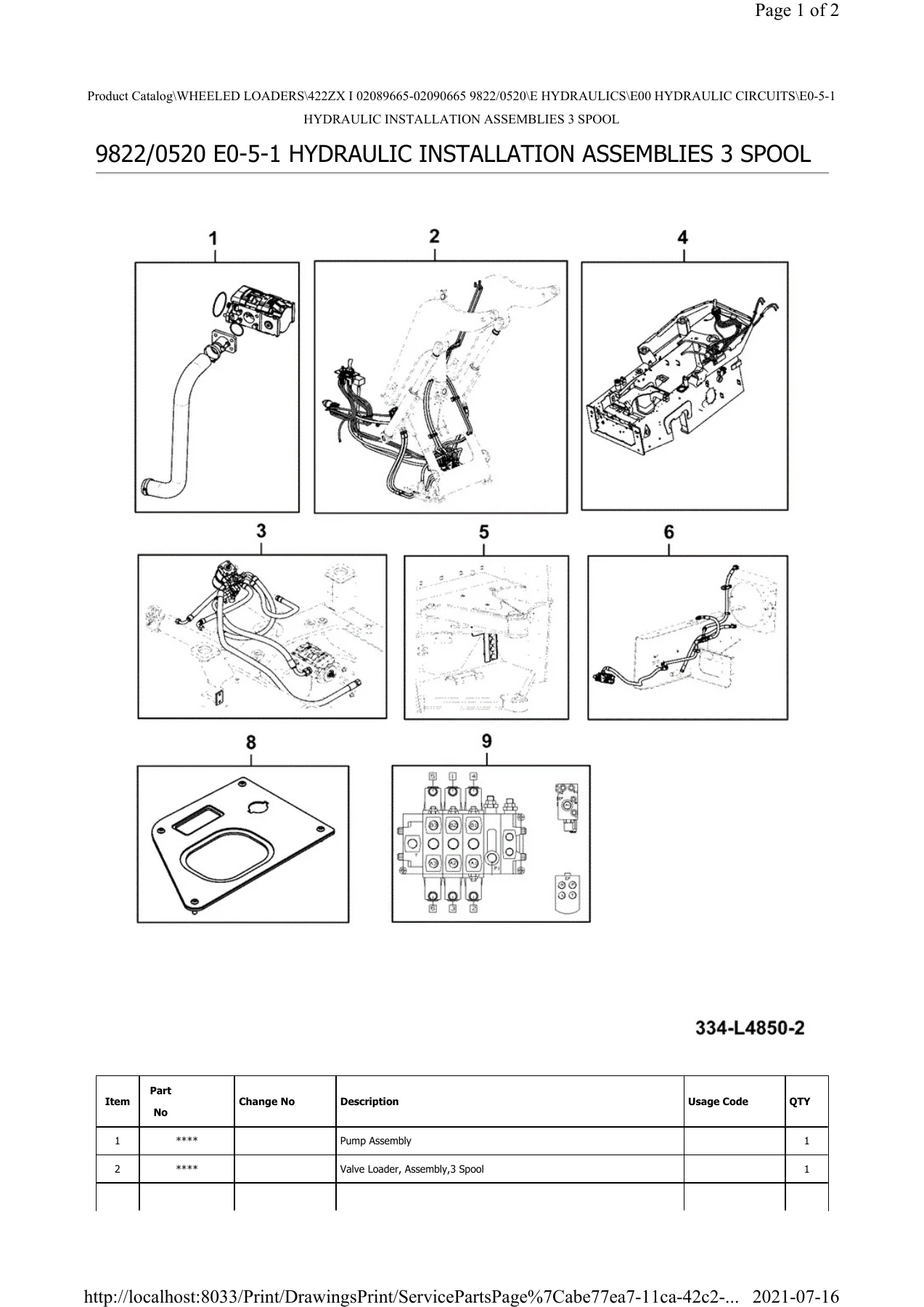

Hydraulic installation E0-5-1 (drawing 334-L4850-2) frames the machine as a 3-spool loader: pump assembly and valve loader assembly, 3 spool, with associated hose and tank views. Downstream plates cover gear-pump internals, the steering valve, the pressure-reducer valve, servo/pilot joysticks with mechanical detent, the 3-spool servo-valve components, steer-ram details and shovel (clam / side-tip) ram details including seal kits and snap rings. The main hydraulic filter is split into the filter assembly and its valve components, which is the usual path when a clogged element or filter-head part has to be isolated.

IMAGES PREVIEW

Electrical System and Operator Cab

Electrical installation C100-1-1 separates chassis-rear and chassis-front electrics. Lamp groups cover road lamps with right-hand and left-hand dip components, rear lamps, working-lamp mountings and a 12V flexi beacon. Cab electrics include the instrument-panel assembly, 24-volt interior lamp, air-conditioning switch, front and rear worklight switches, auto/manual mode switch, headlamp switch and hazard-warning switch. Fuse coverage lists the primary fusebox, secondary fusebox and a 4-way fuselink box, with 30 A fuse items appearing on the related plates.

Bodywork and cab plates run from hydraulic-tank access covers and front/rear fenders through the recovery hitch, centre-joint pivot pins and bushes, roof, door mouldings, glass cassette, suspension seat, 5000 lbs seat belt, floor mats, armrest and coat hook. Machine-identification decal kits are supplied in English, Russian, Spanish, French and Portuguese and include the 422ZX model label, JCB logo decals, ROPS and FOPS data labels, fuse-box decals and warning labels for crush, heat, pressure and entanglement hazards. Refurbishment-related pages add a toolbox, tool kit, fire extinguisher, safety strut, first-aid kit and lubricant listings that name engine oil, hydraulic oil (including JCB ISO 32 Plus), gear oil and high-pressure grease.

Loader Attachments

Attachment group A110 lists general-purpose shovels in three capacities printed on the section titles: 1.7 cubic meter without teeth, 1.9 cubic meter and 2.3 cubic meter. Use those plates when a bucket cutting edge, tooth, pin or complete shovel assembly has to be matched to the 422ZX loader end rather than to a generic bucket.

How to Read a Plate in This Book

Every illustrated page follows the same pattern. A section code such as L100-1-1 or F610-5-1 sits above an exploded drawing. Balloons on the drawing match the Item column. The table then gives Part No, Change No (often blank), Description, Usage Code and QTY. Some parent assemblies are marked **** and point you to a child plate for the breakdown. Applicability date-range lines appear on many pages but are left blank on the copy in this file, so serial band 02089665-02090665 in the running header is the applicability cue that is actually printed.

Identify the Correct JCB 422ZX Part and Order With Confidence

The JCB 422ZX Wheel Loader Parts Catalog 9822-0520 Serial 02089665-02090665 lets a technician or parts buyer confirm the 93kW BS2 engine installation, the 4WG115 transmission, axle and hub pieces, brake valves, 3-spool hydraulic assemblies, cab glass and seat hardware, lamp and fuse items, and the 1.7 / 1.9 / 2.3 m³ general-purpose shovels before a purchase is placed. Matching the balloon on the drawing to the printed part number avoids mixed fasteners, wrong filter elements and incomplete kits. Instant PDF delivery after payment means the 827-page catalog can be opened on a workshop PC, tablet or phone and printed at the bench whenever a plate is needed — no waiting on a shipped binder.
