Jcb 530b hl 525b hl Loadall Range Servo Hydraulics Manual
Original price was: $89.00.$33.95Current price is: $33.95.
LANGUAGE:ENGLISH
PAGES:42
DOWNLOADABLE:YES
FILE TYPE: PDF
Description
📘 DOCUMENT OVERVIEW
This comprehensive digital service manual supplement focuses specifically on the servo hydraulic control system for JCB Loadall telehandlers. It’s a valuable resource for professional mechanics and experienced DIY enthusiasts working on specific JCB Loadall models. The manual is designed to be used in conjunction with the JCB Loadall Service Manual 9803/3350, providing detailed instructions and diagrams for components and procedures unique to the servo-hydraulic option.
🔧 Servo Hydraulic System Deep Dive: The supplement meticulously details the servo hydraulic control system, a key optional feature enhancing the functionality of JCB Loadall telehandlers. It guides users through the intricacies of this advanced system, offering a wealth of information not found in standard service manuals.
🚜 Models Covered: This detailed supplement offers critical maintenance and repair support for the 525B-HL and 530B-HL Loadall models, starting from specific machine serial numbers (525B-HL from Machine No. 273492; 530B-HL from Machine No. 581641). This ensures the instructions are precisely tailored to the equipment in question.
⚙️ Key Sections & Procedures: The manual is structured into clear sections, covering various aspects of the servo hydraulics system. These include:
- General Information: Technical data, a general system description, and an overview of the system’s components and functionalities.
- Hydraulics: Detailed breakdowns of the proportional valve block, inlet module, main valve sections, positive load modules, electric and mechanical actuator units, dump valve assembly, and related hydraulic circuits. This section includes comprehensive step-by-step dismantling and assembly instructions, accompanied by clear diagrams and torque specifications.
- Electricals: Electrical circuit descriptions and diagrams, instructions for checking the Safe Load Indicator, and dismantling and assembly guides for cab and platform control levers.
- Fault Finding: A checklist to aid troubleshooting and problem-solving.
The manual provides extensive technical data, including pressure settings for various components, making it an indispensable tool for accurate diagnostics and repair. Detailed diagrams and exploded views facilitate component identification and assembly/disassembly procedures. The inclusion of torque specifications ensures proper tightening and prevents damage to delicate components. The fault-finding section offers a systematic approach to identifying and resolving issues with the servo hydraulic system.
❌ WHAT’S NOT INCLUDED
- Complete overhaul of the entire machine.
- Information beyond specified model numbers.
📊 RECOMMENDATION SUMMARY
| Criteria | Verdict |
|---|---|
| Technical Depth | ⭐⭐⭐⭐⭐ (comprehensive manual) |
| Ease of Use | ⭐⭐⭐⭐☆ (technical level) |
| Model Coverage | ⭐⭐⭐⭐⭐ (specific models covered) |
| Value for Technicians | ⭐⭐⭐⭐⭐ (essential resource) |
| Ideal User | Professional mechanics and experienced DIY users |
❓ FREQUENTLY ASKED QUESTIONS
What models does this manual cover?
This service manual supplement covers specific JCB Loadall models: 525B-HL (from machine number 273492 onwards) and 530B-HL (from machine number 581641 onwards).
What type of procedures are included?
The manual details procedures for dismantling and assembling various components of the servo hydraulic system, including the proportional valve block, inlet module, main valve sections, positive load modules, electric and mechanical actuator units, and dump valve. It also includes electrical circuit descriptions, Safe Load Indicator checks, and lever dismantling/assembly.
Is this suitable for DIY mechanics?
While detailed, the technical nature and depth of this manual suggest it is best suited for experienced DIY mechanics with prior hydraulic system experience. Beginners should seek professional assistance.
What format is this manual in?
This manual is in digital PDF format, easily downloadable after purchase.
Are there any language requirements?
The manual is written in English.
What other manuals should I have?
This supplement is intended to be used in conjunction with JCB Loadall Service Manual 9803/3350.
📂 PDF SNAPSHOT & USABILITY REPORT
- Overall Quality: High-quality, detailed technical information.
- Content Type: Service Manual Supplement.
- Language: English.
- Technical Level: Professional/Intermediate.
- Recommended For: Professional mechanics and experienced DIY users familiar with hydraulic systems.
- Page Count: Approximately 41 pages.
- Image Quality: Clear diagrams and illustrations.
📋 Original Product Description:
Jcb 530b hl 525b hl Loadall Range Servo Hydraulics Manual
DESCRIPTION:

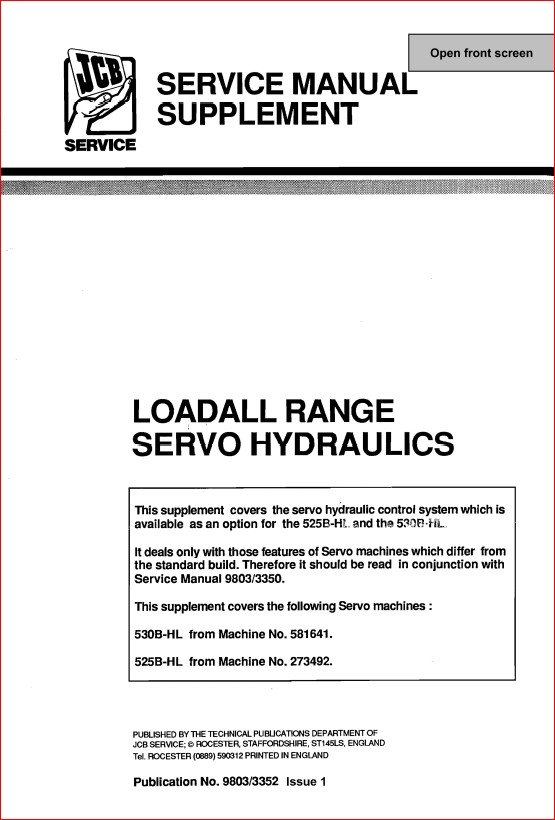

This supplement covers the servo hydraulic control system which isavailable as an option for the 525B-Ht. and the 530B HL.It deals only with those features of Servo machines which differ fromthe standard build. Therefore it should be read in conjunction withService Manual 9803/3350.
This supplement covers the following Servo machines :
- 530B-HL from Machine No. 581641.
- 525B-HL from Machine No. 273492.
CHECKING THE SAFE LOAD INDICATOR:
The Safe Load indicator on Servo machines has all the features of the one on standard machines. but it can also prevent the boom and carriage moving into an unstable condition. For ’carriage tilt forward’ the signal is cut oil immedi- ately.
so the carriage will stop pivoting instantly. For ‘boom extend’ and ‘boom Iowar’ the signals are gradu- ally reduced as the loader moves from 50% of the Sta- bility Limit up to maximum. 80 these movements of the loader will get slower as the Stability Limit ls apo proached.
TABLE OF CONTENTS:
- SECTION 1 GENERAL
- Technical data
- General description
- SECTION 2 HYDRAULICS
- Proportional valve block
- Proportional valve block dismantling and assembly
- Inlet module

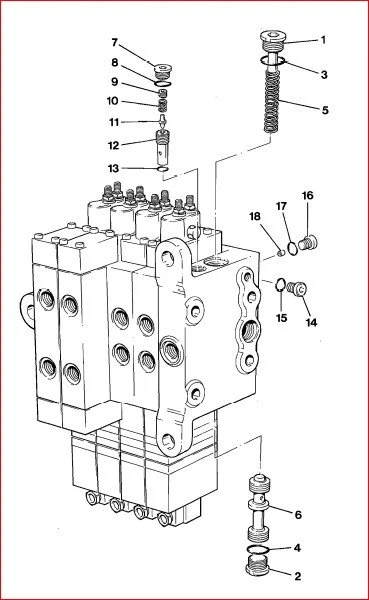

- inlet module dismantling and assembly
- Main valve section

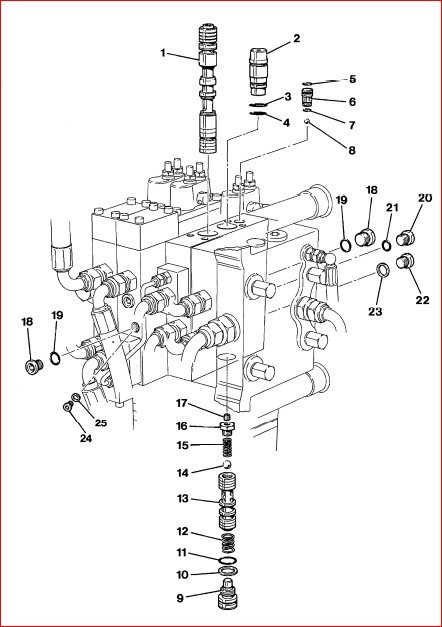

- Main valve section dismantling and assembly

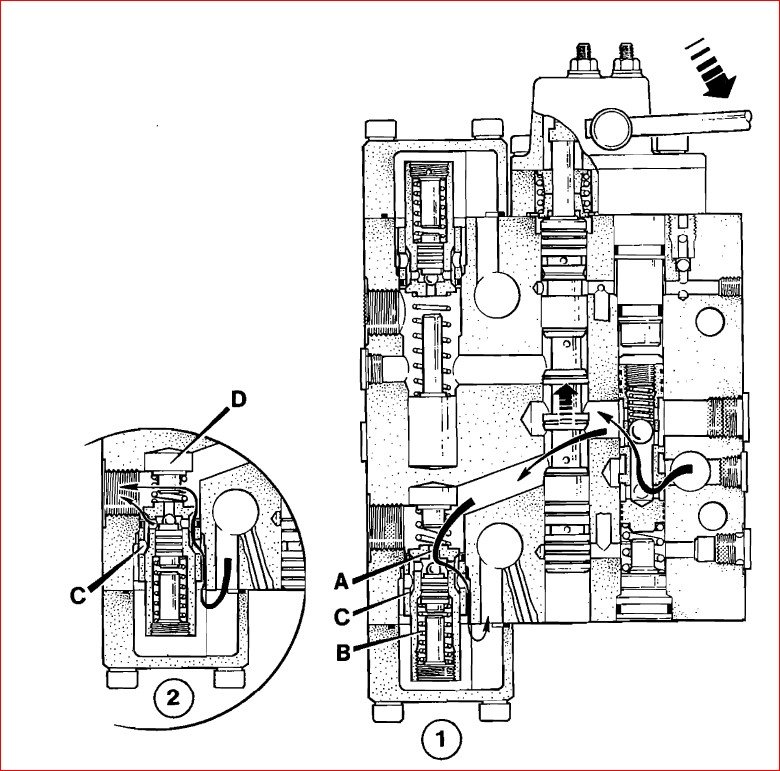

- Positive load module

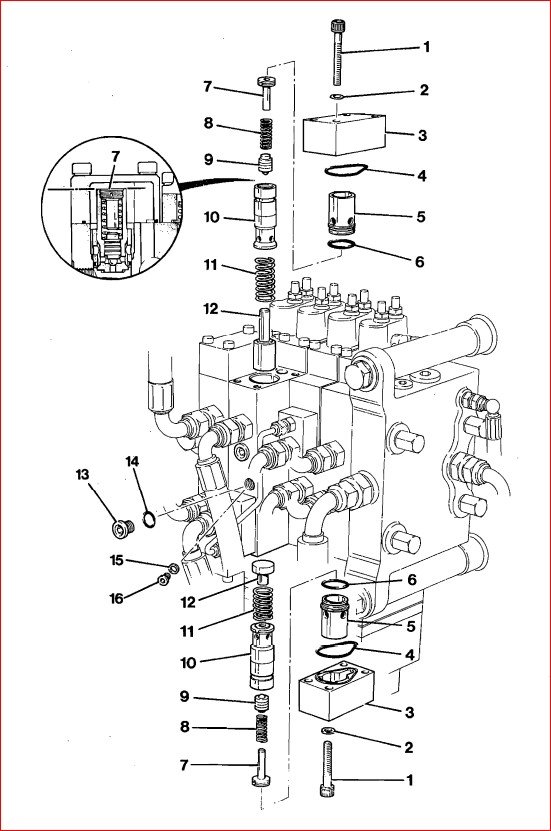

- Positive load module dismantling and assembly
- Electric actuator unit dismantling and assembly
- Mechanical actuator dismantling and assembly
- Dump valve dismantflng and assembly
- Hydraulic circuits
- SECTION 3 ELECT RICS
- Electrical circuit description
- Circuit diagram
- Checking the Sale Load indicator
- Cab control lever dismantling and assembly
- Platform control lever dismantling and assembly
