Jcb KS1 Digital Control Panel Manual

Description:

Jcb KS1 Digital Control Panel Manual

• The KS1 control panel allows the engine to be started in Manual or Automatic modes (by means of a voltage-free contact) and protects it against possible breakdowns. The management is via an electronic circuit based on a micro controller and located inside the controller.
• Features
• 1 Power supply voltage 12/24V.
• 2 Voltage-free contact start (LT).
• 3 Engine Protections:
• a Fuel Reserve
• b Battery charger Failure
• c High engine coolant temperature
• d Low Oil Pressure
• 4 Over frequency (overspeed):
• a By generator
• b By Pick-Up
• 5 Auxiliary Input with alarm LED
• 6 All outputs are short-circuit sensitive
• 7 “Quick connection” terminals
• 8 Programming by micro-switches of the following parameters:
• a Overspeed programming and activation
• b Reading of frequency by generator or Pick-up
• c Preheating time
• d Cooling time
• e Action after fuel reserve alarm f Engine Running detection through
• D+ 9 Port RJ11, which allows:
• a Advanced programming of the controller.
• b Internal tour-counter reading.
• c Alarm history files.
• d PC communication.

Table Of Contents:

Jcb KS1 Digital Control Panel Manual

KS1 Digital Control Panel
Introduction 1
Features 1
Components 2
Operation Modes 3
Data 4
Programming through Micro-Switches 5

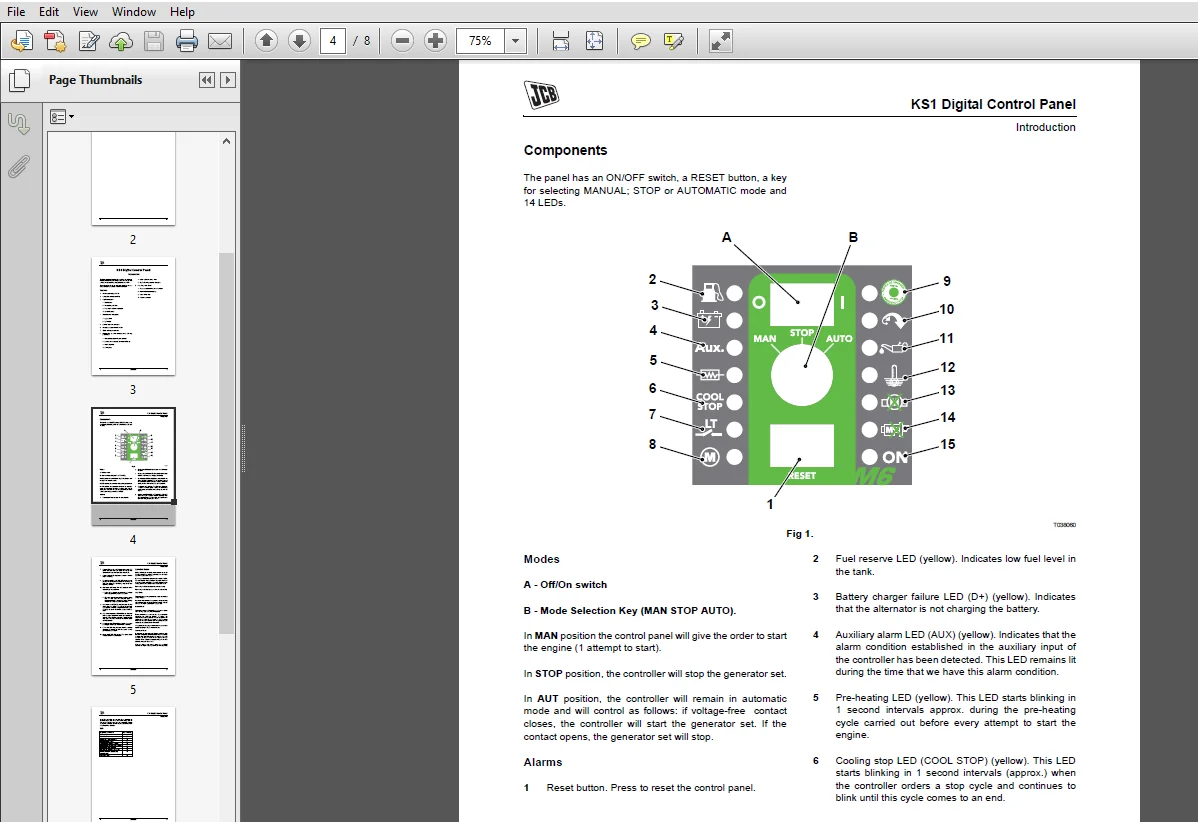

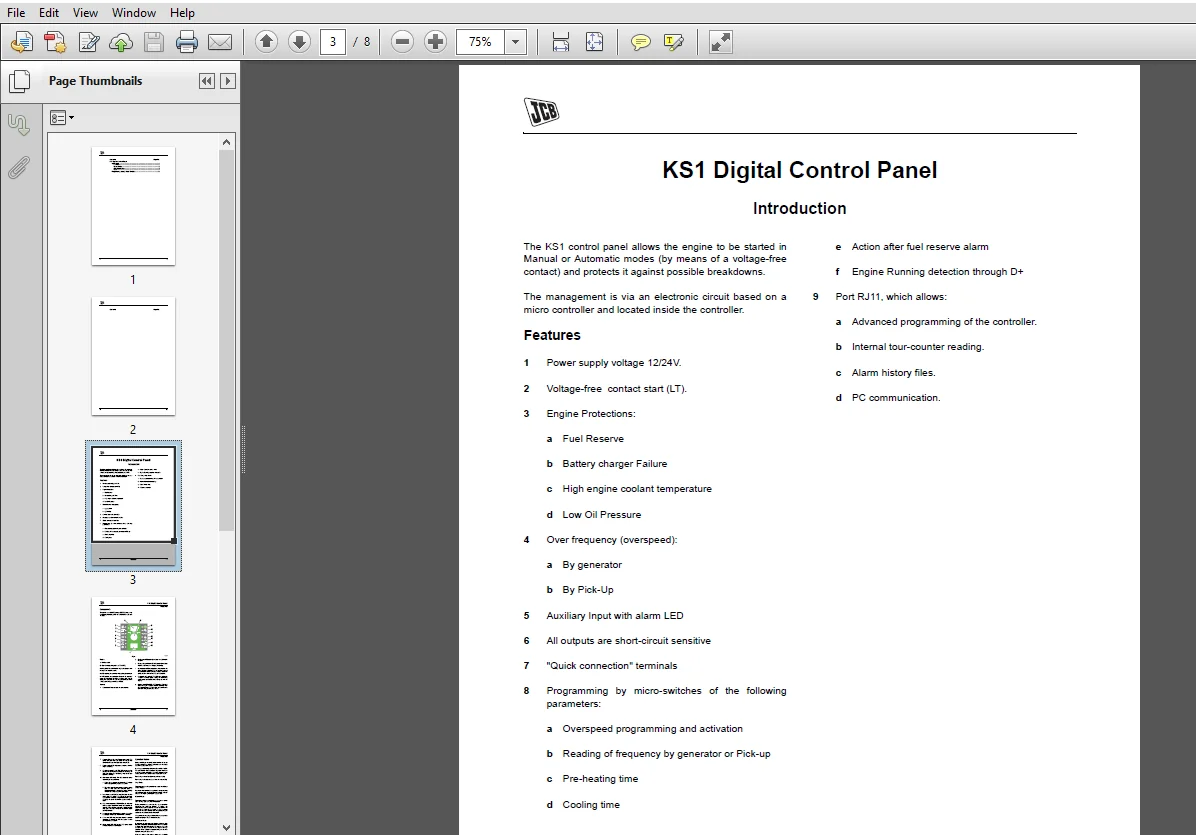

Images Preview:
