JCB TELETRUK VARIABLE REACH TRUCK TLT 30D High Lift, TLT 35D, TLT 35D 4×4 SERVICE REPAIR MANUAL

Description

JCB TELETRUK VARIABLE REACH TRUCK TLT 30D High Lift, TLT 35D, TLT 35D 4×4 SERVICE REPAIR MANUAL

File Details:

JCB TELETRUK VARIABLE REACH TRUCK TLT 30D High Lift, TLT 35D, TLT 35D 4×4 SERVICE REPAIR MANUAL

• Model: Teletruk TLT 30D, TLT 30D 4×4, TLT 30D
• Language: English
• Format PDF
• Type: Service Manual
• Publication No: 9813/2500
• JCB TLT 30D, TLT 30D 4×4, TLT 30D High Lift Teletruck Service Manual 1200 Pages

Description:

JCB TELETRUK VARIABLE REACH TRUCK TLT 30D High Lift, TLT 35D, TLT 35D 4×4 SERVICE REPAIR MANUAL

• All machinery can be hazardous. When a machine is correctly operated and maintained, it is a safe machine to work with. When it is carelessly operated or poorly maintained it can become a danger to you (the operator) and others.
• In this manual and on the machine you will find warning messages, read and understand them. They inform you of potential hazards and how to avoid them.
• If you do not fully understand the warning messages, ask your employer or JCB dealer to explain them. Safety is not just a matter of responding to the warnings.
• All the time you are working on or with the machine you must be thinking of what hazards there might be and how to avoid them. Do not work with the machine until you are sure that you can control it.
• Do not start any work until you are sure that you and those around you will be safe. If you are not sure of anything, about the machine or the work, ask someone who knows. Do not assume anything.

Table of Contents:

JCB TELETRUK VARIABLE REACH TRUCK TLT 30D High Lift, TLT 35D, TLT 35D 4×4 SERVICE REPAIR MANUAL

01 – Machine
03 – Attachments, Couplings and Load
Handling
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air-
Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
24 – Brake System
25 – Steering System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales

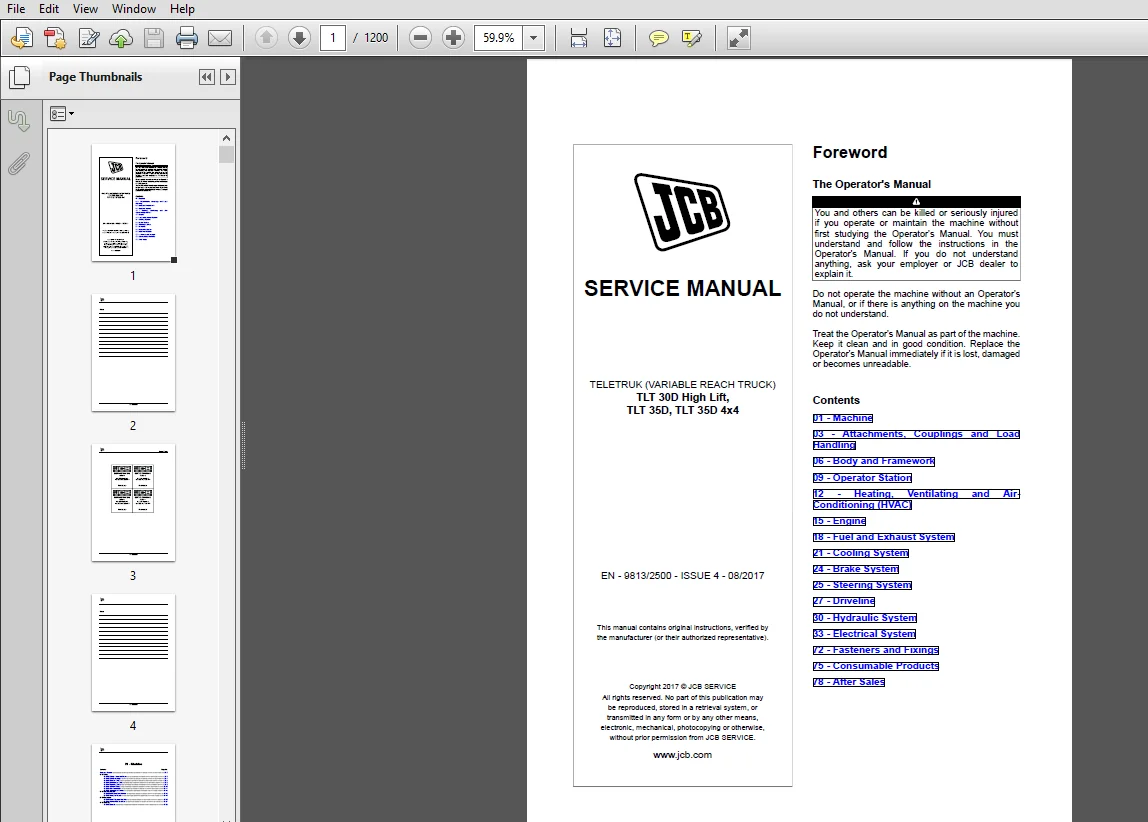

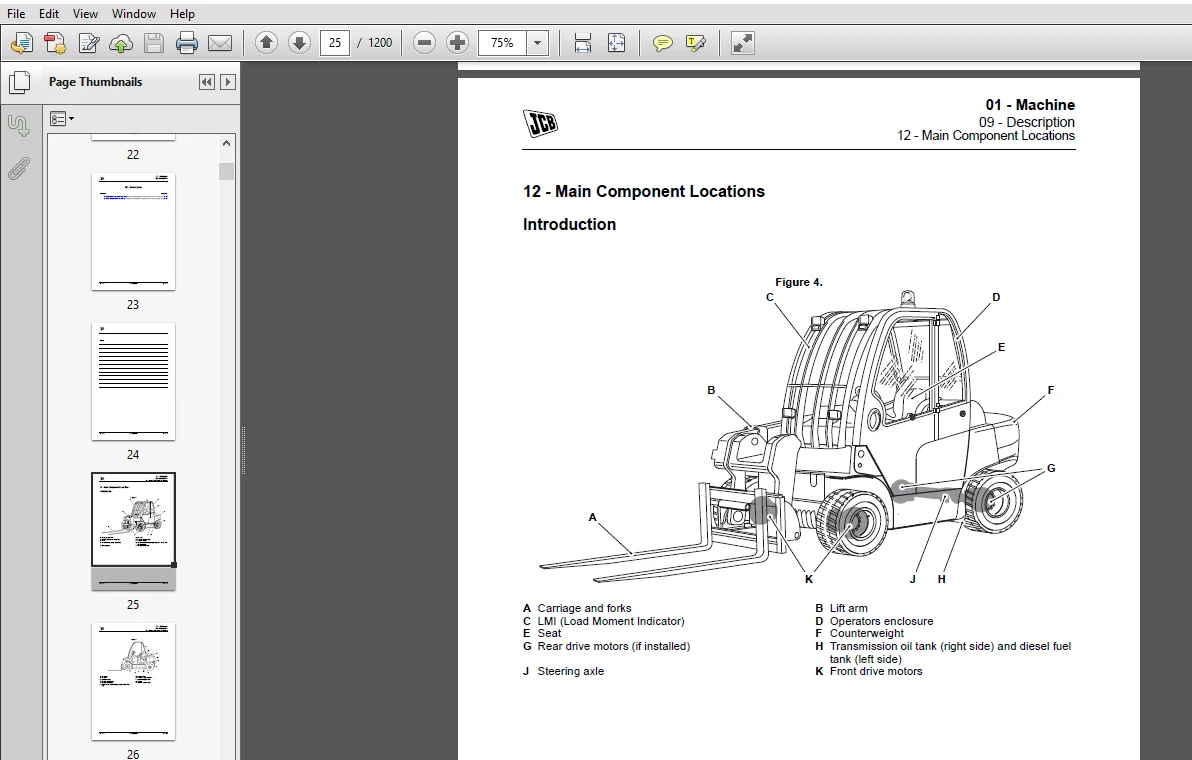

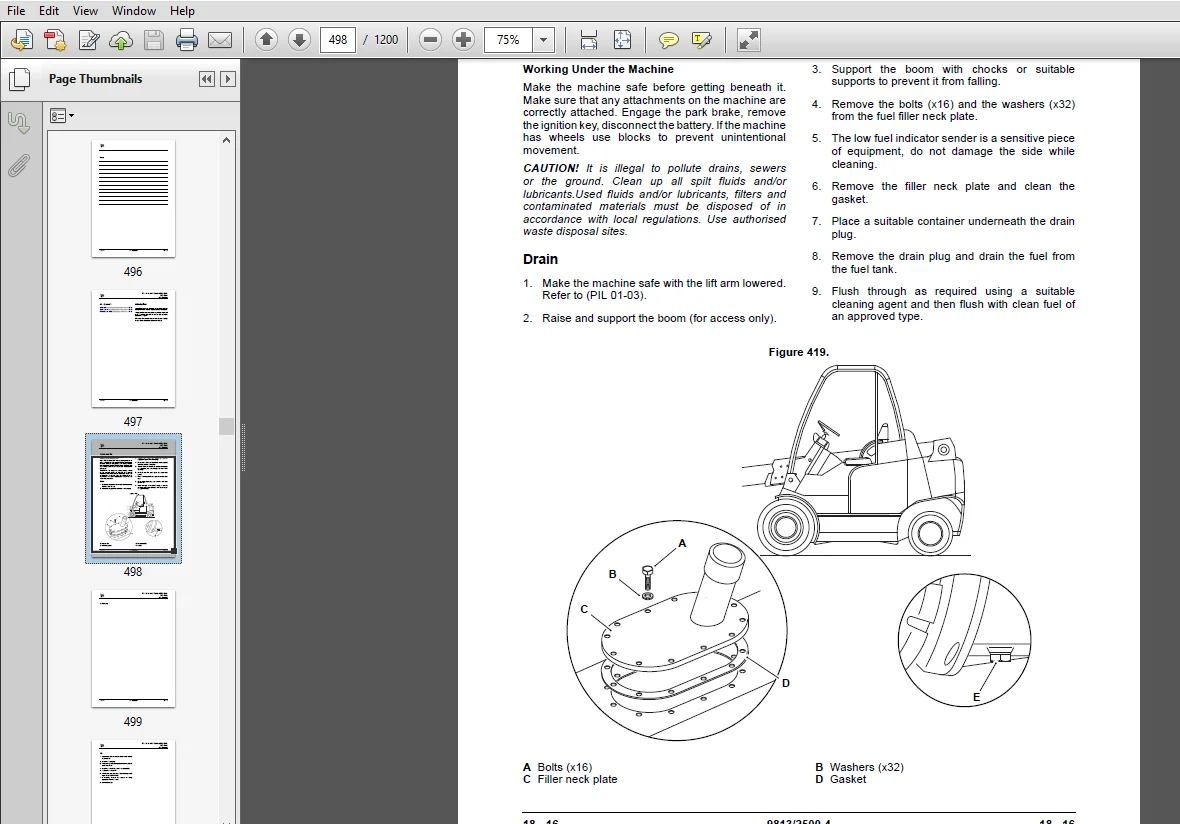

Image Preview:
