JLG 944E ZF 4WG-98 TSC Transmission Supplemental Repair Manual 8990517
Original price was: $39.95.$23.95Current price is: $23.95.
Complete transmission supplemental repair coverage for the JLG 944E, focused on the ZF 4 WG-98 TSC reversing gearbox with TB92-I4 and TB92-I3 transfer-box versions. Includes detailed disassembly and assembly procedures, clutch rebuilding and clearance adjustment, gearshift and hydraulic pressure systems, converter and PTO work, sealing procedures, torque data, pressure measuring points, oil filling volumes, special tools, and extensive illustrated repair sequences.
Description
JLG 944E ZF 4WG-98 TSC Transmission Supplemental Repair Manual 8990517
This JLG 944E ZF 4WG-98 TSC Transmission Supplemental Repair Manual 8990517 provides detailed component-level repair instructions for the transmission used with the JLG 944E. The repair material centers on the ZF 4 WG-98 TSC reversing gearbox together with the TB92-I4 and TB92-I3 transfer-box arrangements. It is structured around workshop disassembly, inspection, adjustment and reassembly, with extensive photographs, sectional drawings, tool references and measured assembly data.
The manual goes far beyond basic maintenance information. It shows how the transmission and transfer box are separated into major assemblies, how clutch packs and shafts are dismantled, how bearings and sealing rings are handled, and how the unit is rebuilt using specified clearances, installation dimensions, tightening torques and sealing compounds. For technicians dealing with internal transmission repair on the JLG 944E, this is the type of information required when the work extends beyond external servicing.
File Details
- Manual type: Transmission Supplemental Repair Manual
- Machine model: JLG 944E
- Transmission: ZF 4 WG-98 TSC
- Transfer-box versions: TB92-I4 and TB92-I3
- JLG part number: 8990517
- Component manufacturer ordering number: 5871 133 002
- Design level: 2003/03
- Edition: 2nd edition 2006/09
- Language: English
- Page count: 134 pages
- File format: PDF
Transmission Identification and Repair Data

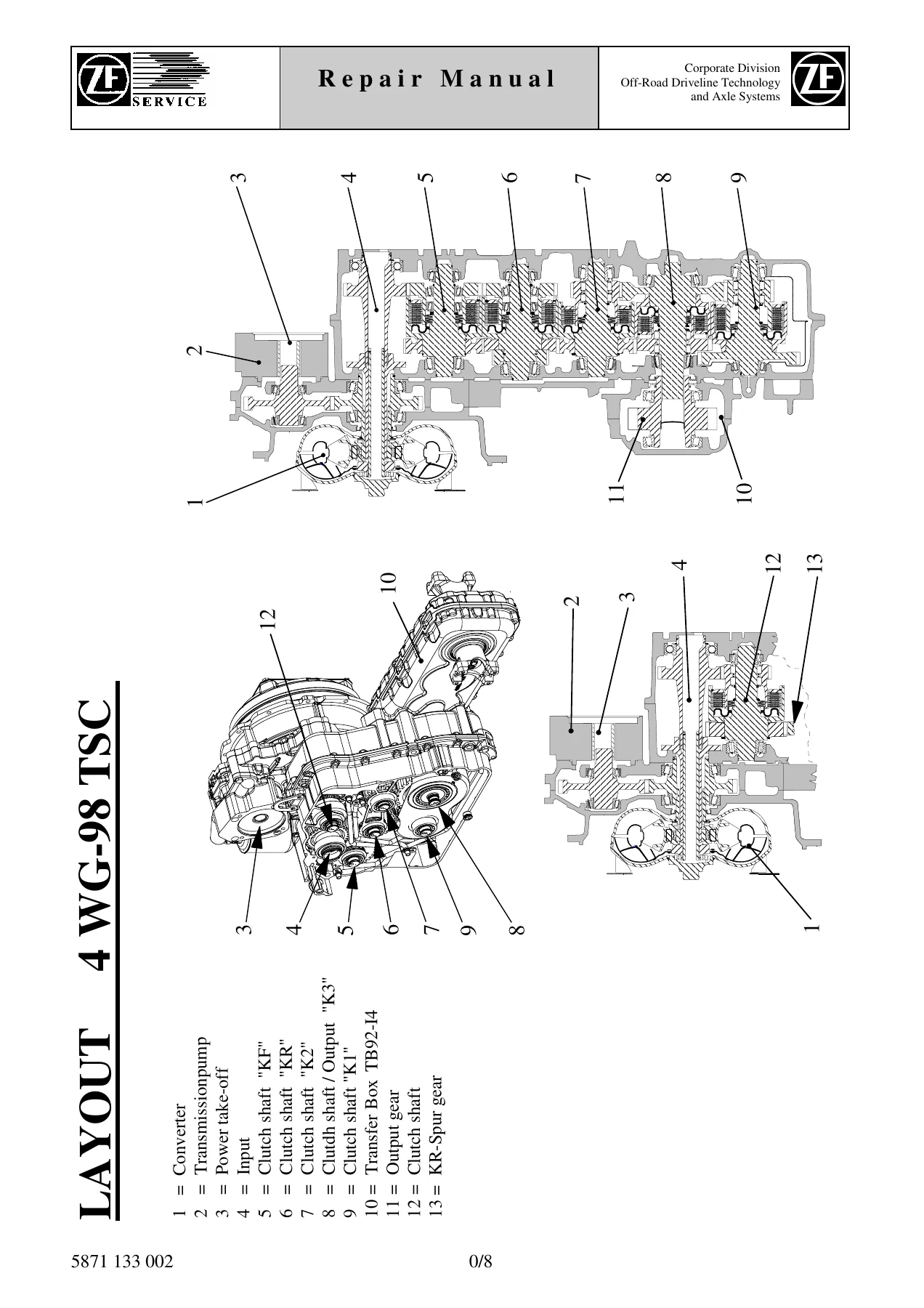

The opening technical information identifies the ZF reversing gearbox as the 4 WG-98 TSC with TB92-I4 or TB92-I3 transfer box. Layout and installation drawings identify the converter, transmission pump, power take-off, input and clutch shafts, transfer box, output gear, electro-hydraulic valve block, oil filler and dipstick, breathers and axle output flanges. The manual also explains the information shown on the transmission type plate and the identification details needed when ordering replacement parts.

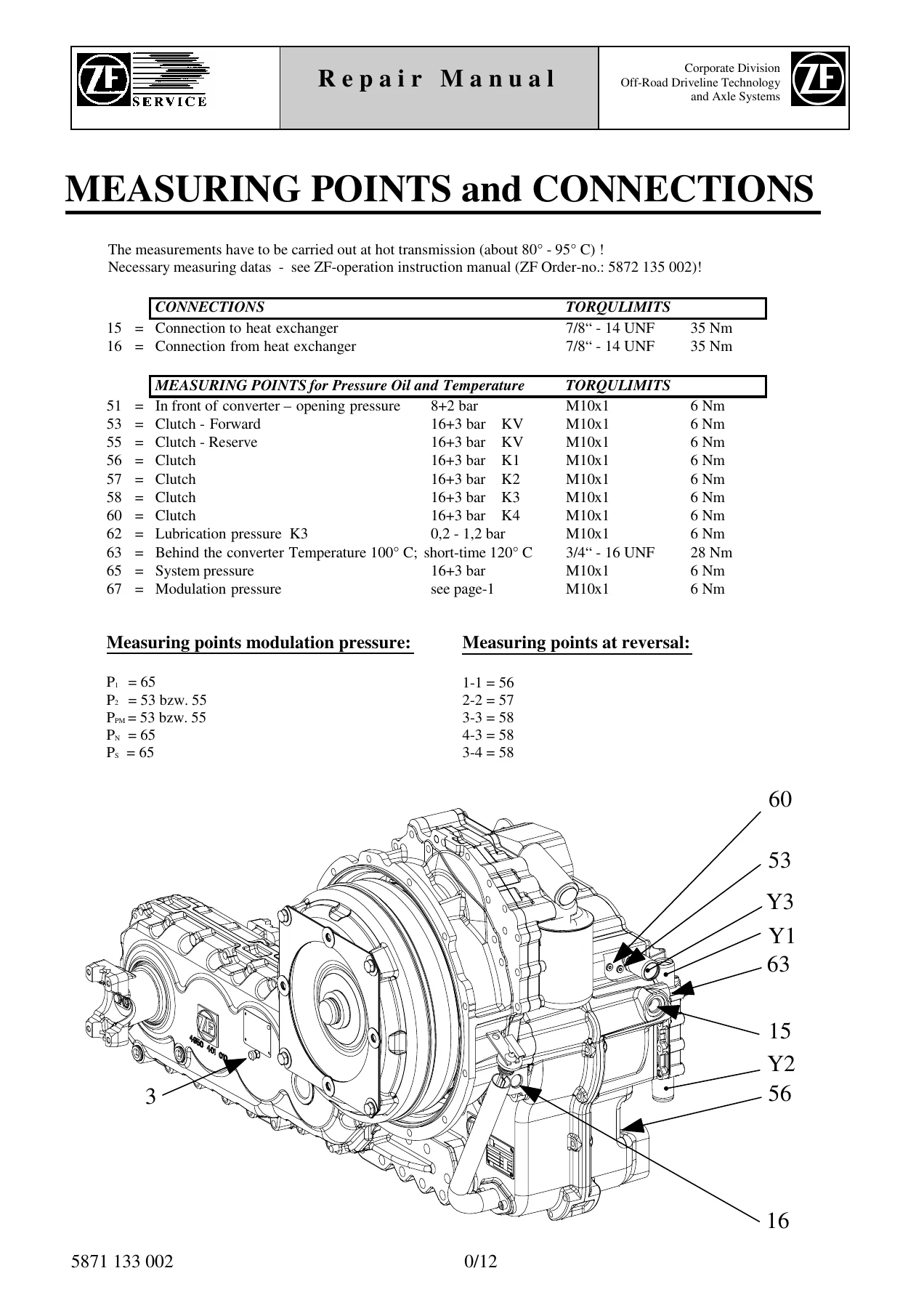

Dedicated measuring-point information gives the technician locations for pressure and temperature checks. The manual identifies converter pressure, forward and reverse clutch pressure, individual K1, K2, K3 and K4 clutch pressures, lubrication pressure, system pressure and converter outlet temperature. It specifies that pressure measurements are to be carried out with the transmission hot, around 80 to 95 degrees C. The transmission oil filling information gives approximately 11 litres for a newly filled 4 WG-98 TSC after disassembly and assembly, approximately 1.6 litres for the TB92-I4 transfer box, and approximately 1.2 litres for the TB92-I3 version.
Chapters Covered
- General repair information
- Work safety and workshop practices
- Standard dimensions and unit conversions
- Tightening torques for screws
- Type-plate identification and spare-parts references
- Gearbox design and installation views
- Measuring points and connections
- Oil quality and filling volumes
- Special tools and illustrated tool tables
- Pullers, grips and forcing tools
- Assembly carriage and lifting equipment
- Measuring and clearance-setting tools
- Seal and bearing installation supports
- Disassembly
- TB92-I4 transfer box
- ZF 4 WG-98 TSC reversing gearbox
- Gear shift control and shifting component
- Hydraulic pressure pump
- Converter
- Power take-off
- Converter safety valve
- Turbine shaft
- Clutch K4
- Clutch C.F.
- Clutch C.R.
- Clutch K3
- Clutch K1
- Clutch K2
IMAGES PREVIEW
- Assembly
- Gearbox housing Part I
- Stator shaft
- Oil tube and suction tube
- Pre-assembly of K1, K2 and K4 clutches
- Setting and checking K1, K2 and K4 disc clearance
- Pre-assembly of C.F. and C.R. clutches
- Setting and checking C.F. and C.R. disc clearance
- Pre-assembly of clutch K3
- Setting and checking K3 disc clearance
- Installation of pre-assembled clutches
- Gearbox housing Part II
- Turbine shaft installation
- Combining gearbox housing halves
- Converter safety valve
- Power take-off
- Converter installation
- Hydraulic pressure pump
- Oil filter and oil filler tube
- Gearshift system
- Shifting component
- Locking screws and oil drain plug
- Output shaft sealing ring
- TB92-I4 transfer box assembly
- Input shaft sealing ring
- Output flange and shaft sealing ring
- Oil drain and filling/control screws
- Bracket installation
- TB92-I3 transfer-box version
- Complete disassembly
- Complete assembly
- Bearing and shaft installation
- Input and output sealing arrangements
The JLG 944E ZF 4WG-98 TSC transmission repair manual follows the actual sequence of dismantling and rebuilding the unit, making it useful when internal components must be removed in a controlled order. Photographic procedures are paired with tool numbers, assembly cautions, bearing-position references and component legends so that the relationship between shafts, clutch packs, housings and hydraulic components can be followed throughout the repair.
Clutch Pack Rebuilding and Clearance Adjustment
A major portion of the manual is devoted to the transmission clutch assemblies. Separate procedures cover K1, K2, K3, K4, C.F. and C.R. clutch packs, including removal of retaining rings, disc packs, spring packs, pistons, bearings and rectangular sealing rings. Reassembly sections show piston and plate-spring installation, disc stacking, roller-cage orientation, bearing installation and final clutch placement in the transmission housing.
The repair instructions also provide actual disc-clearance requirements. K1, K2 and K4 use a specified clearance of 0.10 to 0.15 mm per friction surface, with examples showing total clearance calculations for the different clutch packs. K3 is likewise specified at 0.10 to 0.15 mm per friction surface. C.F. and C.R. clutch procedures provide their own total clearance range and show how dimensions are measured with a depth gauge and corrected by selecting the appropriate retaining or snap ring. These sections make the manual particularly valuable for rebuilding rather than simply removing and replacing complete assemblies.
Hydraulic, Gearshift, Converter and PTO Repair
The hydraulic pressure pump section covers removal, inspection and installation, including the pump wheels, O-rings and system pressure valve. The manual states that the hydraulic pressure pump is replaced as a complete unit when required and warns that the manufacturer-set system pressure valve must not be altered without approval. Gearshift coverage includes the electro-hydraulic control, solenoid valves, modulation valve, reversing valve, recoil valves and converter backpressure valve.
Converter and power take-off procedures include converter removal and installation, shaft sealing-ring replacement, converter bell work, bearing handling and PTO shaft assembly. A converter installation control measurement is provided, together with specified tightening torques and assembly precautions. The manual also contains numerous torque specifications for individual repair operations, including gearbox housings, transfer-box connections, clutch-related components, hydraulic pump mounting, valve parts, flanges, drain plugs and sealing assemblies.
Transfer Box TB92-I4 and TB92-I3
Both transfer-box configurations receive detailed coverage. The TB92-I4 section takes the unit through removal from the reversing gearbox, housing separation, shaft and bearing removal, and complete reassembly. Input and output sealing rings are installed to specified depths, output flanges are assembled with their retaining hardware, and the finished transfer box is reattached to the reversing gearbox using stated tightening values.
A separate final chapter covers the TB92-I3 version. It includes its own disassembly and assembly sequences, shaft layout, bearing positioning, housing joining, seal installation, flange work and oil drain/filling components. This is important because the manual does not treat the two transfer-box arrangements as identical in every detail.
Repair Your JLG 944E Transmission with the Correct Procedures
The JLG 944E ZF 4WG-98 TSC Transmission Supplemental Repair Manual 8990517 supports serious transmission work including complete teardown, clutch-pack rebuilding, bearing and shaft installation, hydraulic and gearshift component service, converter and PTO work, transfer-box repair, seal replacement, clearance adjustment and final assembly. Using the documented sequence, torque values, installation measurements and adjustment data helps reduce the risk of incorrect assembly and gives the technician a reliable reference throughout the job.
Your manual is supplied as an instant PDF download after payment. There is no shipping or waiting for a printed book. Open it on a computer, tablet or phone, keep it available in the workshop, and print the pages you need for the repair.
