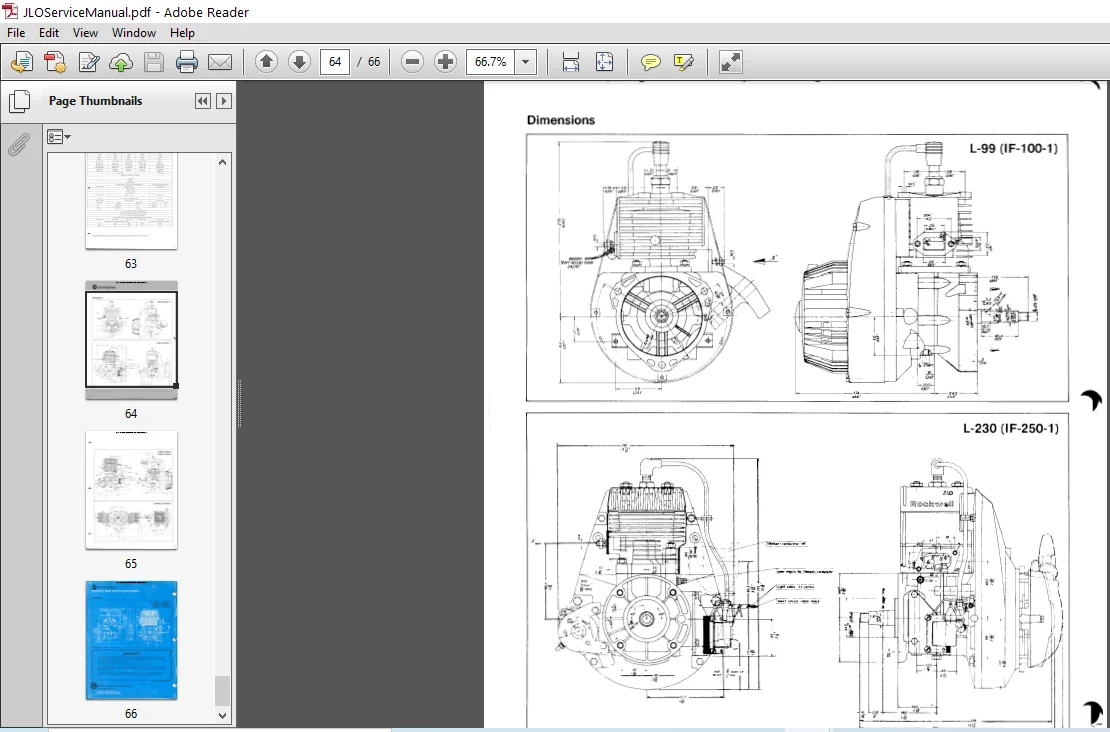

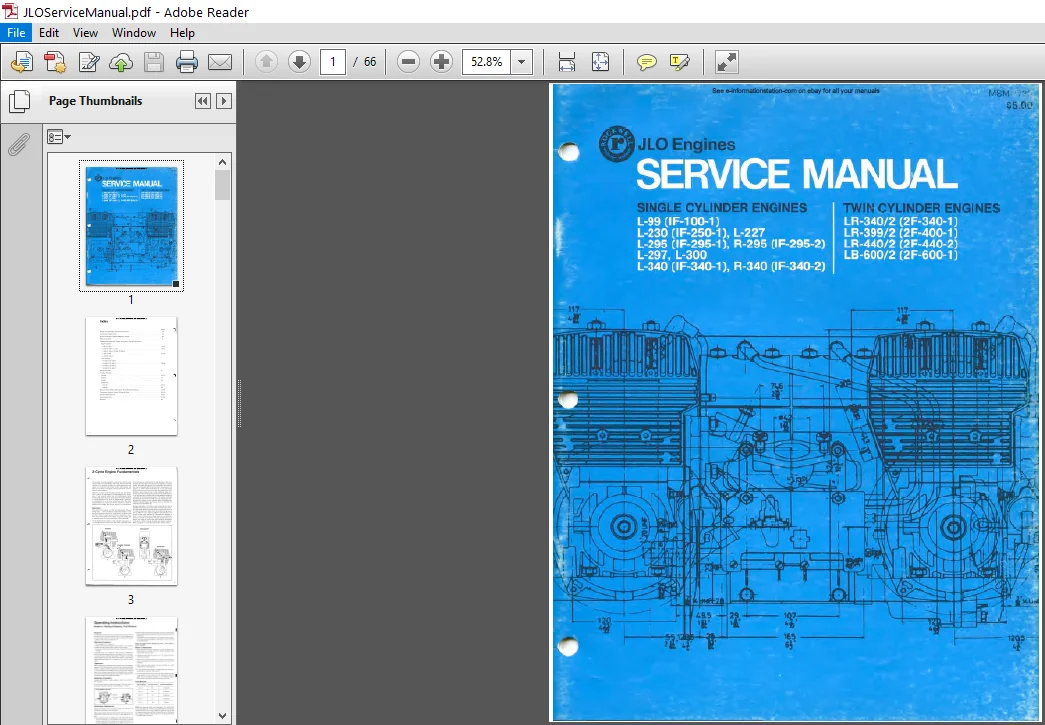

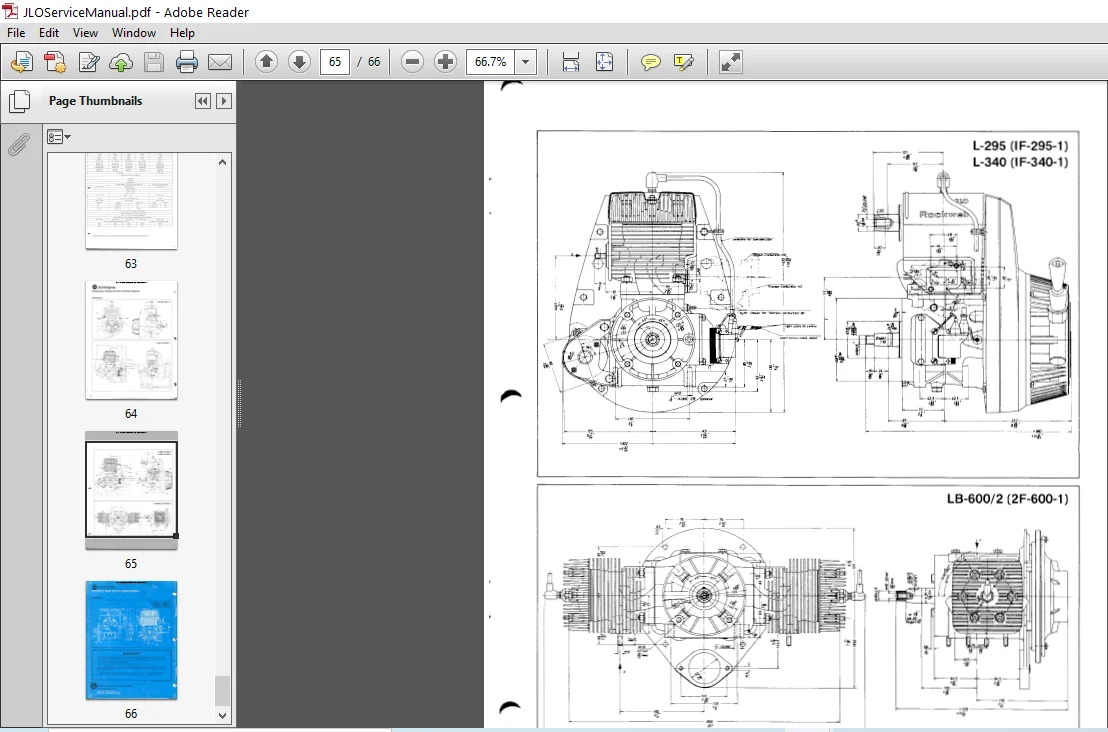

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Jlo Engine Workshop Repair Service Manual Download

Break-In
During the first few hours do not operate the engine at full throttle. Run for short periods of time at varying speeds up to 3/4 throttle. Use 16:1 mixture ratio on first tank of fuel: 2 gallons of fuel to 16 ounces of oil.
Starting Procedure
1. Turn switch to “on” position.
2. Close choke (warm engine requires little or no choking].
3. Open throttle slightly when cranking the engine.
4. As soon as the engine starts open choke and release throttle.
5. Electric start: Turn switch to “start” position. Release as soon as the engine starts (switch will remain in “on” position). Do not continue cranking the engine if it fails to start after approximately 30 seconds. Allow the starter to cool before making another attempt. If the battery is low use the recoil starter.
Operation
Before operating at full load, let engine warm up at moderate speed (1/2 to 3/4 throttle) for a few minutes. Avoid prolonged idling to prevent carbon build-up from fouling Spark plugs or cause carburetorflooding. Engines put under severe strain. as in racing. may continue running after the ignition is turned off. To stop the engine under these conditions. shut off the air supply by closing the choke. Stopping Procedure Release the throttle to allow engine to idle. Turn switch to “off” position- Do not use the choke to stop the engine. This can result in carburetor flooding. making it very diffiCUlt to restart.

TABLE OF CONTENTS:

Jlo Engine Workshop Repair Service Manual Download

Engine fundamentals operating instructions
Carburetors SparkPlugs
Ignition Systems(FIywheeIMagneto,Starter]
ExhaustSystems
Disassemny/Assembly Engine and RecoiI;Timing Instructions:
Single Cylinder
L-99(|F-100-1]
L-230(|F-250-1),L~227
L-295 (IF-2954) R-295llF-295-2)
L297L300
L-340(|F-340-2)
Twin Cylinder
LR-340/2{2F-340-1)
LR-399/2(2F-400-1)
LR-440/2(2F-440-2)
LB-600/2(2F-600-1]
WiringDiagrams
Trouble Shooting
General
Ignition
Starter
Carburetor
Service Items, Gasket Sets, Spark Plug Recommendations
Conversion Factors Tables, Reference Data
GeneralSpecifications
DimensionalData
Warranty
