John Deere 1100 Series Seed Planters 1109, 1111 & 1113 Instruction Manual KK59154 PDF

Description

John Deere 1100 Series Seed Planters 1109, 1111 & 1113 Instruction Manual KK59154 – PDF DOWNLOAD

FILE DETAILS:

John Deere 1100 Series Seed Planters 1109, 1111 & 1113 Instruction Manual KK59154 – PDF DOWNLOAD

Language : English
Pages : 52
Downloadable : Yes
File Type : PDF

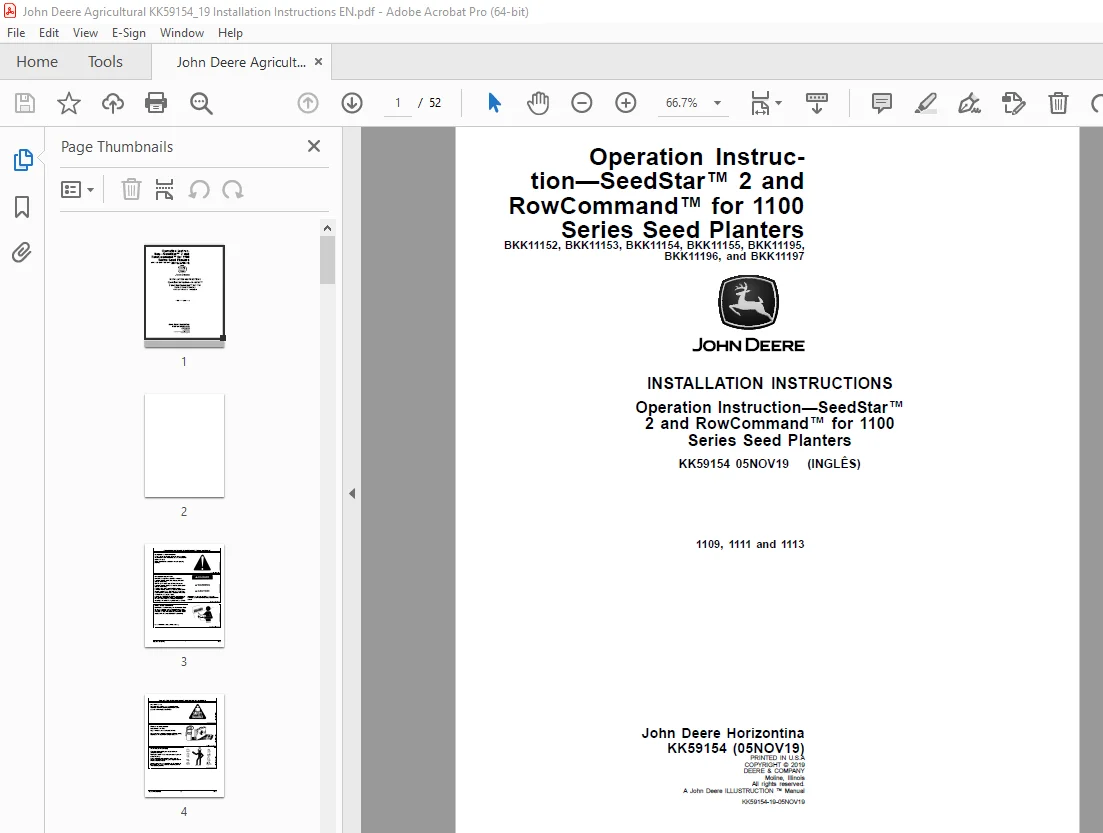

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 1100 Series Seed Planters 1109, 1111 & 1113 Instruction Manual KK59154 – PDF DOWNLOAD

Operation Instruction— SeedStar™ 2 and RowCommand™ for 1100 Series Seed Planters BKK11152, BKK11153, BKK11154, BKK11155, BKK11195, BKK11196, and BKK11197

Contents 1
Recognize Safety Information 3
Understand Signal Words 3
Follow Safety Instructions 3
Live With Safety 3
Prepare for Emergencies 4
Wear Protective Clothing 4
Prepare the Planter for Coupling 4
Attach the Warning Light Harness 5
Connect SeedStar™ Monitor Harness 6
Coupling Planter 6
Frame Set up Screen 8
Set up the Row Type 8
Set Up the Number of Rows 9
Setting Up the Row Spacing 9
Enabling/Disabling Acoustic Warning of Clutches (RowCommand Planters Only)10
Sensor Setup Screen11
Switching Seed Sensors ON/OFF11
Calibrate the Height Sensor12
Set Up Tractor Ground Speed13
Drive Setup Screen14
Configuring the Drives—Seeds15
Setting Up Drive Sections16
Planting Overlay Due to Failures19
Seed Rate Setup20
Readings Screen21
Hardware/Software Information21
Sensor Status22
System Voltages23
Status of Electronic Power Modules (EPM)23
Tests Screen24
Seed Tubes Sensors Test24
Seed Drop Test25
Timed Seed Drop Test26
Test of Row Clutches (RowCommand Planters Only)26
Self Test of Row Clutches (RowCommand Planters Only)27
Totals Screen27
Totals—Calculator28
Remap Connectors29
Change the Transmission Rate—Seed and Fertilizer32
Seed Rates Using Mechanical Seed Meters—Disks with 20, 22 and 24 Holes33
Seed Rates Using Mechanical Seed Meters—Disks with 28, 30 and 38 Holes33
Seed Rates Using Mechanical Seed Meters—Disks with 40, 41 and 45 Holes34
Seed Rates Using Mechanical Seed Meters—Disks with 50, 52 and 62 Holes35
Seed Rates Using Mechanical Seed Meters—Disks with 64, 66 and 72 Holes36
Seed Rates Using Mechanical Seed Meters—Disks with 76, 78 and 80 Holes37
Seed Rates Using Mechanical Seed Meters—Disks with 86, 90 and 100 Holes38
Seed Rates with Vacuum Seed Meters—Intake 19 x 1939
Seed Rates with Vacuum Seed Meters—Intake 19 x 1940
Seed Rates with Vacuum Seed Meters—Intake 19 x 1941
Seed Rates with Vacuum Seed Meters—Intake 19 x 1942
Seed Rates with Vacuum Seed Meters—Intake 19 x 3043
Seed Rates with Vacuum Seed Meters—Intake 19 x 3044
Seed Rates with Vacuum Seed Meters—Intake 19 x 3045
Seed Rates with Vacuum Seed Meters—Intake 19 x 3046
Checking Fertilizer Rate47
Fertilizer Rates — 1- Inch Pitch Spring (254 mm) (kg/ha)Input 19 – 1948
Fertilizer Rates — 1-Inch Pitch Spring (254 mm) (kg/ha)Input 19 – 3049
Fertilizer Rates — 2-Inch Pitch Spring (508 mm) (kg/ha)Input 19 – 1950
Fertilizer Rates — 2-Inch Pitch Spring (508 mm) (kg/ha)Input 19 – 3051
