John Deere 3010 Series Wheel Tractor Parts Catalog PC736 1967 PDF

Description

John Deere 3010 Series Wheel Tractor Parts Catalog PC736 (1967)

This is the complete parts catalog for the John Deere 3010 Series Wheel Tractor, published under document number PC736 on June 1, 1967. It is the reference book a parts counter or workshop uses to identify, order, and replace every component on the 3010 Series Wheel Tractor — from engine internals and hydraulic system components to sheet metal, electrical parts, and decals. Every section carries exploded-view illustrations keyed to part numbers, so you can visually match what you are looking at on the machine to the exact part number you need to order. This John Deere 3010 Series Wheel Tractor parts catalog is an essential resource for anyone maintaining, restoring, or repairing these tractors.

File Details

• Manual type: Parts Catalog
• Brand: John Deere
• Model: 3010 Series Wheel Tractor
• Document number: PC736
• Publication date: June 1, 1967 (01JUN67)
• Language: English
• Page count: 224 pages
• File format: PDF

Chapters Covered

• General Information
• Engine
• Engine Accessories
• Cooling System
• Fuel System
• Drive Clutches and Controls
• Transmission and PTO
• Final Drive
• Steering
• Frame
• Hydraulic System
• 3-Point Hitch and Drawbar
• Front Axle and Wheels
• Rear Wheels
• Brakes
• Sheet Metal and Miscellaneous
• Electrical System
• Gasket Sets, Decals and Radio
• Numerical Index

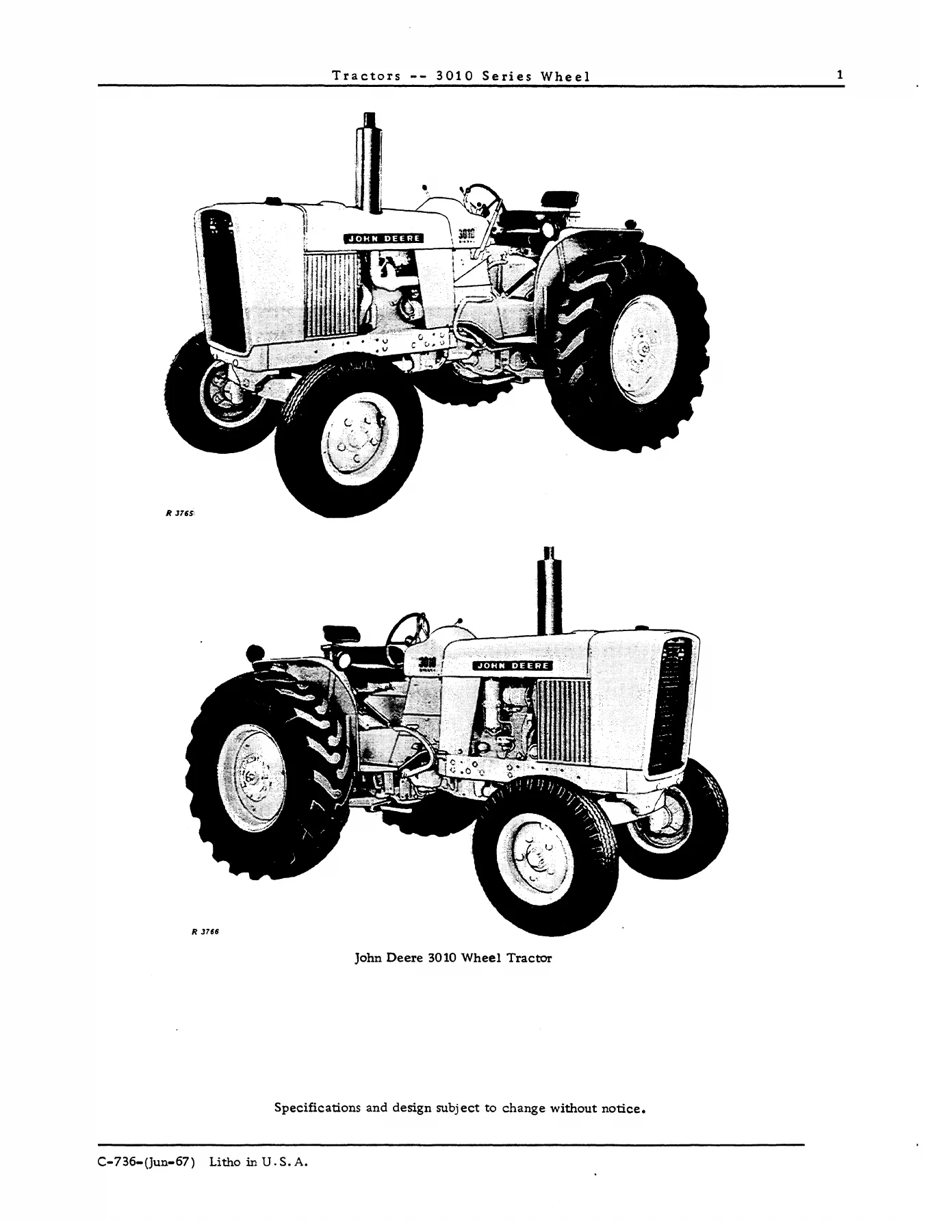

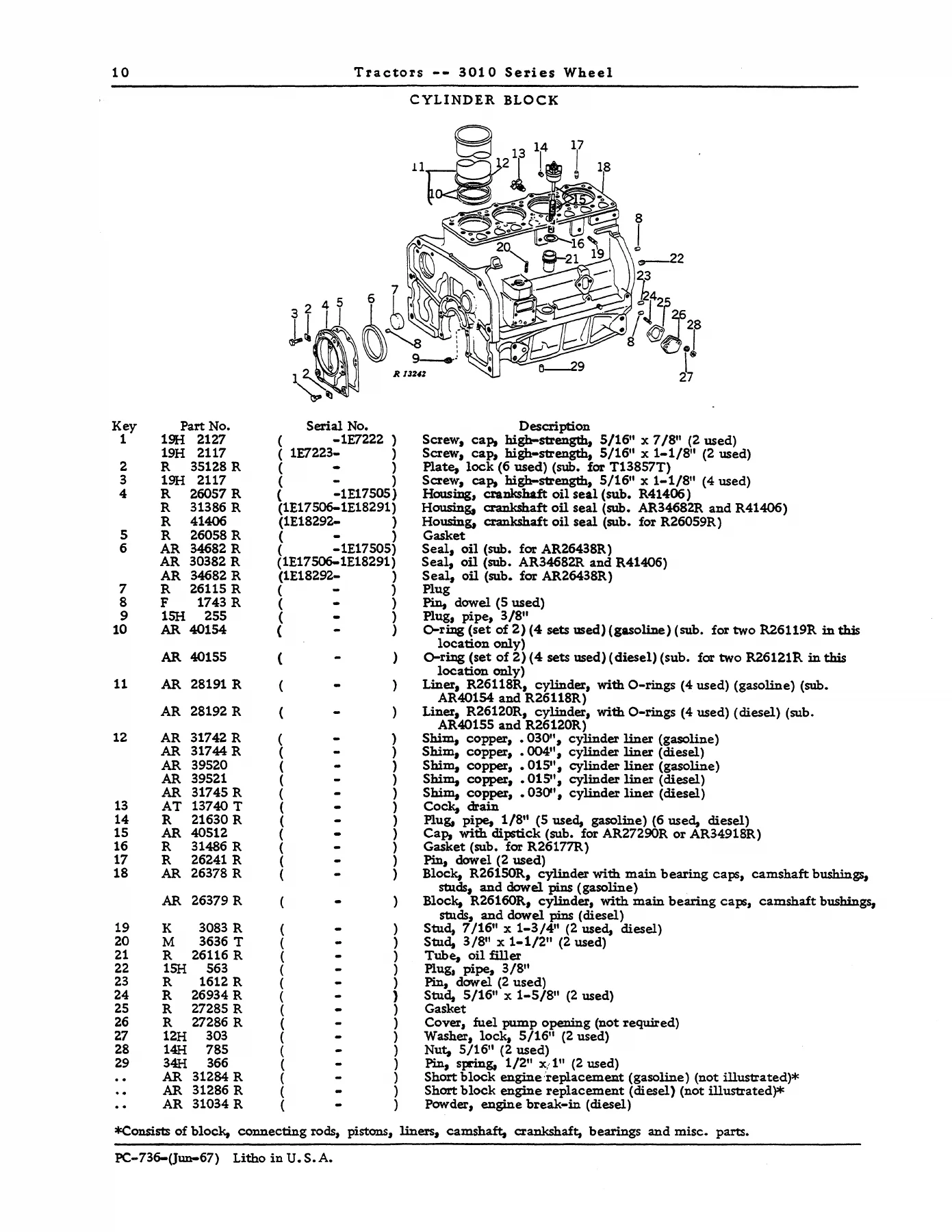

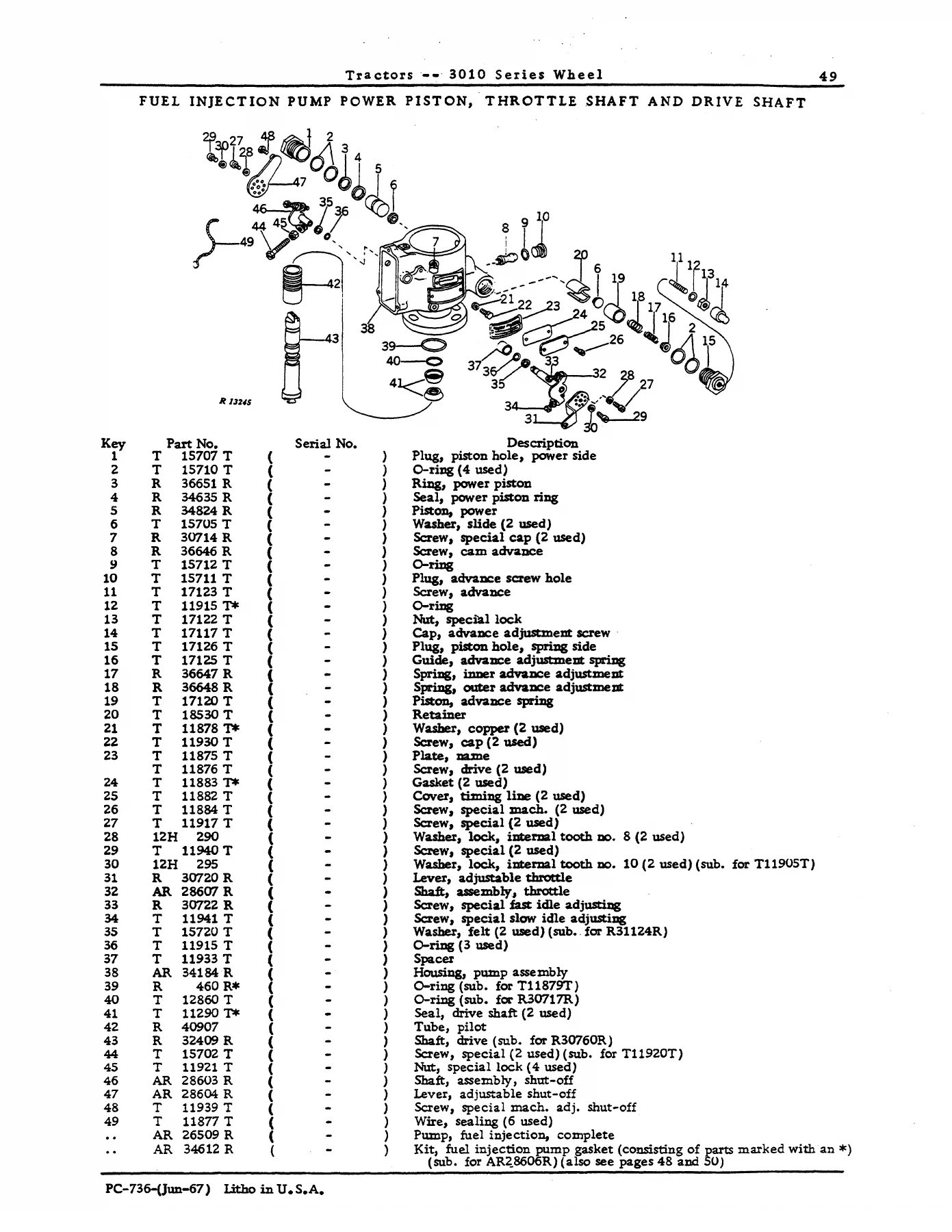

The John Deere 3010 Series Wheel Tractor parts catalog PC736 covers the full machine in remarkable depth. The engine section alone spans pages 10 through 21, detailing the cylinder block, cylinder head, pistons, connecting rods, crankshaft, main bearings, camshaft, valve train, oil pump, and timing gear cover. Engine accessories from pages 22 to 33 include the intake and exhaust manifolds, muffler, governor, ventilator pump, air cleaner, and throttle controls. The cooling system section covers the radiator, fan, water pump, and thermostat. The fuel system pages 38 to 55 provide exploded views of the fuel tank, fuel filter, fuel pump, carburetor, fuel injection pump, injection nozzles, and fuel pipes. The drive clutch and controls section, the transmission and PTO section, and the final drive section give you the parts breakdown for the drivetrain. Steering covers the steering valve, steering cylinder, bell crank, and associated linkage. The frame section details the frame, frame plates, and front weights. The hydraulic system section is extensive, running from pages 86 to 125, and includes the main hydraulic pump, stroke control valve, oil filter relief valve, oil cooler, rockshaft, selective control valve, breakaway coupler, remote cylinder, and all the oil pipes and flexible lines. The 3-point hitch and drawbar section spans pages 126 to 131 with center links, draft links, lift links, and the implement quik-coupler. Front axle and wheels, rear wheels, and brakes are all covered with detailed parts illustrations. Sheet metal and miscellaneous parts, pages 144 to 160, cover the hood, grille, cowl, fenders, platform, seat, battery box, and tool box. The electrical system, pages 161 to 199, includes the distributor, generator, regulator, starter, lamps, warning lamp, horn, and all associated wiring and switches. Gasket sets, decals, and radio parts round out the catalog from pages 200 to 205, followed by a comprehensive numerical index from pages 207 to 222.

Why This Parts Catalog Matters

When you are working on a John Deere 3010 Series Wheel Tractor, guessing at part numbers is not an option. The PC736 parts catalog removes the guesswork. It gives you the exact part number for every component, grouped by assembly, with exploded illustrations that show how the parts fit together. Whether you are ordering a replacement gasket, a hydraulic pump seal, a brake disc, a steering cylinder component, or a piece of sheet metal, this catalog is the definitive reference. It covers both gasoline and diesel engine variants, and includes serial number information to help you identify the correct parts for your specific tractor. The catalog also includes a Numerical Index that lets you look up a part number and find the page where it is illustrated, which is invaluable when you already have a part number but need to see where it belongs.

Coverage and Serial Numbers

The John Deere 3010 Series Wheel Tractor has two serial numbers: one for the basic tractor and one for the engine. The basic tractor serial number is stamped on a plate located in the upper right-hand corner at the rear of the transmission case and begins with 15T1000. The engine serial number is stamped on the right-hand side of the cylinder block just below the generator. Gasoline engines are identified by serial numbers beginning with 11E1000, and diesel engines by serial numbers beginning with 13E1000. The parts catalog uses these serial numbers to indicate which parts apply to which tractors, with clear notation for serial number breaks and part introductions. This level of detail ensures you order the correct part for your machine, even across production changes.

Who This Manual Is For

This John Deere 3010 Series Wheel Tractor parts catalog is written for mechanics, parts professionals, restoration enthusiasts, and owners who maintain their own equipment. It is also an excellent resource for anyone restoring a 1967-era John Deere 3010 and needing to source correct parts. The exploded views and part number lists make it possible to identify parts visually, which is especially helpful for complex assemblies like the hydraulic system, the fuel injection system, and the transmission. If you own or work on a John Deere 3010 Series Wheel Tractor, this PC736 parts catalog is a reference you will reach for again and again.

What You Can Do With This Catalog

With this parts catalog, you can identify and order any part on the John Deere 3010 Series Wheel Tractor, from engine bearings and pistons to hydraulic pump components, brake plates, steering cylinder parts, and electrical switches. You can use the exploded views to understand how assemblies go together and come apart. You can look up part numbers by assembly or by the numerical index. You can confirm which parts apply to your tractor based on its serial number. And you can do all of this without relying on memory or incomplete notes. The catalog covers gasoline and diesel variants, so whether your 3010 runs on gasoline or diesel, the relevant part numbers are included.
