John Deere 310Sk 410Sk Backhoe Loader Parts Catalog+Operation & Test+Repair Manual – PDF DOWNLOAD

Description

John Deere 310Sk 410Sk Backhoe Loader Parts Catalog+Operation & Test+Repair Manual

FILE DETAILS:

John Deere 310Sk 410Sk Backhoe Loader Parts Catalog+Operation & Test+Repair Manual

• Language : English
• Pages : 2500+
• Downloadable : YES
• Format : PDF
• Size : 538 MB
• All 3 manuals in this single purchase

In order to purchase individual manuals, please visit:

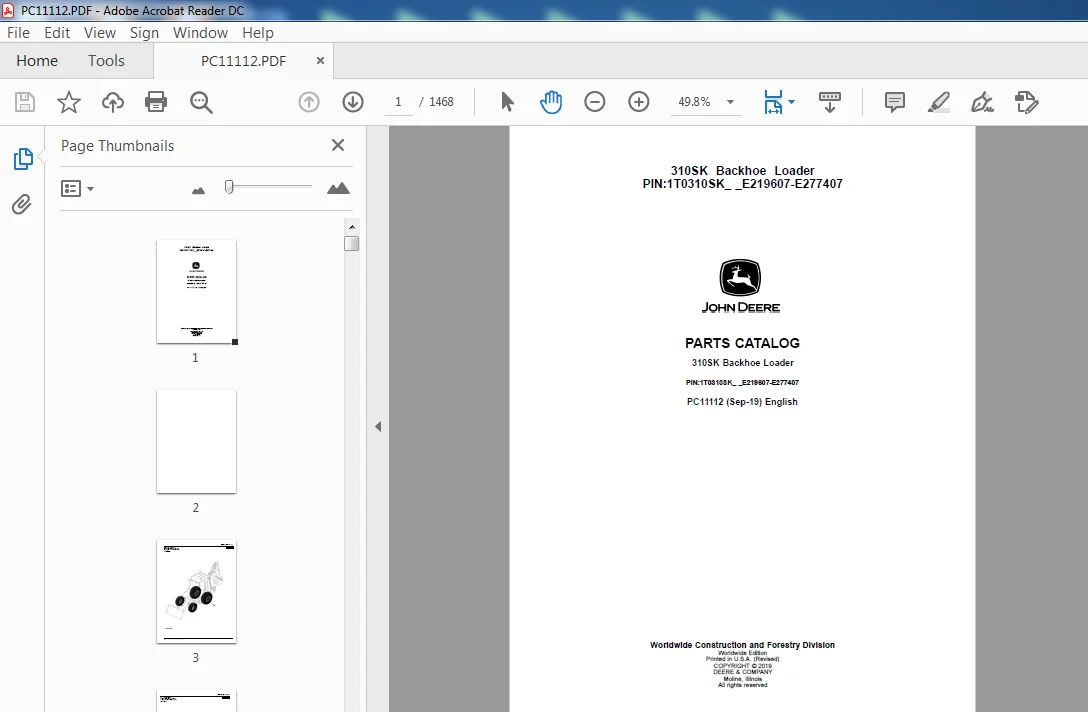

John Deere 310SK Backhoe Loader Parts Catalog Manual

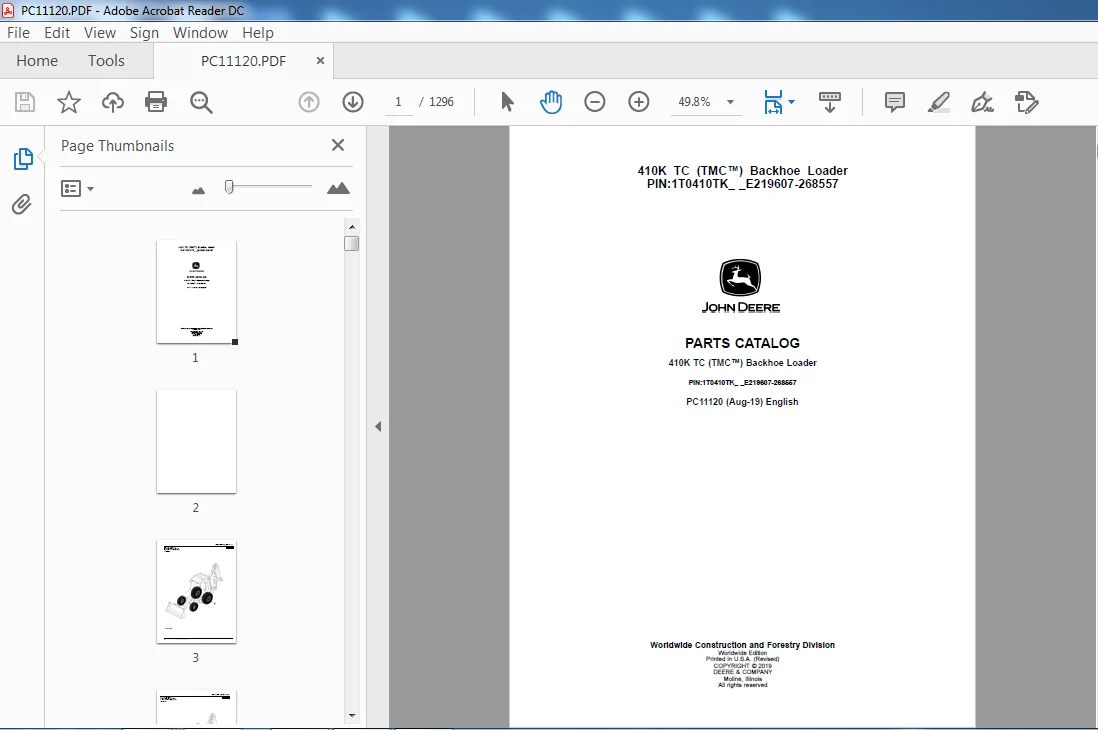

John Deere 410K TMC Backhoe Loader Parts Catalog Manual

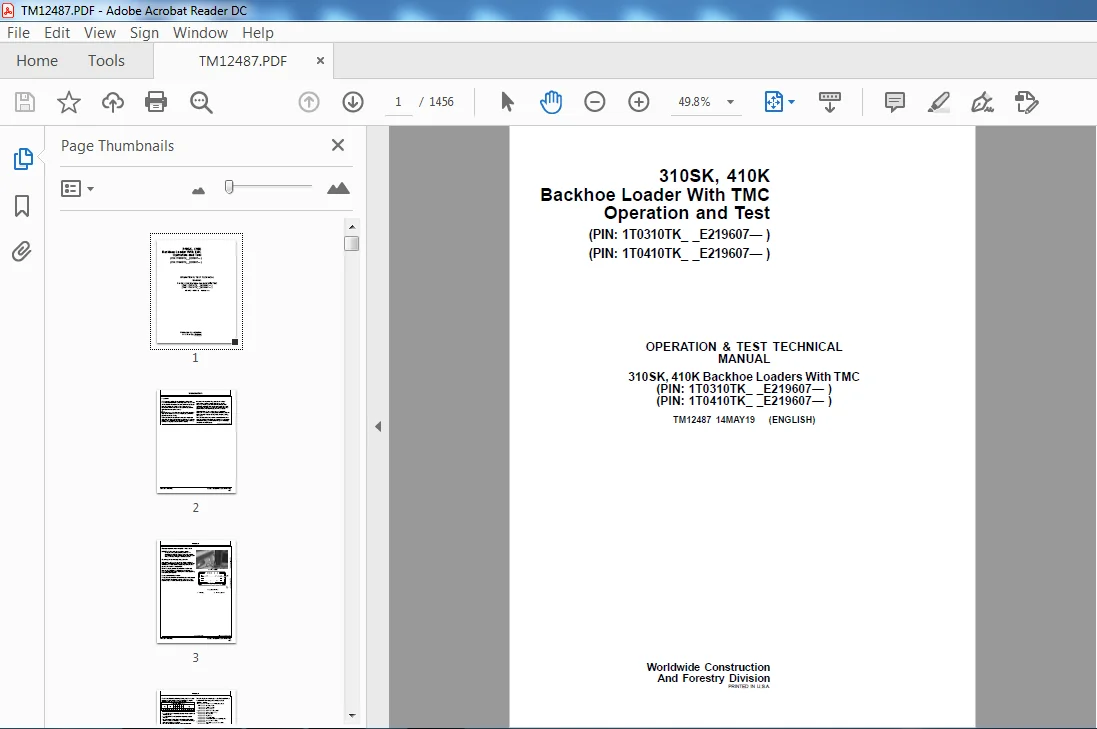

John Deere 310SK, 410K Backhoe Loader With TMC Operation and Test Manual

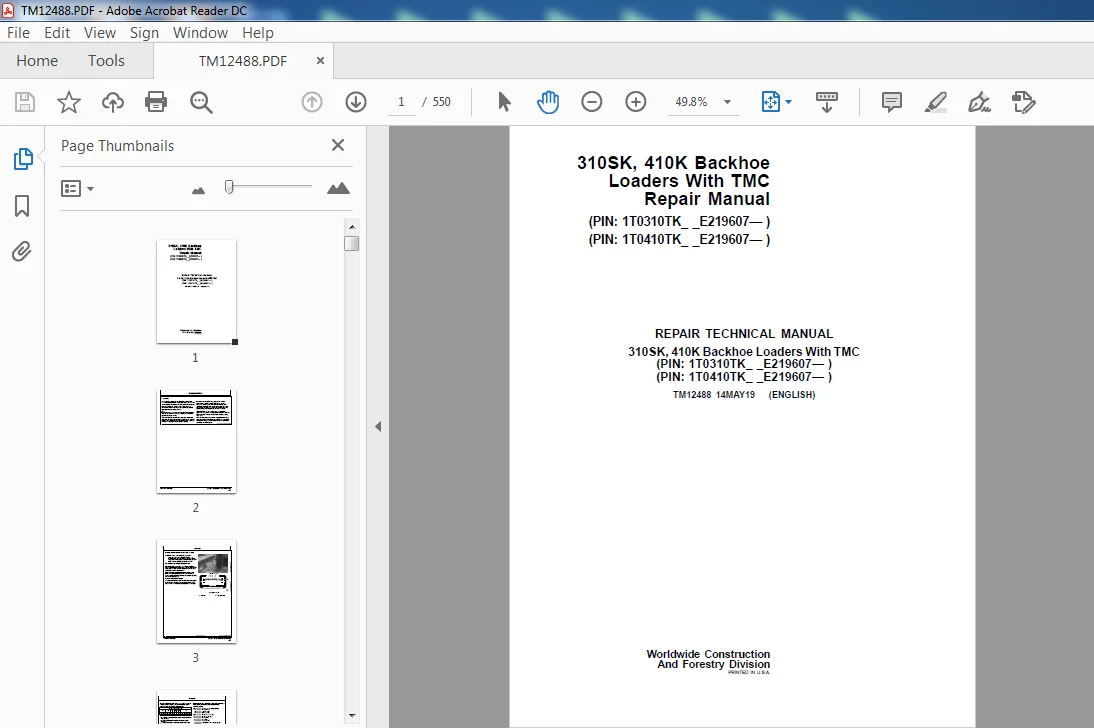

John Deere 310SK, 410K Backhoe Loaders With TMC Repair Manual

DESCRIPTION:

John Deere 310Sk 410Sk Backhoe Loader Parts Catalog+Operation & Test+Repair Manual

INTRODUCTION

FOREWORD:

This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use. Live with safety: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.

• This is the safety-alert symbol. When this symbol is seen on the machine or in this manual, be alert for the potential of personal injury. Technical manuals are divided in two parts: repair and operation and tests. Repair sections tell how to repair the components. Operation and test sections help to quickly identify the majority of routine failures quickly.
• Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values. Technical manuals are concise guides for specific machines.
• They are on-the-job guides containing only the vital information needed for diagnosis, analysis, testing, and repair. Fundamental service information is available from other sources covering basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic type of failures and their causes.

TABLE OF CONTENTS:

John Deere 310Sk 410Sk Backhoe Loader Parts Catalog+Operation & Test+Repair Manual

• John Deere 310SK Backhoe Loader Parts Catalog Manual

01 Wheels & Tires & Tracks
0110 Powered Wheels, Tires & Fastenings 101
0120 Non-powered Wheels, Tires & Fastening 113
02 Axles, Differentials & Suspension Systems
0201 Drive Axle Housing and Support 123
0210 Differential Or Bevel Drive 139
0225 Input Drive Shafts and U-Joints 143
0231 Fixed Tread Axle 147
03 Transmission
0315 Controls 171
0325 Input Drive Shafts and U-Joints 177
0341 Housing, Covers and Complete Transmissions 181
0342 Transmission Mounting Parts 219
04 Engine 4045HT073-RE546630
0400 Engine 4045HT073 226
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 357
0510 Engine Cooling Systems 361
0512 Fan 371
0515 Engine Speed Controls 377
0520 Intake System 381
0530 External Exhaust Systems 387
0560 External Fuel Supply Systems 397
09 Steering System
0962 Steering Valve and Control 409
0963 Steering Lines, Hoses, and Fittings 415
0965 Steering Cylinders 421
10 Service Brakes
1011 Service Brake Active Elements 427
1062 Service Brake Valve 433
1063 Service Brake Links, Hoses & Fittings 439
11 Parking Brakes
1111 Parking Brake Active Elements 449
1163 Controls Linkage 453
13 Miscellaneous Vehicle
1314 License Bracket 461
1322 Labels & Trademarks 465
1369 Greases, Oils, Fuels & Coolants 497
16 Vehicle Electrical Systems
1671 Batteries, Support, and Cables 507
1672 Alternator, Regulator, And Charging System Wiring 527
1673 Vehicle Lighting System 531
1674 Wiring Harness & Switches 539
1675 System Controls 581
1676 Instruments & Indicators 611
17 Frame, Chassis, or Supporting Structure
1741 Engine Or Main Frame 617
1746 Frame Bottom Guards 621
1747 Bumpers, Vehicle 631
1749 Chassis Weights 637
18 Operator’s Station
1807 Special Noise Control Items 659
PC11112 (P1) 310SK Backhoe Loader 53
310SK Backhoe Loader
Table of Contents – Continued
1810 Operator Enclosure 667
1811 ROPS, FOPS, OPS, Or Body Frame 687
1812 Platform 701
1813 Body Sides, Doors, Shields And Glazing 711
1814 Windshield & Wipers 715
1816 Instrument and Control Mounting Structure 729
1821 Seat and Seat Belt 769
1830 Heating & Air Conditioning 785
1831 Heater, Hoses, and Controls 789
1832 Air Conditioner System Compressor and Drive 799
1833 Condenser, Evaporator & Lines 805
19 Sheet Metal and Styling
1910 Hood Or Engine Enclosure 815
1913 Miscellaneous Shields 821
1921 Grille and Grille Housing 825
1927 Fenders 833
20 Safety, Convenience and Miscellaneous
2001 Radio 843
2002 Mirror 853
2003 Fire Extinguisher 863
2004 Warning Devices Including Horn and Reverse Alarm 867
2007 Sun Visor 875
2008 Reflectors & SMV Sign 881
2010 Miscellaneous 885
2012 Rental Customer Kit 889
2014 Locking Bar 893
21 Vehicle Main Hydraulic System
2161 Hydraulic Pumps & Drives 899
2163 Hydraulic Lines & Hoses 903
2164 Hydraulic Reservoir, Filter & Cooler 915
26 Global Vehicle Communication
2601 Communication Controller 923
2602 Antennas And Cables 931
2604 Hardware And Fasteners 937
31 Loader
3102 Bucket (Including Teeth) 943
3103 Forks 983
3104 Attachment Coupler 989
3115 Controls Linkage 995
3143 Moveable Frame 1001
3145 Bucket Loader Linkage 1005
3162 Control & Load Holding Valves 1009
3163 Lines, Hoses & Fittings 1059
3165 Hydraulic Cylinders 1077
3166 Automatic Control Function 1093
33 Backhoe & Excavator
3302 Bucket With Teeth 1099
3304 Ripper 1151
3315 Controls Linkage 1169
3343 Moveable Frame 1205
3344 Boom 1217
3345 Bucket Linkage 1223
54 310SK Backhoe Loader PC11112 (P1)
310SK Backhoe Loader
Table of Contents – Continued
3346 Dipperstick 1227
3348 Stabilizers 1237
3362 Control & Load Holding Valves 1253
3363 Lines, Hoses & Fittings 1317
3365 Hydraulic Cylinders 1363
38 Grapple
3803 Grapple Mechanism 1407
3865 Hydraulic Cylinders 1421
42 Ground Conditioning Tool
4271 Mounting Frame 1428

• John Deere 410K TMC Backhoe Loader Parts Catalog Manual

01 Wheels & Tires & Tracks
0110 Powered Wheels, Tires & Fastenings 93
0120 Non-powered Wheels, Tires & Fastening 105
02 Axles, Differentials & Suspension Systems
0201 Drive Axle Housing and Support 111
0210 Differential Or Bevel Drive 127
0225 Input Drive Shafts and U-Joints 131
0231 Fixed Tread Axle 135
03 Transmission
0315 Controls 151
0325 Input Drive Shafts and U-Joints 155
0341 Housing, Covers and Complete Transmissions 159
0342 Transmission Mounting Parts 195
04A Engine 4045HT073-RE546630
0400A Engine 4045HT073 202
04B Engine 4045HT063-RE538513
0400B Engine 4045HT063 334
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 465
0510 Engine Cooling Systems 469
0512 Fan 479
0515 Engine Speed Controls 485
0520 Intake System 489
0530 External Exhaust Systems 495
0560 External Fuel Supply Systems 505
09 Steering System
0962 Steering Valve and Control 517
0963 Steering Lines, Hoses, and Fittings 525
0965 Steering Cylinders 529
10 Service Brakes
1011 Service Brake Active Elements 535
1062 Service Brake Valve 541
1063 Service Brake Links, Hoses & Fittings 547
11 Parking Brakes
1111 Parking Brake Active Elements 557
1163 Controls Linkage 561
13 Miscellaneous Vehicle
1314 License Bracket 569
1322 Labels & Trademarks 573
1369 Greases, Oils, Fuels & Coolants 589
16 Vehicle Electrical Systems
1671 Batteries, Support, and Cables 599
1672 Alternator, Regulator, And Charging System Wiring 611
1673 Vehicle Lighting System 615
1674 Wiring Harness & Switches 623
1675 System Controls 663
1676 Instruments & Indicators 681
1678 Sensors 687
17 Frame, Chassis, or Supporting Structure
1741 Engine Or Main Frame 693
1746 Frame Bottom Guards 697
1747 Bumpers, Vehicle 707
PC11120 (L1) 410K TC (TMC™) Backhoe Loader 53
410K TC (TMC™) Backhoe Loader
Table of Contents – Continued
1749 Chassis Weights 711
18 Operator’s Station
1807 Special Noise Control Items 733
1810 Operator Enclosure 741
1811 ROPS, FOPS, OPS, Or Body Frame 759
1812 Platform 769
1813 Body Sides, Doors, Shields And Glazing 775
1814 Windshield & Wipers 779
1816 Instrument and Control Mounting Structure 793
1821 Seat and Seat Belt 819
1830 Heating & Air Conditioning 839
1831 Heater, Hoses, and Controls 843
1832 Air Conditioner System Compressor and Drive 849
1833 Condenser, Evaporator & Lines 855
19 Sheet Metal and Styling
1910 Hood Or Engine Enclosure 865
1913 Miscellaneous Shields 871
1921 Grille and Grille Housing 875
1927 Fenders 883
20 Safety, Convenience and Miscellaneous
2001 Radio 893
2002 Mirror 901
2003 Fire Extinguisher 909
2004 Warning Devices Including Horn and Reverse Alarm 913
2007 Sun Visor 919
2008 Reflectors & SMV Sign 925
2010 Miscellaneous 929
2012 Rental Customer Kit 933
2014 Locking Bar 937
21 Vehicle Main Hydraulic System
2161 Hydraulic Pumps & Drives 943
2163 Hydraulic Lines & Hoses 947
2164 Hydraulic Reservoir, Filter & Cooler 955
26 Global Vehicle Communication
2601 Communication Controller 963
2602 Antennas And Cables 971
31 Loader
3102 Bucket (Including Teeth) 979
3103 Forks 995
3104 Attachment Coupler 1001
3143 Moveable Frame 1005
3145 Bucket Loader Linkage 1009
3162 Control & Load Holding Valves 1013
3163 Lines, Hoses & Fittings 1021
3165 Hydraulic Cylinders 1029
33 Backhoe & Excavator
3302 Bucket With Teeth 1055
3304 Ripper 1109
3315 Controls Linkage 1127
3343 Moveable Frame 1133
3344 Boom 1143
3345 Bucket Linkage 1149
54 410K TC (TMC™) Backhoe Loader PC11120 (L1)
410K TC (TMC™) Backhoe Loader
Table of Contents – Continued
3346 Dipperstick 1153
3348 Stabilizers 1157
3362 Control & Load Holding Valves 1169
3363 Lines, Hoses & Fittings 1201
3365 Hydraulic Cylinders 1219
38 Grapple
3803 Grapple Mechanism 1241
3865 Hydraulic Cylinders 1255
42 Ground Conditioning Tool
4271 Mounting Frame 1262

• John Deere 310SK, 410K Backhoe Loader With TMC Operation and Test Manual

Section 9000—General Information
Group 01—Safety
Section 9001—Diagnostics
Group 10—Engine Control Unit (ECU) Diagnostic
Trouble Codes
Group 20—Standard Display Monitor (SDM) Diagnostic
Trouble Codes
Group 30—Transmission Control Unit (TCU) Diagnostic
Trouble Codes
Group 40—Vehicle Control Unit (VCU) Diagnostic
Trouble Codes
Group 60—Sealed Switch Module (SSM) Diagnostic
Trouble Codes
Group 70—Hydraulic Valve Controller (HVC) Diagnostic
Trouble Codes
Group 80—Intelligent System Planner (ISP) Diagnostic
Trouble Codes
Group 90—Left Joystick Controller (JSL) Diagnostic
Trouble Codes
Group 100—Right Joystick Controller (JSR) Diagnostic
Trouble Codes
Group 110—Boom Distributed Function Control Unit
(BOM) Diagnostic Trouble Codes
Group 120—Bucket Distributed Function Control Unit
(BUK) Diagnostic Trouble Codes
Group 130—Crowd Distributed Function Control Unit
(CWD) Diagnostic Trouble Codes
Group 140—Flow Control Distributed Function Control
Unit (HAM) Diagnostic Trouble Codes
Group 150—Swing/Extend Distributed Function Control
Unit (SWX) Diagnostic Trouble Codes
Section 9005—Operational Checkout
Procedure
Group 10—Operational Checkout Procedure
Section 9010—Engine
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 20—Adjustments
Group 25—Tests
Section 9015—Electrical System
Group 05—System Information
Group 10—System Diagrams
Group 15—Sub-System Diagnostics
Group 16—Monitor Operation
Group 20—References
Section 9020—Power Train
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 20—Adjustments
Group 25—Tests
Section 9025—Hydraulic System
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 20—Adjustments
Group 25—Tests
Section 9031—Heating and Air Conditioning
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 25—Tests

• John Deere 310SK, 410K Backhoe Loaders With TMC Repair Manual

Section 00—General Information
Group 0001—Safety
Group 0003—Torque Values
Section 01—Wheels
Group 0110—Powered or Non-Powered Wheels and
Fastenings
Section 02—Axles and Suspension Systems
Group 0225—Input Drive Shafts and U-Joints
Group 0230—Non-Powered Wheel Axles
Group 0240—Powered Wheel Axle (MFWD)
Group 0250—Axle Shaft, Bearings, and Reduction
Gears
Section 03—Transmission
Group 0300—Removal and Installation
Group 0315—Controls Linkage
Group 0350—Gear, Shafts, and Power Shift Clutches
Group 0360—Hydraulic System
Section 04—Engine
Group 0400—Removal and Installation
Section 05—Engine Auxiliary System
Group 0505—Cold Weather Starting Aids
Group 0510—Cooling Systems
Group 0515—Speed Controls
Group 0520—Intake System
Group 0530—Exhaust Systems
Group 0560—External Fuel Supply Systems
Section 06—Torque Converter
Group 0651—Turbine, Gears, and Shaft
Section 09—Steering System
Group 0960—Hydraulic System
Section 10—Service Brakes
Group 1011—Active Elements
Group 1060—Hydraulic System
Section 11—Park Brake
Group 1111—Active Elements
Section 17—Frame or Supporting Structure
Group 1740—Frame Installation
Group 1749—Chassis Weights
Section 18—Operator’s Station
Group 1800—Removal and Installation
Group 1810—Operator Enclosure
Group 1821—Seat and Seat Belt
Group 1830—Heating and Air Conditioning
Section 19—Sheet Metal and Styling
Group 1910—Hood or Engine Enclosure
Group 1913—Miscellaneous Shields
Group 1921—Grille and Grille Housing
Section 20—Safety and Convenience
Group 2001—Radio
Group 2004—Horn and Warning Devices
Section 21—Main Hydraulic System
Group 2160—Hydraulic System
Section 31—Loader
Group 3100—Loader
Group 3102—Bucket
Group 3104—Attachment Coupler
Group 3115—Control Linkage
Group 3160—Hydraulic System
Section 33—Backhoe
Group 3302—Bucket
Group 3315—Control Linkage
Group 3340—Frames
Group 3360—Hydraulic System
Section 38—Grapple
Group 3800—Backhoe Hydraulic Thumb
Group 3860—Backhoe Hydraulic Thumb Cylinder
Section 99—Dealer Fabricated Tools
Group 9900—Dealer Fabricated Tools

JOHN DEERE 310SK 410SK BACKHOE LOADER PARTS CATALOG+OPERATION & TEST+REPAIR MANUAL – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
