John Deere 4230 Tractor Parts Catalog PC1294 (1996)
$31.95Original price was: $31.95.$17.95Current price is: $17.95.
Parts catalog PC1294 for the John Deere 4230 tractor, with exploded illustrations, part numbers, serial breaks, and supersessions for diesel and gasoline machines plus Quad-Range, Power Shift, Syncro-Range, and Creeper transmissions.
John Deere 4230 Tractor Parts Catalog PC1294 (1996)
The John Deere 4230 Tractor Parts Catalog PC1294 (1996) is the illustrated parts list used to identify service parts on the 4230 tractor. Catalog pages carry the PC1294 identifier and the 08-MAR-96 revision date, with copyright 1996 Deere & Company, Moline, Illinois. Listings separate diesel and gasoline hardware, then split further by transmission, operator enclosure, axle, and hitch option so a part can be matched to the machine actually in the shop.
File Details
Manual type: Parts catalog
Brand / model: John Deere 4230 tractor
Document number: PC1294
Revision date shown on catalog footers: 08-MAR-96 (selected earlier page dates also appear on individual sheets)
Language: English
Page count: 980
File format: PDF
How Serial Numbers Are Used in This Catalog
Each 4230 carries plates for the basic tractor, engine, short block, Roll-Gard, and Sound-Gard body. The tractor plate sits at the rear of the transmission case. The catalog decodes that plate as model 4230, a transmission letter, the chassis serial, and manufacturer letter R for John Deere Tractor Works. Transmission letters printed in the front matter are H Quad-Range, P Power Shift, W Syncro-Range, and C Creeper.
The diesel engine plate is on the right-hand side of the engine behind the injection pump. The sample breakdown given is six cylinders, 404 cubic inch displacement, D naturally aspirated, factory user R, version 12, then the engine serial and manufacturer R John Deere Tractor Works. Replacement short-block plates use the Waterloo Engine Works RG prefix with an SB short-block code and a 404 displacement field. Sound-Gard body plates use SG; Roll-Gard plates use RG. The Sound-Gard plate is on the windshield wiper motor access door header; the Roll-Gard plate is on the right-hand front post.
Parts lists apply those numbers with the catalog’s standard range marks: a dash alone means all machines; a number followed by a dash means from that serial forward; a leading dash means up to and including that serial; two numbers joined by a dash mean inclusive between those serials. Where the exact change point was not known when the sheet was set, XXXXXX is printed instead of a number. Component model numbers are also used for selected hydraulic and steering units, including brake valve 12BV1, differential lock valve 11DL1, hydraulic accumulator 14HA1, hydraulic pumps 1PPA (50 cm3 / 3 in3) and 8PP4 (65 cm3 / 4 in3), remote cylinder selective control valves 23SC1 / 23SC2 / 24SC1, remote cylinders 1RC3 and 3RC2 at 76 x 203 mm (3 in x 8 in), rockshaft control valve 10RS1, steering cylinder 3CY1, steering metering pump 2SP1, and steering valve 14SV1.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “John Deere 4230 Tractor Parts Catalog PC1294 (1996)” are as follows:
+GRIDSp. 1
+01p. 1
+Ap. 1

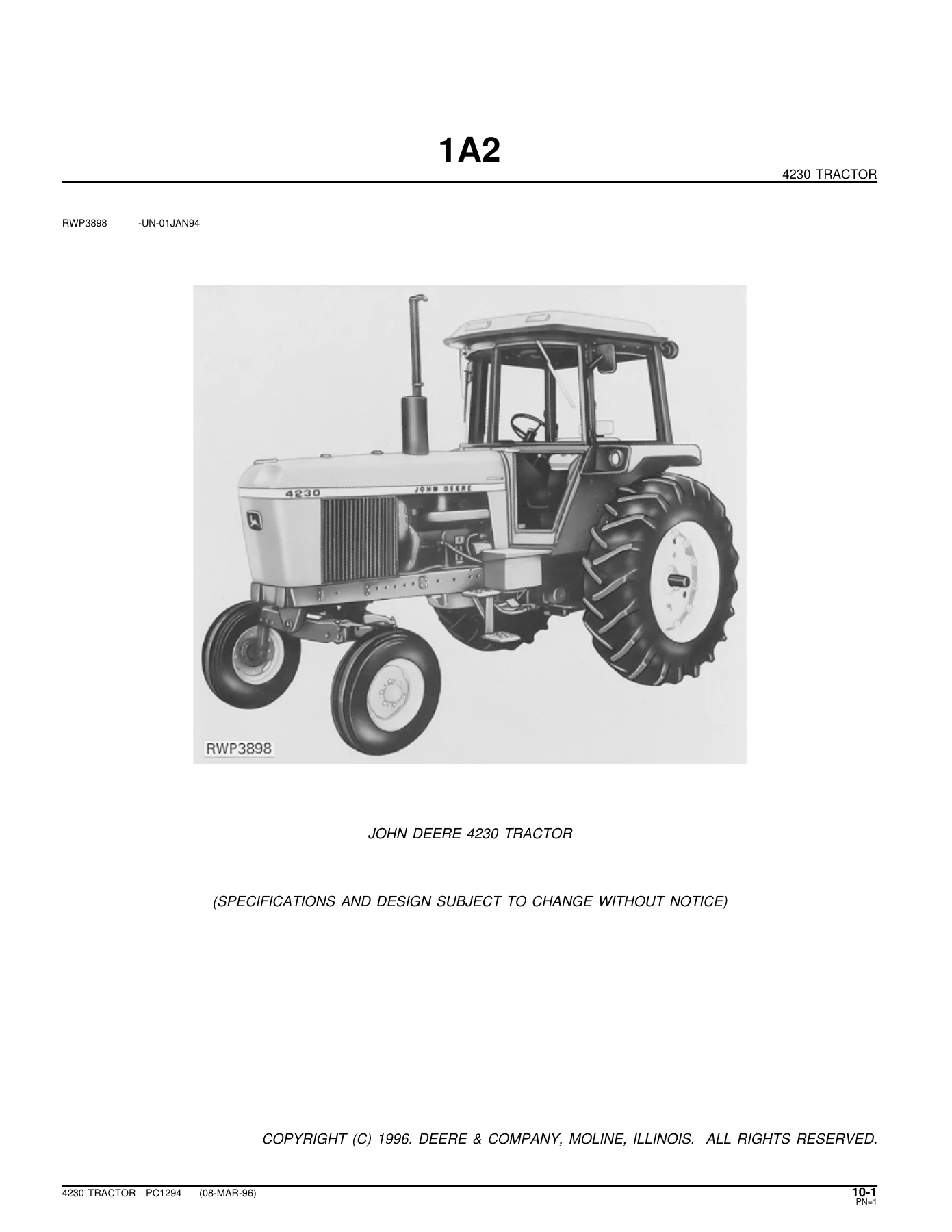

01A02p. 1
01A03p. 2
01A04p. 3
01A05p. 4
01A06p. 5
01A07p. 6
01A08p. 7
01A09p. 8
01A10p. 9
01A11p. 10
01A12p. 11
01A13p. 12
01A14p. 13
01A15p. 14
01A16p. 15
01A17p. 16
01A18p. 17
01A19p. 18
01A20p. 19
01A21p. 20
01A22p. 21
01A23p. 22
01A24p. 23
01A25p. 24
+Bp. 25
01B01p. 25
01B02p. 26
01B06p. 27
01B07p. 28
01B08p. 30
01B09p. 31
01B10p. 32
01B11p. 34
01B12p. 35
01B13p. 36
01B14p. 38
01B15p. 39
01B16p. 40
01B17p. 41
01B18p. 42
01B19p. 43
01B20p. 44
01B21p. 45

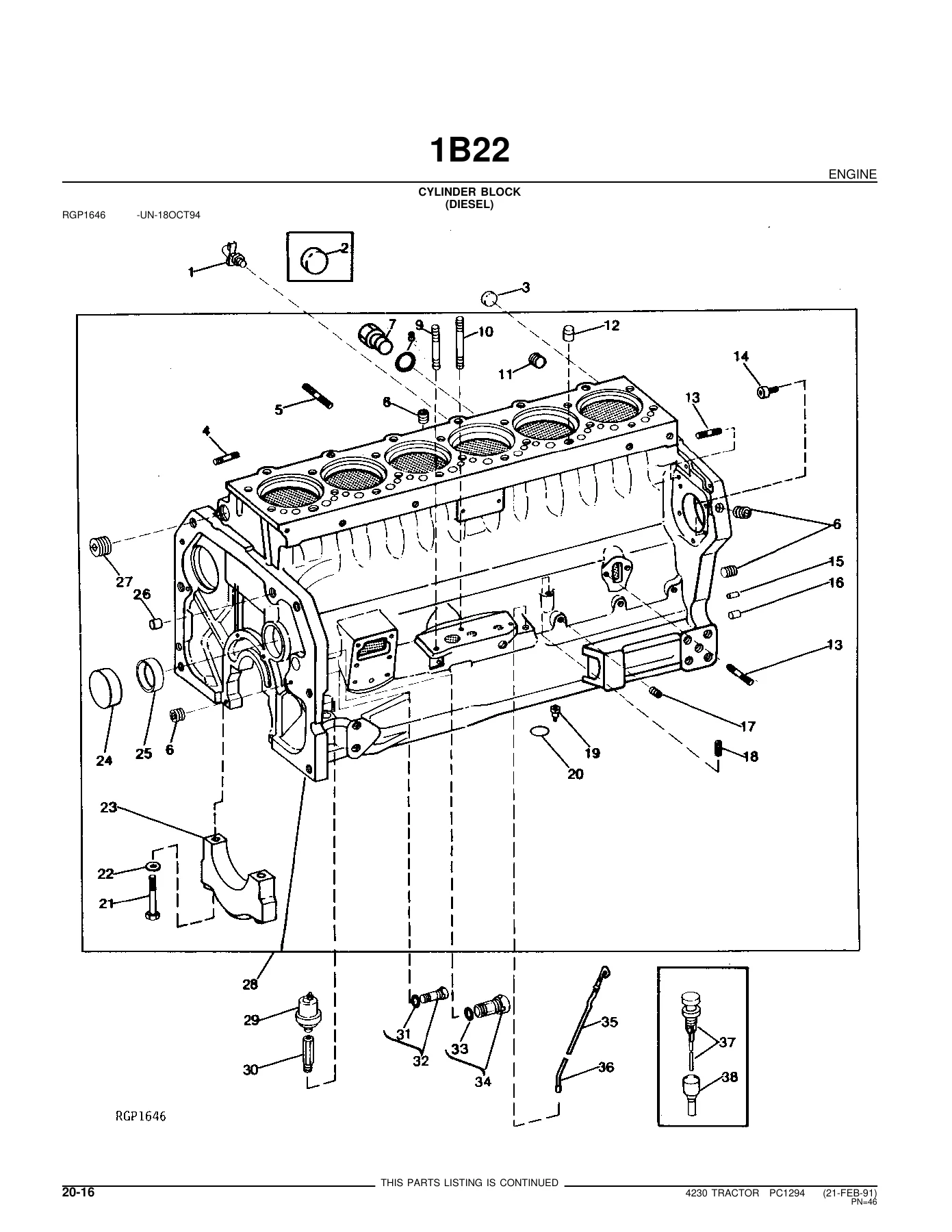

01B22p. 46
01B23p. 47
01B24p. 48
01B25p. 49
+Cp. 50
01C01p. 50
01C02p. 51
01C03p. 52
01C04p. 53
01C05p. 54
01C06p. 55
01C07p. 56
01C08p. 58
01C09p. 59
01C10p. 60
01C11p. 61
01C12p. 62
01C13p. 63
01C14p. 64
01C15p. 65
01C16p. 66
01C17p. 68
01C18p. 69
01C19p. 70
01C20p. 71
01C21p. 72
01C22p. 73
01C23p. 74
01C24p. 75
01C25p. 77
+Dp. 78
01D01p. 78
01D02p. 79
01D03p. 80
01D04p. 81
01D05p. 82
01D06p. 83
01D07p. 84
01D08p. 85
01D09p. 86
01D10p. 87
01D11p. 88
01D12p. 89
01D13p. 90
01D14p. 91
01D15p. 92
01D16p. 93
01D17p. 94
01D20p. 95
01D21p. 96
01D22p. 97
01D23p. 99
01D24p. 100
01D25p. 101
+Ep. 102
01E01p. 102
01E02p. 103
01E03p. 105
01E04p. 106
01E05p. 107
01E06p. 108
01E07p. 109
01E08p. 110
01E09p. 111
01E10p. 113
01E11p. 114
01E12p. 115
01E13p. 116
01E14p. 117
01E15p. 118
01E16p. 119
01E17p. 120
01E18p. 121
01E19p. 122
01E20p. 123
01E21p. 124
01E22p. 125
01E23p. 126
01E24p. 127
+Fp. 128
01F01p. 128
01F02p. 129
01F03p. 130
01F04p. 131
01F05p. 133
01F06p. 134
01F07p. 135
01F08p. 136
01F09p. 137
01F10p. 138
01F11p. 139
01F12p. 140
01F13p. 142
01F14p. 143
+02p. 146
+Bp. 146
02B08p. 146
02B09p. 147
02B10p. 148
02B11p. 149
02B12p. 150
02B13p. 151
02B14p. 152
02B15p. 153
02B16p. 154
02B17p. 156
02B18p. 157
02B19p. 159
02B20p. 160
02B21p. 161
02B22p. 162
02B23p. 163
02B24p. 164
02B25p. 165
+Cp. 166
02C01p. 166
02C02p. 167
02C03p. 168
02C04p. 169
02C05p. 170
02C06p. 171
02C07p. 172
02C08p. 173
02C09p. 175
02C10p. 176
02C11p. 177
02C12p. 178
02C13p. 179
02C14p. 180
02C15p. 181
02C16p. 182
02C17p. 183
02C18p. 184
02C19p. 185
02C20p. 186
02C21p. 187
02C22p. 189
02C23p. 190
02C24p. 191
+Dp. 192
02D01p. 192
02D02p. 193
02D03p. 194
02D04p. 195
02D05p. 196
02D06p. 197
02D07p. 198
02D08p. 199
02D09p. 200
02D10p. 201
02D11p. 202
02D12p. 204
02D13p. 205
02D14p. 206
02D15p. 207
02D16p. 208
02D17p. 210
02D18p. 211
02D19p. 212
02D20p. 213
02D21p. 214
02D22p. 215
02D23p. 216
02D24p. 217
02D25p. 218
+Ep. 219
02E01p. 219
02E02p. 220
02E03p. 221
02E04p. 222
02E05p. 223
02E06p. 224
02E07p. 226
02E08p. 227
02E09p. 228
02E10p. 229
02E11p. 230
02E12p. 231
02E13p. 233
02E14p. 234
02E15p. 235
02E16p. 236
02E17p. 237
02E18p. 238
02E19p. 239
02E20p. 240
02E21p. 241
02E22p. 242
02E23p. 243
02E24p. 244
02E25p. 245
+Fp. 246
02F01p. 246
02F02p. 247
02F03p. 248
02F04p. 249
02F05p. 250
02F06p. 251
02F07p. 252
02F08p. 253
02F09p. 254
02F10p. 255
02F11p. 256
02F12p. 257
02F13p. 258
02F14p. 259
02F15p. 260
02F16p. 261
02F17p. 263
02F18p. 264
02F19p. 265
02F20p. 266
02F21p. 267
02F22p. 269
02F23p. 270
02F24p. 271
+Gp. 272
02G01p. 272
02G02p. 273
02G03p. 274
02G04p. 275
02G05p. 276
02G06p. 277
02G07p. 278
02G08p. 279
02G09p. 280
02G10p. 281
02G11p. 282
02G12p. 283
02G13p. 284
02G14p. 285
02G15p. 286
02G16p. 287
02G17p. 288
02G18p. 289
02G19p. 291
02G20p. 292
02G21p. 293
02G22p. 294
02G23p. 295
02G24p. 296
02G25p. 297
+Hp. 298
02H01p. 298
02H02p. 299
02H03p. 300
02H04p. 301
02H05p. 302
02H06p. 303
02H07p. 304
02H08p. 305
02H09p. 306
02H10p. 307
02H11p. 308
02H12p. 309
02H13p. 310
02H14p. 311
+03p. 313
+Bp. 313
03B09p. 313
03B10p. 314
03B11p. 315
03B12p. 317
03B13p. 318
03B14p. 319
03B15p. 320
03B16p. 321
03B17p. 322
03B18p. 323
03B19p. 324
03B20p. 325
03B21p. 326
03B22p. 327
03B23p. 328
03B24p. 329
03B25p. 330
+Cp. 331
03C01p. 331
03C02p. 332
03C03p. 333
03C04p. 334
03C05p. 335
03C06p. 336
03C07p. 337
03C08p. 338
03C09p. 339
03C10p. 340
03C11p. 341
03C12p. 342
03C13p. 343
03C14p. 344
03C15p. 345
03C16p. 346
03C17p. 347
03C18p. 348
03C19p. 349
03C20p. 350
03C21p. 351
03C22p. 352
03C23p. 353
03C24p. 355
03C25p. 356
+Dp. 357
03D01p. 357
03D02p. 358
03D03p. 359
03D04p. 361
03D05p. 362
03D06p. 363
03D07p. 364
03D08p. 365
03D09p. 366
03D10p. 367
03D11p. 368
03D12p. 369
03D13p. 370
03D14p. 371
03D15p. 372
03D16p. 373
03D17p. 374
03D18p. 375
03D19p. 376
03D20p. 377
03D21p. 378
03D22p. 379
03D23p. 380
03D24p. 381
03D25p. 382
+Ep. 383
03E01p. 383
03E02p. 384
03E03p. 385
03E04p. 386
03E05p. 387
03E06p. 388
03E07p. 389
03E08p. 390
03E09p. 391
03E10p. 392
03E11p. 393
03E12p. 394
03E13p. 395
03E14p. 396
03E15p. 397
03E16p. 398
03E17p. 399
03E18p. 400
03E19p. 401
03E20p. 402
03E21p. 403
03E22p. 404
03E23p. 405
03E24p. 406
03E25p. 407
+Fp. 408
03F01p. 408
03F02p. 409
03F03p. 410
03F04p. 411
03F05p. 412
03F06p. 413
03F07p. 414
03F08p. 415
03F09p. 416
03F10p. 417
03F11p. 418
03F12p. 419
03F13p. 420
03F14p. 421
03F15p. 422
03F16p. 423
03F17p. 424
03F18p. 425
03F19p. 426
03F20p. 427
03F21p. 428
03F22p. 429
03F23p. 431
03F24p. 432
03F25p. 433
+Gp. 434
03G01p. 434
03G02p. 435
03G03p. 436
03G04p. 437
03G05p. 438
03G06p. 439
03G07p. 440
03G08p. 441
03G09p. 443
03G10p. 444
03G11p. 445
03G12p. 446
03G13p. 447
03G14p. 449
03G15p. 450
03G16p. 451
03G17p. 452
03G18p. 453
03G19p. 455
03G20p. 456
03G21p. 457
03G22p. 458
03G23p. 459
03G24p. 460
03G25p. 461
+Hp. 462
03H01p. 462
03H02p. 463
03H03p. 464
03H04p. 465
03H05p. 466
03H06p. 467
03H07p. 469
03H08p. 470
03H09p. 471
03H10p. 472
03H11p. 473
03H12p. 475
03H13p. 476
03H14p. 477
03H15p. 478
03H16p. 479
03H17p. 480
03H18p. 481
03H19p. 483
03H20p. 484
03H21p. 485
03H22p. 486
+04p. 487
+Bp. 487
04B05p. 487
04B06p. 488
04B07p. 489
04B08p. 490
04B09p. 491
04B10p. 492
04B11p. 493
04B12p. 494
04B13p. 495
04B14p. 496
04B15p. 497
04B16p. 498
04B17p. 499
04B18p. 500
04B19p. 501
04B20p. 502
04B21p. 503
04B22p. 504
04B23p. 505
04B24p. 506
04B25p. 507
+Cp. 508
04C01p. 508
04C02p. 509
04C03p. 510
04C04p. 511
04C05p. 512
04C06p. 513
04C07p. 514
04C08p. 515
04C09p. 516
04C10p. 517
04C11p. 518
04C12p. 519
04C13p. 520
04C14p. 521
04C15p. 522
04C16p. 523
04C17p. 524
04C18p. 525
04C19p. 526
04C20p. 527
04C21p. 528
04C22p. 530
04C23p. 531
04C24p. 532
04C25p. 533
+Dp. 534
04D01p. 534
04D02p. 535
04D03p. 536
04D04p. 537
04D05p. 539
04D06p. 540
04D07p. 541
04D08p. 542
04D09p. 543
+05p. 545
+Bp. 545
05B07p. 545
05B08p. 546
05B09p. 547

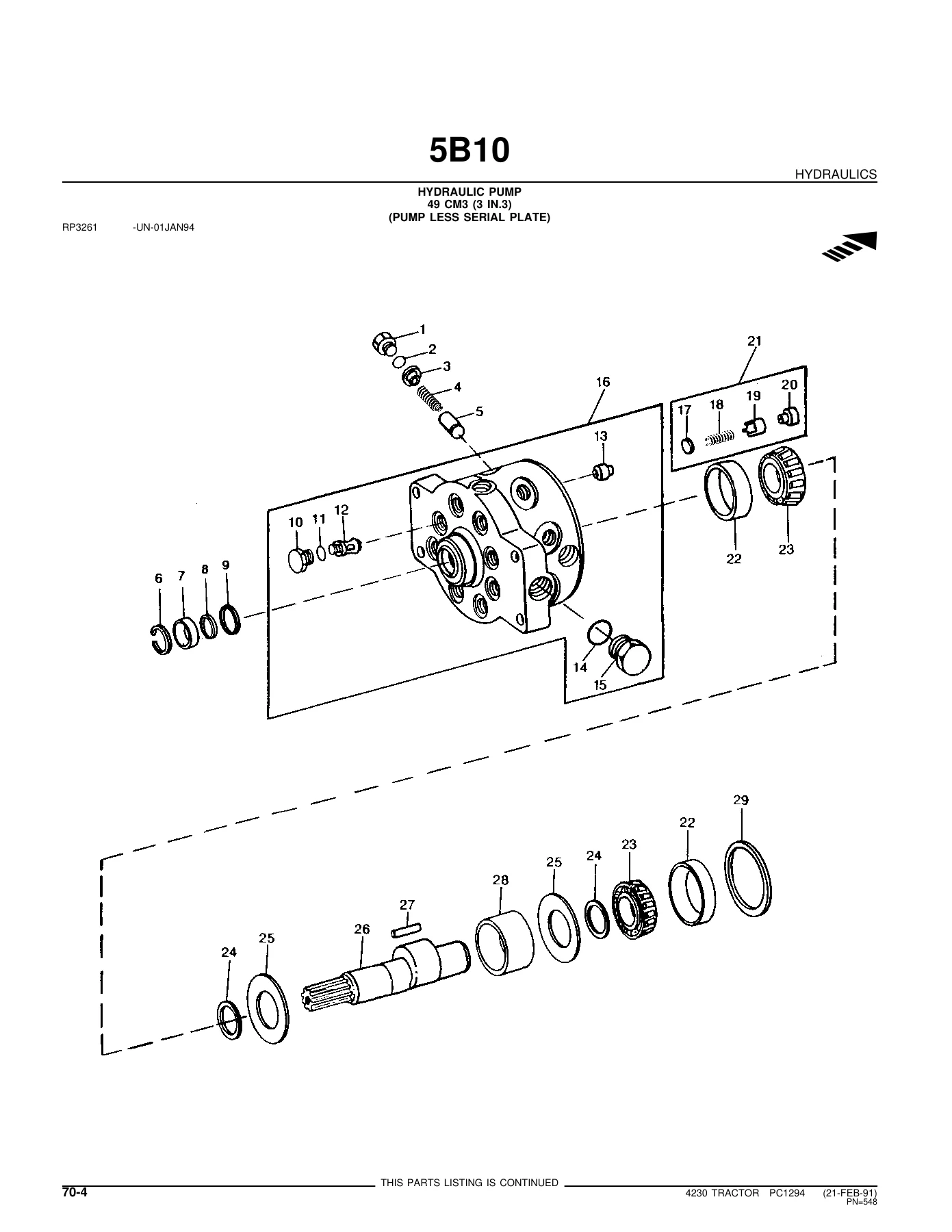

05B10p. 548
05B11p. 549
05B12p. 550
05B13p. 551
05B14p. 552
05B15p. 553
05B16p. 554
05B17p. 555
05B18p. 556
05B19p. 557
05B20p. 558
05B21p. 559
05B22p. 560
05B23p. 561
05B24p. 562
05B25p. 563
+Cp. 564
05C01p. 564
05C02p. 565
05C03p. 566
05C04p. 568
05C05p. 569
05C06p. 570
05C07p. 571
05C08p. 572
05C09p. 573
05C10p. 574
05C11p. 575
05C12p. 576
05C13p. 577
05C14p. 579
05C15p. 580
05C16p. 581
05C17p. 582
05C18p. 583
05C19p. 584
05C20p. 585
05C21p. 587
05C22p. 588
05C23p. 589
05C24p. 590
05C25p. 591
+Dp. 592
05D01p. 592
05D02p. 593
05D03p. 594
05D04p. 595
05D05p. 596
05D06p. 597
05D07p. 598
05D08p. 599
05D09p. 600
05D10p. 601
05D11p. 602
05D12p. 603
05D13p. 604
05D14p. 605
05D15p. 606
05D16p. 607
05D17p. 608
05D18p. 609
05D19p. 610
05D20p. 611
05D21p. 612
05D22p. 613
05D23p. 614
05D24p. 615
+Ep. 616
05E01p. 616
05E02p. 617
05E03p. 618
05E04p. 619
05E05p. 620
05E06p. 621
05E07p. 622
05E08p. 623
05E09p. 624
05E10p. 625
05E11p. 626
05E12p. 627
05E13p. 628
05E14p. 629
05E15p. 630
05E16p. 631
05E17p. 632
05E18p. 633
05E19p. 634
05E20p. 635
05E21p. 636
05E22p. 637
05E23p. 638
05E24p. 639
05E25p. 640
+Fp. 641
05F01p. 641
05F02p. 642
05F03p. 643
05F04p. 644
05F05p. 645
05F06p. 646
05F07p. 647
05F08p. 648
05F09p. 649
05F10p. 650
05F11p. 651
05F12p. 652
05F13p. 653
05F14p. 655
05F15p. 656
05F16p. 657
05F17p. 658
05F18p. 659
05F19p. 660
05F20p. 661
05F21p. 662
05F22p. 663
05F23p. 665
05F24p. 666
05F25p. 667
+Gp. 668
05G01p. 668
05G02p. 669
05G03p. 670
05G04p. 671
05G05p. 672
05G06p. 673
05G07p. 674
05G08p. 675
05G09p. 676
05G10p. 677
05G11p. 678
05G12p. 679
05G13p. 680
05G14p. 681
05G15p. 682
05G16p. 683
05G17p. 684
05G18p. 685
05G19p. 687
05G20p. 688
05G21p. 689
05G22p. 690
05G23p. 691
05G24p. 692
05G25p. 693
+Hp. 694
05H01p. 694
05H02p. 695
05H03p. 696
05H04p. 697
05H05p. 698
05H06p. 699
05H07p. 700
05H08p. 701
05H09p. 703
05H10p. 704
05H11p. 705
05H12p. 706
05H13p. 707
05H14p. 708
+06p. 709
+Bp. 709
06B05p. 709
06B06p. 710
06B07p. 711
06B08p. 712
06B09p. 713
06B10p. 714
06B11p. 715
06B12p. 716
06B13p. 717
06B14p. 719
06B15p. 720
06B16p. 721
06B17p. 722
06B18p. 723
06B19p. 724
06B20p. 725
06B21p. 726
06B22p. 727
06B23p. 728
06B24p. 729
06B25p. 730
+Cp. 731
06C01p. 731
06C02p. 732
06C03p. 733
06C04p. 734
06C05p. 735
06C06p. 737
06C07p. 738
06C08p. 739
06C09p. 740
06C10p. 741
06C11p. 742
06C12p. 743
06C13p. 744
06C14p. 745
06C15p. 747
06C16p. 748
06C17p. 749
06C18p. 750
06C19p. 751
06C20p. 752
06C21p. 753
06C22p. 754
06C23p. 755
06C24p. 756
06C25p. 757
+Dp. 758
06D01p. 758
06D02p. 759
06D03p. 760
06D04p. 761
06D05p. 762
06D06p. 763
06D07p. 764
06D08p. 765
06D09p. 766
06D10p. 767
06D11p. 768
06D12p. 769
06D13p. 770
06D14p. 771
06D15p. 772
06D19p. 773
06D20p. 774
06D21p. 775
06D22p. 776
06D23p. 777
06D24p. 778
06D25p. 779
+Ep. 780
06E01p. 780
06E02p. 781
06E03p. 782
06E04p. 783
06E05p. 784
06E06p. 785
06E07p. 786
06E08p. 787
06E09p. 788
06E10p. 789
06E11p. 790
06E12p. 791
06E13p. 792
06E14p. 793
06E15p. 795
06E16p. 796
06E17p. 797
06E18p. 798
06E19p. 799
06E20p. 800
06E21p. 801
06E22p. 802
06E23p. 803
06E24p. 805
+Fp. 806
06F01p. 806
06F02p. 807
06F03p. 808
06F04p. 809
06F05p. 810
06F06p. 811
06F07p. 812
06F08p. 813
06F09p. 814
06F10p. 815
06F11p. 816
06F12p. 817
06F13p. 818
06F14p. 819
06F15p. 821
06F16p. 822
06F17p. 823
06F18p. 824
06F19p. 825
06F20p. 826
06F21p. 827
06F22p. 828
06F23p. 829
06F24p. 830
06F25p. 831
+Gp. 832
06G01p. 832
06G02p. 833
06G03p. 834
06G04p. 835
06G05p. 836
06G06p. 837
06G07p. 838
06G08p. 839
06G09p. 840
06G10p. 841
06G11p. 842
06G12p. 843
06G13p. 845
06G14p. 846
06G15p. 847
06G16p. 848
06G17p. 849
06G18p. 850
06G19p. 851
06G20p. 853
06G21p. 854
06G22p. 855
06G23p. 856
06G24p. 857
+Hp. 858
06H01p. 858
06H02p. 859
06H03p. 860
06H04p. 861
06H05p. 862
06H06p. 863
06H07p. 865
06H08p. 866
06H09p. 867
06H10p. 868
06H11p. 869
06H12p. 870
06H13p. 871
06H14p. 873
06H15p. 874
06H16p. 875
06H17p. 876
06H18p. 877
06H19p. 879
06H20p. 880
06H21p. 881
06H22p. 882
06H23p. 883
06H24p. 884
06H25p. 885
+Ip. 887
06I01p. 887
06I02p. 888
06I03p. 889
06I04p. 890
06I05p. 891
06I06p. 893
06I07p. 894
06I08p. 895
06I09p. 896
06I10p. 897
06I11p. 898
06I12p. 899
06I13p. 900
06I14p. 901
06I15p. 902
06I16p. 903
06I17p. 904
06I18p. 905
06I19p. 906
+NUMERIC INDEX PAGESp. 907
+Jp. 907
01J02p. 907
01J03p. 908
01J04p. 909
01J05p. 910
01J06p. 911
01J07p. 912
01J08p. 913
01J09p. 914
01J10p. 915
01J11p. 916
01J12p. 917
01J13p. 918
01J14p. 919
01J15p. 920
01J16p. 921
01J17p. 922
01J18p. 923
01J19p. 924
01J20p. 925
01J21p. 926
01J22p. 927
01J23p. 928
01J24p. 929
01J25p. 930
+Kp. 931
01K01p. 931
01K02p. 932
01K03p. 933
01K04p. 934
01K05p. 935
01K06p. 936
01K07p. 937
01K08p. 938
01K09p. 939
01K10p. 940
01K11p. 941
01K12p. 942
01K13p. 943
01K14p. 944
01K15p. 945
01K16p. 946
01K17p. 947
01K18p. 948
01K19p. 949
01K20p. 950
01K21p. 951
01K22p. 952
01K23p. 953
01K24p. 954
01K25p. 955
+Lp. 956
01L01p. 956
01L02p. 957
01L03p. 958
01L04p. 959
01L05p. 960
01L06p. 961
01L07p. 962
01L08p. 963
01L09p. 964
01L10p. 965
01L11p. 966
01L12p. 967
01L13p. 968
01L14p. 969
01L15p. 970
01L16p. 971
01L17p. 972
01L18p. 973
01L19p. 974
01L20p. 975
01L21p. 976
01L22p. 977
01L23p. 978
01L24p. 979
01L25p. 980
+ALPHABETICAL INDEXp. 10
+Ap. 10
ABSORBER, SHOCK, SEAT SUPPORTp. 818
ABSORBER, SHOCK, SEAT SUPPORT (PERSONAL- POSTURE)p. 830
ACCUMULATOR, BRAKEp. 542
ADAPTER, IMPLEMENT QUICK COUPLERp. 634
ADAPTER, STARTING AID (ELECTRIC)p. 109
ADAPTER, STARTING AID (ELECTRIC)p. 113
ADHESIVEp. 906
ADJUSTABLE TREAD FRONT AXLEp. 710
ADJUSTABLE TREAD FRONT AXLE (PFWD)p. 711
AIR CIRCULATION PRESSURIZER BLOWER (SGB)p. 786
AIR CIRCULATION PRESSURIZER BLOWER (SGB)p. 788
AIR CLEANER CLEANING GUN, DRYp. 95
AIR CLEANER FILTERp. 142
AIR CLEANER, DRYp. 96
AIR COMPRESSOR WIRINGp. 152
AIR CONDITIONING CONDENSERp. 573
AIR CONDITIONING EVAPORATORp. 778
AIR CONDITIONING LINESp. 776
AIR CONDITIONING O-RING KITp. 707
AIR CONDITIONING RECEIVER-DEHYDRATORp. 778
AIR CONDITIONING RETROFIT KITp. 782
AIR CONDITIONING THERMOSTATp. 776
AIR CONDITIONING THERMOSTAT SWITCHp. 778
AIR INTAKE PIPE (DIESEL)p. 101
AIR INTAKE PIPE (GASOLINE)p. 100
AIR LOUVERp. 781
AIR LOUVER PANELp. 781
AIR LOUVER, SOUND-GARD BODYp. 780
AIR STACKp. 99
ALTERNATORp. 190
ALTERNATOR (DIESEL)p. 186
ALTERNATOR (GASOLINE)p. 185
ALTERNATOR BELT (DIESEL)p. 186
ALTERNATOR KITp. 192
ALTERNATOR MOUNTING BRACKET (DIESEL)p. 189
ALTERNATOR MOUNTING BRACKET (GASOLINE)p. 185
ALTERNATOR PULLEYp. 190
ALTERNATOR PULLEYp. 192
ALTERNATOR PULLEY (DIESEL)p. 186
ALTERNATOR PULLEY (GASOLINE)p. 185
ALTERNATOR REGULATORp. 190
AM FENDER MOUNT RADIOp. 256
AM RADIOp. 263
AM-FM PUSH-BUTTON RADIOp. 263
AM-FM PUSH-BUTTON RADIO (MOTOROLA)p. 261
AM-FM STEREO FENDER MOUNT RADIOp. 256
ANTENNA BRACKET, CB RADIOp. 266
ANTENNA KIT, RADIOp. 270
ANTENNA, FENDER MOUNT RADIOp. 256
ANTENNA, FENDER MOUNTEDp. 269
ANTENNA, RADIO KITp. 264
ANTI-FRICTION DIFFERENTIAL KITp. 444
ANTI-FRICTION NO LOCK DIFFERENTIAL KITp. 446
ARM, CONTROL VALVE OPERATING (QRT)p. 366
ARM, CONTROL VALVE, TRANSMISSION (PST)p. 422
ARM, LIFTp. 590
ARM, LOAD CONTROL (POWER SHIFT)p. 599
ARM, LOAD CONTROL (SRT AND QRT)p. 598
ARM, REMOTE CYLINDER TRANSPORTp. 688
ARM, ROCKERp. 36
ARM, ROCKSHAFT CRANKp. 590
ARM, ROCKSHAFT LIFTp. 608
ARM, SELECTIVE CONTROL LEVERp. 684
ARM, SELECTOR LEVER (QRT)p. 370
ARM, SHIFTERp. 368
ARM, SHIFTER (QRT AND SRT)p. 350
ARM, SHIFTER (QRT AND SRT)p. 351
ARM, SPEED CHANGE LEVER (QRT)p. 370
ARM, STEERING (ADJUSTABLE FRONT AXLE)p. 720
ARM, STEERING (ADJUSTABLE) (LOW PROFILE)p. 725
ARM, STEERING (FIXED) (LOW PROFILE)p. 724
ARM, STEERING (PFWD)p. 722
ARM, STEERING GEARp. 709
ARM, WINDSHIELD WIPERp. 278
ARM, WINDSHIELD WIPERp. 280
ARMATURE, STARTER (DELCO-REMY) (DIESEL)p. 210
ARMATURE, STARTER (GASOLINE)p. 196
ARMATURE, STARTER (JOHN DEERE) (DIESEL)p. 216
ARMREST (PERSONAL-POSTURE)p. 826
ARMS, SHIFTER SHAFT (QRT AND SRT)p. 352
ARMS, SHIFTER SHAFT (QRT AND SRT)p. 355
ASH TRAY, SOUND-GARD BODYp. 884
ASH TRAY, SOUND-GARD BODYp. 885
ASSEMBLY, COMPLETE BLOCK (DIESEL ONLY)p. 44
ATTENUATOR, HYDRAULIC OILp. 584
ATTENUATOR, HYDRAULIC OILp. 587
AUXILIARY ELECTRICAL OUTLET, 7-TERMINALp. 297
AUXILIARY HYDRAULIC OUTLET KITp. 679
AUXILIARY OUTLET COUPLER KITp. 680
AXLE KNEE, FRONT (ADJUSTABLE TREAD)p. 714
AXLE KNUCKLE, FRONT (ADJUSTABLE TREAD)p. 714
AXLE, ADJUSTABLE TREAD FRONTp. 710
AXLE, ADJUSTABLE TREAD FRONT (PFWD)p. 711
AXLE, FIXED TREAD FRONT (LOW PROFILE)p. 713
AXLE, FRONTp. 732
AXLE, REARp. 452
+Bp. 10
BAFFLE, HOODp. 760
BAFFLES, RADIATOR, KITp. 80
BALL, IMPLEMENT HITCHp. 631
BALL, IMPLEMENT HITCHp. 632
BAR, IMPLEMENT HITCHp. 626
BAR, IMPLEMENT HITCHp. 627
BAR, IMPLEMENT HITCH (HI-CROP)p. 629
BATTERYp. 159
BATTERY BOX (DIESEL) (LESS RG OR SGB)p. 754
BATTERY BOX (DIESEL) (ROLL-GARD OR SGB)p. 756
BATTERY BOX (GAS) (ROLL-GARD)p. 750
BATTERY BOX (GASOLINE)p. 748
BATTERY CABLES (DIESEL)p. 157
BATTERY CABLES (GASOLINE)p. 156
BEARING KIT, UNDERSIZED MAIN BEARING CRANKSHAFT (LATE DESIGN) (DIESEL)p. 60
BEARINGS, MAINp. 64
BEARINGS, MAIN THRUSTp. 64
BELT, COMPRESSORp. 773
BELT, FANp. 82
BELT, FAN AND ALTERNATOR DRIVE (DIESEL)p. 186
BELT, SEAL (W/O HI CROP)p. 800
BELT, SEAT (SOUND-GARD BODY)p. 824
BELT, SEAT, ROLL-GARD (HI-CROP)p. 798
BELT, SEAT, TWO-POST ROLL-GARDp. 796
BELTS, FAN (GASOLINE)p. 185
BEVEL GEAR, DIFFERENTIAL (QRT)p. 331
BEVEL GEAR, DIFFERENTIAL (SRT)p. 330
BEVEL PINION, DIFFERENTIAL (QRT)p. 331
BEVEL PINION, DIFFERENTIAL (SRT)p. 330
BEZEL, AIR LOUVERp. 781
BI-LINGUAL DECAL SETp. 770
BLADE, WINDSHIELD WIPERp. 278
BLADE, WINDSHIELD WIPERp. 280
BLADE, WIPERp. 276
BLOCK ASSEMBLY, COMPLETE (DIESEL ONLY)p. 44
BLOCK, CYLINDER (DIESEL)p. 46
BLOCK, CYLINDER (GASOLINE)p. 42
BLOCK, ENGINE SHORT (DIESEL)p. 48
BLOCK, MOTOR CYLINDER (PFWD)p. 470
BLOCK, SWAY CONTROLp. 642
BLOCKER, TRANSMISSION (SRT)p. 334
BLOCKERS, TRANSMISSION (SRT)p. 332
BLOWER MOTOR FILTER CAPACITOR KITp. 790
BLOWER MOTOR RESISTORp. 791
BLOWER SWITCHp. 781
BLOWER, PRESSURIZERp. 784
BLOWER, PRESSURIZER (REPLACEMENT SGB)p. 786
BLOWER, PRESSURIZER (REPLACEMENT SGB)p. 788
BODY, REPLACEMENT SOUND-GARDp. 834
BOLTS, CYLINDER HEADp. 30
BOOT, CLUTCH PEDAL (PST)p. 388
BOOT, CLUTCH PEDAL (QRT AND SRT)p. 314
BOOT, SHIFTER RODp. 368
BOOT, SHIFTER RODp. 893
BOX, BATTERY (DIESEL) (LESS RG OR SGB)p. 754
BOX, BATTERY (DIESEL) (ROLL-GARD OR SGB)p. 756
BOX, BATTERY (GAS) (ROLL-GARD)p. 750
BOX, BATTERY (GASOLINE)p. 748
BOX, TOOLp. 902
BRACE, PLATFORM EXTENSION (GASOLINE)p. 752
BRACKET KIT, CONTROL SUPPORTp. 853
BRACKET, ALTERNATOR MOUNTING (DIESEL)p. 189
BRACKET, ALTERNATOR MOUNTING (GASOLINE)p. 185
BRACKET, CB RADIO ANTENNAp. 266
BRACKET, CB RADIO MOUNTINGp. 266
BRACKET, CONTROL VALVE (PFWD)p. 471
BRACKET, FRONT AXLE PIVOTp. 709
BRACKET, MOUNTING, ROLL-GARDp. 805
BRACKET, MOUNTING, SOUND-GARD BODYp. 838
BRACKET, PIVOT, FRONT AXLE HOUSING (LOW PROFILE)p. 712
BRACKET, PIVOT, RADIUS ROD (HI-CROP)p. 726
BRACKET, REAR LAMP (ROLL-GARD)p. 228
BRACKET, REAR LAMP (SGB)p. 230
BRACKET, ROTARY SWITCH (PFWD)p. 162
BRACKET, SOUND-GARD BODY ROOFp. 858
BRACKET, WINDSHIELD WIPERp. 278
BRACKET, WINDSHIELD WIPERp. 280
BRACKET,REAR LAMP(LESS ROLL-GARD OR SGB)p. 226
BRACKETS, COMPRESSOR MOUNTINGp. 773
BRAKE ACCUMULATORp. 542
BRAKE DISKp. 528
BRAKE FACINGp. 528
BRAKE OIL LINESp. 536
BRAKE PEDALSp. 540
BRAKE PISTON HOUSING (PFWD)p. 462
BRAKE PISTON HOUSING (QRT)p. 346
BRAKE PISTON HOUSING (QRT)p. 348
BRAKE PISTON SEAL KIT (PFWD)p. 469
BRAKE PLATEp. 526
BRAKE PLATEp. 528
BRAKE PLATES (PFWD)p. 464
BRAKE REAR OIL LINESp. 535
BRAKE RETURN OIL LINESp. 539
BRAKE VALVEp. 530
BRAKE VALVEp. 532
BRAKE VALVE HOUSING COVERp. 540
BRAKE VALVE OVERHAUL KITp. 534
BRAKE, FIRST PLANETARY (PST)p. 409
BRAKE, PLANETARY (PST)p. 406
BRAKE, SECOND PLANETARY (PST)p. 408
BRAKE, THIRD PLANETARY (PST)p. 407
BRAKE, TRAILERp. 682
BREAKAWAY COUPLERp. 669
BREAKAWAY COUPLERp. 670
BREAKAWAY COUPLER (ISO CONVERSION KIT)p. 674
BREAKAWAY COUPLER (ISO)p. 673
BREAKAWAY COUPLER OVERHAUL KITp. 672
BREAKER, CIRCUITp. 170
BREAKER, CIRCUITp. 172
BREAKER, CIRCUIT (PFWD)p. 164
BREAKER, CIRCUIT, REMOTE CONTROLp. 291
BREAKER, ELECTRICAL OUTLET CIRCUITp. 294
BRG KIT, US CONNECTING ROD JOURNAL AND (EARLIEST DESIGN) (DIESEL)p. 56
BRG KIT, US MAIN BRG CRANKSHAFT (EARLY DESIGN) (DIESEL)p. 58
BUSHING, CAMSHAFTp. 38
BUSHING, CAMSHAFT (DIESEL)p. 39
BUSSBAR, CIRCUIT BREAKER (PFWD)p. 164
BYPASS STARTER LABELp. 202
BYPASS VALVE, OIL COOLER (DIESEL)p. 71
BYPASS, STARTER LABELp. 215
+Cp. 10
CAB FILTERp. 142
CABLE, BATTERY (DIESEL)p. 157
CABLE, BATTERY (GASOLINE)p. 156
CABLE, CHOKE (GASOLINE)p. 136
CABLE, SPEED-HOUR METERp. 896
CABLES, PUSH-PULL, SHIFTER (PST)p. 426
CABLES, SPARK PLUGp. 180
CAM, SHIFTER (QRT AND SRT)p. 352
CAM, SHIFTER (QRT AND SRT)p. 355
CAMSHAFT (DIESEL)p. 39
CAMSHAFT (GASOLINE)p. 38
CAMSHAFT BUSHING (DIESEL)p. 39
CAMSHAFT BUSHING (GASOLINE)p. 38
CAMSHAFT GEAR (DIESEL)p. 39
CAMSHAFT GEAR (GASOLINE)p. 38
CANOPY, FOUR-POST ROLL-GARDp. 808
CANOPY, ROLL-GARD, TWO-POSTp. 802
CAP, AIR STACKp. 99
CAP, FUEL FILTER (DIESEL)p. 116
CAP, FUEL FILTER (GASOLINE)p. 114
CAPACITOR, BLOWER MOTOR FILTERp. 788
CARBURETORp. 124
CARBURETORp. 125
CARRIER, FIRST PLANET PINION (PFWD)p. 465
CARRIER, PLANET PINIONp. 452
CARRIER, PLANET PINION (CRT AND SRT)p. 342
CARRIER, PLANET PINION (PST)p. 410
CARRIER, PLANET PINION (QRT)p. 344
CASE, TRANSMISSION (PST)p. 402
CASE, TRANSMISSION (QRT AND SRT)p. 326
CAST DISK WHEELSp. 734
CB RADIO MOUNTING KITp. 266
CENTER LINK SUPPORT (HI-CROP)p. 630
CENTER LINK, HITCHp. 631
CENTER LINK, HITCHp. 632
CHART, GROUND SPEEDp. 772
CHOKE CABLE (GASOLINE)p. 136
CIGAR LIGHTERp. 247
CIRCUIT BREAKERp. 170
CIRCUIT BREAKER AND RELAYp. 172
CIRCUIT BREAKER SUPPORT KITp. 175
CIRCUIT BREAKER, ELECTRICAL OUTLETp. 294
CIRCUIT BREAKERSp. 168
CIRCUIT BREAKERS AND RELAYp. 169
CIRCUIT BREAKERS AND RELAY (PFWD)p. 164
CLEAN-UP HYDRAULIC OIL KITp. 706
CLEANING GUN, DRY AIR CLEANERp. 95
CLEVIS PIN, DRAWBARp. 648
CLUTCH CONTROL, TRANSMISSION (SRT)p. 356
CLUTCH DISK (QRT AND SRT)p. 315
CLUTCH DRIVE SHAFTp. 392
CLUTCH DRIVE SHAFT (PST)p. 391
CLUTCH DRUMp. 392
CLUTCH DRUM (QRT)p. 346
CLUTCH DRUM (QRT)p. 348
CLUTCH HOUSING (PST)p. 386
CLUTCH HOUSING (QRT AND SRT)p. 313
CLUTCH OIL MANIFOLD (PST)p. 391
CLUTCH OIL PRESSURE VALVE HOUSING (QRT AND SRT)p. 320
CLUTCH OPERATING PISTON (QRT AND SRT)p. 317
CLUTCH PEDAL (PST)p. 388
CLUTCH PEDAL (QRT AND SRT)p. 314
CLUTCH PEDAL BOOT (QRT AND SRT)p. 314
CLUTCH PLATESp. 392
CLUTCH SHAFTp. 318
CLUTCH SHAFT (CRT AND SRT)p. 342
CLUTCH SHAFT (QRT AND SRT)p. 317
CLUTCH SHAFT (QRT)p. 344
CLUTCH VALVE (QRT AND SRT)p. 322
CLUTCH VALVE HOUSING (PST)p. 388
CLUTCH VALVE HOUSING (QRT AND SRT)p. 322
CLUTCH VALVE HOUSING PRESSURE SWITCH (PST)p. 394
CLUTCH, HI-LOp. 345
CLUTCH, PTO (PST)p. 393
CLUTCH, PTO (QRT AND SRT)p. 315
COIL, IGNITIONp. 180
COIL, STARTER (JOHN DEERE) (DIESEL)p. 217
COLD WEATHER STARTING AID (ELECTRIC)p. 109
COLD WEATHER STARTING AID (ELECTRIC)p. 113
COLD WEATHER STARTING AID (MANUAL)p. 108
COLLAR, SYNCHRONIZER DRIVE (QRT)p. 336
COLLAR, SYNCHRONIZER DRIVE (QRT)p. 338
COLUMN, STEERING WHEELp. 506
COLUMN, STEERING WHEEL (FIXED STEERING)p. 508
COMMUTATOR END FRAME (GASOLINE)p. 198
COMMUTATOR END FRAME, STARTER (JOHN DEERE) (DIESEL)p. 218
COMPLETE BLOCK ASSEMBLY (DIESEL ONLY)p. 44
COMPRESSORp. 774
COMPRESSOR BELTp. 773
COMPRESSOR CLUTCHp. 774
COMPRESSOR COILp. 774
COMPRESSOR PULLEYp. 774
CONDENSERp. 182
CONDENSER LINESp. 776
CONDENSER LINESp. 777
CONDENSER, AIR CONDITIONINGp. 573
CONDITIONER, COOLANTp. 28
CONDUITp. 302
CONNECTING RODS (DIESEL)p. 63
CONNECTING RODS (GASOLINE)p. 62
CONNECTORS, ELECTRICAL, DEUTSCHp. 310
CONNECTORS, ELECTRICAL, SUPPLEMENTARYp. 302
CONNECTORS, ELECTRICAL, WEATHERPACKp. 308
CONNECTORS,ELECTRICALp. 300
CONNECTORS,ELECTRICALp. 304
CONNECTORS,ELECTRICALp. 306
CONSOLE LIGHT HOUSING, FOUR POST ROLL-GA RDp. 245
CONSOLE LIGHT, FOUR POST ROLL-GARDp. 245
CONSOLE SUPPORTp. 882
CONSOLE, CONTROLp. 894
CONTAINER,ELECTRICAL PARTSp. 300
CONTROL CONSOLEp. 894
CONTROL LINKAGE, ROCKSHAFTp. 602
CONTROL RODS (CRT)p. 362
CONTROL SUPPORTp. 890
CONTROL SUPPORT BRACKET KITp. 853
CONTROL VALVE (PFWD)p. 472
CONTROL VALVE BRACKET (PFWD)p. 471
CONTROL VALVE HOUSING, ROCKSHAFTp. 594
CONTROL VALVE OPERATING SHAFT (QRT)p. 366
CONTROL VALVE OVERHAUL KIT (PFWD)p. 476
CONTROL VALVE, HEATERp. 781
CONTROL VALVES, TRANSMISSION (PST)p. 422
CONTROL, FOOT SPEEDp. 140
CONTROL, LOAD (POWER SHIFT)p. 599
CONTROL, LOAD (SRT AND QRT)p. 598
CONTROL, LOAD SELECTORp. 602
CONTROL, TRANSMISSION SHIFTER (PST)p. 424
CONTROL, TRANSMISSION SHIFTER (PST)p. 426
CONTROL, TRANSMISSION SHIFTER (QRT)p. 370
CONTROL, TRANSMISSION SHIFTER (SRT)p. 356
CONTROL, TURN SIGNALp. 246
CONTROL, VALVE HOUSING, ROCKSHAFTp. 596
CONVERSION KIT, REMOTE CYLINDERp. 700
CONVERSION KIT, REMOTE CYLINDER (3-1/2" X 8")p. 703
COOLANT CONDITIONERp. 28
COOLANT HEATER,ENGINE (LATE DESIGN) (8440)p. 77
COOLER, ENGINE OIL (DIESEL)p. 75
COOLER, ENGINE OIL (GASOLINE)p. 74
COOLER, HYDRAULIC OILp. 572
COOLER, HYDRAULIC OILp. 573
COOLING TEMPERATURE SWITCHp. 781
COUNTERSHAFT, TRANSMISSION (QRT AND SRT)p. 329
COUPLER OVERHAUL KIT (ISO)p. 676
COUPLER, BREAKAWAYp. 669
COUPLER, BREAKAWAYp. 670
COUPLER, BREAKAWAY (ISO CONVERSION KIT)p. 674
COUPLER, BREAKAWAY (ISO)p. 673
COUPLER, FLEXIBLE OIL LINEp. 678
COUPLER, IMPLEMENT QUICKp. 634
COUPLER, IMPLEMENT QUICK (HEAVY-DUTY)p. 636
COUPLER, ISO CONVERSION KITp. 674
COUPLER, MAIN PUMP DRIVEp. 546
COUPLER, POWER WEIGHT TRANSFERp. 650
COUPLER, QUICK, THREE-POINT HITCHp. 638
COUPLINGS, REUSABLEp. 708
COVER, BRAKE VALVE HOUSINGp. 540
COVER, CONTROL VALVE HOUSINGp. 656
COVER, DUST (DIAGNOSTIC RECEPTACLE)p. 668
COVER, DUST, BREAKAWAY COUPLERp. 669
COVER, DUST, BREAKAWAY COUPLERp. 670
COVER, DUST, BREAKAWAY COUPLERp. 678
COVER, EXHAUST MUFFLERp. 106
COVER, EXHAUST MUFFLER (LOW PROFILE)p. 107
COVER, PRESSURIZER (REPLACEMENT)p. 862
COVER, RETURN PORTp. 380
COVER, ROCKER ARMp. 34
COVER, ROCKSHAFT CONTROL VALVEp. 592
COVER, ROCKSHAFT CONTROL VALVE HOUSINGp. 655
COVER, ROCKSHAFT CONTROL VALVE HOUSINGp. 656
COVER, ROCKSHAFT HOUSINGp. 588
COVER, ROCKSHAFT PISTONp. 591
COVER, ROCKSHAFT PISTONp. 614
COVER, SELECTIVE CONTROLp. 655
COVER, STARTER SOLENOID (JOHN DEERE)p. 215
COVER, STEERING VALVEp. 493
COVER, STEERING VALVE CYLINDERp. 490
COVER, STEERING VALVE CYLINDERp. 496
COVER, TIMING GEAR (DIESEL)p. 69
COVER, TIMING GEAR (GASOLINE)p. 68
COVER, TRANSMISSION CASE (PST)p. 403
COVER, TRANSMISSION CASE (QRT AND SRT)p. 328
COVER, TRANSMISSION CONTROL VALVE (PST)p. 422
COVER, TRANSMISSION, REARp. 618
COWLp. 890
CRANK, ROCKSHAFT ARMp. 590
CRANKSHAFTp. 54
CRANKSHAFT DAMPERp. 54
CRANKSHAFT KIT, UNDERSIZE (CONNECTING ROD JOURNAL) (LATE DESIGN) (DIESEL)p. 59
CRANKSHAFT OIL SEALp. 66
CRANKSHAFT OIL SEAL HOUSINGp. 66
CRANKSHAFT PULLEYp. 54
CRANKSHAFT, REPLACEMENT (DIESEL ONLY)p. 55
CRANKSHAFT, UNDERSIZE MAIN BEARING (DIESEL)p. 61
CUSHION, SEATp. 815
CYLINDER BLOCK (DIESEL)p. 46
CYLINDER BLOCK (GASOLINE)p. 42
CYLINDER HEADp. 30
CYLINDER HEAD BOLTSp. 30
CYLINDER HEAD GASKETp. 30
CYLINDER HEAD GASKET KIT (DIESEL)p. 90
CYLINDER HOSE IDENTIFICATION KITp. 704
CYLINDER LINER (DIESEL)p. 63
CYLINDER LINER PACKING LUBRICANTp. 28
CYLINDER LINERS (GASOLINE)p. 62
CYLINDER, DUAL LIFT ASSIST, KITp. 612
CYLINDER, LIFT ASSISTp. 608
CYLINDER, LIFT ASSIST, PIPESp. 616
CYLINDER, REMOTEp. 640
CYLINDER, REMOTEp. 688
CYLINDER, REMOTE (3-1/2" X 8" HYD.)p. 696
CYLINDER, REMOTE (3-1/2" X 8" MECH.)p. 694
CYLINDER, REMOTE (3" X 8" HYD.)p. 692
CYLINDER, REMOTE (3" X 8" MECH.)p. 690
CYLINDER, SINGLE LIFT ASSIST, KITp. 610
CYLINDER, STEERING VALVEp. 489
+Dp. 10
DAMPER KEY (DIESEL ONLY)p. 55
DAMPER, CRANKSHAFTp. 54
DAMPER, TORSIONAL (PST)p. 390
DASH ASSEMBLYp. 896
DASH SUPPORTp. 896
DECAL SET, BI-LINGUALp. 770
DECALSp. 768
DECALS, HOODp. 760
DEFLECTOR, FAN BLAST (DIESEL)p. 83
DELUXE SEATp. 815
DELUXE SEAT SUPPORTp. 816
DELUXE SEAT SUSPENSIONp. 818
DEUTSCH TERMINALS AND CONNECTORSp. 310
DIAGNOSTIC RECEPTACLEp. 668
DIFFERENTIAL (PST)p. 437
DIFFERENTIAL (PST)p. 440
DIFFERENTIAL (QRT AND SRT)p. 436
DIFFERENTIAL (QRT AND SRT)p. 438
DIFFERENTIAL DRIVE SHAFT (PST)p. 414
DIFFERENTIAL DRIVE SHAFT (QRT)p. 331
DIFFERENTIAL DRIVE SHAFT (SRT)p. 330
DIFFERENTIAL LOCK RELEASE LINKp. 443
DIFFERENTIAL LOCK VALVEp. 449
DIFFERENTIAL LOCK VALVE PEDALp. 443
DIMMER SWITCHp. 243
DIPSTICK, ENGINE OIL (DIESEL)p. 46
DIPSTICK, ENGINE OIL (GASOLINE)p. 42
DIPSTICK, TRANSMISSIONp. 588
DIPSTICK, TRANSMISSIONp. 618
DIRECTIONAL CONTROL VALVE (PFWD)p. 472
DIRECTIONAL VALVEp. 656
DISCONNECT, TRANSMISSION (PST)p. 412
DISK, BRAKEp. 528
DISK, CLUTCH (QRT AND SRT)p. 315
DISK, PLANETARY CLUTCH (PST)p. 406
DISK, PTO CLUTCH (QRT AND SRT)p. 315
DISK, TORSIONAL DAMPER (PST)p. 390
DISK, TRANSMISSION SYNCHRONIZER (QRT)p. 336
DISK, TRANSMISSION SYNCHRONIZER (QRT)p. 338
DISK, TRANSMISSION SYNCHRONIZER (SRT)p. 332
DISK, TRANSMISSION SYNCHRONIZER (SRT)p. 334
DISTRIBUTORp. 180
DISTRIBUTORp. 182
DOME LIGHTp. 244
DOME LIGHTp. 245
DOOR HANDLE, SOUND-GARD BODYp. 846
DOOR HANDLE, SOUND-GARD BODYp. 848
DOOR HANDLE,SOUND-GARD BODY(LATE DESIGN)p. 850
DOOR KIT, SOUND-GARD BODYp. 842
DOOR, SERVICE, SOUND-GARD BODYp. 840
DOOR, SOUND-GARD BODY SERVICEp. 845
DOORS, SOUND-GARD BODYp. 840
DOUBLE FRONT WEIGHTp. 743
DRAFT LINK SUPPORT (HI-CROP)p. 629
DRAFT LINKS (HI-CROP)p. 629
DRAFT LINKS, HITCHp. 626
DRAFT LINKS, HITCHp. 627
DRAWBAR (HI-CROP)p. 647
DRAWBAR CLEVIS PIN (HI-CROP)p. 649
DRAWBAR CLEVIS PIN KITp. 648
DRAWBAR FRONT SUPPORTp. 641
DRAWBAR PIN(POWER WEIGHT TRANSFER HITCH)p. 650
DRAWBAR SUPPORT (HI-CROP)p. 647
DRAWBAR, REGULARp. 642
DRAWBAR, WIDE SWINGp. 644
DRIVE GEAR, OIL PUMP (DIESEL ONLY)p. 55
DRIVE GEAR, PTO (QRT AND SRT)p. 383
DRIVE GEAR, PTO (QRT AND SRT)p. 385
DRIVE SHAFT (HI-CROP)p. 456
DRIVE SHAFT HOUSING (HI-CROP)p. 456
DRIVE SHAFT, CLUTCH (PST)p. 393
DRIVE SHAFT, DIFFERENIAL (QRT AND SRT)p. 438
DRIVE SHAFT, DIFFERENTIAL (PST)p. 414
DRIVE SHAFT, DIFFERENTIAL (PST)p. 437
DRIVE SHAFT, DIFFERENTIAL (PST)p. 440
DRIVE SHAFT, DIFFERENTIAL (QRT AND SRT)p. 436
DRIVE SHAFT, PTO (QRT AND SRT)p. 385
DRIVE SHAFT, TRANSMISSION (SRT)p. 334
DRIVE, HYDRAULIC PUMPp. 546
DRIVE, TACHOMETER (DIESEL)p. 41
DRIVE, TACHOMETER (GASOLINE)p. 40
DRUM, CLUTCHp. 392
DRUM, CLUTCH (PST)p. 393
DRUM, CLUTCH (QRT)p. 346
DRUM, HI-LO CLUTCH (QRT)p. 348
DRUM, PLANETARY CLUTCH (PST)p. 406
DRUM, SYNCHRONIZER (QRT)p. 336
DRUM, SYNCHRONIZER (QRT)p. 338
DRUM, SYNCHRONIZER (SRT)p. 332
DRUM, SYNCHRONIZER (SRT)p. 334
DUAL HORNp. 242
DUAL HORN ASSEMBLYp. 241
DUAL REAR WHEELSp. 737
DUST COVER, BREAKAWAY COUPLERp. 669
DUST COVER, BREAKAWAY COUPLERp. 670
DUST COVER, BREAKAWAY COUPLERp. 678
+Ep. 10
ELECTRIC DESTROKE SOLENOIDp. 566
ELECTRIC HORNp. 242
ELECTRIC REMOTE CONTROLLED SPOTLIGHTp. 234
ELECTRICAL CONNECTOR AND TERMINAL KITp. 311
ELECTRICAL CONNECTORSp. 300
ELECTRICAL CONNECTORSp. 304
ELECTRICAL CONNECTORSp. 306
ELECTRICAL CONNECTORS, DEUTSCHp. 310
ELECTRICAL CONNECTORS, SUPPLEMENTARYp. 302
ELECTRICAL CRIMPING TOOLp. 300
ELECTRICAL OUTLET CIRCUIT BREAKERp. 294
ELECTRICAL OUTLET PLUGp. 294
ELECTRICAL OUTLET SOCKETp. 294
ELECTRICAL OUTLET SOCKETp. 295
ELECTRICAL OUTLET SOCKET (SGB)p. 296
ELECTRICAL OUTLET SOCKET, 7-TERMINALp. 297
ELECTRICAL PARTS CONTAINERp. 300
ELECTRICAL REMOTE CONTROLp. 288
ELECTRICAL REMOTE CONTROL KITp. 289
ELECTRICAL REMOTE CONTROL WIRINGp. 291
ELECTRICAL REMOTE CONTROL WIRING KITp. 292
ELECTRICAL SWITCHES AND WIRING (PFWD)p. 160
ELECTRICAL SWITCHES AND WIRING (PFWD)p. 161
ELECTRICAL TERMINALSp. 300
ELECTRICAL TERMINALSp. 304
ELECTRICAL TERMINALSp. 306
ELECTRICAL TERMINALS AND CONNECTORS, WEATHERPACKp. 308
ELECTRICAL TERMINALS, DEUTSCHp. 310
ELECTRICAL TERMINALS, SUPPLEMENTARYp. 302
ELECTRICAL TOOLSp. 311
ELECTRICAL WIRINGp. 300
ELECTRICAL WIRINGp. 304
ELECTRICAL WIRINGp. 306
ELEMENT, DRY AIR CLEANERp. 96
ELEMENT, OIL FILTER, TRANSMISSION (QRT AND SRT)p. 377
EMBLEM, SLOW MOVING VEHICLEp. 904
EMBLEM, STEERING WHEELp. 506
EMBLEM,SLOW MOVING VEHICLE (LOW PROFILE)p. 905
END FRAME, STARTER COMMUTATOR (JOHN DEERE) (DIESEL)p. 218
END, TIE ROD (ADJUSTABLE FRONT AXLE)p. 720
END, TIE ROD (ADJUSTABLE) (LOW PROFILE)p. 725
END, TIE ROD (FIXED) (LOW PROFILE)p. 724
END, TIE ROD (PFWD)p. 722
ENGINE COOLANT HEATER (LATE DESIGN) (8440)p. 77
ENGINE FILTERp. 142
ENGINE GASKET KITS (GASOLINE)p. 88
ENGINE OILp. 27
ENGINE OIL COOLER (DIESEL)p. 75
ENGINE OIL COOLER (GASOLINE)p. 74
ENGINE OIL DIPSTICK (DIESEL)p. 46
ENGINE OIL DIPSTICK (GASOLINE)p. 42
ENGINE OIL FILTER (DIESEL)p. 73
ENGINE OIL FILTER (GASOLINE)p. 72
ENGINE OIL PRESSURE SENDER (DIESEL)p. 46
ENGINE OIL PRESSURE SENDER (GASOLINE)p. 42
ENGINE OIL PUMP (DIESEL)p. 71
ENGINE OIL PUMP (GASOLINE)p. 70
ENGINE OVERHAUL KIT (DIESEL ONLY)p. 92
ENGINE REBUILD GASKET KIT (DIESEL)p. 90
ENGINE SHORT BLOCK (DIESEL)p. 48
ENGINE UNDERHAUL KIT (DIESEL ONLY)p. 94
ENGINE VALVE STGEM LUBRICANTp. 28
ENGINE VENTILATOR TUBEp. 34
ETHER SOLENOID WIRING HARNESSp. 154
ETHER STARTING AID KIT (MANUAL)p. 111
ETHER SWITCH WIRING HARNESSp. 154
EVAPORATOR, AIR CONDITIONINGp. 778
EXHAUST MANIFOLD (DIESEL)p. 103
EXHAUST MANIFOLD (DIESEL)p. 105
EXHAUST MANIFOLD (GASOLINE)p. 102
EXHAUST MANIFOLD GASKETS (DIESEL)p. 103
EXHAUST PIPE (LOW PROFILE)p. 107
EXHAUST VALVESp. 36
EXTENSION, MUFFLERp. 106
EXTENSION, SPINDLE FRONT WHEELp. 728
EXTENSION, SPINDLE, FRONT WHEELp. 727
EXTINGUISHER, FIREp. 901
+Fp. 10
FACING, BRAKEp. 528
FACING, BRAKE PLATEp. 526
FANp. 82
FAN BELTp. 82
FAN BELT (DIESEL)p. 186
FAN BELTS (GASOLINE)p. 185
FAN BLAST DEFLECTOR (DIESEL)p. 83
FAN PULLEY (DIESEL)p. 85
FAN PULLEY (GASOLINE)p. 84
FAN SHROUDp. 78
FENDER MOUNTED ANTENNAp. 269
FENDER SKIRT (HI-CROP)p. 812
FENDER, FOUR-POST ROLL-GARDp. 806
FENDER, SOUND-GARD BODYp. 832
FENDERSp. 812
FENDERS, FRONTp. 759
FILTER CAPACITOR KIT, BLOWER MOTORp. 790
FILTER COVER, OILp. 380
FILTER KIT, TRANSMISSION OIL (PST)p. 431
FILTER KIT, TRANSMISSION OIL (QRT)p. 376
FILTER, AIR CLEANERp. 142
FILTER, CABp. 142
FILTER, ENGINEp. 142
FILTER, ENGINE OIL (DIESEL)p. 73
FILTER, ENGINE OIL (GASOLINE)p. 72
FILTER, FUELp. 142
FILTER, FUEL (DIESEL)p. 119
FILTER, FUEL (DIESEL)p. 142
FILTER, FUEL (GASOLINE)p. 118
FILTER, FUEL (GASOLINE)p. 142
FILTER, RECIRCULATINGp. 783
FILTER, TRANSMISSIONp. 142
FILTER, TRANSMISSION HYDRAULIC OIL (PST)p. 428
FILTER, TRANSMISSION OIL (QRT AND SRT)p. 377
FILTER, TRANSMISSION OIL PUMP INTAKE (QRT AND SRT)p. 372
FINAL DRIVE GEAR (HI-CROP)p. 457
FINAL DRIVE GEAR HOUSING (HI-CROP)p. 458
FINAL DRIVE GEAR HOUSING COVER (HI-CROP)p. 457
FINAL DRIVE KITp. 455
FINAL DRIVE SHAFT AND SUN PINIONp. 452
FIRE EXTINGUISHERp. 901
FLASHER, WARNING LAMPp. 168
FLASHER, WARNING LAMPp. 169
FLASHER, WARNING LAMPp. 170
FLASHER, WARNING LAMPp. 172
FLASHER, WARNING LAMP (PFWD)p. 164
FLEXIBLE OIL LINE COUPLERp. 678
FLEXIBLE OIL LINE, BULKp. 708
FLOOD LAMPSp. 233
FLOOR MATp. 881
FLOOR MATp. 882
FLOW CONTROL VALVE (SCV)p. 660
FLUID, STARTING (ELECTRIC)p. 109
FLUID, STARTING (ELECTRIC)p. 113
FLUID, STARTING (MANUAL)p. 108
FLYWHEELp. 54
FOOT SPEED CONTROLp. 140
FRAME PLATEp. 740
FRAME, SIDEp. 740
FRONT AXLEp. 732
FRONT AXLE HOUSING (LOW PROFILE)p. 712
FRONT AXLE KNEE (ADJUSTABLE TREAD)p. 714
FRONT AXLE KNEE (LOW PROFILE)p. 719
FRONT AXLE KNEE (PFWD)p. 716
FRONT AXLE, ADJUSTABLE TREADp. 710
FRONT AXLE, ADJUSTABLE TREAD (PFWD)p. 711
FRONT AXLE, FIXED TREAD (LOW PROFILE)p. 713
FRONT FENDERSp. 759
FRONT LAMPp. 146
FRONT LAMPSp. 148
FRONT OIL SEAL (DIESEL)p. 69
FRONT OIL SEAL (GASOLINE)p. 68
FRONT SUPPORTp. 502
FRONT SUPPORTp. 504
FRONT SUPPORTp. 522
FRONT SUPPORTp. 524
FRONT WEIGHTSp. 742
FRONT WEIGHTSp. 743
FRONT WEIGHTSp. 744
FRONT WEIGHTSp. 745
FRONT WEIGHTSp. 747
FRONT WHEEL (PFWD)p. 733
FRONT WHEEL HUBp. 729
FRONT WHEEL, SINGLEp. 732
FRONT WHEELSp. 729
FUEL FILTERp. 142
FUEL FILTER (DIESEL)p. 119
FUEL FILTER (DIESEL)p. 142
FUEL FILTER (GASOLINE)p. 118
FUEL FILTER (GASOLINE)p. 142
FUEL GAUGEp. 248
FUEL GAUGE SENDER (DIESEL)p. 116
FUEL GAUGE SENDER (GASOLINE)p. 114
FUEL INJECTION LINESp. 126
FUEL INJECTION LINESp. 128
FUEL INJECTION NOZZLEp. 133
FUEL INJECTION NOZZLEp. 134
FUEL INJECTION NOZZLESp. 126
FUEL INJECTION NOZZLESp. 128
FUEL INJECTION PUMPp. 126
FUEL INJECTION PUMPp. 128
FUEL INJECTION PUMP FITTINGS AND LINKAGEp. 130
FUEL LINES (DIESEL)p. 120
FUEL LINES (GASOLINE)p. 118
FUEL PUMP (DIESEL)p. 120
FUEL PUMP (GASOLINE)p. 118
FUEL TANK (DIESEL)p. 116
FUEL TANK (GASOLINE)p. 114
+Gp. 10
GASKET KIT, CYLINDER HEAD (DIESEL)p. 90
GASKET KIT, ENGINE REBUILD (DIESEL)p. 90
GASKET KITS, ENGINE (GASOLINE)p. 88
GASKET, CLUTCH HOUSING (PST)p. 386
GASKET, CYLINDER HEADp. 30
GASKET, INTAKE MANIFOLD (DIESEL)p. 105
GASKET, OIL PANp. 50
GASKET, TIMING GEAR COVER (DIESEL)p. 69
GASKET, WATER PUMP (DIESEL)p. 85
GASKET, WATER PUMP (GASOLINE)p. 84
GASKETS, EXHAUST MANIFOLD (DIESEL)p. 103
GAUGE CLUSTERp. 248
GAUGE, FUELp. 248
GAUGE, OIL TEMPERATUREp. 248
GAUGE, PRESSURE, POWER WEIGHT TRANSFERp. 653
GAUGE, TEMPERATURE SENDER (PST)p. 398
GAUGE, WATER TEMPERATUREp. 248
GEAR REDUCTION, TRANSMISSION (PST)p. 413
GEAR SHIFT LEVER (SRT AND CRT)p. 357
GEAR SHIFT LEVER (SRT)p. 356
GEAR SHIFT QUADRANT SUPPORT (SRT)p. 356
GEAR, BEVEL, DIFFERENTIAL (QRT)p. 331
GEAR, BEVEL, DIFFERENTIAL (SRT)p. 330
GEAR, CAMSHAFT (DIESEL)p. 39
GEAR, CAMSHAFT (GASOLINE)p. 38
GEAR, COUNTERSHAFT (QRT AND SRT)p. 329
GEAR, FINAL DRIVE (HI-CROP)p. 457
GEAR, OIL PUMP DRIVE (DIESEL ONLY)p. 55
GEAR, PTO COUNTERSHAFT (PST)p. 433
GEAR, PTO COUNTERSHAFT (QRT AND SRT)p. 382
GEAR, PTO DRIVE (PST)p. 433
GEAR, PTO DRIVE (PST)p. 434
GEAR, PTO DRIVE (QRT AND SRT)p. 382
GEAR, PTO DRIVE (QRT AND SRT)p. 384
GEAR, PTO DRIVE (QRT AND SRT)p. 385
GEAR, STARTERp. 54
GEARS, PTO IDLER (PST)p. 435
GEARSHIFT LEVER (PST)p. 424
GEARSHIFT LEVER (QRT)p. 370
GLASS SEALS, SOUND-GARD BODYp. 868
GLASS, REAR SLIDINGp. 879
GOVERNOR (GASOLINE)p. 123
GRILLEp. 758
GROUND CABLE, BATTERY (DIESEL)p. 157
GROUND CABLE, BATTERY (GASOLINE)p. 156
GROUND SPEED CHARTp. 772
GUARD, PTO SHAFT (PST)p. 432
GUARD, REAR PTO (QRT AND SRT)p. 381
GUN, DRY AIR CLEANER CLEANINGp. 95
+Hp. 10
HANDLE, DOOR, SOUND-GARD BODYp. 846
HANDLE, DOOR, SOUND-GARD BODYp. 848
HANDLE, MOUNTINGp. 760
HANDLE, MOUNTINGp. 762
HANDLE,DOOR,SOUND-GARD BODY(LATE DESIGN)p. 850
HARNESS, WIRINGp. 152
HARNESS, WIRING (REPLACEMENT SGB)p. 150
HARNESS, WIRING (ROLL-GARD AND SOUND-GARD BODY)p. 148
HEAD, CYLINDERp. 30
HEADLINER, ROLL-GARD CANOPYp. 808
HEADLINER, SOUND-GARD BODYp. 865
HEADPHONES, RADIOp. 267
HEATER CONTROL VALVEp. 781
HEATER INSTALLATION KITp. 792
HEATER SUPPLY LINEp. 795
HEATER, OIL FILTERp. 486
HEATER, SOUND-GARD BODYp. 792
HEATER,ENGINE COOLANT (LATE DESIGN) (8440)p. 77
HI-LO CLUTCHp. 345
HINGE KIT, SOUND-GARD BODY DOORp. 842
HINGE, DOOR, SOUND-GARD BODYp. 840
HITCH CENTER LINKp. 631
HITCH CENTER LINKp. 632
HITCH DRAFT CENTER LINK SUPPORT(HI-CROP)p. 630
HITCH DRAFT LINKSp. 626
HITCH DRAFT LINKSp. 627
HITCH DRAFT LINKS (HI-CROP)p. 629
HITCH LIFT LINKSp. 624
HITCH QUICK COUPLER,IMPLEMENT (HEAVY-DUTY)p. 636
HOLDER, OPERATOR’S MANUALp. 814
HOODp. 760
HOOD BAFFLEp. 760
HOOD EXTENSIONp. 760
HOOD ORNAMENTp. 760
HOOD, REAR SUPPORTp. 760
HORNp. 240
HORN ASSEMBLY, DUALp. 241
HORN SWITCHp. 242
HORN, ELECTRICp. 242
HOSE IDENTIFICATION KIT, REMOTE CYLINDERp. 704
HOSE, AIR INTAKE (DIESEL)p. 101
HOSE, AIR INTAKE (GASOLINE)p. 100
HOSE, RADIATORp. 78
HOSE, REMOTE CYLINDERp. 688
HOSE, REMOTE CYLINDERp. 708
HOSES, HEATER, SOUND-GARD BODYp. 792
HOSES, REMOTE CYLINDERp. 640
HOUSING COVER,FINAL DRIVE GEAR (HI-CROP)p. 457
HOUSING, BRAKE PISTON (PST)p. 406
HOUSING, BRAKE PISTON (QRT)p. 346
HOUSING, BRAKE PISTON (QRT)p. 348
HOUSING, CLUTCH (PST)p. 386
HOUSING, CLUTCH (QRT AND SRT)p. 313
HOUSING, CLUTCH OIL PUMP (PST)p. 391
HOUSING, CLUTCH REGULATING VALVE (PST)p. 398
HOUSING, CLUTCH REGULATING VALVE (PST)p. 400
HOUSING, CLUTCH VALVE (QRT AND SRT)p. 322
HOUSING, CONSOLE LIGHT, FOUR POST ROLL-G ARDp. 245
HOUSING, CRANKSHAFT OIL SEALp. 66
HOUSING, DIFFERENTIAL LOCK VALVEp. 449
HOUSING, DRIVE SHAFT (HI-CROP)p. 456
HOUSING, FINAL DRIVE GEAR (HI-CROP)p. 458
HOUSING, FRONT AXLE (LOW PROFILE)p. 712
HOUSING, MOTOR (PFWD)p. 462
HOUSING, MOTOR (PFWD)p. 716
HOUSING, OIL FILTER RELIEF VALVE (QRT AND SRT)p. 378
HOUSING, PLANET BRAKE PISTON (PFWD)p. 462
HOUSING, PLANETARY (PFWD)p. 464
HOUSING, PRESSURE REGULATING VALVE (QRT AND SRT)p. 320
Section 10 General Information — serial plate decoding, serial-range rules, component model numbers, direction arrows, box-enclosed service assemblies, bolt strength identification (HS SAE 8 / HS 10.9), JDM remanufactured-component note, trademarks, quantity and remarks abbreviations (NLR, NA, NLA, FI, CA)
Section 20 Engine — complete block and short block (diesel), gasoline and diesel cylinder blocks, cylinder head and gaskets, camshaft and gears, crankshaft and undersize bearing kits, connecting rods and liners, oil pan, timing gear covers and seals, oil pumps and coolers, filters, radiator and fan, water pump and thermostat housings, engine gasket / rebuild / overhaul / underhaul kits
Section 30 Fuel and Air — dry air cleaner and cleaning gun, air stack and intake pipes, exhaust manifolds and muffler covers, cold-weather starting aids (manual and electric), fuel tanks and senders, fuel filters and lines, gasoline carburetor and governor, diesel injection pump, lines and nozzles, speed-control linkage, filter listing page
Section 40 Electrical — batteries and cables, wiring harnesses (including Roll-Gard, Sound-Gard body, PFWD, and ether-aid harnesses), circuit breakers and relays, ignition and distributor (gasoline), spark plugs including LP-Gas listings, alternators and belts, Delco-Remy and John Deere starters, lamps and brackets, horns, gauges and indicator lamps, radios and antennas, wipers and washers, remote electrical control, 7-terminal outlets, terminals and connectors (Weatherpack, Deutsch, supplementary)
Section 50 Power Train — clutch housings, disks, drums, valves and pedals for Quad-Range and Syncro-Range; Power Shift clutch, planetary brakes, control valves and shifter cables; synchronizer drums, collars and repair kits; Hi-Lo clutch; transmission cases and countershafts; PTO drive gears, shafts and guards; differentials and lock valves; rear axle and planet carriers; Hi-Crop drive shaft and final drive; PFWD motor housing, planetaries, control valve and hydraulic lines
Section 60 Steering and Brakes — steering valve and cylinder, metering pump, oil lines for fixed and telescoping columns, steering wheel and column, brake plates and facings, brake valve and overhaul kit, pedals, accumulator, front and return oil lines
Section 70 Hydraulics — main pump drive and pumps (50 cm3 / 3 in3 and 65 cm3 / 4 in3, including PFWD 4 in3), stroke control and electric destroke kits, overhaul kits, oil cooler and attenuator, reservoir and manifold, rockshaft housing, control valve and load-control linkage, lift-assist cylinders and pipes, hitch draft and lift links, center link, quick couplers, drawbars including Hi-Crop and wide-swing, selective control valves (single, dual, triple), breakaway and ISO couplers, remote cylinders 3 in x 8 in and 3-1/2 in x 8 in with hydraulic or mechanical stop, hose identification and reusable couplings
Section 80 Wheels, Front Axles, Sheet Metal — front axle pivot and adjustable-tread, PFWD, fixed-tread low-profile and Hi-Crop arrangements, knees and knuckles, hubs and wheels, dual rear wheels, frame and side plates, front weights, battery boxes, grille, hood and baffles, fenders, decals including bilingual sets and ground-speed chart
Section 90 Operator’s Station — air-conditioning compressor, lines, condenser, evaporator and receiver-dehydrator, pressurizer blowers and filters, heater kits, Roll-Gard two-post and four-post structures and canopies, seat belts, deluxe and Personal-Posture seats, Sound-Gard body doors, glass, headliner, floor mats, console, dash and instruments, tool box, fire extinguisher, slow-moving-vehicle emblem
Section 95 Numerical Index — part-number lookup back to the illustrated page
Taken together, the John Deere 4230 Tractor Parts Catalog PC1294 (1996) is a parts-identification book rather than a step-by-step repair narrative. A technician uses the illustration, the keyed part number, the quantity, the serial-number column, and the remarks column (supersessions, kits, NLA, field-installed and convenience assemblies) to order the correct piece for that chassis, engine, and option group.
Diesel and Gasoline Coverage
Engine section 20 and fuel section 30 run parallel gasoline and diesel stacks. Diesel coverage includes the complete block assembly, short block, 6-404 naturally aspirated identity, injection pump and nozzles, diesel oil cooler and filter, and diesel-only overhaul and underhaul kits. Gasoline coverage includes the gasoline cylinder block, camshaft and gear, carburetor, governor, choke cable, gasoline fuel tank and pump, distributor, coil, and Delco-Remy 12-volt starter AR60085 (Delco-Remy No. 1109147). Spark-plug listings also note Champion, AC, and Prestolite parts for gasoline and LP-Gas. Cooling pages flag separate fan, pulley, thermostat housing, and radiator hardware for the two fuels, and electrical pages split battery cables, engine harnesses, and battery boxes the same way.
Transmissions, Axles, and Operator Options
Power-train pages are built around Quad-Range (QRT), Syncro-Range (SRT), Power Shift (PST), and Creeper. Clutch disks, drums, oil manifolds, synchronizer repair kits AR77815 / AR77816, Hi-Lo clutch parts, and shifter arms are called out by those families. Power Shift pages add planetary clutch disks and first, second, and third planetary brakes, plus push-pull shifter cables for Sound-Gard or open stations. Differential and lock-valve illustrations note machines with and without differential lock. PFWD pages cover the motor housing, planet pinion carrier, brake piston seal kit, directional control valve, and improvement kit.
IMAGES PREVIEW
Front-axle and sheet-metal pages distinguish adjustable-tread, narrow and wide adjustable, fixed-tread low-profile, Hi-Crop, and PFWD. Hitch pages in section 70 likewise separate row-crop and Hi-Crop draft links and Category I / Category II hardware. Operator-station pages cover machines less Roll-Gard or Sound-Gard body, two-post and four-post Roll-Gard, replacement Sound-Gard bodies, Personal-Posture seating, and air-conditioning retrofit hardware. Electrical lamp brackets follow the same enclosure split.
What the Illustrations and Remarks Columns Give You
Most illustrated pages use a keyed exploded view, then a table of key, part number, part name, quantity, serial number, and remarks. Box-enclosed views mark parts sold only as a service assembly. High-strength fasteners are called HS SAE 8 on U.S. customary hardware and HS 10.9 on metric hardware; remaining standard fasteners are SAE Grade 5 or lower, or property class 8.8 or lower. Remarks record substitutions (SUB FOR / SUB), kits that must be ordered with extra pieces, core-return notes on remanufactured starters and alternators, and factory-direct convenience or field-installed options. A vertical change-indicator line on microfiche-origin pages flags ordering changes.
Hydraulic pump pages illustrate the 50 cm3 (3 in3) pump and the 65 cm3 (4 in3) pump, with separate PFWD 4 in3 replacement artwork, destroke kits, and overhaul kits. Remote-cylinder pages cover 76 x 203 mm (3 in x 8 in) and 3-1/2 in x 8 in units in hydraulic-stop and mechanical-stop forms, plus conversion and overhaul kits. Breakaway coupler pages include standard, ISO, and ISO conversion hardware. Electrical connector pages list Weatherpack, Deutsch, and bulk terminal assortments used when repairing harnesses rather than replacing them whole.
Using the John Deere 4230 Tractor Parts Catalog PC1294 (1996) on a Real Machine
Start with the tractor type and chassis serial on the transmission-case plate, then the engine plate behind the injection pump. Confirm transmission family, fuel, PFWD, Hi-Crop or low-profile axle, and whether the station is open, Roll-Gard, or Sound-Gard. Open the matching section, find the illustration, and read the serial column before writing a part number. Check the numerical index in section 95 when you already have a number and need the page. Where a short-block replacement is installed, the catalog tells you to stamp the previous engine serial into the blank on the short-block plate so later parts decisions stay tied to the original engine identity.
Get the Parts Book You Can Work From
With the John Deere 4230 Tractor Parts Catalog PC1294 (1996) you can identify engine, fuel, electrical, transmission, steering, brake, hydraulic, axle, sheet-metal, and operator-station parts for diesel and gasoline 4230 tractors, including Quad-Range, Power Shift, Syncro-Range, and Creeper machines and the PFWD, Hi-Crop, low-profile, Roll-Gard, and Sound-Gard options shown in the book. Ordering from the keyed illustration and the serial column avoids mixing early and late hardware and catches supersessions printed in the remarks. After payment the file is delivered as an instant PDF download—no shipping wait—so it can be opened on a phone, tablet, or shop computer and printed for the bench.
Reviews
There are no reviews yet.
Be the first to review “John Deere 4230 Tractor Parts Catalog PC1294 (1996)” Cancel reply
✹
What Our Customers Say
★★★★★Live reviews from customers
Loading customer reviews...
🌟 Related Products
Discover more professional manuals for your equipment
DOWNLOAD
DOWNLOAD
DOWNLOAD
Reviews
There are no reviews yet.
