John Deere 4560 4760 4960 Tractor Parts Catalog PC2334 (1999)

Description

Identify Every Service Part on the 4560, 4760 and 4960

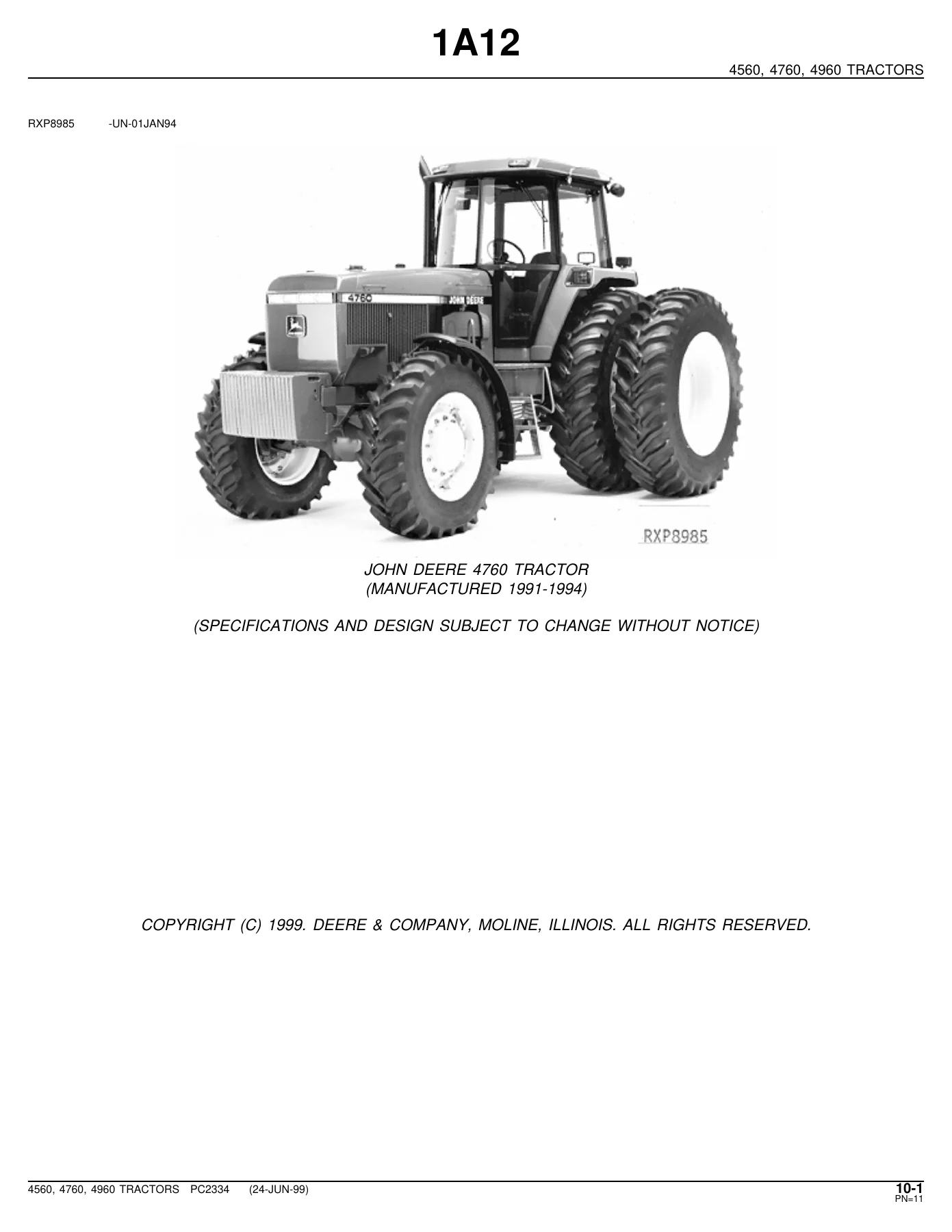

The John Deere 4560 4760 4960 Tractor Parts Catalog PC2334 (1999) is the illustrated parts book used to match John Deere part numbers to the assemblies on these Waterloo-built row-crop tractors. It is organized by machine group, pairs each illustration with a keyed parts list, and flags which part applies by tractor, engine, transmission, pump, axle, or cab serial break. A 4760 photograph in the front matter is captioned as manufactured 1991-1994; the same catalog also lists the companion 4560 and 4960 applications, including Quad-Range and Power Shift transmissions and Sound-Gard or Roll-Gard operator stations.

File Details

• Manual type: Parts catalog (illustrated parts lists and exploded views)
• Brand / models: John Deere 4560, 4760, 4960
• Document number: PC2334
• Revision dates printed in the footer: 09-OCT-92 through 14-DEC-99 (copyright 1999, Deere & Company, Moline, Illinois)
• Language: English primary listings, with French, German, Italian, Spanish and Swedish headings, remarks translations, and symbol tables
• Page count: 902
• File format: PDF

How This Catalog Is Meant to Be Used

PC2334 is not a repair procedure book. Each group opens with a drawing, then a line-by-line list of key number, part number, description, quantity, model applicability columns, and a remarks column. Remarks use the catalog’s own codes: SUB (replaced by), SUB FOR (substitutes for), NLA (no longer available), NSEP (not supplied separately), NA (not used this application), AR (as required), ASSY, KIT, MF (make from), FI (field installed, order from the producing factory), W/ and W/O, plus LH/RH, ID/OD, OS/US and tooth count Z. Those codes are tabulated in English, French and German, then again in Italian, Spanish and Swedish, so a shop can decode a superseded line without guessing.

Serial applicability is written as open-ended, closed, or bounded ranges. A blank-to-number range means the part is used up to and including that serial; a number-to-blank range means from that serial onward; two numbers mean inclusive between them. When the catalog could not recover the exact change point it prints XXXXXX. Component model numbers are used the same way for the brake valve (15BV1), hydraulic accumulator (14HA2), 66 cm³ hydraulic pump (15PP1), selective control valves (25SC1 / 23SC2), remote cylinders 89 x 203 mm / 3-1/2 in x 8 in (2RC4 and 4RC3 with mechanical stop), rockshaft control valve (15RS1), steering cylinder (3CY1), steering metering pump (2SP1) and steering valve (31SV1).

Serial Plates the Catalog Expects You to Read

Before ordering from the John Deere 4560 4760 4960 Tractor Parts Catalog PC2334 (1999), the front matter shows where every identification plate sits and how to parse it.

• Basic tractor PIN (product identification number) at the rear of the transmission case: manufacturer RW (John Deere Waterloo Works), model 4560/4760/4960, transmission letter H Quad-Range or P Power Shift, then the tractor serial and unit type TRACTOR. Example layout printed: RW 4560 H 002000.
• Two-line bar-coded engine plate from Waterloo Engine Works (RG): 6 cylinders, 076 (7.6 liters), intake letter A turbocharged and aftercooled, T turbocharged, or H air-to-air, then the engine serial. Second-line factory/application codes listed: 6076TRW09 for 4560, 6076ARW07 for 4760, 6076ARW08 mechanical governor and 6076ARW11 electrical governor for 4960.
• Replacement short-block plate marked SB, liters 076, production date and a blank field so the original engine serial can be stamped for dealer reference; attach with (2) 37H44 drive screws.
• Transmission plate on the left-hand side: RO Waterloo, T transmission, PF Power Shift or SG Quad-Range (Hi-Lo), input torque code 01-99 representing 10-990 N·m (7-730 lb-ft), then the transmission serial.
• Hydraulic pump plate on the top right-hand side of the pump: RO, PV variable pump, JN2 65 cm³ (4 in³), radial-piston family RP, frame size 1, 65 cm³, GO primary housing, shaft rotation E/R/L, stroke-control valve code 15.
• Sound-Gard body plate on the windshield-wiper motor access door header; Roll-Gard plate on the right-hand front post. Codes include SG Sound-Gard, RG Roll-Gard, version 016, OSHA 29CFR Part 1926 certification data, and the tractor model.
• Mechanical front-wheel-drive plate on the rear right-hand side of the axle housing. Configuration identity 335 or 425 (wheel bolt-circle diameter), master machine codes 255/256, spiral-bevel reductions 1.993:1, 2.588:1, 3.071:1 or 3.727:1, Dana 1480 input yoke, 1831 mm flange-to-flange, oscillating top-pivot center drive, no brakes, limited-slip differential, final-drive reduction 5.2:1.

Group headings also use compact serial-type codes when the column heading is not enough: TSN tractor, ESN engine, PST / QRT transmission, PSN pump, ASN axle, SGB Sound-Gard body, RG Roll-Gard, CSN cab, DSN differential.

IMAGES PREVIEW

Chapters Covered

• Section 10 General information — primary pictorial index, remarks-code tables, serial-plate decoding, quantity-column rules, direction arrows and LH/RH convention, bolt strength notes (HS SAE 8 / HS 10.9), JDM remanufactured-component caution, trademark list, dash-symbol keys
• Section 20 Engine — complete block, cylinder block and short block (6076, with and without head bolts), main bearings and thrust bearings, piston cooling jets, oil filter base and oil pump, dipstick tube, water-pump bearing, thermostat housing, fan drive and belts, radiator sealing baffle kit, coolant heater, isolators, engine rebuild gasket kit
• Section 30 Fuel and air — air-cleaner support, air cleaner and vacuum switch, intake ducts, aftercooler (4760/4960), fuel lines and strainer, injection-pump gear applications (including ARW07 on 4760), 12-volt air-heater kit for 6076ARW07/08/11, ether starting aid hardware
• Section 40 Electrical — battery, cables and terminal jumper, Nippondenso alternator (new and remanufactured) and belt, starting circuit and 950 cold-cranking listing, accessory and power relays, electrical load center, junction block, lights and fender work-light bezel, wiper blades and washer, AM-FM/clock and cassette radios, antenna kit, annunciator and monitor console, sensors, Metri-Pack terminals and connector packs
• Section 50 Transmissions — Quad-Range (QRT) range shifter, Hi-Lo bellcranks, clutches and oil-pump lines; Power Shift (PST) planetary brakes, control rods and bellcranks, clutch and PTO clutch arms, forward/reverse and speed-selector arms, control-valve accumulators, oil-pressure and temperature sensors, gasket kits
• Section 53 Differential and rear PTO — rear axle housing and shaft, axle bearing and seal kits (separate 4560/4760 and 4960 listings), grease kit, 1-3/8 in PTO shaft adapter (PST), spiral-bevel gear baffle (PST)
• Section 54 MFWD — front axle housing and shafts, steering arms, spiral-bevel gear and shaft, tie rods, bearings and seals, drive-shaft joints
• Section 60 Steering and brakes — steering metering pump, steering valve and cylinder hardware, brake accumulator and pressure line, pedals, MFWD versus two-wheel-steer differences
• Section 70 Hydraulics — replacement hydraulic pump, oil filter and pressure/temperature sender points, rockshaft housing and control, lift and draft-link arms, Category II / III hitch parts, remote cylinders 89 x 203 mm (3-1/2 in x 8 in) with and without mechanical stop, selective-control and breakaway couplers, auxiliary outlet and coupler kits, wide-swing drawbar supports (4560/4760 and 4960 called out separately), hydraulic oil attenuator for Sound-Gard body
• Section 80 Wheels, front axles, sheet metal — adjustable-tread front axle and tie rods, axle kit, wheel hardware, battery box, cover, riser and clamps, frame baffles, hood and safety-sign decals (including bilingual plates)
• Section 90 Operator’s station — Sound-Gard body and Roll-Gard structure, HydraCushioned seat adjuster, seat belts, armrest, shock absorber and seat accumulator, air-conditioning compressor (including 6466 belt and bracket pages), condenser, O-ring kit, blower, louvers, pressurizer, floor mats, door latch and glass, radio speaker grille, ash tray, tool-box provisions
• Section 95 Numerical index — part-number lookup back to grid and group page

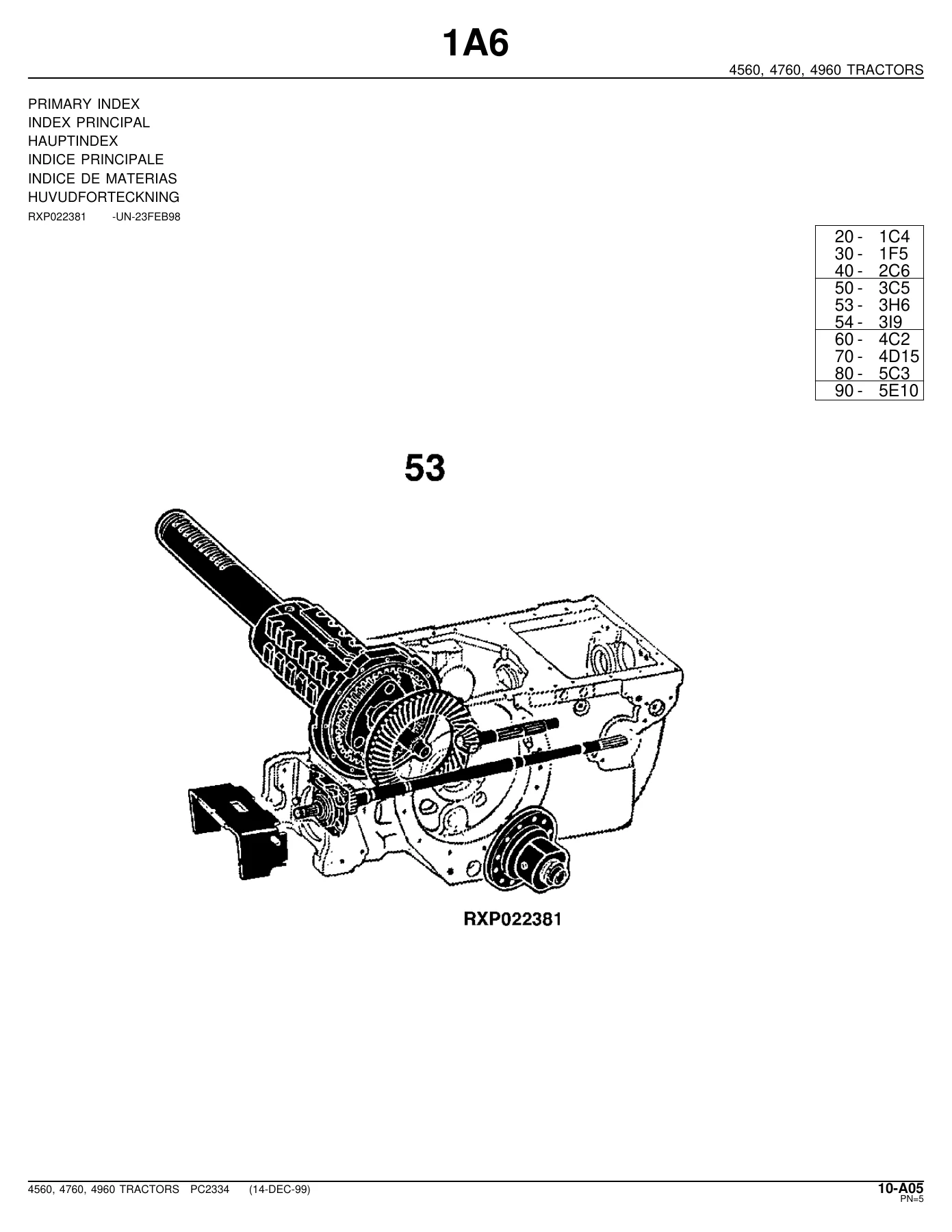

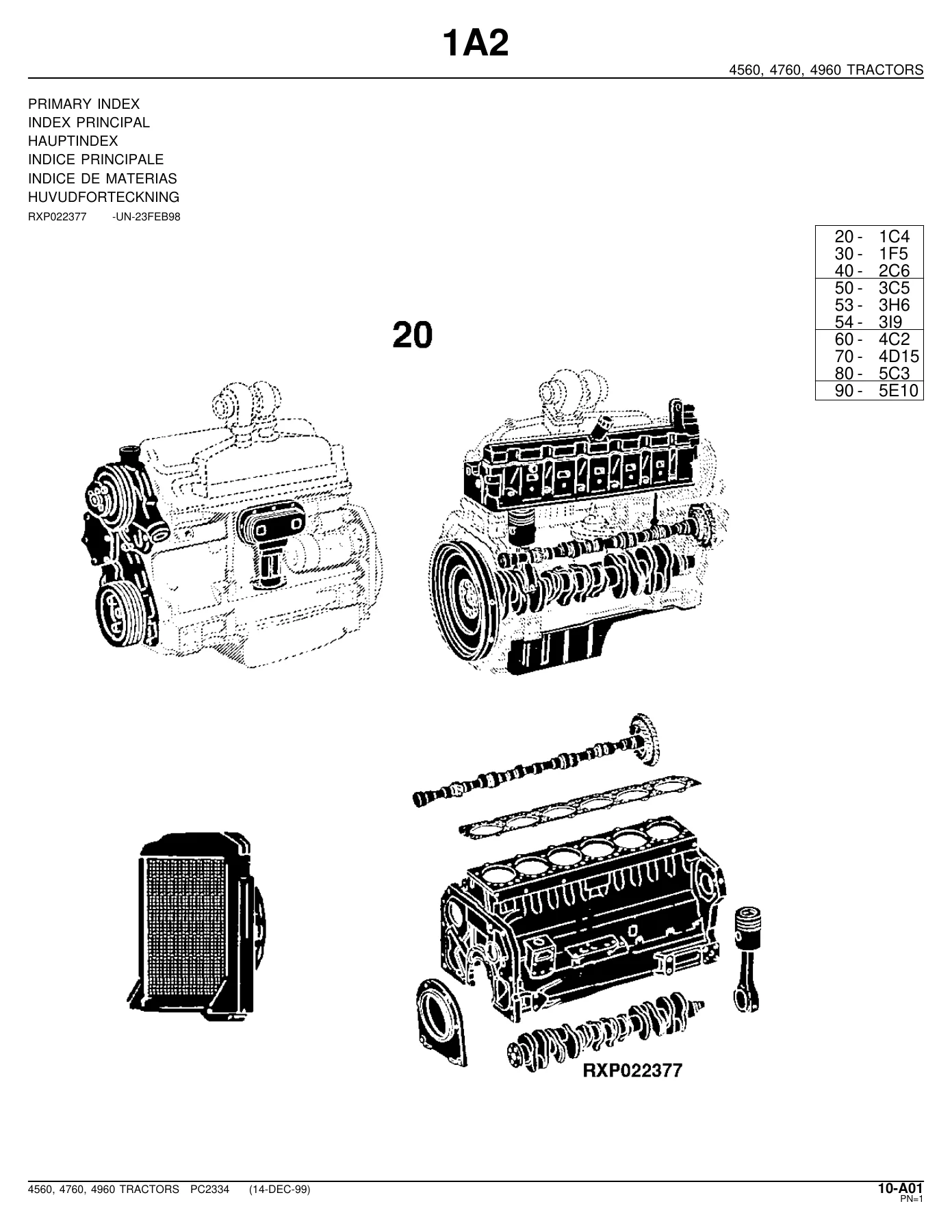

Taken together, the catalog gives a technician a single map of every illustrated service assembly on these three models: what the part is called, how many are used at that location, which serial or component model it fits, what supersedes it, and which companion keys come in a kit. Primary-index drawings at the front preview engine, cooling package, complete tractor, clutch/PTO, MFWD drop box, hitch and Sound-Gard body so you can jump to the right group before opening the numerical index.
