John Deere 6145J Tractor Parts Catalog PC8550P 2016

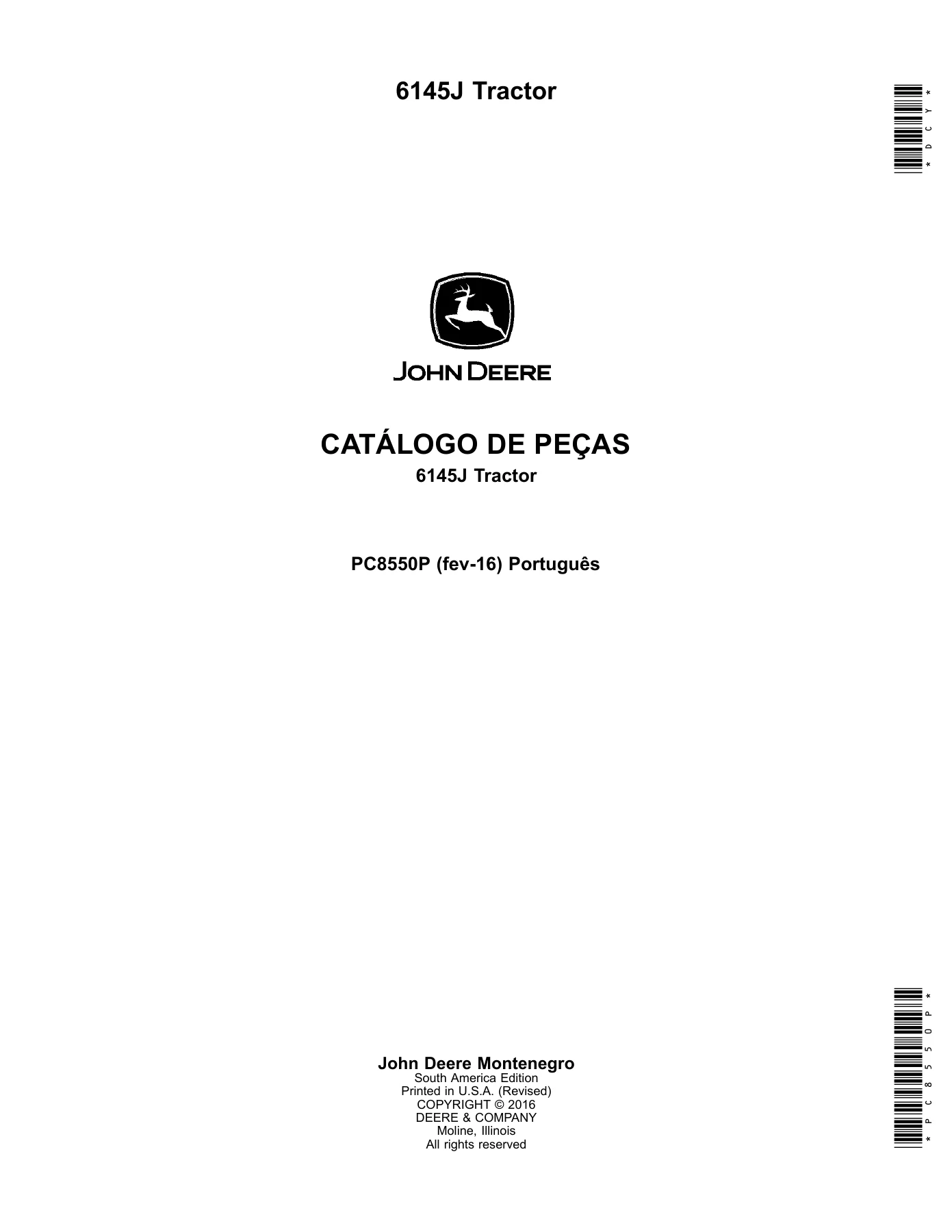

Anyone who services, repairs or restores a John Deere 6145J Tractor knows the fastest route to the right component is a complete illustrated parts breakdown. This John Deere 6145J Tractor Parts Catalog PC8550P 2016 delivers exactly that: the full parts listing for the 6145J in one downloadable PDF, published in February 2016 as the Portuguese-language John Deere Montenegro South America Edition. The catalog is organised by assembly group, so you can move from a system overview to an exploded illustration and then to the individual part number, description and quantity without hunting through scattered diagrams.

File Details

• Manual type: Illustrated parts catalog
• Brand: John Deere
• Machine covered: 6145J Tractor
• Document number: PC8550P
• Edition: John Deere Montenegro South America Edition (Portuguese)
• Publication date: February 2016 (Revised)
• Language: Portuguese, with section headings also given in English, French, German, Italian and Spanish
• Page count: 760 pages
• File format: PDF

Chapters Covered

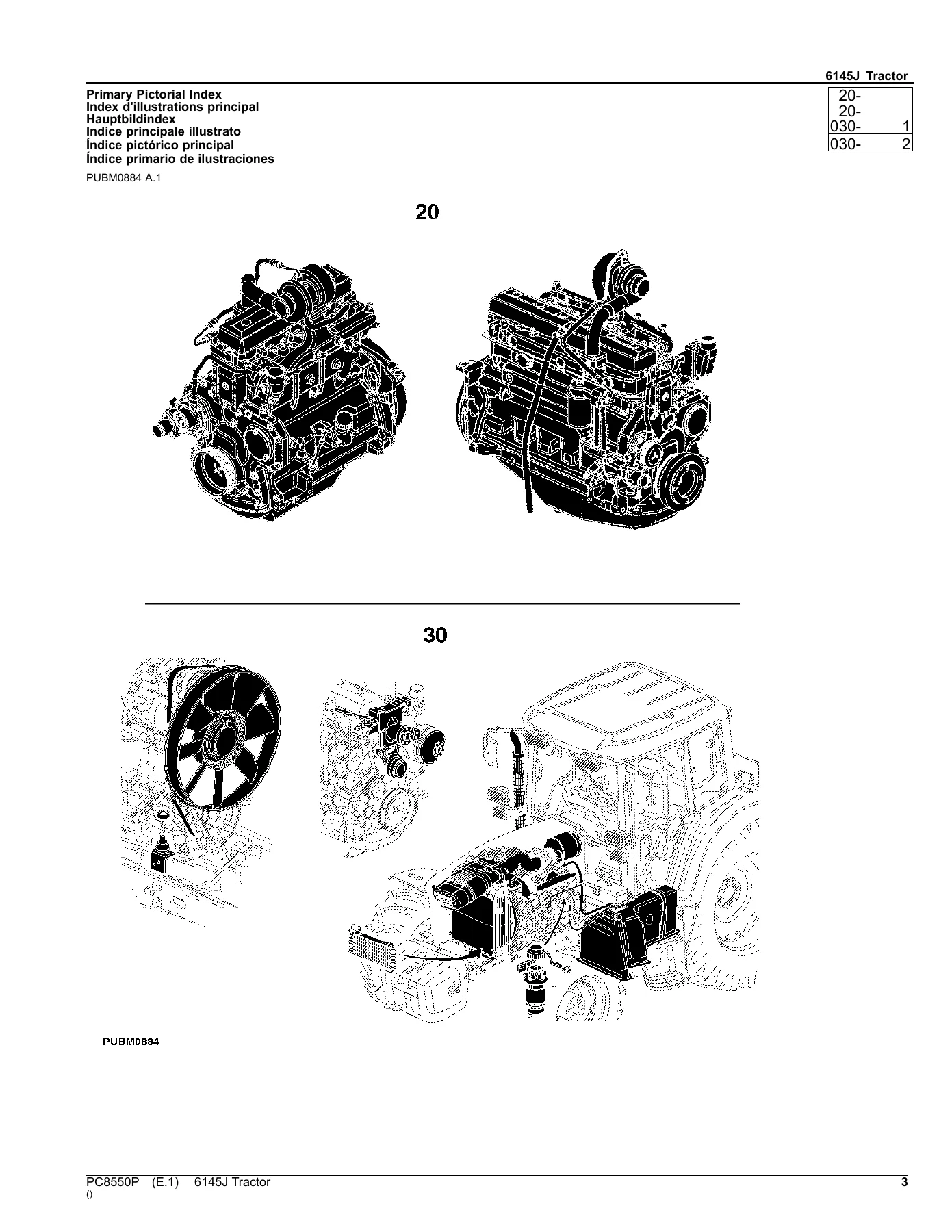

• Section 20 – Engine (6068TBM02 – RE545156): rocker arm cover, oil filler neck, crankshaft pulley, flywheel housing, flywheel, fuel injection pump, air intake, oil pan, water pump pulley, thermostat and cover, exhaust manifold, ventilating system, starter motor, fuel filter, front plate, fuel transfer pump, thermostat housing, engine oil dipstick, timing gear cover, cylinder block, crankshaft and main bearings, connecting rods and pistons, rocker arm/shaft/tappet/push rod, oil pump, cylinder head, water pump inlet, oil cooler, turbocharger, temperature switch, tachometer switch and wiring, damper, oil pressure switch, belt tensioner, oil filter, engine accessory bracket, lift straps, engine gasket kit, piston liner kit, replacement engine and short block assembly.
• Section 030 – Engine Peripherals, Fuel Tank and Intake System: engine suspension, radiator/fan shroud/coolant hoses, oil cooler lines, heating line connections at the engine, 300 L fuel tank brackets and bottom guard, fuel hoses, air cleaner, air intake hose, exhaust system and muffler.
• Section 040 – Electrical System: battery and attaching parts, alternator, starter motor, headlights, work lights, tail and turn signal lights, warning lights, horn, power wiring harness, engine wiring harness for cab and open operator station, cab wiring harness, transmission harnesses, fuse boxes, fuses, relays, diodes, connectors and wire pins, sending units and pressure switches, GreenStar display, GPS position receiver and AutoTrac components.

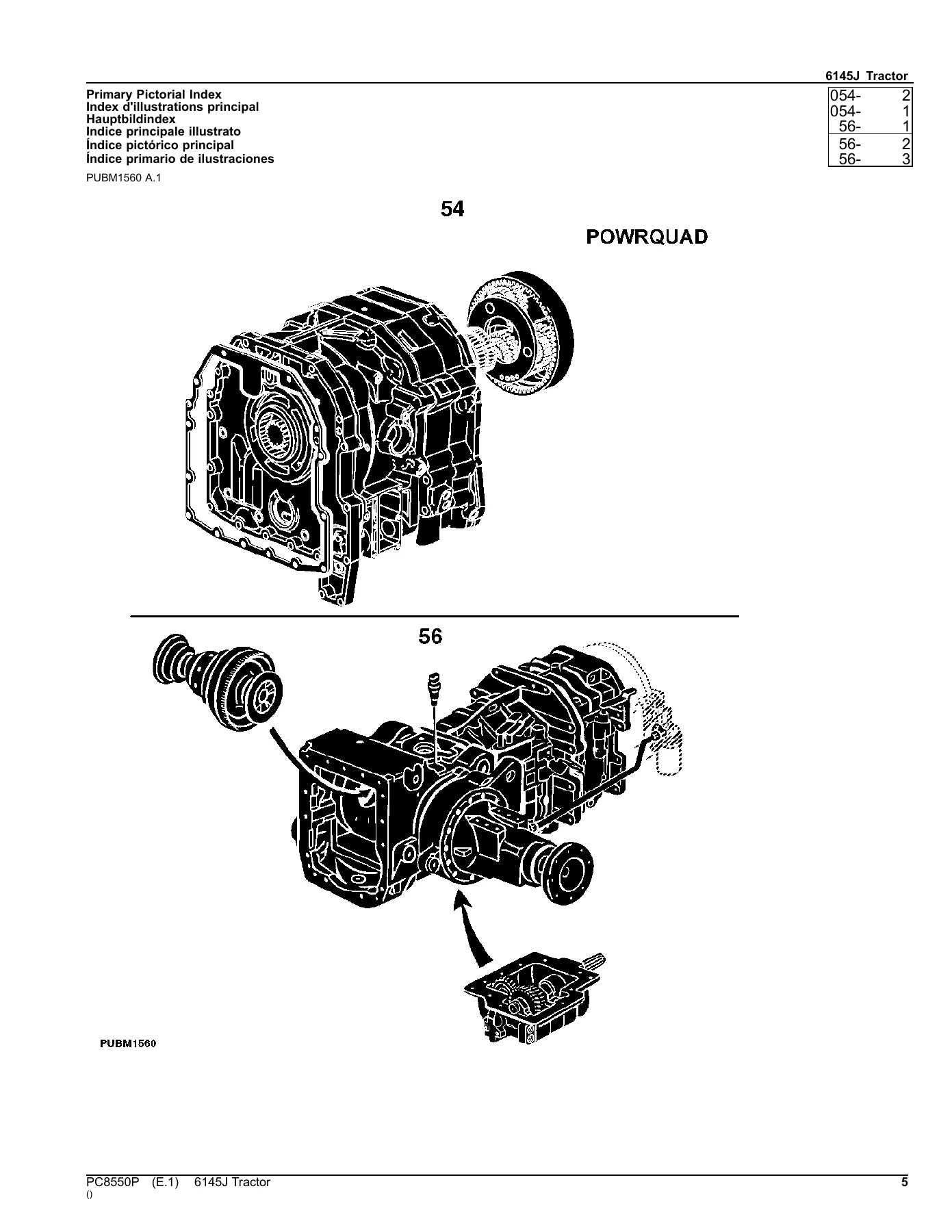

• Section 054 – PowrQuad Transmission: flywheel cover, universal-joint shaft and torsion damper, traction clutch/housing planetary brake, reverse brake housing, direct drive clutch, planetary brake, transmission output shaft, sun gears, input planetary assembly, transmission oil pump, transmission front cover, 4-speed shifting housing, front cover and valves, sending units and pressure switches, transmission oil filter, mounting parts and the complete PowrQuad transmission.
• Section 56 – Drive Systems: range transmission housing and drive shaft, range box assembly, differential drive shaft, parking lock, shifter shafts, shifting parts, MFWD clutch housing, MFWD multi-disk clutch, differential housing, differential, suction line, differential lock oil lines, rear axle, PIP kit, rear PTO housing, rear PTO, oil filler neck, countershaft, PTO clutch, rear PTO bearing support, rear PTO output shaft, PTO speed meter sending unit, rear PTO modulating valve, power take-off guard and brake purger.
• Section 060 – Steering and Brake System: steering wheel and attaching parts, steering column, steering control unit, gasket kit for the hydrostatic steering unit, hydrostatic steering oil lines, steering valve and fittings, brake pedal and brake switch, brake valve, brake oil lines and brake disk.
• Section 070 – Hydraulic System: rockshaft and lift arm, position sensor, plugs for rockshaft support, lift cylinder, oil lines for the lift cylinder, cable center and quick tach links, draft sensor and draft links, adjustable stabilizer bar, draft links with hooks, lift links, center link hook, center link assembly and bracket, mounting parts for the inlet priority valve, inlet priority valve (100 LPM), rockshaft control valve with stepper motor, lift link assembly, hydraulic pump control, shield for the hydraulic pump, charge pump (100 LPM), charge pump connecting parts, hydraulic oil filters, hydraulic pump (41 cm3), connecting parts for the inlet priority valve, parts for the return circuit, hydraulic motor, hydraulic oil reservoir and oil lines, selective control valves (Series 300 and Series 100), repair kits, quick disconnect couplers, dust caps, end covers and control spacer.
• Section 080 – Chassis, Front Axle, Hood and Accessories: main frame and mounting parts, identification plate mountings, hood and radiator grille, trademark decals, additional front weights, main frame basic weight, front fenders, front wheels, cast rear wheels, agro forestry rear wheels, weights, front axle switch (DANA), FWD universal jointed shaft, MFWD anti-wrap guard, FWD axle (DANA), MFWD axles, axle bridges, front wheel drive axle drive flange, multiple disk self-lock differential, double jointed shafts, MFWD knuckle housing, planetary drives, steering cylinder assembly, hood support, drawbar support, drawbar, heavy-duty drawbar, tool box, plastic plugs and tie bands, accessory parts, front fender kits, front weight kit, rear wheel weight kits, Quik-Tatch front weight mounting parts and wheel kits.
• Section 092 – Operator Platform: cab, platform (IOOS), cab frame, suspension for the cab or open operator station, control support, trim components for the rear of the cab, post upholstery, rear fender upholstery, upper upholstery, floor plates, floor mats, side covers, rear fender, handles, steps, rear handles, headliner and roof trim, outer roof without hatch, rear window, tiltable side windows, door handle and lock, doors, windshield, right-hand door delete, bulkhead and control cables retaining assembly.
• Section 093 – Control, Accessories and Air Conditioning: dash/cowl, electrical instruments, FWD switch, differential lock switch, clutch actuating components and clutch pedal, clutch operating parts and Bowden cable, accelerator pedal with electronic speed control, foot throttle, control console for cab and open operator station, windscreen washer system, rear wiper and windscreen washer, front windshield wiper, radio console, outside mirror, inside rear view mirror, sun visor, operator manual holder, rockshaft remote control, heater unit/heater hoses/fan parts, heater unit cover, air cleaner, dome light/console light/beacon light switch/air channels, condensed water drain, heater and air conditioning lines, receiver dryer and pressure switch, compressor and air conditioning lines.
• Section 094 – Cables, Accessories and Seat: shift lever support, gear shift Bowden cable, gear shift components, Bowden cables for range shift, range shifting, mechanical speed control, selective control valve control linkage, console for shiftable rear PTO, upholstery parts without rockshaft control, SCV control panel, rockshaft control and locking lever for SCV, rockshaft control, PTO switches, seat for OOS and cab, seat assemblies, seat belt warning label and repair kits for comfort seats.

Together these sections cover the complete machine, not just the engine bay. The John Deere 6145J Tractor Parts Catalog PC8550P 2016 walks through the diesel engine and its peripherals, the electrical and hydraulic networks, the PowrQuad transmission and drive systems, the steering and brake assemblies, the chassis, front axle and hood, and every part of the operator platform, cab trim, seat and air conditioning hardware. Each group is illustrated with exploded views and keyed parts tables giving the part number, the description and the quantity needed, so a technician can identify a component visually before ordering. That structure is what makes a parts catalog genuinely useful in the workshop: you are not guessing at a part from a photograph, you are reading the same keyed diagram the parts counter uses. It also helps when you are cross-referencing a number that has been superseded, or when you need to know which small retaining clip, O-ring or bolt belongs with a larger assembly.

For the 6145J specifically, the catalog also documents the serial-number breaks that split certain assemblies – for example the change points around tractor serial 004133/004134, 000029/000030 and 003530/003531 – so you can confirm you are looking at the correct version of a component for your machine. Product identification is covered as well, with the 17-digit product identification number layout, the production year table and the transmission type table.

Why This Parts Catalog Earns Its Place on the Bench

Because the John Deere 6145J Tractor Parts Catalog PC8550P 2016 is built around assembly groups, it supports the full range of parts work on the tractor: locating a single fastener for a hydraulic valve, identifying the correct clutch disc for a PowrQuad transmission, checking the parts that make up a front axle planetary drive, or working out which wiring harness section feeds the cab roof. The keyed illustrations and parts lists remove the ambiguity that comes from trying to order by description alone, and they make it far easier to confirm that an assembly has been reassembled with every shim, washer, seal and retaining ring in place.

Accurate part identification matters because a wrong number means a wasted order, a delayed repair and, in the worst case, a component fitted that does not match the serial range of the machine. Working from the correct parts catalog keeps the ordering process clean and keeps the repair moving. When you have the illustrated breakdown in front of you, a parts enquiry that would otherwise take several calls becomes a single look-up.

The John Deere 6145J Tractor Parts Catalog PC8550P 2016 is supplied as a downloadable PDF, so there is nothing to wait for in the post. The file is available immediately after checkout, it can be opened on a workshop computer, a laptop, a tablet or a phone, and it can be printed page by page whenever you want a paper copy beside the machine. Keep it on the bench, work through the sections your own way, and use it as the reference for every parts order you place on the 6145J.
