John Deere F911 F915 F925 F932 F935 Front Mower Technical Manual TM1487 PDF Download

Description

John Deere 900 Series Front Mower Technical Manual — Five Models, Complete Coverage

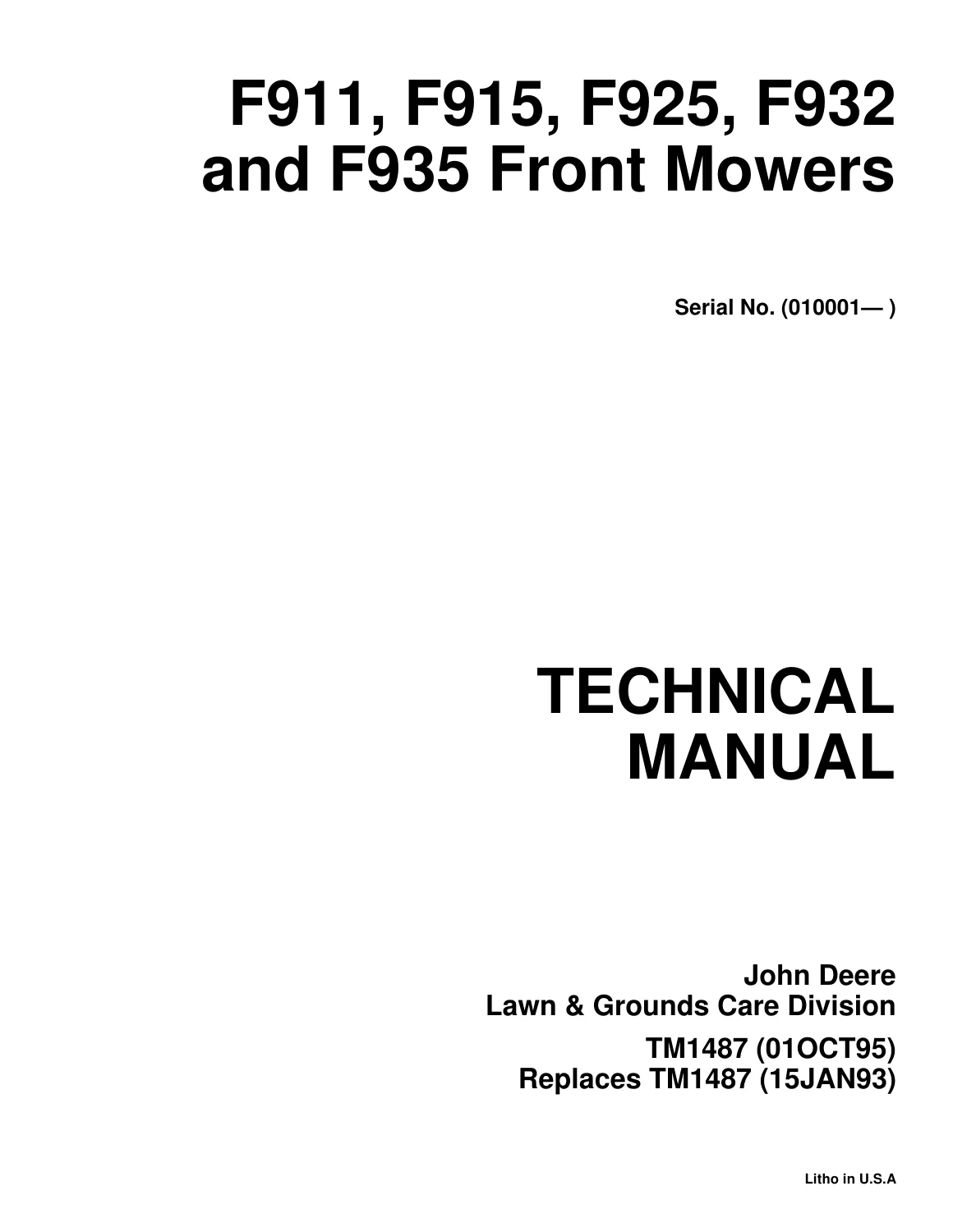

Technical Manual TM1487, published by John Deere Lawn & Grounds Care Division on 01OCT95 (replacing TM1487 dated 15JAN93), is a 1,091-page workshop and diagnostic reference for the F911, F915, F925, F932, and F935 Front Mowers. Written for experienced technicians, it covers repair procedures, diagnostic tests, adjustments, and specifications across all five machines in a single volume.

Models This Manual Applies To

This manual covers all five 900 Series Front Mower models starting at Serial No. 010001—. The PDF documents three distinct serial-number production ranges that affect specific procedures:

• F911 — S.N. 010001—120000 (PTO engagement lever); S.N. 120001—150000 (park lock switch added); S.N. 150001—150081 and 150082— (new PTO actuation system with integrated diodes / diode pack)
• F915 — S.N. 010001—120000; S.N. 120001—150000 (park lock switch added)
• F925 — S.N. 120001—150000; S.N. 150001—150089 and 150090— (new PTO actuation system)
• F932 — S.N. 010001—120000; S.N. 120001—150000; S.N. 150001—150060 and 150061— (new PTO actuation system)
• F935 — S.N. 010001—120000 (PTO engagement lever, water-in-fuel indicator); S.N. 120001—150000 (park lock switch, no water-in-fuel indicator); S.N. 150001—150228 and 150229— (new PTO actuation system)

Major Systems & Subjects Covered

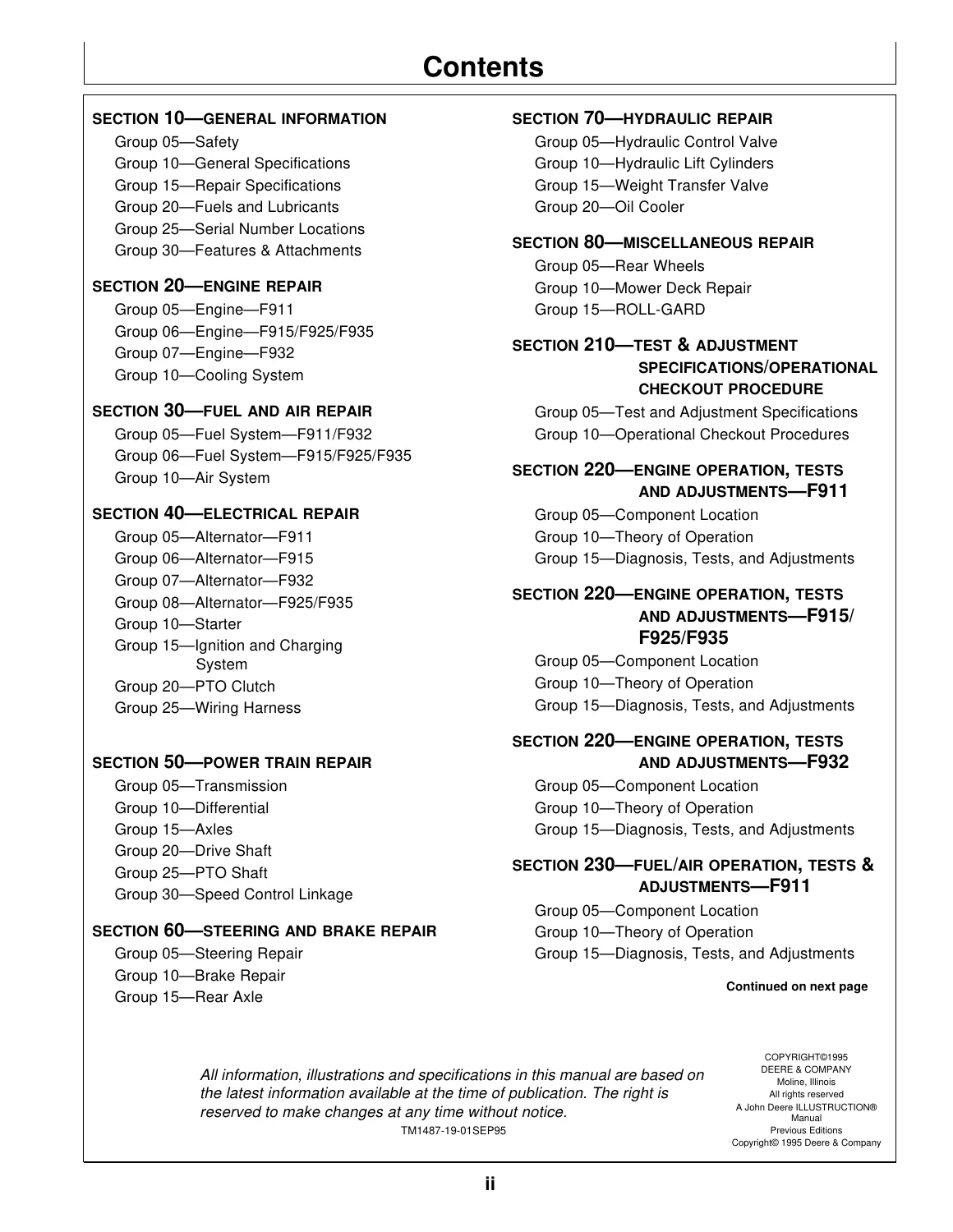

• Section 10 — General Information: machine specifications, repair specifications, fuels & lubricants, serial number locations, features & attachments
• Section 20 — Engine Repair (separate groups for F911 Kawasaki FD620D, F915/F925/F935 Yanmar 3TNA72UJ2F diesel, and F932 Yanmar 3TG72UJF gasoline), plus cooling system
• Section 30 — Fuel & Air Repair (separate fuel system groups by model, air system)
• Section 40 — Electrical Repair: alternators by model, starter, ignition & charging system, PTO clutch, wiring harness
• Section 50 — Power Train Repair: transmission (Sundstrand 15 series hydrostatic), differential, axles, drive shaft, PTO shaft, speed control linkage
• Section 60 — Steering & Brake Repair: steering repair, brake repair, rear axle
• Section 70 — Hydraulic Repair: hydraulic control valve, lift cylinders, weight transfer valve, oil cooler
• Section 80 — Miscellaneous Repair: rear wheels, mower deck repair, ROLL-GARD
• Section 210 — Test & Adjustment Specifications / Operational Checkout Procedures
• Sections 220–232 — Engine operation, tests & adjustments (separate sections per model)
• Sections 240–242 — Electrical operation, tests & adjustments with electrical schematics (per model)
• Sections 250–260 — Power train, steering & brakes operation, tests & adjustments with system schematic diagram
• Section 299 — Dealer Fabricated Tools

Repair, Diagnostic & Service Data Highlights

• Full engine specifications for all four power units: Kawasaki FD620D (22 hp, 617 cc, 2-cylinder gasoline — F911); Yanmar 3TG72UJF (28 hp, 879 cc, 3-cylinder gasoline — F932); Yanmar 3TN66UJF (16 hp, 658 cc, 3-cylinder diesel — F915); Yanmar 3TNA72UJ2F (22 hp, 879 cc, 3-cylinder diesel — F925/F935)

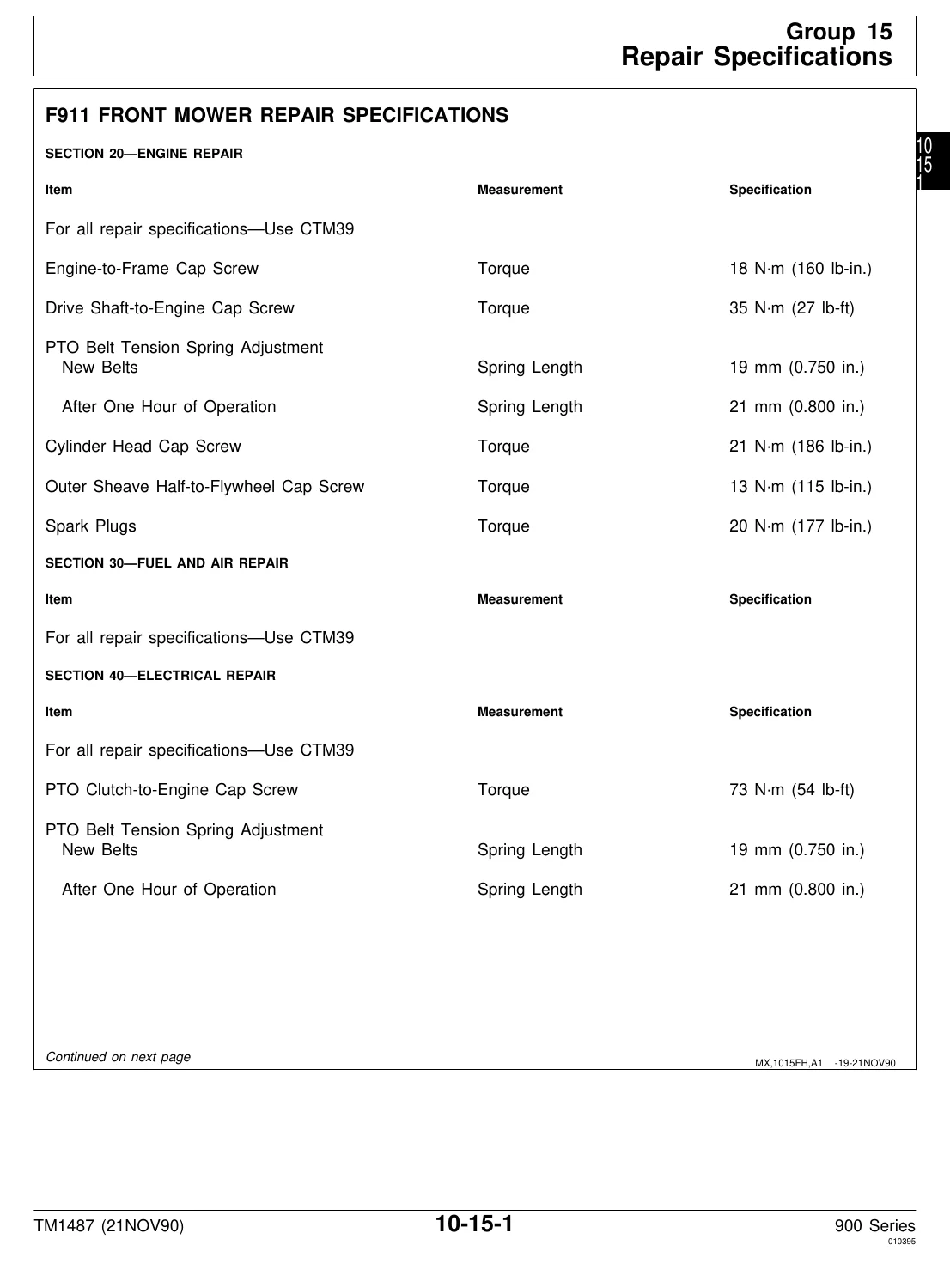

• Component-level repair specifications for every major assembly: torque values, clearances, bearing depths, spring lengths, and service limits for transmission, differential, axles, PTO shaft, steering valve, hydraulic control valve, and mower deck gearbox
• Inch and metric fastener torque charts (SAE Grades 1–8, Property Classes 4.8–12.9)
• O-ring boss and flat-face O-ring seal fitting service procedures with torque values
• Electrical schematics included per model (F911, F915/F925/F935, F932)
• Hydraulic and power-train system schematic diagrams
• Full diagnostic sections with theory of operation, component location diagrams, and test & adjustment procedures per model
• Mower deck repair: gearbox, spindle assembly, blade torque values (50 in., 60/72/76 in.), drive belt, and ROLL-GARD mounting torques
• Fluid capacities by model: fuel tank, transmission, cooling system, crankcase (with and without filter)

Why This Manual Gets the Job Done

With 1,091 pages divided into repair and diagnostic halves, TM1487 gives a technician everything needed to pull, rebuild, and set every major assembly on any of the five 900 Series Front Mowers — without hunting through separate books for each model. The serial-number breakdowns at the front eliminate guesswork on which PTO system or wiring configuration applies to the unit on the lift. Electrical schematics for each model variant, combined with the step-by-step diagnostic sections covering theory of operation through test & adjustment, make fault-finding systematic rather than trial-and-error.

Instant PDF Download

Purchase once and download immediately — 1,091 pages in PDF format, readable on any device, printable for the shop floor, and available the moment your payment is complete.
