John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF

Description

John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF

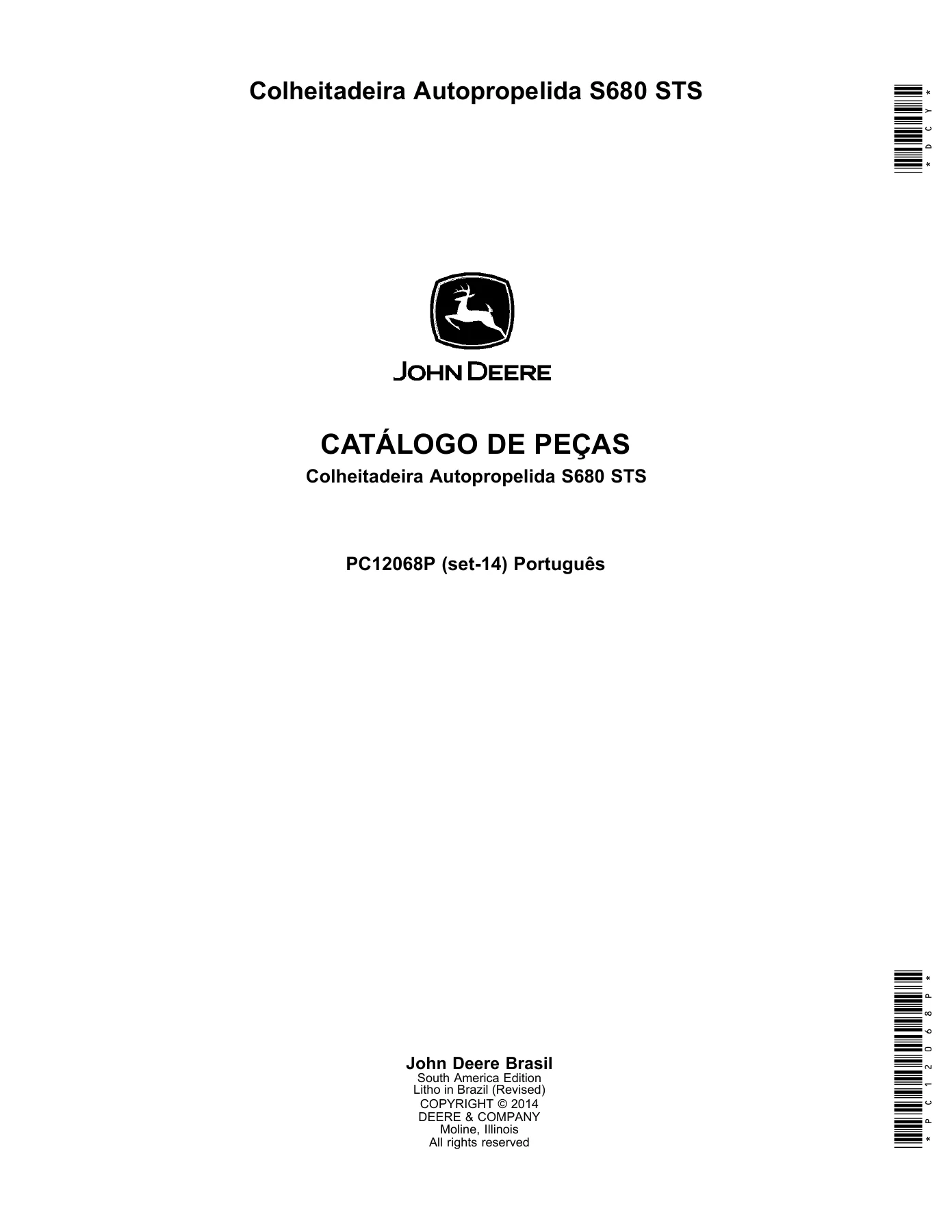

This listing is the John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF used to identify, match, and order replacement components on the S680 STS combine. The publication is printed as PC12068P (set-14) Português, John Deere Brasil South America Edition, lithographed in Brazil (Revised), with a 2014 Deere & Company copyright. The introduction identifies the machine as the John Deere S680 STS Self-Propelled Combine manufactured 2014 onward. Part numbers in the catalog were current at publication; the text itself reminds the reader to confirm numbers with a dealer because products continue to change.

File Details

• Manual type: Parts catalog (catálogo de peças / illustrated parts list)
• Brand / model: John Deere S680 STS self-propelled combine (colheitadeira autopropelida)
• Engine covered: 6135HH004-RE563607
• Document number: PC12068P (set-14) Português; footer also shows PC12068P (H.1)
• Edition: South America Edition, Litho in Brazil (Revised)
• Copyright: 2014 Deere & Company, Moline, Illinois
• Languages: Portuguese, English, and Spanish running in parallel through titles, indexes, and part descriptions
• Page count: 1332
• File format: PDF

What This Catalog Is Built For

Unlike a workshop service book, the John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF is organized around exploded illustrations, keyed callouts, and part-number tables. Each section opens with a sectional pictorial index so a technician can jump from a machine view to the breakdown that holds the needed hardware. Box-enclosed keyed items in the drawings are called out as service assemblies or attachments; a box without a key marks non-current parts. An arrow on an illustration shows forward travel of the combine. Right-hand and left-hand sides follow that travel direction. Engine left and right are taken standing at the flywheel facing the engine.

Serial-number listing rules are printed at the front so each line can be read against a specific machine. A blank range means the part fits all products. A leading number with a dash means the part starts at that serial. A trailing number means it applies up to and including that serial. A pair of numbers means the part sits between those serials inclusive. When XXXXXX appears, a serial change occurred but the exact break was not available when the catalog went to press. Those conventions matter on this machine because many driveline, hydraulic, and grain-tank lines split at breaks such as 090005 and 090006.

Where serial plates sit on the S680 STS

• Combine serial number: right-hand side of the operator’s platform
• Engine serial number: fuel-injection-pump side of the engine block
• Engine transmission serial number: rear of the transmission case
• Wheel motor serial number (four-wheel drive): top of the motor
• Straw chopper serial plate: right-hand side of the straw chopper
• Hydrostatic pump serial number: side of the pump

Metric dimensions are used throughout. Bolts and cap screws that must meet high-strength metric class 10.9 (SAE grade 8) or higher are identified in the listings as 10.9, 12.9, or 14.9. Standard fasteners are metric class 8.8 (SAE grade 5) or lower. REMAN lines in the tables are John Deere remanufactured components intended to replace failed or worn original equipment parts and are produced to original specifications with later design updates.

Chapters Covered

• 025 Motor 6135HH004-RE563607 — rocker cover, oil filler neck, crankshaft pulley, crankshaft oil seal and housing, flywheel, electronic unit injector, air intake, oil pan, water pump, thermostat and covers, fan drive, coolant heater plug, exhaust manifold, ventilating system, starting motors, fuel filter and transfer pump, sensors, cylinder block with liners, crankshaft and bearings, connecting rods and pistons, rocker arm / shaft / tappet / push rod, oil pump, cylinder head, auxiliary drive hardware, oil filter and oil cooler, alternator mounting, turbocharger, damper, air-compressor bracket, oil-pressure switch, timing-gear cover, engine wiring harness, plus 9901 kits (bearings, piston liner, rings, gaskets, injectors, head bolts, overhaul, short block, replacement engine, starter kits)
• 20 Acessórios do Motor — cooling package, radiator, fan, air ducts and screen door, auxiliary coolers
• 30 Combustível e Ar — air intake system and plumbing (including Tier 2), fuel tank and lines, filters, 13.5 L aspiration hoses
• 40 Sistema Elétrico — sensors, lamps, switches, alternator, backup alarm, displays
• 41 Chicote Elétrico — machine harnesses including ProDrive, AutoTrac, PowerCast, engine, armrest, antenna, 2WD wheel-angle, 4WD rear-wheel-motor, and backup-alarm harnesses
• 50 Trem de Força — clutch, transmission case, ProDrive planetary drive, park and transmission brakes, hydrostatic motor hardware, 400 mm drive-shaft spacer
• 60 Direção e Freios — steering and brake components, ProDrive master cylinder, park-brake cover
• 70 Sistema Hidráulico — main hydraulic hoses and pump (ProDrive), closed-center straw-spreader hoses, feeder-house tilt and header-lift cylinders, air-compressor plumbing, 2WD and 4WD hydrostatic drive hoses, wet-clutch cooler plumbing, AutoTrac steering valve
• 80 Corpo e Proteções — body panels, shields, hitch, axle extensions including extra-heavy-duty standard 4WD rear extension, label kits
• 90 Estação do Operador — cab structure, acoustical upholstery, glass, seats and armrest, CommandARM / display arm with Ethernet, radio and antenna, telematics mounting, GS3 2630 cap
• 95 Ar-condicionado e Aquecimento — HVAC module and actuator, supply ducts, receiver-dryer, lines and fittings
• 110 Alimentador — feeder-house chains, drum with deflector, feedplate latch, contour and slip-clutch hardware, anti-skid mats
• 120 Debulha e Separação — rotor (including high-wear thick-grain assembly), front rotor bearing and supports, concaves, separator rails
• 125 Caixa de Peneiras — shoe, chaffer and sieve (level-land general-purpose and deep-tooth), air chutes and agitators, swinger system
• 130 Elevadores — clean-grain and tailings elevators, loading-auger housing (manual fold, 400 bushels)
• 135 Descarte de Resíduos — straw chopper, fine-cut counter knife, Advanced PowerCast support, spreaders and shields
• 140 Acionamentos — countershaft, cleaner-fan, feeder-house, beater, rotor, unloader, spreader, and debris-management drives
• 150 Tanque Graneleiro e Sem-fim de Descarga — grain tank, styling panels and rail for 3.3 and 3.8, unloading auger, high-unloading-rate brackets
• 170 Adesivos — machine decals, warning labels, regional label kits (Brazil, Europe standard)

Taken together, those divisions give a parts map of the whole S680 STS rather than a repair narrative. A technician uses the John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF to confirm the correct rocker cover or liner kit on the 6135HH004 engine, to separate ProDrive transmission and hydrostatic pieces from 2WD or 4WD hose sets, to build a feeder-house or rotor order from the exploded views, and to match cab, HVAC, lighting, and decal items that are easy to mix across similar S-series machines.

Engine 6135HH004-RE563607 Breakdown

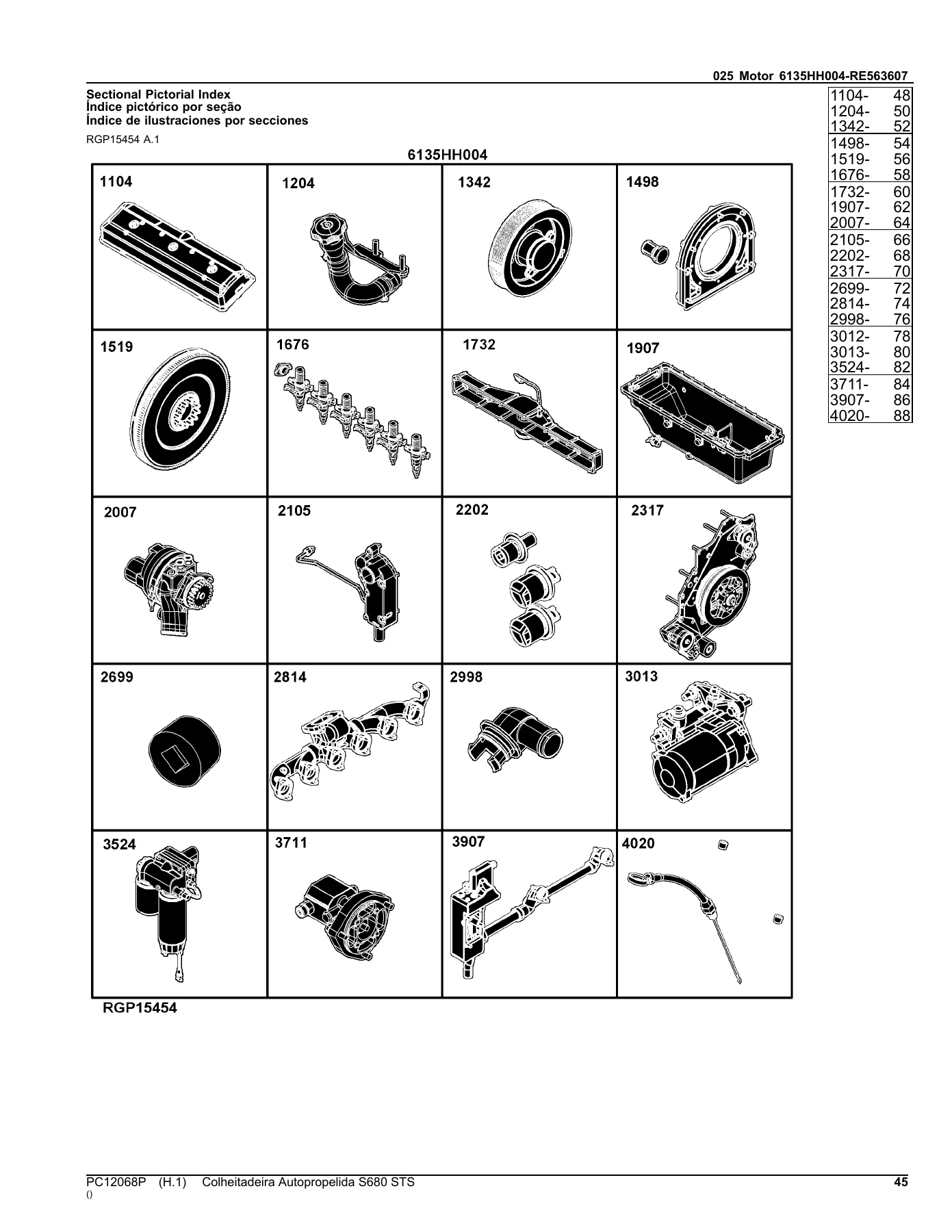

Section 025 is a complete illustrated engine book inside the larger S680 STS catalog. Pictorial indexes on the opening pages of that section tile the major groups: valve cover, filler neck, crankshaft pulley, rear seal housing, flywheel, electronic unit injectors, intake manifold, oil pan, water pump, thermostats, fan drive, exhaust manifold, starters, fuel filter, transfer pump, sensors, block with liners, crankshaft, rods and pistons, valve train, oil pump, cylinder head, turbocharger, damper, and the engine harness. Service kits sit on their own plates so overhaul work can be ordered as a set—connecting-rod and main-bearing kits including undersize options, thrust bearings and washers, piston liner kit, piston ring pack, cylinder-head gasket kit, engine gasket kit, injector kit, cylinder-head bolt kit from engine serial 025931 onward, overhaul kit, short-block assembly, and replacement engine. Fuel-filter and starter-motor kits are listed the same way. Air-intake notes elsewhere in the catalog refer to 13.5 L aspiration hoses, which matches the 6135 engine family used on this combine.

Driveline, Hydraulics, and Harvest Options Called Out in the Listings

Powertrain and hydraulic pages distinguish ProDrive hardware from other arrangements. Indexed items include the ProDrive transmission case and rotor-drive case, planetary-drive parts, left- and right-hand transmission-brake plates, park-brake piston and pressure sensor, valve block and hydraulic accumulator, main hydraulic pump and controller, hydrostatic drive pump housing with swash plate and servo cylinders, hydrostatic charge-pressure switch, and dedicated ProDrive wiring harnesses and controller leads. Brake lines, steering-hose brackets, four-wheel-drive hoses, and gearcase lube-filter plumbing are likewise tagged ProDrive, with some hose and grain-tank electrical brackets split at serial 090005 / 090006.

Harvesting hardware is equally specific. Feeder-house pages cover the drum arm with deflector, feedplate latch, chains, and Contour-Master latching-pin cable. Threshing and separation pages include the high-wear thick-grain rotor, front bearing supports, round-bar high-wear concave, and separator rails. The shoe section separates general-purpose and deep-tooth chaffer assemblies with their actuators. Residue pages list fine-cut chopper knives, Advanced PowerCast premium support, and single-flow or dual-flow spreader drives. Grain-tank and unloading pages reference 3.3 and 3.8 tank styling, a 400-bushel manual-fold loading-auger housing, and high-unloading-rate mounting brackets. Electrical indexes reach GS3 2630 display hardware, CommandARM / SDUA deluxe modules, AutoTrac steering harness and proportional valve, JDLink / telematic antenna, Harvest Smart related controllers, and lighting groups for North American long rear warning lamps and grain-tank floods.

How to Read a Page When You Order

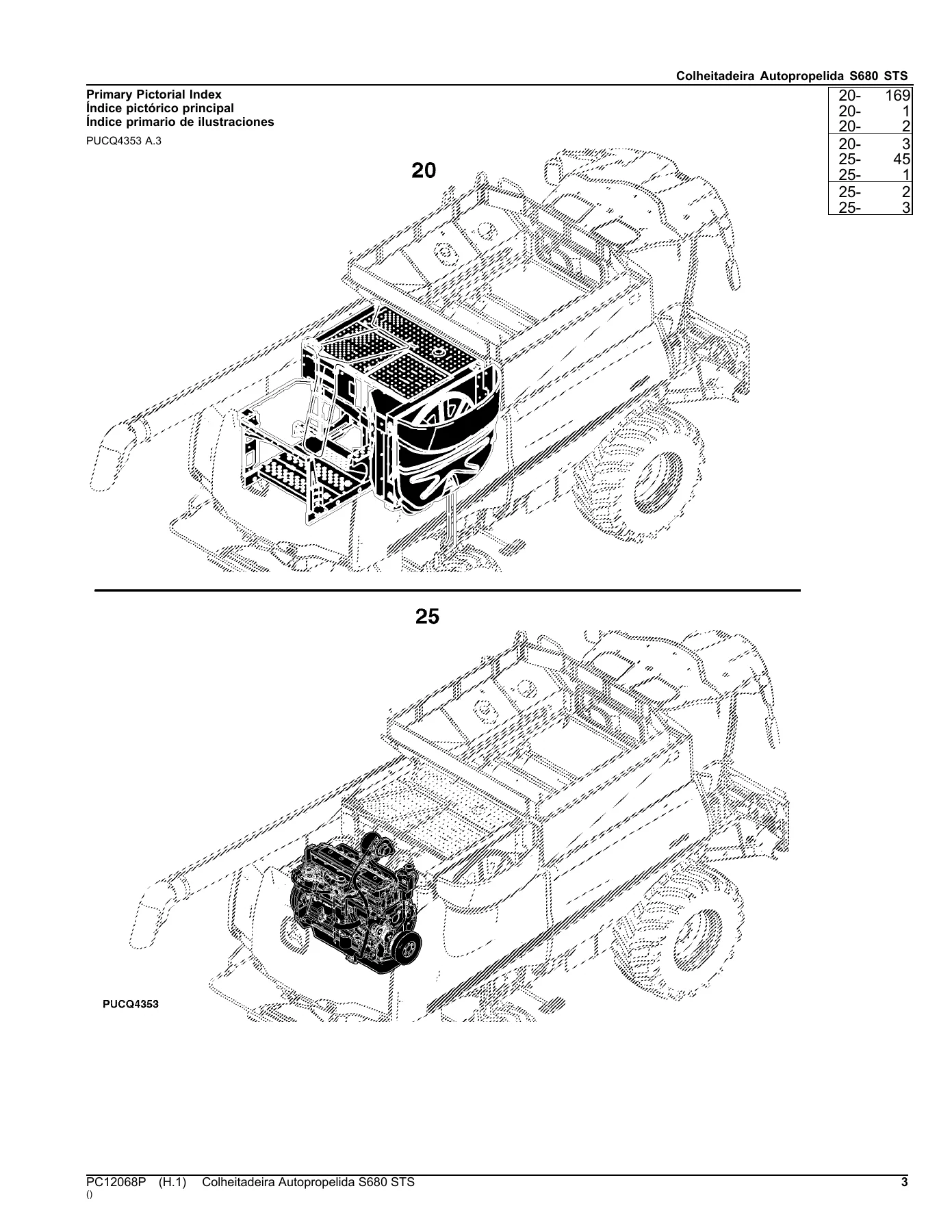

A typical plate in the John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF pairs a keyed drawing with a table of item number, part number, description, and quantity. Quantity may be a count, AR (as required), or a kit note. Descriptions carry the catalog abbreviations printed in the front matter: ASSY, INCL, NSEP, NLA, CNLA, SUB, SUB FOR, REMAN, LH / RH, W/ and W/O, FI, CTL, and similar. Trilingual captions on many plates repeat the same part name in Portuguese, English, and Spanish, which is useful in mixed-language shops working South American S680 STS machines. Primary pictorial indexes at the front of the book (machine views numbered 20, 25, 30, 40, 41, 50, 60, 70, 80, 90, 95, 110, 120, 125, 130, 135, 140, 150, and 170) point to the starting page of each major group so you can move from a whole-machine silhouette to the exploded plate without guessing the section number.

Identify the Right Part, Then Get the File

Use the John Deere S680 STS Self-Propelled Combine Parts Catalog PC12068P 2014– PDF when you need the correct part number before you pull a component off the 6135HH004-RE563607 engine, ProDrive transmission, hydrostatic pump, feeder house, rotor, shoe, chopper, grain tank, cab, or harness. Matching the illustration and the serial-range note prevents mixing 2WD and 4WD hose sets, general-purpose and deep-tooth chaffer parts, or pre- and post-090006 brackets. That accuracy matters on a combine this size because a wrong seal, bearing kit, or controller harness costs a harvest day. After payment the file is delivered as an instant PDF download—no shipping wait—so it can be opened on a shop computer, tablet, or phone and printed for the bench or the parts counter.
