John Deere Service Manual Appendix I PDF Technical Reference Guide Download
Original price was: $95.00.$31.95Current price is: $31.95.
Comprehensive John Deere service manual appendix covering technical specifications, torque values, fluid capacities, lubricant specifications, and standard service procedures. Includes fastener torque charts, hydraulic fittings, electrical specifications, O-ring sizes, conversion tables, and technical reference data. Essential supplementary resource for technicians servicing John Deere equipment. Instant PDF download with complete technical reference tables.
Description
John Deere Service Manual Appendix PDF Technical Reference Guide Download
Description
File Details
- Manual Name: John Deere Service Manual – Appendix I
- Coverage: Universal Technical Reference Data for John Deere Equipment
- Application: Agricultural equipment, construction machinery, lawn & garden
- PDF Quality: High-resolution factory original
- Total Pages: 661 pages
Complete Technical Reference Coverage
This John Deere service manual appendix provides essential technical reference data, specifications, and standard procedures used across multiple John Deere equipment models. Critical supplementary documentation containing torque values, fluid specifications, conversion charts, and technical standards referenced throughout primary service manuals.
Major Reference Sections
Section 1: Torque Specifications & Standards
Metric Fastener Torque Values
Standard Metric Bolts (Dry, Non-Lubricated)
| Thread Size | Class 8.8 | Class 10.9 | Class 12.9 |
|---|---|---|---|
| M6 | 9 N·m (80 lb-in) | 13 N·m (115 lb-in) | 16 N·m (140 lb-in) |
| M8 | 22 N·m (195 lb-in) | 31 N·m (275 lb-in) | 38 N·m (335 lb-in) |
| M10 | 44 N·m (33 lb-ft) | 63 N·m (46 lb-ft) | 75 N·m (55 lb-ft) |
| M12 | 76 N·m (56 lb-ft) | 108 N·m (80 lb-ft) | 130 N·m (96 lb-ft) |
| M14 | 119 N·m (88 lb-ft) | 169 N·m (125 lb-ft) | 203 N·m (150 lb-ft) |
| M16 | 183 N·m (135 lb-ft) | 260 N·m (192 lb-ft) | 312 N·m (230 lb-ft) |
| M20 | 366 N·m (270 lb-ft) | 520 N·m (383 lb-ft) | 624 N·m (460 lb-ft) |
| M24 | 633 N·m (467 lb-ft) | 900 N·m (664 lb-ft) | 1080 N·m (796 lb-ft) |
| M30 | 1250 N·m (922 lb-ft) | 1775 N·m (1309 lb-ft) | 2130 N·m (1571 lb-ft) |
SAE/Imperial Fastener Torque Values
Standard SAE Grade Bolts
| Thread Size | SAE Grade 5 | SAE Grade 8 |
|---|---|---|
| 1/4″-20 | 9 N·m (80 lb-in) | 13 N·m (115 lb-in) |
| 5/16″-18 | 19 N·m (14 lb-ft) | 27 N·m (20 lb-ft) |
| 3/8″-16 | 34 N·m (25 lb-ft) | 47 N·m (35 lb-ft) |
| 7/16″-14 | 54 N·m (40 lb-ft) | 75 N·m (55 lb-ft) |
| 1/2″-13 | 88 N·m (65 lb-ft) | 122 N·m (90 lb-ft) |
| 9/16″-12 | 122 N·m (90 lb-ft) | 169 N·m (125 lb-ft) |
| 5/8″-11 | 176 N·m (130 lb-ft) | 244 N·m (180 lb-ft) |
| 3/4″-10 | 305 N·m (225 lb-ft) | 427 N·m (315 lb-ft) |
| 7/8″-9 | 474 N·m (350 lb-ft) | 664 N·m (490 lb-ft) |
| 1″-8 | 678 N·m (500 lb-ft) | 949 N·m (700 lb-ft) |
Torque Adjustment Factors
- Lubricated bolt torque reduction: 10-15% reduction from dry values
- Thread lubricant application guidelines
- Anti-seize compound torque modifications
- Temperature compensation factors
- Retorque requirements and procedures
- Critical fastener marking requirements
Section 2: Hydraulic System Specifications
Hydraulic Fitting Torque Values
JIC 37° Flare Fittings
| Fitting Size | Thread Size | Torque Value |
|---|---|---|
| -4 | 7/16″-20 | 15 N·m (11 lb-ft) |
| -6 | 9/16″-18 | 27 N·m (20 lb-ft) |
| -8 | 3/4″-16 | 41 N·m (30 lb-ft) |
| -10 | 7/8″-14 | 54 N·m (40 lb-ft) |
| -12 | 1-1/16″-12 | 88 N·m (65 lb-ft) |
| -16 | 1-5/16″-12 | 135 N·m (100 lb-ft) |
| -20 | 1-5/8″-12 | 203 N·m (150 lb-ft) |
| -24 | 1-7/8″-12 | 271 N·m (200 lb-ft) |
O-Ring Boss (ORB) Fittings
| Fitting Size | Thread Size | Torque Value |
|---|---|---|
| -4 | 7/16″-20 | 12 N·m (9 lb-ft) |
| -6 | 9/16″-18 | 20 N·m (15 lb-ft) |
| -8 | 3/4″-16 | 34 N·m (25 lb-ft) |
| -10 | 7/8″-14 | 41 N·m (30 lb-ft) |
| -12 | 1-1/16″-12 | 68 N·m (50 lb-ft) |
| -16 | 1-5/16″-12 | 108 N·m (80 lb-ft) |
| -20 | 1-5/8″-12 | 176 N·m (130 lb-ft) |
BSPP (British Standard Pipe Parallel) Fittings
| Fitting Size | Thread Designation | Torque Value |
|---|---|---|
| 1/8″ | G1/8 | 15 N·m (11 lb-ft) |
| 1/4″ | G1/4 | 27 N·m (20 lb-ft) |
| 3/8″ | G3/8 | 41 N·m (30 lb-ft) |
| 1/2″ | G1/2 | 61 N·m (45 lb-ft) |
| 3/4″ | G3/4 | 88 N·m (65 lb-ft) |
| 1″ | G1 | 135 N·m (100 lb-ft) |
Hydraulic Hose Assembly Guidelines
- Minimum bend radius specifications
- Hose routing and clamping requirements
- Hose length measurement procedures
- Crimp pressure specifications
- Pressure rating identification
- Hose compatibility with fluids
- Installation torque procedures
- Inspection and replacement intervals
Section 3: O-Ring & Seal Specifications
O-Ring Size Reference Chart
AS568 Standard O-Ring Sizes (Commonly Used)
| Dash Number | ID (inches) | Cross Section | Groove Width |
|---|---|---|---|
| -006 | 0.236 | 0.070 | 0.083 ± 0.003 |
| -010 | 0.362 | 0.070 | 0.083 ± 0.003 |
| -012 | 0.424 | 0.070 | 0.083 ± 0.003 |
| -014 | 0.551 | 0.070 | 0.083 ± 0.003 |
| -016 | 0.614 | 0.070 | 0.083 ± 0.003 |
| -018 | 0.737 | 0.070 | 0.083 ± 0.003 |
| -020 | 0.862 | 0.070 | 0.083 ± 0.003 |
| -024 | 1.112 | 0.070 | 0.083 ± 0.003 |
| -110 | 0.487 | 0.103 | 0.120 ± 0.004 |
| -114 | 0.737 | 0.103 | 0.120 ± 0.004 |
| -116 | 0.862 | 0.103 | 0.120 ± 0.004 |
| -210 | 0.612 | 0.139 | 0.161 ± 0.005 |
| -214 | 0.987 | 0.139 | 0.161 ± 0.005 |
| -220 | 1.487 | 0.139 | 0.161 ± 0.005 |
O-Ring Material Specifications
- Nitrile (Buna-N) temperature range and compatibility
- Viton (FKM) applications and characteristics
- EPDM rubber specifications
- Silicone o-ring applications
- Polyurethane seal properties
- Teflon backup ring usage guidelines
Seal Installation Procedures
- Surface finish requirements (Ra values)
- Installation tools and techniques
- Lubrication recommendations
- Damage prevention guidelines
- Squeeze percentage specifications
- Groove dimension tolerances
Section 4: Fluid Specifications & Capacities
Engine Oil Specifications
Diesel Engine Oil Grades
| Temperature Range | Recommended Viscosity | API Rating |
|---|---|---|
| Above 0°C (32°F) | SAE 15W-40 | CJ-4 or higher |
| -18°C to 10°C (0°F to 50°F) | SAE 10W-30 | CJ-4 or higher |
| Below -18°C (0°F) | SAE 5W-30 | CJ-4 or higher |
| Arctic Conditions | SAE 0W-40 | CJ-4 or higher |
Hydraulic Oil Specifications
| Application | Viscosity Grade | Type |
|---|---|---|
| Standard Hydraulics | ISO VG 46 | Anti-wear hydraulic oil |
| Low Temperature | ISO VG 32 | Synthetic or mineral |
| High Temperature | ISO VG 68 | Anti-wear hydraulic oil |
| Hydrostatic Transmission | ISO VG 46 | HTF (Hydraulic Transmission Fluid) |
Transmission & Gear Oil Specifications
| Application | Viscosity | Specification |
|---|---|---|
| Manual Transmission | SAE 80W-90 | GL-5 |
| Powershift Transmission | John Deere Hy-Gard | Proprietary |
| Final Drives | SAE 85W-140 | GL-5 |
| Front Axle Differential | SAE 80W-90 | GL-5 or Hy-Gard |
Coolant Specifications
- Ethylene glycol antifreeze concentration
- Propylene glycol alternatives
- Corrosion inhibitor additives
- pH level requirements (8.0-11.0)
- Freeze point protection chart
- Coolant service life intervals
- Mixing ratio guidelines

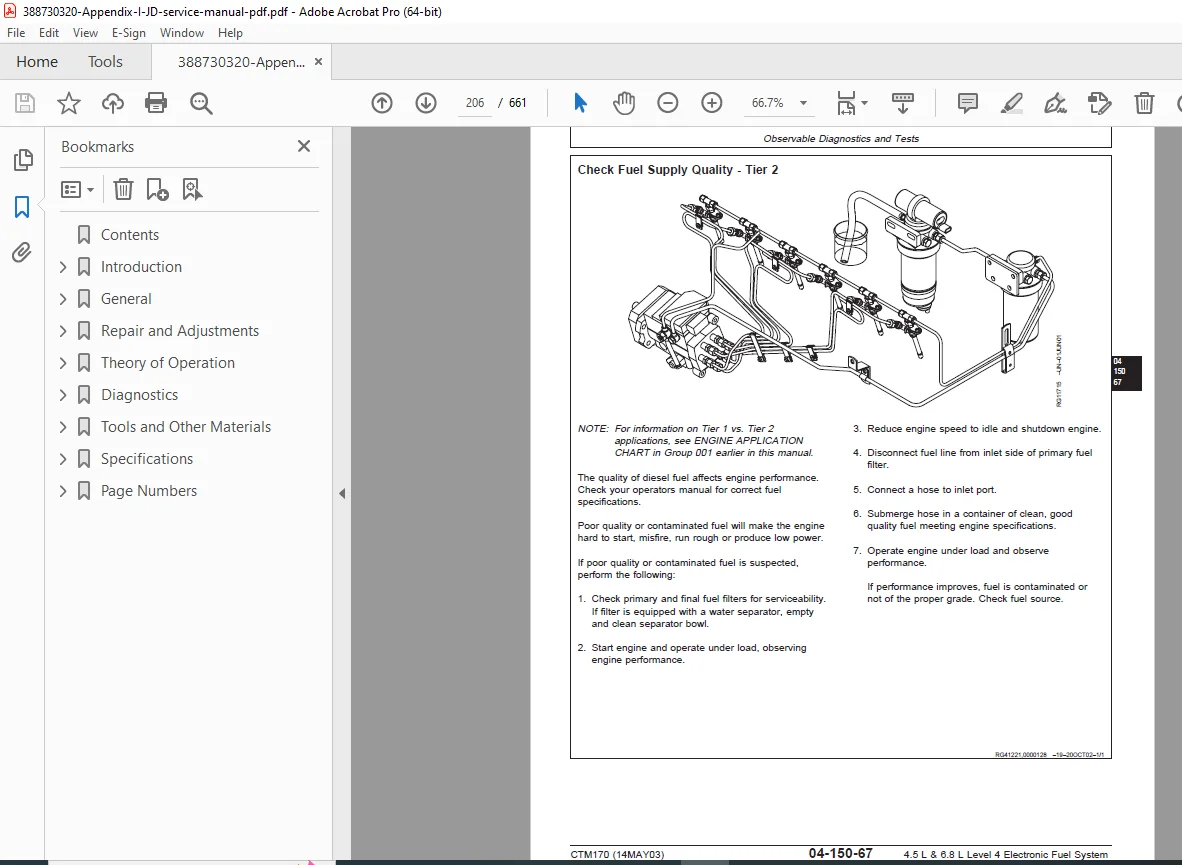

Fuel System Specifications
- Diesel fuel cetane rating requirements
- Biodiesel blend compatibility (B5, B20)
- Fuel filter micron ratings
- Water separator service intervals
- Fuel additive recommendations
- Cold weather fuel treatment
Section 5: Electrical System Specifications
Battery Specifications
| Application | CCA Rating | Voltage | Group Size |
|---|---|---|---|
| Small Tractors | 400-600 CCA | 12V | U1, Group 26 |
| Mid-Size Tractors | 700-900 CCA | 12V | Group 31 |
| Large Tractors | 900-1200 CCA | 12V | 4D, 8D |
| Heavy Equipment | 1200+ CCA | 12V or 24V | Multiple batteries |
Electrical Wire Gauge Chart
| Current (Amps) | 10 ft Length | 15 ft Length | 20 ft Length |
|---|---|---|---|
| 5 | 18 AWG | 18 AWG | 16 AWG |
| 10 | 16 AWG | 14 AWG | 14 AWG |
| 15 | 14 AWG | 12 AWG | 10 AWG |
| 20 | 12 AWG | 10 AWG | 10 AWG |
| 30 | 10 AWG | 8 AWG | 8 AWG |
| 50 | 8 AWG | 6 AWG | 6 AWG |
| 100 | 4 AWG | 2 AWG | 2 AWG |
Fuse and Circuit Breaker Ratings
- Lighting circuit protection
- Accessory circuit ratings
- Starter circuit protection
- Charging system protection
- Electronic control unit circuits
- Color coding standards
Section 6: Tire & Wheel Specifications
Tire Pressure Specifications (Sample Reference)
| Tire Size | Application | Front PSI | Rear PSI |
|---|---|---|---|
| 7.5L-15 | Small tractor | 20-24 | 28-32 |
| 11.2-24 | Utility tractor | 18-22 | 24-28 |
| 13.6-38 | Row crop tractor | 16-20 | 20-24 |
| 18.4-38 | Large tractor | 14-18 | 18-22 |
| 480/80R46 | Radial (large) | 20-26 | 20-26 |
Wheel Nut Torque Specifications
| Wheel Type | Stud Size | Torque Value |
|---|---|---|
| Small Tractor | 1/2″-20 | 108 N·m (80 lb-ft) |
| Utility Tractor | 5/8″-18 | 203 N·m (150 lb-ft) |
| Large Tractor | 3/4″-16 | 339 N·m (250 lb-ft) |
| Dual Wheels | Various | Per specification |
Ballast Weight Guidelines
- Front-to-rear weight distribution ratios
- Liquid ballast fill procedures
- Calcium chloride solution concentrations
- Wheel weight installation guidelines
Section 7: Drive Belt Specifications
V-Belt Tension Specifications
| Belt Cross Section | Deflection Force | Belt Deflection |
|---|---|---|
| A (1/2″ width) | 2.3 kg (5 lb) | 10-16 mm |
| B (5/8″ width) | 3.6 kg (8 lb) | 10-16 mm |
| C (7/8″ width) | 5.4 kg (12 lb) | 13-19 mm |
| D (1-1/4″ width) | 9.1 kg (20 lb) | 16-25 mm |
Belt Identification & Sizing
- Cross-sectional dimensions
- Effective length measurement
- Power rating calculations
- Sheave diameter requirements
- Belt alignment procedures
- Wear limit inspection criteria
Section 8: Conversion Tables & Charts
Metric/Imperial Conversion
Length Conversions
- Millimeters ↔ Inches
- Centimeters ↔ Inches
- Meters ↔ Feet/Yards
- Kilometers ↔ Miles
Pressure Conversions
- PSI ↔ kPa ↔ Bar
- Inches Hg ↔ kPa
- Feet of water ↔ PSI
Torque Conversions
- Newton-meters ↔ Pound-feet
- Newton-meters ↔ Pound-inches
- Kilogram-meters ↔ Pound-feet
Temperature Conversion
- Celsius ↔ Fahrenheit formulas
- Temperature equivalence chart
Volume/Capacity Conversions
- Liters ↔ Gallons (US)
- Cubic centimeters ↔ Cubic inches
- Milliliters ↔ Fluid ounces
Weight/Mass Conversions
- Kilograms ↔ Pounds
- Grams ↔ Ounces
- Metric tons ↔ Short tons
Speed Conversions
- km/h ↔ mph
- m/s ↔ ft/s
Section 9: Lubrication & Service Intervals
Standard Service Intervals
Daily Service (Every 10 Hours)
- Engine oil level check
- Coolant level verification
- Hydraulic oil level check
- Air cleaner indicator inspection
- Visual leak inspection
- Tire pressure verification
Weekly Service (Every 50 Hours)
- Lubrication point servicing
- Battery electrolyte level (if applicable)
- Belt tension inspection
- Air cleaner cleaning
- Radiator screen cleaning
Monthly Service (Every 100-250 Hours)
- Engine oil and filter change
- Fuel filter replacement
- Hydraulic filter replacement
- Transmission filter service
- Grease all pivot points
- Battery terminal cleaning
Seasonal Service (Every 500-1000 Hours)
- Complete fluid changes
- Major component inspection
- Cooling system service
- Brake system inspection
- Hydraulic hose inspection
Section 10: Thread & Fastener Identification
Thread Pitch Gauges
- Metric thread pitch identification
- SAE/Imperial thread pitch (TPI)
- Fine vs. coarse thread applications
- Left-hand thread identification
Fastener Marking & Grade Identification
- Metric grade markings (8.8, 10.9, 12.9)
- SAE grade identification (2, 5, 8)
- Stainless steel identification
- Specialty fastener markings
Thread Repair Procedures
- Helicoil installation guidelines
- Thread insert sizing
- Drill and tap sizes
- Time-Sert installation
- Thread restoration techniques
Section 11: Diagnostic & Test Procedures
Hydraulic System Testing
- Pressure gauge connection points
- Flow meter testing procedures
- Temperature monitoring guidelines
- Contamination sampling methods
- Relief valve adjustment procedures
Electrical System Testing
- Voltage drop testing procedures
- Resistance testing methods
- Continuity testing guidelines
- Amperage draw measurements
- Diode testing procedures
- Alternator output testing
Engine Performance Testing
- Compression test procedures
- Cylinder leakdown test methods
- Fuel pressure testing
- Turbocharger boost pressure
- Exhaust backpressure testing
- Oil pressure verification
Section 12: Special Tools & Equipment

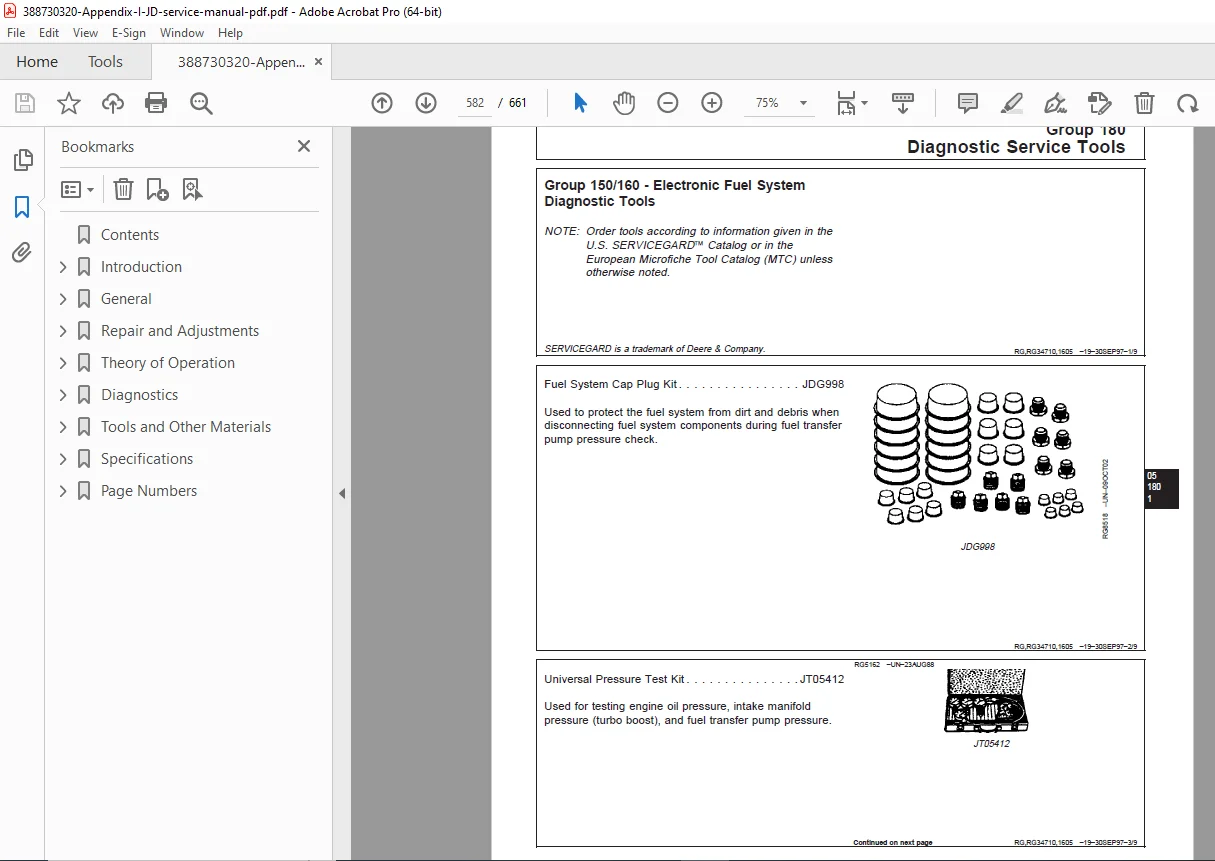

Recommended Specialty Tools
- Torque wrench specifications and calibration
- Hydraulic pressure test gauges
- Multimeter specifications
- Dial indicator usage
- Micrometer and caliper guidelines
- Bearing puller applications
- Press fitting procedures
Lifting & Handling Equipment
- Safe lifting capacity charts
- Jack stand placement guidelines
- Component weight references
- Rigging and slinging procedures
- Overhead lift point locations
Technical Reference Applications
How to Use This Appendix
- Cross-referencing with primary service manuals
- Specification lookup procedures
- Torque value application guidelines
- Fluid selection decision trees
- Troubleshooting reference integration
Quality Control Standards
- Surface finish specifications (Ra values)
- Dimensional tolerance guidelines
- Assembly verification procedures
- Test parameter acceptance criteria
- Final inspection checklists
Why This Technical Appendix Is Essential
Professional John Deere technicians rely on this service manual appendix as the universal reference for specifications and procedures applicable across multiple equipment models. Eliminates the need to search through individual service manuals for common technical data.
Critical Reference for:
- Service Technicians: Quick torque specification lookup during repairs
- Fleet Maintenance: Standardized fluid and service interval reference
- Parts Departments: Fastener and fitting identification
- Quality Control: Specification verification and compliance
- Training Programs: Technical standards education
Eliminates Guesswork:
- No more estimating torque values
- Correct fluid specifications every time
- Proper fastener grade selection
- Accurate conversion calculations
- Standardized service procedures
Instant Digital Access
Download immediately and keep this essential technical reference readily available in your shop or service vehicle. Searchable PDF format allows instant lookup of specifications during service procedures. Print frequently referenced pages for shop wall mounting or workbench quick reference.
Never guess at specifications again – download this comprehensive 74-page John Deere technical appendix now and ensure every repair meets factory standards with accurate torque values, fluid specs, and service procedures!
Pricing Rationale:
- 74-page technical reference appendix
- Universal specifications across John Deere equipment
- Essential supplementary documentation
- Frequently referenced during all service procedures
- Valuable time-saver for technicians
- Competitive pricing for reference material
- High utility value despite being a supplement
