John Deere Skid Steer 240 250 Technical Manual – PDF DOWNLOAD
DESCRIPTION:
John Deere Skid Steer 240 250 Technical Manual – PDF DOWNLOAD
Serial No. 100100 –
TM1747 (Nov2000)
INTRODUCTION :
This technical manual is written for an experienced technician and contains sections that are specifically for this product. It is a part of a total product support program.
The manual is organized so that all the information on a particular system is kept together. The order of grouping is as follows:
• Table of Contents
• Specifications
• Theory of Operation
• Troubleshooting Diagram
• Diagnostics
• Tests & Adjustments
• Repair
TABLE OF CONTENTS:
John Deere Skid Steer 240 250 Technical Manual – PDF DOWNLOAD
SPECIFICATIONS 2
ENGINE2
FUEL SYSTEM 2
ELECTRICAL SYSTEM2
CAPACITIES2
HYDRAULICS AND HYDROSTATICS 3
DIMENSIONS—2403
DIMENSIONS—2504
TIRES 4
RECOMENDED LUBRICANTS4
METRIC FASTENER TORQUE VALUES 5
METRIC FASTENER TORQUE VALUES—GRADE 7 6
INCH FASTENER TORQUE VALUES 7
O-RING SEAL SERVICE RECOMMENDATIONS 8
FACE SEAL FITTINGS WITH INCH STUD ENDS TORQUE 8
FACE SEAL FITTINGS WITH METRIC STUD ENDS TORQUE 9
O-RING FACE SEAL FITTINGS 10
O-RING BOSS FITTINGS 10
DIESEL FUEL SPECIFICATIONS11
LUBRICITY11
STORAGE 11
ENGINE OIL SPECIFICATIONS 12
4-CYCLE DIESEL ENGINE OIL—NORTH AMERICA12
BREAK-IN DIESEL ENGINE OIL—NORTH AMERICA 13
HYDROSTATIC TRANSMISSION AND HYDRAULIC OIL—NORTH AMERICA 13
CHAIN CASE OIL SPECIFICATIONS14
CHAIN CASE OIL—NORTH AMERICA 14
GENERAL APPLICATION GREASE SPECIFICATIONS15
GREASE—NORTH AMERICA15
COOLANT SPECIFICATIONS15
DIESEL AND GASOLINE ENGINE COOLANT—NORTH AMERICA15
SUPPLEMENTAL COOLANT ADDITIVES16
DIESEL AND GASOLINE ENGINE COOLANT DRAIN INTERVAL—NORTH
AMERICA 16
SERIAL NUMBER LOCATION17
SKID STEER PRODUCT IDENTIFICATION NUMBER 17
ENGINE SERIAL NUMBER 17
2 – 2 11/22/00
SPECIFICATIONS SPECIFICATIONS AND INFORMATION
SPECIFICATIONS
ENGINE
Make John Deere
TypeDiesel
Engine Model Number
• 240 3029D
• 2503029T
Net Horsepower at rated engine RPM (2400 RPM)
• 240 (S/N -240852) 343 kW (46 hp)
• 240 (S/N 240853- ) 38 kW (51 hp)
• 250 455 kW (61 hp)
Cylinders 3
Bore106 mm (417 in)
Stroke 110 mm (433 in)
Displacement 29 L (179 cu in)
Compression Ratio 178:1
Rated Engine RPM 2400
Lubrication Full pressure
Oil Filter Full flow (replaceable)
Air CleanerDry paper with primary and secondary elements
Cooling SystemLiquid-cooled
FUEL SYSTEM
Fuel Diesel #2
Fuel FilterIn-line replaceable filter
Fuel PumpElectric
Fuel Delivery Rotary injection
ELECTRICAL SYSTEM
Type 12-volt, electric start
Charging System Alternator, 55 amp
Battery 750 CCA (cold cranking amps)
CAPACITIES
Fuel Tank 567 L (15 gal)
Hydraulic Reservoir156 L (41 gal)
Hydraulic System 23 L (6 gal)
Cooling System 95 L (10 qt)
Engine Oil (with Filter) 65 L (69 qt)
Chain Case (per Side) 114 L (3 gal)
11/22/00 2 – 3
SPECIFICATIONS AND INFORMATION SPECIFICATIONS
HYDRAULICS AND HYDROSTATICS
Hydrostatic Pumps
• Type Tandem variable displacement piston pump
• Displacement (Max) 406 cm3 (248 in3) per revolution
Hydrostatic Motors
• Type GEROLER® fixed displacement 30 series
Hydraulic/Charge Pump (Standard Flow)
• 240 491 L/min (13 gpm)
• 250567 L/min (15 gpm)
Hydraulic/Charge Pump with High-Flow (Optional)
• 240 848 L/min (224 gpm)
• 250 981 L/min (259 gpm)
Hydrostatic System Relief Pressure 34 474 kPa (5000 psi)
Charge Pressure 1448 kPa (210 psi)
Hydraulic Control Valve 3 spool open center
Filter Spin-on canister
Hydraulic System Relief Pressure21 374 kPa (3100 psi)
Boom Circuit Relief Pressure 22 753 kPa (3300 psi)
Bucket Circuit Relief Pressure (early models only)N/A
Note: Bucket relief valve should have been removed in Safety PIP 99KV004 or 00KV007
Boom Breakout Force 1406 kg (3100 lb)
Bucket Breakout Force 2495 kg (5500 lb)
DIMENSIONS—240
(See note below)
Operating Weight 2811 kg (6195 lb)
SAE Rated Operating Capacities681 kg (1500 lb)
Maximum Ground Speed117 km/h (73 mph)
Overall Operating Height3599 mm (1417 in)
Height to ROPS 1915 mm (754 in)
Height to Hinge Pin2895 mm (114 in)
Overall Width (less Bucket)1627 mm (641 in)
Overall Width (with Bucket) 1676 mm (66 in)
Overall Length (less Bucket) 2591 mm (102 in)
Overall Length (with Bucket) 3196 mm (1258 in)
Wheelbase1075 mm (423 in)
Ground Clearance 209 mm (82 in)
Dump Height 2255 mm (888 in)
Dump Reach738 mm (291 in)
Dump Angle 45 degrees
Bucket Rollback 35 degrees
Angle of Departure26 degrees
NOTE: Standard tires (10 x 165) and 66 in foundry bucket used in
determining dimensions
GEROLER is a registered trademark of Eaton Corporation
2 – 4 11/22/00
SPECIFICATIONS SPECIFICATIONS AND INFORMATION
DIMENSIONS—250
(See note below)
Operating Weight 2854 kg (6290 lb)
SAE Rated Operating Capacities794 kg (1750 lb)
Maximum Ground Speed114 km/h (71 mph)
Overall Operating Height3637 mm (1432 in)
Height to ROPS 1950 mm (768 in)
Height to Hinge Pin 2925 mm (1152 in)
Overall Width (less Bucket)1750 mm (689 in)
Overall Width (with Bucket) 1829 mm (72 in)
Overall Length (less Bucket) 2591 mm (102 in)
Overall Length (with Bucket) 3196 mm (1258 in)
Wheelbase1075 mm (423 in)
Ground Clearance 244 mm (96 in)
Dump Height 2290 mm (902 in)
Dump Reach715 mm (281 in)
Dump Angle 45 degrees
Bucket Rollback 35 degrees
Angle of Departure27 degrees
NOTE: Standard tires (12 x 165) and 72 in foundry bucket used in
determining dimensions
TIRES
240 10 x 165
250 12 x 165
RECOMENDED LUBRICANTS
Engine OilJohn Deere TORQ-GARD SUPREME® or
PLUS-50®
(See ENGINE OIL in the ENGINE section for cold weather oil)
Engine Coolant John Deere COOL-GARD™
Hydraulic Oil and Hydrostatic OilJohn Deere HY-GARD®
John Deere Low Viscosity HY-GARD® (cold weather operation)
GreaseJohn Deere HIGH TEMPERATURE EP GREASE
John Deere MOLY HIGH TEMPERATURE EP GREASE (non-clay)
Chain Case Oil John Deere HY-GARD®
John Deere Low Viscosity HY-GARD® (cold weather operation)
John Deere TORQ-GARD SUPREME® or PLUS-50®

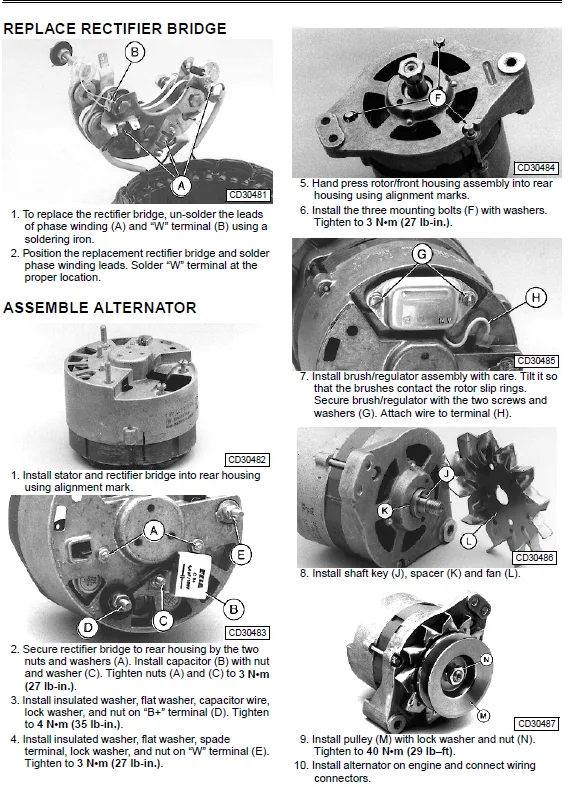

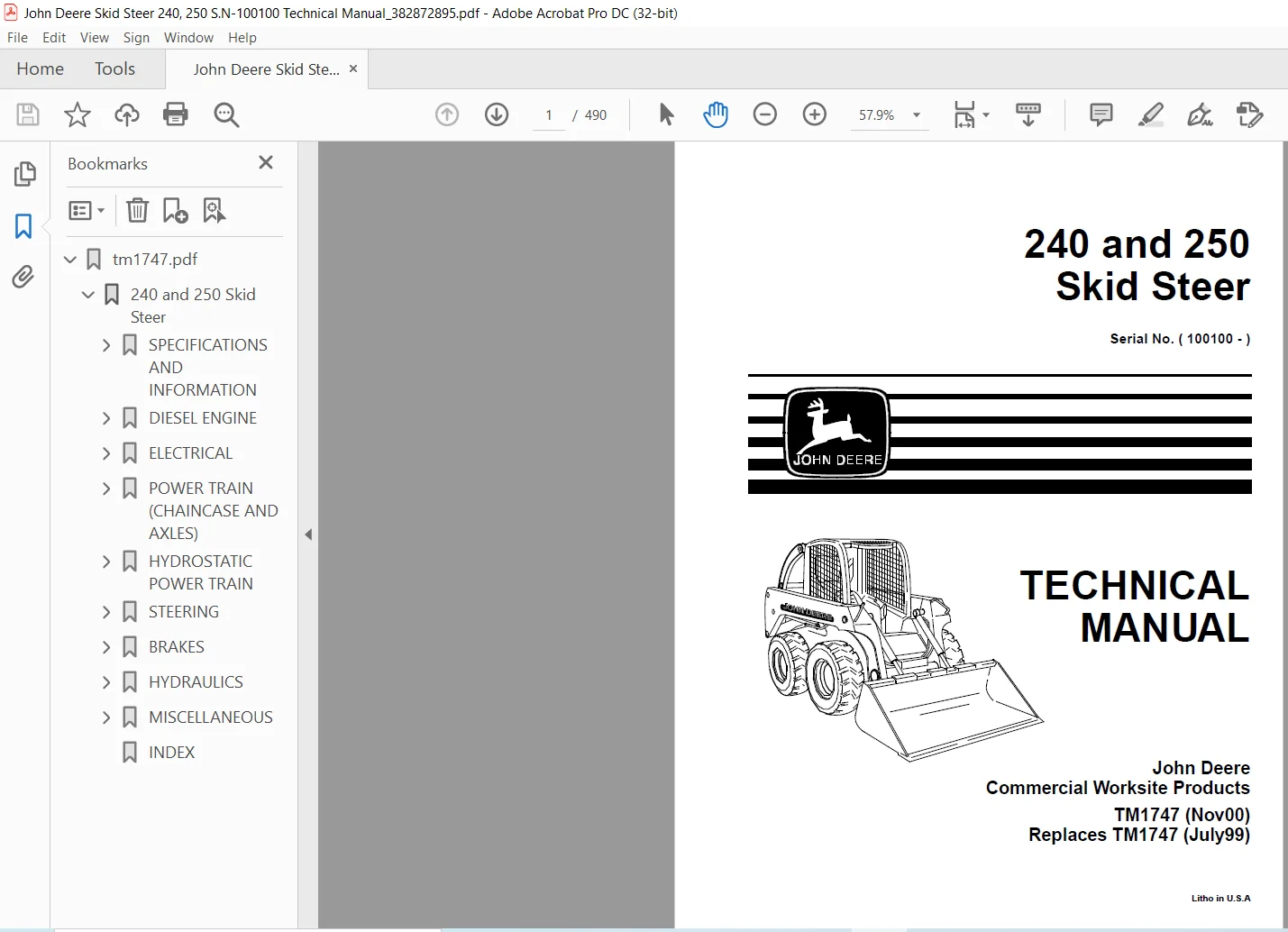

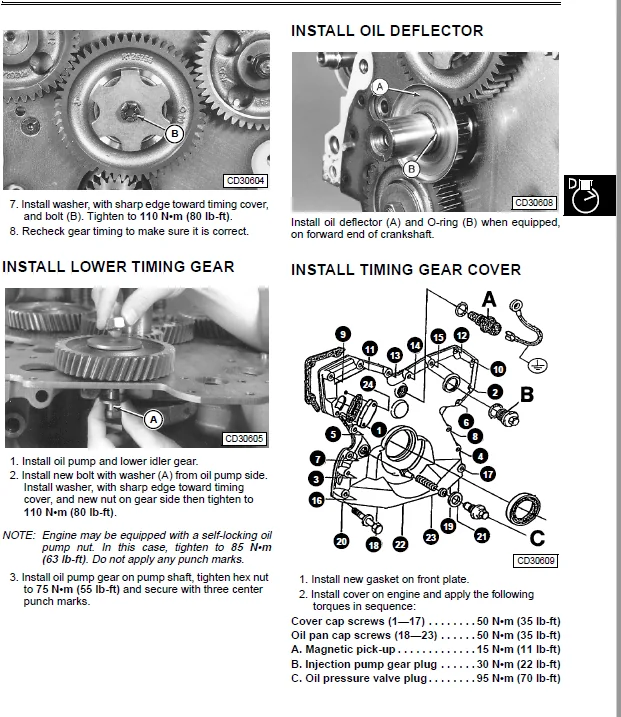

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
